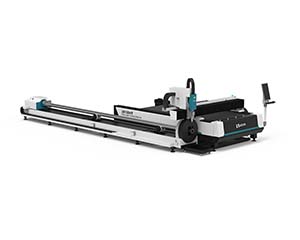

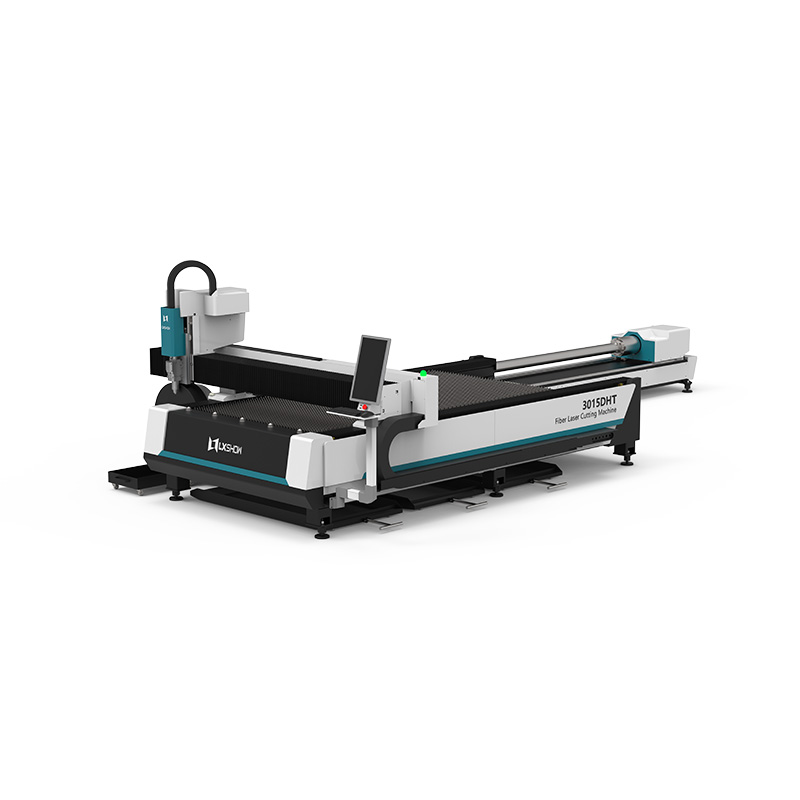

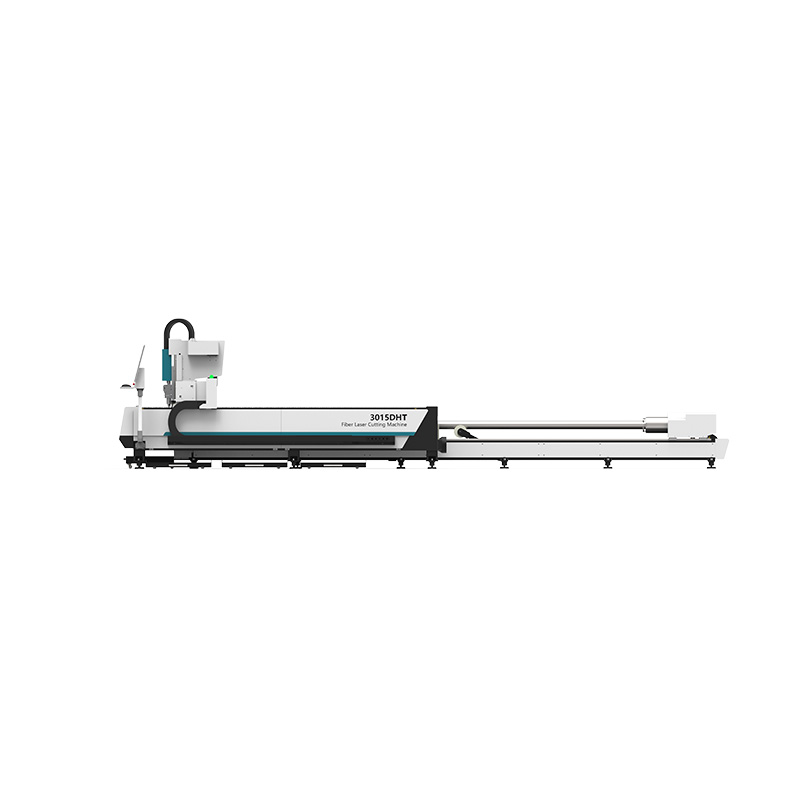

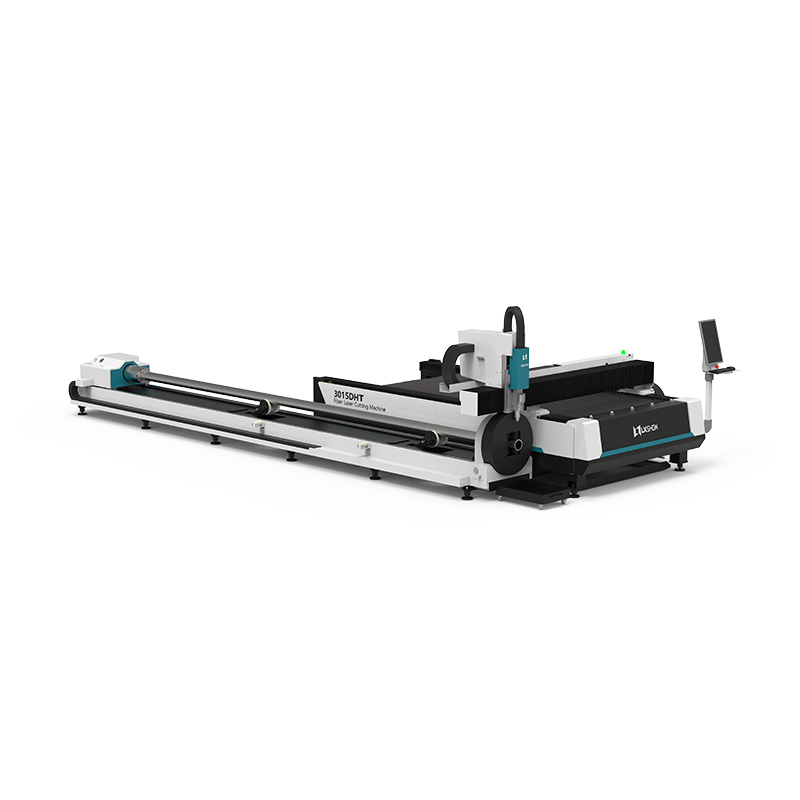

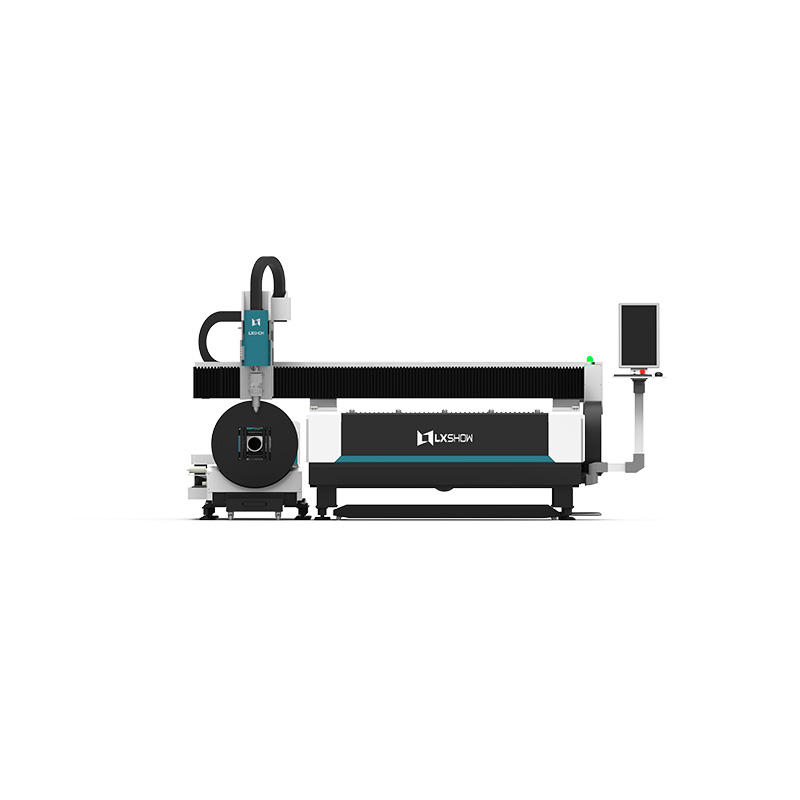

| Machine Model | LX3015DHT |
| Power of Generator | 1-30KW (optional) |
| Dimension | 8145*4771*2005mm |
| Working Area | 1500*3000mm |
| Repeated Positioning Accuracy | ±0.02mm |
| Max Running Speed | 120m/min |
| Max Acceleration | 1.5G |
| Specified Voltage And Frequency | 380V 50/60HZ |

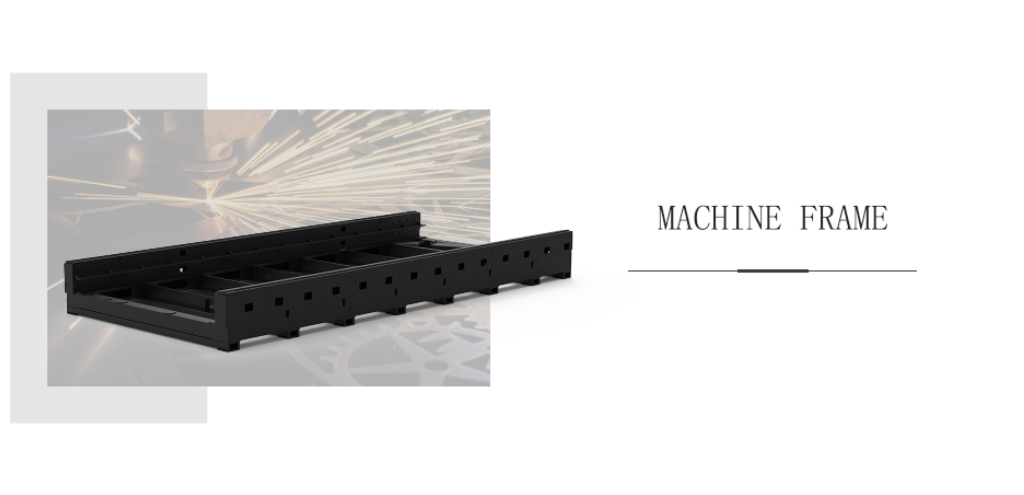

Heavy duty tube welding bed, with heavy weight, low center of gravity, convenient feeding metal materials and stable operation.

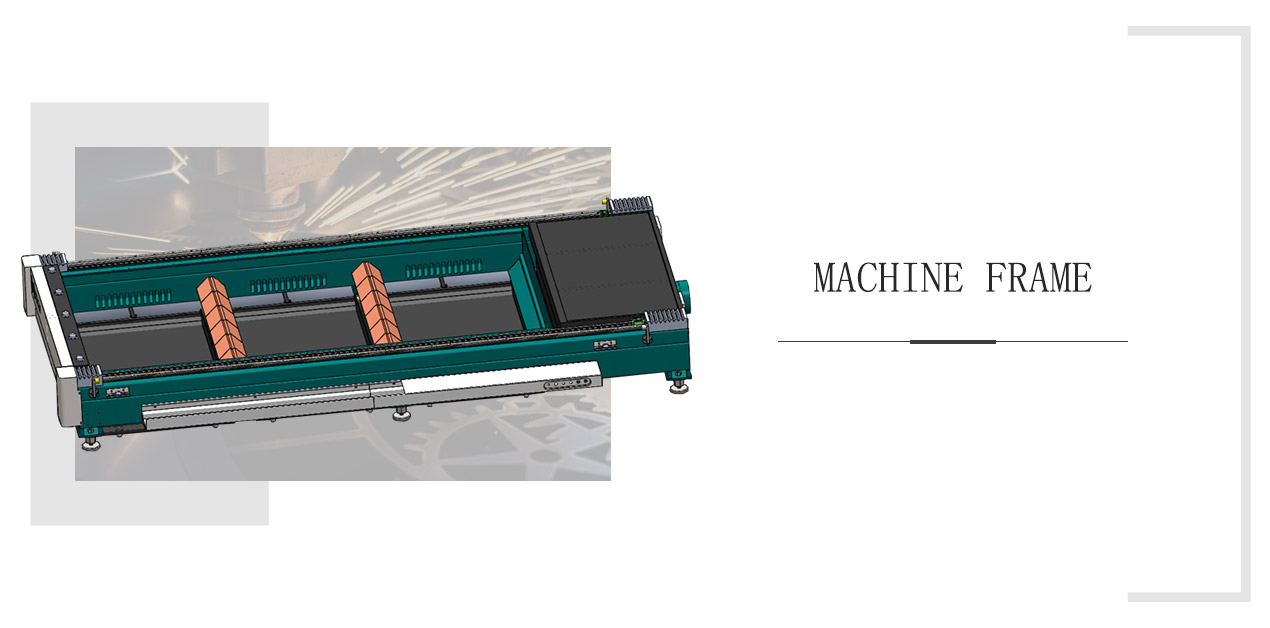

The bed is protected by fire-resistant bricks to prevent the bed from being deformed by heat.

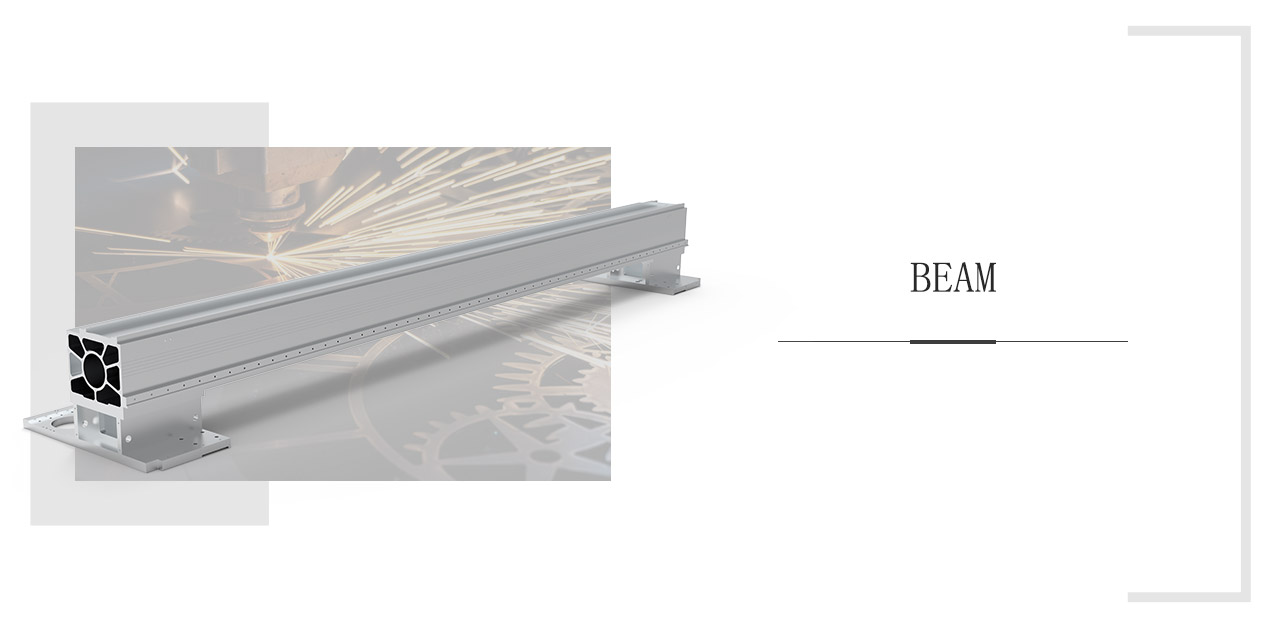

Adopted the integrated aviation aluminum beam reduces the weight of the beam and maximizes the rigidity of the beam.

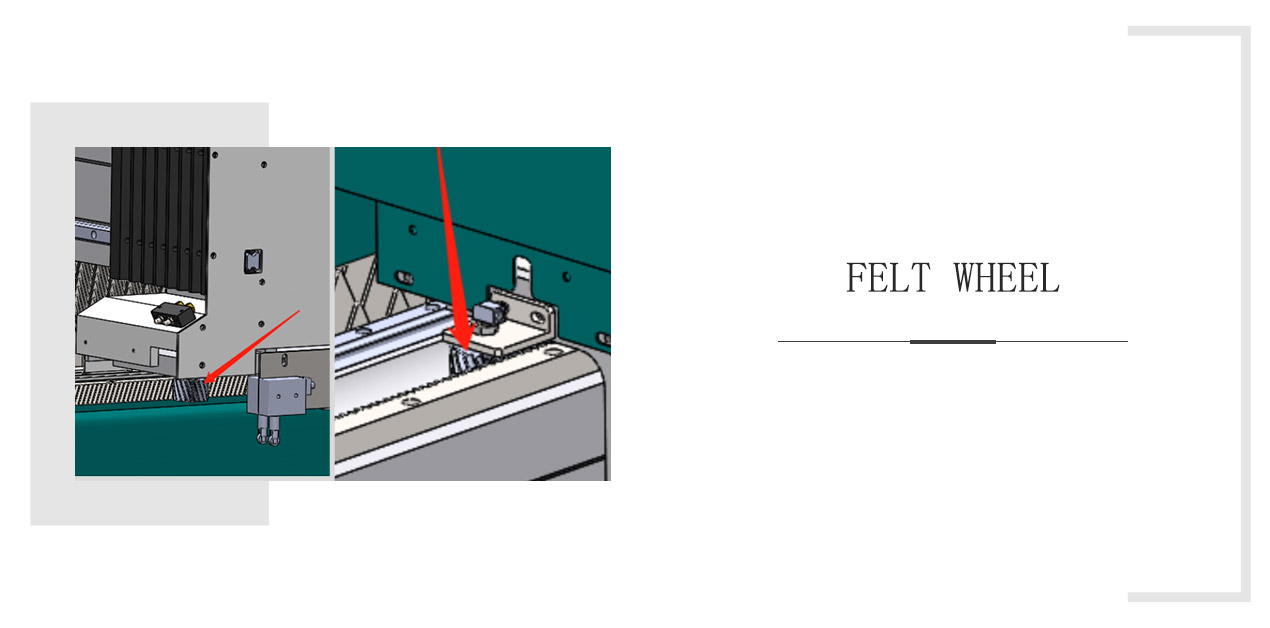

Gear is equipped with felt wheel automatic lubrication as standard, which can fully lubricate the gear, improve gear’s service life and prevent the accumulation of lubrication oil, which may cause fire hazards.
Fiber Laser Metal Cutting Machine is suitable for metal cutting like Stainless Steel, Mild Steel, Carbon Steel, Alloy Steel, Spring steel, Iron, Galvanized Iron, Galvanized, Aluminum, Copper, Brass, Bronze, Titanium, etc.
Fiber Laser Cutting Machines are widely used in manufacture Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal crafts, metal art ware, elevator panel cutting, hardware, auto parts, Glasses Frame, Electronic Parts, Nameplates, etc.

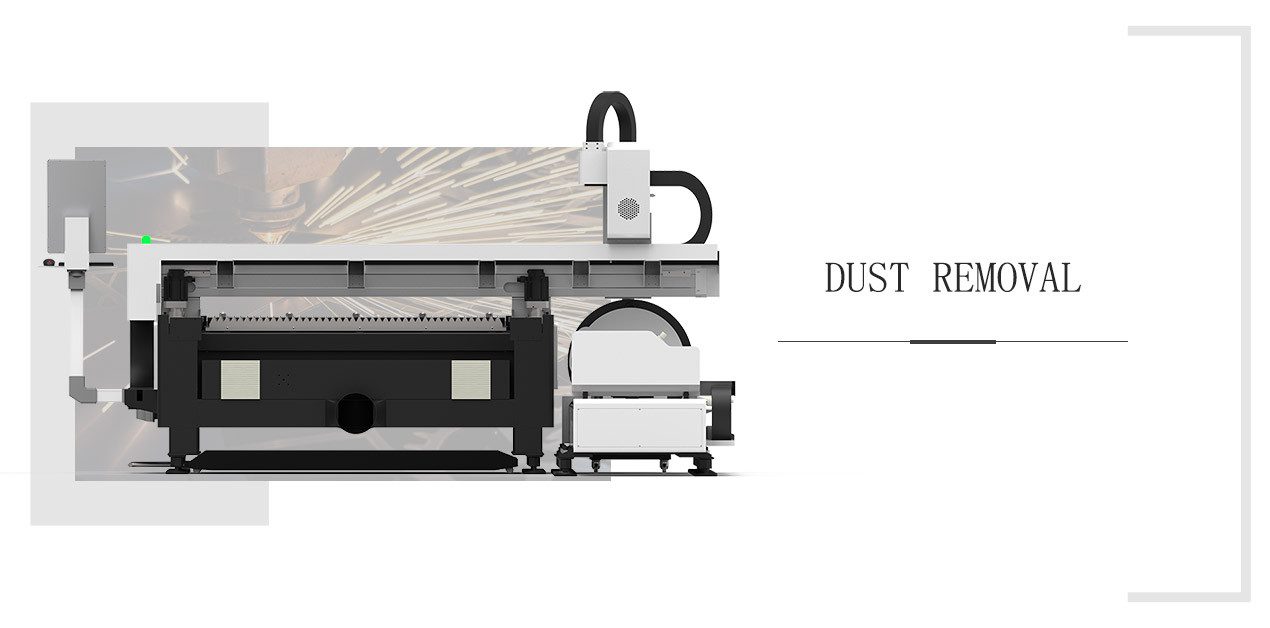

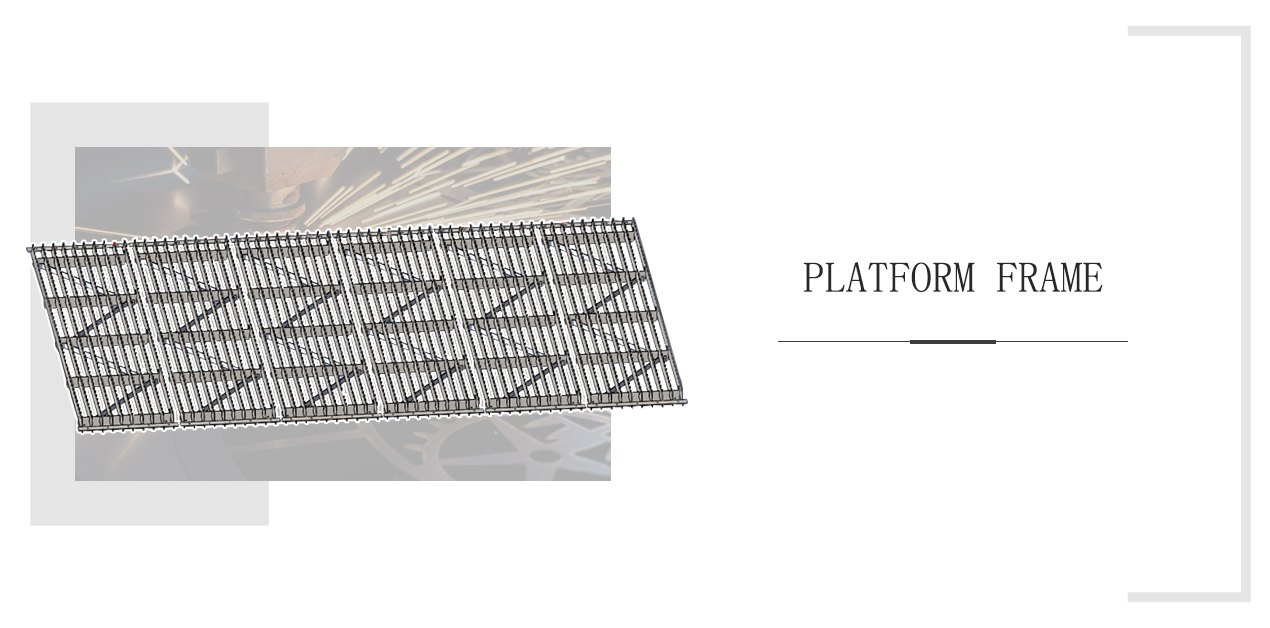

The diameter 220mm large dust removal duct ensures the dust removal effect. The platform frame adopts a grouped design to improve the overall load-bearing capacity.

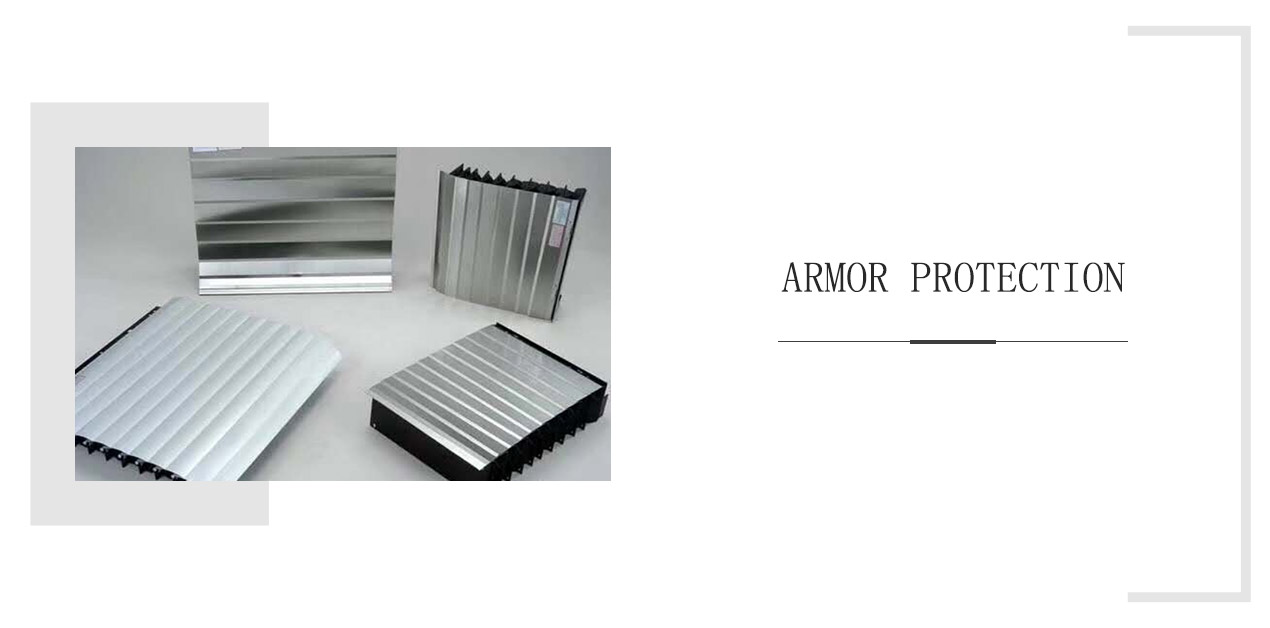

The Y-axis cover is equipped with stainless steel armor protection as standard to prevent burn and improve the service life of the organ cover.

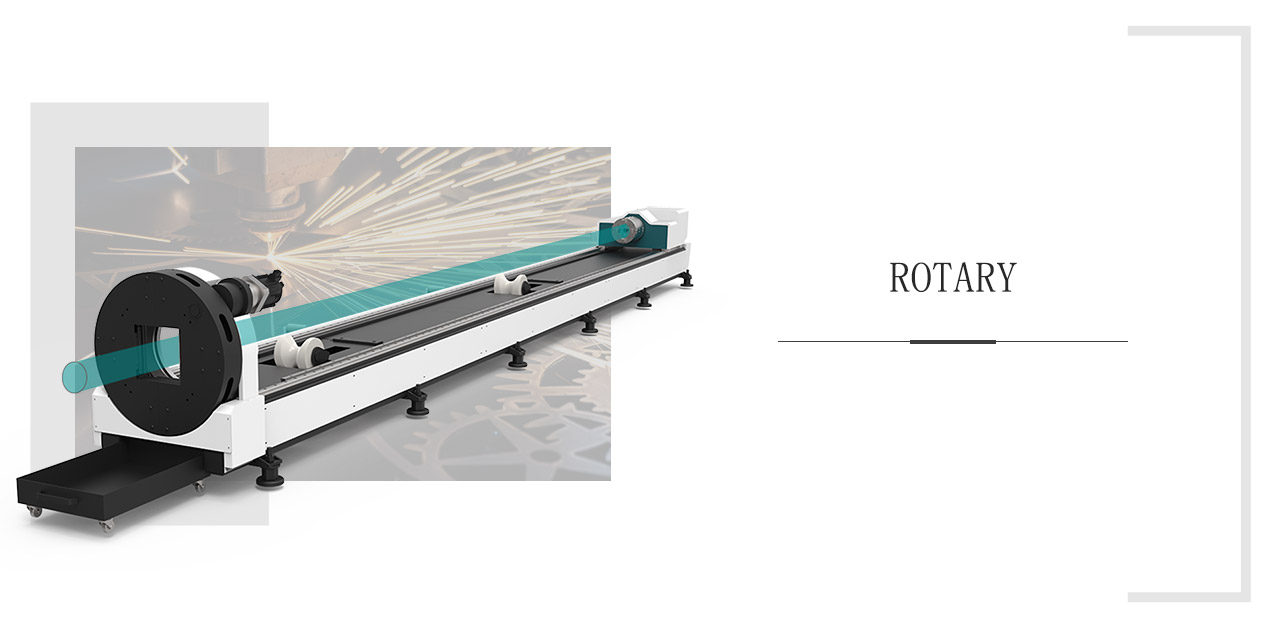

Rotary Length: 6m standard, 8m and other sizes can be customized.
Rotary Diameter: 160/220mm standard. Other sizes can be customized.
Chuck: Pneumatic control on both sides.

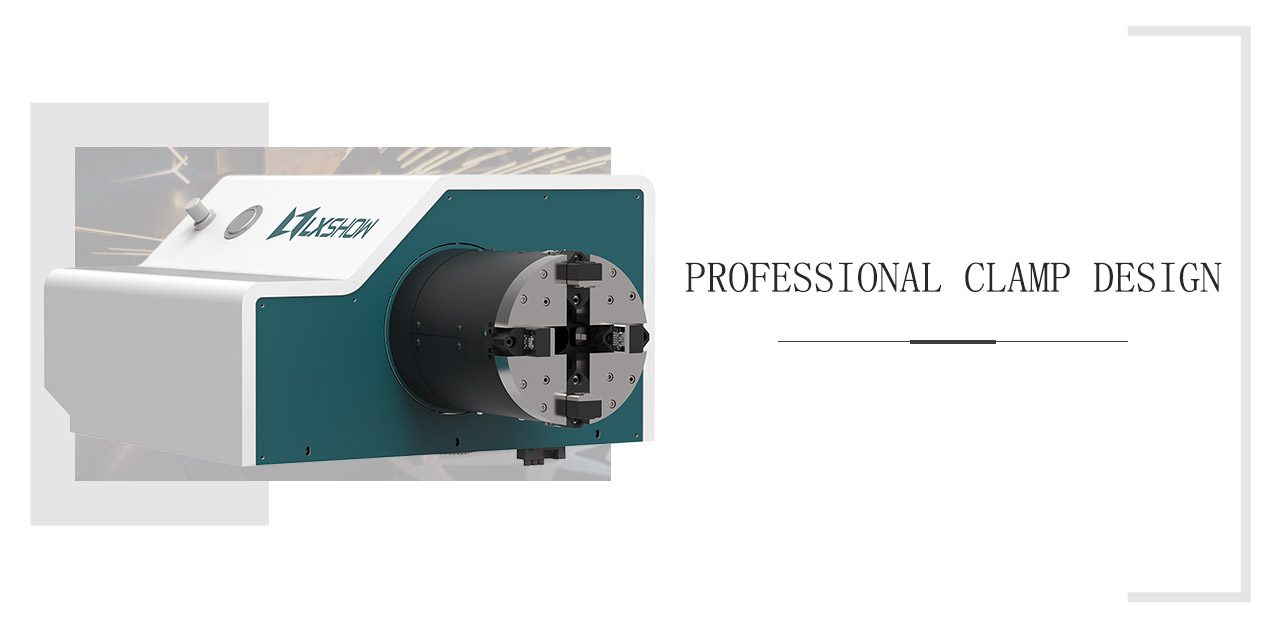

It adopts an pneumatic clamp design on both sides and it can modulate the center automatically. The diagonal adjustable range is 20-220mm (320/350 is optional).

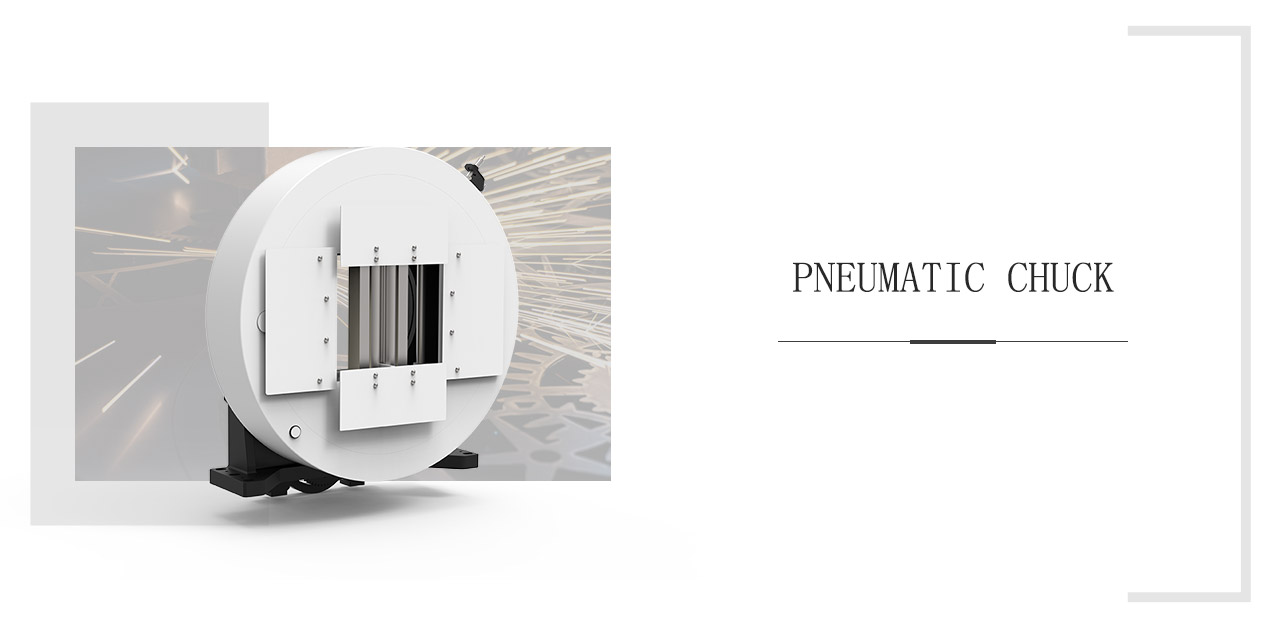

Automatic pneumatic chuck, adjustable and stable, clamping range is wider and clamping force is larger. Non-destructive pipe clamping, fast automatic centering and clamping pipe, performance is more stable. The chuck size is smaller, rotation inertia is low, and dynamic performance is strong. Self-centering pneumatic chuck, gear transmission mode, higher transmission efficiency, long working life and high work reliability.

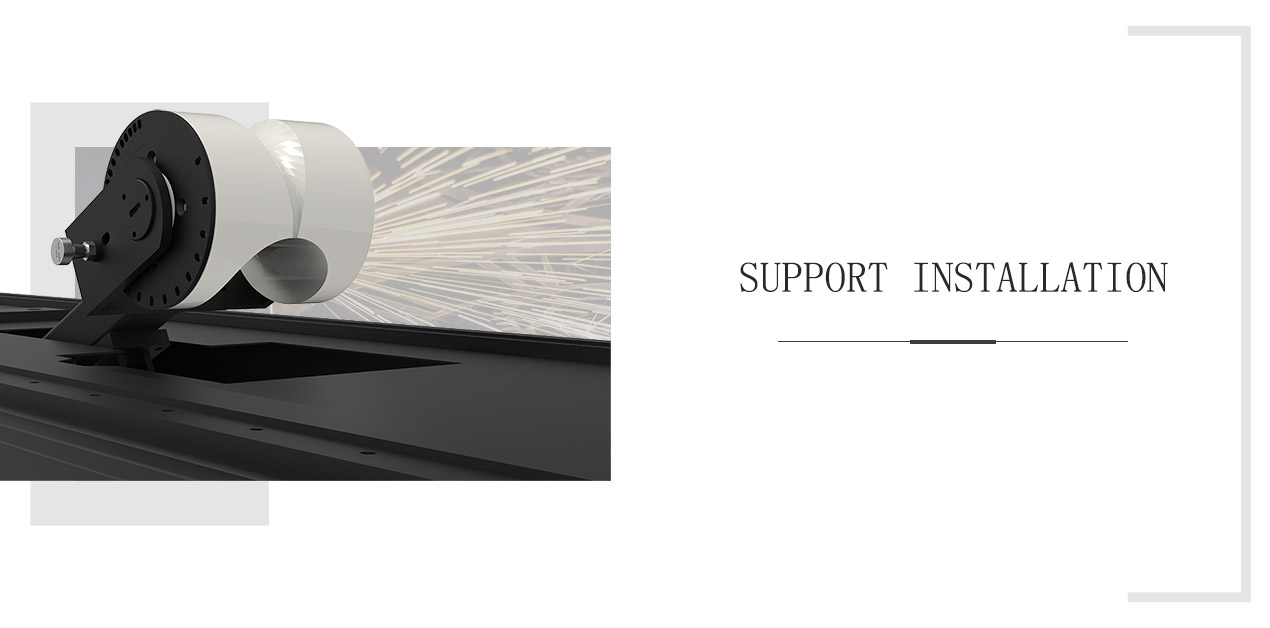

It employs intelligent tube support design, which can solve the deformation problems in the process of long tube cutting.
