📊 Technical Specifications

Model Specification		LX62THA	LX63THA
Effective Tube Cutting Length		6500mm / 9200mm	6500mm / 9200mm
Laser Output Power		12000w / 10000w / 8000w / 6000w / 4000w / 3000w / 2000w / 1500w / 1000w
Effective Round Tube Cutting Diameter		Φ20-230mm	Φ20-330mm
Effective Square Tube Cutting Diameter		□2020mm - □160160mm	□2020mm - □235235mm
MAX Weight of Chuck		170KG	400KG
Rectangular Tube	Edge Length	20-170mm	20-270mm
Rectangular Tube	Outer Circle Diameter	≤230mm	≤330mm
X/Y-axis Positioning Accuracy		0.03mm
X/Y-axis Repositioning Accuracy		0.02mm
X Axis Maximum Speed		100m/min
Y Axis Maximum Speed		95m/min
Chunk Speed		100r/min
Chunk Type		Pneumatic
Weight of Whole Machine (About)		8000KG
Weight of Whole Machine Include Loading Equipment		13000KG
Machine Size		1200031002450mm
Machine Size Include Loading Equipment		1200050002450mm

⚙️ Advanced Design Modules

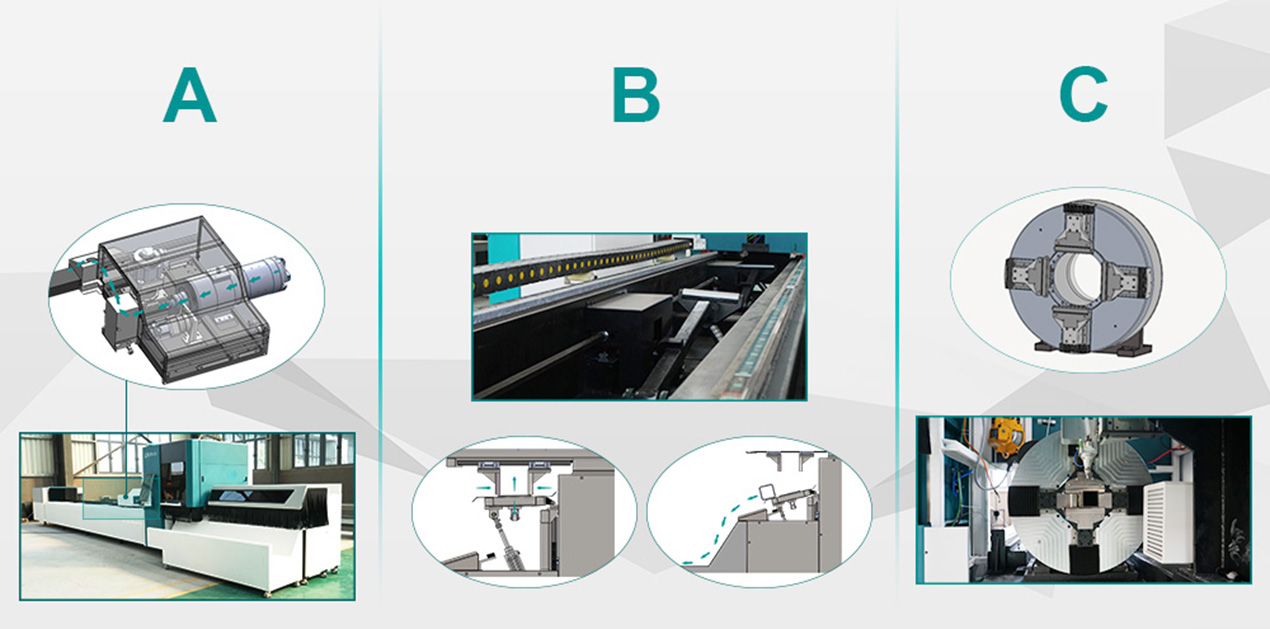

Double Exhaust System: Ensures optimal fume extraction matching front and rear chuck step-by-step level processing. The rear chuck is equipped with a waste collection system.
Follow-up Support Component System: Guarantees the support frame always follows the pipe to prevent cutting errors caused by deformation. Features front, rear, left, and right dual modules with automatic tilting and blanking to prevent scratches.

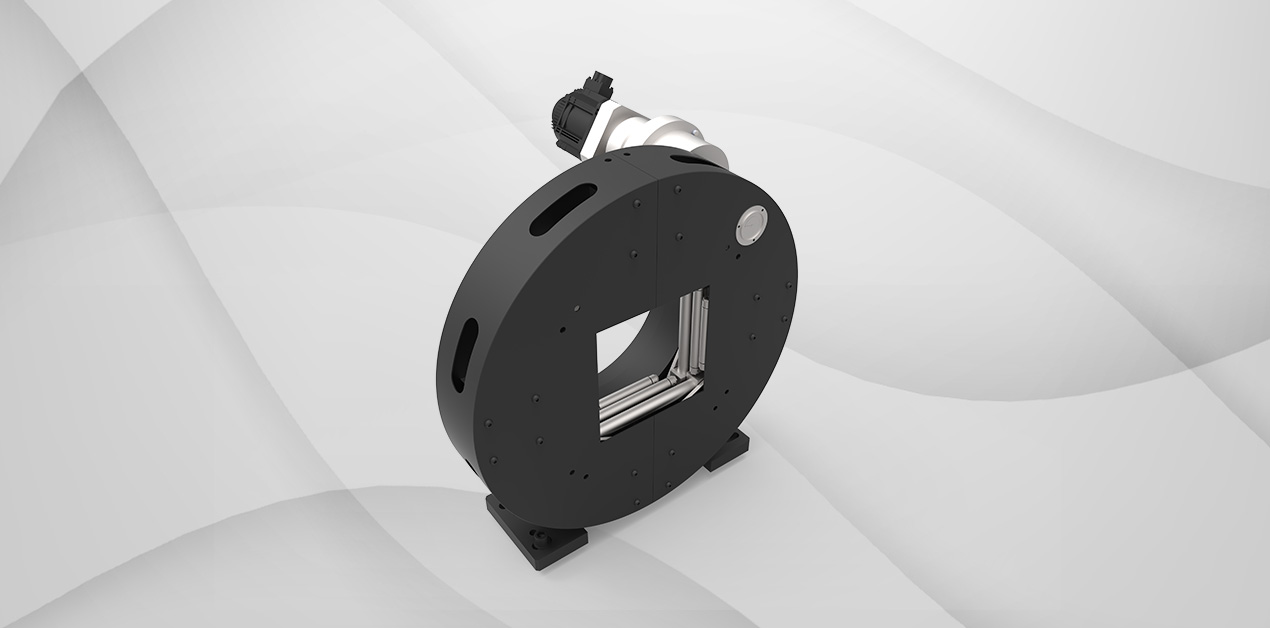

High-Performance Chuck: Equipped with a special chuck offering superior dynamic performance, speed up to 80r/min, and acceleration up to 1.5G.

🛡️ Intelligent Safety Systems

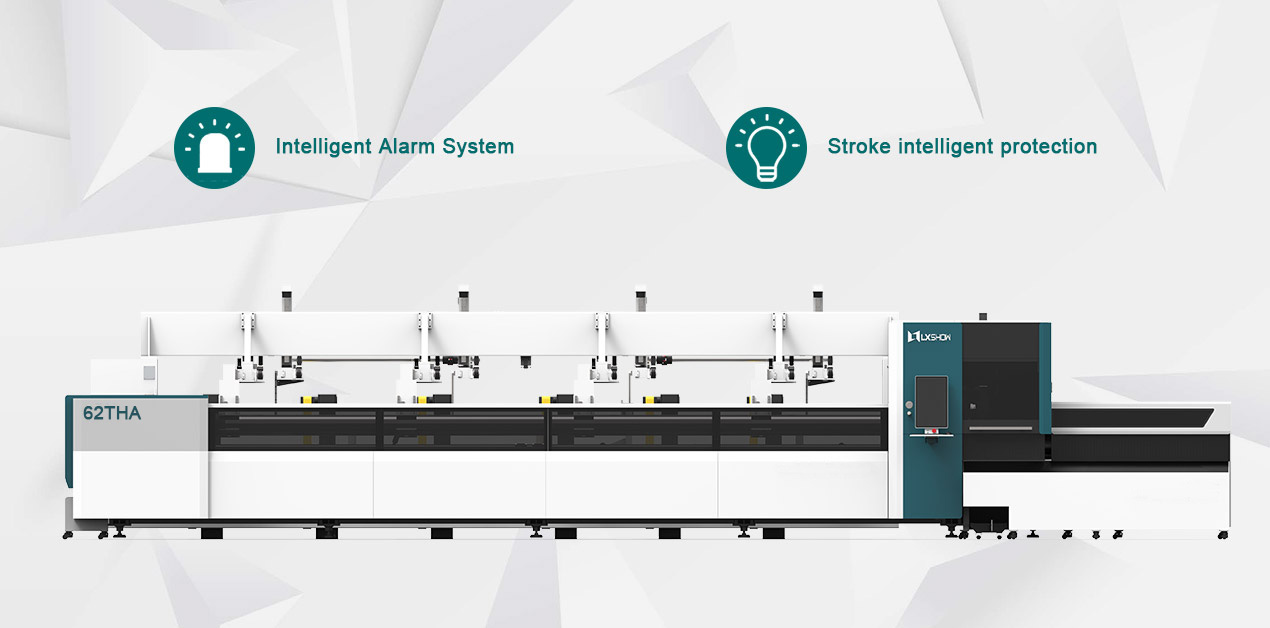

Intelligent Alarm System: Detects anomalies in advance, reduces hidden dangers, and doubles the efficiency of equipment abnormality detection.
Stroke Intelligent Protection: Continuously monitors the cutting head, providing rapid feedback on risks. Features fixed-limit double protection to improve safety for both operators and the machine.

The fiber laser cutting machine is equipped with German Atlanta rack, Japanese Yaskawa motor, and Taiwan Hiwin Rails. The positioning accuracy reaches 0.02mm, cutting acceleration is 1.5G, and the working lifespan exceeds 15 years.

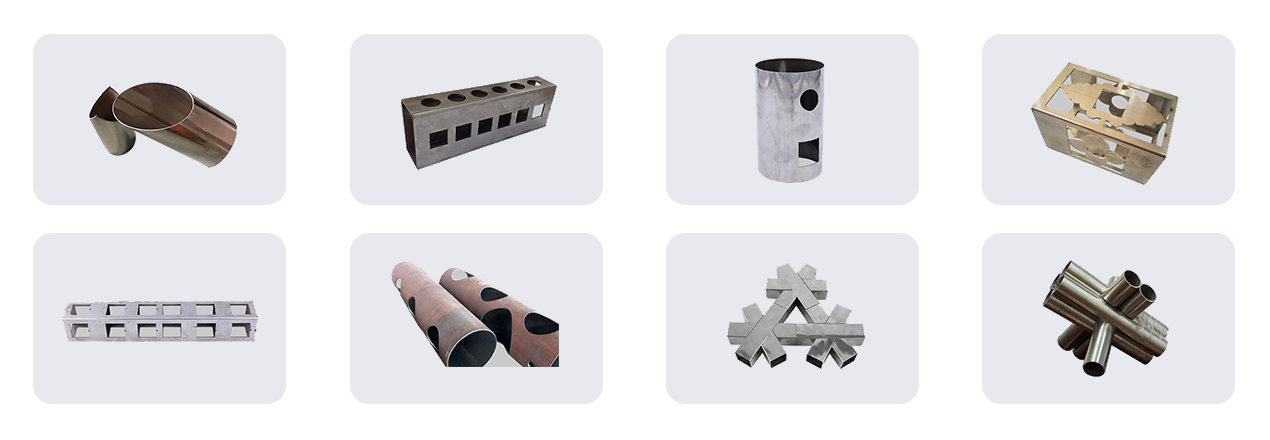

🔩 Application Materials

Suitable for high-precision metal cutting of various materials:

Stainless Steel Sheet Mild Steel Plate Carbon Steel Sheet Alloy Steel Plate Spring Steel Sheet Iron Plate Galvanized Iron Galvanized Sheet Aluminum Plate Copper Sheet Brass Sheet Bronze Plate Gold Plate Silver Plate Titanium Plate

🏭 Application Industries

Widely implemented across diverse industrial manufacturing sectors:

Billboard & Advertising Signs & Signage Metal Letters & LED Letters Kitchen Ware Sheet Metal Processing Metal Components & Parts Chassis, Racks & Cabinets Metal Crafts & Art Ware Elevator Panel Cutting Auto Parts & Hardware Glasses Frame Electronic Parts

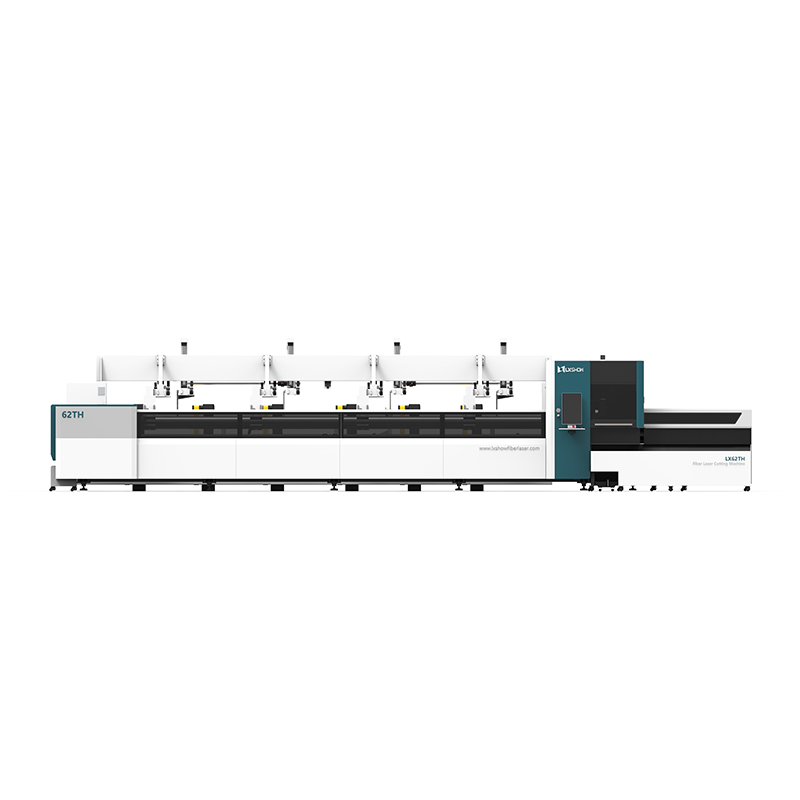

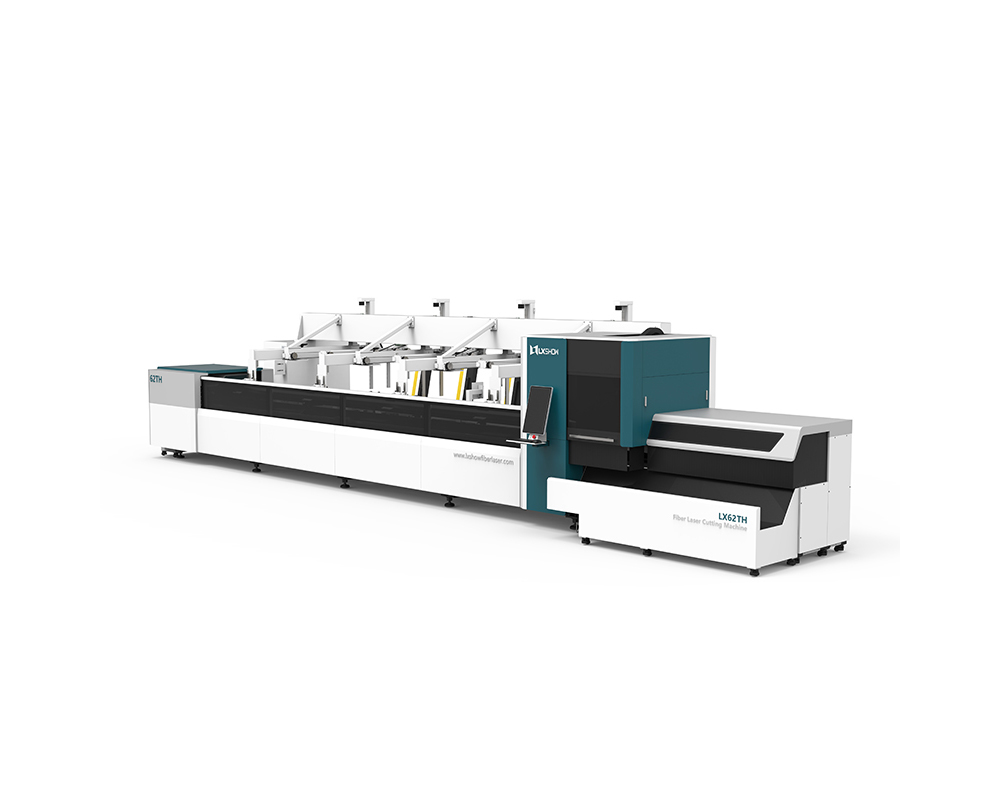

📋 Model Quick Facts

Model Number: LX62THA

Lead Time: 20-35 working days

Payment Term: T/T; Alibaba trade assurance; West Union; Paypal; L/C

Machine Size: (About) 12000*5000*2450mm

Machine Weight: 13000KG (About)

Warranty: 3 years

Shipping: By sea / By land

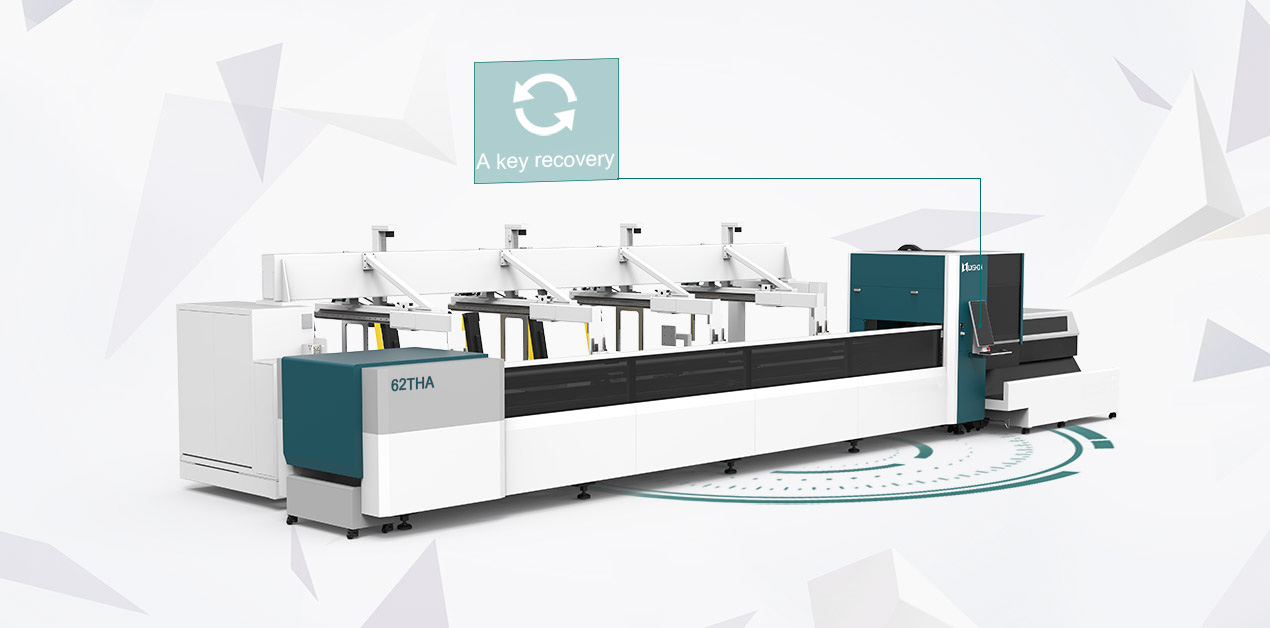

The system is equipped with a servo motor. Boot-to-work processing does not require returning to zero operations. In the event of a power outage, it supports one-key recovery of the cutting process.

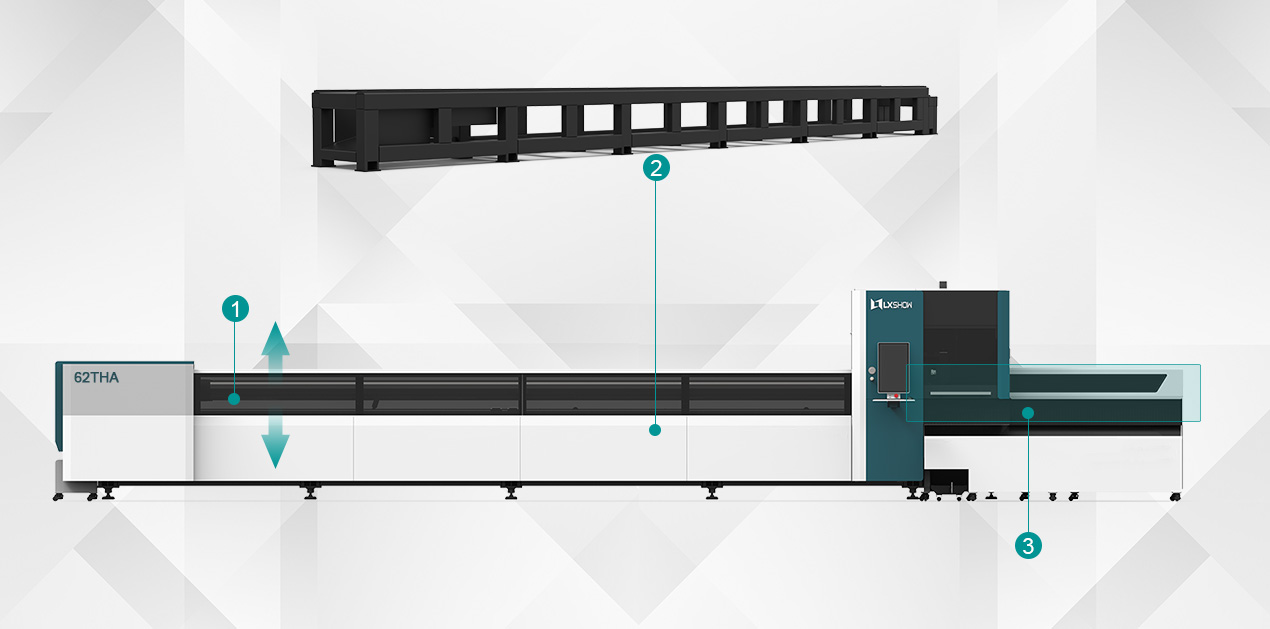

Semi-Enclosed Design: Equipped with automatic lifting doors to ensure operator safety and structural accessibility.
Heavy-Duty Welded Bed: Built to sustain high-speed operation without shaking, maintaining accuracy over time.
Surround Dust-Extraction: Front-end surround structure maximizes the dust removal effect.
Pneumatic Clamping: Employs pneumatic clamp design on both sides with auto-centering. The diagonal adjustable range is 20-220mm (320/350mm optional).

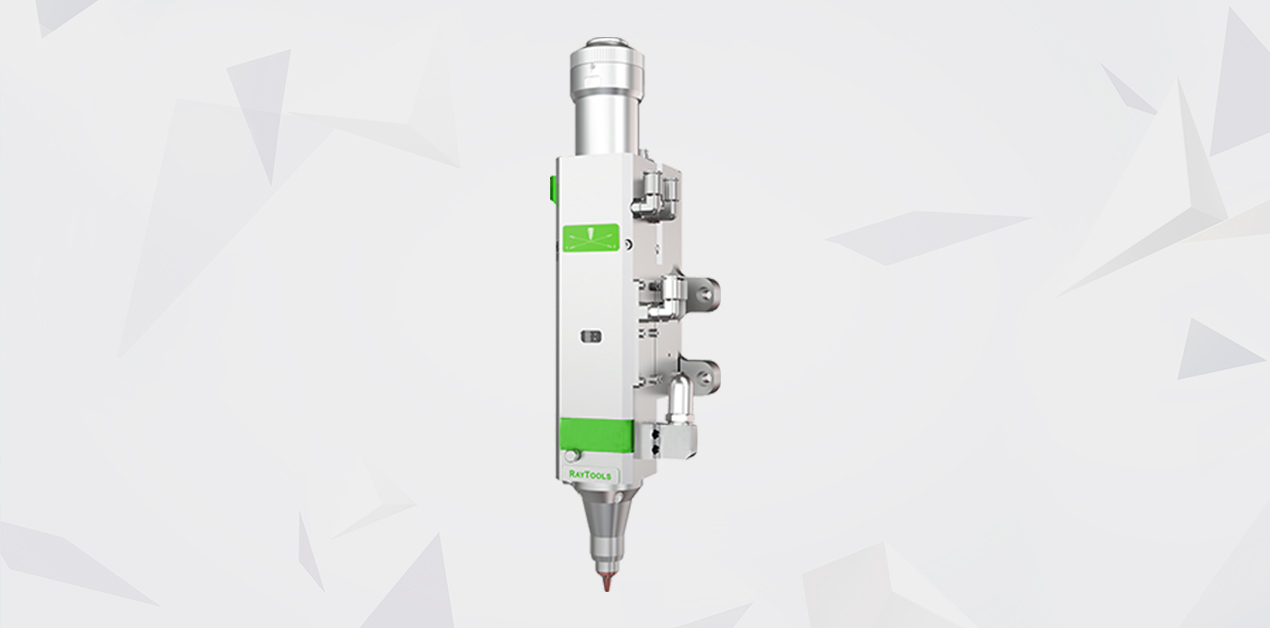

💡 High-Efficiency Cutting Head

High-Efficiency Cooling: The collimating and focusing lens groups are designed with cooling channels. A nozzle cooling airflow system is active to extend the lifespan of nozzles and ceramic bodies.
Stray Light Suppression: Utilizes a 35mm aperture to dramatically reduce stray light interference, ensuring consistent cutting quality.

Automatic Focusing: Eliminates manual error. Auto-focusing operates at speeds up to 10m/min with a repeat accuracy of 50 microns.
High-Speed Penetration: Piercing of 25mm carbon steel plate takes < 3 seconds at 3000W, greatly accelerating production output.

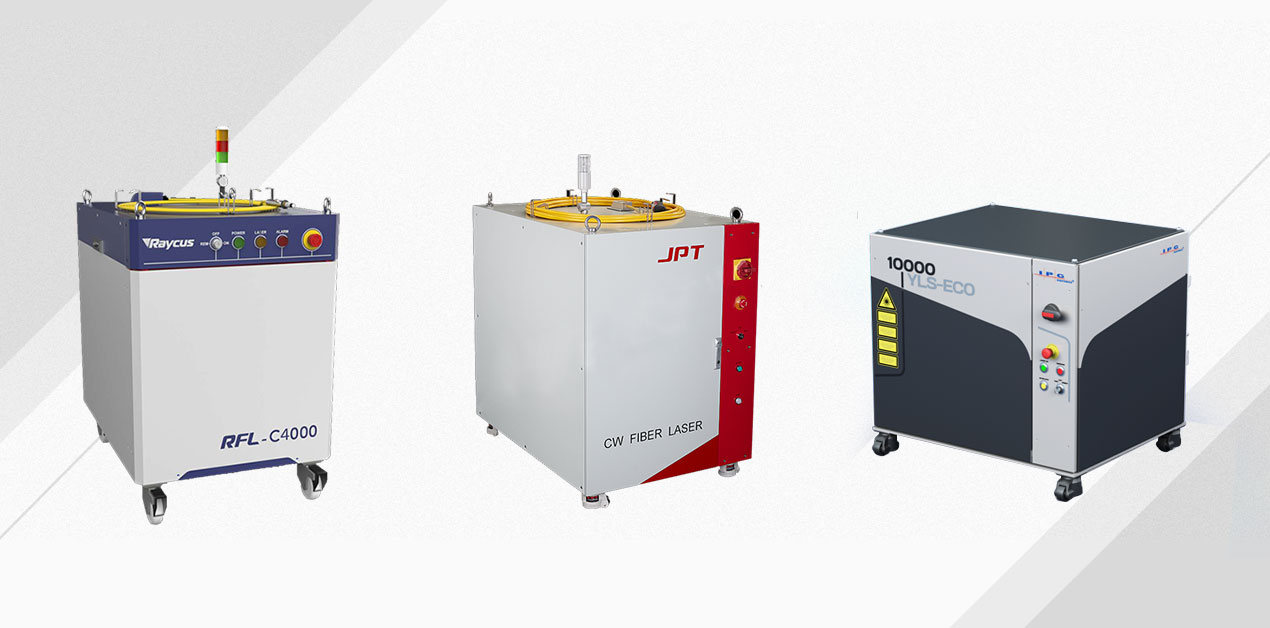

Laser Generator Performance: The theoretical lifespan of the generator is 100,000 hours, equivalent to roughly 33 years under an 8-hour daily schedule. Various generator brands are supported including JPT, Raycus, IPG, MAX, and Nlight.

🔧 Smart Tube Support & Collet Board

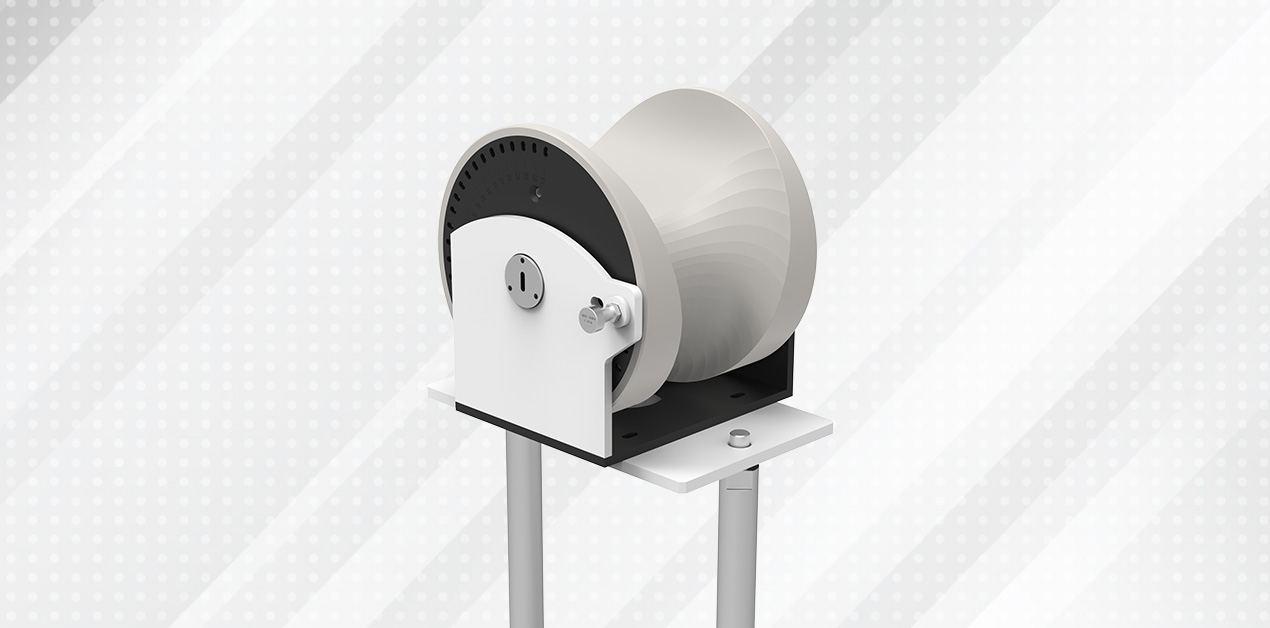

Employs an intelligent tube support design to counter deformation during long tube cutting operations.

⚡ Aluminum Collet Board

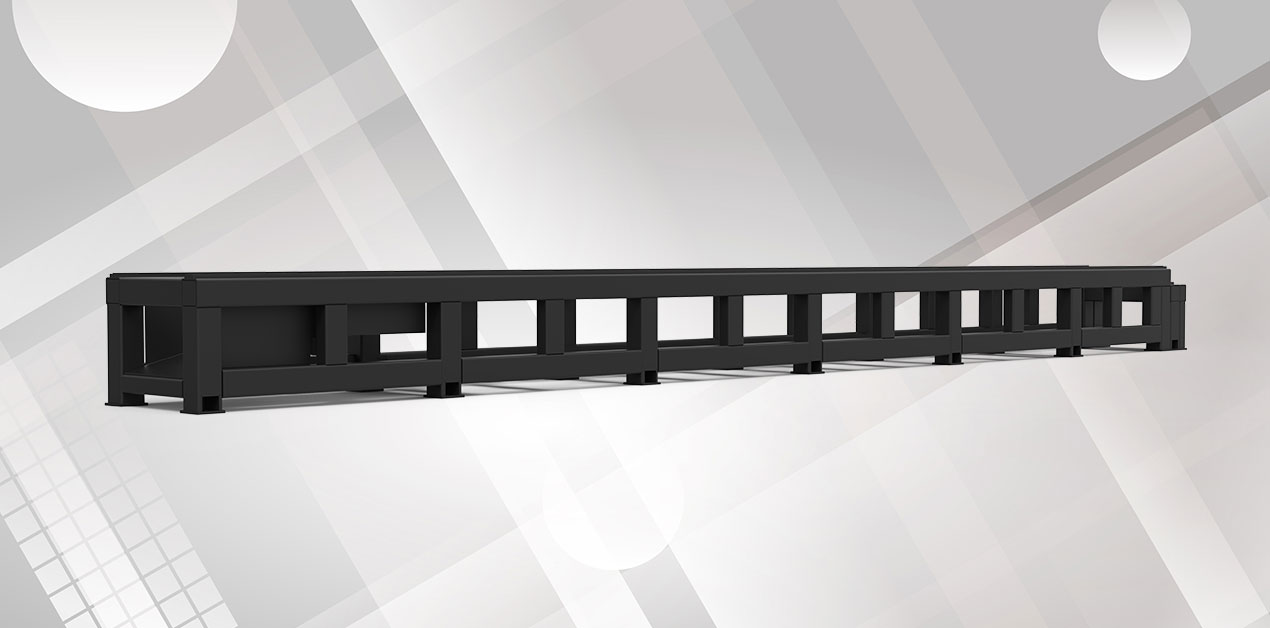

Features high rigidity, precision, and zero structural deformation over its lifecycle. The welded aluminum collet board is crafted via high-precision processing, striking the ideal balance between weight and dynamics.

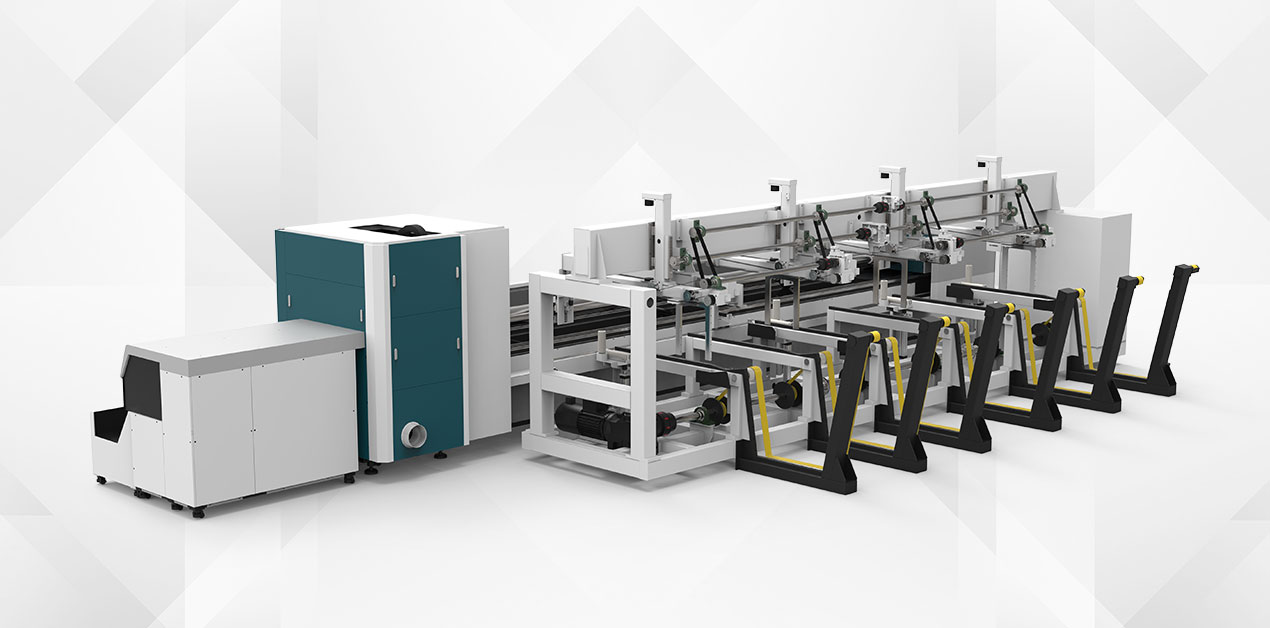

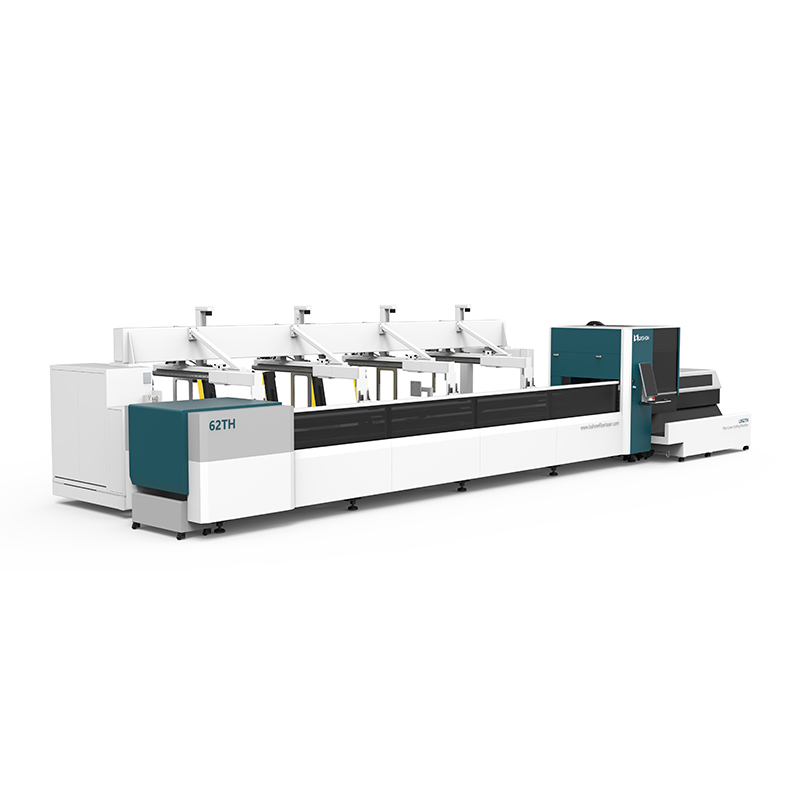

🔄 Automatic Loading and Unloading System

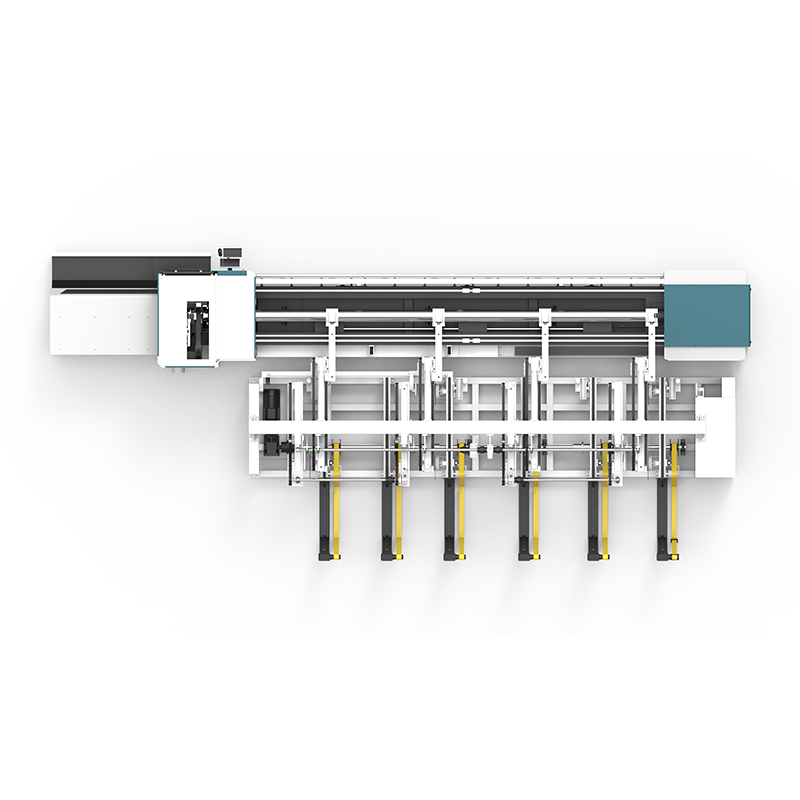

Smart Loading Process

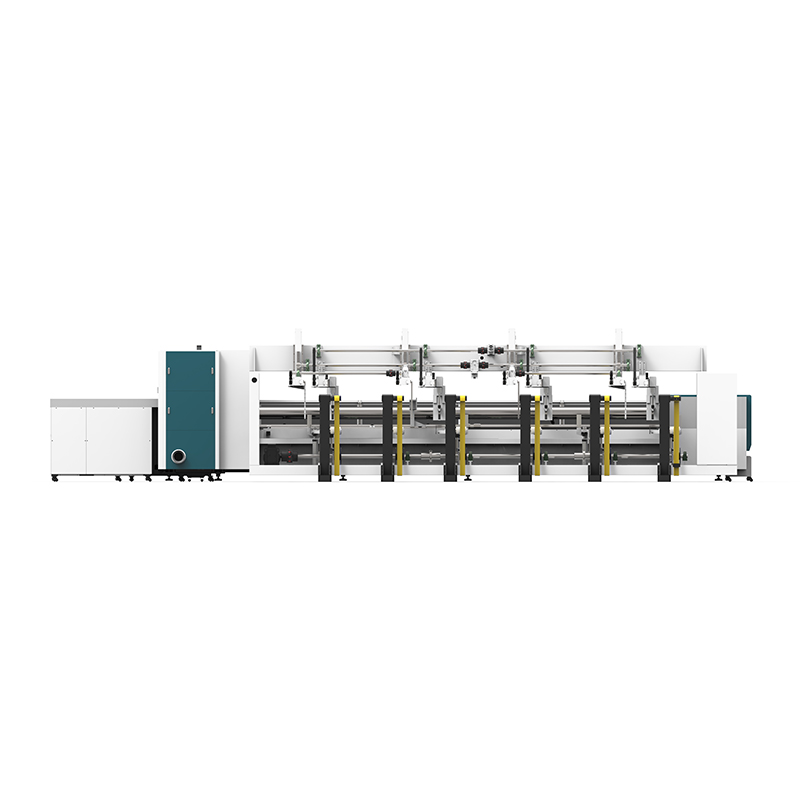

After loading a bundle of pipes onto the feeding device, the system intelligently separates, loads, and feeds them into the pipe cutter sequentially. This mechanism ensures only one pipe is delivered to the carriage arm at any time.

Smart Unloading Process

Finished workpieces are automatically delivered to the storage silo, assisted by double rollers for long parts. Preparation of new raw materials is carried out during processing times to minimize idle periods. Scrap and finished parts are automatically sorted, reducing labor and enhancing throughput.

🌐 System & Consumables info

Supported Languages: English, Russian, Korean, Simplified Chinese, and Traditional Chinese. Additional languages can be integrated upon request.

💡 Consumable Parts Advisory:

Standard life expectancy of key consumables:

Cutting nozzle (≥500h)
Protective lens (≥500h)
Focusing lens (≥5000h)
Collimator lens (≥5000h)
Ceramic body (≥10000h)

*It is recommended to purchase a set of basic consumable options along with the machine to prevent downtime.

❓ Frequently Asked Questions (FAQ)

1. What materials is this fiber laser cutting machine compatible with?

The machine is designed to cut a wide variety of metals, including Stainless Steel, Mild Steel, Carbon Steel, Alloy Steel, Spring Steel, Iron, Galvanized Sheets, Aluminum, Copper, Brass, Bronze, Gold, Silver, and Titanium.

2. What is the theoretical service life of the laser generator?

The laser generator has an estimated theoretical service life of 100,000 hours. Operating the machine 8 hours a day translates to a functional lifespan of approximately 33 years. Supported brands include JPT, Raycus, IPG, MAX, and Nlight.

3. How does the machine ensure precision during long tube cutting?

It features an intelligent tube support design along with dual follow-up modules (front, rear, left, right) that adjust to prevent pipe deformation and structural sag during cutting. This setup significantly reduces error rates when processing long pipes.

4. What safety mechanisms are integrated into the machine?

The machine is built with a semi-enclosed housing and automatic lifting doors to protect operators. Additionally, it features an intelligent alarm system for early risk detection and a stroke protection feature that stops the cutting head instantly upon detecting potential collisions.

5. What are the key consumable parts of the machine and how long do they last?

Key consumables include the cutting nozzle (lasts ≥500 hours), protective lens (≥500 hours), focusing lens (≥5000 hours), collimator lens (≥5000 hours), and ceramic body (≥10000 hours). We recommend ordering spare consumables with the machine to facilitate uninterrupted workflow.

6. Does the cutting system support automatic recovery during power outages?

Yes. The system utilizes high-performance servo motors which skip the need for returning to zero upon starting. In case of unexpected power failure, the machine features a one-key recovery function to quickly resume the active cutting task.
