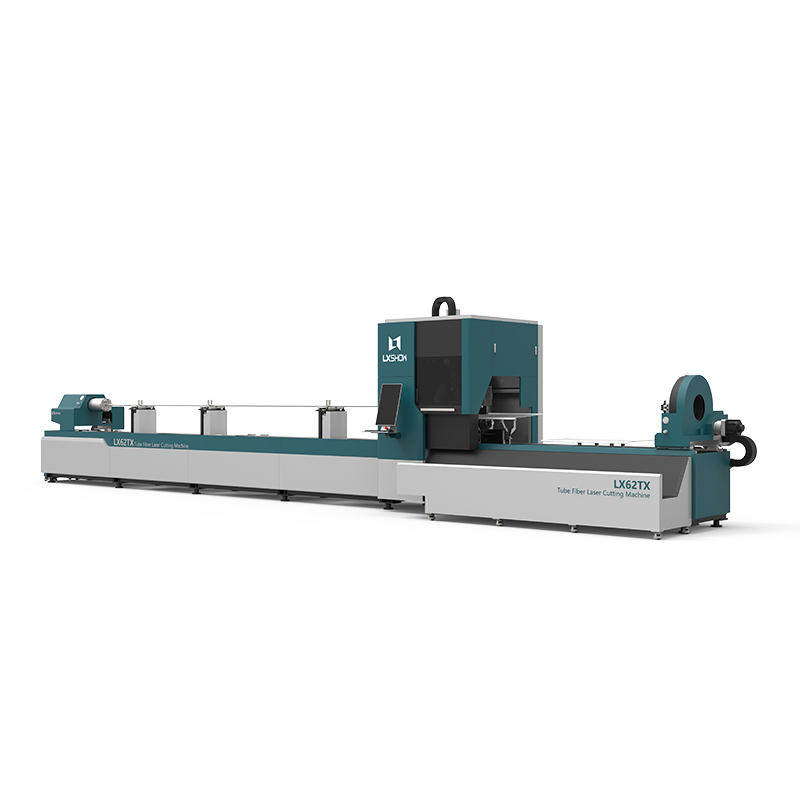

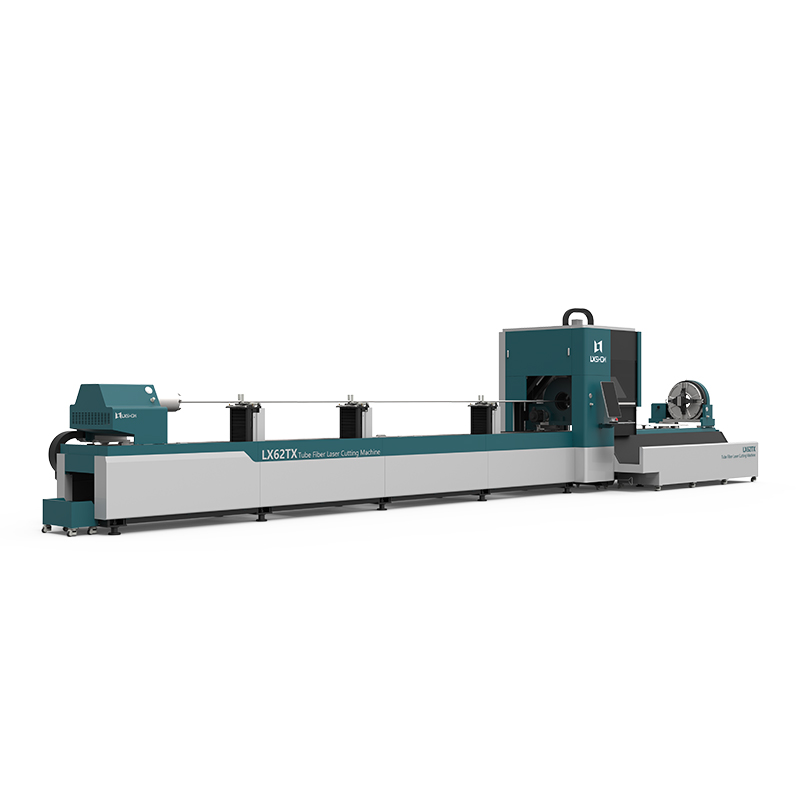

| Machine Model | LX62TX |
| Power of Generator | 1000-6000W |
| Dimension | 12100*2200*2880mm |
| Clamping Range | Φ20-Φ220/Φ20-Φ350 |
| Repeated Positioning Accuracy | ±0.02mm |
| Specified Voltage And Frequency | 380V 50/60HZ |

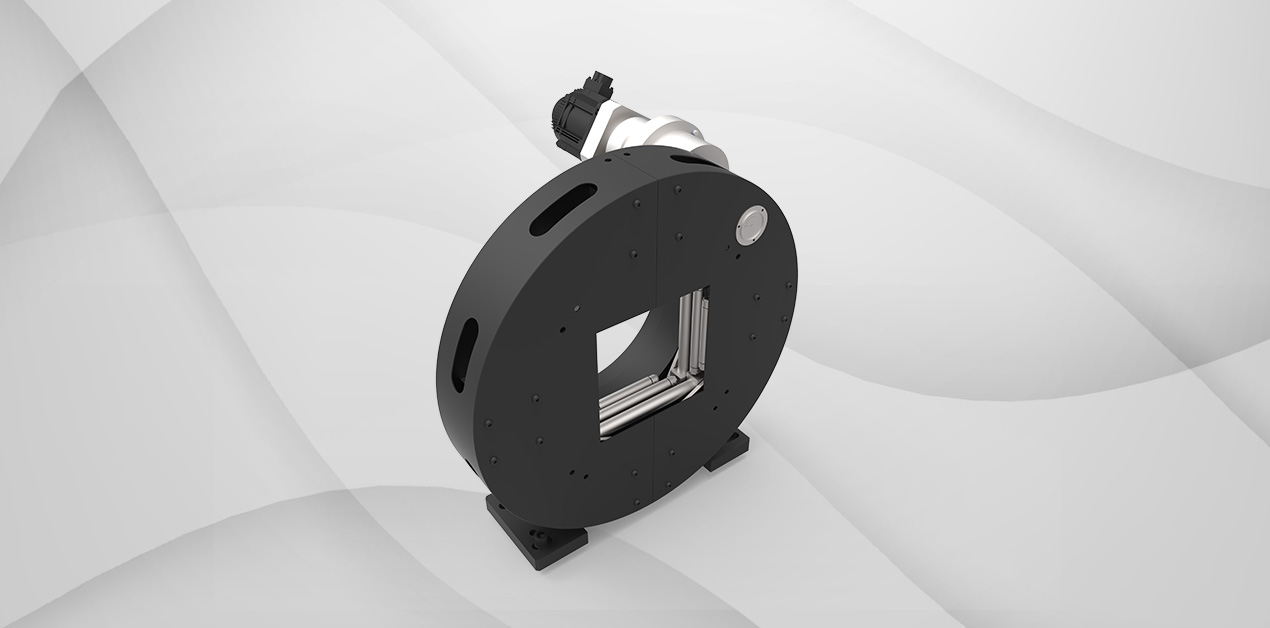

It adopts a pneumatic clamp design on both sides and it can modulate the center automatically. The diagonal adjustable range is 20-220mm (320/350 is optional).

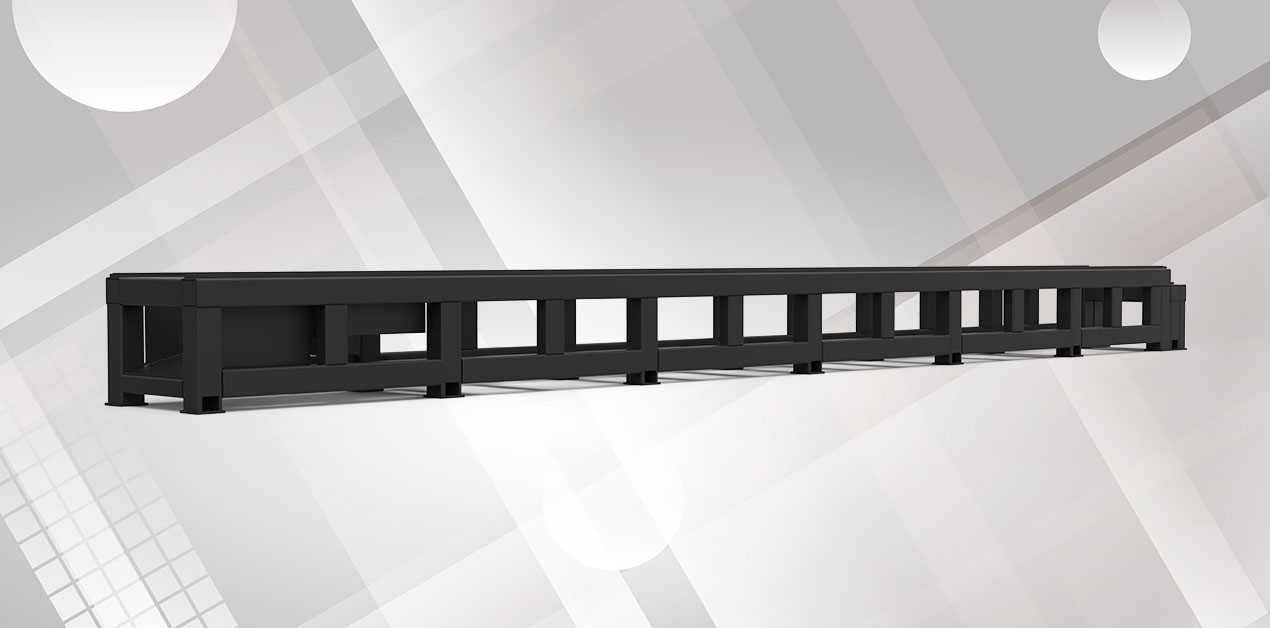

The bed adopts an integral welding structure, rough machining after annealing, and then vibration aging treatment, which can completely eliminate the stress of welding and processing, with good rigidity, high precision, and can maintain long-term use without deformation.

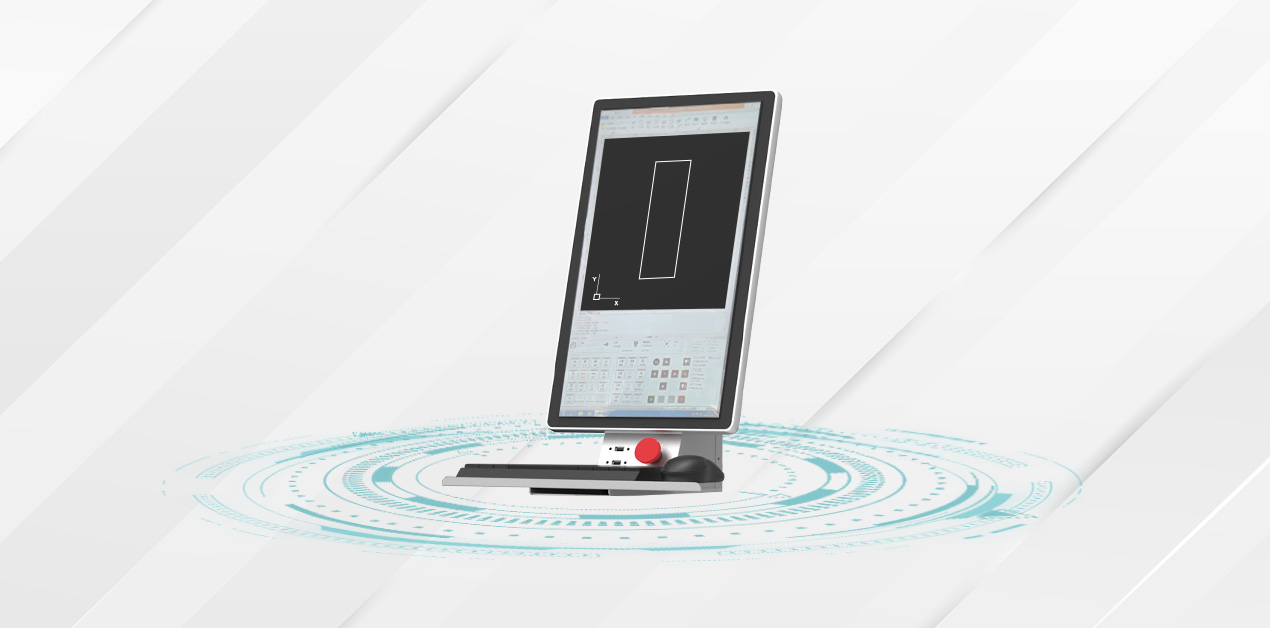

Easy to operate even by green hands. Match with 20000 process data on its graphical programming interface. Compatible with multiple graphic files, including DXF, DWG, PLT and NC code. Improve stock layout and material utilization by 20% and 9.5% by its built-in nesting software, with no limit of quantity of spare parts.

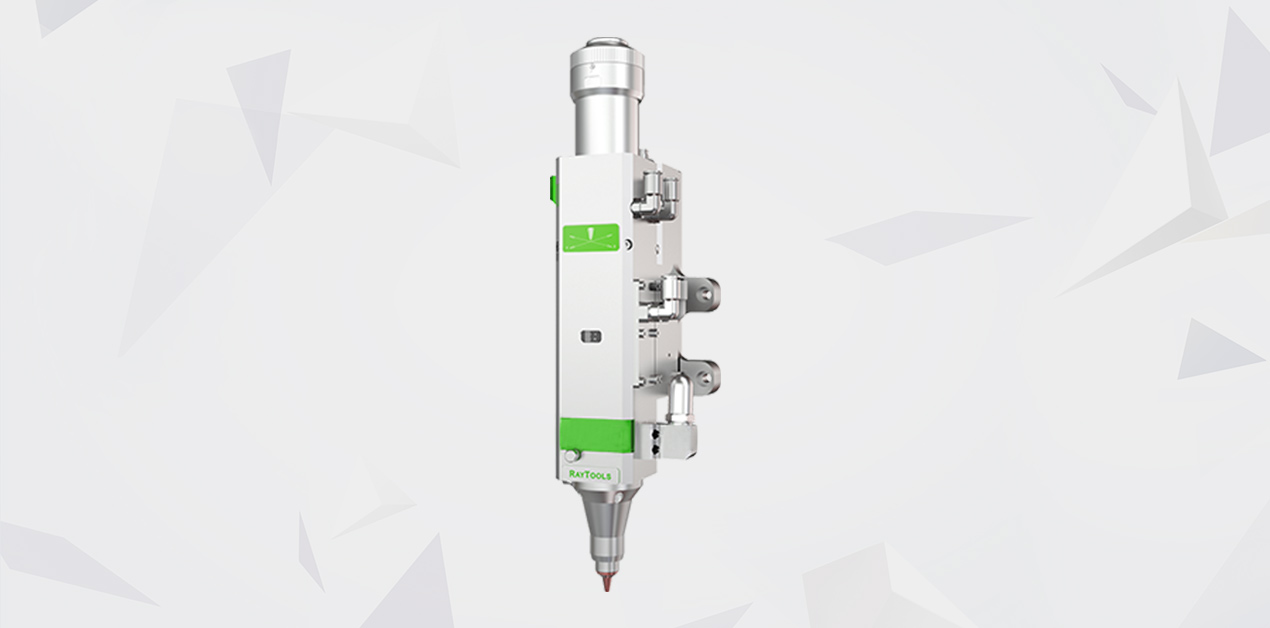

High efficiency cooling: Collimating lens and focus lens group are cooling structure, increase cooling airflow nozzle at the same time, the effective protection of nozzle, the ceramic body, prolonged work time.
Chase the light aperture: Through the pore diameter of 35 mm, effectively reduce the stray light interference, ensuring cutting quality and service life.
Automatic focus: Automatic focus, reduce human intervention, focusing speed 10 m/min, repeat accuracy of 50 microns.
High speed cutting: 25 mm carbon steel sheet pre punch time < 3 s @ 3000 w, greatly improve cutting efficiency.
The fiber laser cutting machine is equipped with German Atlanta rack, Japanese Yaskawa motor and Taiwan Hiwin Rails. The positioning accuracy of the machine tool can be 0.02mm and the cutting acceleration is 1.5G. The working life is up to more than 15 years.
Application materials: Mainly used for cutting Fiber laser metal cutting machine is suitable for cutting stainless steel, low carbon steel, carbon steel, alloy steel, spring steel, iron, galvanized pipe, aluminum, copper, brass, bronze, titanium and other metals.
Application industry: Applied in sheet metal processing, aviation, spaceflight, electronics, electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment, elevator, household appliances, gifts and crafts, tool processing, adornment, advertising, metal foreign processing various manufacturing processing industries.

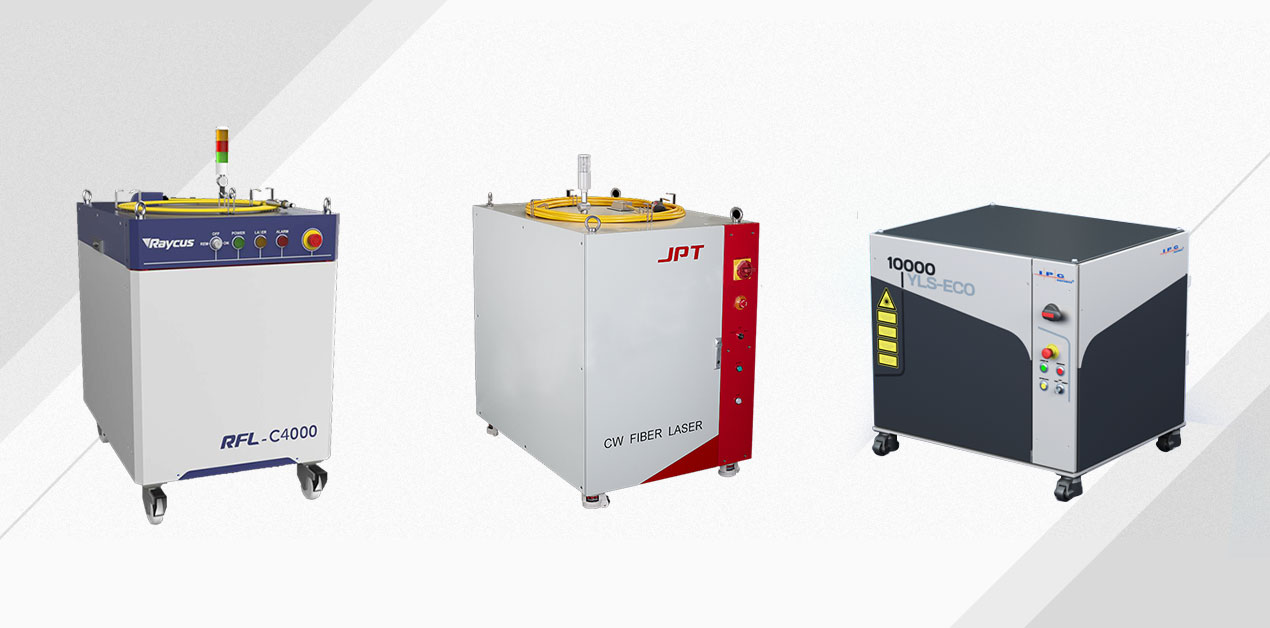

The generator's using life (theoretical value) is 100,000 hours. This means that if you use it for 8 hours a day, it can be used for about 33 years.
Generator Brand: JPT/Raycus/IPG/MAX/Nlight

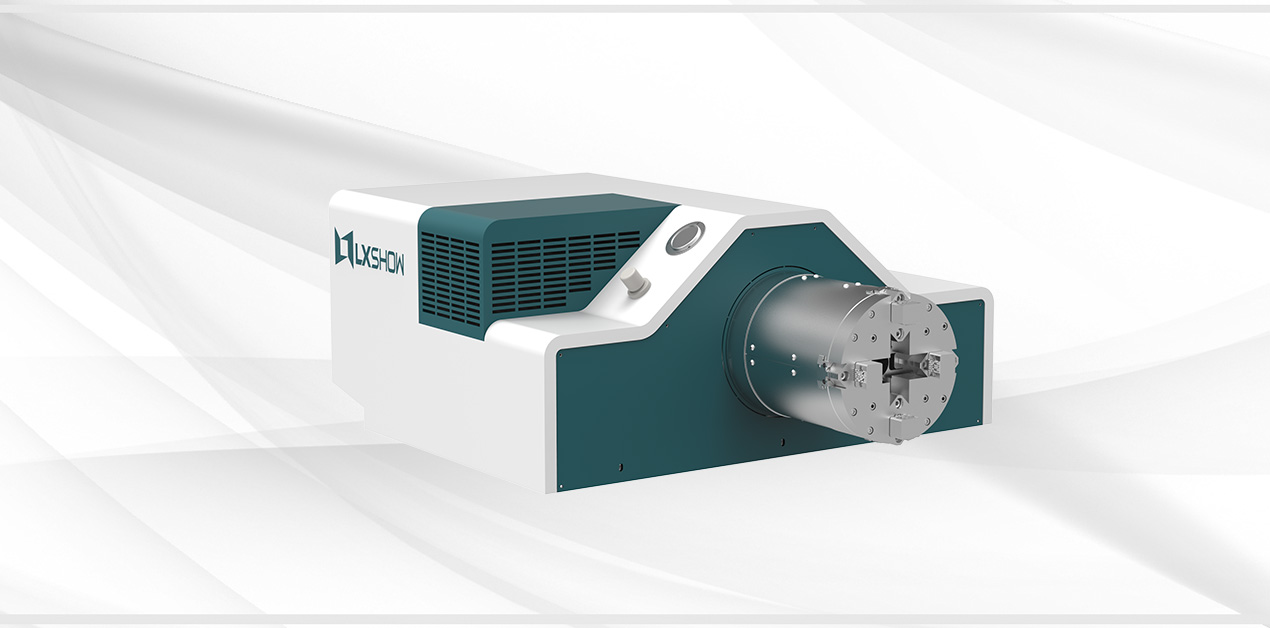

Automatic pneumatic chuck, adjustable and stable, clamping range is wider and clamping force is larger. Non-destructive pipe clamping, fast automatic centering and clamping pipe, performance is more stable. The chuck size is smaller, rotation inertia is low, and dynamic performance is strong. Self-centering pneumatic chuck, gear transmission mode, higher transmission efficiency, long working life and high work reliability.

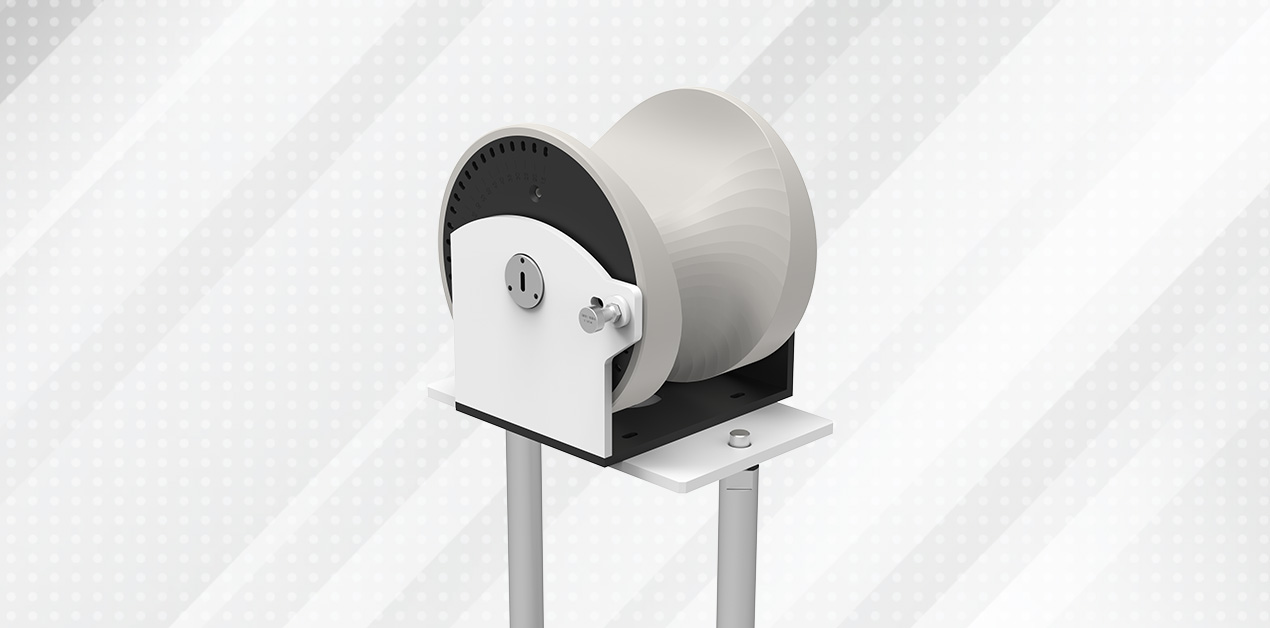

It employs intelligent tube support design, which can solve the deformation problems in the process of long tube cutting.

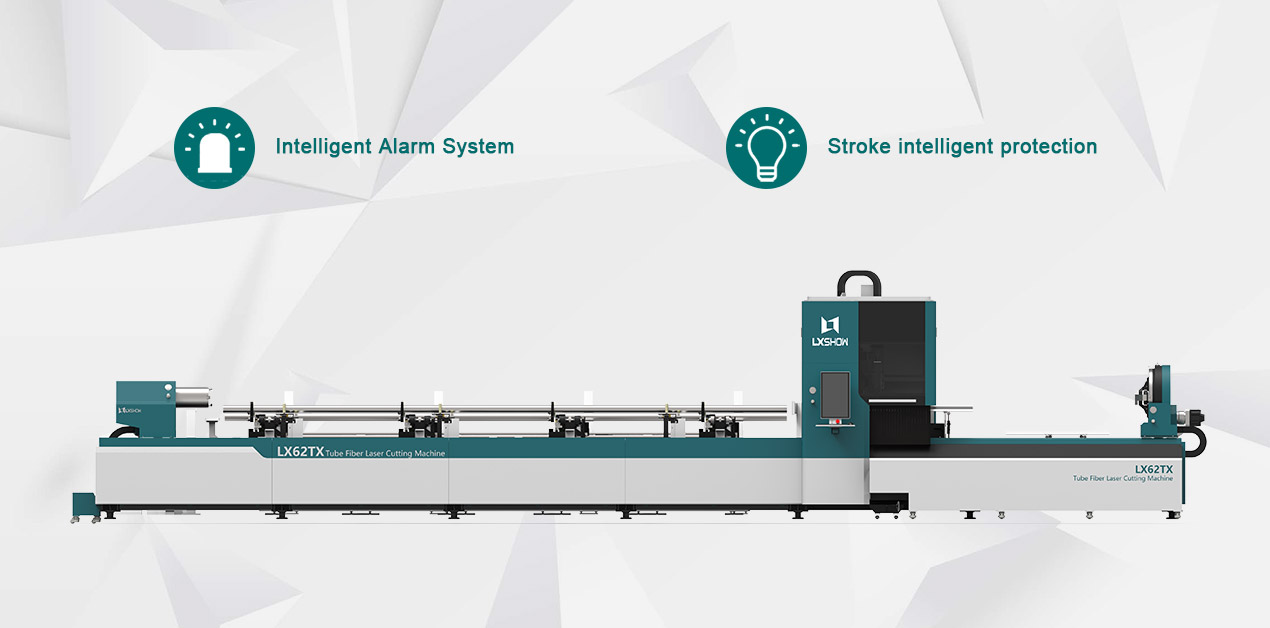

It can detect anomalies in advance, reduce hidden dangers, and double the effect of abnormal detection of equipment.

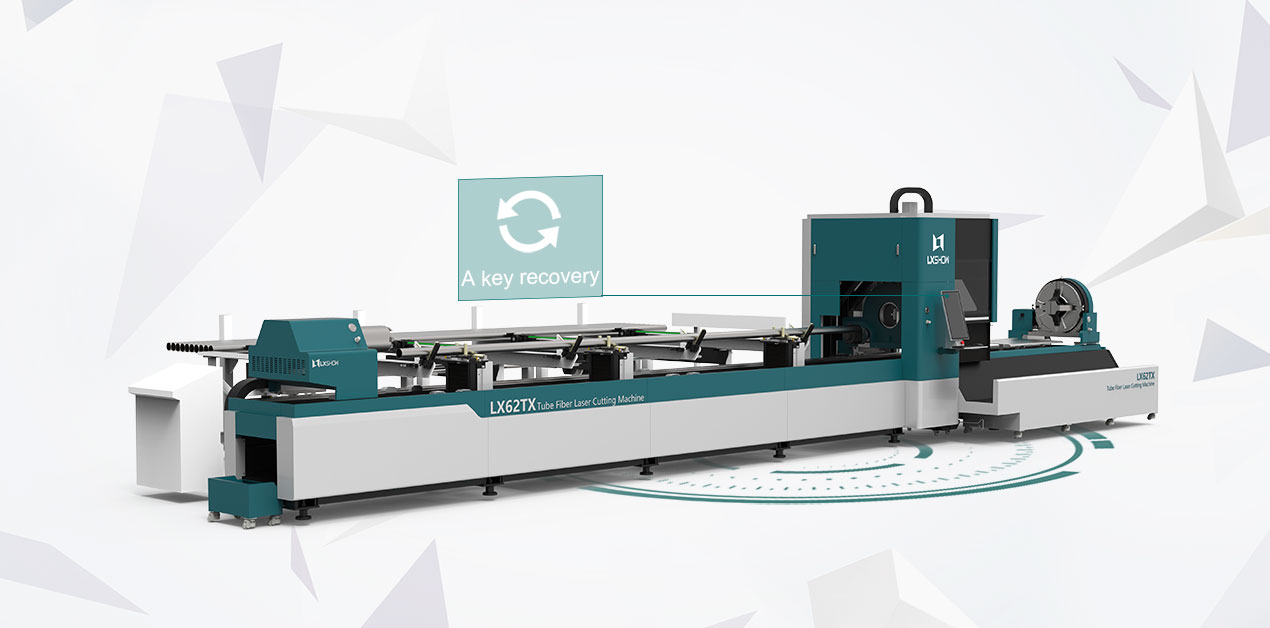

Stroke intelligent protection: Detect whole process of cutting head working, quickly feedback the risk and stop it. Double protection with fixed limit to improve equipment and personal safety and reduce risk.
System is equipped with servo motor, boot to homework, do not need to return to zero operation, power outages, a key recovery cutting operation.
