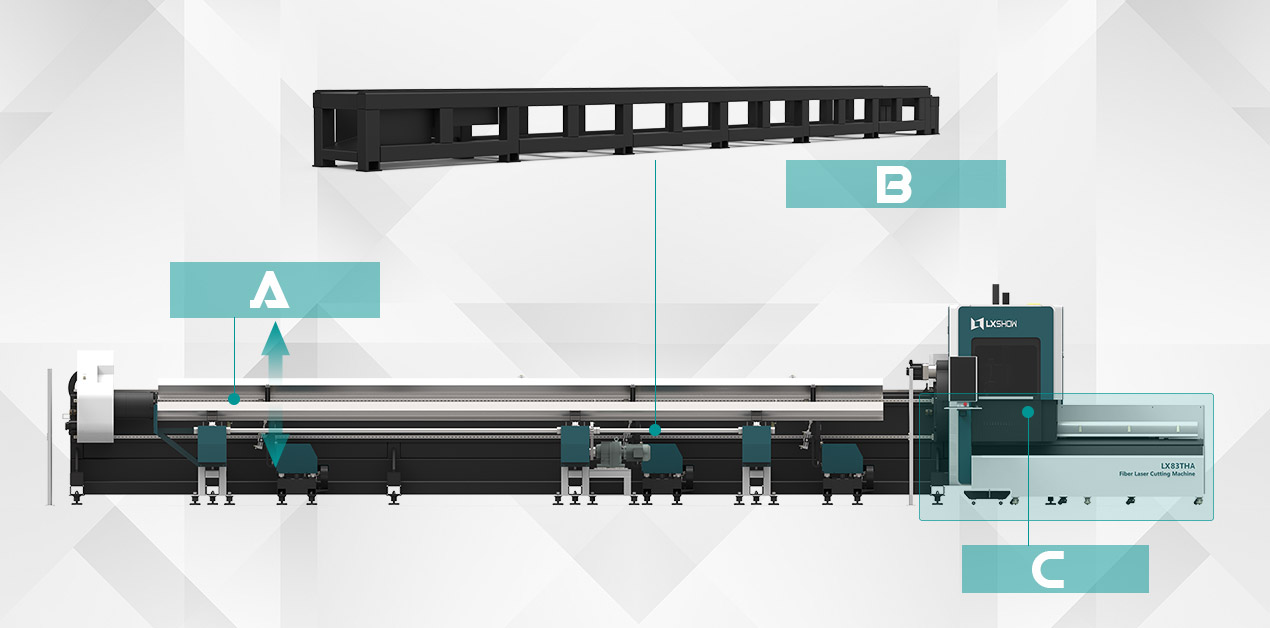

1. Semi-enclosed design: Equipped with automatic lifting doors, which is convenient and at the same time guarantees the safety of workers.
2. Heavy-duty welded bed: It can meet the high-speed operation of the machine without shaking.

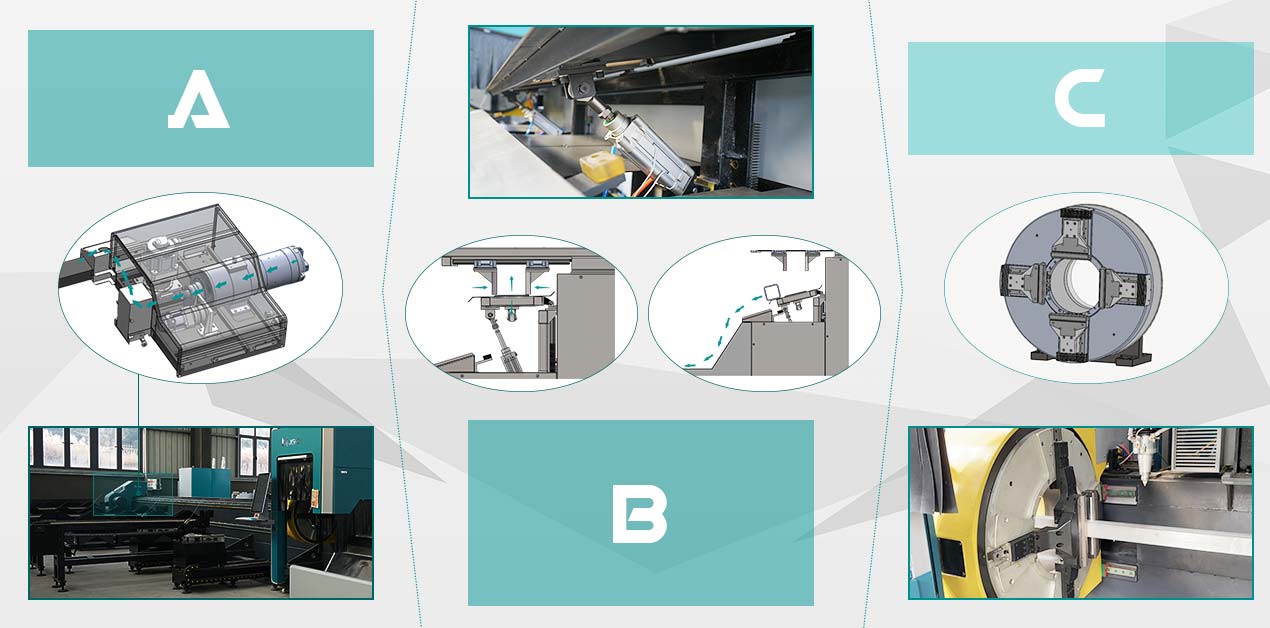

Double Exhaust & Follow-up Support System
Double exhaust system to ensure fume extraction effect, matching front and rear chuck, step by step, level processing. The rear chuck equipped with a waste collection system. Follow-up support component system: During the cutting process, it can be ensured that the support frame can always follow the pipe to prevent pipe cutting errors caused by pipe deformation. The front end is equipped with front, rear, left and right dual follow-up modules to ensure cutting accuracy, and automatic tilting and blanking settings to prevent pipe scratches.
BM109 Autofocus Tube Fiber Cutting Head
Equipped with slender TRA components and slender nozzles, it can adapt to any complex pipe cutting product conditions.
Users can set fixed and continuous focus through the program to complete rapid perforation and automatic cutting of pipes of different thicknesses and materials. The product is equipped with a D28 compound lens group to integrate the beam, and the optimized optical and water-cooled design enables the laser head to work continuously and stably for a long time.
Application Materials & Industries
Application Materials
Mainly used for cutting. Fiber laser metal cutting machine is suitable for cutting stainless steel, low carbon steel, carbon steel, alloy steel, spring steel, iron, galvanized pipe, aluminum, copper, brass, bronze, titanium and other metals.
Application Industry
Applied in sheet metal processing, aviation, spaceflight, electronics, electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment, elevator, household appliances, gifts and crafts, tool processing, adornment, advertising, metal foreign processing, and various manufacturing processing industries.

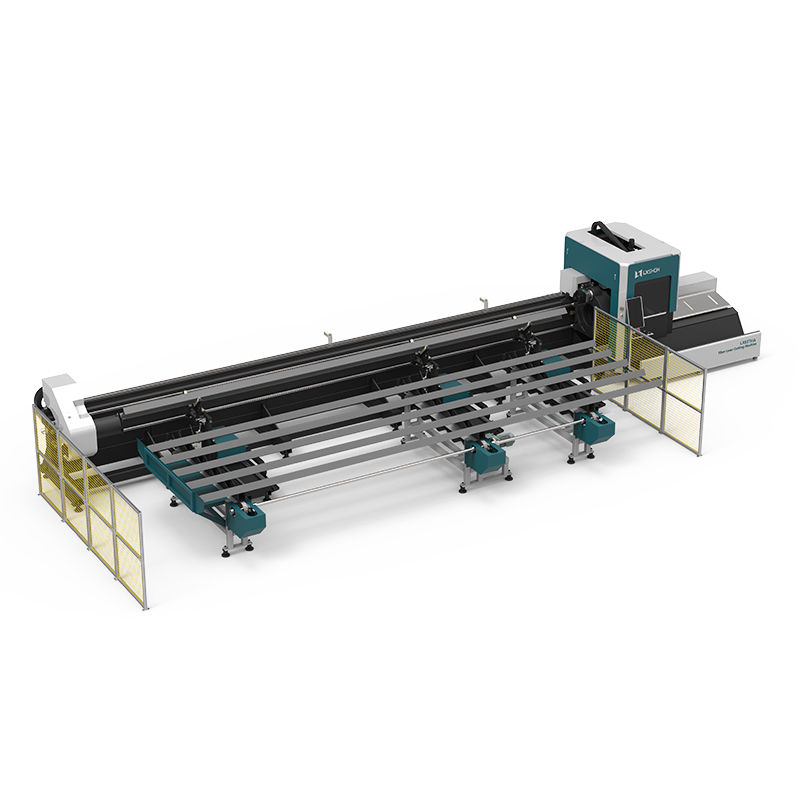

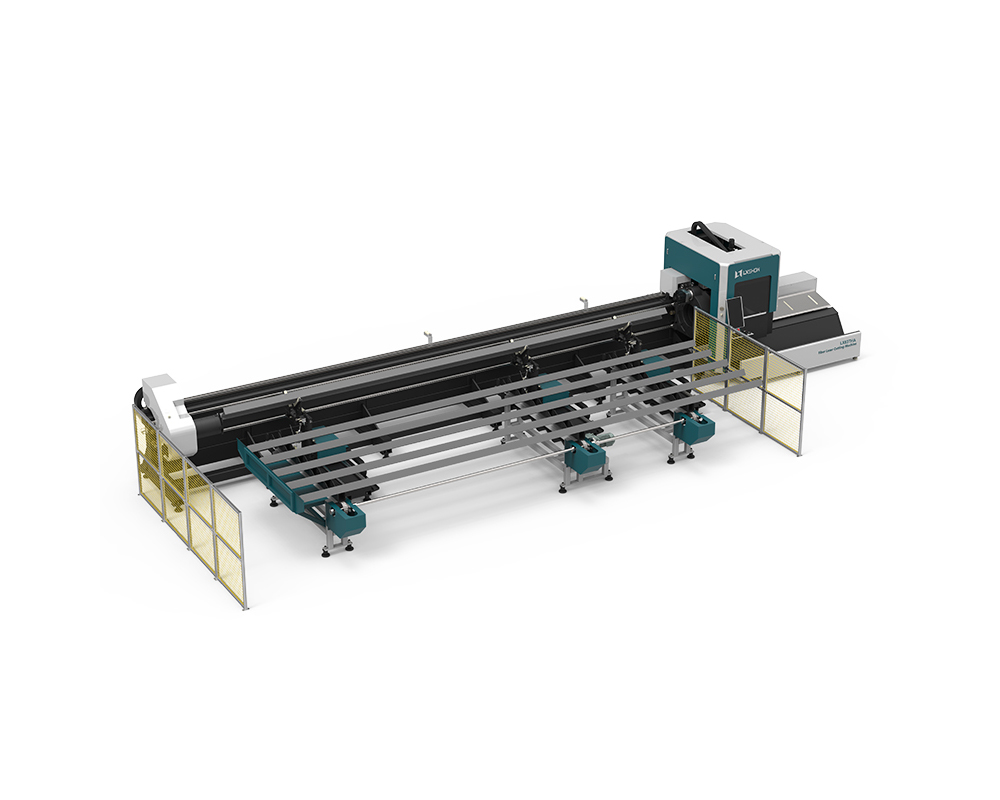

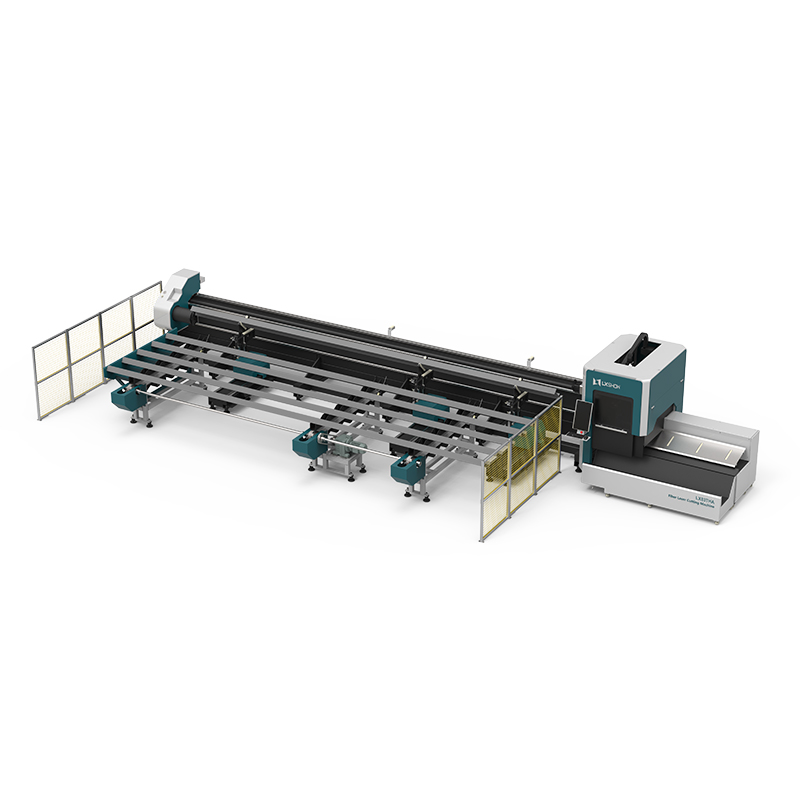

Model NumberLX83THA
Lead time20-35 working days
Payment TermT/T; Alibaba trade assurance; West Union; Paypal; L/C
Machine Size(About) 12000*5000*2450mm
Machine weight13000KG (About)
Warranty3 years
ShippingBy sea / By land

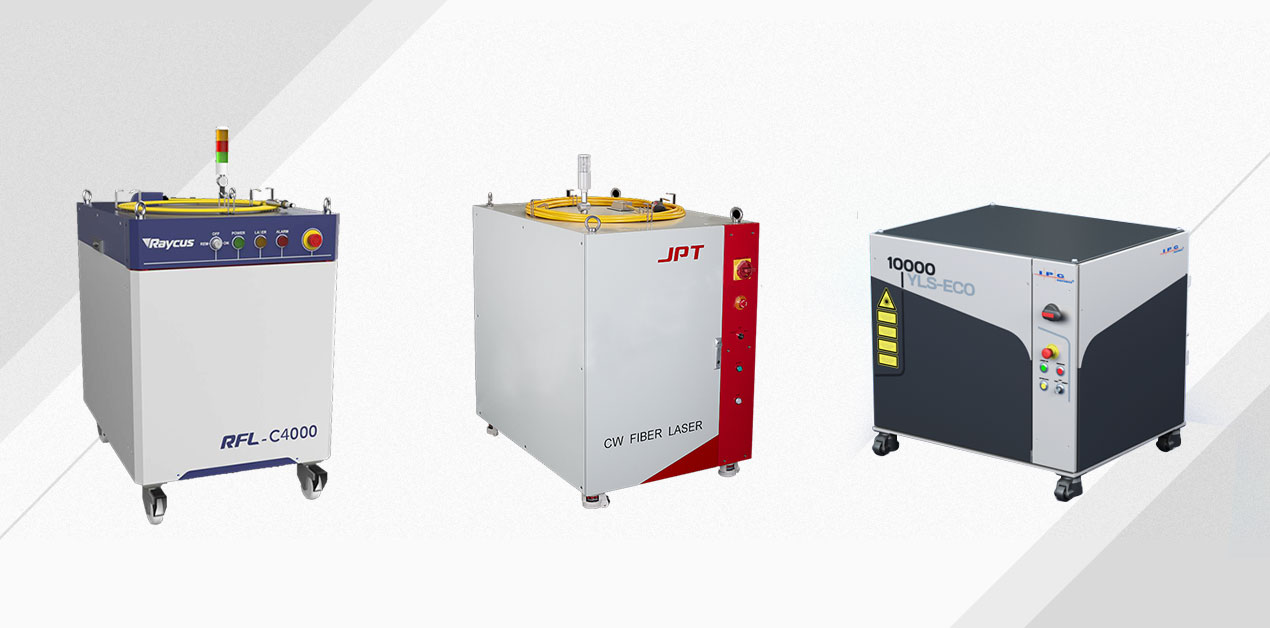

The generator's using life (theoretical value) is 100,000 hours. This means that if you use it for 8 hours a day, it can be used for about 33 years. Generator Brand Options: JPT/Raycus/IPG/MAX/Nlight
Consumable Parts Reference
The consumable parts of the fiber laser cutting machine include: cutting nozzle (≥500h), protective lens (≥500h), focusing lens (≥5000h), collimator lens (≥5000h), ceramic body (≥10000h). You can purchase these consumable parts as options when ordering the machine.

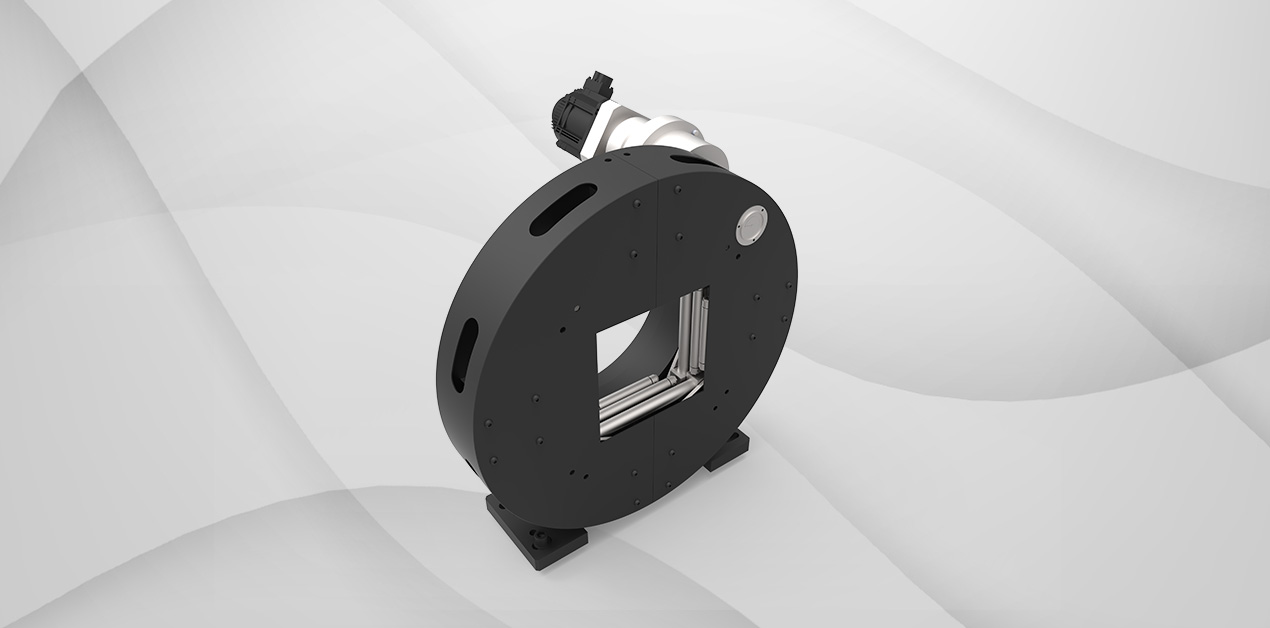

It adopts a pneumatic clamp design on both sides and it can modulate the center automatically. The diagonal adjustable range is 20-220mm (320/350 is optional).
Automatic pneumatic chuck, adjustable and stable, clamping range is wider and clamping force is larger. Non-destructive pipe clamping, fast automatic centering and clamping pipe, performance is more stable. The chuck size is smaller, rotation inertia is low, and dynamic performance is strong. Self-centering pneumatic chuck, gear transmission mode, higher transmission efficiency, long working life and high work reliability.
It employs intelligent tube support design, which can solve the deformation problems in the process of long tube cutting.
It can detect anomalies in advance, reduce hidden dangers, and double the effect of abnormal detection of equipment.

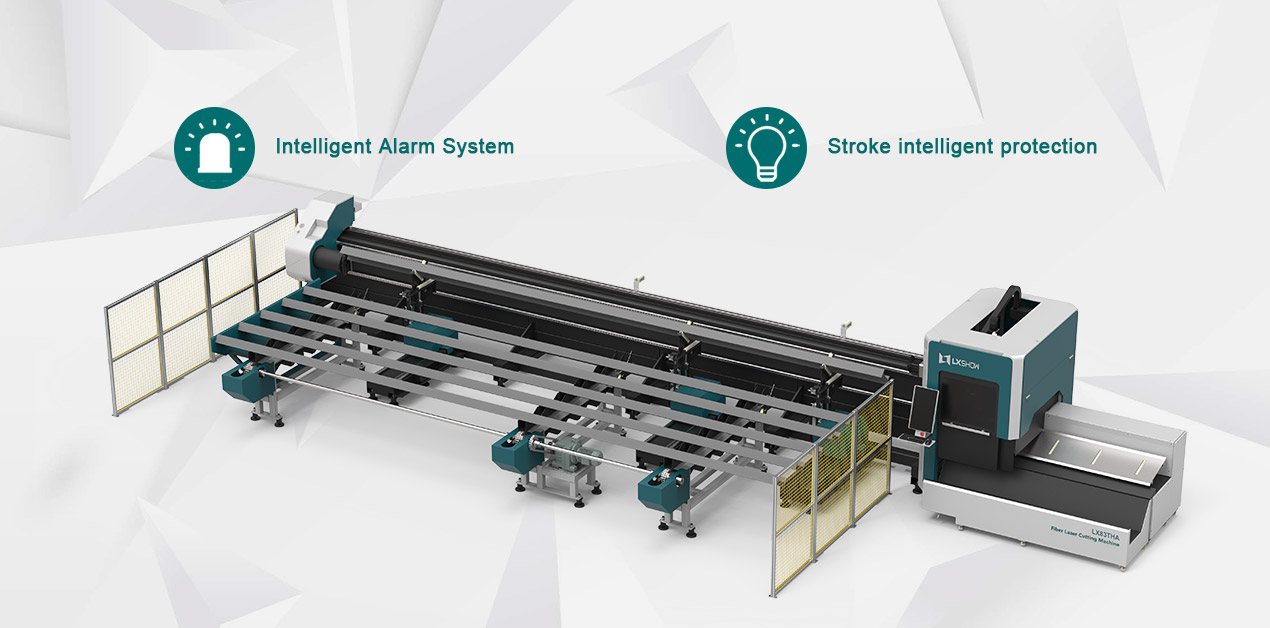

Stroke intelligent protection: Detects the whole process of the cutting head working, quickly feedbacks risk and stops the system. Double protection with fixed limit improves equipment and personal safety while reducing risks.

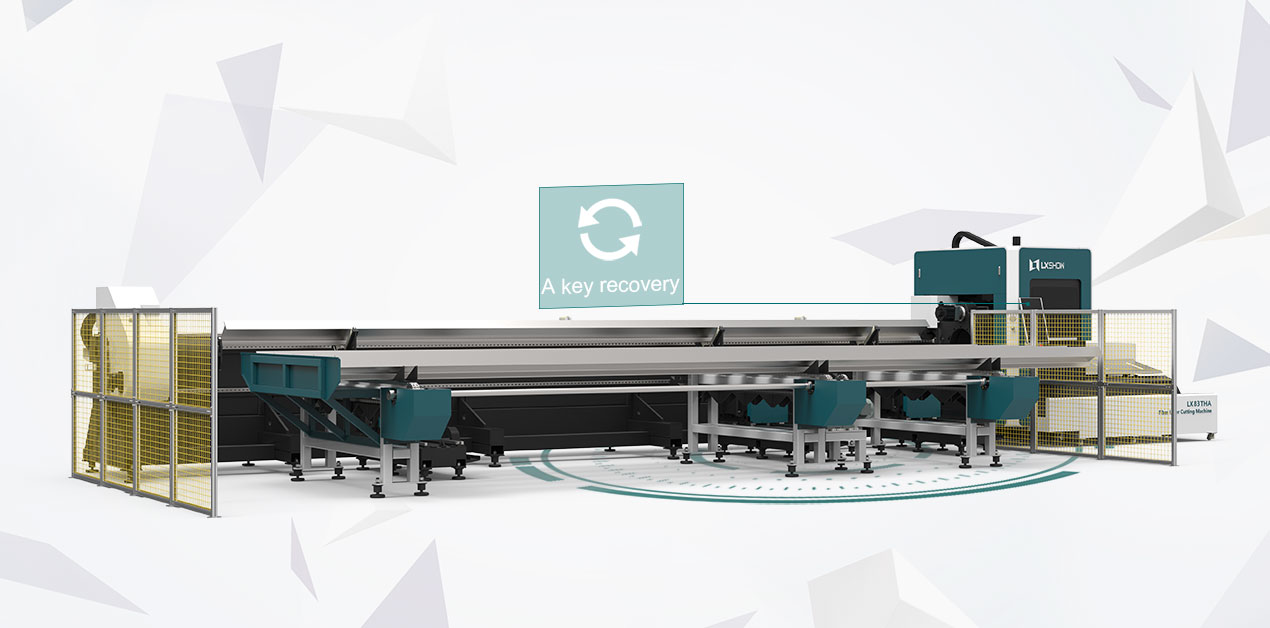

System is equipped with servo motor, boot to homework, do not need to return to zero operation, power outages, a key recovery cutting operation.

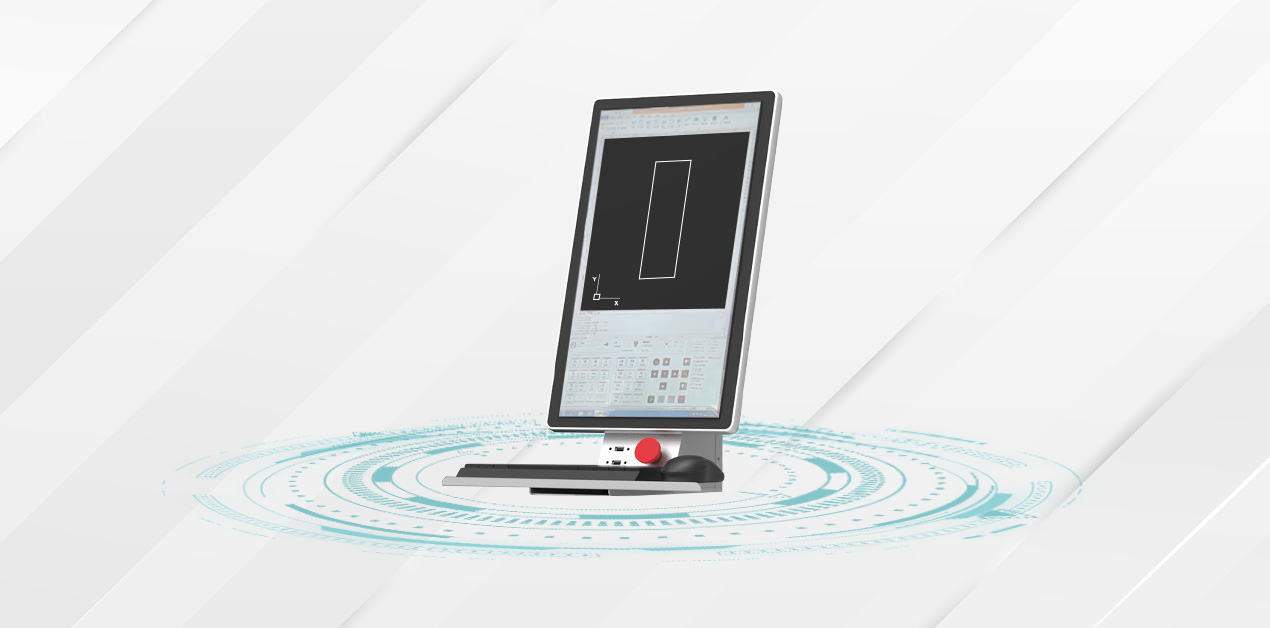

Control Software Features
The operation is simple and convenient.
Compatible with multiple graphic files, incl. DXF, DWG, PLT and NC code.
Ultra-high-speed scanning & cutting with micro-connection.
Support language: English, Russian, Korean, Simplified Chinese, Traditional Chinese.

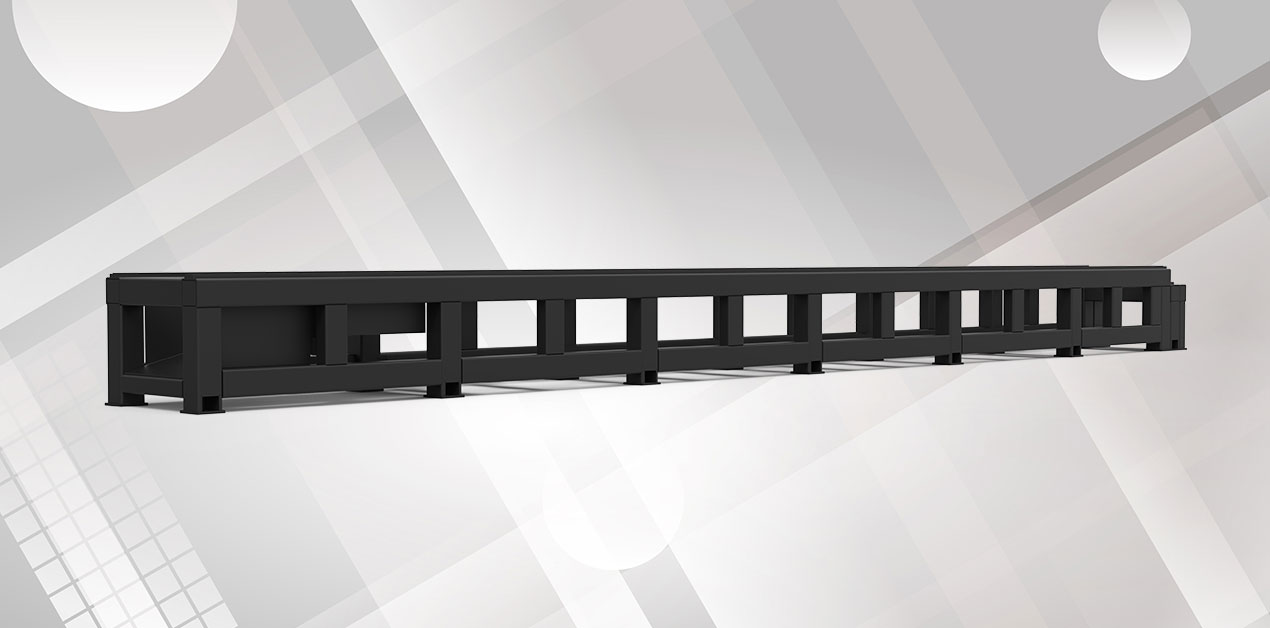

The overall rigidity is extremely strong, the load-bearing is uniform, the performance is stable, and it is not easy to deform; Shaped by high precision process. Good weight and good dynamics.
3. The front end of the machine: Surrounded by design to improve the dust removal effect. The machine is equipped with Bochu special chuck, which has better dynamic performance, speed can reach 80r/min, acceleration can reach 1.5G.

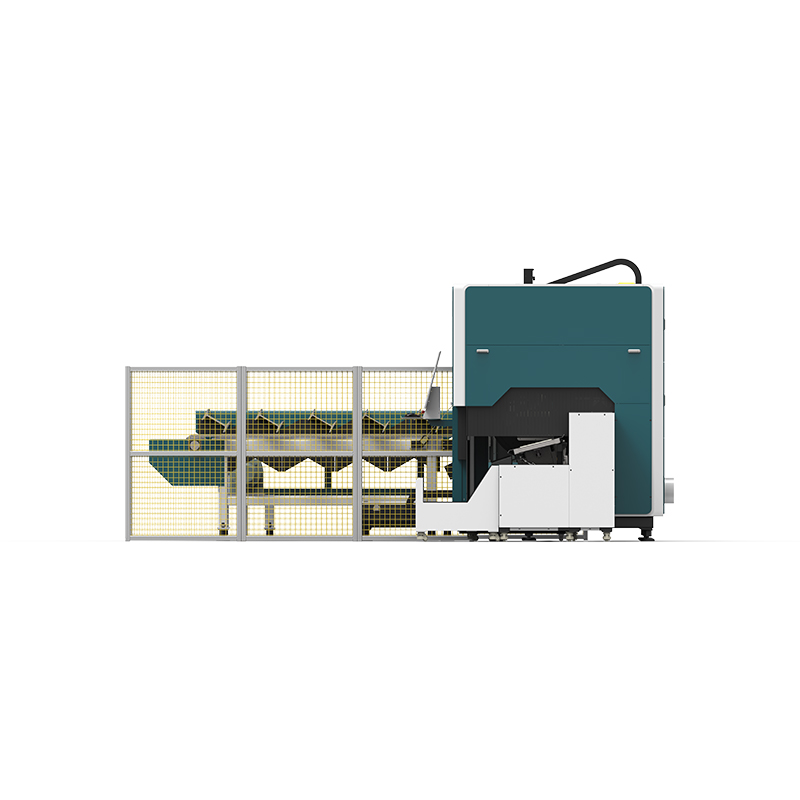

Loading

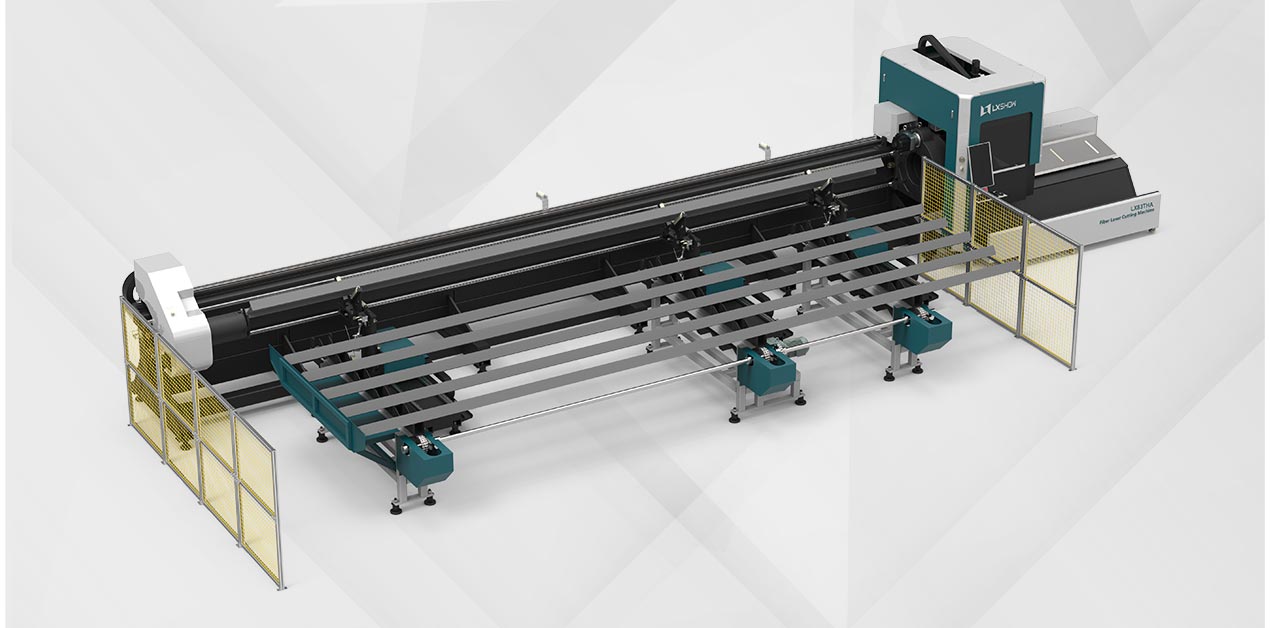

After the whole bundle pipes were put on the feeding device, these pipes can be intelligently divided, loaded and connected seamlessly with the pipe cutter to ensure that only one pipe is transported to the delivery arm at a time.

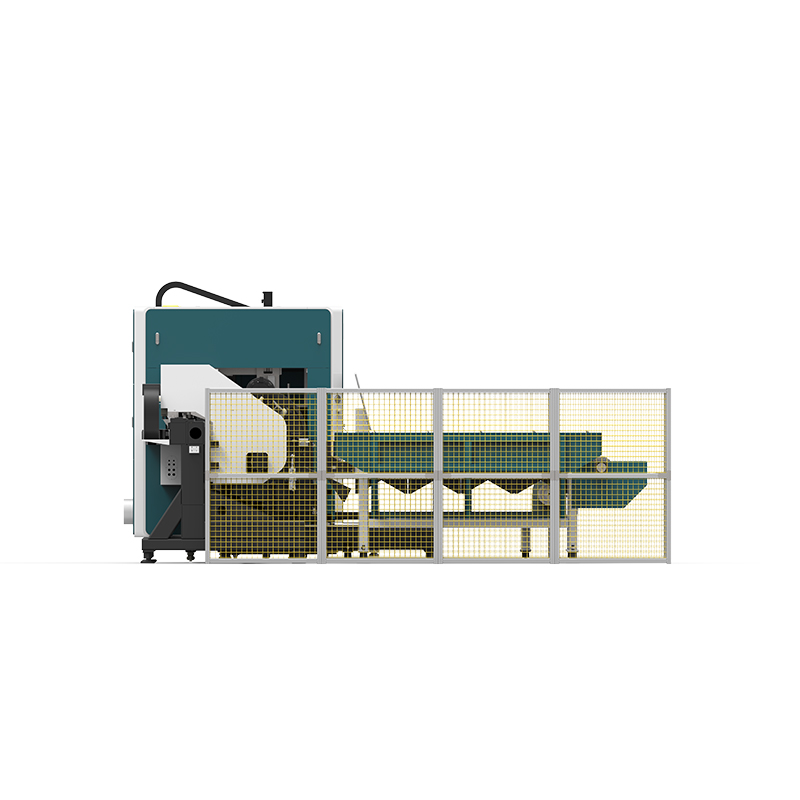

Unloading
Finished material is automatically unloaded to the parts silo, double rollers auxiliary support long parts; materials can be automatically prepared during processing time, shorten the feeding time. Automatic unloading, parts and scraps are automatically separated, reducing sorting, saving labor, and improving machine production efficiency.
Frequently Asked Questions
What pipe specifications can this machine cut?
The LX83THA model cuts round tubes from 20mm to 218mm, square tubes from 20mm to 155mm, and rectangular tubes with a diagonal measurement of less than 218mm. The maximum compatible tube length is 6050mm.
What is the average lifespan of the laser generator?
The theoretical life of the laser generator is approximately 100,000 hours. Operating the system for 8 hours a day translates to approximately 33 years of usable life. Available generator brands include JPT, Raycus, IPG, MAX, and Nlight.
What are the main consumables and their life expectancies?
The primary consumables include the cutting nozzle (≥500 hours), protective lens (≥500 hours), focusing lens (≥5000 hours), collimator lens (≥5000 hours), and ceramic body (≥10,000 hours).
How does the automatic loading and unloading process work?
Pipes are loaded in bundles onto the feeding device, which separates and transfers them one by one. After cutting, finished parts automatically unload into the silo. Scraps and processed parts are dynamically separated to reduce sorting labor and preparation downtime.
What safety and protection systems are integrated?
This machine features a semi-enclosed design with automatic lifting doors for physical protection. Additionally, it integrates stroke intelligent protection to monitor the cutting head's operational path and automatically stop upon detecting collision risks.
What are the payment and shipping terms?
The delivery lead time is 20-35 working days. We accept T/T, Alibaba Trade Assurance, West Union, Paypal, and L/C. Shipping can be arranged by sea or land, and the machine includes a 3-year warranty.
