| Machine Model | LX3015/4015/6015/4020/6020/6025/8025PT |
| Power of Generator | 1000/3000/4000/6000/8000/12000W (optional) |
| Dimension | Exchange table Machine size: 5200*3000*2400mm Water chiller +Controller: 1830*920*2110mm (About) |
| Working Area | 1500*3000mm (Other size can be customized) |
| Repeated Positioning Accuracy | ±0.02mm |
| Max Running Speed | 120m/min |
| Max Acceleration | 1.5G |
| Specified Voltage And Frequency | 380V 50/60HZ |

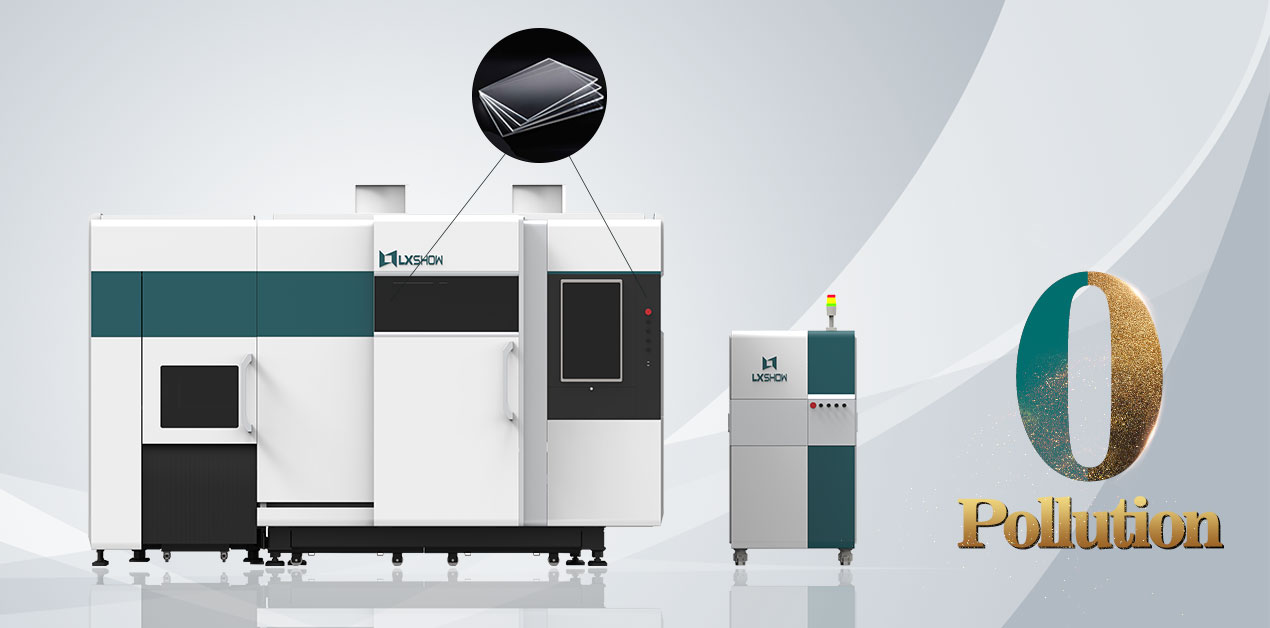

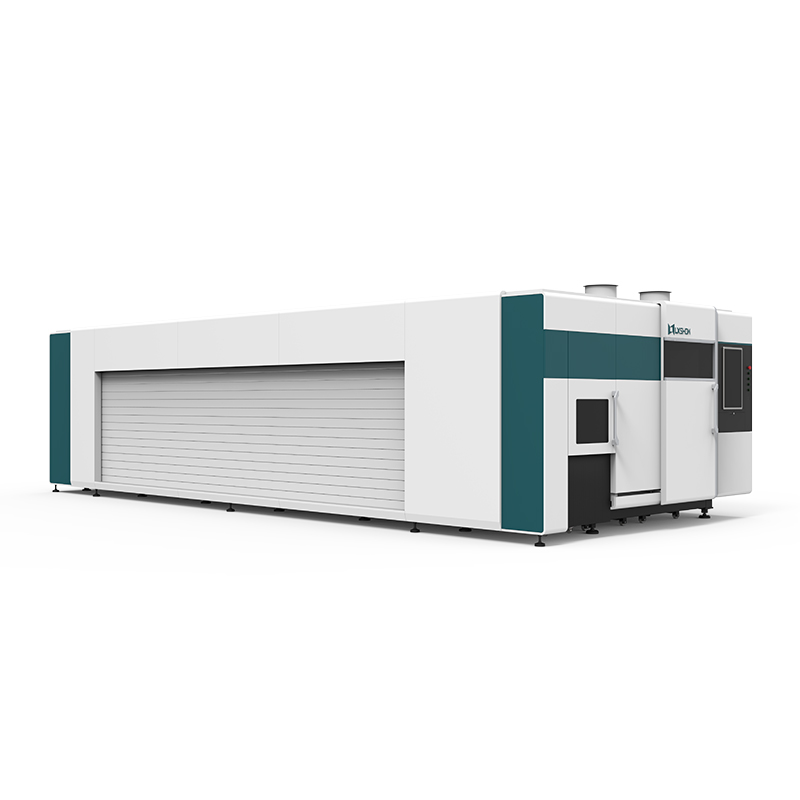

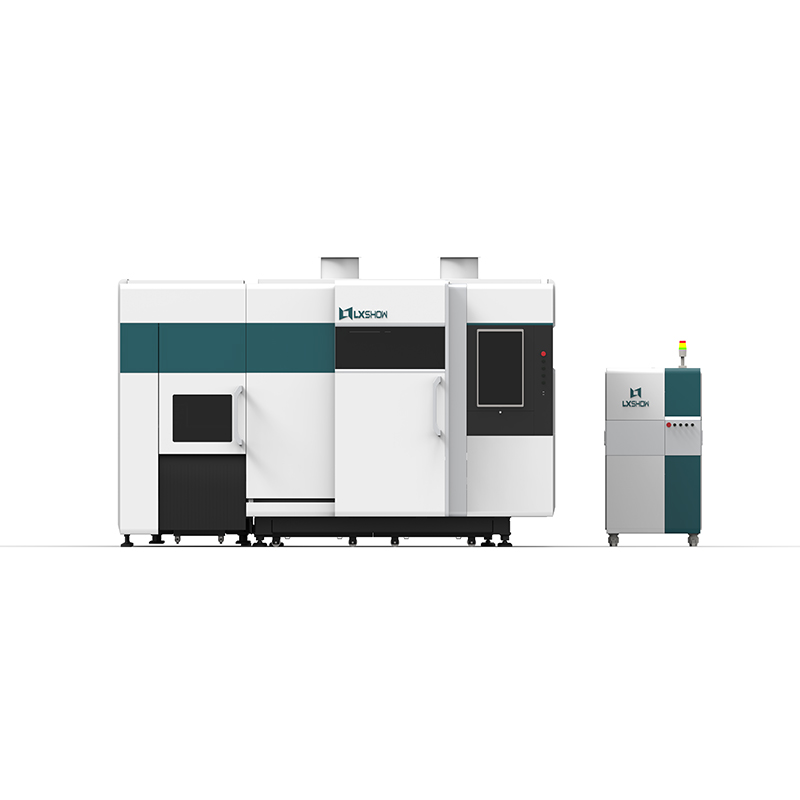

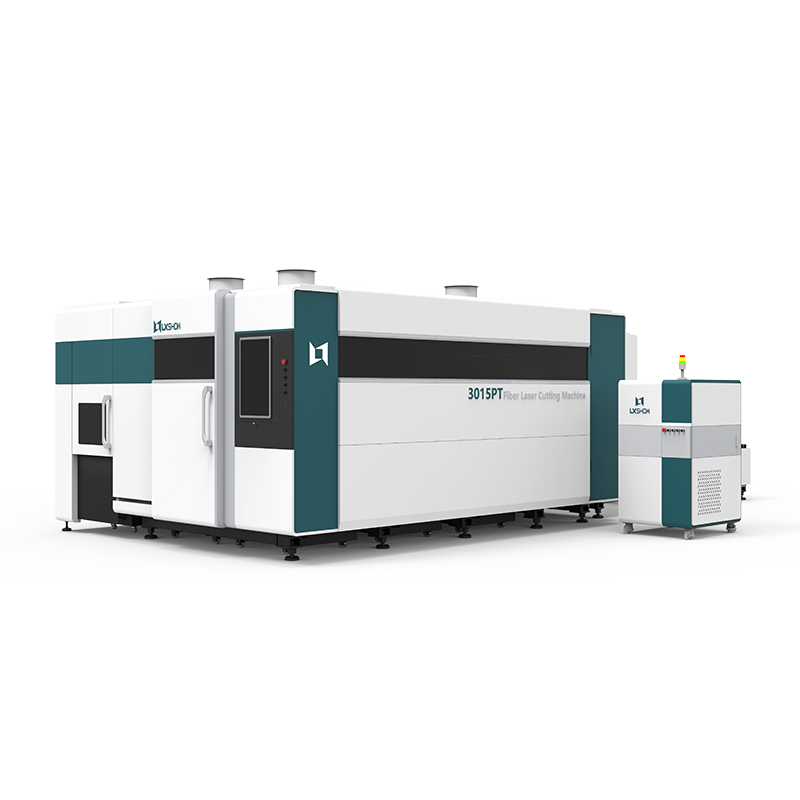

With a fully enclosed design, the observation window adopts an European CE Standard laser protective glass.

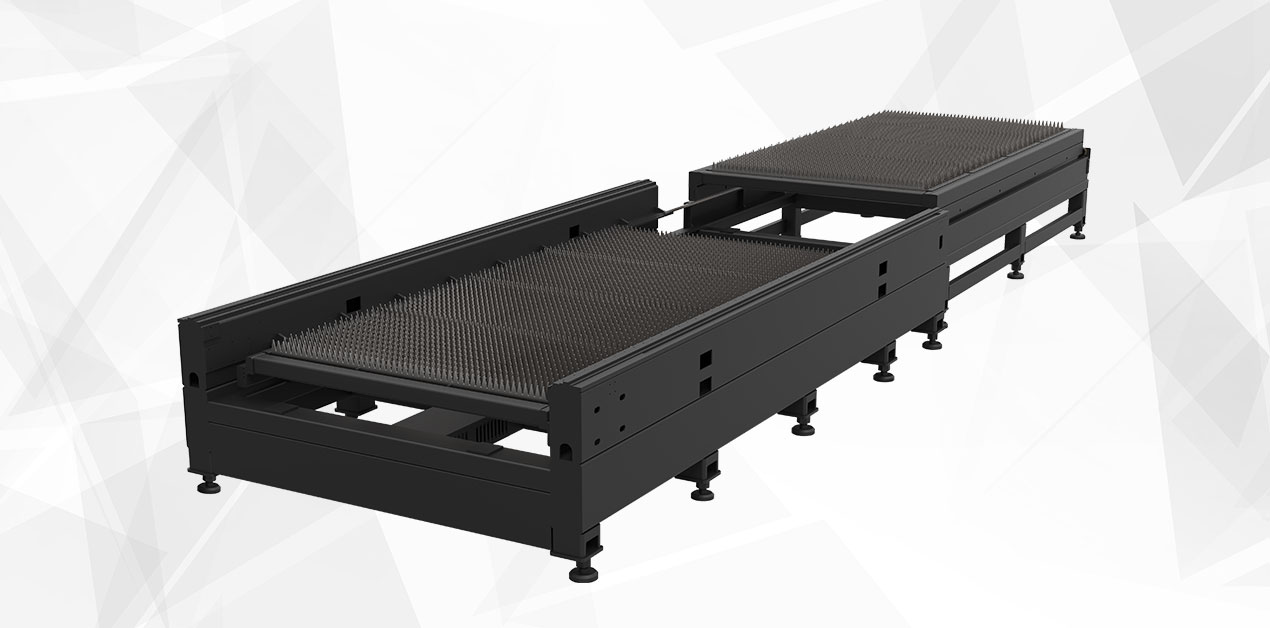

It adopts an up and down exchange platform. The converter is responsible for controlling the exchanging motor. The machine is able to finish the platform exchanging within 15s.

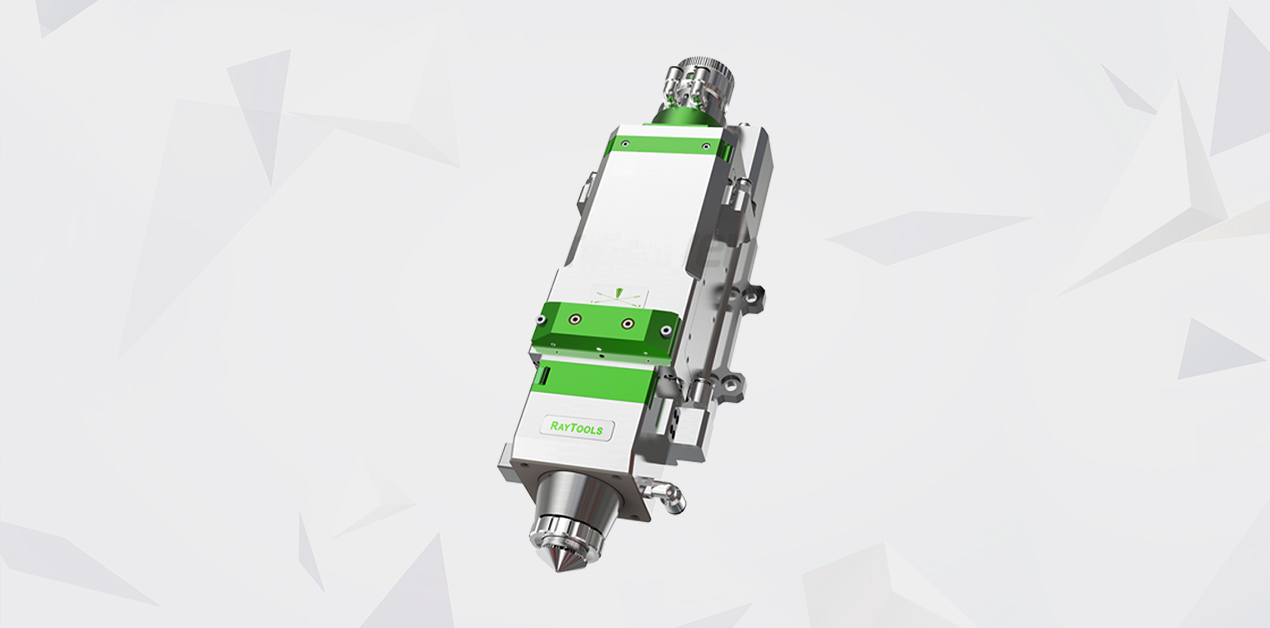

Autofocus, active obstacle avoidance, automatic cooling down. Cut medium-to-thin, thick, ultra-thick sheets stably even in batch cutting. Cut sheets at higher efficiency and save gas consumption. Gives early warning if abnormal, simple to maintain at lower costs.
Fiber Laser Metal Cutting Machine is suitable for metal cutting like Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, etc.
Fiber Laser Cutting Machines are widely used in manufacture of Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal crafts, metal art ware, elevator panel cutting, hardware, auto parts, Glasses Frame, Electronic Parts, Nameplates, etc.
| Model Number | LX3015/4015/6015/4020/6020/6025/8025PT |
| Lead Time | 15-25 working days |
| Payment Term | T/T; Alibaba trade assurance; West Union; Paypal; L/C |
| Exchange table Machine size | 5200*3000*2400mm |
| Water chiller +Controller | 1830*920*2110mm (About) |
| Machine weight | 8000KG (About) |
| Warranty | 3 years |
| Shipping | By sea / By land |
The generator's using life (theoretical value) is 100,000 hours. This means that if you use it for 8 hours a day, it can be used for about 33 years.

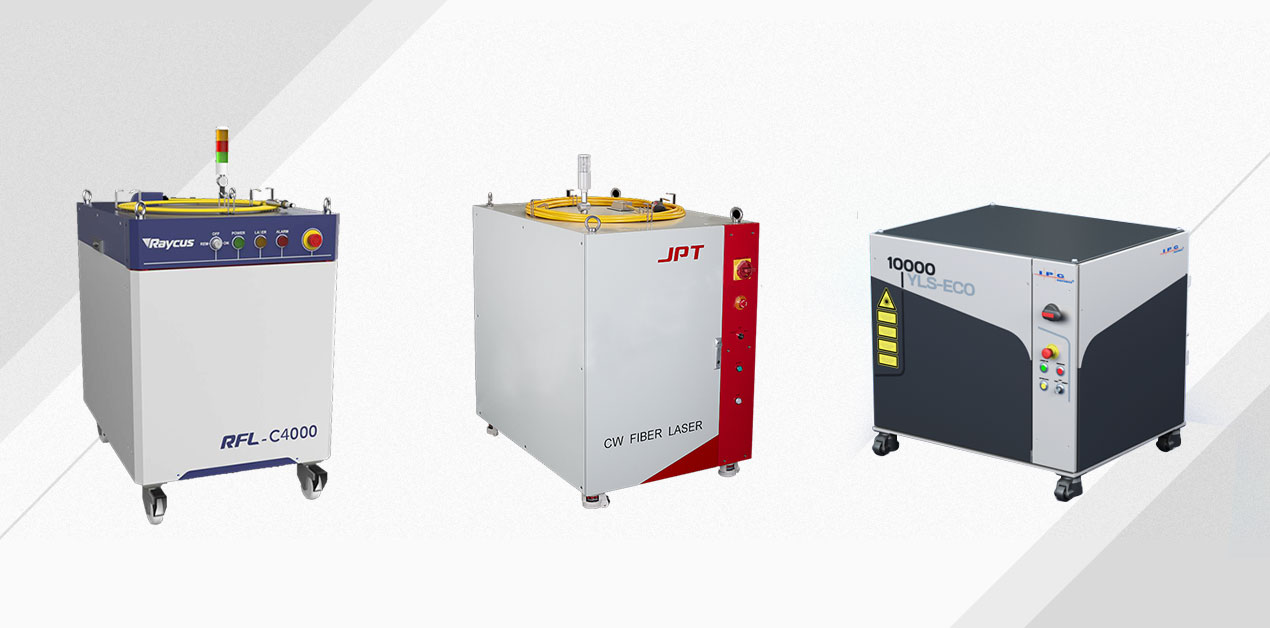

Generator Brand Options: JPT/Raycus/IPG/MAX/Nlight
The consumable parts of the fiber laser cutting machine include: cutting nozzle (≥500h), protective lens (≥500h), focusing lens (≥5000h), collimator lens (≥5000h), ceramic body (≥10000h). You can buy some consumable parts as an option when ordering.

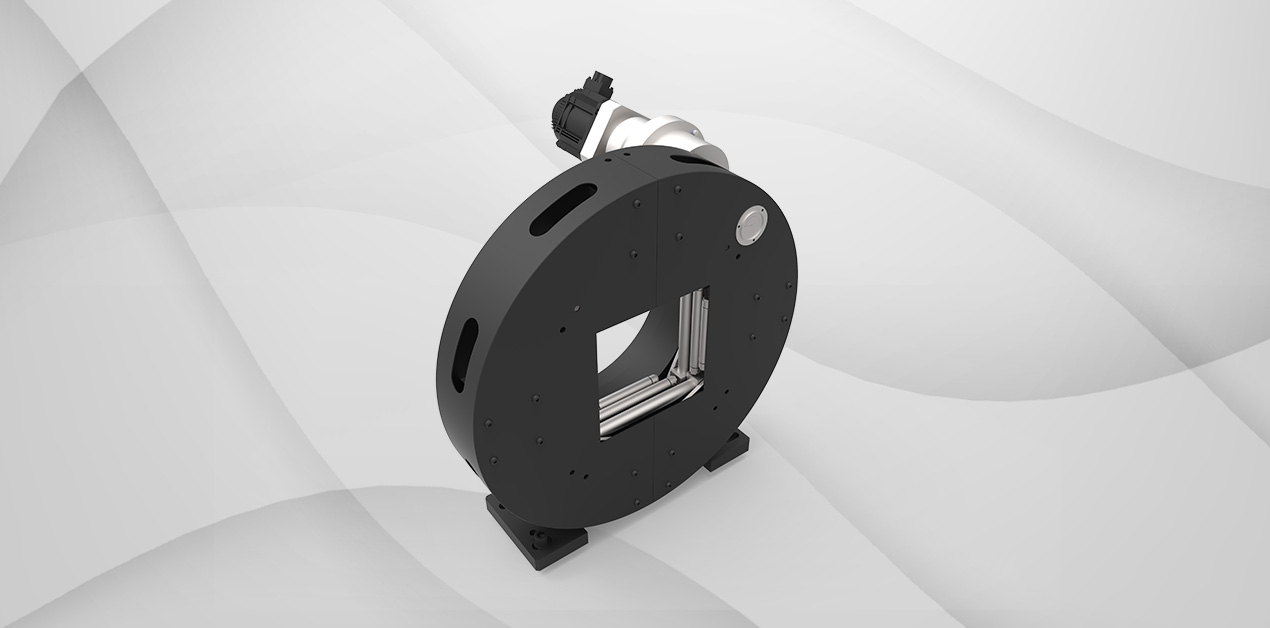

It adopts a pneumatic clamp design on both sides and it can modulate the center automatically. The diagonal adjustable range is 20-220mm (320/350 is optional).
System Highlights:

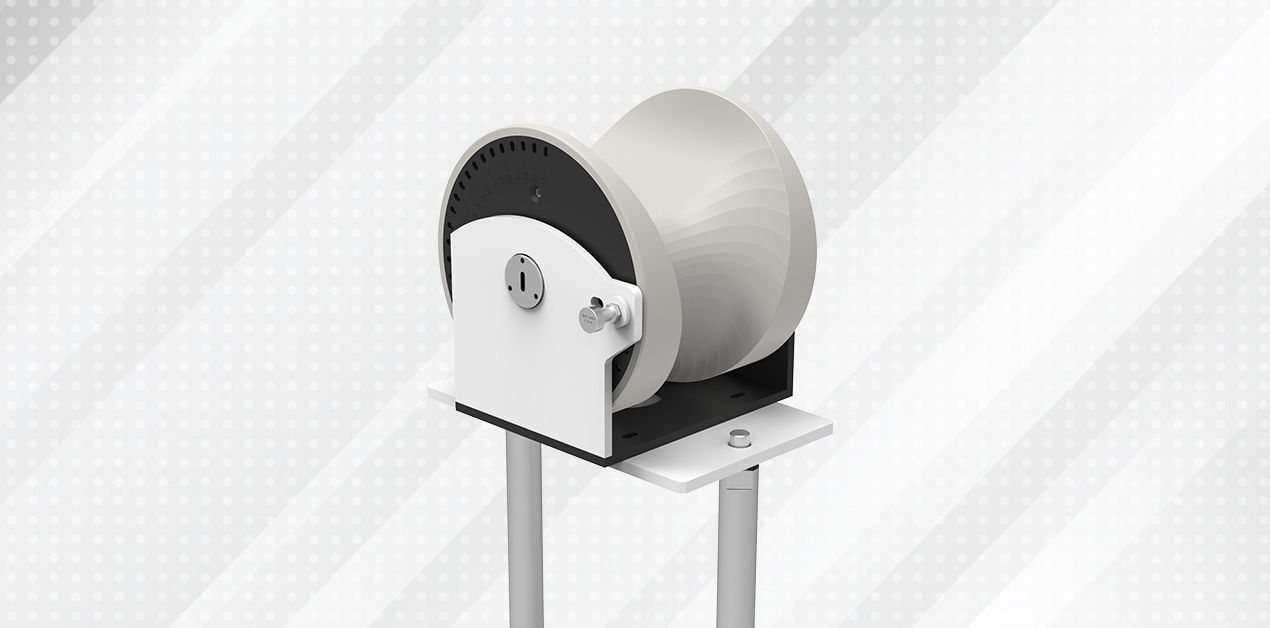

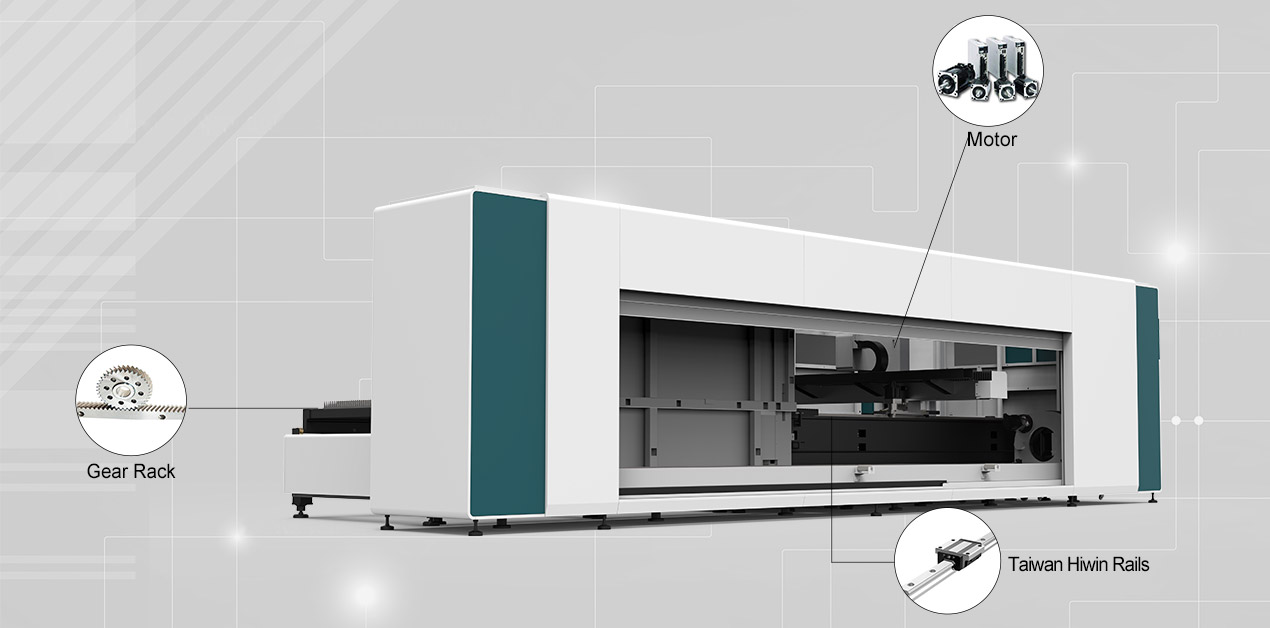

The fiber laser cutting machine is equipped with Japanese Yaskawa motor and Taiwan Hiwin Rails. The positioning accuracy of the machine tool can be 0.02mm and the cutting acceleration is 1.5G.
Tobacco Control: Adopt the latest cutting-edge tobacco control technology. Each section of the bed has a smoke exhaust device.
Clean Work Environment: The smoke produced by cutting can be filtrated inside. It's non-polluting and environmentally friendly.

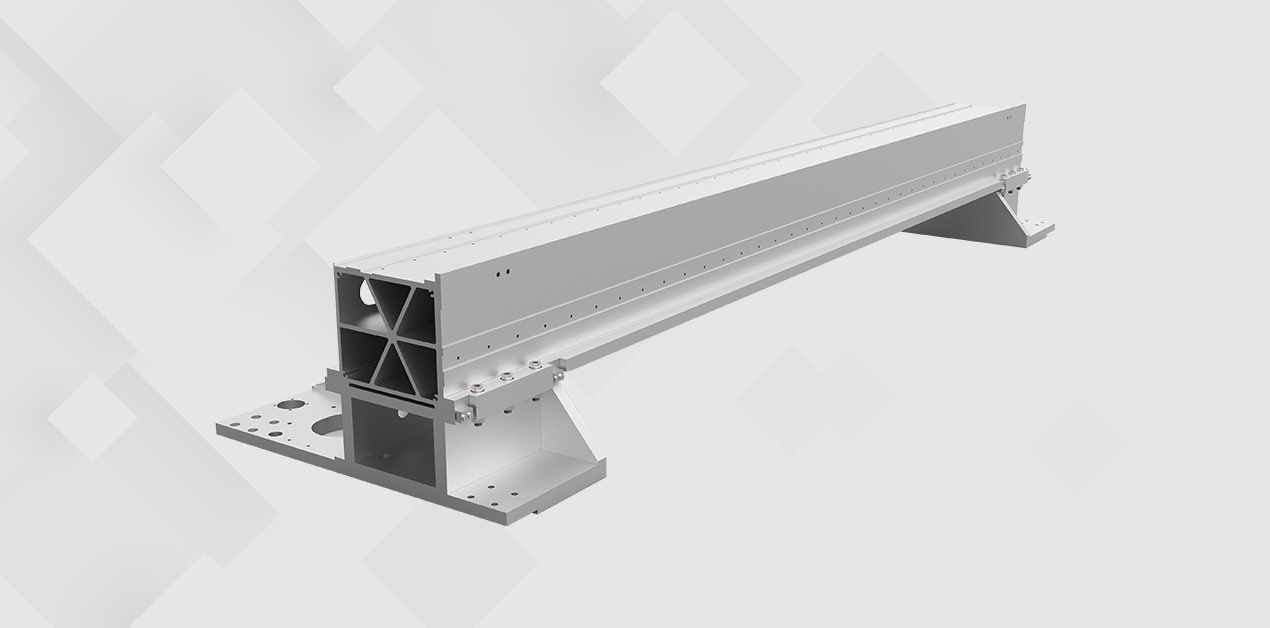

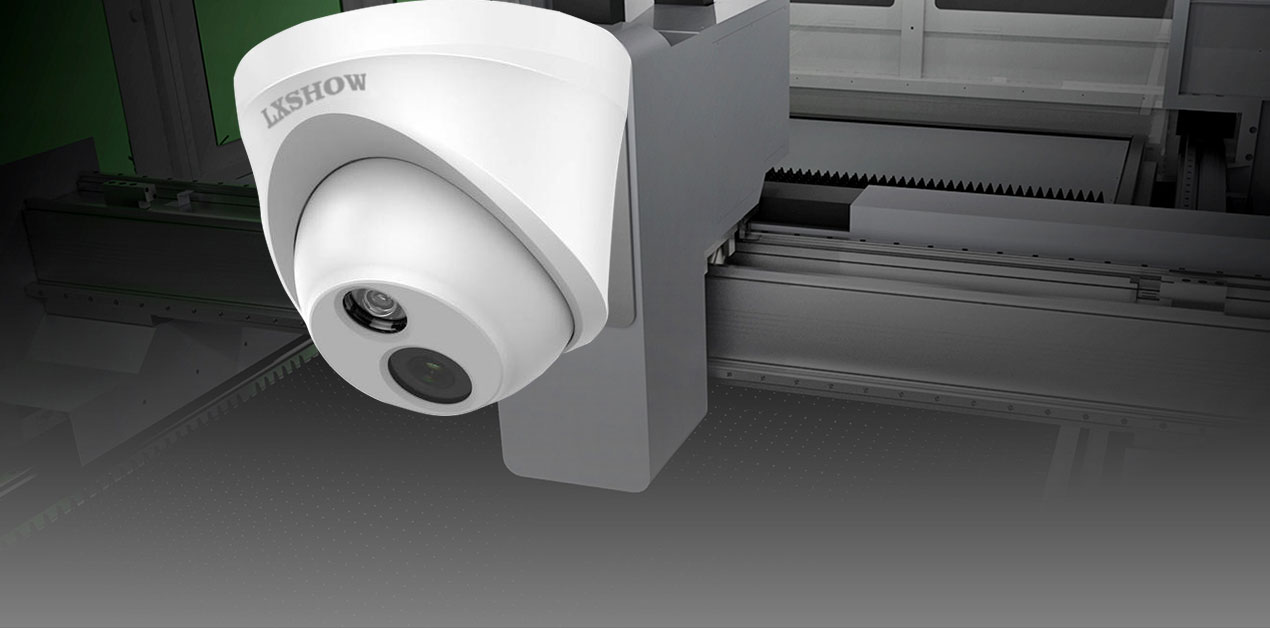

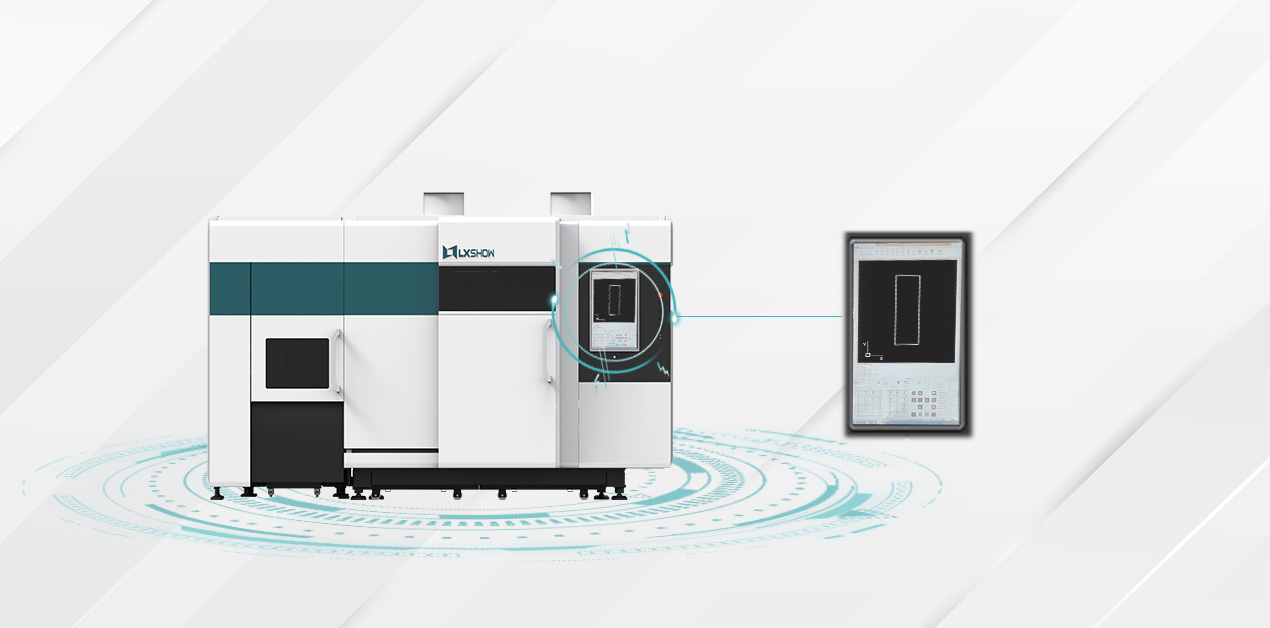

Real-time observation: Real-time observe the machine running through the panel. The lightweight gantry ensures that the metal laser cutting machine has a high moving speed, good dynamic performance, and improved processing efficiency.

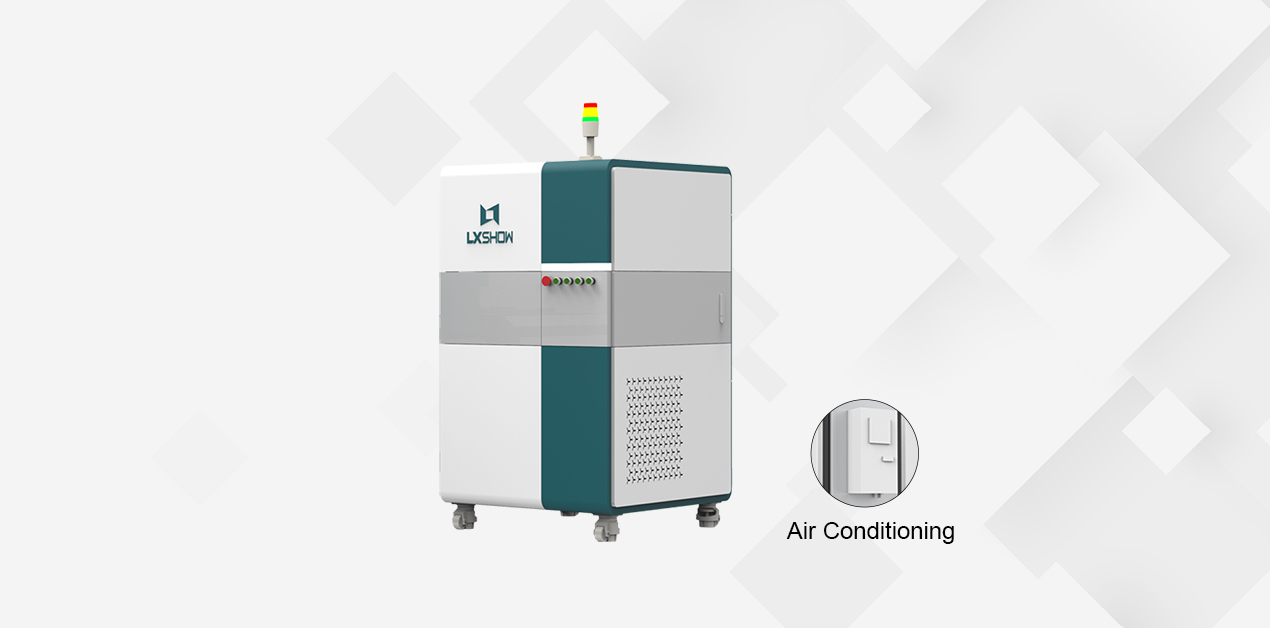

Dust-proof: All electrical components and laser source are built-in to the independent control cabinet with a dust-proof design to prolong the lifespan of the electrical components.
Automatic Thermostat: The control cabinet is equipped with air conditioner for automatic constant temperature. This can prevent excessive temperature damage to components in summer.

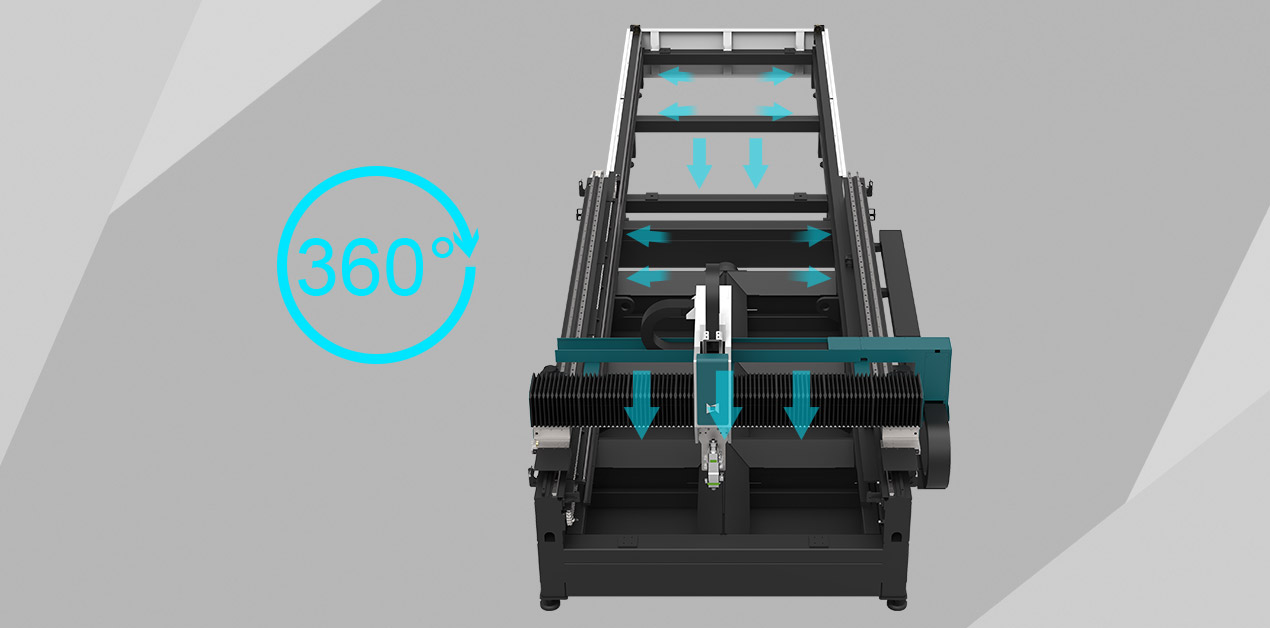

Powerful 360° Adsorption: Axial fan wind direction surrounds blowing smoke downward, with full 360° strong adsorption and consistent smoke exhaust. Effectively purifies the smoke and dust on the top of the enclosed cutting platform to prevent lens contamination.
Net Follow-up Smart Smoking: The smoke exhaust device automatically senses the laser cutting position to turn on precise smoke exhaust, creating a concealed cavity and fully enclosed smoke control.

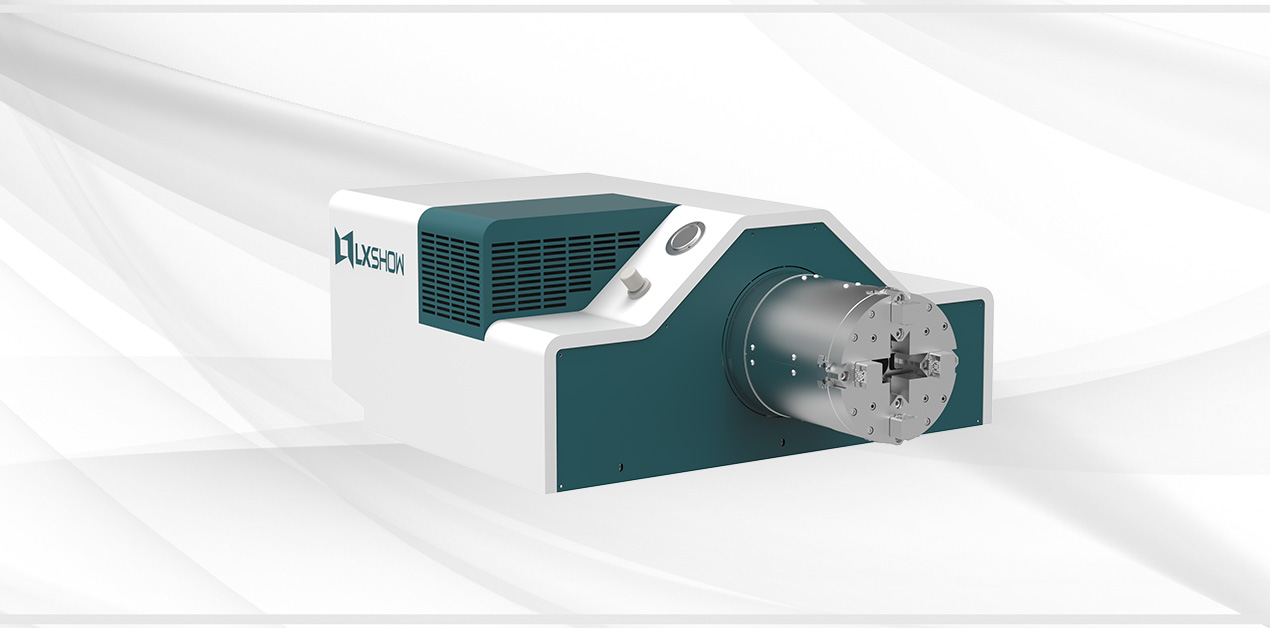

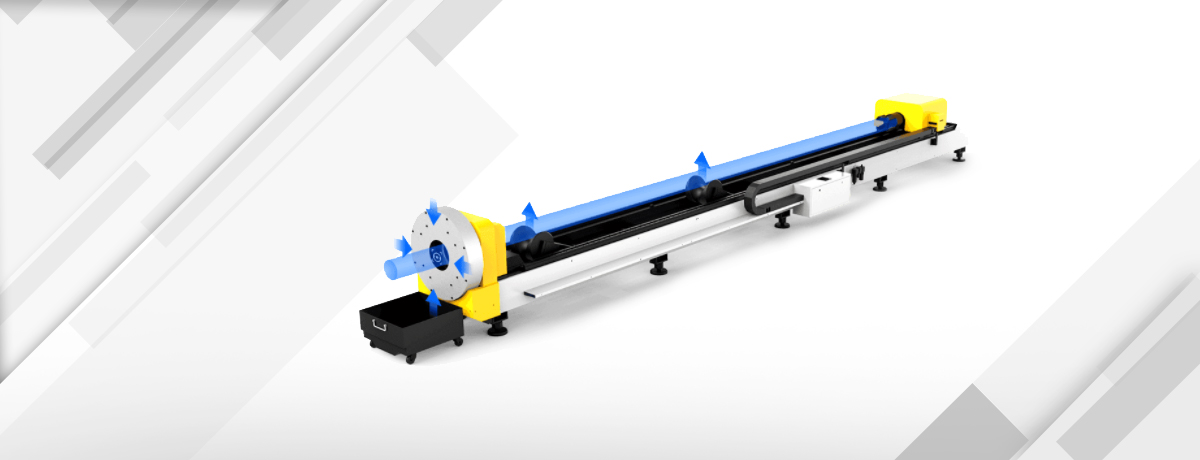

Chuck: Both pneumatic control, Pneumatic chucks are 3 times faster than electric chucks thanks to one-button clamping and auto-centering. The clamping force is large and constant, which can hold heavy pipes stably.
Rotary dimensions: Standard length is 6m or 8m (other sizes can be customized). Standard diameter is 160/220mm (other sizes can be customized).
