1 / 5

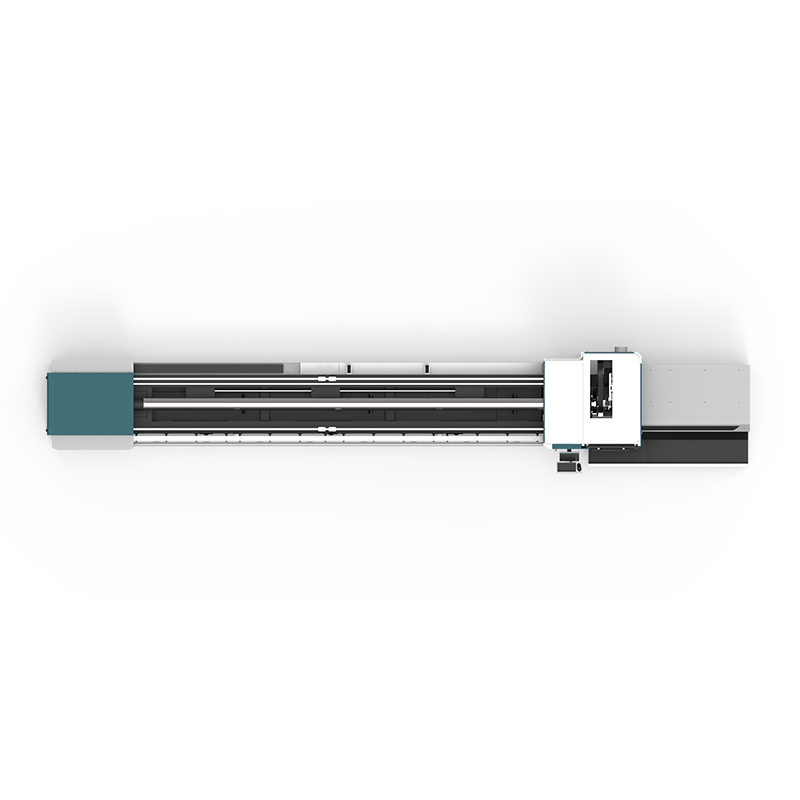

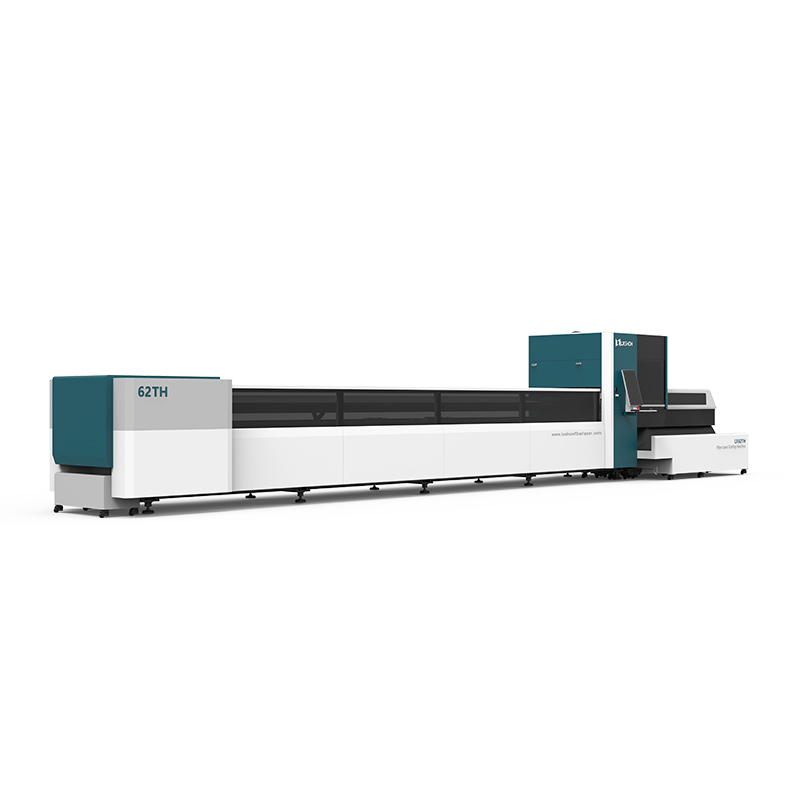

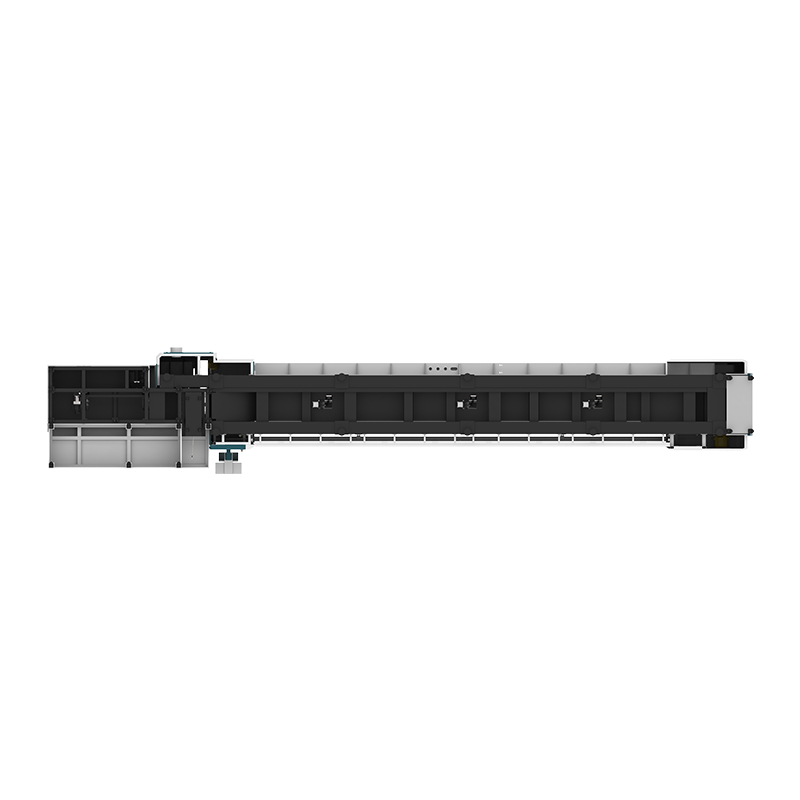

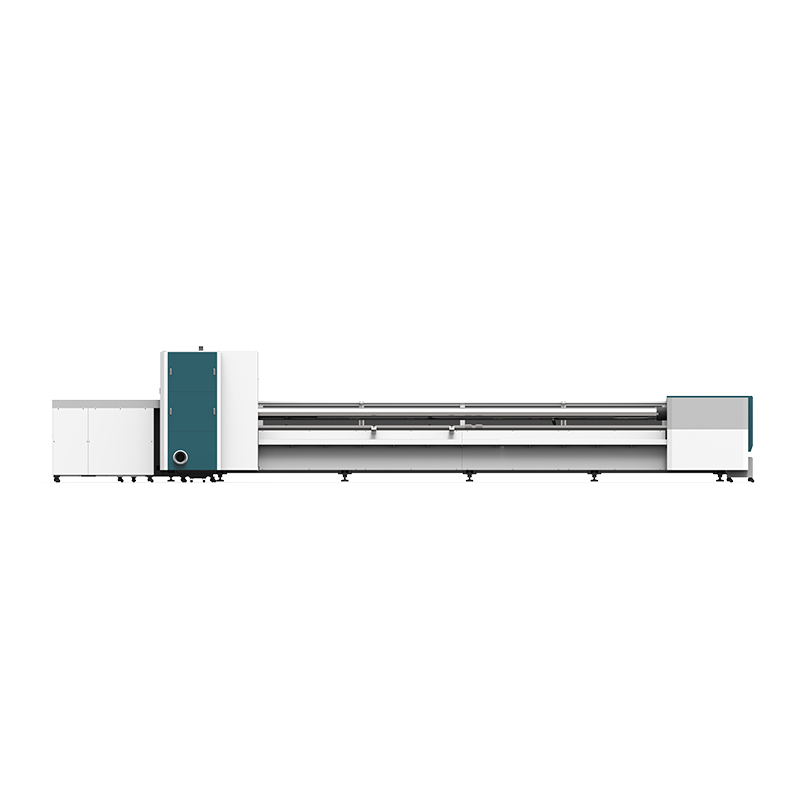

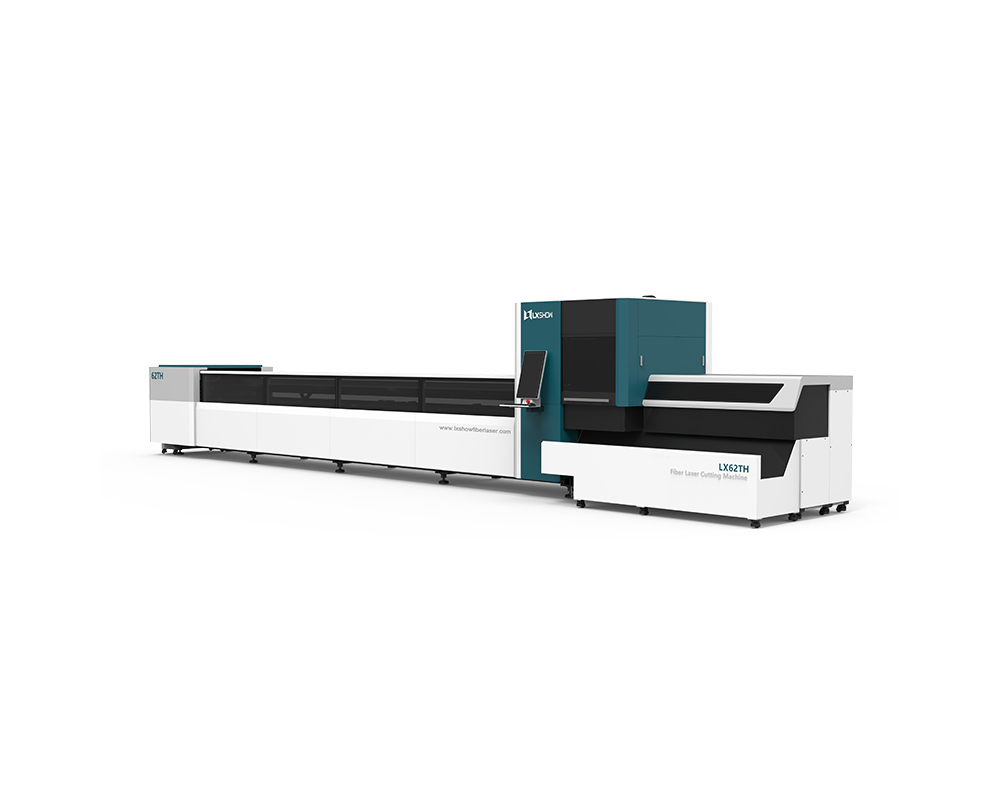

| Machine Model | LX62TH |
| Power of Generator | 1000/1500/2000/3000/4000/6000/8000W (optional) |
| Dimension | 1580*11900*2260mm |
| Clamping Range | Φ20-Φ220mm (300/350 mm can be customized) |
| Repeated Positioning Accuracy | ±0.02mm |
| Specified Voltage And Frequency | 380V 50/60HZ |

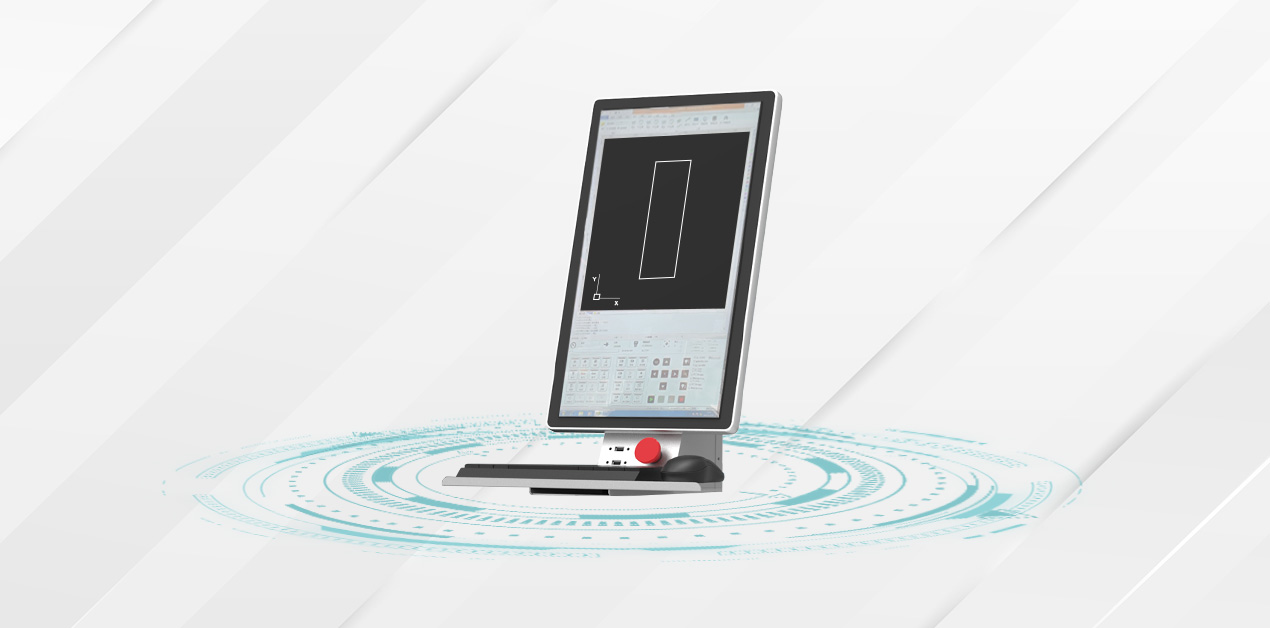

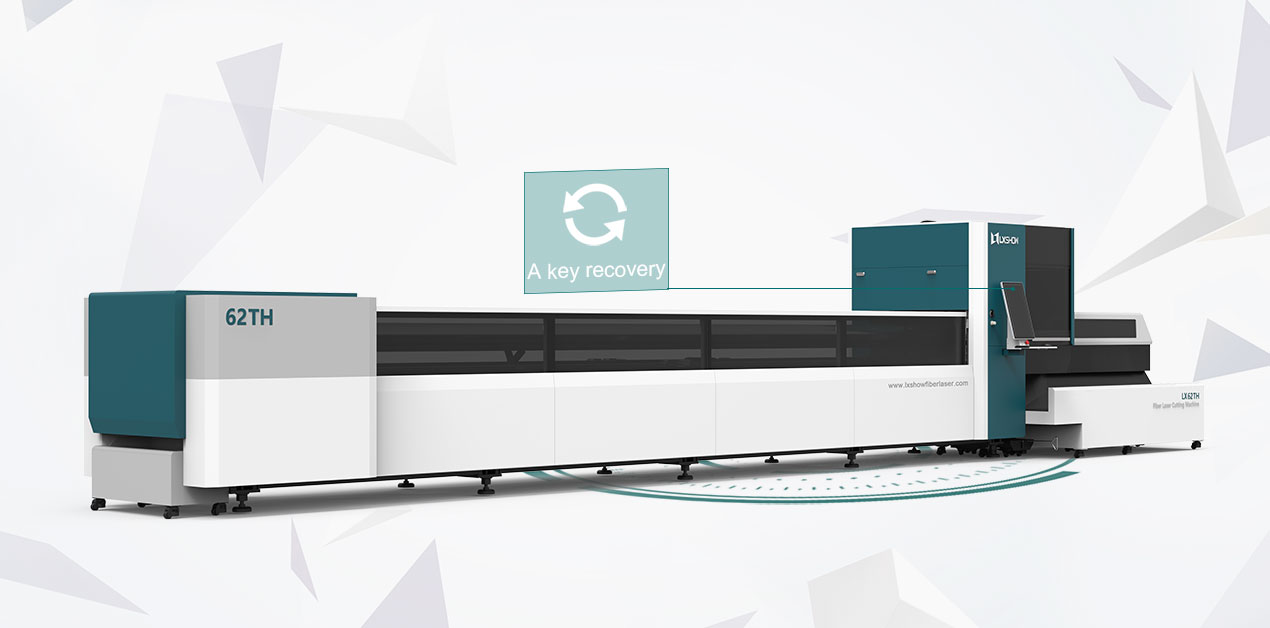

System is equipped with servo motor, boot to homework, do not need to return to zero operation, power outages, a key recovery cutting operation.

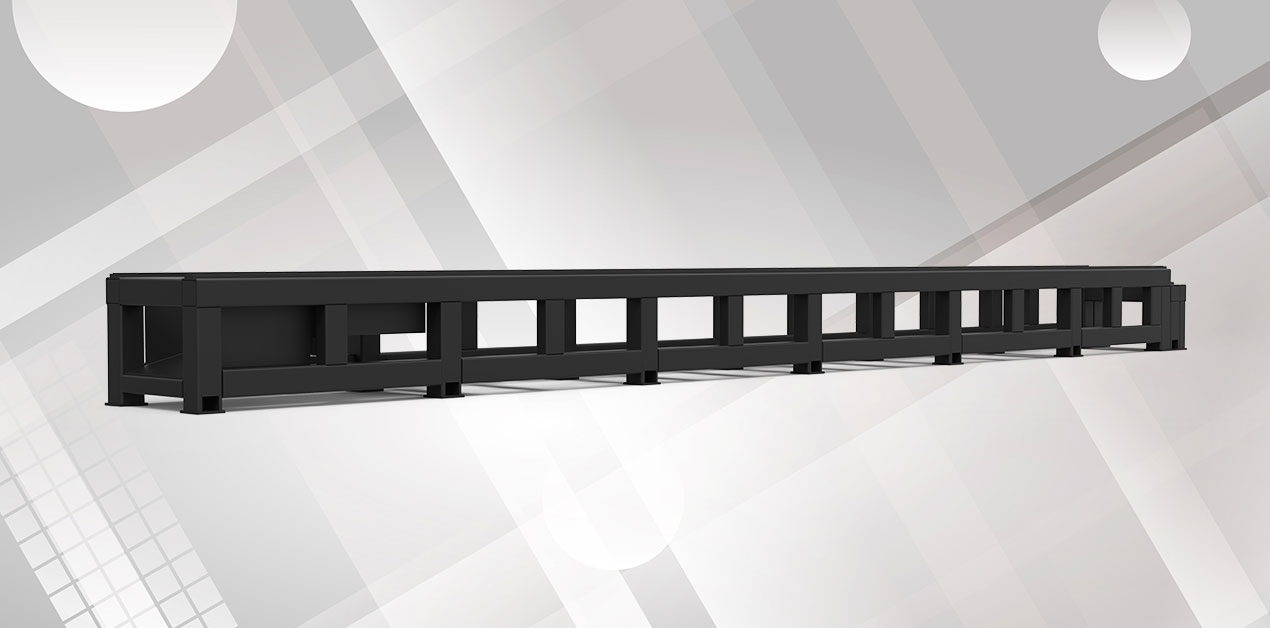

Good rigidity, high precision, no deformation during the life cycle; Welded aluminum collet board, formed through high precision process. Good weight and good dynamic performance.

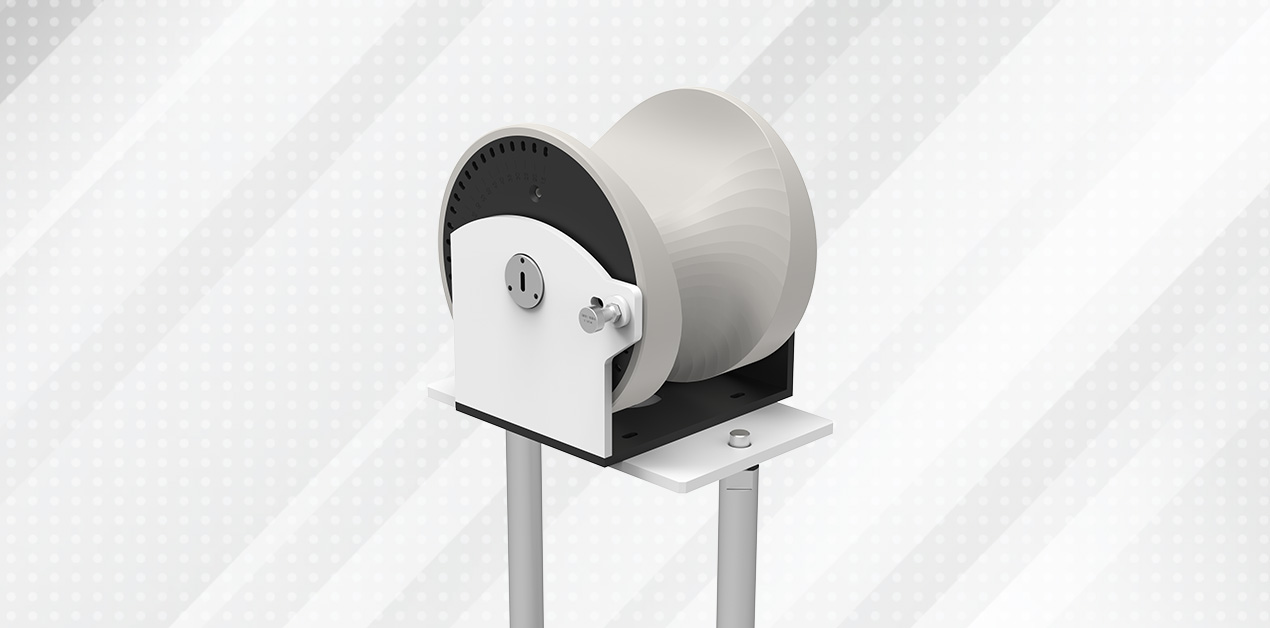

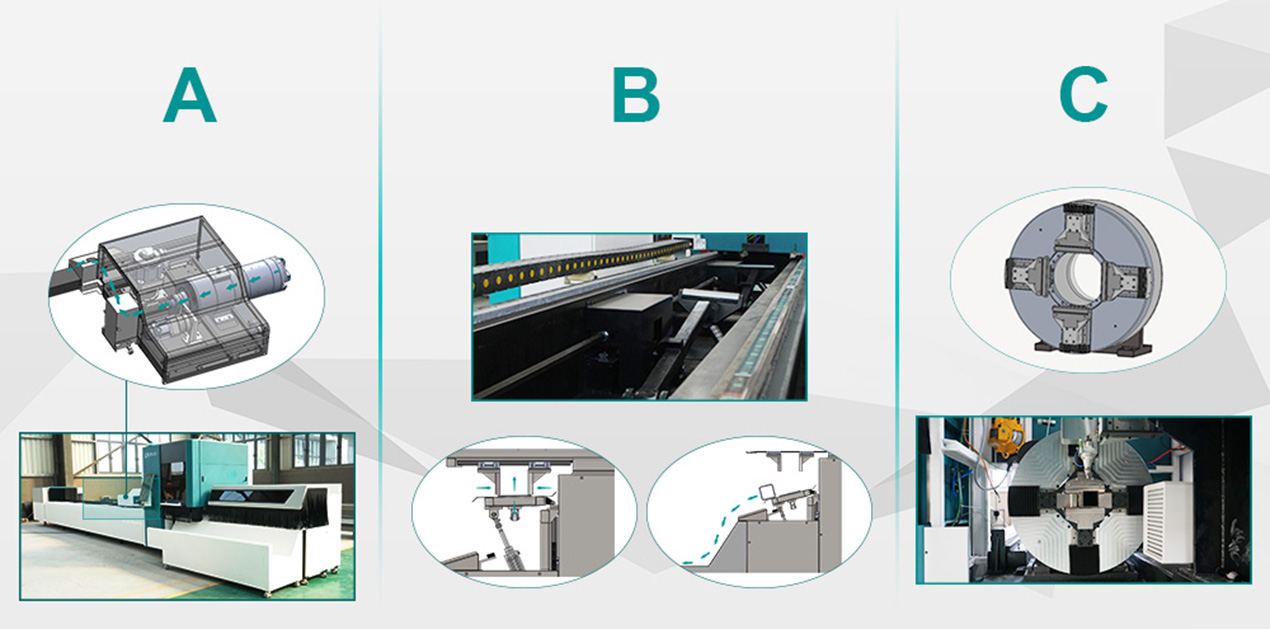

It employs intelligent tube support design, which can solve the deformation problems in the process of long tube cutting.
The fiber laser cutting machine is equipped with German Atlanta rack, Japanese Yaskawa motor and Taiwan Hiwin Rails. The positioning accuracy of the machine tool can be 0.02mm and the cutting acceleration is 1.5G. The working life is up to more than 15 years.
Mainly used for cutting. Suitable for cutting stainless steel, low carbon steel, carbon steel, alloy steel, spring steel, iron, galvanized pipe, aluminum, copper, brass, bronze, titanium and other metals.
Applied in sheet metal processing, aviation, spaceflight, electronics, electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment, elevator, household appliances, gifts and crafts, tool processing, adornment, advertising, metal foreign processing and various manufacturing processing industries.

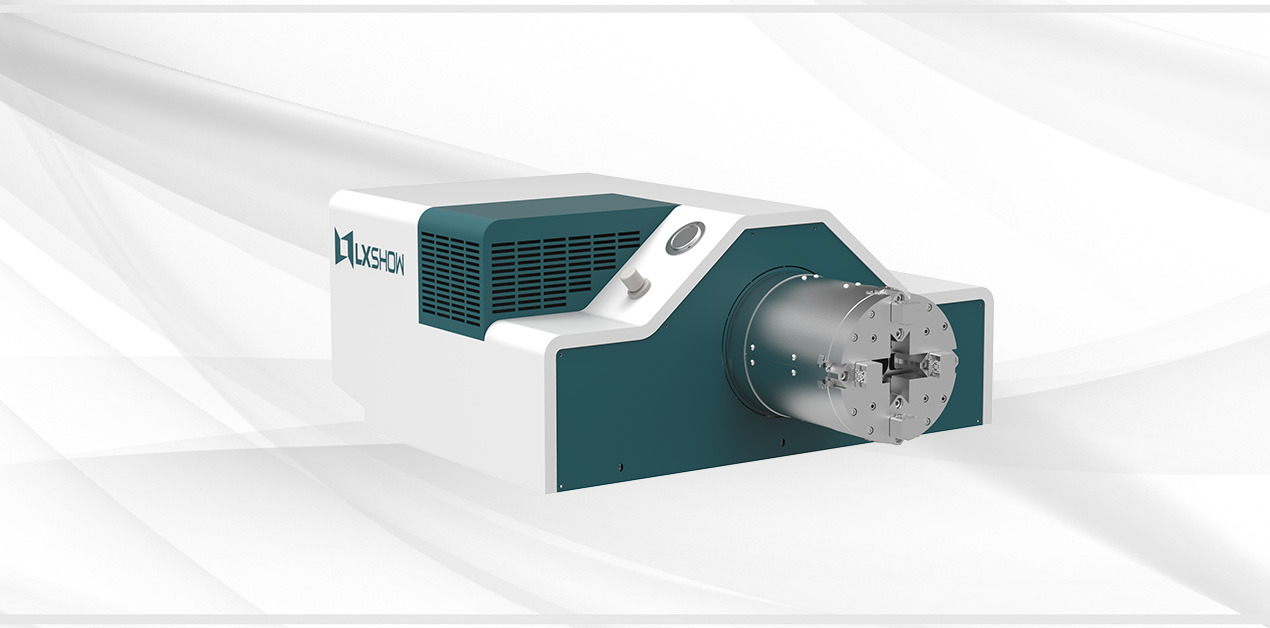

Automatic pneumatic chuck, adjustable and stable, clamping range is wider and clamping force is larger. Non-destructive pipe clamping, fast automatic centering and clamping pipe, performance is more stable. The chuck size is smaller, rotation inertia is low, and dynamic performance is strong. Self-centering pneumatic chuck, gear transmission mode, higher transmission efficiency, long working life and high work reliability.

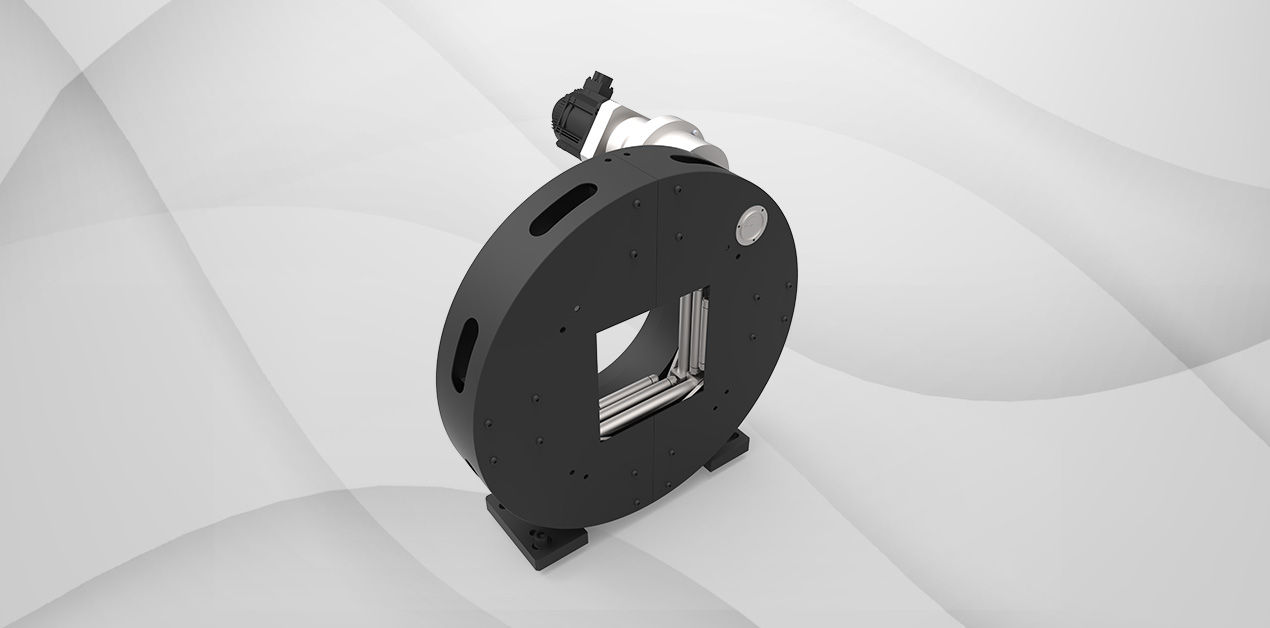

It adopts an pneumatic clamp design on both sides and it can modulate the center automatically. The diagonal adjustable range is 20-220mm (320/350 is optional).

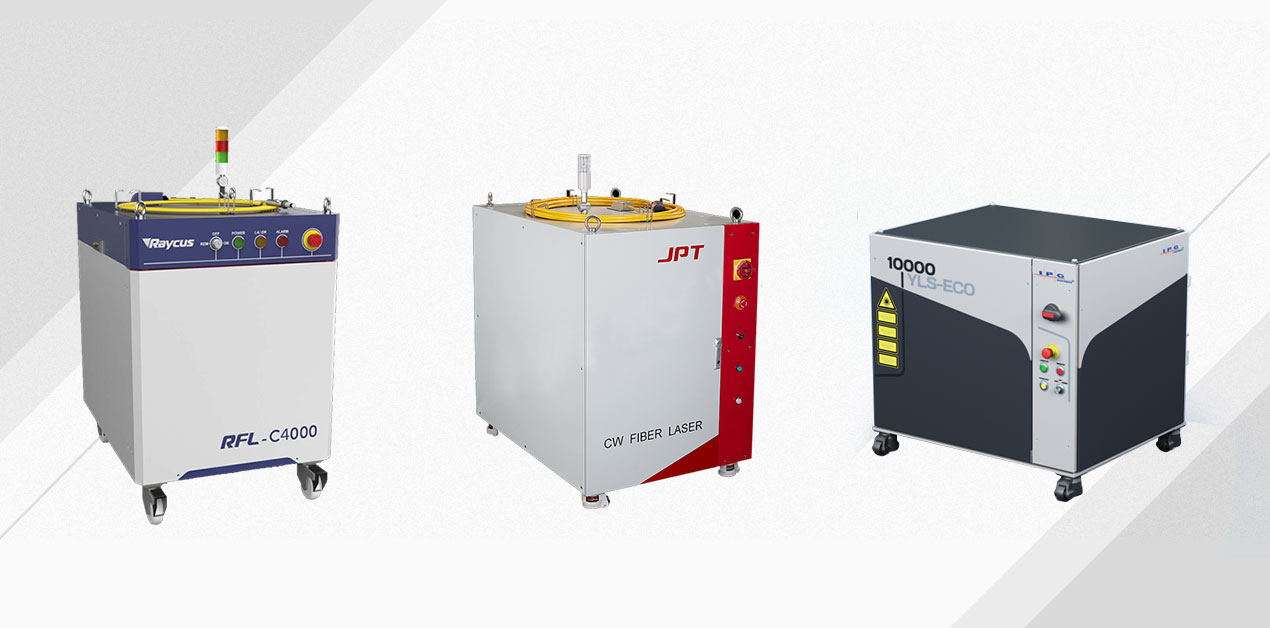

Use the generator of life: The theoretical life of the generator is 100,000 hours. If the machine works 8 hours a day, it can last about 33 years.
Alternative generator brands: JPT / Raycus / IPG / MAX / Nlight.

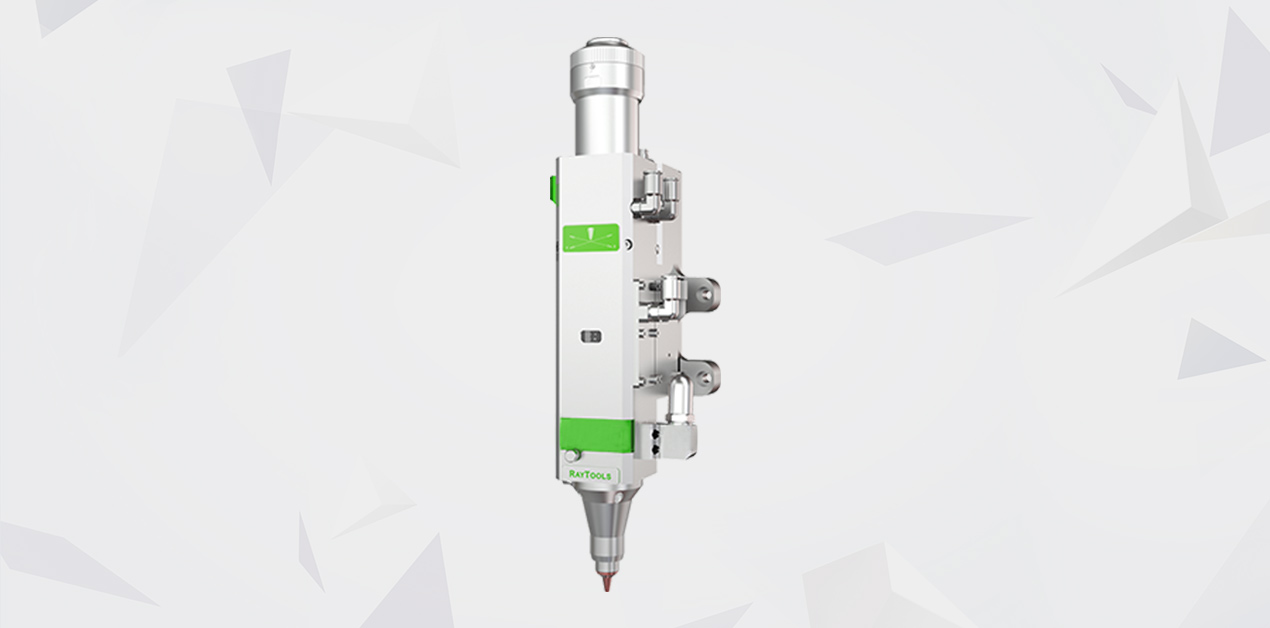

The consumable parts of the fiber laser cutting machine include:
Note: You can purchase some consumable parts as an option when buying the machine.
