| Machine Model | LX3015P / 4015P / 6015P / 4020P / 6020P / 6025P / 8025P |
|---|---|
| Power of Generator | 3000 / 4000 / 6000 / 8000 / 10000 / 12000W (optional) |
| Dimension | 2850*8850*2310mm / 3350*10800*2310mm (About) |
| Working Area | 3000*1500mm / 4000*1500mm / 6000*1500mm / 4000*2000mm / 6000*2000mm / 6000*2500mm / 8000*2500mm |
| Repeated Positioning Accuracy | ±0.02mm |
| Max Running Speed | 120m/min |
| Max Acceleration | 1.5G |
| Specified Voltage And Frequency | 380V 50/60HZ |

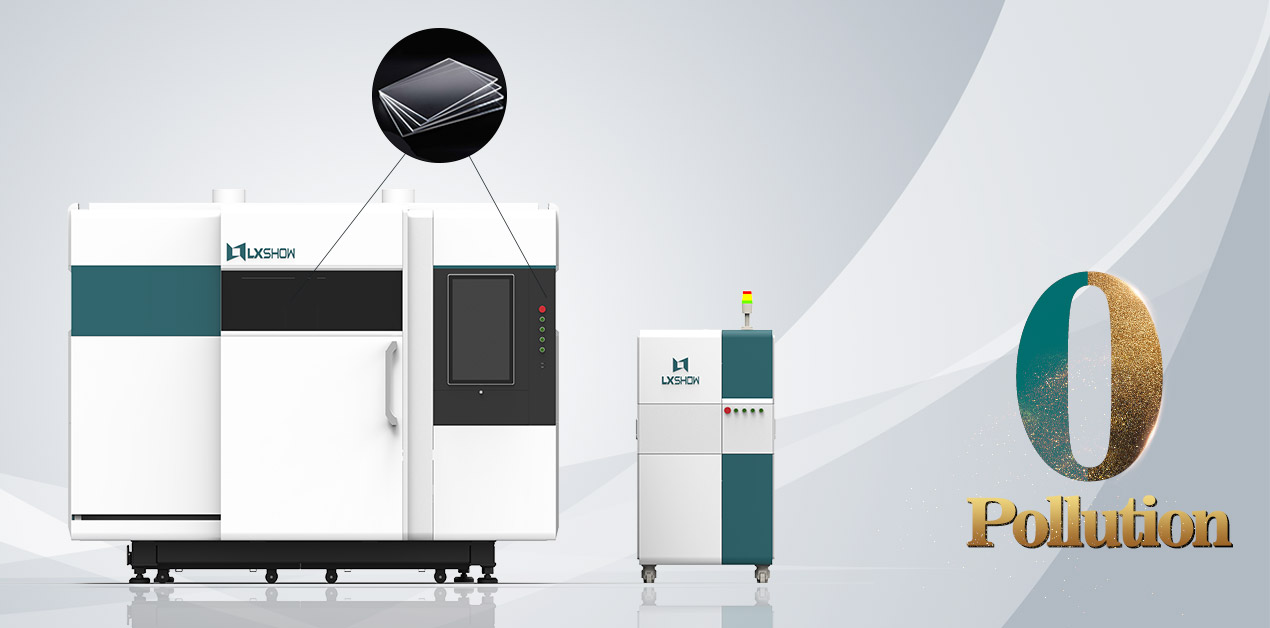

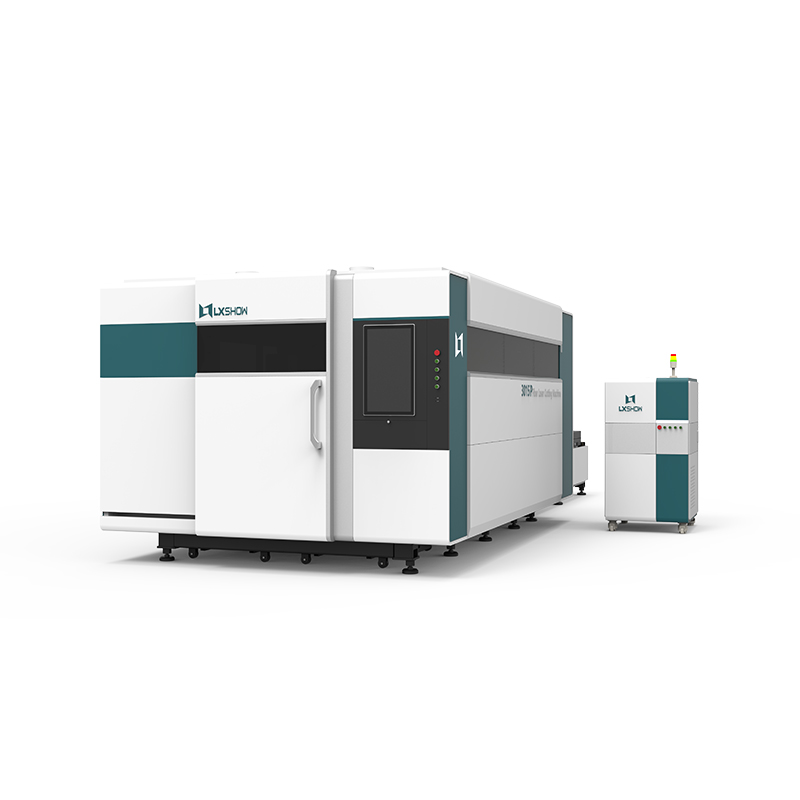

This system utilizes a fully enclosed design which protects operators and reduces environmental exhaust output significantly.
Supported Languages: English, Spanish, Portuguese, Russian, German, French, Italian, Japanese, Korean, Dutch, Czech, Simplified Chinese, Traditional Chinese.

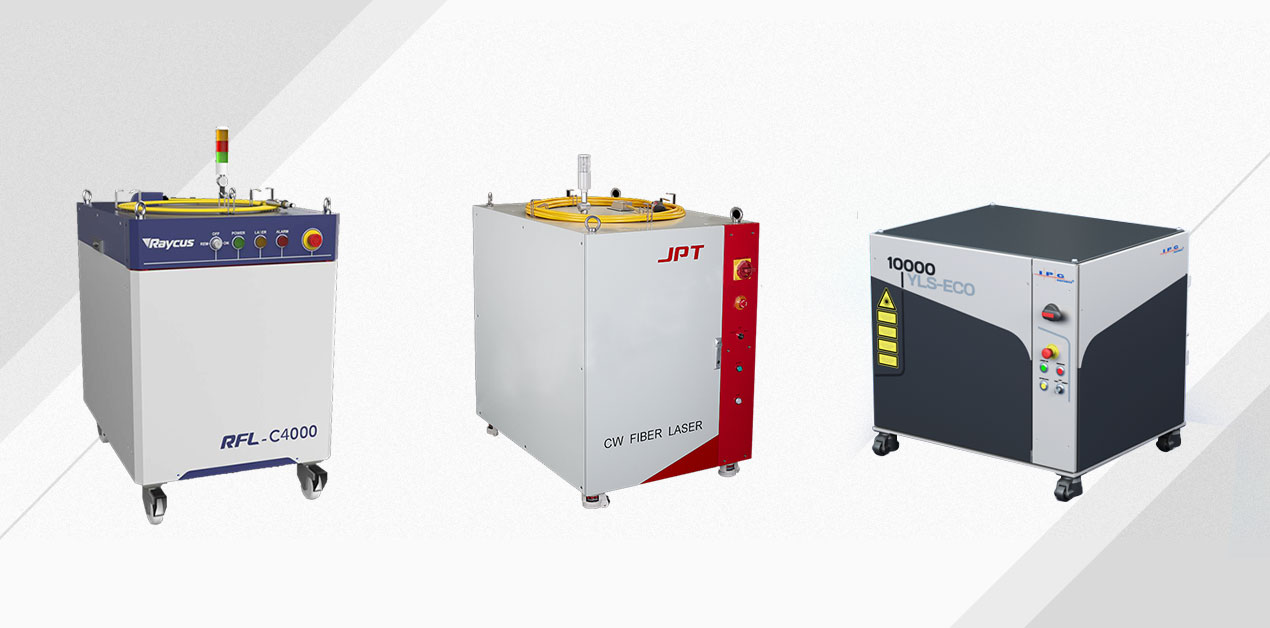

The performance of the generator is stable and the service life (theoretical value) is 100,000 hours. That means if you use it 8 hours a day, it can last about 33 years.
Five premier brands to choose from: JPT / Raycus / IPG / MAX / Nlight

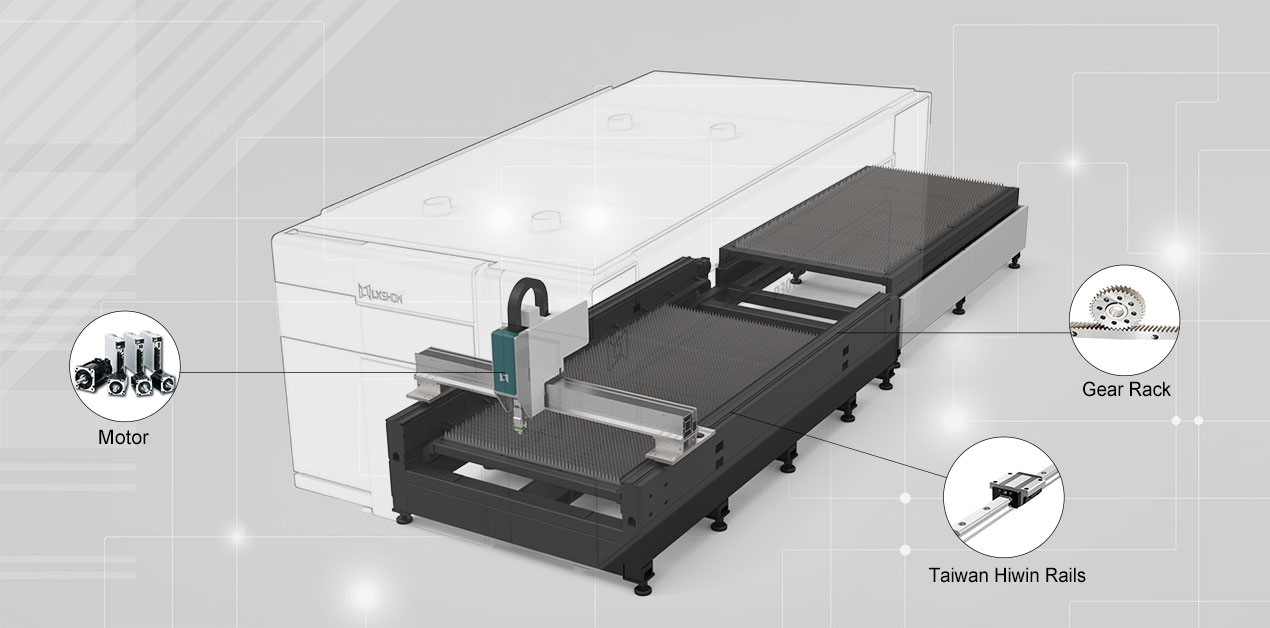

This fiber laser cutting machine is equipped with a German Atlanta rack, Japanese Yaskawa motor, and Taiwan Hiwin Rails. The positioning accuracy of the machine tool can reach 0.02mm and the cutting acceleration is 1.5G. The working life is engineered up to more than 15 years.
Suitable for high-precision cutting of various metal sheets and plates:
Widely utilized across manufacturing and processing industries:

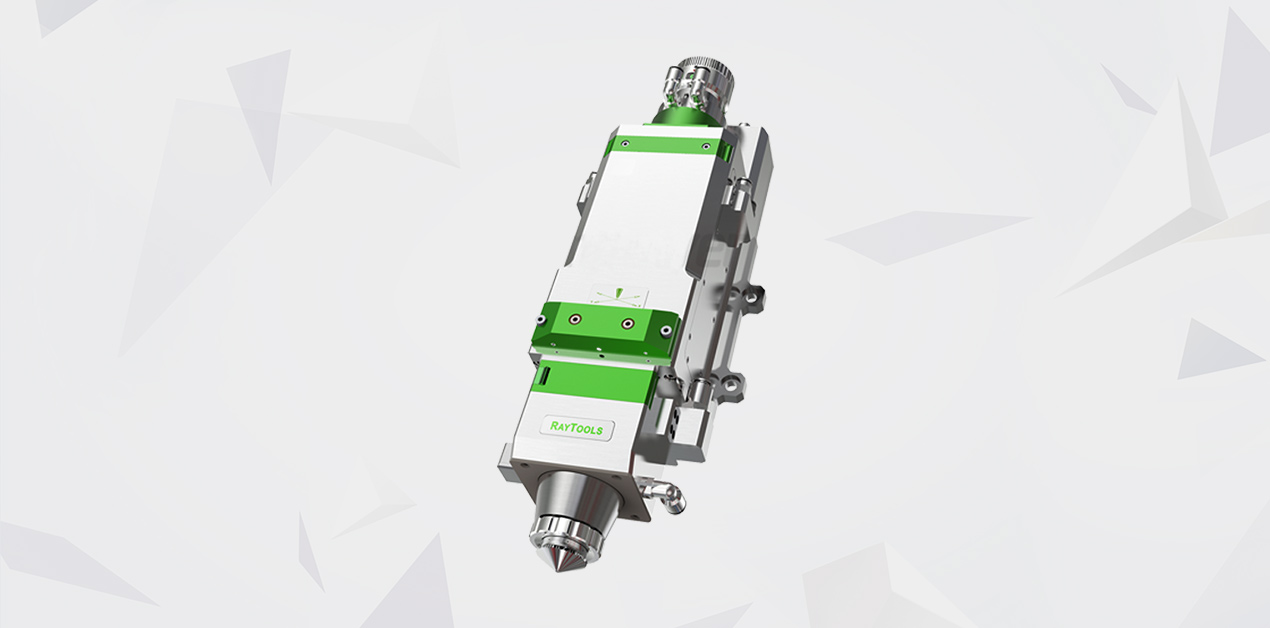

The laser cutting head automatically adjusts the focusing lens through software control without manual intervention. The autofocusing speed reaches 10 m/min, which is 10 times faster than manual adjustments.
High-Speed Punching: The pre-punching time of 25mm carbon steel sheet is under 3 seconds at 3000W power, which greatly improves the cutting efficiency.
The consumable components of a fiber laser cutting machine typically include: Cutting Nozzle (≥500h), Protective Lens (≥500h), Focusing Lens (≥5000h), Collimator Lens (≥5000h), and Ceramic Body (≥10000h). It is highly recommended to purchase an optional set of consumable parts alongside the machine setup.
Faster Operation: Dual platform automatic exchange system completes the switch cycle between the two work surfaces in just 10-15 seconds.
Enhanced Efficiency: System-controlled platform exchange dramatically cuts downtime between loads, boosting productivity.
Both the collimating mirror and the focusing mirror are equipped with water-cooled heat sinks. This design effectively lowers the operating temperature of the cutting head and prolongs its operational lifespan.
Utilizing a cutting-edge smoke extraction design, each section of the machine bed features an individual smoke exhaust device. The exhaust system senses the laser cutting coordinates to open the precise local smoke dampers, achieving fully enclosed, targeted dust extraction.
