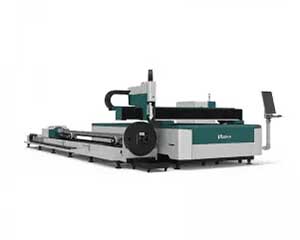

ODM LX3015FT Best Metal Sheet and Tube raycus Fiber Laser Cutting Machine with Rotary price stainless steel Carbon Steel Iron 1-30KW Factory, Exporters

1 / 5

ODM LX3015FT Best Metal Sheet and Tube raycus Fiber Laser Cutting Machine with Rotary price stainless steel Carbon Steel Iron 1-30KW Factory, Exporters

Send Inquiry

Product Description

Technical Specifications

Machine Model	LX3015FT
Power of Generator	1000-30000W (optional)
Dimension	355089501860mm
Working Area	1500*3000mm
Repeated Positioning Accuracy	±0.02mm
Max Running Speed	120m/min
Max Acceleration	1.5G
Specified Voltage And Frequency	380V 50/60HZ

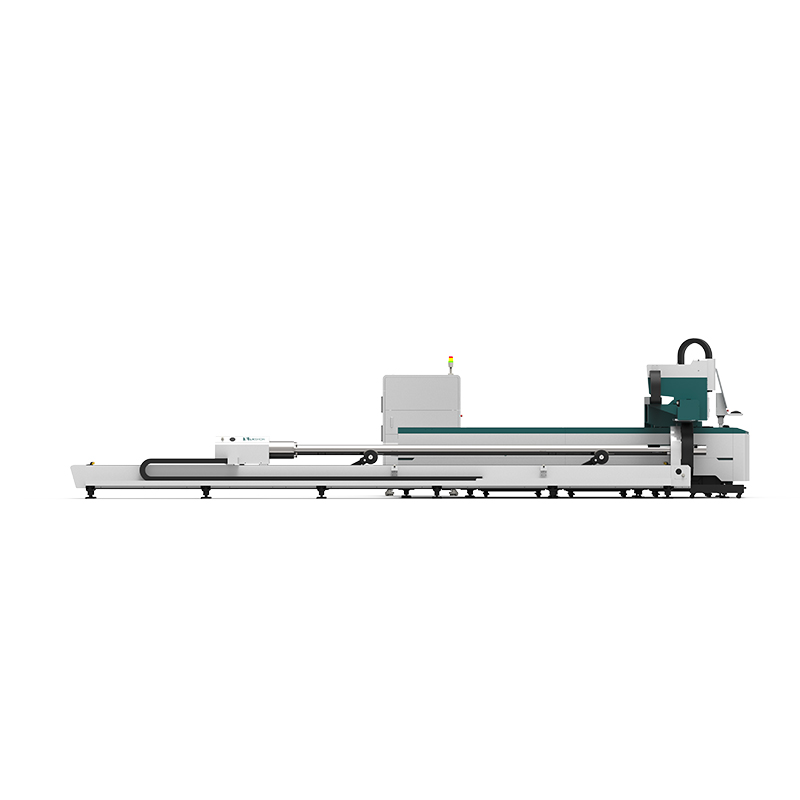

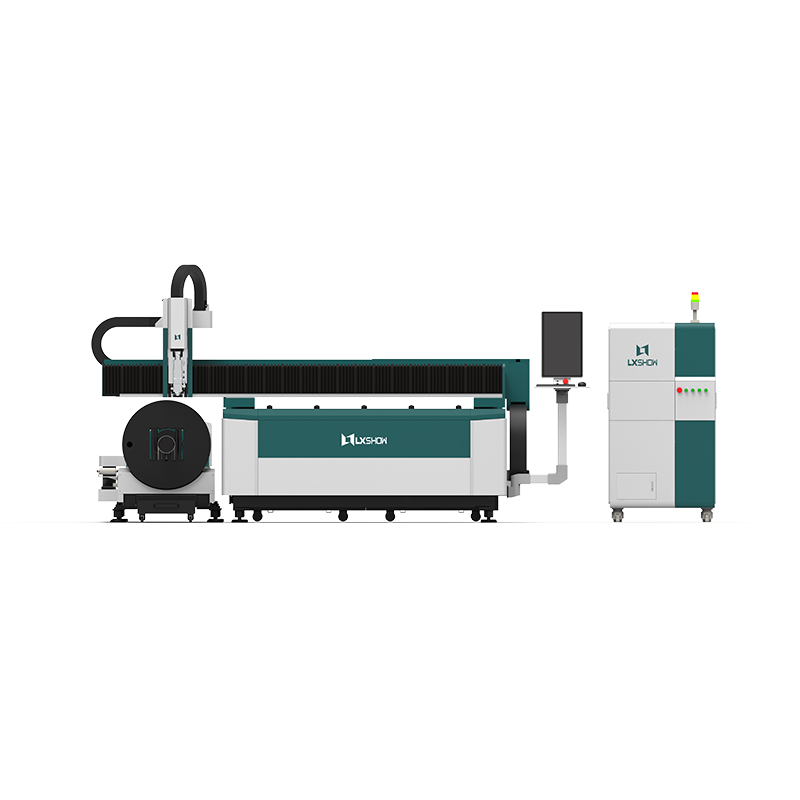

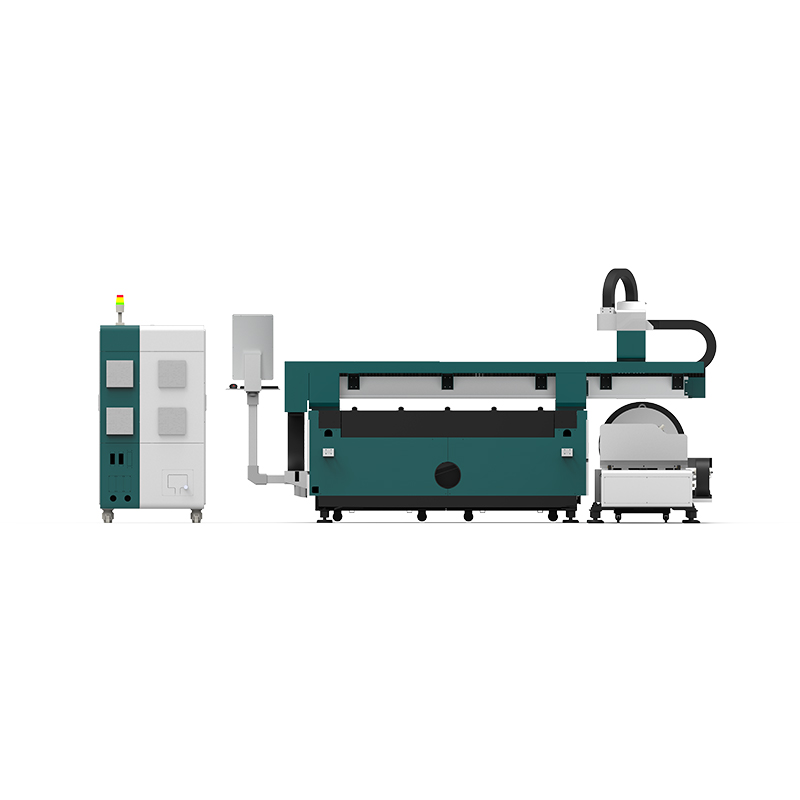

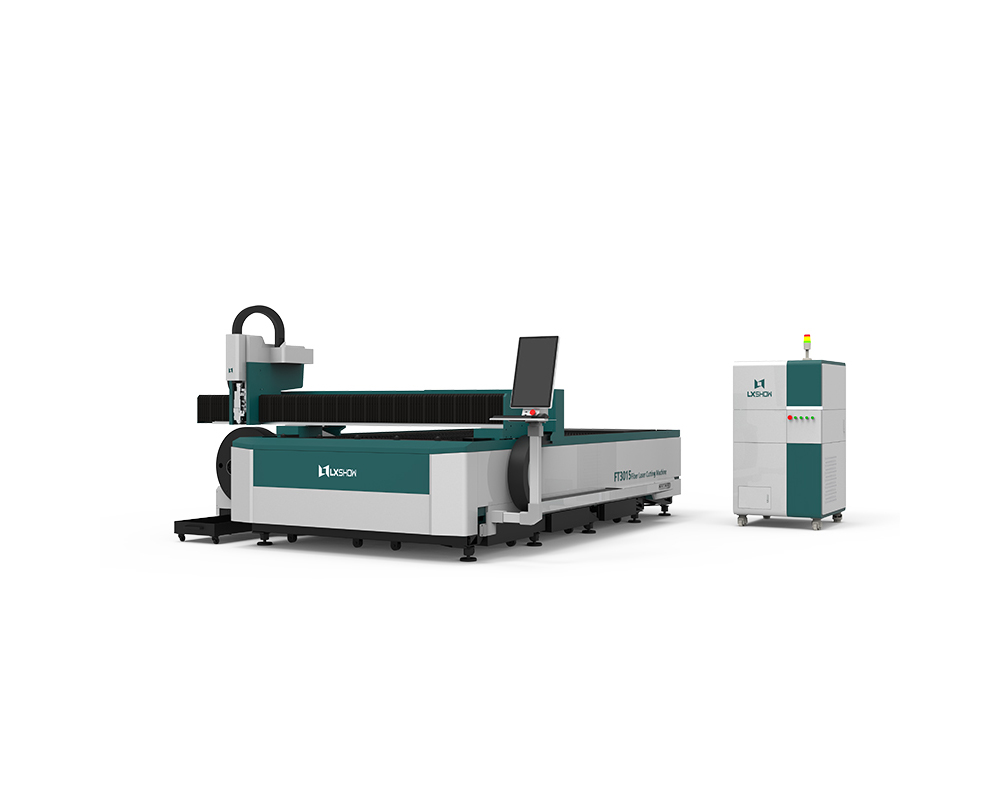

The FT series fiber laser cutting machine can not only cut metal plates, but also metal pipes. It features multiple functionalities and saves over 50% of workshop space, effectively improving productivity.

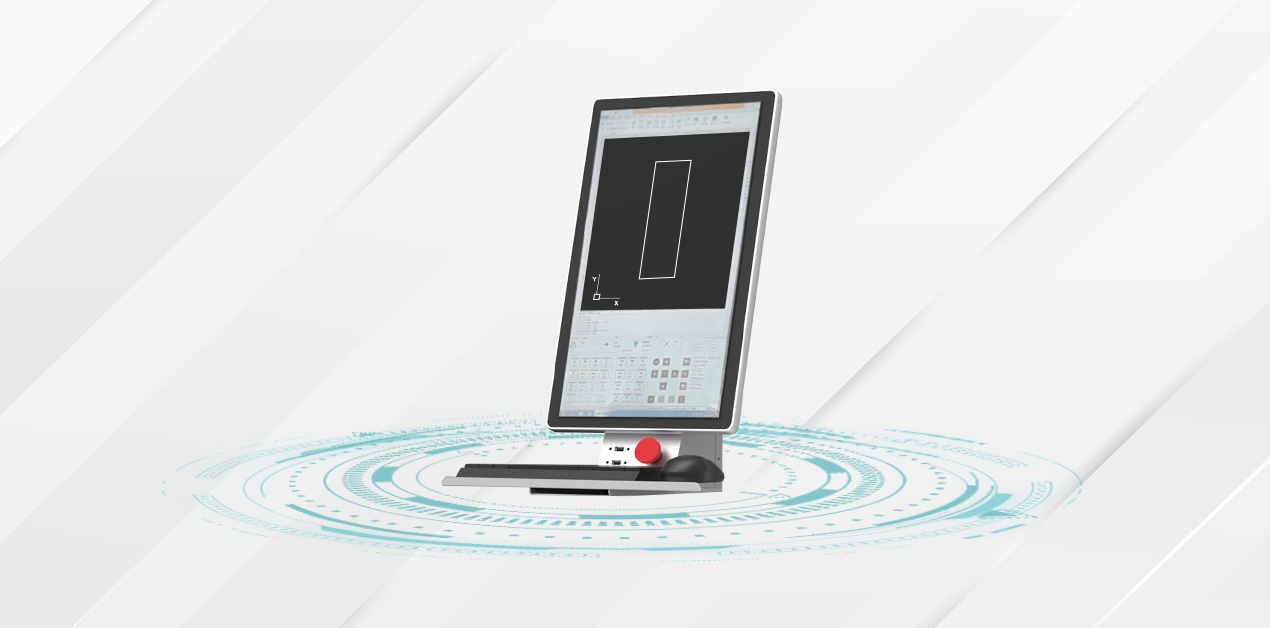

Control & Intelligent System

Easy to operate, even for entry-level operators.
Integrated with 20,000 process datasets on its graphical programming interface.
Compatible with multiple graphic file formats, including DXF, DWG, PLT, and NC code.
Built-in nesting software improves stock layout and material utilization by 20% and 9.5% respectively, with no limit on spare part quantity.

Intelligent operation and real-time monitoring of core components.
Fast connection speed with zero waiting time.
Supported Languages: English, Spanish, Portuguese, Russian, German, French, Italian, Japanese, Korean, Dutch, Czech, Simplified Chinese, Traditional Chinese.

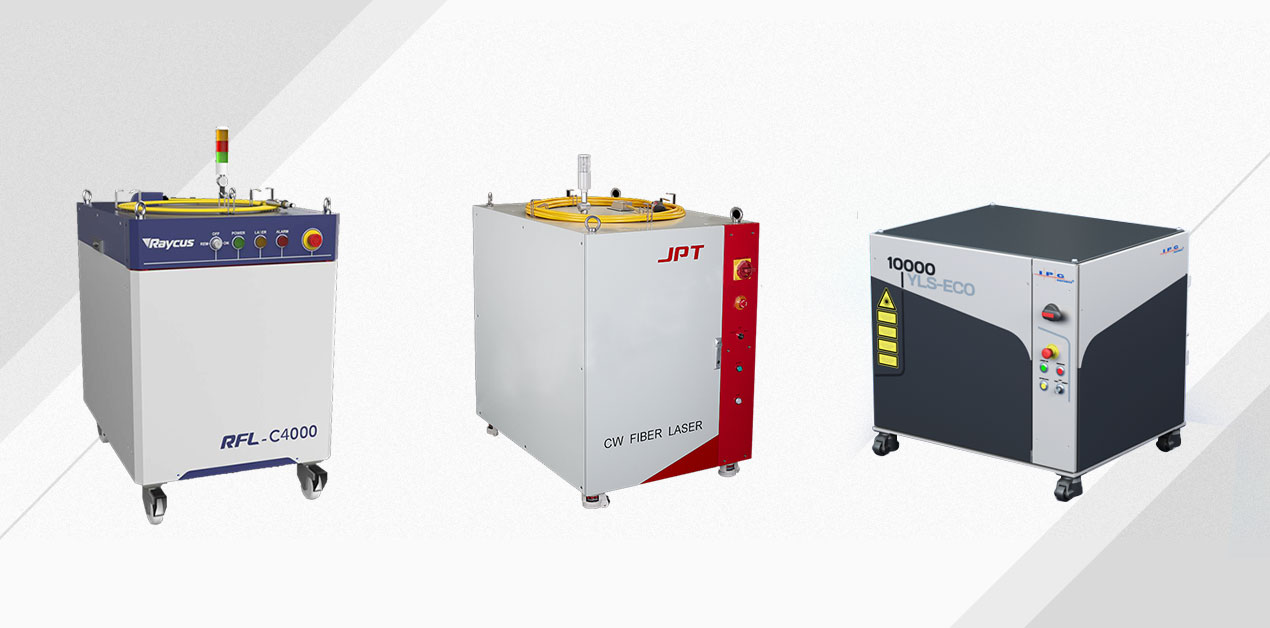

High-Performance Laser Source & Drive System

Theoretical Generator Lifespan: 100,000 hours. Operating the machine for 8 hours a day translates to approximately 33 years of usage.

Supported Generator Brands: JPT / Raycus / IPG / MAX / Nlight

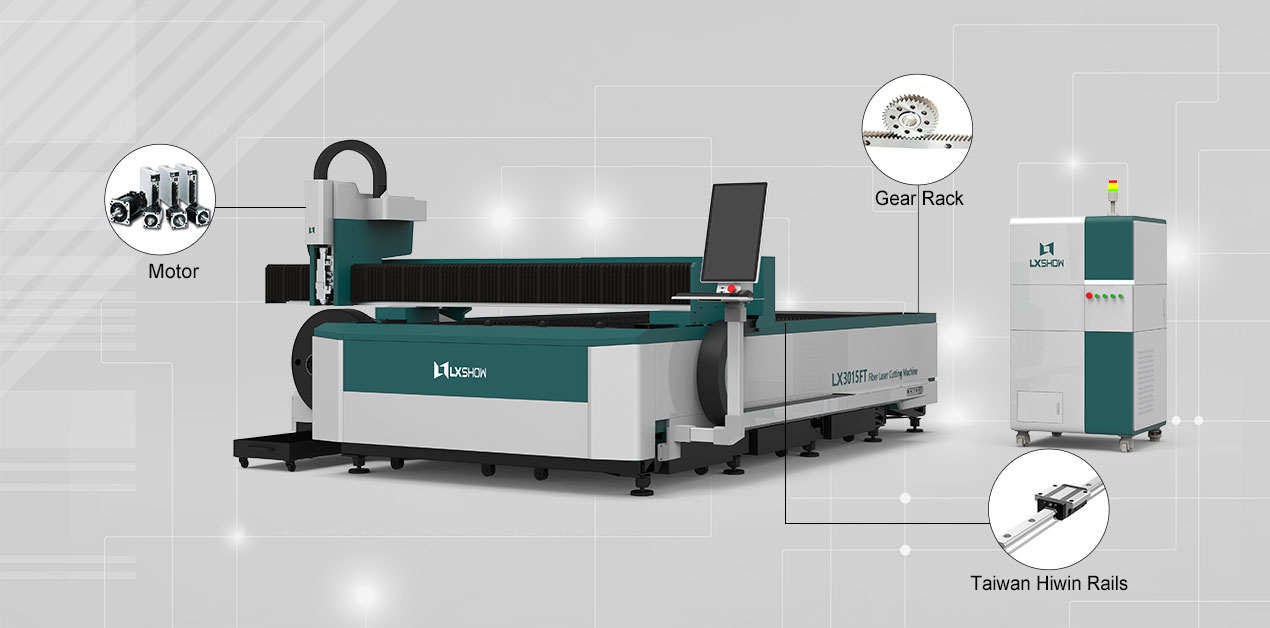

The fiber laser cutting machine is equipped with a German Atlanta rack, Japanese Yaskawa motor, and Taiwan Hiwin rails. The positioning accuracy reaches 0.02mm, and the cutting acceleration is 1.5G, ensuring a working lifespan of over 15 years.

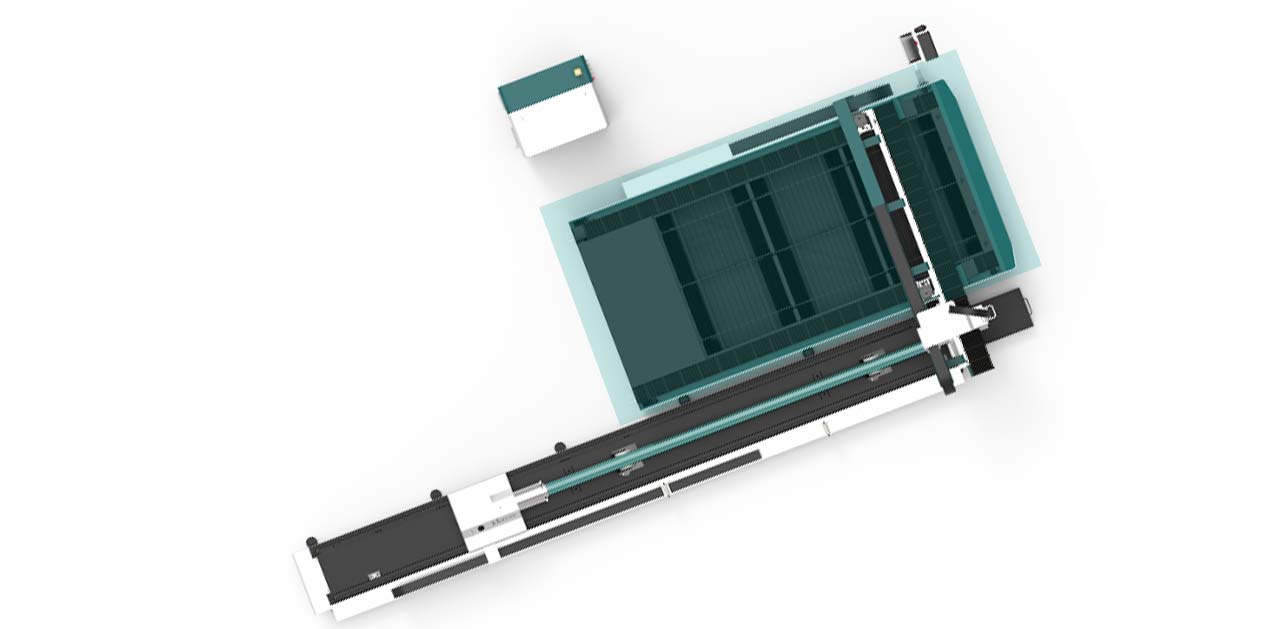

Dimensions & Physical Specifications

Model Number: LX3015FT
Lead Time: 10-25 working days
Payment Terms: T/T; Alibaba Trade Assurance; West Union; PayPal; L/C
Rotary Size: 8000*1600*1150mm

Machine Size (without rotary): 4160*2200*1980mm
Machine Weight: Approx. 6500KG
Warranty: 3 Years
Shipping Method: By Sea / By Land

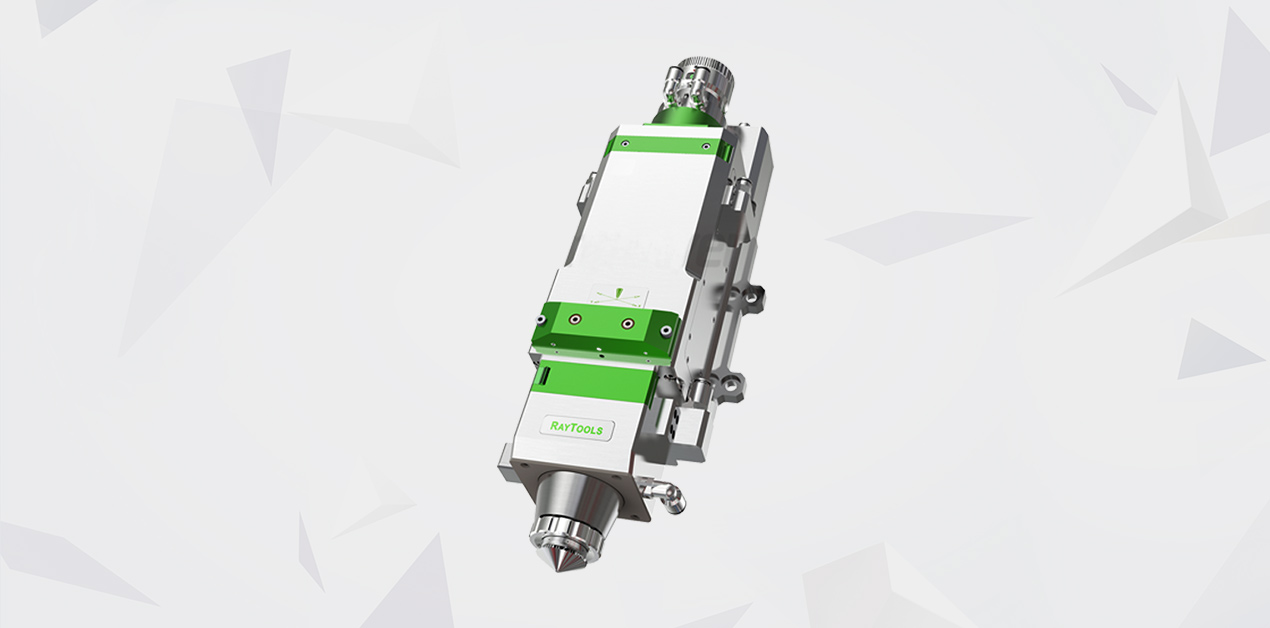

Cutting Performance & Consumables

Simple operation and low maintenance cost.
Autofocus, active obstacle avoidance, and automatic cooling functions.
Enables stable batch cutting of plates with varying thicknesses.
Enhances sheet cutting efficiency while lowering gas consumption.
Abnormal status warnings: Piercing time for 25mm carbon steel is under 3 seconds at 3000W, significantly improving cutting efficiency.

Consumables Purchase Recommendation

The primary consumable parts of the fiber laser cutting machine and their approximate lifespans include: Cutting Nozzle (≥500h), Protective Lens (≥500h), Focusing Lens (≥5000h), Collimator Lens (≥5000h), and Ceramic Body (≥10000h). It is highly recommended to purchase some consumable parts as options alongside the machine.

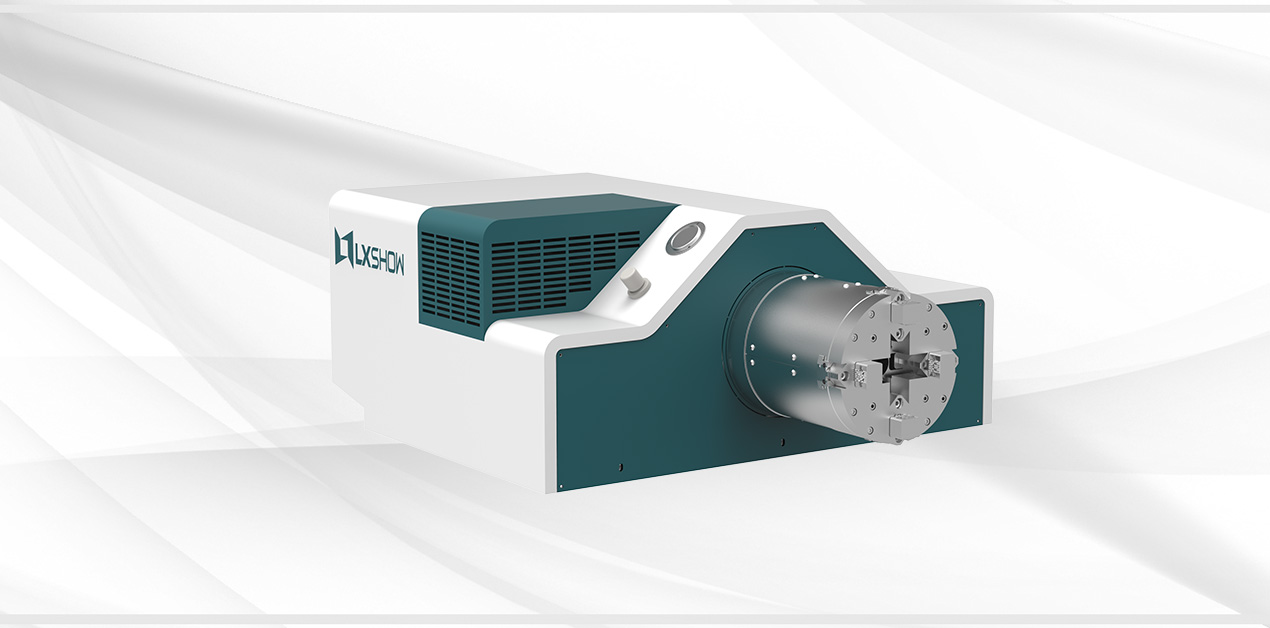

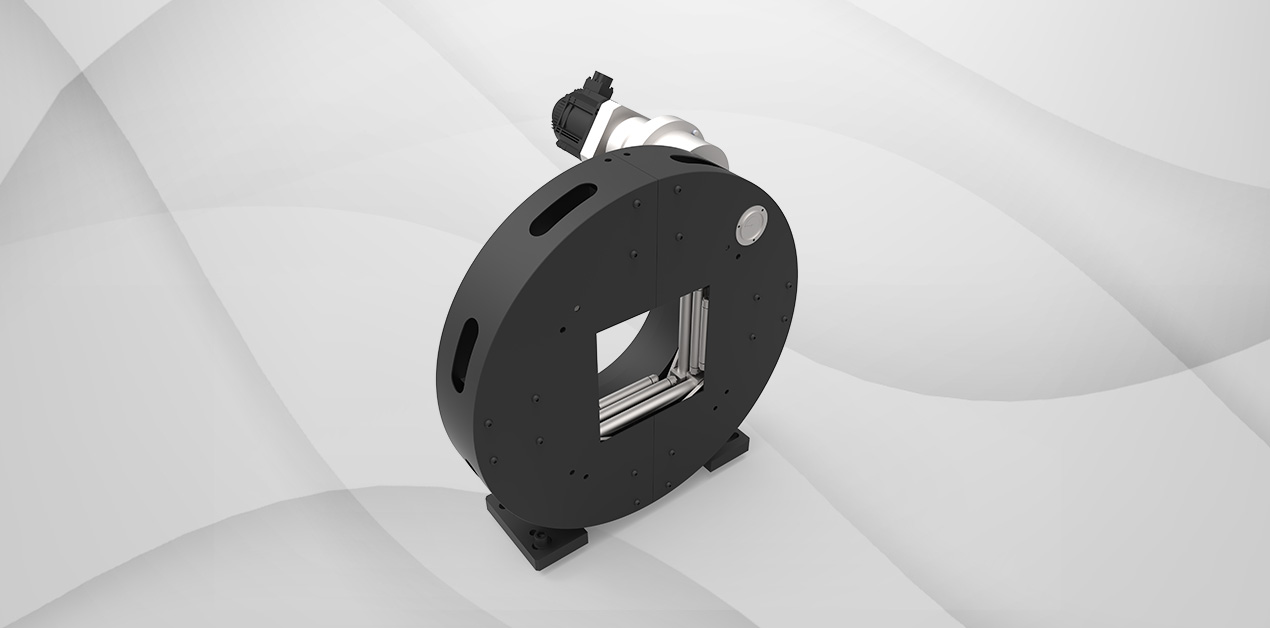

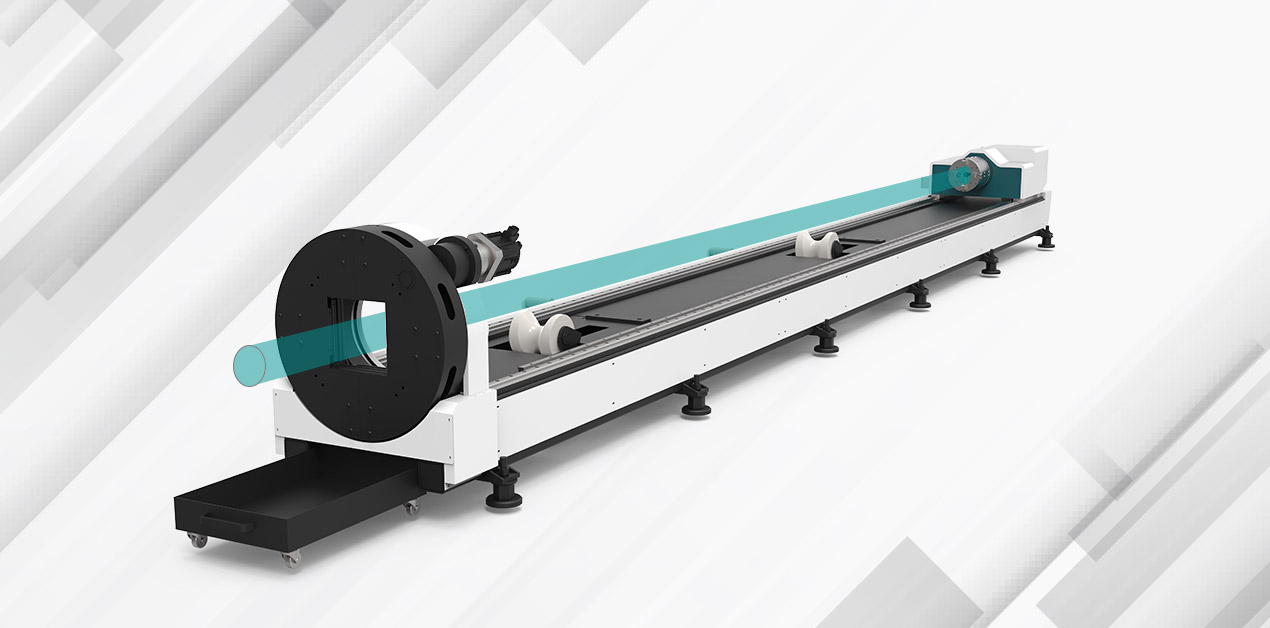

Automatic Pneumatic Chuck & Tube Support

The machine adopts a bilateral pneumatic clamp design that modulates the center automatically. The diagonal adjustable range is 20-220mm (320/350mm optional). The clamping speed of the fully automatic pneumatic chuck is three times faster than that of electric chucks. It provides a stronger grip for stable handling of heavy pipes.

Chuck Type: Dual pneumatic control
Rotation Length: Standard 6m / 8m (customizable sizes available)

Swivel Diameter: 160mm / 220mm standard (customizable sizes available)

Automatic pneumatic chuck with adjustable stability, a wider clamping range, and larger clamping force.
Non-destructive tube clamping, fast automatic centering, and stable clamping performance.
Smaller chuck size reduces rotation inertia, resulting in strong dynamic performance.
Self-centering pneumatic chuck with a gear transmission design for higher efficiency, durability, and operational reliability.

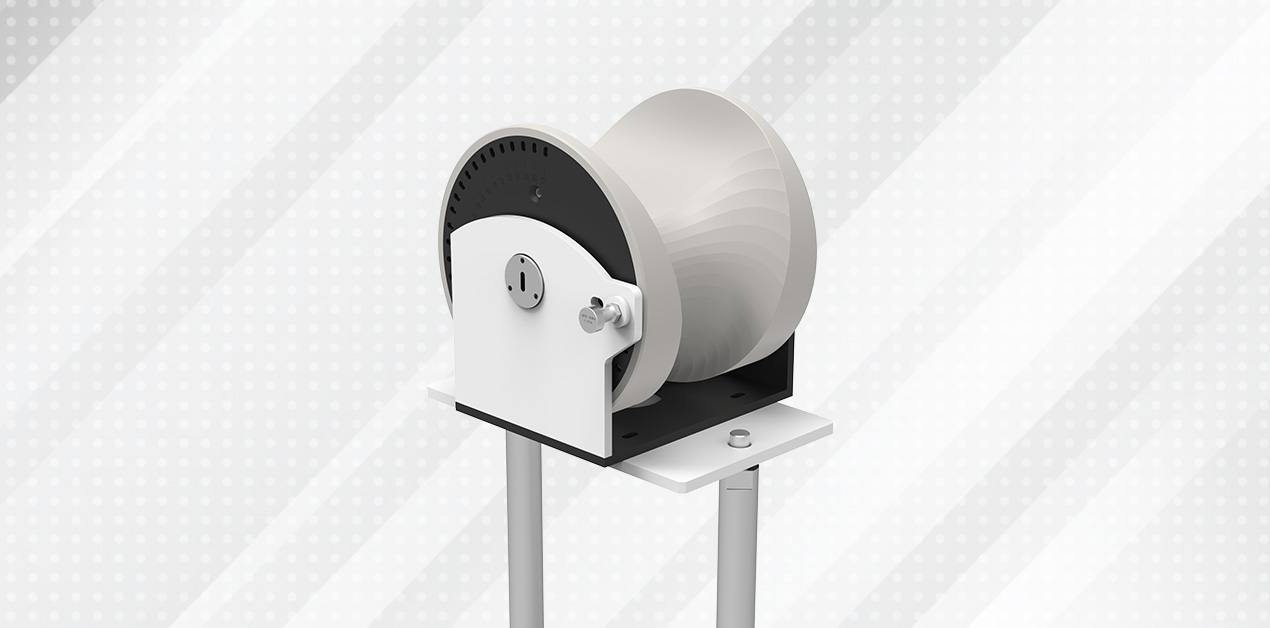

Intelligent tube support design solves deformation issues during long tube cutting processes.

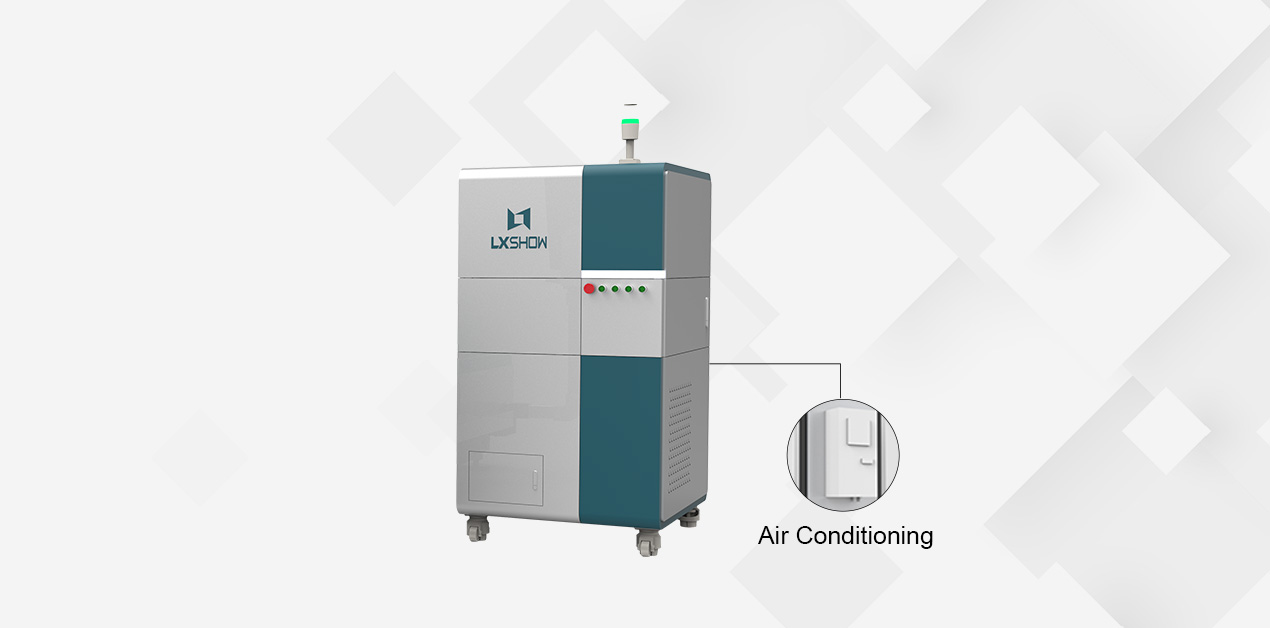

Control Cabinet & Climate Control

Dust Isolation

The generator and all electrical components are installed in a dedicated control cabinet. This setup protects electrical components from external dust, extending the overall service life.

Automatic Thermostat

The built-in air conditioner provides constant temperature regulation. This prevents high temperature damage to electrical components during summer operation.

Application Materials & Industries

Application Materials:

Suitable for cutting a wide range of metals, including:

Stainless Steel Mild Steel Carbon Steel Alloy Steel Spring Steel Iron Galvanized Iron Aluminum Copper Brass Bronze Gold Silver Titanium

Application Industries:

Widely utilized in manufacturing sectors, including:

Billboards & Advertising Signs Metal & LED Letters Kitchenware Sheet Metal Processing Metal Components & Parts Ironware & Chassis Racks & Cabinets Processing Metal Crafts & Art Ware Elevator Panel Cutting Auto Parts & Hardware Glasses Frames Electronic Parts & Nameplates

Frequently Asked Questions (FAQ)

What types of materials can this machine cut?

This fiber laser metal cutting machine is ideal for cutting various metals, including stainless steel, carbon steel, mild steel, alloy steel, spring steel, galvanized iron, aluminum, copper, brass, bronze, gold, silver, and titanium.

What is the estimated lifespan of the laser generator?

The theoretical lifespan of the laser generator is approximately 100,000 hours. Operating the machine for 8 hours daily corresponds to roughly 33 years of usage.

What are the positioning accuracy and maximum speed of this machine?

The machine features a repeated positioning accuracy of ±0.02mm, a maximum running speed of 120m/min, and a maximum cutting acceleration of 1.5G. It is equipped with high-quality components like German Atlanta racks, Japanese Yaskawa motors, and Taiwan Hiwin rails.

How does the automatic pneumatic chuck improve tube cutting?

The self-centering pneumatic chuck operates on a gear transmission design, providing a clamping speed three times faster than electric chucks. It delivers a strong grip to secure heavy pipes without damage, centering the tube automatically. It also includes an intelligent support mechanism to prevent tube deformation during the cutting process.

What are the consumable parts for this fiber laser machine, and how long do they last?

The primary consumable parts include the cutting nozzle (≥500h), protective lens (≥500h), focusing lens (≥5000h), collimator lens (≥5000h), and ceramic body (≥10000h). It is advisable to buy extra consumables as backup options along with the machine.

How does the control cabinet protect the internal electronics?

The control cabinet features a dust isolation design to keep delicate electrical parts clean. Additionally, a built-in air conditioner provides automatic constant temperature control, protecting components from overheating during high-temperature seasons.
