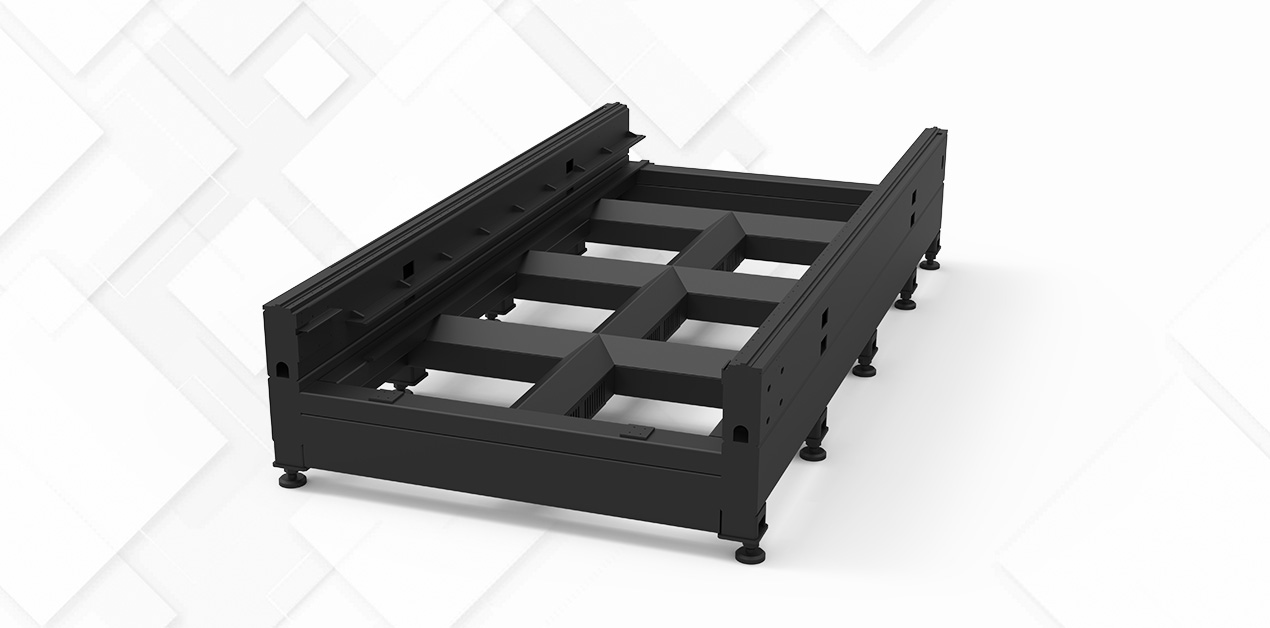

The machine bed of LX3015M desktop laser cutter features high stiffness, temperature resistance and vibration damping. The heavy weight of the bed ensures stability, prevents deformation and suppresses vibration.

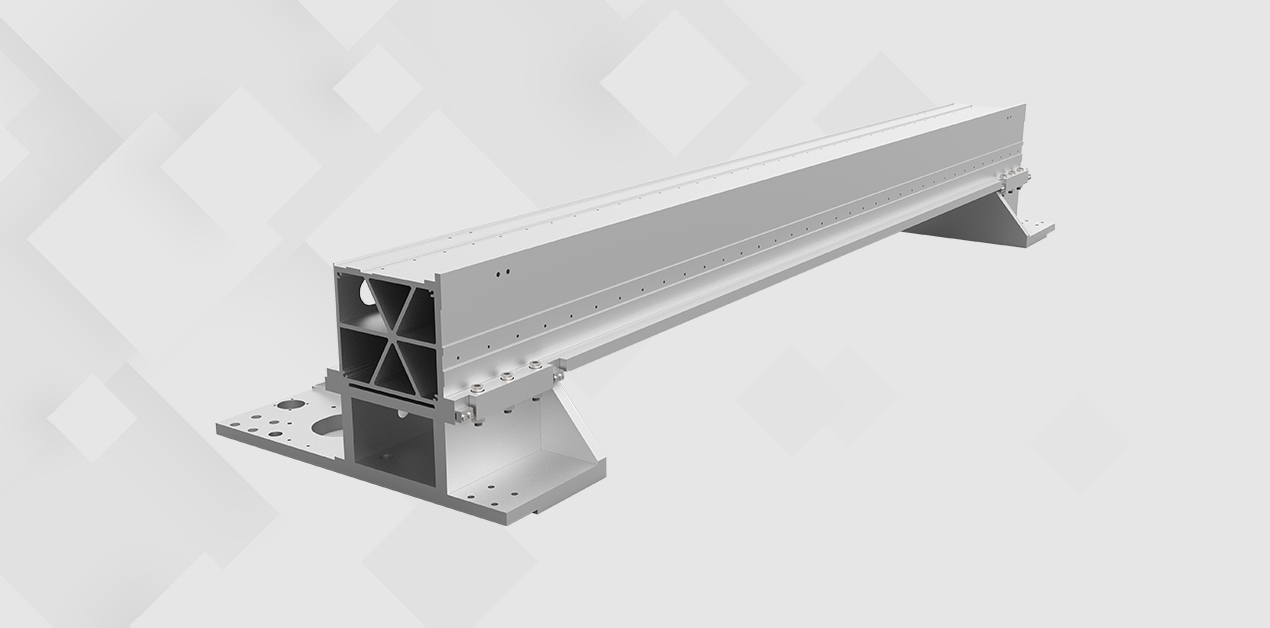

The beam features light weight and a good dynamic performance by adopting an aviation aluminum structure.

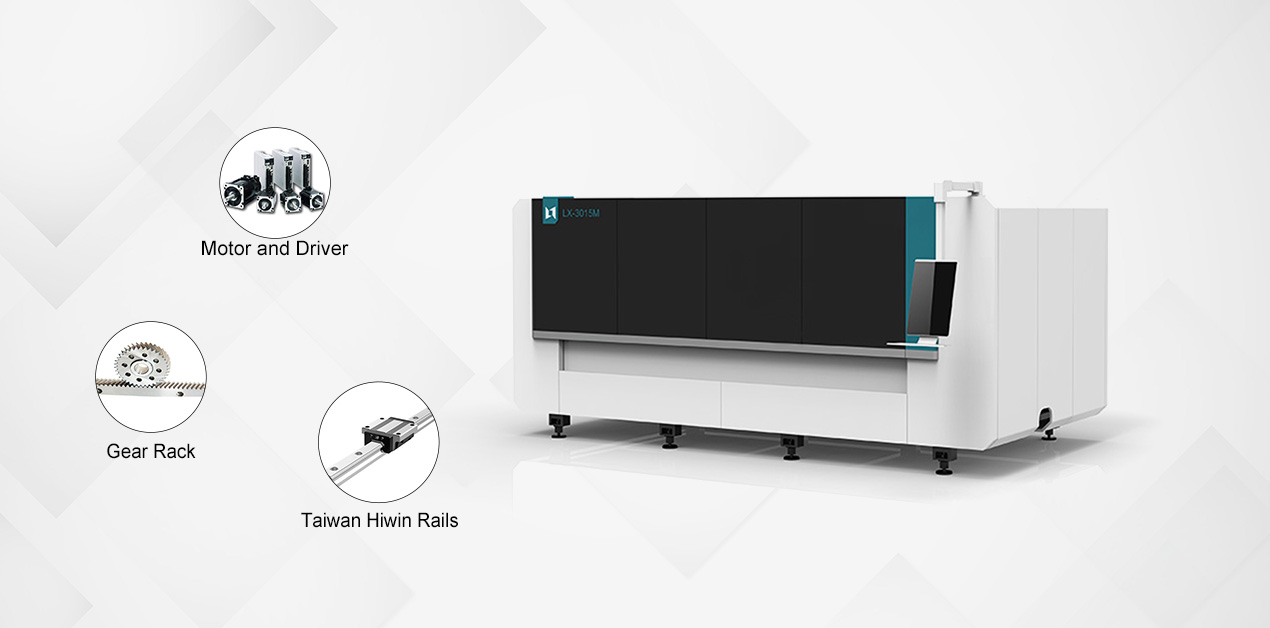

The Z axis ball screw transmission mode ensures higher efficiency compared with sliding screws. The Italy WK Te/PEK rails ensure accuracy and high speed thanks to less power loss and smaller heat generated by the operation. Inovance servo motor features high moving efficiency and vibration suppression.

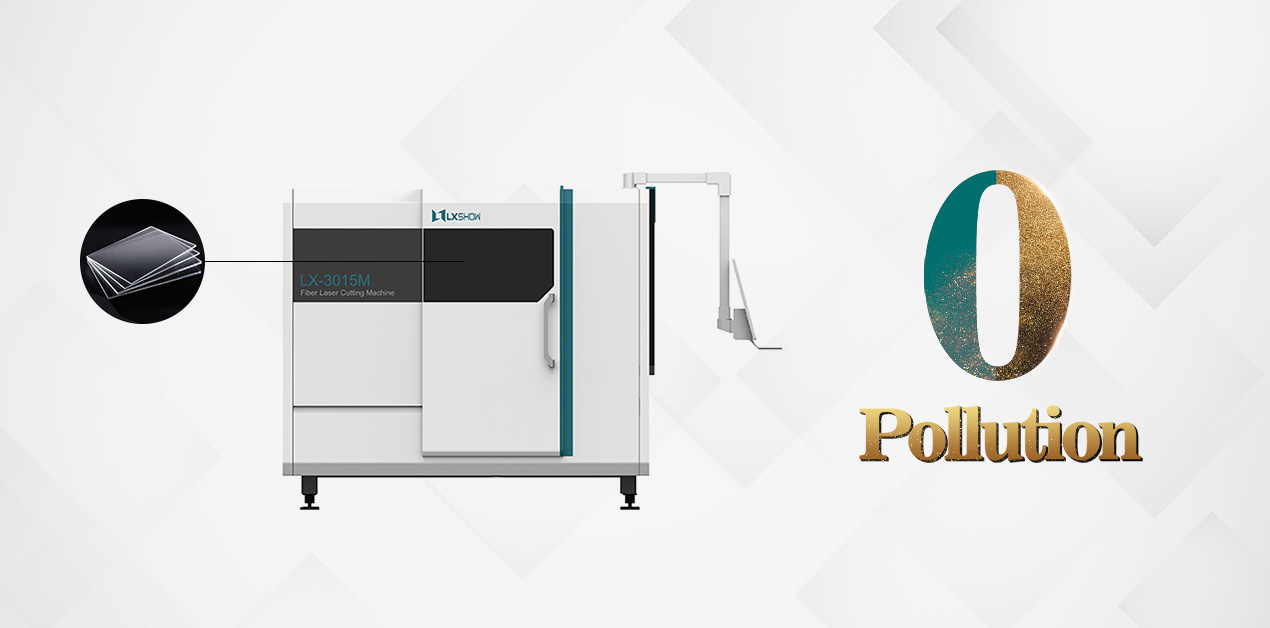

The enclosure design of LX3015M desktop laser cutter helps to protect operators from harmful gases and smokes generated by the operation by filtering them out inside the machine. It can also help to keep the environment clean.

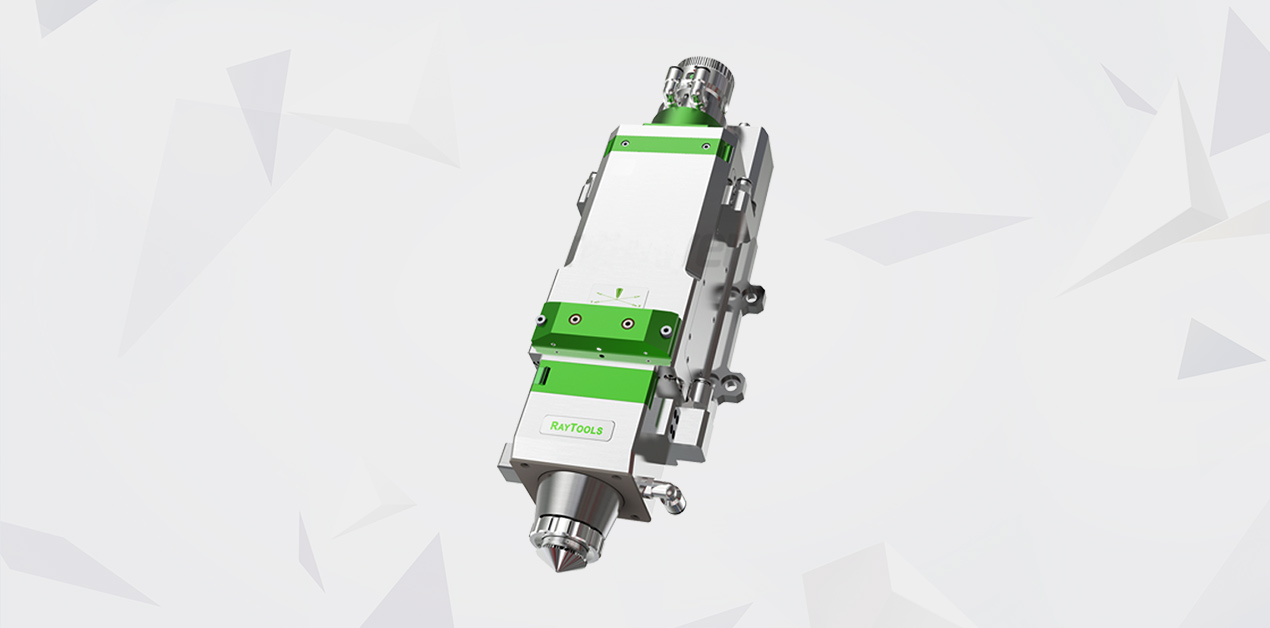

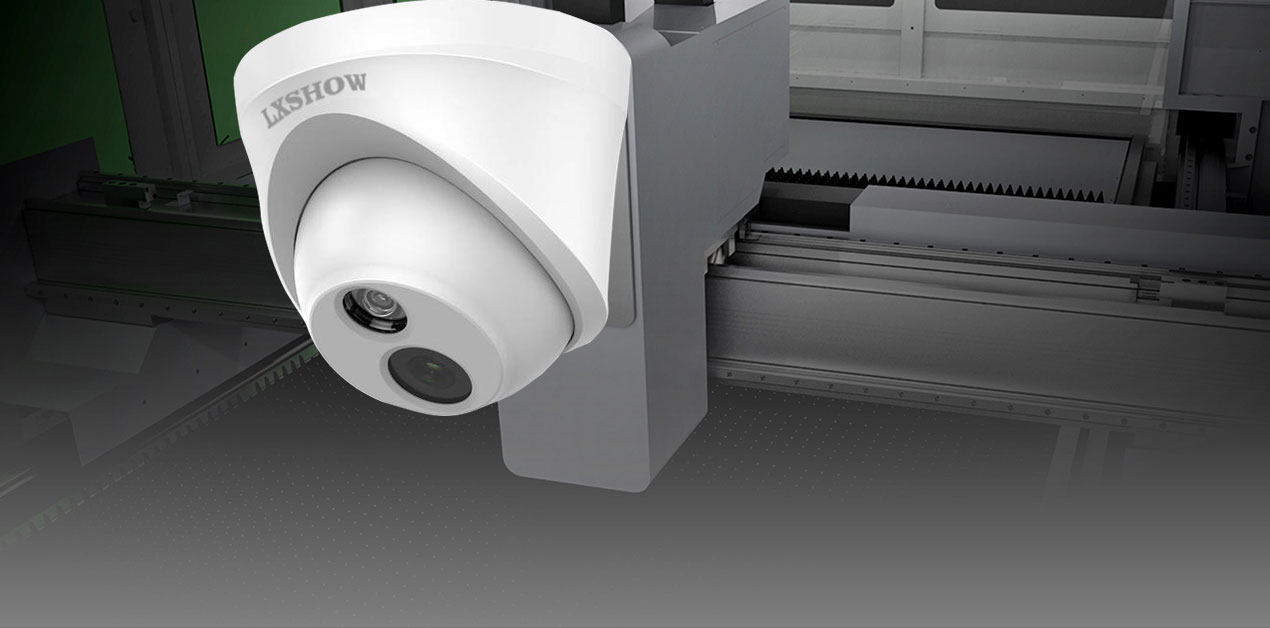

With the monitoring system, it is much easier to observe the whole production process, so as to prevent potential risks and dangers. Ospri cutting head comes with auto-focus function to automatically adjust the cutting center.

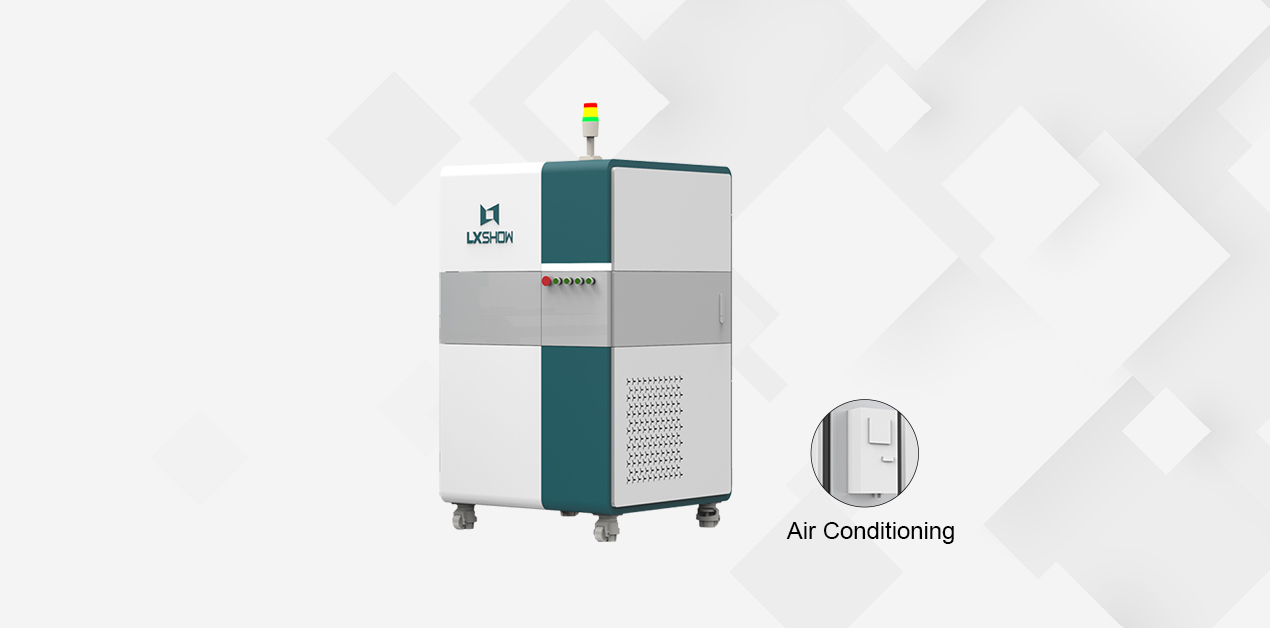

The independent cabinet keeps dust-free and protects the built-in components from dust. And the built-in air-conditioning also protects them from overheating.
| Model | LX3015M Fiber laser cutting machine |
| Working Area | 1500*3000mm |
| Laser Power | 1000W (Optional Power : 1000W, 1500W, 2000W, 3000W, 4000W, 6000W ) |
| Laser Generator | Raycus |
| Laser Wave Length | 1064nm |
| Working Table | Sawteeth |
| Maximum Idle Running Speed | 120m/min |
| Maximum acceleration | 1.5G |
| Position Accuracy | ±0.02mm/m |
| Repeat Positional Accuracy | ±0.01mm |
| Cutting Thickness | ≤22mm Carbon steel; ≤10mm Stainless steel |
| Power Consumption | ≤21KW |
| Working Voltage | 380V/50Hz |
Yes, we have original. At first we will show you and after shipment we will give you CE/Packing list/Commercial Invoice/Sales contract for customs clearance.
TT/West Union/Paypal/LC/Cash and so on.
We can provide team viewer/Whatsapp/Email/Phone/Skype with cam till all of your problems finished. We can also provide door service if you need.
Just tell us below information:
1) Max work size: choose the most suitable model.
2) Materials and cutting thickness: Power of laser generator.
3) Business industries: We sell a lot and give advice on this business line.
It is capable of cutting Carbon Steel up to 22mm and Stainless Steel up to 10mm, with various power options ranging from 1000W to 6000W to match your specific production requirements.
The machine features a full protective enclosure that filters out harmful gases and smoke during operation. In addition, the independent dust-free cabinet with built-in air conditioning protects vital internal electrical components from overheating and dust ingress.
