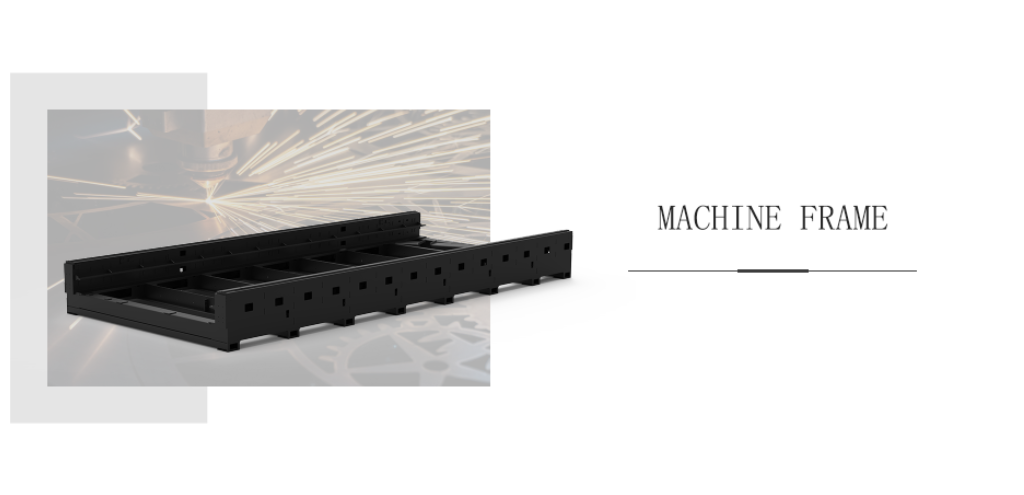

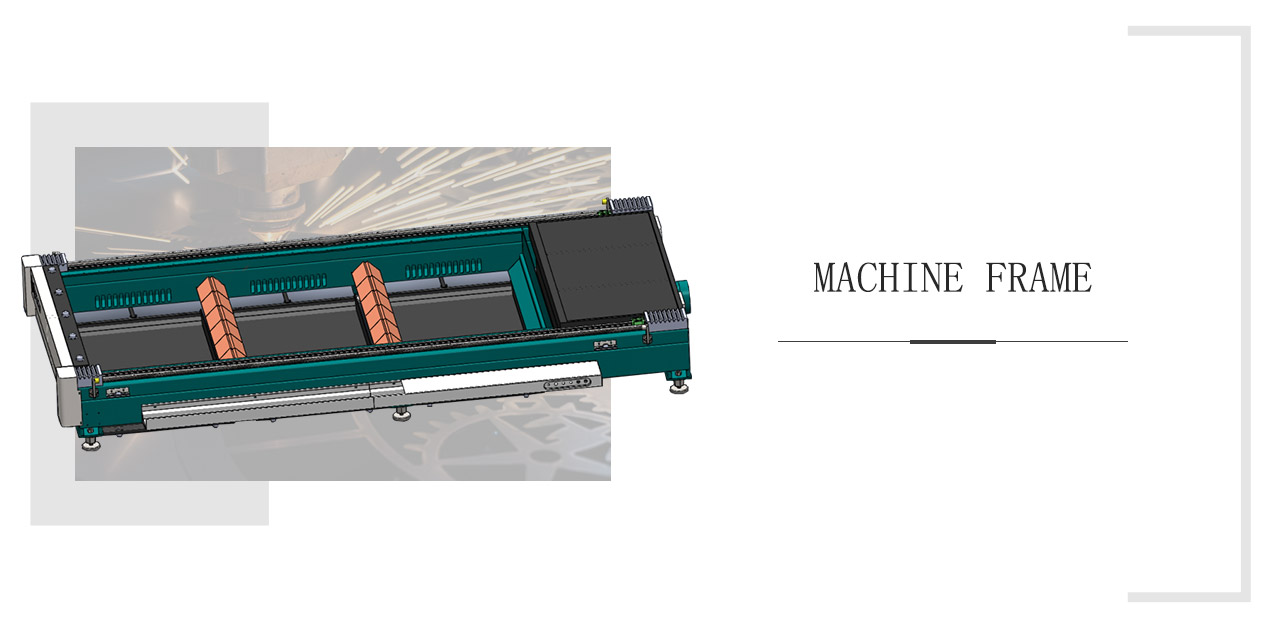

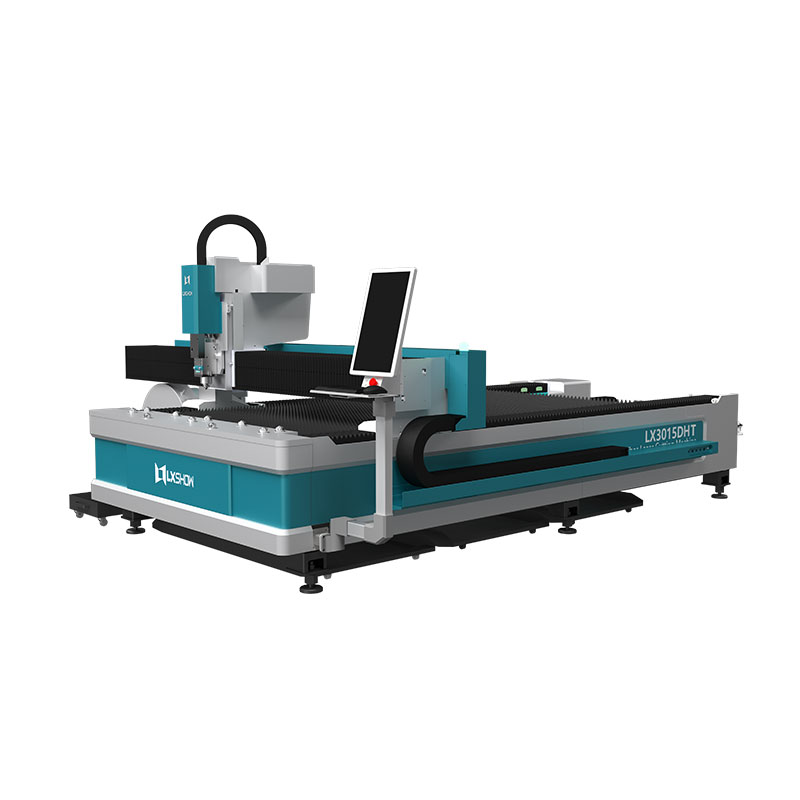

Heavy duty tube welding bed, with heavy weight, low center of gravity, convenient feeding metal materials and stable operation.
Advanced Construction Features
Heat-Resistant Protection
The bed is protected by fire-resistant bricks to prevent the bed from being deformed by heat.

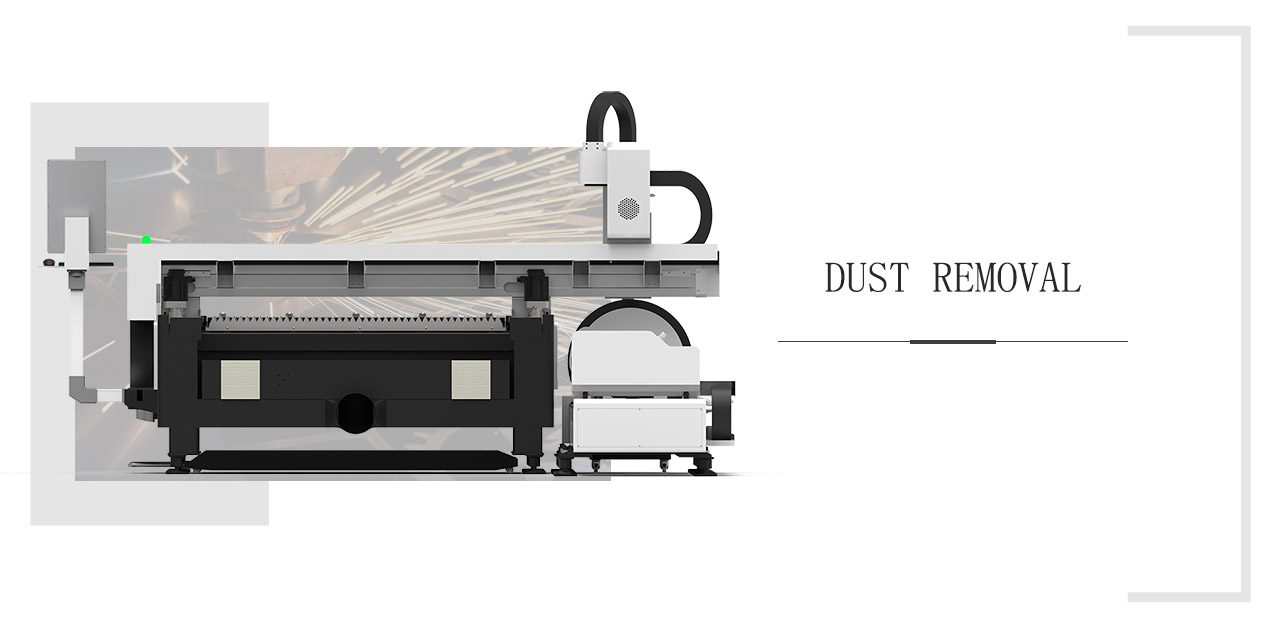

Optimal Dust Extraction
The diameter 220mm large dust removal duct ensures the dust removal effect.

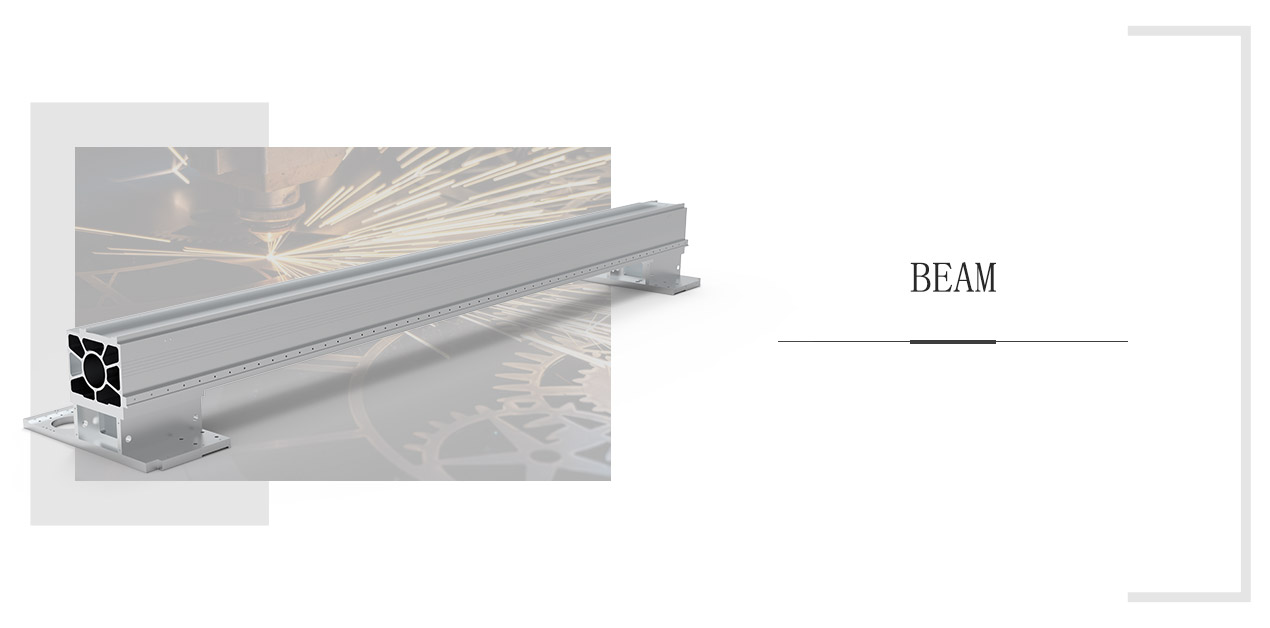

Aviation-Grade Aluminum Beam
Adopted the integrated aviation aluminum beam reduces the weight of the beam and maximizes the rigidity of the beam.

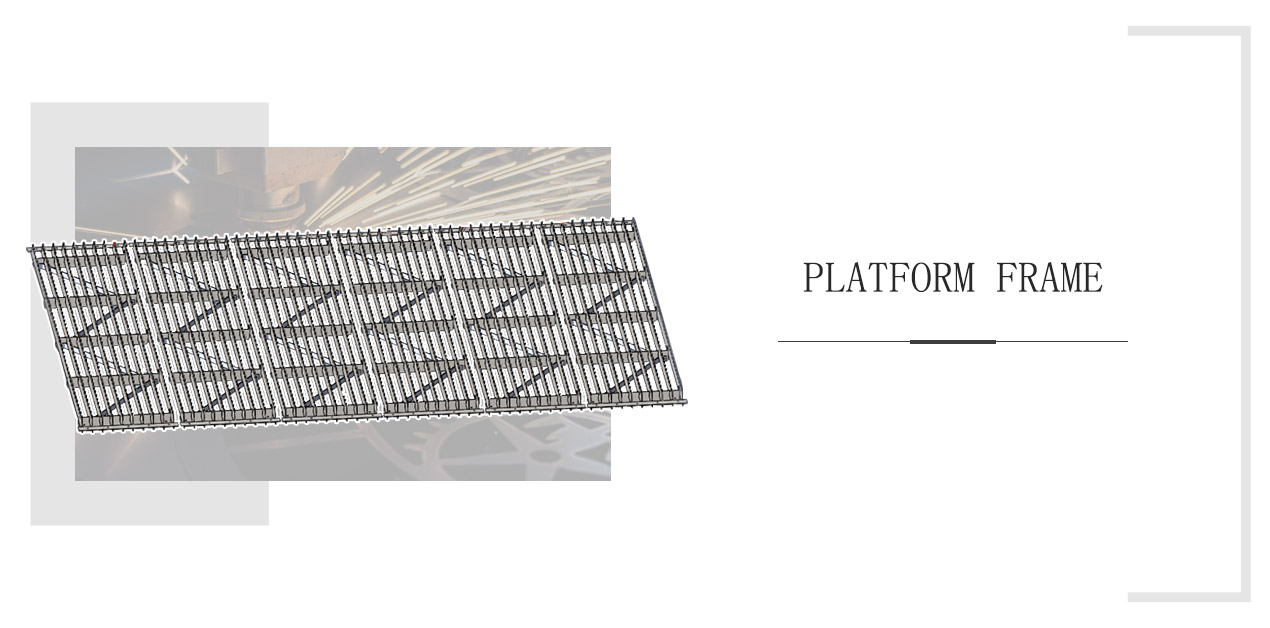

Grouped Platform Frame
The platform frame adopts a grouped design to improve the overall load-bearing capacity.

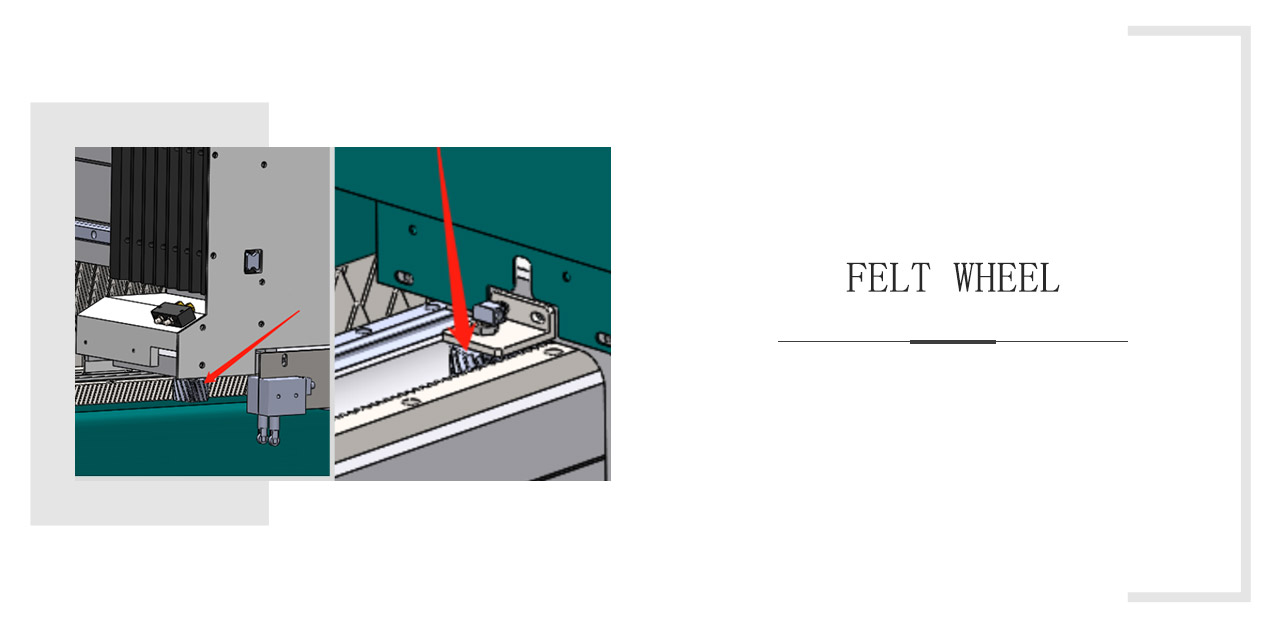

Felt Wheel Lubrication System
Gear is equipped with felt wheel automatic lubrication as standard, which can fully lubricate the gear, improve gear’s service life and prevent the accumulation of lubrication oil, which may cause fire hazards.

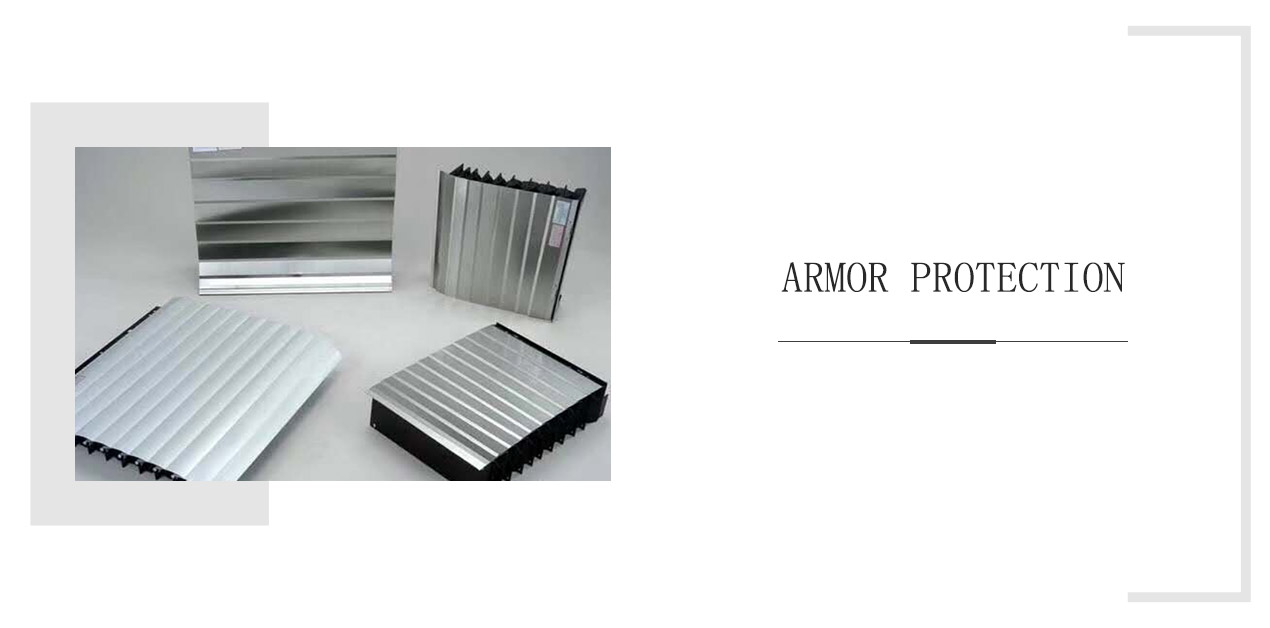

Stainless Steel Armor Protection
The Y-axis cover is equipped with stainless steel armor protection as standard to prevent burn and improve the service life of the organ cover.

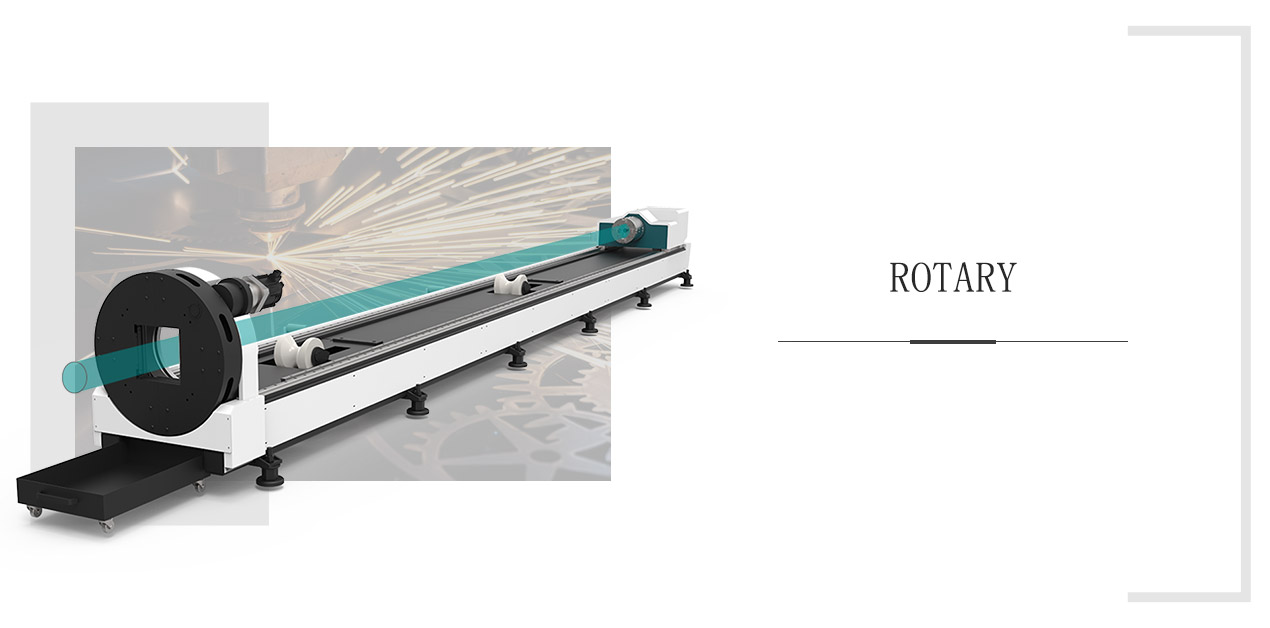

Rotary Configurations
Rotary Length: 6m standard, 8m and other size can be customized.
Rotary Diameter: 160/220mm is standard. Other size can be customized.
Chuck: Both pneumatic control.

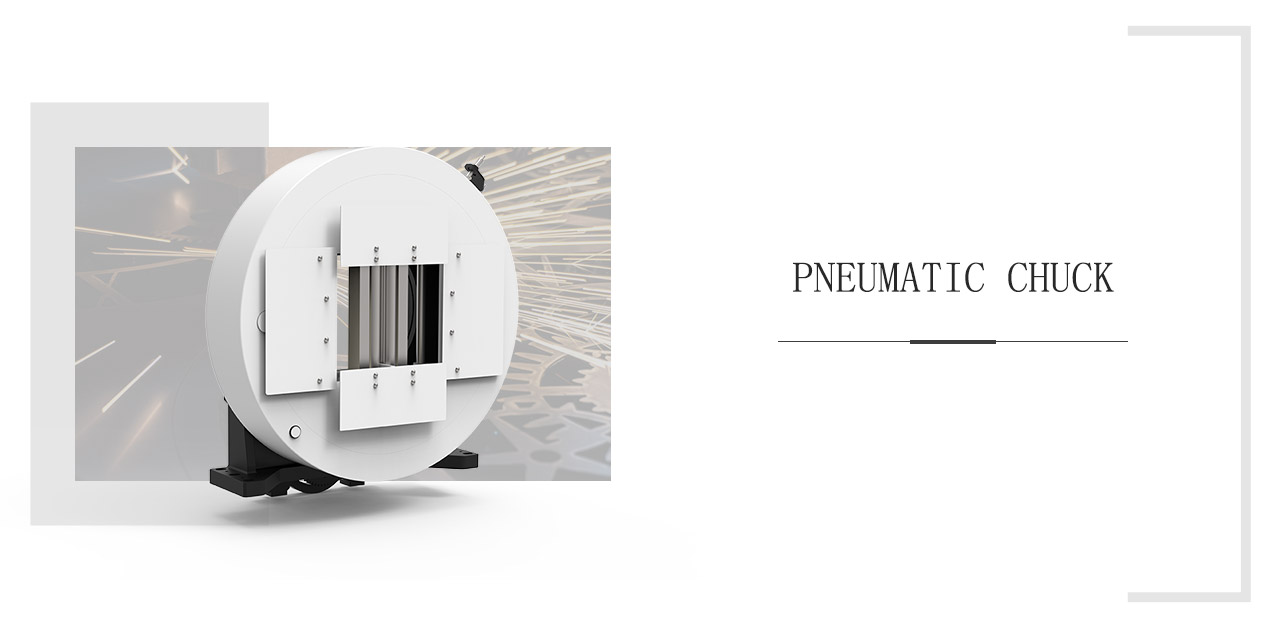

Pneumatic Chuck Clamping Design
Automatic Self-Centering
It adopts an pneumatic clamp design on both sides and it can modulate the center automatically. The diagonal adjustable range is 20-220mm(320/350 is optional).

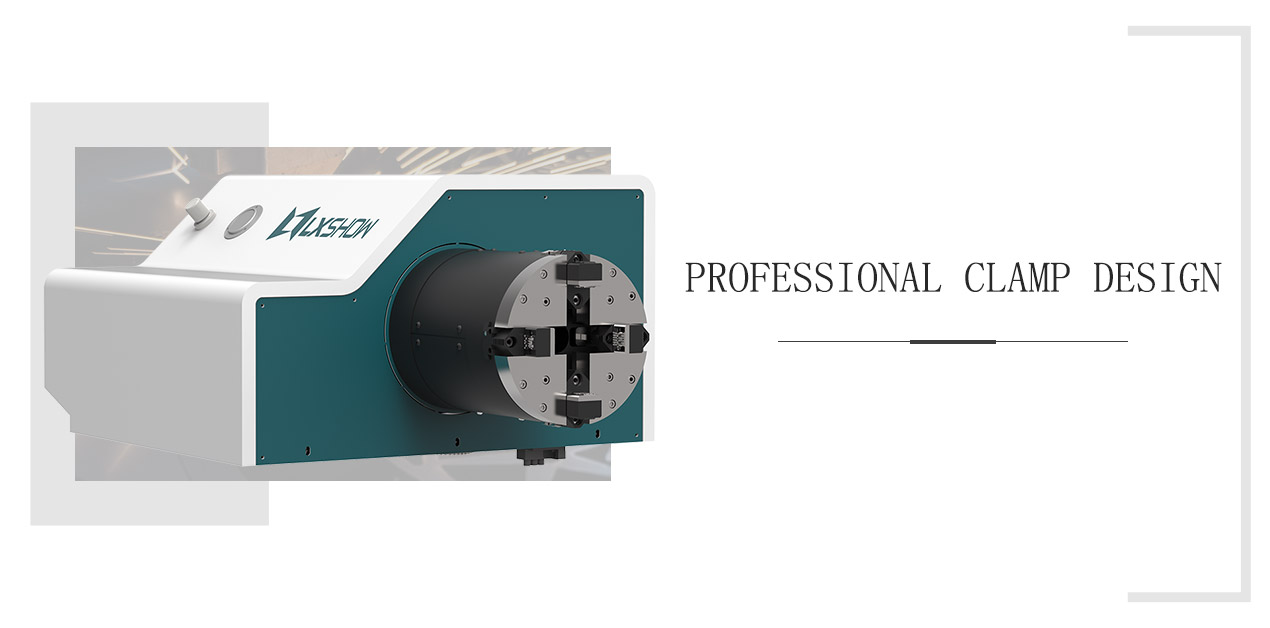

Professional Clamp Design
Automatic pneumatic chuck, adjustable and stable, clamping range is wider and clamping force is larger. Non - destructive pipe clamping, fast automatic centering and clamping pipe, performance is more stable. The chuck size is smaller, rotation inertia is low, and dynamic performance is strong. Self-centering pneumatic chuck, gear transmission mode, higher transmission efficiency, long working life and high work reliability.

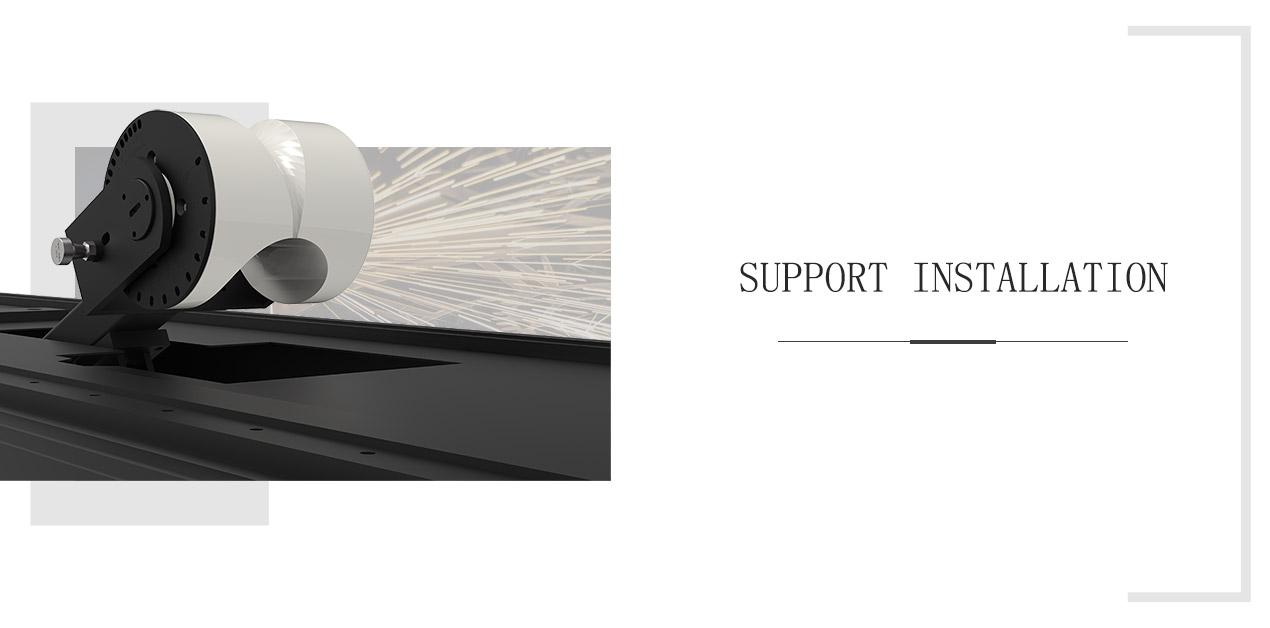

Fractional Automatic Support Installation
Anti-Deformation Control
It employs intelligent tube support design, which can solve the deformation problems in the process of long tube cutting.
Technical Specifications

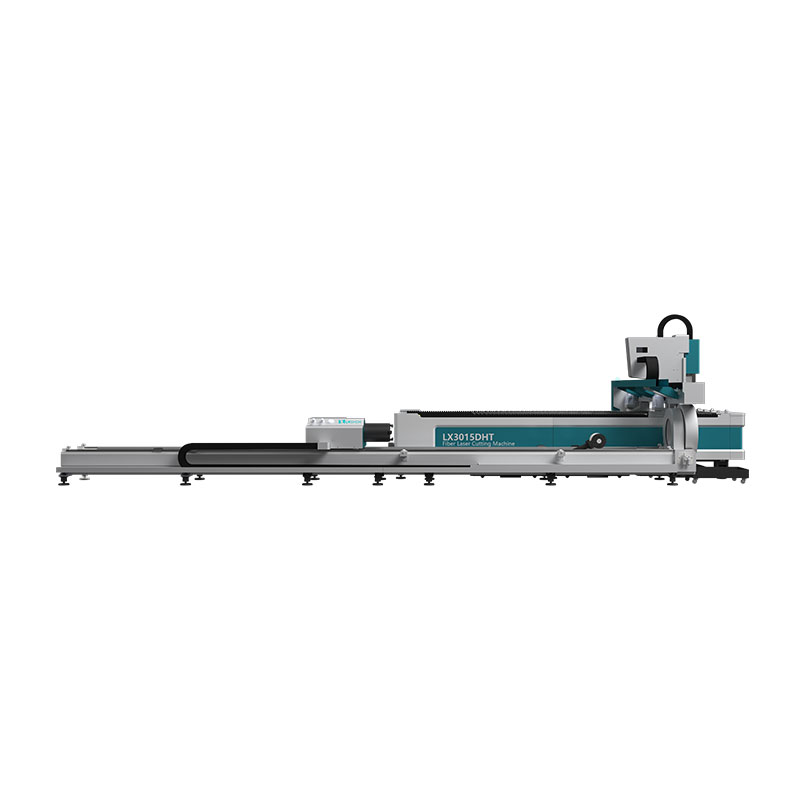

Machine Model
LX3015DHT
Power of Generator
1-30KW (optional)
Dimension
8145*4771*2005mm
Working Area
1500*3000mm
Repeated Positioning Accuracy
±0.02mm
Max Running Speed
120m/min
Max Acceleration
1.5G
Specified Voltage And Frequency
380V 50/60HZ

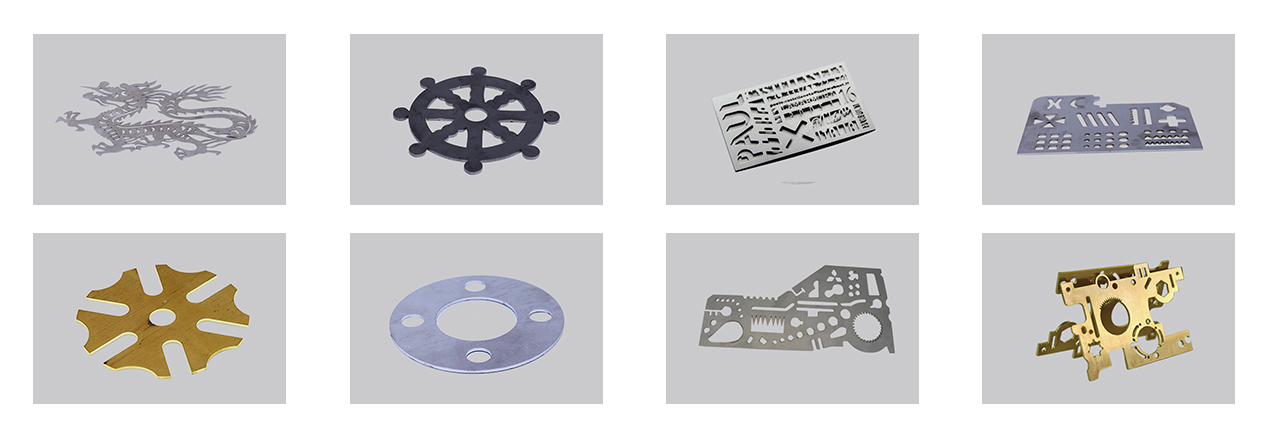

Application Materials
Fiber Laser Metal Cutting Machine is suitable for metal cutting like Stainless Steel, Mild Steel, Carbon Steel, Alloy Steel, Spring steel, Iron, Galvanized Iron, Galvanized, Aluminum, Copper, Brass, Bronze, Titanium, etc.
Application Industries
Fiber Laser Cutting Machines are widely used in manufacture Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal crafts, metal art ware, elevator panel cutting, hardware, auto parts, Glasses Frame, Electronic Parts, Nameplates, etc.
Logistics & Specification Parameters
Model Number: LX3015DHT
Lead time: 10-25 working days
Payment Term: T/T; Alibaba trade assurance; West Union; Paypal; L/C.
Machine Size: 8145*4771*2005mm (About)
Rotary size: 8000*1600*1150mm
Machine size(without rotary): 4160*2200*1980mm
Machine weight: 6390.95KG (About)
Warranty: 3 years
Shipping: By sea/By land
Frequently Asked Questions
Q
What materials can this fiber laser cutting machine work on?
This machine cuts a wide variety of metals, including Stainless Steel, Mild Steel, Carbon Steel, Alloy Steel, Spring Steel, Iron, Galvanized Iron, Aluminum, Copper, Brass, Bronze, and Titanium.
Q
How does the machine bed prevent deformation from heat?
The heavy duty tube welding bed is protected by fire-resistant bricks. This design prevents thermal deformation of the bed during processing.
Q
What are the benefits of the pneumatic chuck clamping design?
It features automatic self-centering and modulation on both sides. The clamp design is stable and non-destructive with larger clamping force, low rotation inertia, higher transmission efficiency, and a long working life.
Q
What industries is this machine typically used for?
It is widely applied in advertising (signs, LED letters, metal letters), sheet metal processing, metal components, cabinets, racks, elevator panels, hardware, glasses frames, electronic parts, nameplates, auto parts, and metal crafts.
Q
What is the delivery time, payment term, and warranty?
The lead time is 10-25 working days. Accepted payment terms include T/T, Alibaba trade assurance, West Union, Paypal, and L/C. The machine is backed by a 3-year warranty and shipped by sea or land.
Q
How are long tubes protected from deformation during cutting?
The machine employs a fractional automatic support system that provides intelligent tube support, preventing deformation in the cutting process of long tubes.
