MAIN PARTS

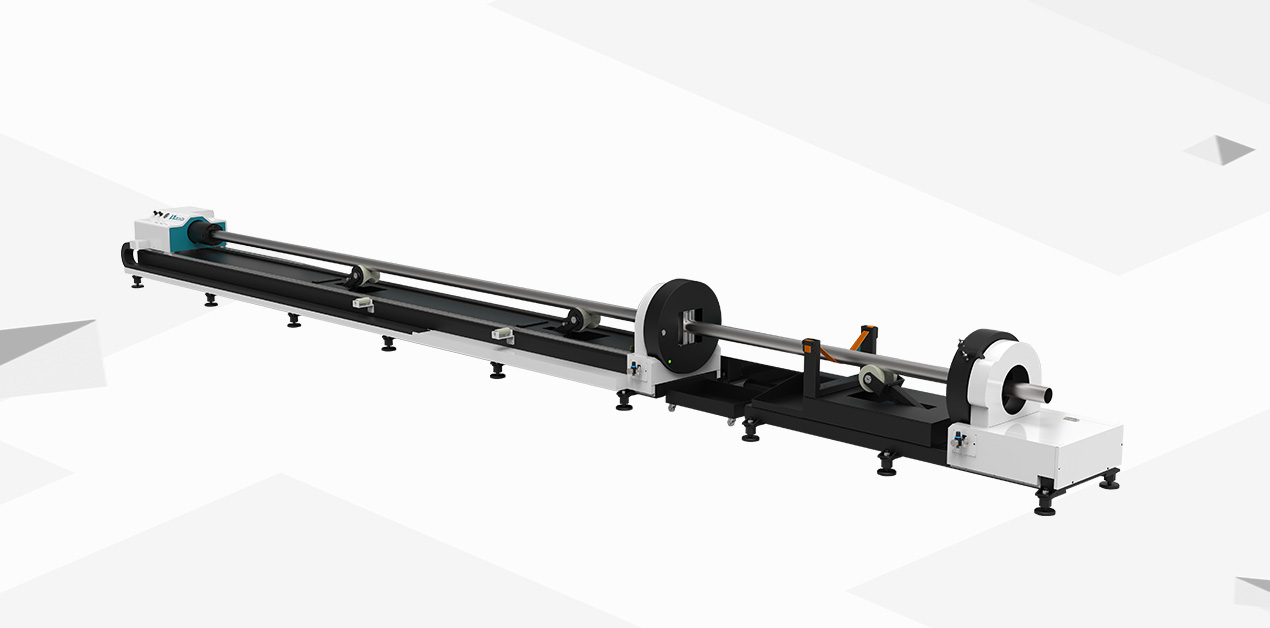

ROTARY
Diameter 220mm length 6m
Professional Pneumatic Chuck
with supporter
CLAMP DESIGN

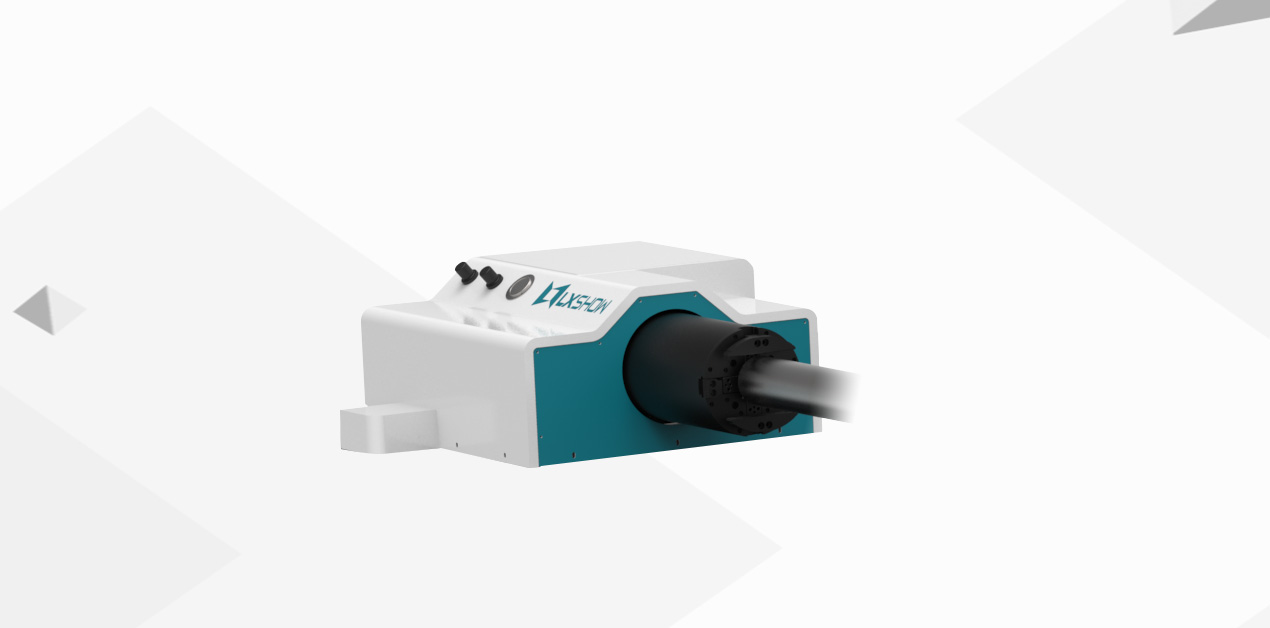

Automatic pneumatic chuck Self-centering pneumatic chuck
Fast automatic centering and clamping pipe
Rotation inertia is low, and dynamic performance is strong.

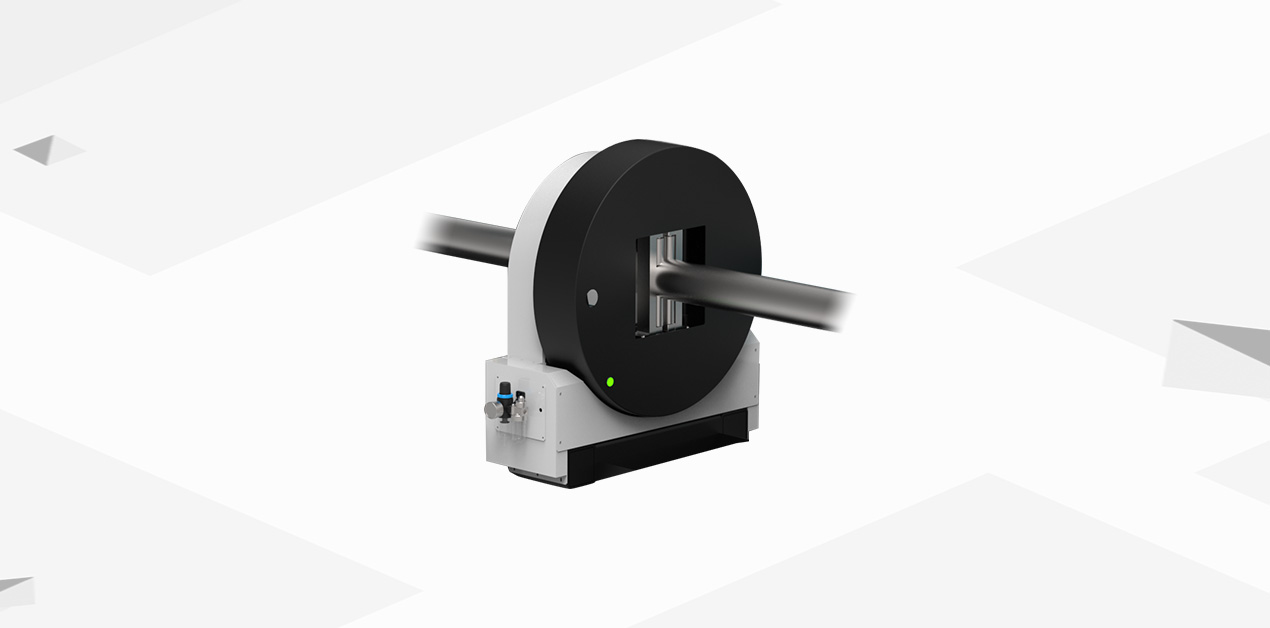

PNEUMATIC CHUCK
It adopts an pneumatic clamp design on both sides and it can modulate the center automatically.The diagonal adjustable range is 20-220mm(320/350 is optional)
PARAMETER

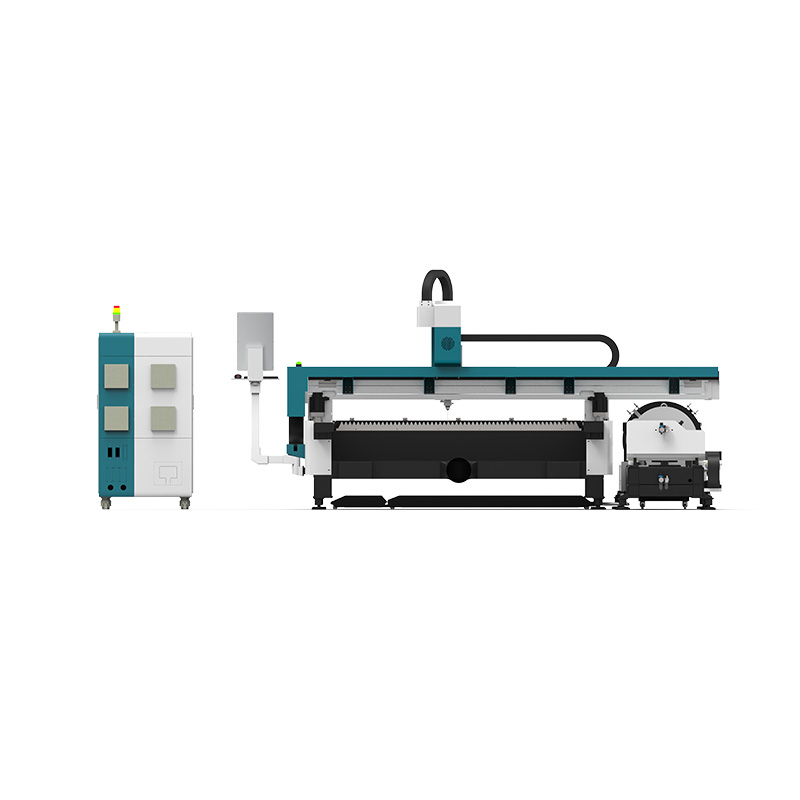

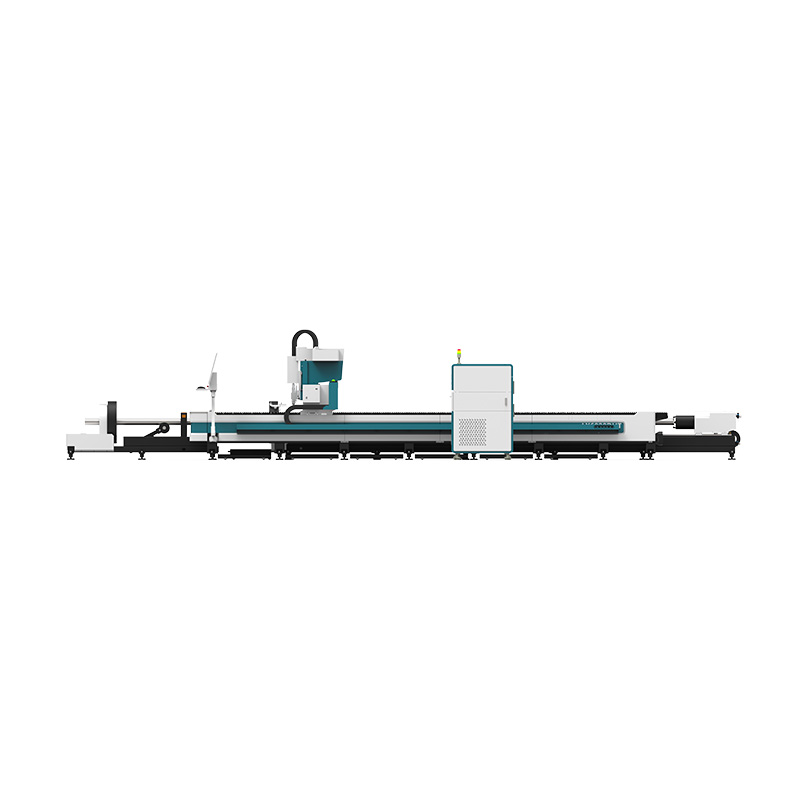

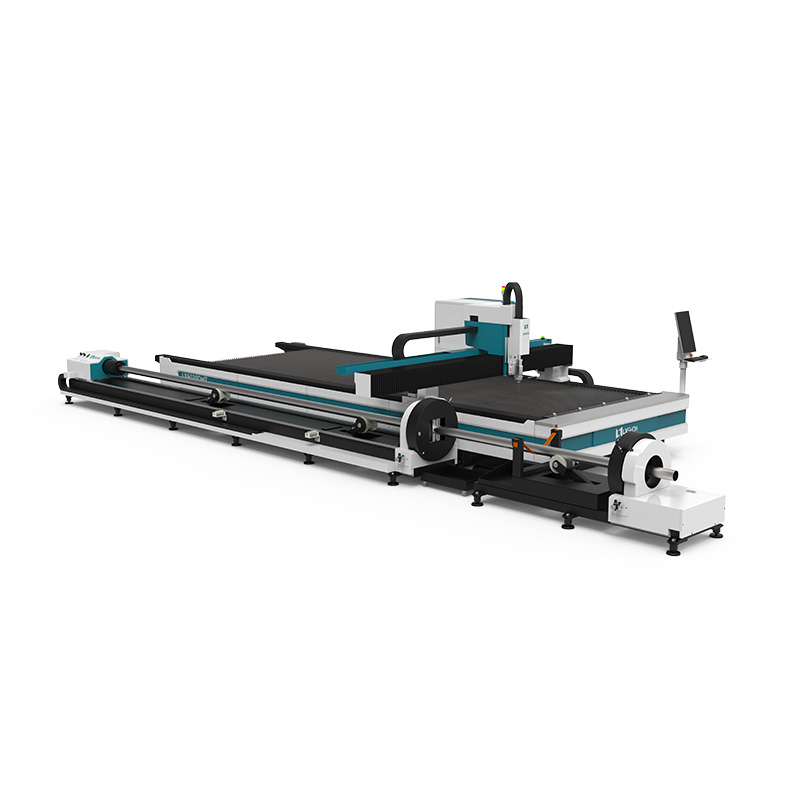

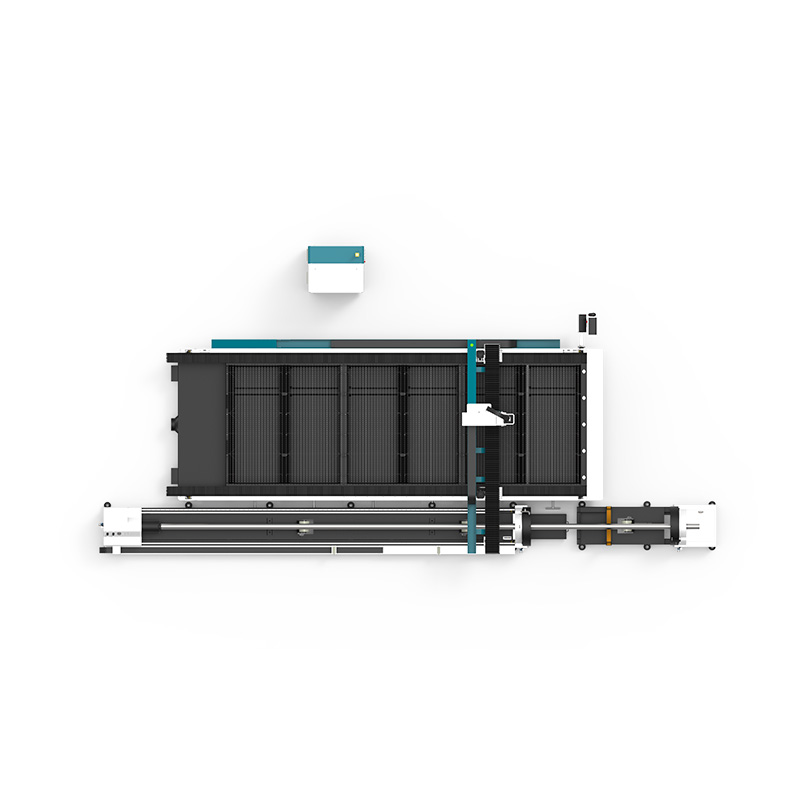

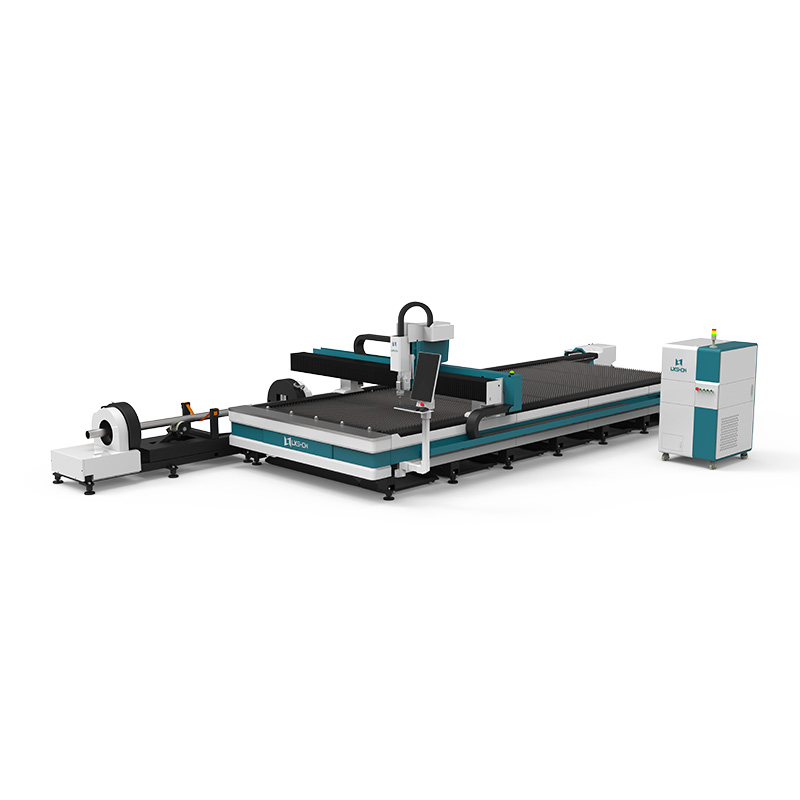

| Model | LX6020DHT Fiber laser cutting machine |
| Working Area | 2000*6000mm |
| Laser Power | 3000W |
| Laser Generator | MAX |
| Laser Wave Length | 1064nm |
| Working Table | Sawtooth |
| Maximum Idle Running Speed | 120m/min |
| Maximum acceleration | 1.2G |
| Position Accuracy | ±0.02mm/m |
| Repeat Positional Accuracy | ±0.01mm |
| Metal style | Metal sheet and tube |
| Control System | Bochu fscut3000S |
| Position Type | red dot |
| Working Voltage | 380V 50Hz 3 phases |
| Auxiliary Gas | oxygen,nitrogen,air |
| Working life of fiber module | More than 100,000 hours |
| Fiber laser cutting head | Raytools BM110 |
| Cooling System | S&A/Tongfei/Hanli industrial water chiller |
| Work Environment | 0-45°C, Moisture 45-85% |
| Delivery time | 25-35 work days (According to actual season) |
| Parameter Specification | Details |
|---|---|
| Model | 6020DHT Fiber laser cutting machine |
| Working Area | 2000*6000mm |
| Laser Power | 3000W |
| Laser Generator | MAX |
| Laser Wave Length | 1064nm |
| Working Table | Sawtooth |
| Maximum Idle Running Speed | 120m/min |
| Maximum acceleration | 1.2G |
| Position Accuracy | ±0.02mm/m |
| Repeat Positional Accuracy | ±0.01mm |
| Metal style | Metal sheet and tube |
| Control System | Bochu fscut3000S |
| Position Type | red dot |
| Working Voltage | 380V 50Hz 3 phases |
| Auxiliary Gas | oxygen, nitrogen, air |
| Working life of fiber module | More than 100,000 hours |
| Fiber laser cutting head | Raytools BM110 |
| Cooling System | S&A/Tongfei/Hanli industrial water chiller |
| Work Environment | 0-45°C, Moisture 45-85% |
| Delivery time | 25-35 work days (According to actual season) |
