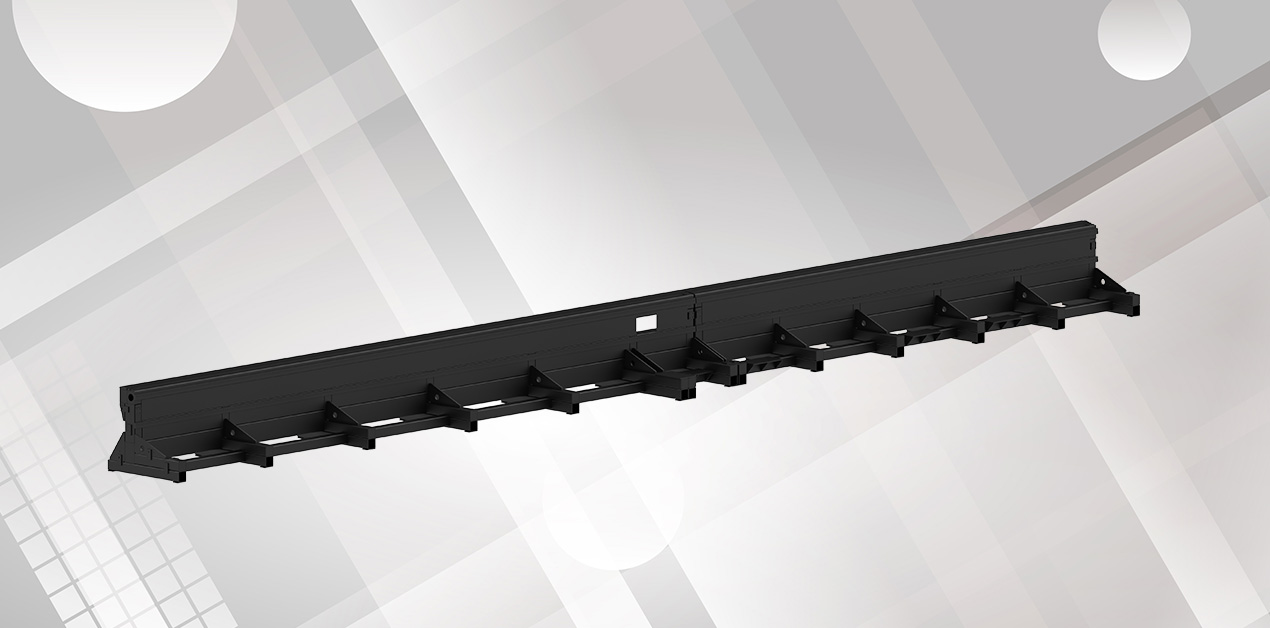

Good rigidity, high precision, no deformation during the life cycle; Welded aluminum collet board, formed through high precision process. Good weight and good dynamic performance.

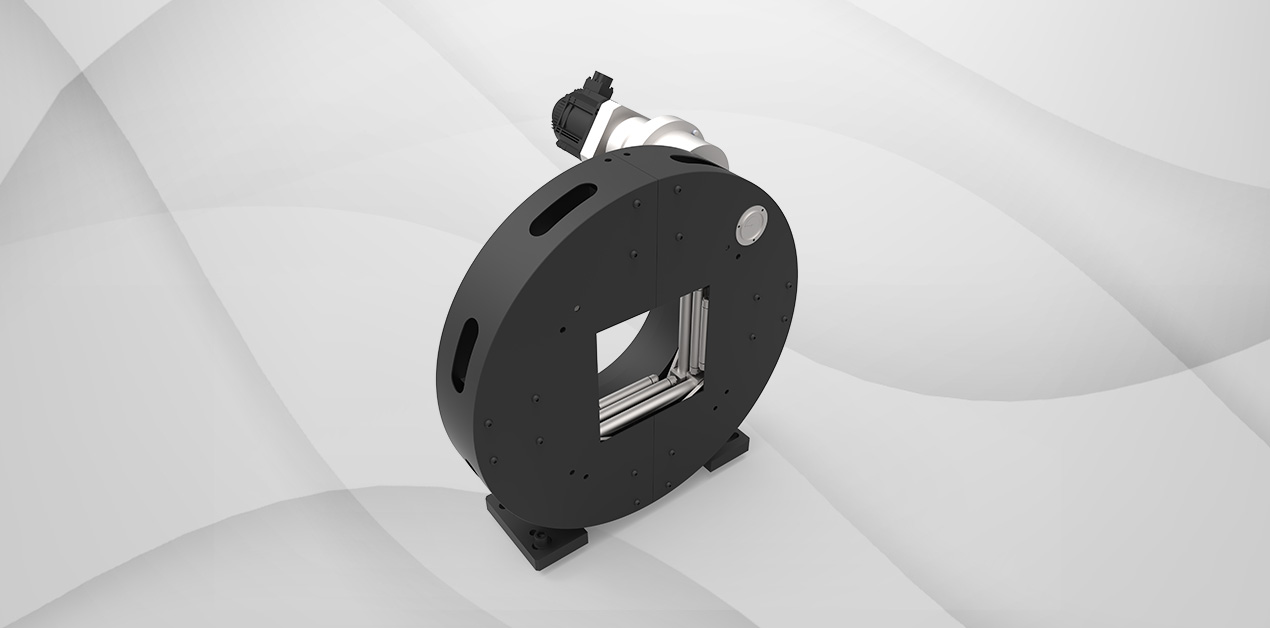

It adopts an pneumatic clamp design on both sides and it can modulate the center automatically. The diagonal adjustable range is 20-220mm (320/350, Φ20-Φ500 is optional).

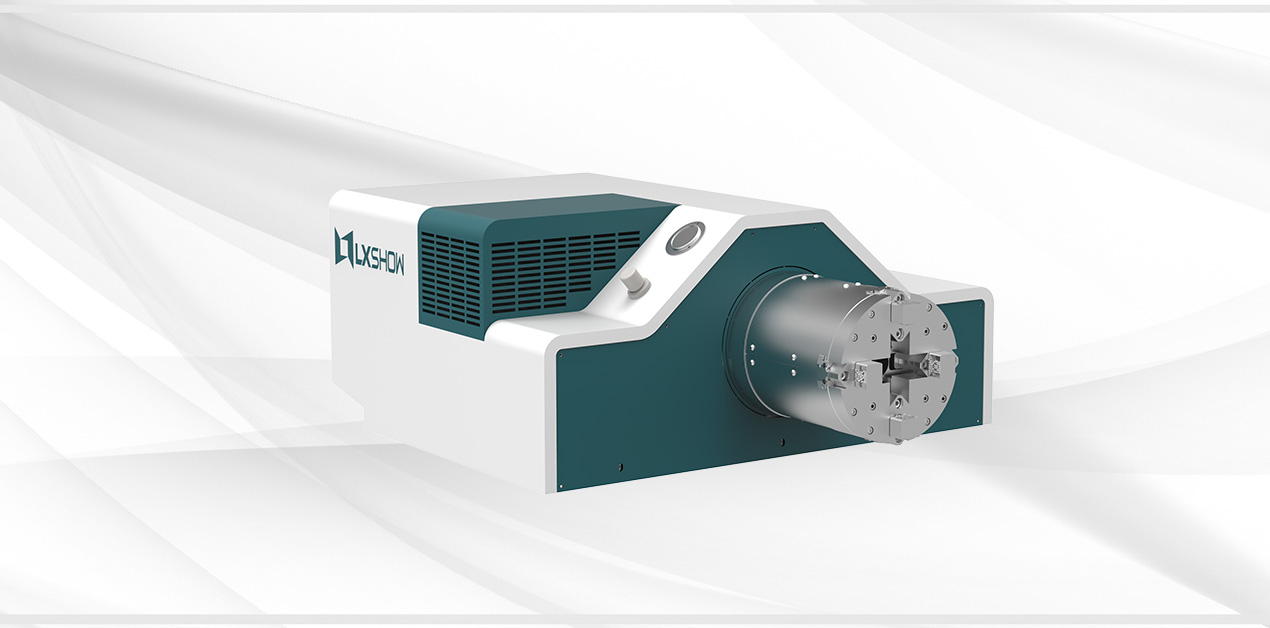

Automatic pneumatic chuck, adjustable and stable, clamping range is wider and clamping force is larger. Non-destructive pipe clamping, fast automatic centering and clamping pipe, performance is more stable. The chuck size is smaller, rotation inertia is low, and dynamic performance is strong. Self-centering pneumatic chuck, gear transmission mode, higher transmission efficiency, long working life and high work reliability.
System is equipped with servo motor, boot to homework, do not need to return to zero operation, power outages, a key recovery cutting operation.
Fiber Laser Metal Cutting Machine is suitable for metal cutting like:
Fiber Laser Cutting Machines are widely used in manufacture:
Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Tube Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal crafts, metal art ware, elevator panel cutting, hardware, auto parts, Glasses Frame, Electronic Parts, Nameplates, etc.
Detects the whole process of cutting head working, quickly feedbacking the risk and stopping it. It can detect anomalies in advance, reduce hidden dangers, and double the effect of abnormal detection of equipment. This provides double protection with a fixed limit to improve equipment and personal safety while reducing overall risk.

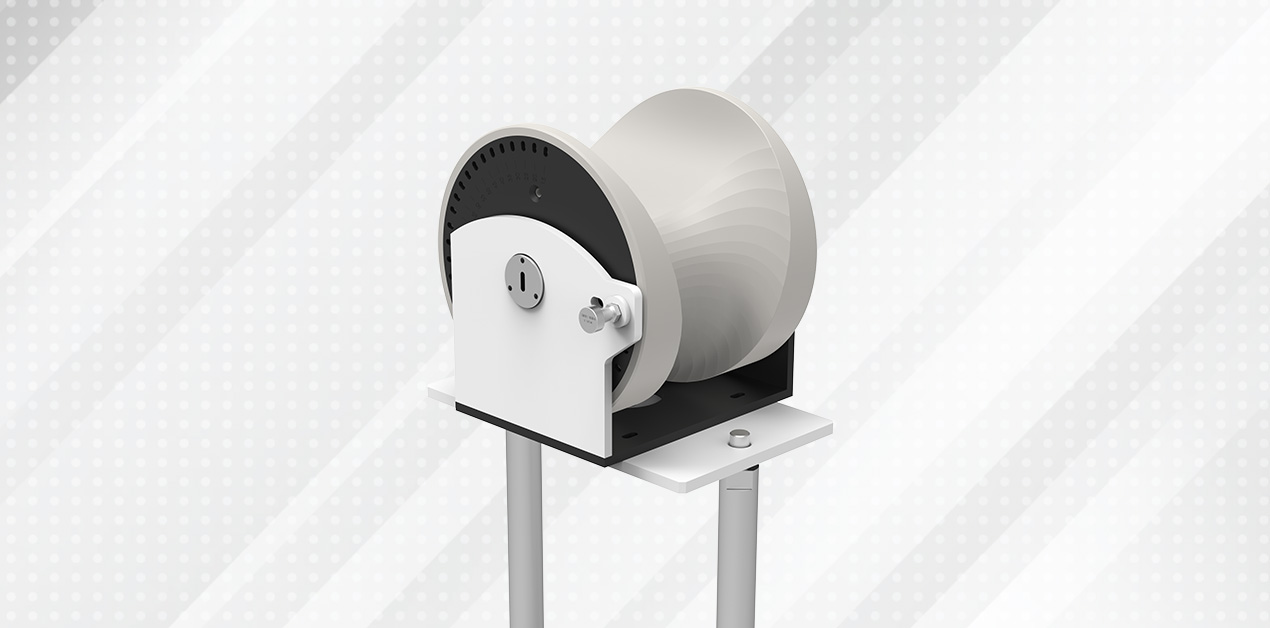

It employs an intelligent tube support design, which can solve the deformation problems commonly encountered in the process of long tube cutting, ensuring absolute accuracy and structural stability during operations.
| Machine Model | LX83TIV |
| Power of Generator | 1000-30000W |
| Chuck | Front and rear dual pneumatic chucks |
| Clamping Range | Φ20-Φ220 / Φ20-Φ350 / Φ20-Φ500 |
| Repeated Positioning Accuracy | ±0.02mm |
| Specified Voltage And Frequency | 380V 50/60HZ |
