Product Description

Complete steel-welded structure, with sufficient strength and rigidity
Hydraulic down-stroke structure, reliable and smooth
Mechanical stop unit, synchronous torque, and high precision
The backgauge adopts the backgauge mechanism of the T-type screw with smooth rod, which is driven by a motor
Upper tool with tension compensating mechanism, in order to guarantee high precision of bending

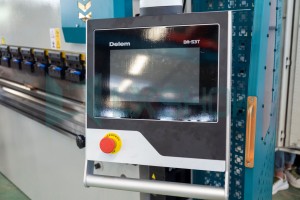

1 The new compact adds a state-of-the-art completetouch control solution for synchronized press brakes.
2 This panel based control, standard capable of controlling up to 4 axes, can be integrated in cabinets as well as used in an optional pendulant arm housing.
3 Machine adjustment and test bends are reduced to a minimum with a quick and easy program-to-production work sequence.

Upper tool clamping device is fast clamp

Aluminium alloy material platform, attractive appearance, and decrease scratch of workpiece

Ball screw/liner guide are high precision. Multi-V bottom die with different openings

Technical Specifications

Machine model		WE67K-100T4000
Nominal Pressure		1000 kN
Bending length		4000 mm
Distance between columns		3200 mm
Throat Depth		320 mm
Opening Height		400 mm
Slide running condition	moving journey/stroke	200mm
	fast down speed	180mm/s
	return speed	110mm/s
	working speed	10mm/s
Slide running precision	Position accuracy	±0.03mm
Slide running precision	Repeat Position accuracy	±0.02mm
Main motor power	Power	11 KW
Main motor power	rotate speed	1440r/min
Operate system	Model	DA53T
Oil Pump	Model	USA sunny
Bending precision	angle	±30'
Bending precision	straightness	±0.7mm/m
Voltage		220/380/420/660V

Advanced Control & Safety System

A convex wedge consists of a set of convex oblique wedges with a beveled surface. Each protruding wedge is designed by finite element analysis according to the deflection curve of the slide and worktable.
The CNC controller system calculates the required compensation amount based on the load force. This force causes deflection and deformation of the vertical plates of the slide and table, and automatically controls the relative movement of the convex wedge, so as to effectively compensate for the deflection deformation caused by the slider and the table riser, and obtain the ideal bending workpiece.
Adopt 2-v quick change clamping for bottom die.

Lasersafe PSC-OHS safety guard, communication between CNC controller and safety control module.
Dual beam from protection are point below 4mm below the tip of upper tool, to protect operator's fingers; three regions (front, middle and real) of laser can be flexibly closed, ensure complex box bending processing; mute point is 6mm, to realize efficient and safe production.
When mark bending support plate can realize the function of turning over following. Following angle and speed are calculated and controlled by CNC controller, move along linear guide left and right.
Adjust the height up and down by hand, front and rear can also be adjust manually to suit for different bottom die opening.
Support platform can be brush or stainless steel tube, according to workpiece size, two supports linkage movement or separate movement can be chosen.

Operations & Manufacturing

Samples

Packaging

Factory

Our Service

Customer Visit

Off-line Activity

Frequently Asked Questions

Q Do you have CE document and other documents for customs clearance?

Yes, we have CE, Provide you with a one-stop service. At first we will show you and after shipment we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.

Q If we are interested in your machine, how do we choose?

Could you tell me your materials: cs or ss and their thickness? And the biggest bending width? Then we will confirm the machine model for you.

Q How about warranty?

3 years quality guaranty, the machine with main parts (excluding the consumables) shall be changed free of charge (some parts will be maintained) when if any problem during the warranty period.

Q Do you have after sales support?

Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.

Q Do you have any other machine style?

Yes, please check our available machine styles. If you have any questions, you can reach out at any time.

Q What are the main structural features of this machine?

The machine features a complete steel-welded structure with sufficient strength and rigidity, a reliable and smooth hydraulic down-stroke structure, and a mechanical stop unit with synchronous torque for high precision.
