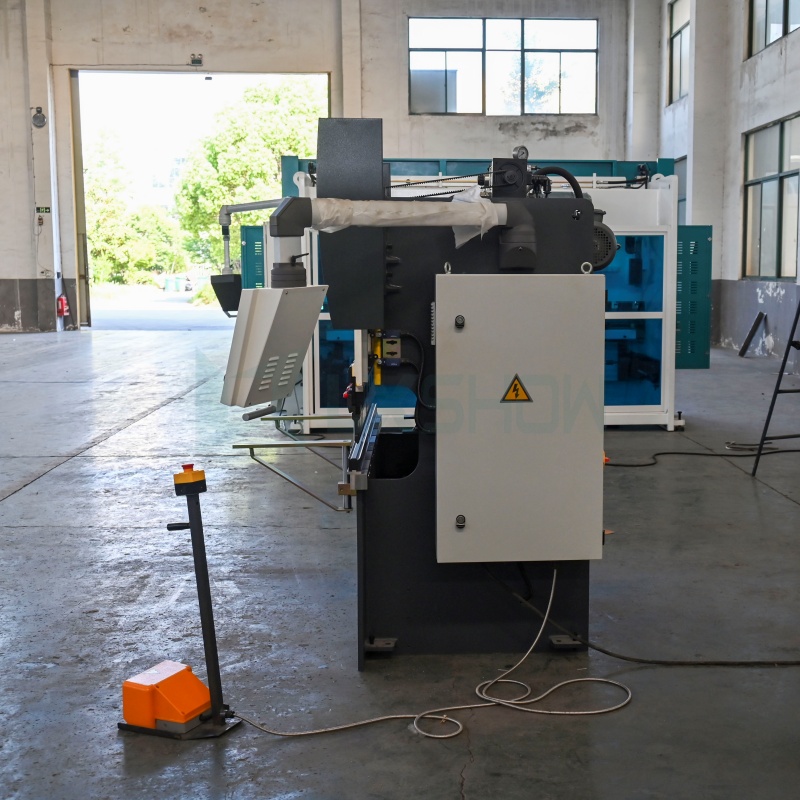

Wholesale WG67K-30T1600 Efficient Metal Bending Machine for Sale Manufacturer, Supplier

1 / 5

Wholesale WG67K-30T1600 Efficient Metal Bending Machine for Sale Manufacturer, Supplier

Send Inquiry

Product Description

Key Features & Rigidity

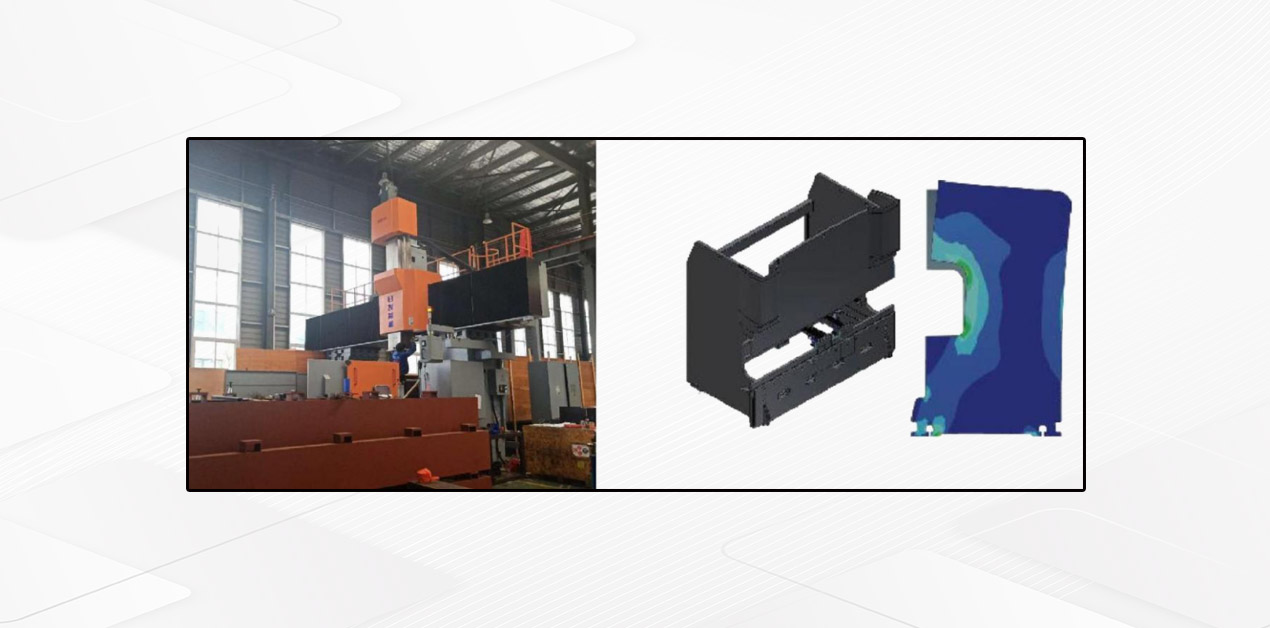

Complete steel-welded structure, with sufficient strength and rigidity
Hydraulic down-stroke structure, reliable and smooth
Mechanical stop unit, synchronous torque, and high precision
The backgauge adopts the backgauge mechanism of the T-type screw with smooth rod, which is driven by a motor
Upper tool with tension compensating mechanism, In order to guarantee high precision of bending
TP10S NC system

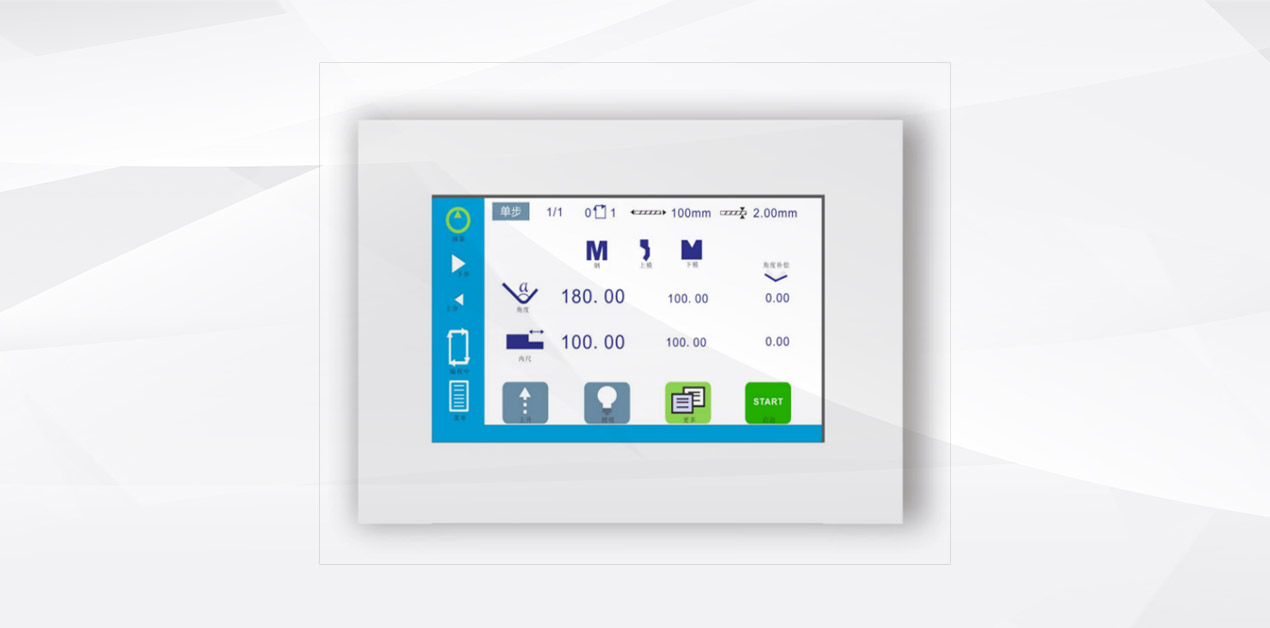

TP10S NC Touch Screen System

Support angle programming and depth programming switching
Support settings of mold and product library
Each step can set opening height freely
The shift point position can be freely controlled
It can realize Multi-axis expansion of Y1, Y2, R
Support mechanical crowning workingtable control
Support large circular arc automatic generate program
Support top dead center, bottom dead center, loose foot, delay and other step change options to improve processing efficiency effectively
Support electromagnet simple bridge
Support fully automatic pneumatic pallet bridge function
Support automatic bending, realize unmanned bending control, and support up to 25 steps of automatic bending
Support time control of valve group configuration function, fast down, slow down, return, unloading action and valve action
Includes 40 product libraries, each product library has 25 steps, large circular arc supports 99 steps

Structural & Component Details

Fast Clamping Device

Upper tool clamping device is fast clamp.

Aluminium Alloy Platform

Aluminium alloy material platform, attractive appearance, and decrease scratch of workpiece.

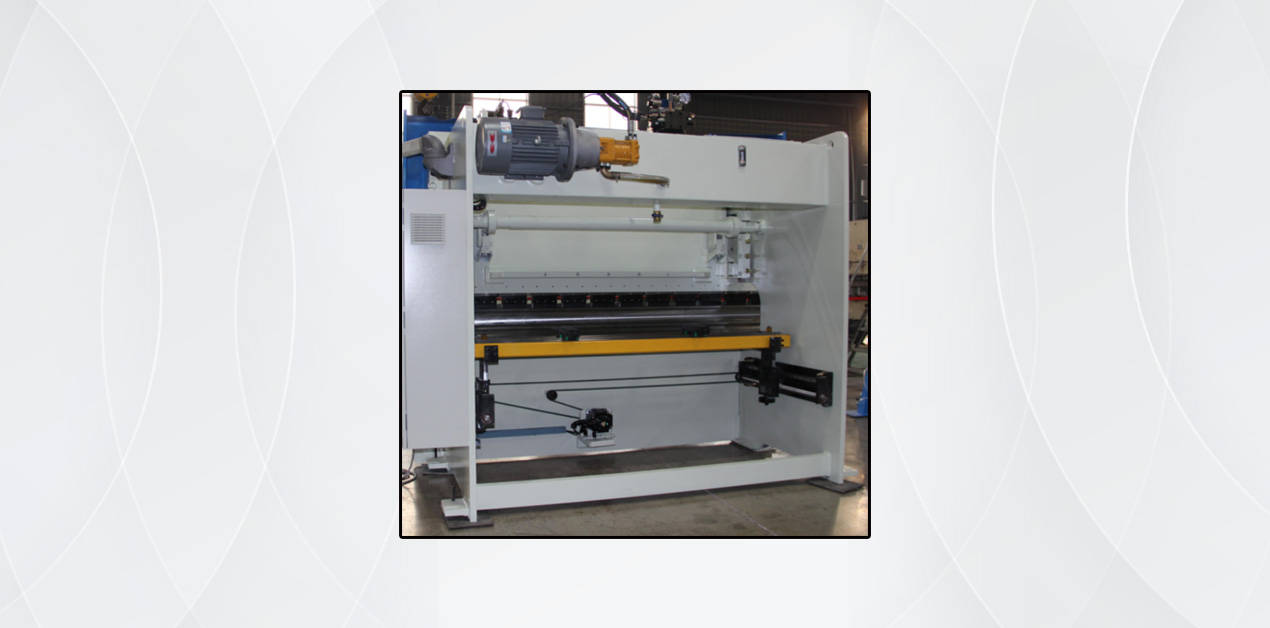

Precision Ball Screw

Ball screw/liner guide are high precision. Multi-V bottom die with different openings.

Convex Wedge Compensation System

A convex wedge consists of a set of convex oblique wedges with a beveled surface. Each protruding wedge is designed by finite element analysis according to the deflection curve of the slide and worktable. The CNC controller system calculates the required compensation amount based on the load force. This force causes deflection and deformation of the vertical plates of the slide and table. And automatically control the relative movement of the convex wedge, so as to effectively compensate for the deflection deformation caused by the slider and the table riser, and obtain the ideal bending workpiece.

Clamping System for Bottom Die

Adopt 2-v quick change clamping for bottom die.

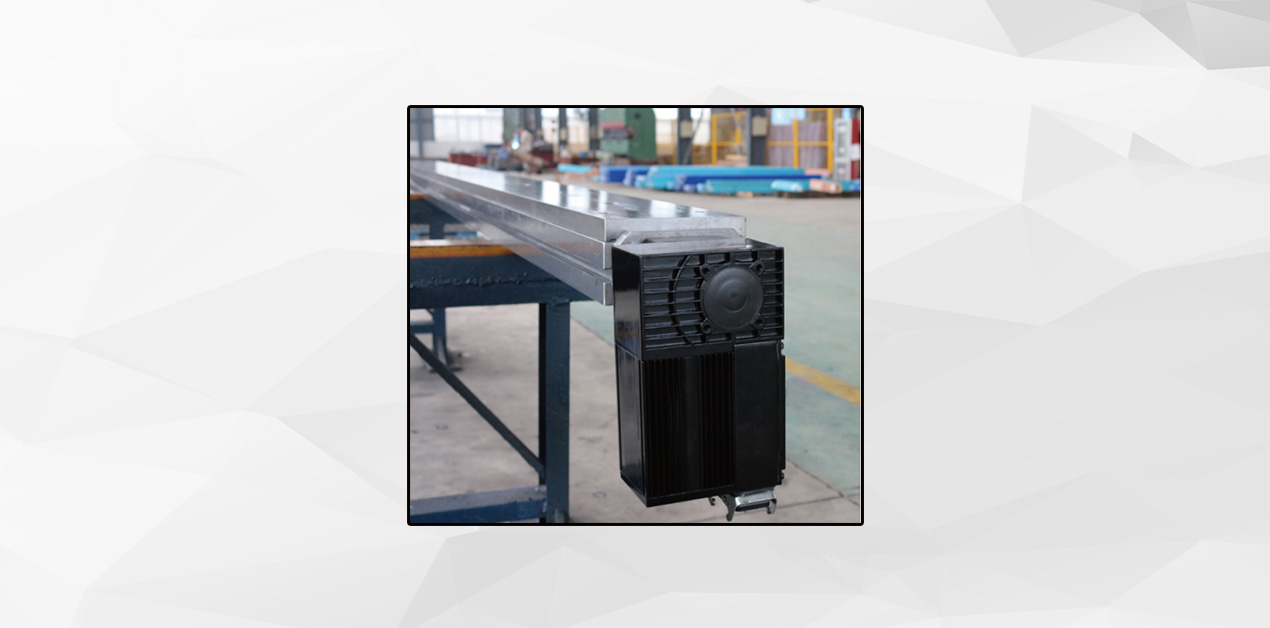

Lasersafe Safety System

Lasersafe PSC-OHS safety guard, communication between CNC controller and safety control module. Dual beam protection point is 4mm below the tip of upper tool to protect operator`s fingers; three regions (front, middle, and rear) of laser can be flexibly closed to ensure complex box bending processing; mute point is 6mm to realize efficient and safe production.

Bending Support Follower

When bending, the support plate can realize the function of turning over and following. The following angle and speed are calculated and controlled by the CNC controller, moving along the linear guide left and right. Adjust the height up and down by hand; front and rear can also be adjusted manually to suit different bottom die openings. The support platform can be a brush or stainless steel tube; according to workpiece size, two supports linkage movement or separate movement can be chosen.

Technical Parameters

Model	Weight	Oil Cylinder Dia.	Cylinder Stroke	Wallboard	Slider	Vertical Plate
WG67K-30T1600	1.6 tons	95	80	18	20	20
WG67K-40T2200	2.1 tons	110	100	25	30	25
WG67K-40T2500	2.3 tons	110	100	25	30	25
WG67K-63T2500	3.6 tons	140	120	30	35	35
WG67K-63T3200	4 tons	140	120	30	35	40
WG67K-80T2500	4 tons	160	120	35	40	40
WG67K-80T3200	5 tons	160	120	35	40	40
WG67K-80T4000	6 tons	160	120	35	40	45
WG67K-100T2500	5 tons	180	140	40	50	50
WG67K-100T3200	6 tons	180	140	40	50	50
WG67K-100T4000	7.8 tons	180	140	40	50	60
WG67K-125T3200	7 tons	190	140	45	50	50
WG67K-125T4000	8 tons	190	140	45	50	60
WG67K-160T3200	8 tons	210	190	50	60	60
WG67K-160T4000	9 tons	210	190	50	60	60
WG67K-200T3200	11 tons	240	190	60	70	70
WC67E-200T4000	13 tons	240	190	60	70	70
WG67K-200T5000	15 tons	240	190	60	70	70
WG67K-200T6000	17 tons	240	190	70	80	80
WG67K-250T4000	14 tons	280	250	70	70	70
WG67K-250T5000	16 tons	280	250	70	70	70
WG67K-250T6000	19 tons	280	250	70	70	80
WG67K-300T4000	15 tons	300	250	70	80	90
WG67K-300T5000	17.5 tons	300	250	80	90	90
WG67K-300T6000	25 tons	300	250	80	90	90
WG67K-400T4000	21 tons	350	250	80	90	90
WG67K-400T6000	31 tons	350	250	90	100	100
WG67K-500T4000	26 tons	380	300	100	110	110
WG67K-500T6000	40 tons	380	300	100	120	120

Sample Gallery & Factory Operations

Sample Show & Industry

Packaging

Production Facility

Technical Support & Service

Customer Relations

Off-line Activity

Frequently Asked Questions

Do you have CE document and other documents for customs clearance?

Yes, we have CE certification. We provide a one-stop service; initially, we will show you documents, and after shipment, we will provide the CE, Packing List, Commercial Invoice, and Sales Contract for customs clearance.

If we are interested in your machine, how do we choose the right model?

Please provide details regarding your materials (such as carbon steel or stainless steel), their thickness, and your maximum required bending width. With this information, we will confirm the most suitable machine model for you.

What is the warranty coverage for the machine?

We offer a 3-year quality guarantee. The machine with main components (excluding consumables) will be repaired or replaced free of charge if any problems occur during the warranty period.

Do you provide ongoing after-sales support?

Yes, we offer professional advice and have skilled technicians available across the world to provide necessary support, ensuring your machinery remains operational to support your business continuity.

Are there alternative machine styles available?

Yes, we offer multiple machine styles. If you have specific configuration needs or additional questions, you can contact us at any time.

How does the deflection compensation mechanism work to maintain bending accuracy?

The system utilizes a convex wedge consisting of set oblique wedges with beveled surfaces designed by finite element analysis. The CNC controller calculates the precise compensation needed based on the load force and controls relative movement of the wedge, effectively counteracting slide and table deformation for an ideal bending result.
