1. The new compact kt15 adds a state-of-the-art complete touch control solution for synchronized pressbrakes. Offering easiest CNC programming based on the graphical touch screen user interface.
2. This panel based control, standard capable of controlling up to 4 axes, can be integrated in cabinets as well as used in an optional pendulant arm housing.
3. Its 10.1" wide screen high resolution colour TFT, with industrial grade multi touch technology, gives access to the proven user-interface.
4. Machine adjustment and test bends are reduced to a minimum with a quick and easy program-to-production work sequence.

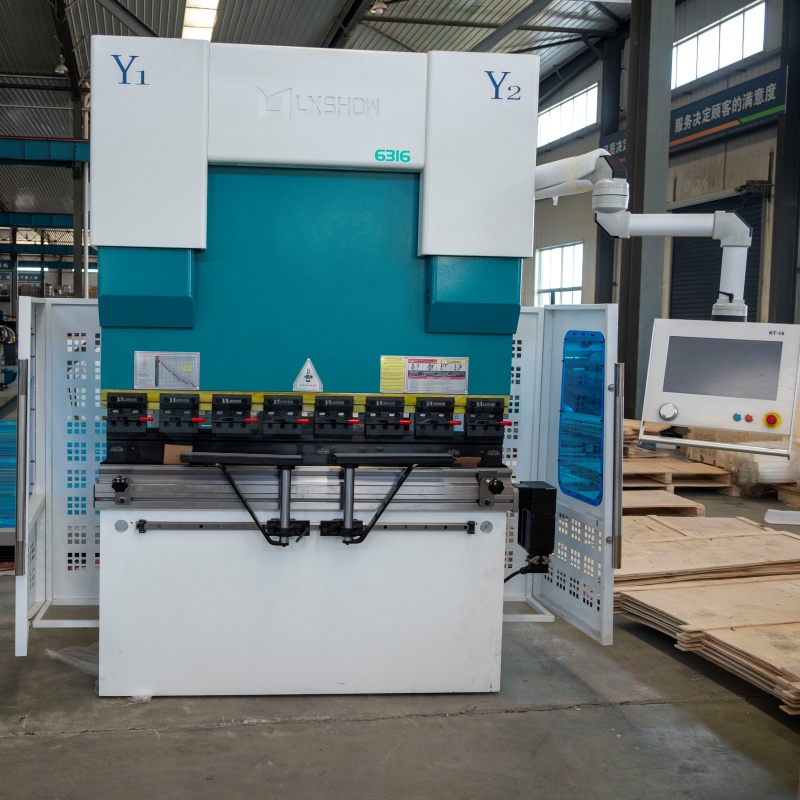

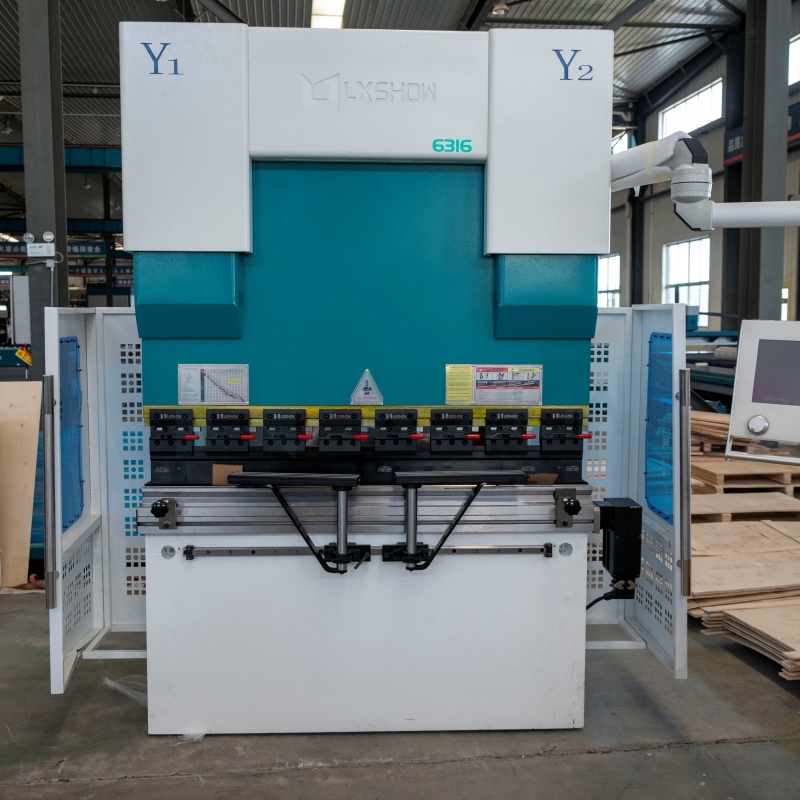

Upper tool clamping device: Fast clamp system designed for rapid tooling changes and improved setup efficiency.
Aluminium alloy material platform: Attractive appearance design that effectively decreases scratches on the workpiece surface during processing.

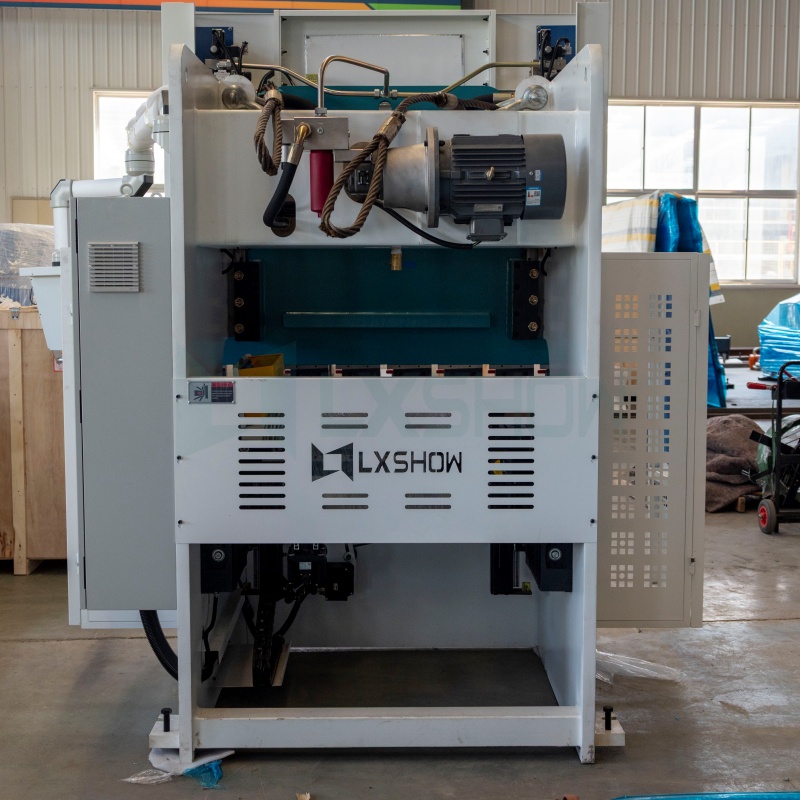

Ball screw/linear guide: Engineered with high-precision components. Features a multi-V bottom die with different openings to support versatile bending needs.
Designed for optimized workflow and precision control under continuous workload operations.

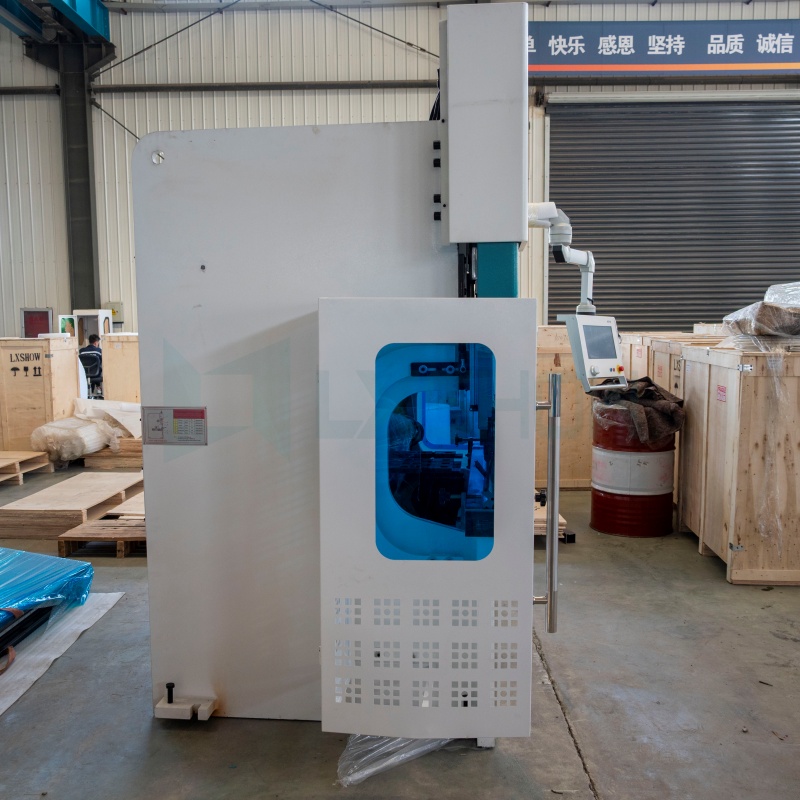

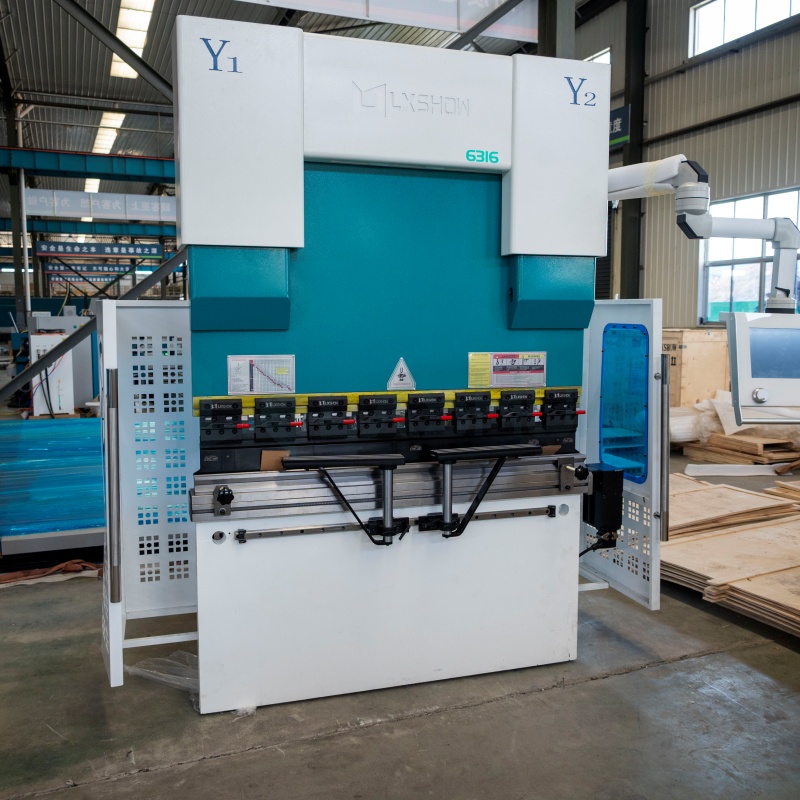

| Machine model | WE67K-63T/1600 | |
| Nominal Pressure | 630 kN | |
| Bending length | 1600mm | |
| Distance between columns | 920 mm | |
| Throat Depth | 230 mm | |
| MAX Pressure of system | 22Mpa | |
| Slide running condition | moving journey/stroke | 200mm |
| fast down speed | 180mm/s | |
| return speed | 110mm/s | |
| working speed | 10mm/s | |
| Slide running precision | Position accuracy | ±0.03mm |
| Repeat Position accuracy | ±0.02mm | |
| Main motor power | Power | 7.5 KW |
| rotate speed | 1440r/min | |
| Operate system | Model | KT15 |
| Oil Pump | Model | High quality brand |
| Bending precision | angle | ±30 |
| straightness | ±0.7mm/m | |
| Voltage | 220/380/420/660V | |
• A convex wedge consists of a set of convex oblique wedges with a beveled surface. Each protruding wedge is designed by finite element analysis according to the deflection curve of the slide and worktable.
• The CNC controller system calculates the required compensation amount based on the load force. This force causes deflection and deformation of the vertical plates of the slide and table. And automatically control the relative movement of the convex wedge, so as to effectively compensate for the deflection deformation caused by the slider and the table riser, and obtain the ideal bending workpiece.
• Adopt 2-v quick change clamping for bottom die to optimize changeover speed and increase throughput efficiency.
• Lasersafe PSC-OHS safety guard, communication between CNC controller and safety control module.
• Dual beam protection point is 4mm below the tip of upper tool, to protect operator's fingers; three regions (front, middle, and rear) of laser can be flexibly closed to ensure complex box bending processing; mute point is 6mm, realizing efficient and safe production.
• When mark bending support plate is deployed, it can realize the function of turning over following. Following angle and speed are calculated and controlled by the CNC controller, moving along linear guides left and right.
• Adjust the height up and down by hand; front and rear adjustments can also be made manually to suit different bottom die openings.
• Support platform can be brush or stainless steel tube. According to the workpiece size, two supports linkage movement or separate movement can be chosen.
