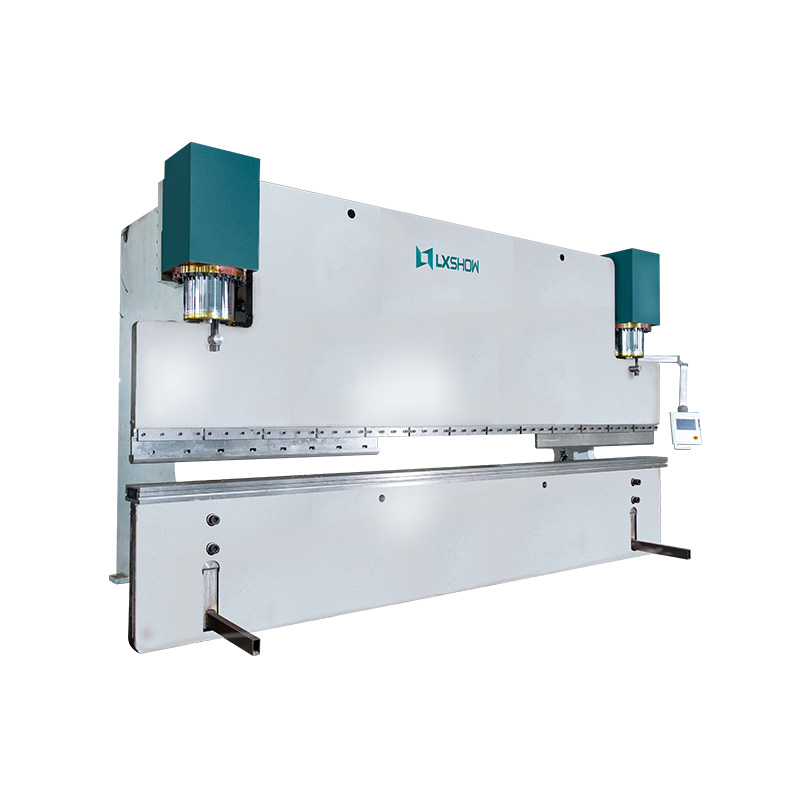

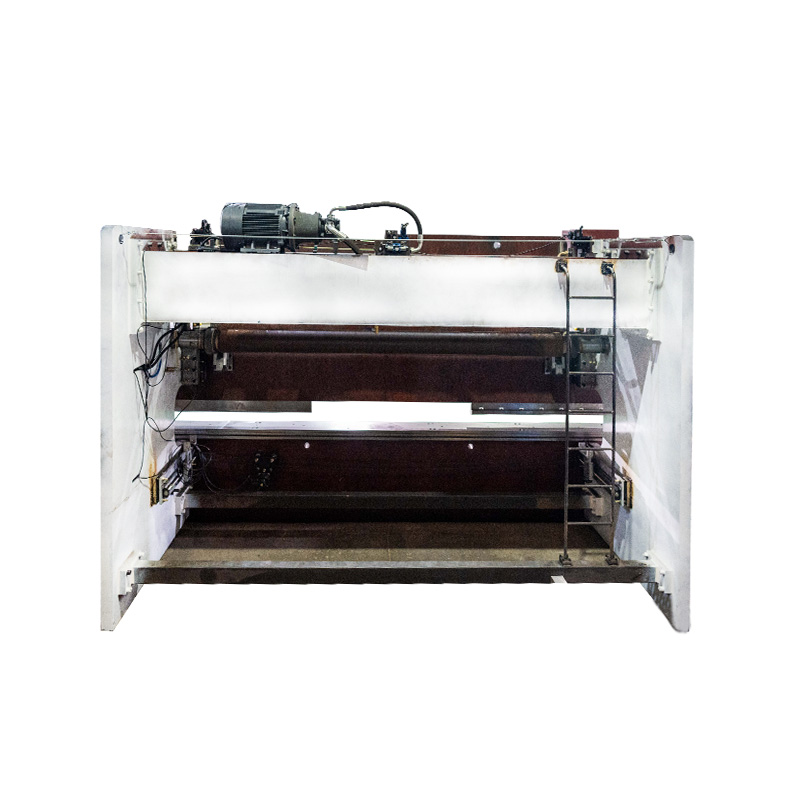

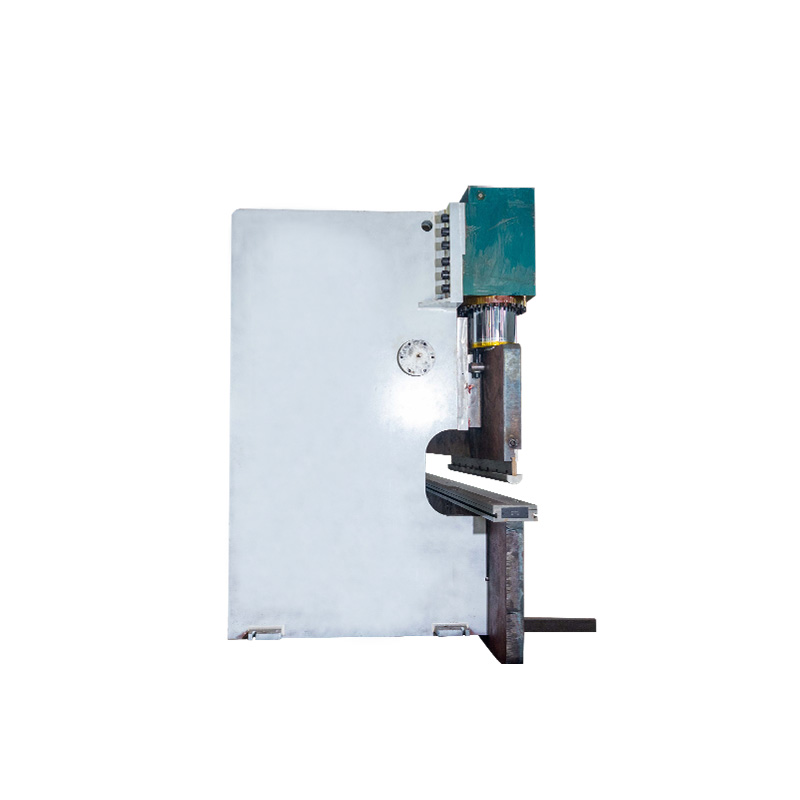

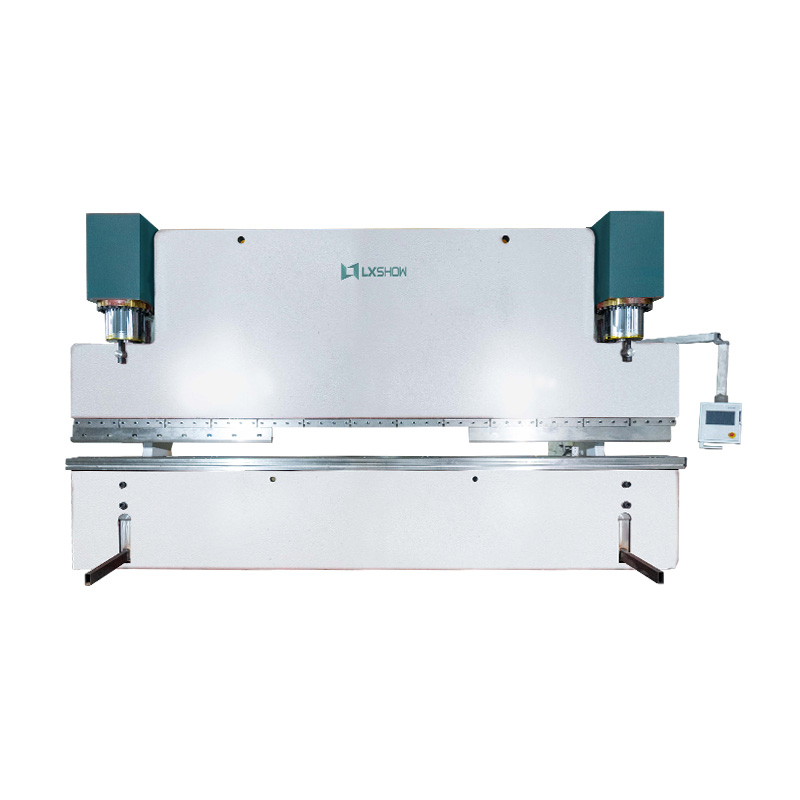

Famous WG67K-500T4000 China Factory Hot Sale New Multi-Function Bend Machine Factory, Exporters

1 / 4

Famous WG67K-500T4000 China Factory Hot Sale New Multi-Function Bend Machine Factory, Exporters

Send Inquiry

Product Description

Complete steel-welded structure, with sufficient strength and rigidity
Hydraulic down-stroke structure, reliable and smooth
Mechanical stop unit, synchronous torque, and high precision
The backgauge adopts the backgauge mechanism of the T-type screw with smooth rod, which is driven by a motor
Upper tool with tension compensating mechanism, in order to guarantee high precision of bending
TP10S NC system

Optional Configurations

Crowning Compensation for Worktable

A convex wedge consists of a set of convex oblique wedges with a beveled surface. Each protruding wedge is designed by finite element analysis according to the deflection curve of the slide and worktable.
The CNC controller system calculates the required compensation amount based on the load force. This force causes deflection and deformation of the vertical plates of the slide and table. And automatically control the relative movement of the convex wedge, so as to effectively compensate for the deflection deformation caused by the slider and the table riser, and obtain the ideal bending workpiece.

Quick Change Bottom Die

Adopt 2-v quick change clamping for bottom die.

Lasersafe Safety Guard

Lasersafe PSC-OHS safety guard, communication between CNC controller and safety control module.
Dual beam from protection are point below 4mm below the tip of upper tool,to protect operator`s fingers；three regions(front,middle and real) of leaser can be flexibly closed,ensure complex box bending processing ;mute point is 6mm,to realize efficient and safe production.

Metal Bending Machine Parameter

Parameters
Model	Weight	Oil Cylinder Diameter	Cylinder Stroke	Wallboard	Slider	Workbench Vertical Plate
WG67K-30T1600	1.6 tons	95	80	18	20	20
WG67K-40T2200	2.1 tons	110	100	25	30	25
WG67K-40T2500	2.3 tons	110	100	25	30	25
WG67K-63T2500	3.6 tons	140	120	30	35	35
WG67K-63T3200	4 tons	140	120	30	35	40
WG67K-80T2500	4 tons	160	120	35	40	40
WG67K-80T3200	5 tons	160	120	35	40	40
WG67K-80T4000	6 tons	160	120	35	40	45
WG67K-100T2500	5 tons	180	140	40	50	50
WG67K-100T3200	6 tons	180	140	40	50	50
WG67K-100T4000	7.8 tons	180	140	40	50	60
WG67K-125T3200	7 tons	190	140	45	50	50
WG67K-125T4000	8 tons	190	140	45	50	60
WG67K-160T3200	8 tons	210	190	50	60	60
WG67K-160T4000	9 tons	210	190	50	60	60
WG67K-200T3200	11 tons	240	190	60	70	70
WC67E-200T4000	13 tons	240	190	60	70	70
WG67K-200T5000	15 tons	240	190	60	70	70
WG67K-200T6000	17 tons	240	190	70	80	80
WG67K-250T4000	14 tons	280	250	70	70	70
WG67K-250T5000	16 tons	280	250	70	70	70
WG67K-250T6000	19 tons	280	250	70	70	80
WG67K-300T4000	15 tons	300	250	70	80	90
WG67K-300T5000	17.5 tons	300	250	80	90	90
WG67K-300T6000	25 tons	300	250	80	90	90
WG67K-400T4000	21 tons	350	250	80	90	90
WG67K-400T6000	31 tons	350	250	90	100	100
WG67K-500T4000	26 tons	380	300	100	110	110
WG67K-500T6000	40 tons	380	300	100	120	120

Production & Capability Showcase

Samples

Packaging

Factory

Our Service

Customer Visit

Off-line Activity

TP10S Control System Features

✔ TP10S Touch screen

✔ Support angle programming and depth programming switching

✔ Support settings of mold and product library

✔ Each step can set opening height freely

✔ The shift point position can be freely controlled

✔ it can realize Multi-axis expansion of Y1、 Y2、 R

✔ Support mechanical crowning workingtable control

✔ support large circular arc automatic generate program

✔ Support top dead center, bottom dead center, loose foot, delay and other step change options, it improve processing efficiency effectively

✔ Support electromagnet simple bridge

✔ Support fully automatic pneumatic pallet bridge function

✔ Support automatic bending, realize unmanned bending control, and support up to 25 steps of automatic bending

✔ Support time control of valve group configuration function, fast down, slow down, return, unloading action and valve action

✔ it has 40 product libraries, each product library has 25 steps, large circular arc supports 99 steps.

✔ Ball screw/liner guide are high precision

✔ Upper tool clamping device is fast clamp

✔ Multi-V bottom die with different openings

✔ Aluminium alloy material platform ,attractive appearance,and decrease scratch of workpicec.

Frequently Asked Questions

QDo you have CE document and other documents for customs clearance?

Yes, we have CE, Provide you with a one-stop service. At first we will show you and and after shipment we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.

QIf we are interested in your machine, how do we choose?

Could you tell me your materials: cs or ss and their thickness? And the biggest bending width? Then we will confirm the machine model for you.

QHow about the warranty policy?

3 years quality guaranty. The machine with main parts(excluding the consumables) shall be changed free of charge (some parts will be maintained) when if any problem during the warranty period.

QDo you have after sales support?

Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.

QDo you have any other machine styles available?

Yes, please check our machine configurations. If you have any questions, you can contact us at any time, 24x7, we are always here.

QWhat features are provided by the controller on this system?

The system utilizes a TP10S Touch screen NC system that supports angle/depth programming, automatic arc programs, multi-axis expansion of Y1, Y2, R, and automated bending control for up to 25 steps.
