1 / 5

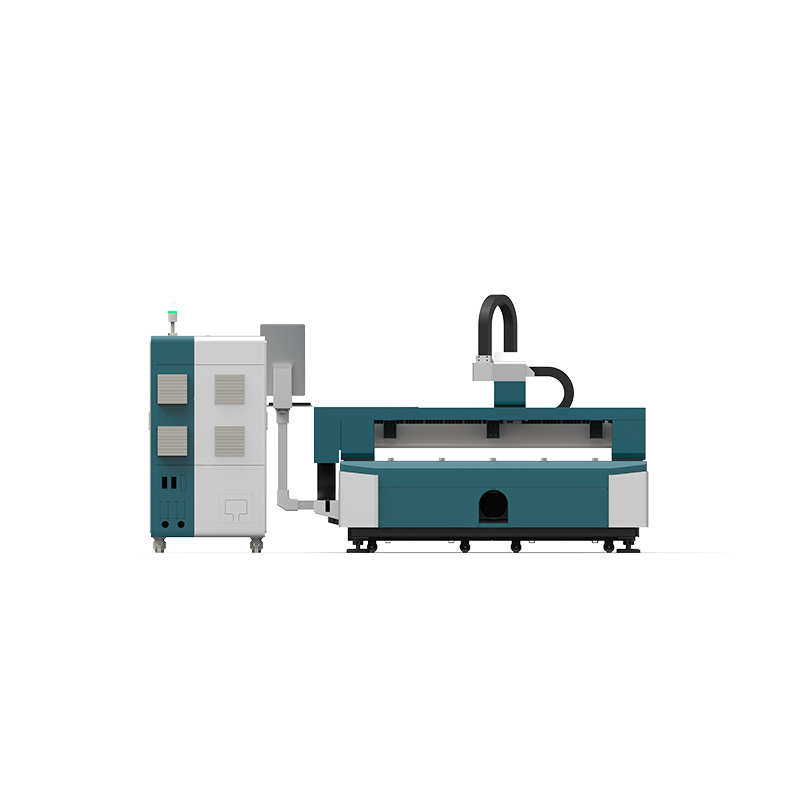

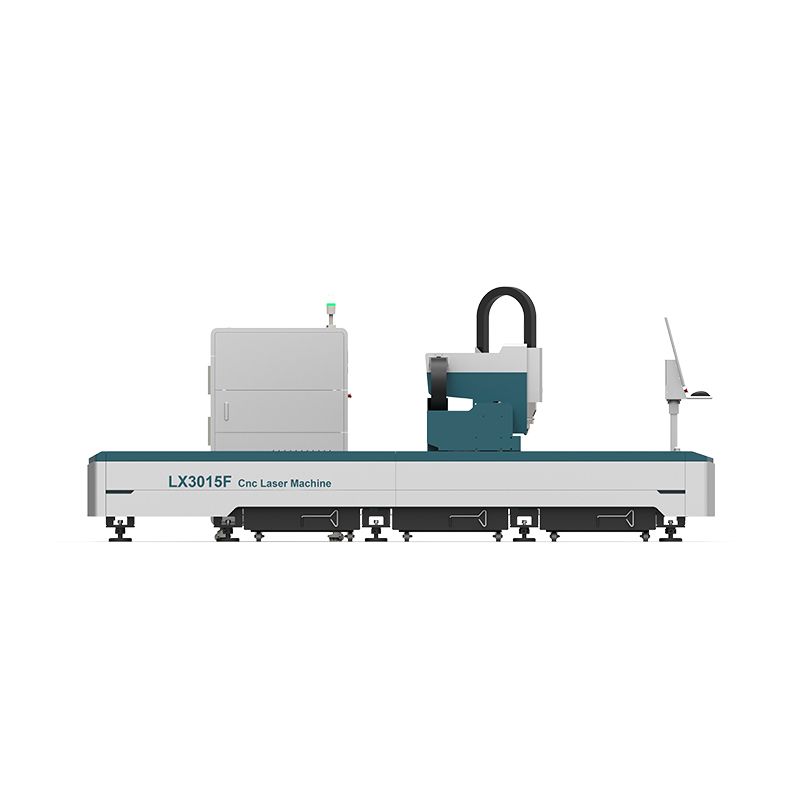

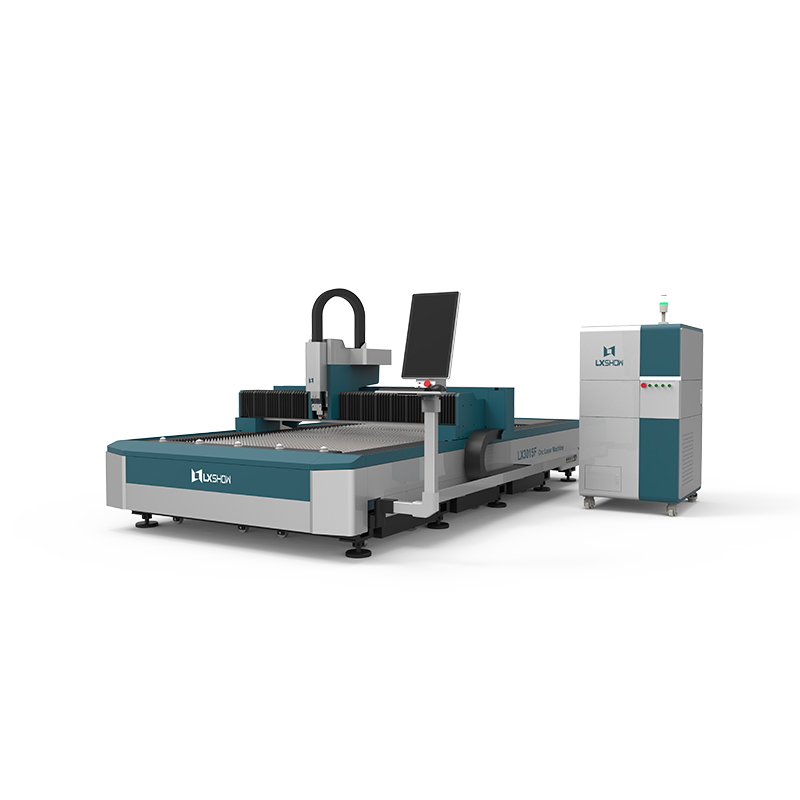

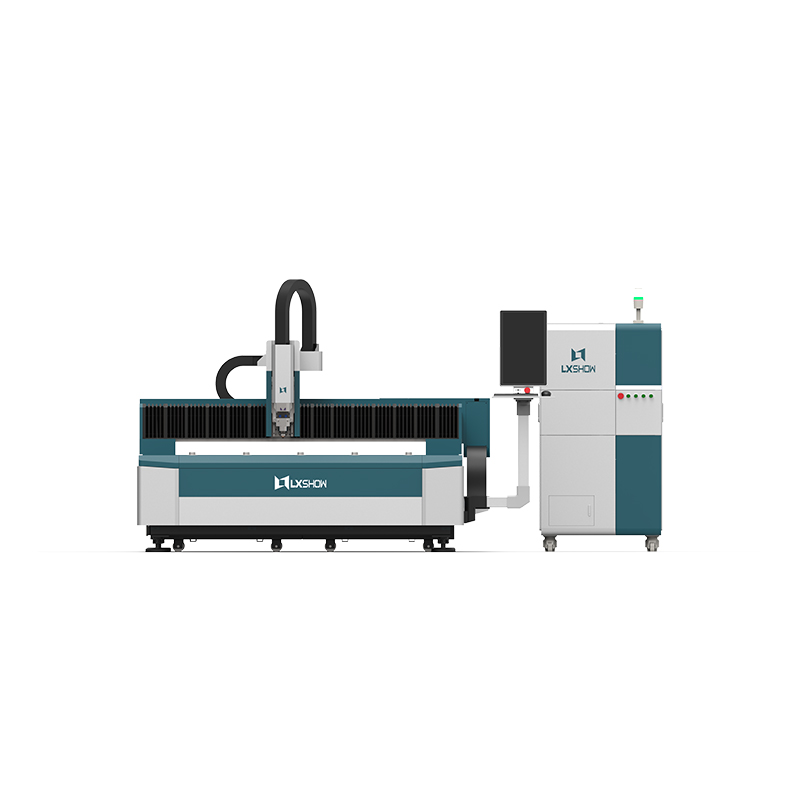

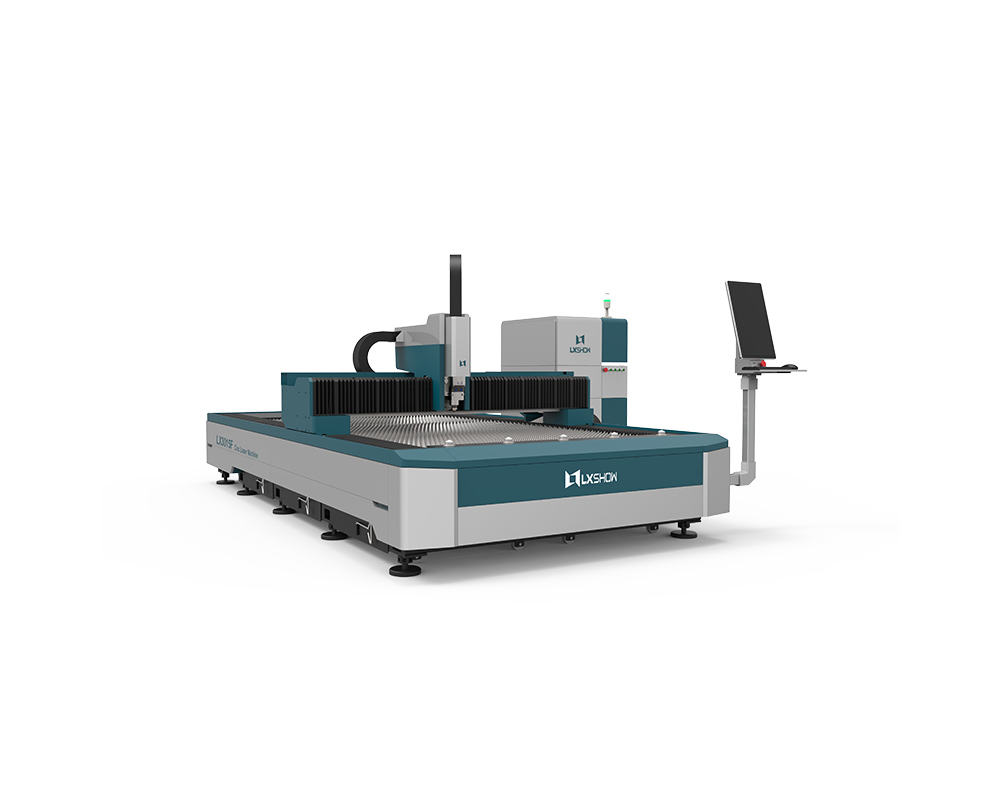

| Machine Model | LX3015F |
| Power of Generator | 1000W-30000W (optional) |
| Dimension | 4800*2600*1860mm |
| Working Area | 1500*3000mm |
| Repeated Positioning Accuracy | ±0.02mm |
| Max Running Speed | 120m/min |
| Max Acceleration | 1.5G |
| Specified Voltage And Frequency | 380V 50/60HZ |

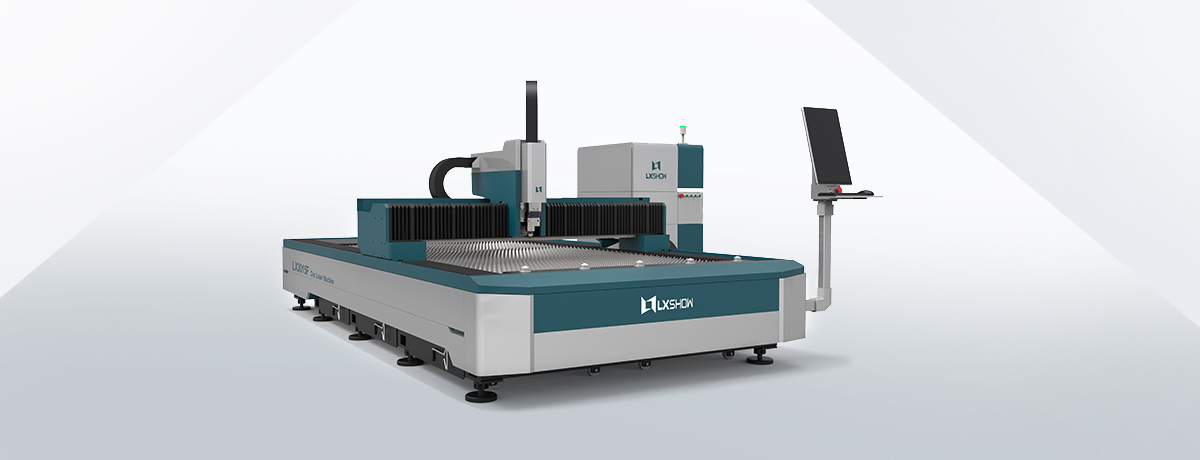

Speed & Acceleration Profile:
Max. no-load speed is up to 120m/min with a maximum acceleration of 1.2G. This represents a performance capacity 40% faster than the 2nd generation models, achieving acceleration from 0m/min to 100m/min in just 3.2 seconds.

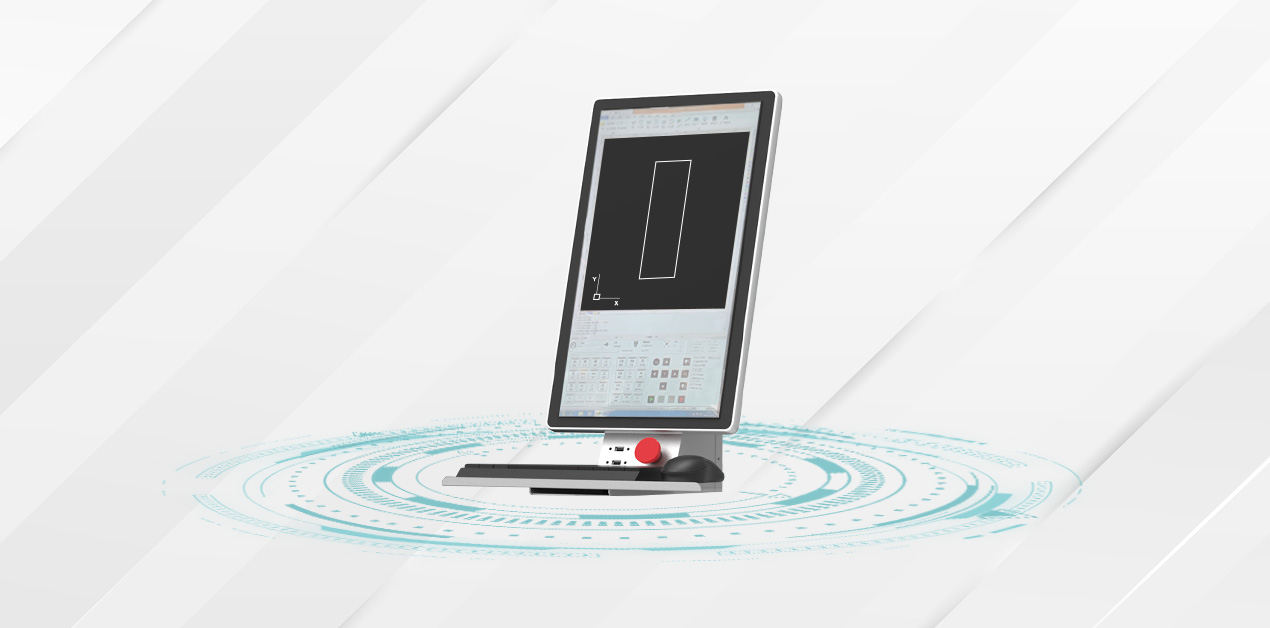

Designed for easy operation even by novice users, this system integrates over 20,000 process data profiles on its intuitive graphical programming interface. It supports multiple generic graphic files, including DXF, DWG, PLT, and NC code. The built-in nesting software optimizes stock layout and material utilization by up to 20% and 9.5% respectively, with no restriction on the quantity of spare parts processed.
Supported Languages: English, Spanish, Portuguese, Russian, German, French, Italian, Japanese, Korean, Dutch, Czech, Simplified Chinese, Traditional Chinese.

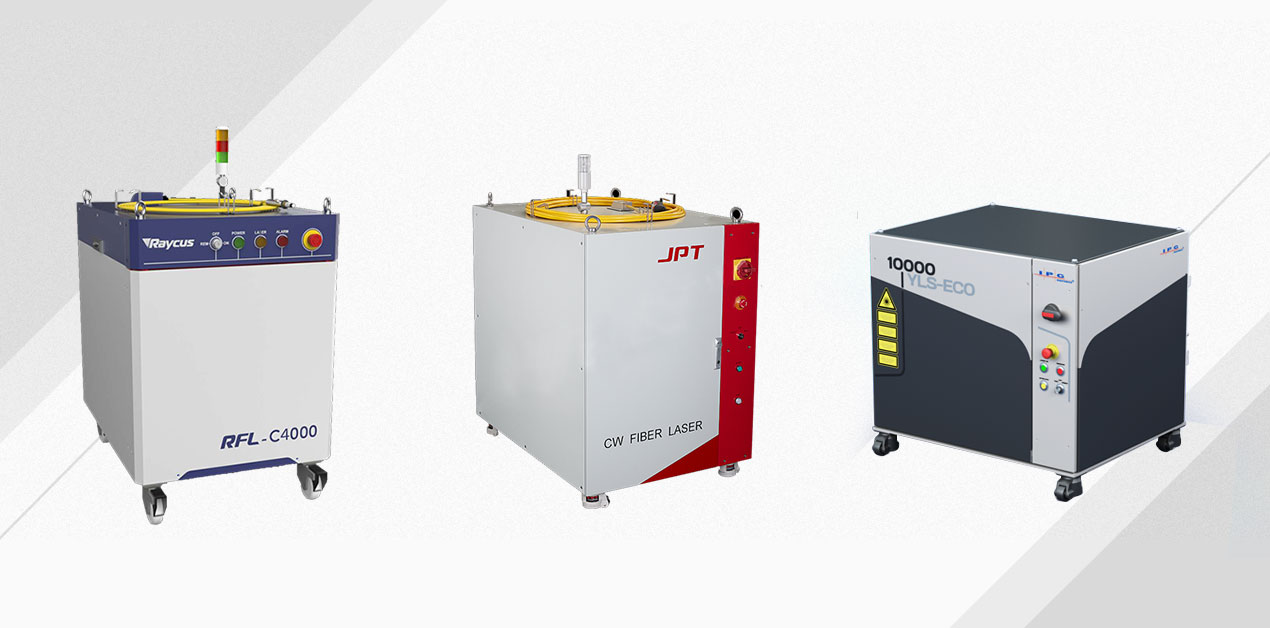

Long-life Generator Source:
The laser generator features a theoretical lifespan of 100,000 hours. Operating for 8 hours a day, the system can remain functional for approximately 33 years.
Compatible Generator Brands: JPT / Raycus / IPG / MAX / Nlight

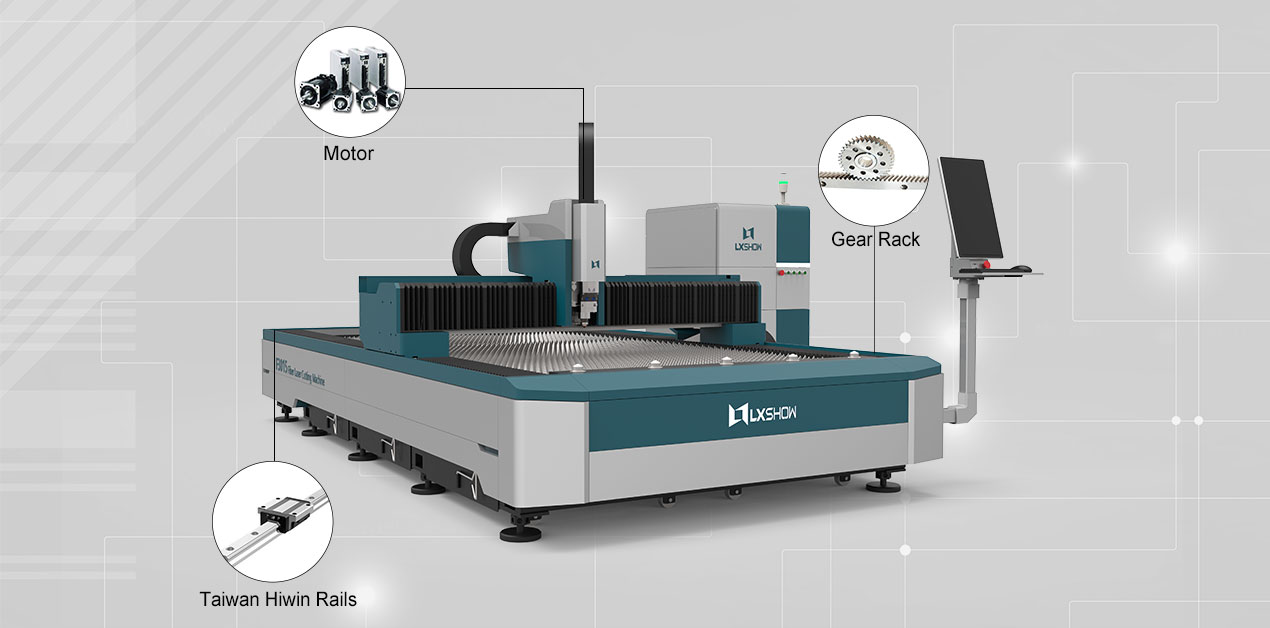

The fiber laser cutting machine is configured with premium German Atlanta racks, Japanese Yaskawa motors, and Taiwan Hiwin Rails. The positioning accuracy of the machine tool reaches up to 0.02mm with a cutting acceleration of 1.5G, ensuring a working lifespan exceeding 15 years.
Suitable for precision metal cutting across a wide range of materials, including: Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring Steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, and other metal sheets/plates.
Widely utilized in manufacturing sectors such as: Billboards, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Sheet Metal Processing, Metal Components & Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal Crafts, Elevator Panel Cutting, Auto Parts, Glasses Frames, Electronic Components, and Nameplates.
| Model Number | LX3015F |
| Lead Time | 10-15 working days |
| Payment Term | T/T; Alibaba trade assurance; West Union; PayPal; L/C |
| Machine Size | 4800*2600*1860mm (Approx.) |
| Machine Weight | 4000KG |
| Warranty | 3 years |
| Shipping | By sea / By land |

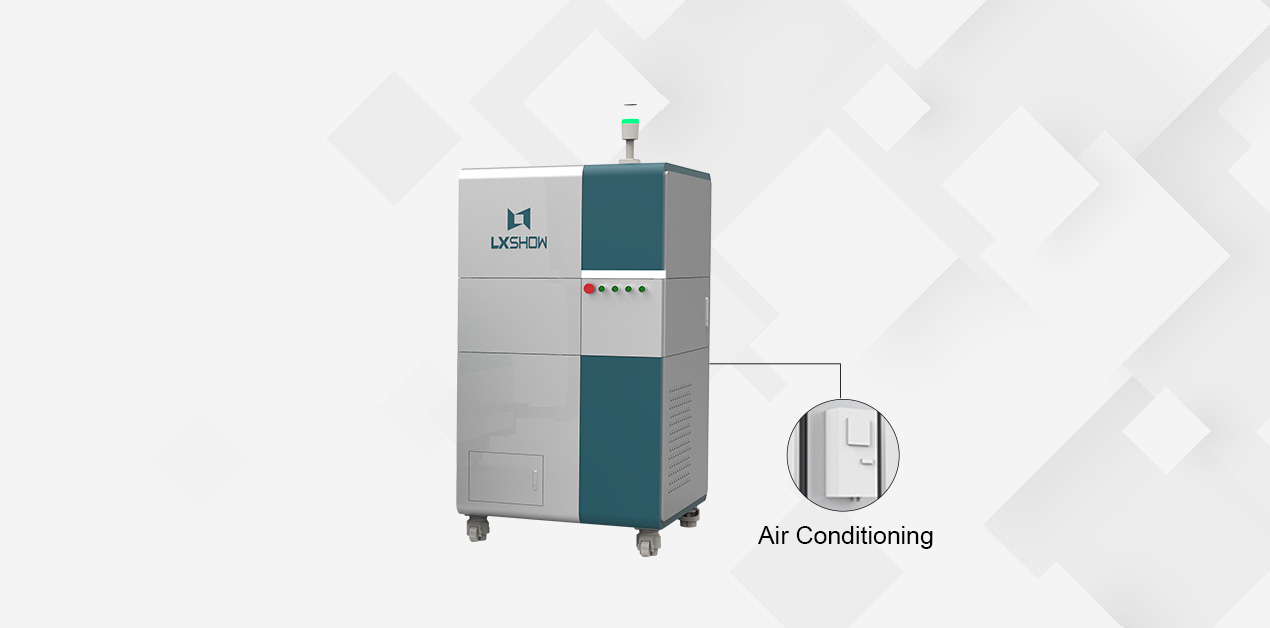

All electrical components and the laser source are housed in an independent control cabinet featuring a dust-proof construction to extend the operation lifespan of sensitive electronics.
The control cabinet is equipped with a dedicated air conditioning unit to maintain a constant internal temperature. This prevents thermal damage to key components during high-temperature summer operations.
Standard consumable components and average run-time thresholds include:
*Consumable spare part kits are available as options upon machine purchase.

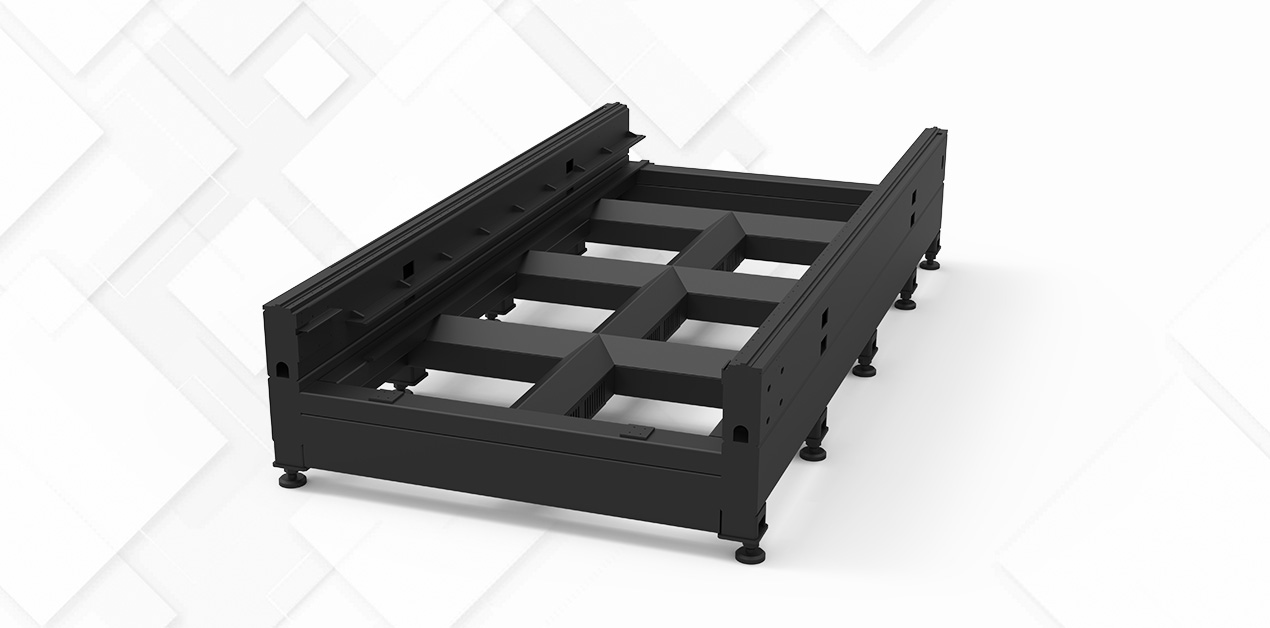

Heavy-Duty Welded Steel Bed:
Welded using heavy-duty steel plates to achieve stability. The structure undergoes comprehensive stress relief annealing to ensure mechanical strength and long-term resistance to deformation. The structural weight of the bed reduces cutting vibrations, guaranteeing consistent, high-accuracy metal cutting.
Inside the bed frame, strategically placed reinforcing ribs enhance structural and tensile integrity to prevent frame distortion. Under high-speed cutting configurations: a 25mm carbon steel sheet pre-punch time is reduced to less than 3 seconds at 3000W output, boosting processing efficiency.
It is designed for cutting various metals, including Stainless Steel, Mild Steel, Carbon Steel, Alloy Steel, Spring Steel, Iron, Galvanized Sheets, Aluminum, Copper, Brass, Bronze, Gold, Silver, and Titanium plates.
The laser generator has a theoretical service life of 100,000 hours. Operating the system for 8 hours a day translates to approximately 33 years of usable life.

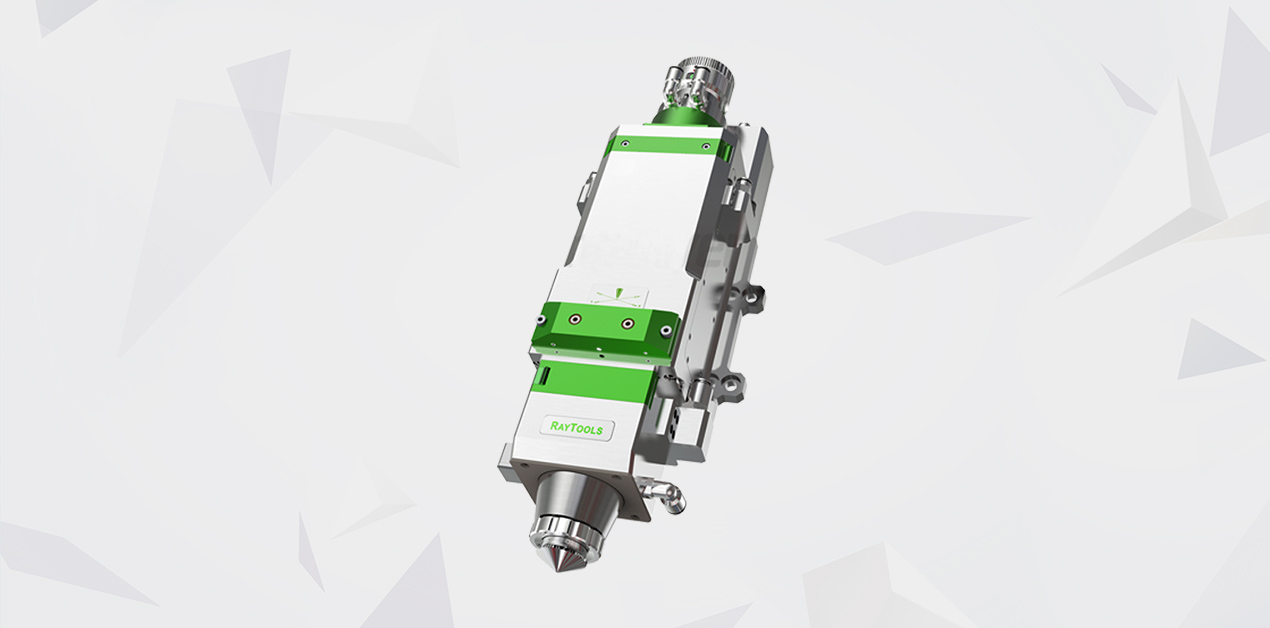

The autofocus mechanism adjusts the focal point dynamically at speeds of 10m/min with a repeat accuracy of 50 microns. This reduces manual calibration requirements and ensures clean cuts across variable material thicknesses.
The bed is welded using heavy steel plates and undergoes stress-relief annealing. This robust build dampens vibrations during high-speed, 1.5G acceleration runs, which maintains positioning accuracy of ±0.02mm and prevents frame deformation over time.
The independent control cabinet features a dust-proof seal and a built-in air conditioner. It regulates internal temperatures automatically, preventing overheating and dust accumulation on critical electrical boards and the laser generator.
Consumables include the cutting nozzle and protective lens (both lasting ≥500 hours), focusing and collimation lenses (both lasting ≥5,000 hours), and the ceramic body (lasting ≥10,000 hours).
