| Machine Model | LX12025F | LX12020F | LX16030F | LX20030F | LX24030F |
|---|---|---|---|---|---|
| Working Area | 12100*2550 | 12100*2050 | 16500*3200 | 20500*3200 | 24500*3200 |
| Power of Generator | 1kw-40kw | ||||
| X/Y-axis Positioning Accuracy | 0.02mm/m | ||||
| X/Y-axis Repositioning Accuracy | 0.01mm/m | ||||
| X/Y-axis Max. Linkage Speed | 80m/min | ||||

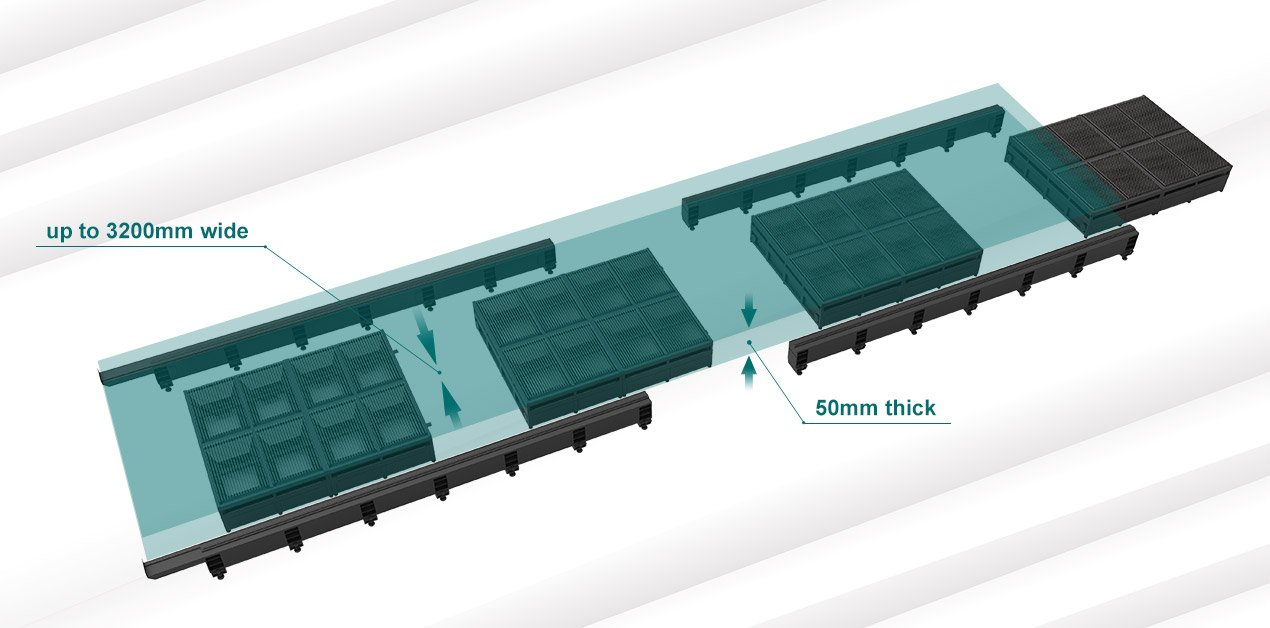

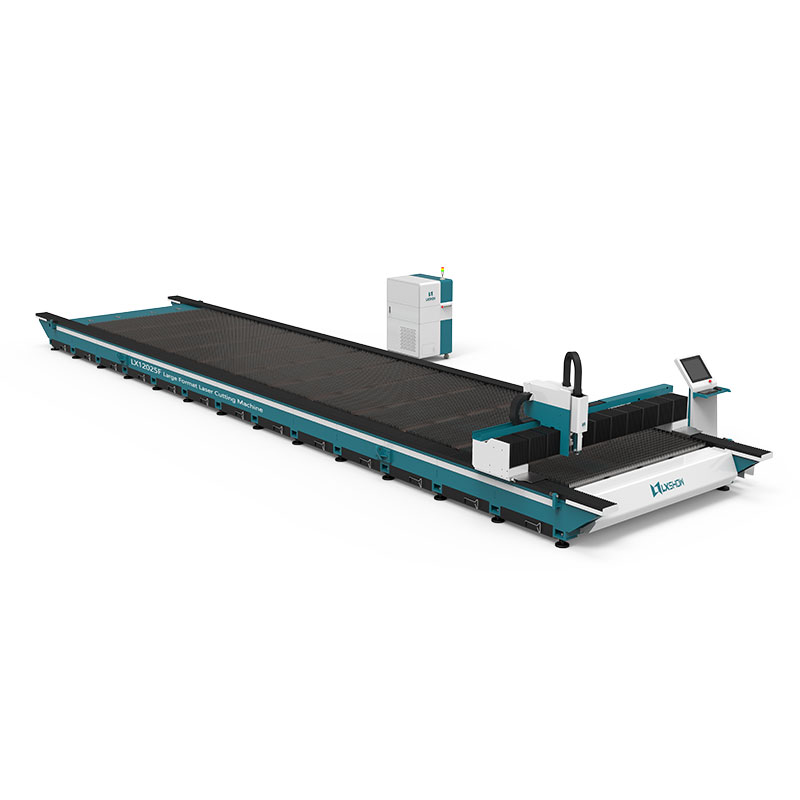

The separate design of the bed and worktable ensures the high dynamic performance of the machine tool and the service life of the machine tool. It can adapt to workpieces up to 3200mm wide and 50mm thick. The system provides the flexibility to deal with ultra-large-format thick plates, segmented splicing bed, and the format can be customized on demand.

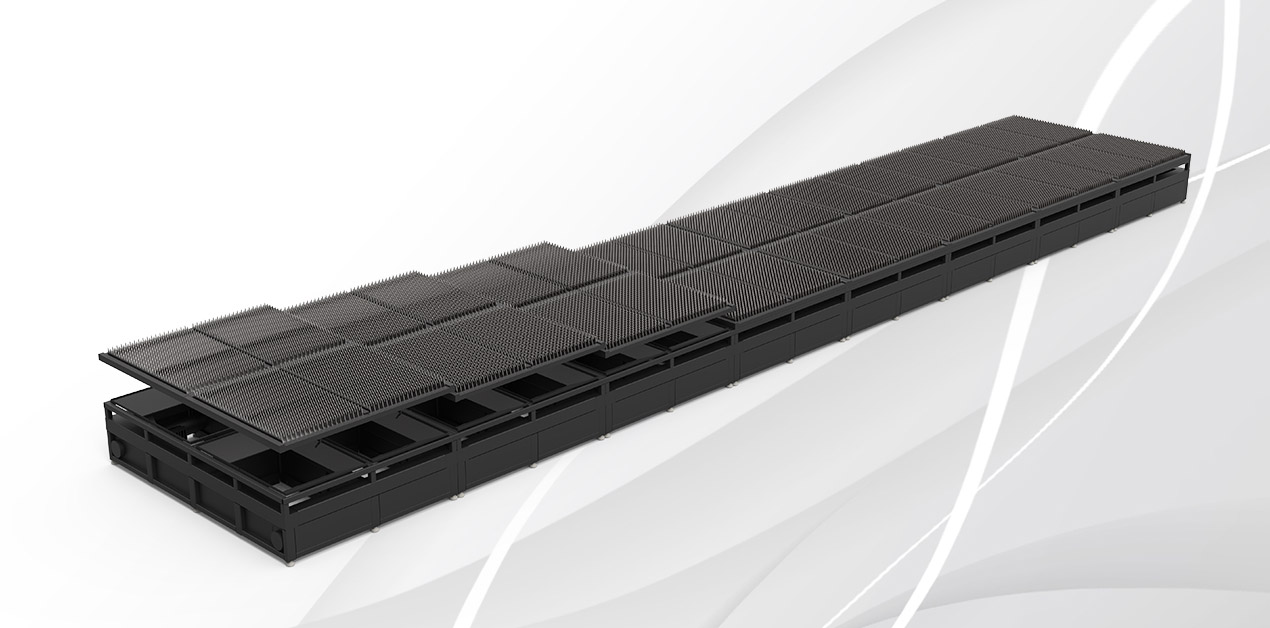

For reducing damage to the work bed during laser working, a newly innovated work bed design has been developed by adding four slings. The life span of the fiber laser cutting machine work bed will be doubled.

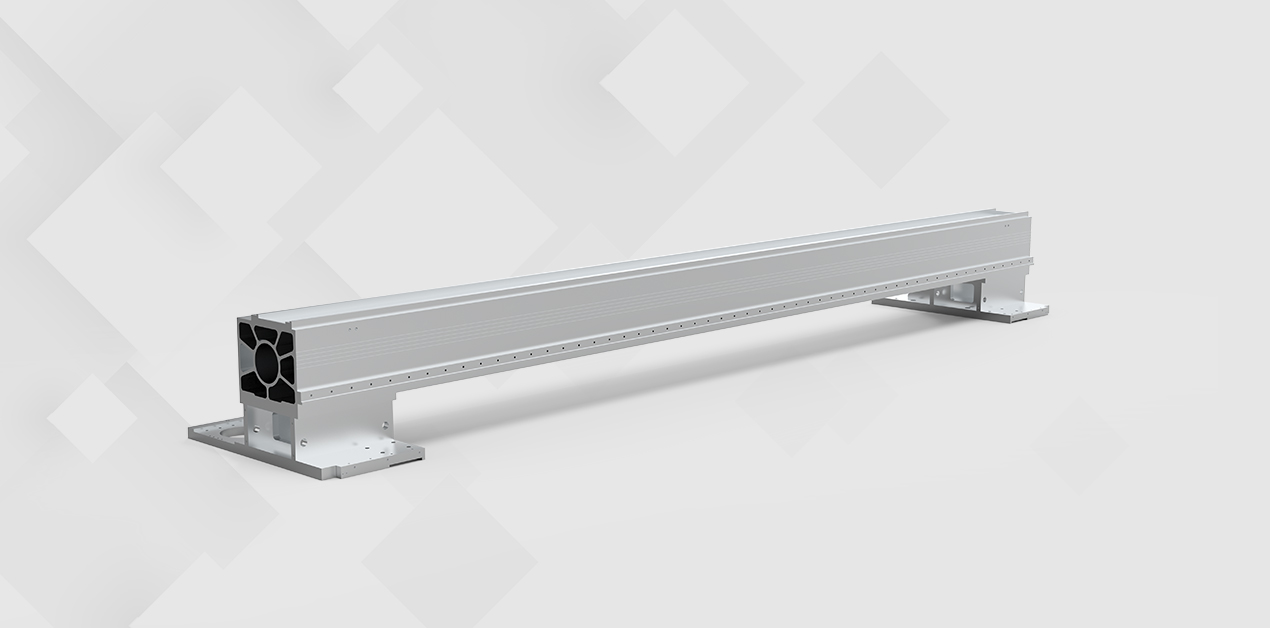

It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding. After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries. Aviation aluminum has many advantages, such as good toughness, light weight, corrosion resistance, anti-oxidation, low density, and greatly increases the processing speed.

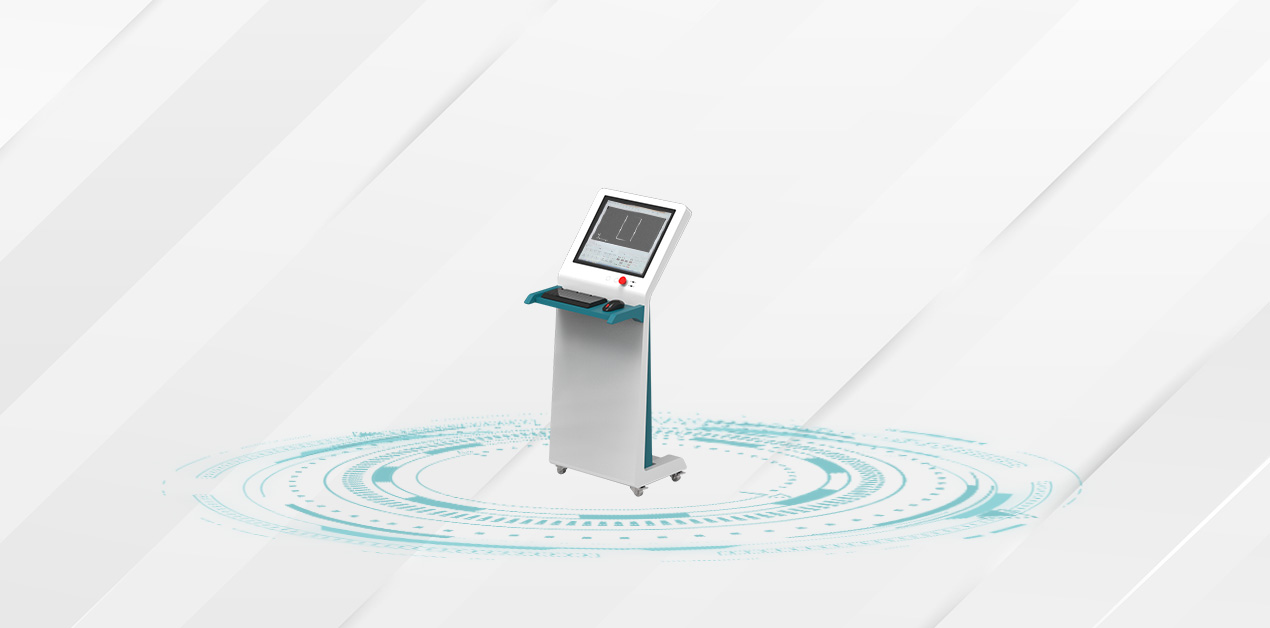

Easy to operate even by green hands. Equipped with 20,000 process data options on its graphical programming interface. Compatible with multiple graphic files, including DXF, DWG, PLT, and NC code. Improve stock layout and material utilization by 20% and 9.5% with its built-in nesting software, with no limit on the quantity of spare parts. Supported languages: English, Spanish, Portuguese, Russian, German, French, Italian, Japanese, Korean, Dutch, Czech, Simplified Chinese, Traditional Chinese.
The Fiber Laser Metal Cutting Machine is suitable for metal cutting like Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring Steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, etc.
Fiber Laser Cutting Machines are widely used in manufacturing Billboards, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchenware, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal crafts, metal art ware, elevator panel cutting, hardware, auto parts, Glasses Frame, Electronic Parts, Nameplates, etc.

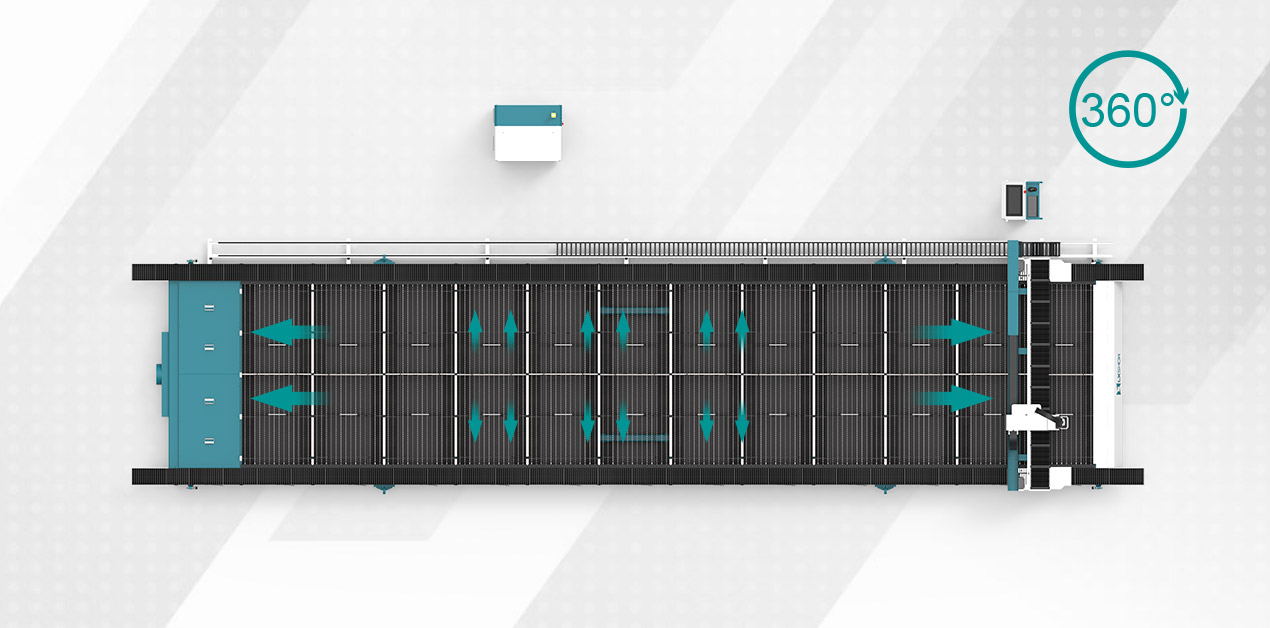

Adopt the latest cutting-edge tobacco control technology. Each section of the bed has a smoke exhaust device. Powerful negative pressure 360° adsorption. Axial fan wind direction surrounds blowing smoke downward. Full 360° strong adsorption and consistent smoke exhaust. Effectively purify the smoke and dust on the top of the enclosed cutting platform. Improve purification efficiency and reject lens contamination. Net follow-up, wisdom grows by quality. The smoke exhaust device automatically senses the laser cutting position. Turn on precise smoke exhaust, follow-up smart smoking. Create a concealed cavity, fully enclosed smoke control and clean smoke.

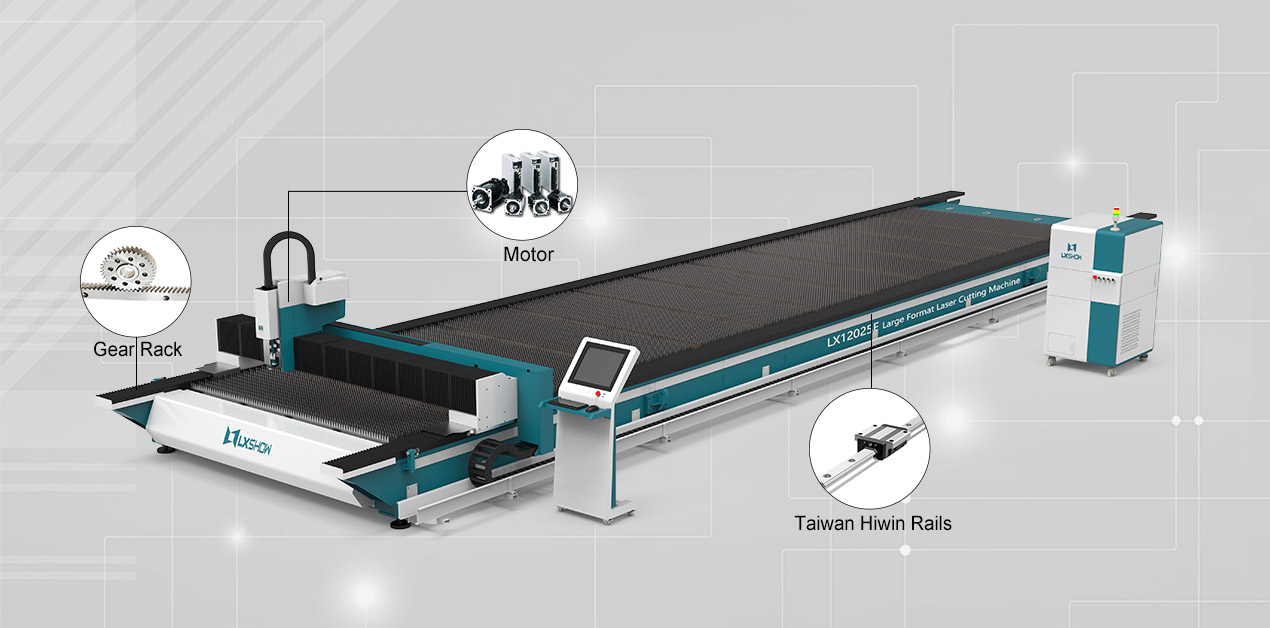

The fiber laser cutting machine is equipped with German Atlanta rack, Japanese Yaskawa motor and Taiwan Hiwin Rails. The positioning accuracy of the machine tool can be 0.02mm and the cutting acceleration is 1.5G. The working life is up to more than 15 years.
