Key Fields of Application:

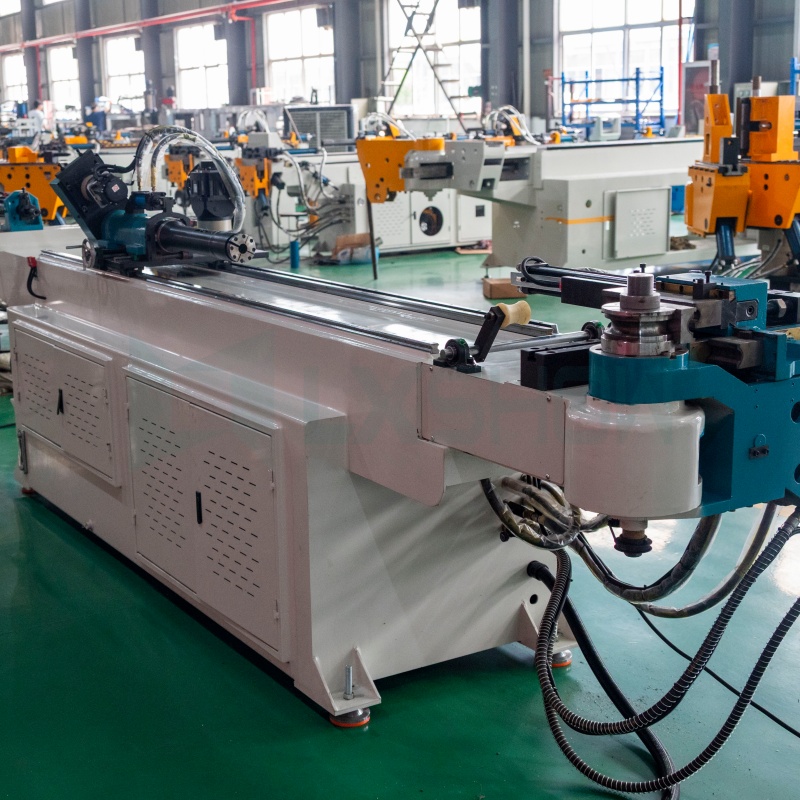

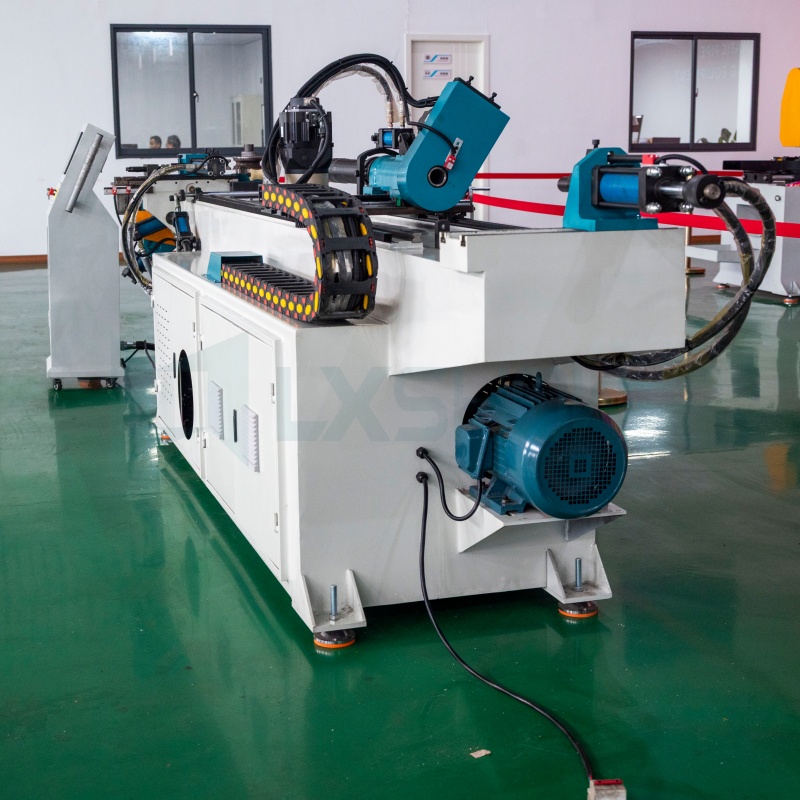

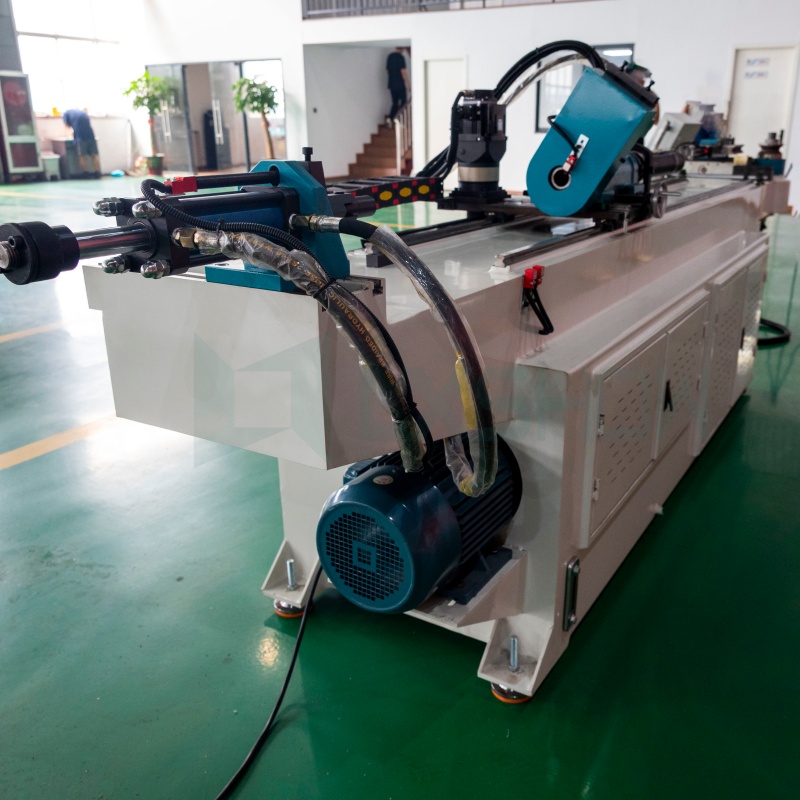

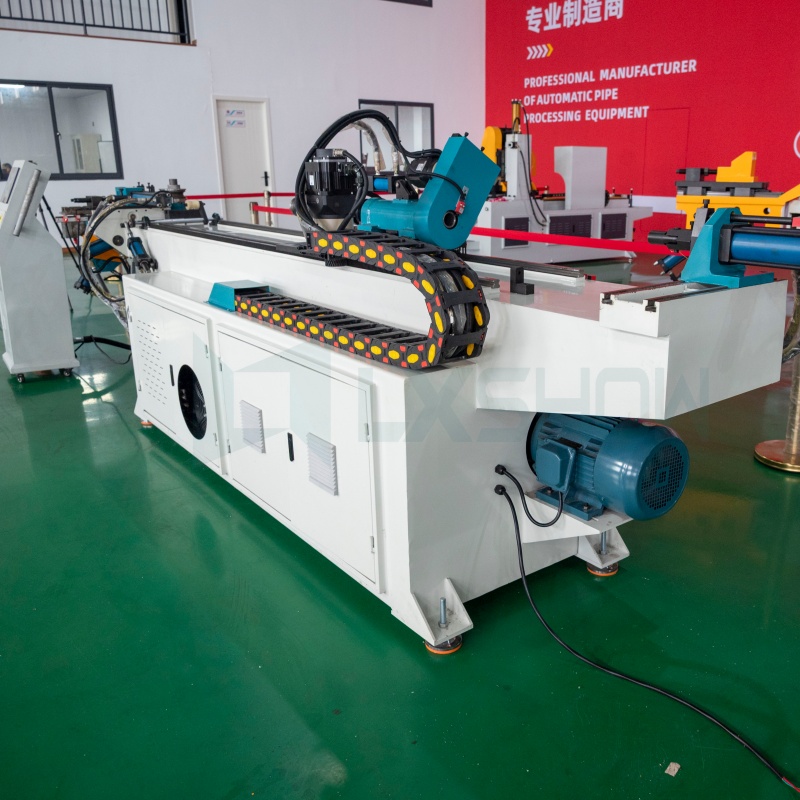

The hydraulic pipe bender features a reasonable structure, easy operation, safe usage, fast loading and unloading, and versatile multi-purpose advantages.
| Specifications & Options | Value Range / Details |
|---|---|
| Bending radius range | 1.5-250mm |
| Bending angle range | 0-190° |
| Maximum feeding distance approx. | 2200 |
| Pipe bending method | Servo pipe bending |
| Bending accuracy | ±0.1° |
| Feeding servo motor power | 1000W |
| Shipping accuracy | ±0.1mm |
| Angle servo motor power | 7000W |
| Oil pump motor power | 5.5kw |
| Hydraulic system pressure | ≤12Mpa |
| Machine gross weight approx. | 1300KG |
| Machine dimensions approx. | 3900*900*1200mm |
Utilizes the latest touch screen with a bilingual (Chinese/English) display for all machine functions, information, and programming.
Interactive graphical UI: simply touch the relevant graphic button on the view sketch to operate specified machine functions.
Multiple operation modes available to support both automatic and manual configurations.
Built-in self-detection, diagnostic system, and report function to display error messages, maintenance logs, and troubleshooting methods.
User-friendly touch screen setup simplifies programming and allows quick mold adjustments to minimize setup time.
Adjustable working speeds per axis optimize workflow, combined with a built-in counter to track output volume.
Advanced bending capability produces perfect ellipses for large pipe diameters or tight bending radii, with programmable spring-back compensation.
Data security features: internal battery storage keeps program data saved for 6 months after power-off, secured via passwords and keys.
Equipped with servo-controlled feeding length and rotation mechanisms to execute complex, multi-angle 3D pipe bending.
Multi-layer safety protection with automatic sensor detection and error indicators to prevent mechanical or mold damage.
Perfectly designed head with a strong structure offers maximum clearance to minimize structural interference during operation.
A range of auxiliary options is available to customize configurations and enhance overall output quality.
Used to secure and hold the pipe in place, ensuring no movement or rotation occurs during the bending process.

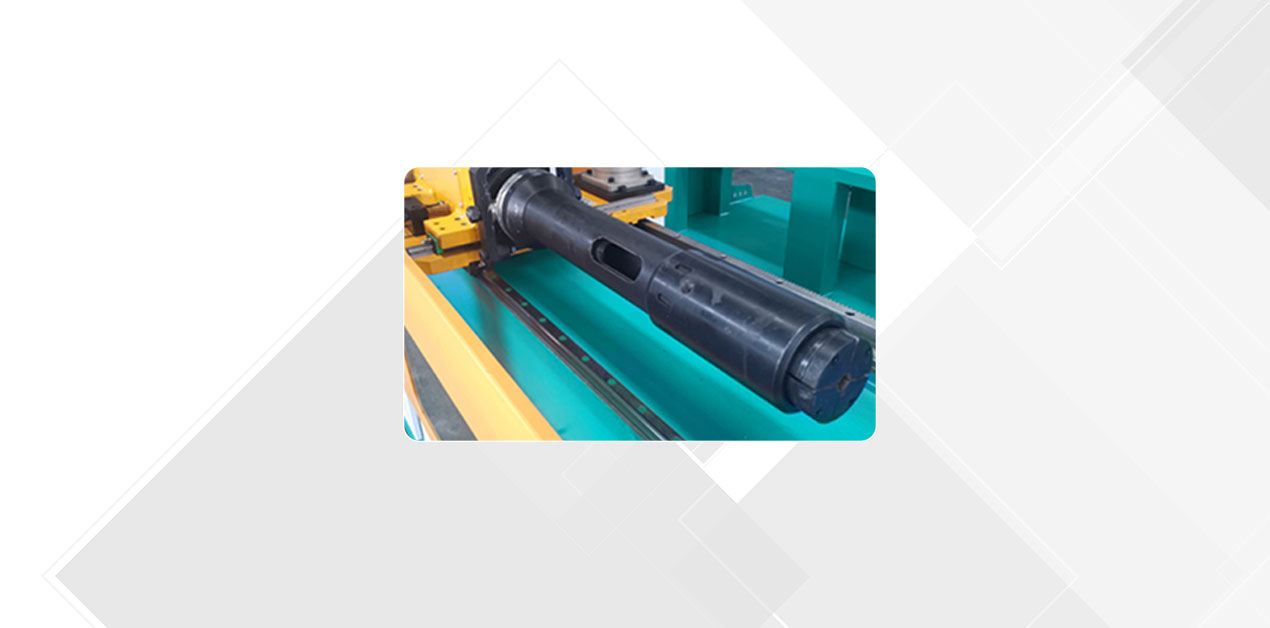

Transfers the pipe to the bending mechanism. It clamps and pushes the pipe along a set path for continuous automated bending.

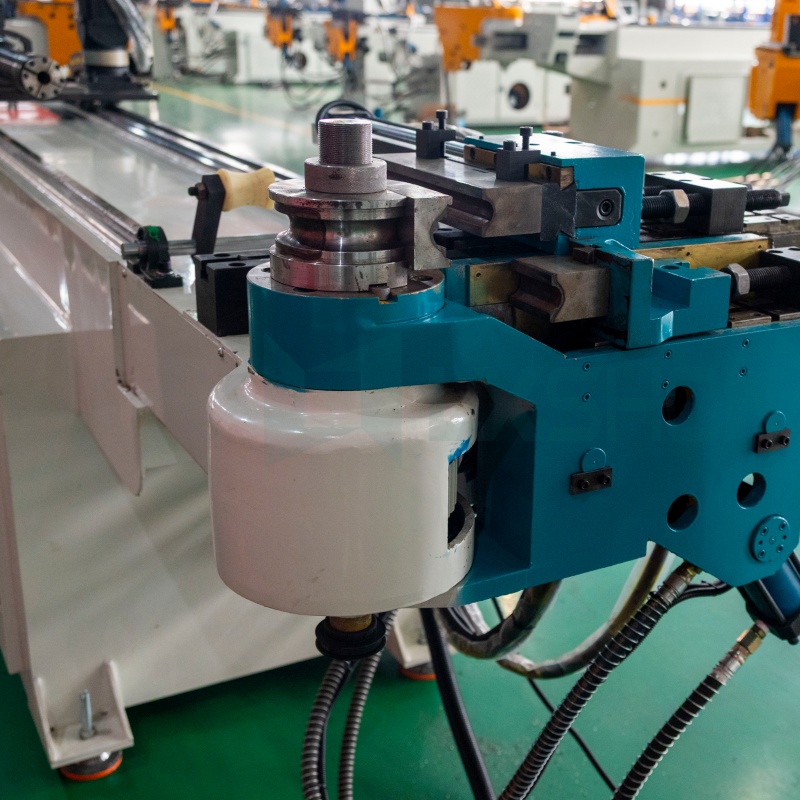

Specially designed tooling that defines the bending shape, radius, and angle by maintaining precise contact surface control.
The primary actuator within the hydraulic system. Driven by high-pressure oil from the pump to generate direct bending force.
The power core of the hydraulic system, converting mechanical energy to fluid power for consistent, precise bending motion.
The electronic hub containing logic controls and safety relays that manage and protect the machine's electrical systems.
