Application Industries

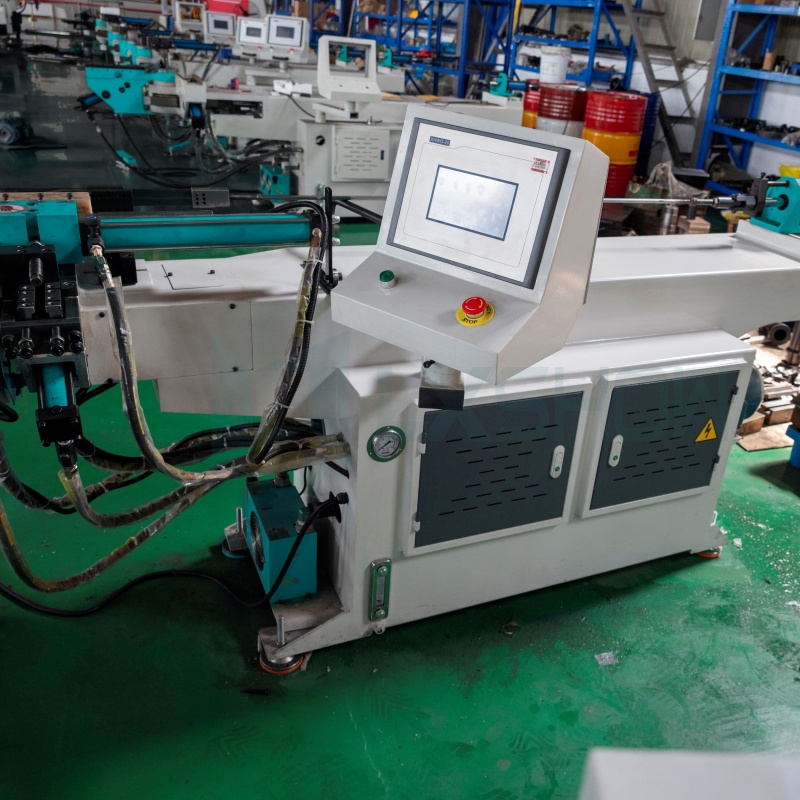

Hydraulic pipe bender has a reasonable structure, easy to operate, safe to use, fast loading and unloading and multi-purpose advantages. It is widely used in the following construction scenarios:

Parameters

Advantages

• Using the latest Taiwan-based touch screen, bilingual (Chinese/English) display of all machine functions, information and programming.
• The display of the machine on the view sketch, just touch the relevant graphic square button to operate the specified machine functions.
• Multiple modes for automatic or manual operation.
• Built-in self-detection and inspection system and report function, displaying the abnormal or error message, and indicating the disposal method, but also record the recent flood message, in order to facilitate the maintenance of reference.
• User-friendly touch screen, so that the operation of simple and easy to set up the programme, can be quickly change the mould device, in order to minimize the time to use the machine setup.
• Can be set to each axis of the working speed in order to save time to increase the output. There is a counting function to calculate the number of work.
• Bending function to make large pipe diameter or small bending radius can also have a perfect ellipse, can also set parameters to compensate for bending bounce value.
• By the programme planning built-in battery can be kept after cutting off the power supply storage for 6 months, data and programmes are also protected by passwords and keys.
• Specially equipped with servo motor fixed length, servo motor control automatic corner, can bend multi-angle three-dimensional pipe.
• Multi-layer protection devices to ensure operator safety, can be manually operated, or semi-automatic operation. Automatic sensor detection and error indication to avoid machine or mould damage due to man-made issues.
• Perfectly designed and refined head with strong structure, providing the maximum bending space to reduce any interference factors occur.
• A variety of other special equipment for customers to choose from, so that the product is more perfect.

Main Parts

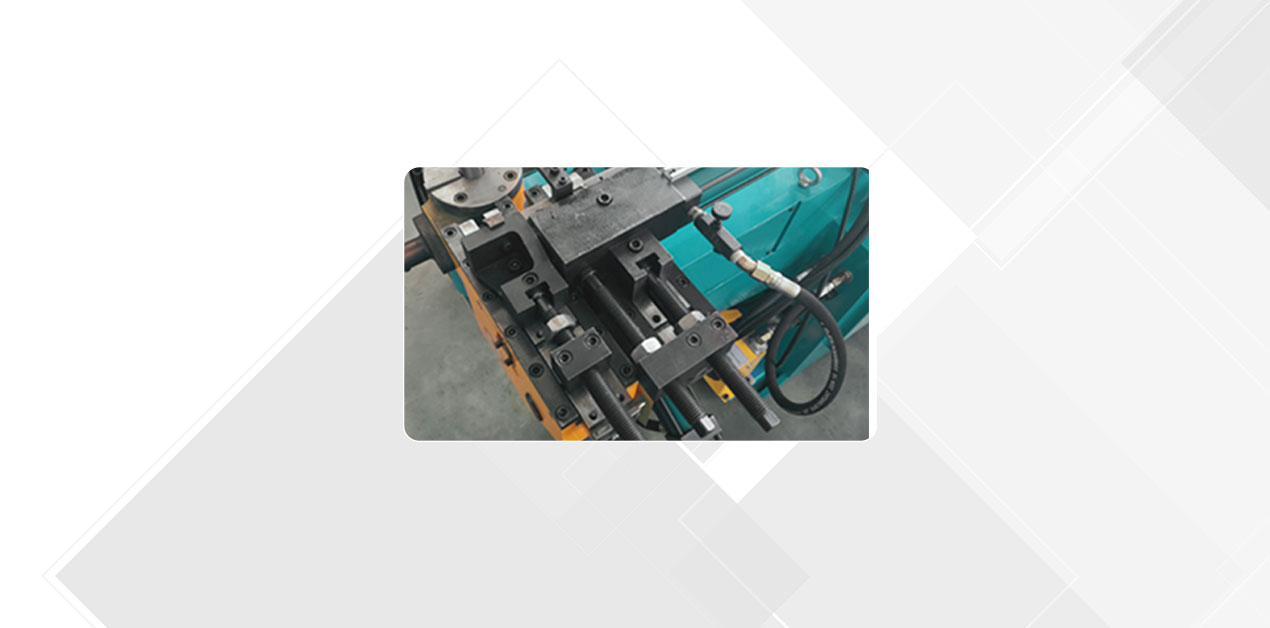

Clamping Mechanism

The clamping mechanism of the pipe bending machine is a key component used to fix the pipe and ensure that the pipe will not move or rotate during the bending process.

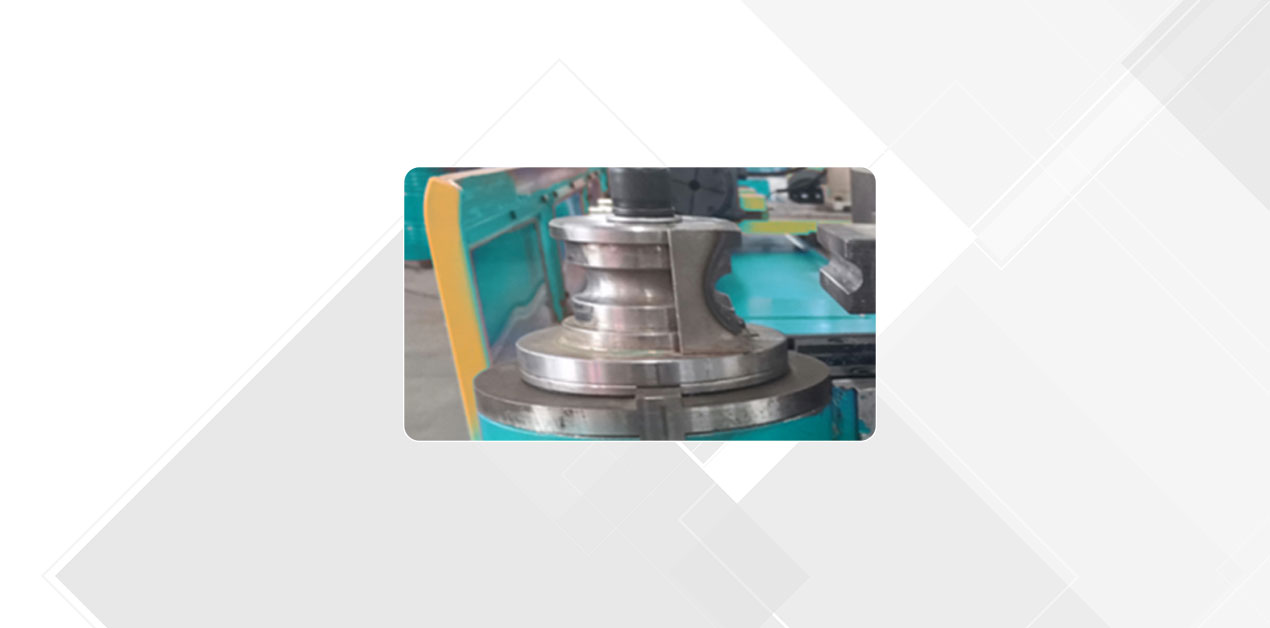

Mould

The mold of the pipe bending machine is a special tool used to define the bending shape and size of the pipe. It controls the bending radius and angle by designing the contact surface with the pipe to ensure that the bent pipe meets the predetermined specifications.

Oil Cylinder

The oil cylinder of the pipe bending machine is the key actuator in the hydraulic system. It is driven by the high-pressure oil output by the electric oil pump to generate thrust thereby achieving the bending of the pipe.

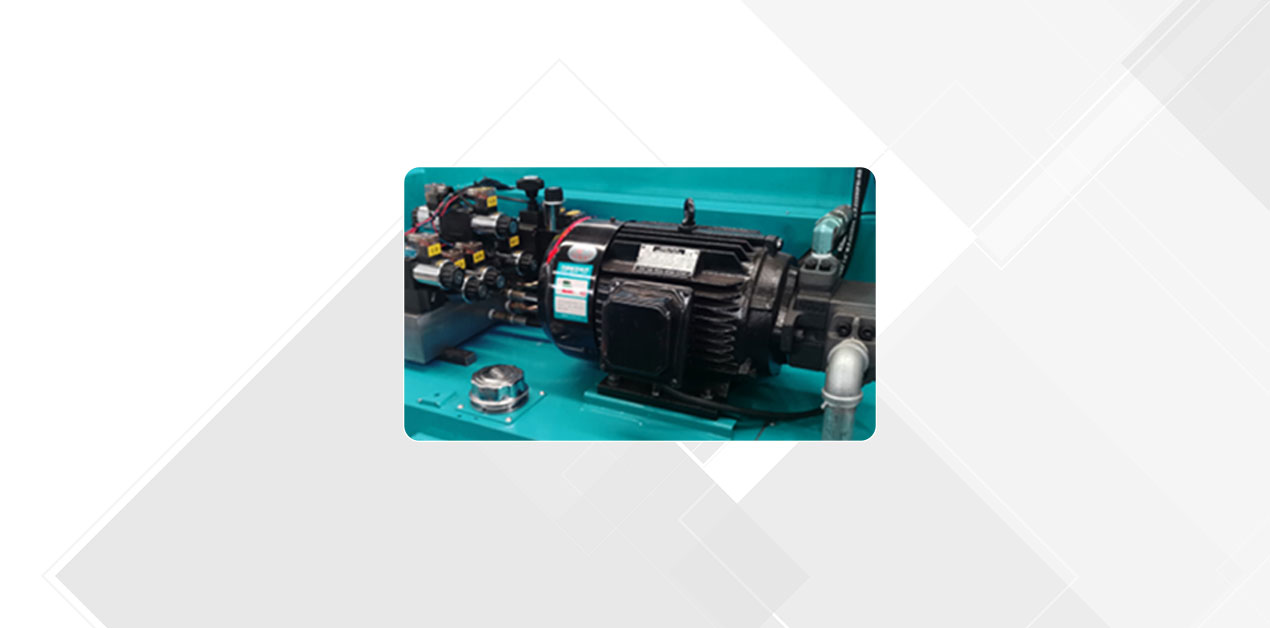

Oil Pump Motor

The oil pump motor of the pipe bending machine is the core component that provides power to the hydraulic system. It is responsible for driving the oil pump and converting mechanical energy into hydraulic energy to achieve precise bending of the pipe.

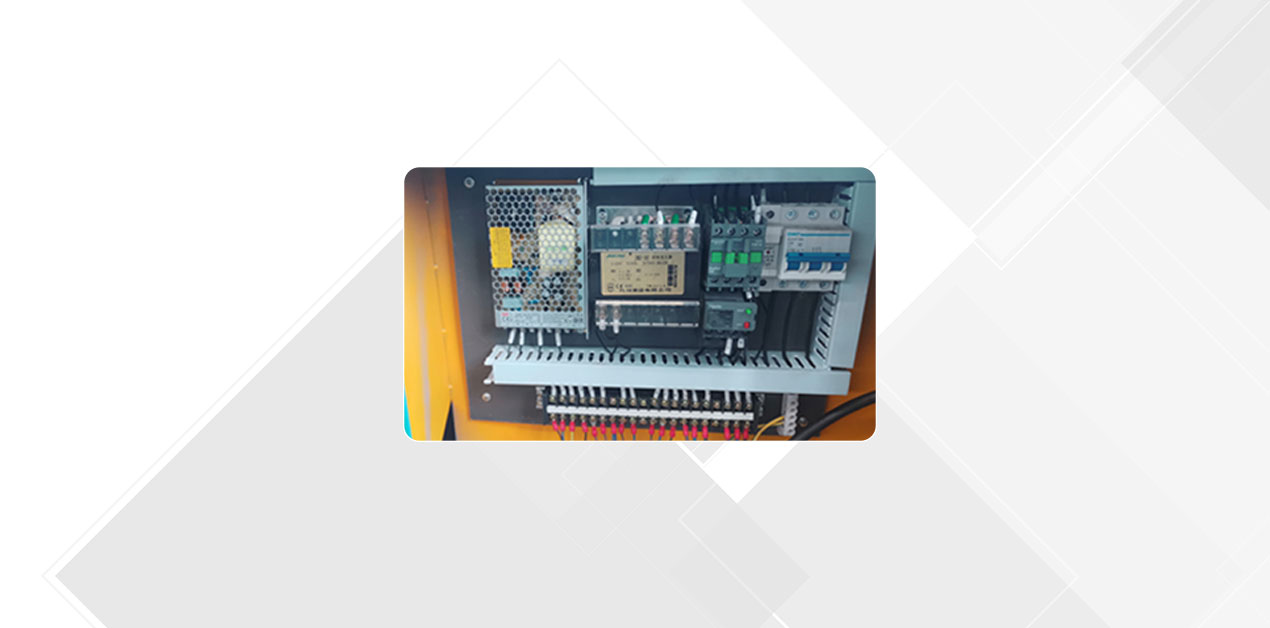

Power Distribution Cabinet

The power distribution cabinet of the pipe bending machine is the core component used to control and manage the electrical system of the pipe bending machine. It contains various electrical components and protection devices to ensure the safe and stable operation of the machine.

Samples
