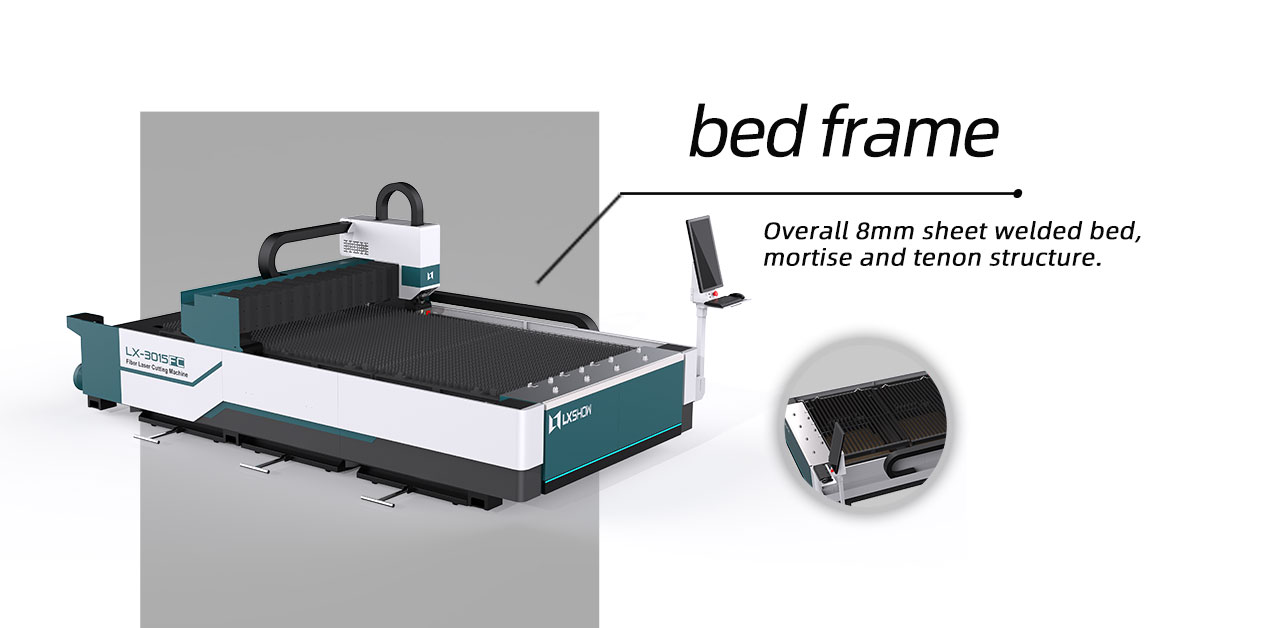

- The machine bed is mainly of the mortise and tenon structure for enhanced rigidity, stability and durability. The mortise and tenon joint features the advantages of easy assembly and reliable durability.
- The machine bed is welded by the 8mm thick metal plate for greater laser cutting stability, making it tougher and stronger than the 6mm tube welded bed.
Machine Description

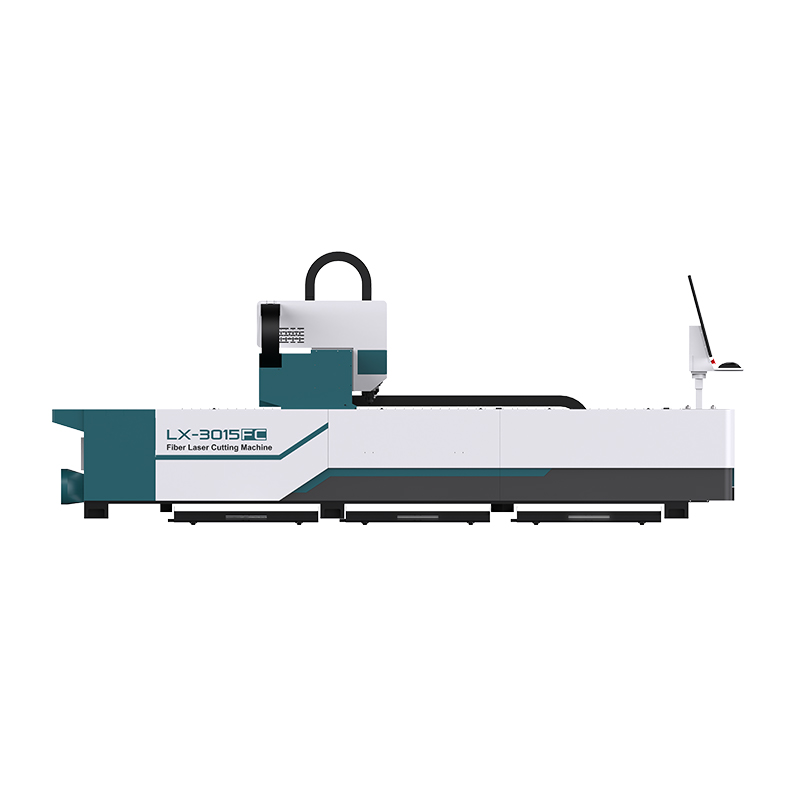

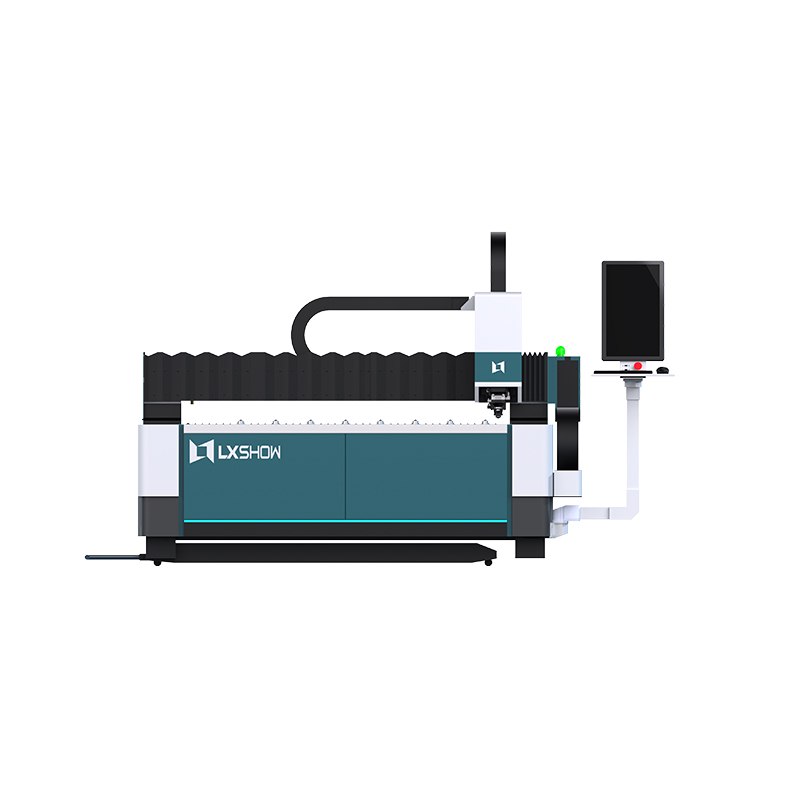

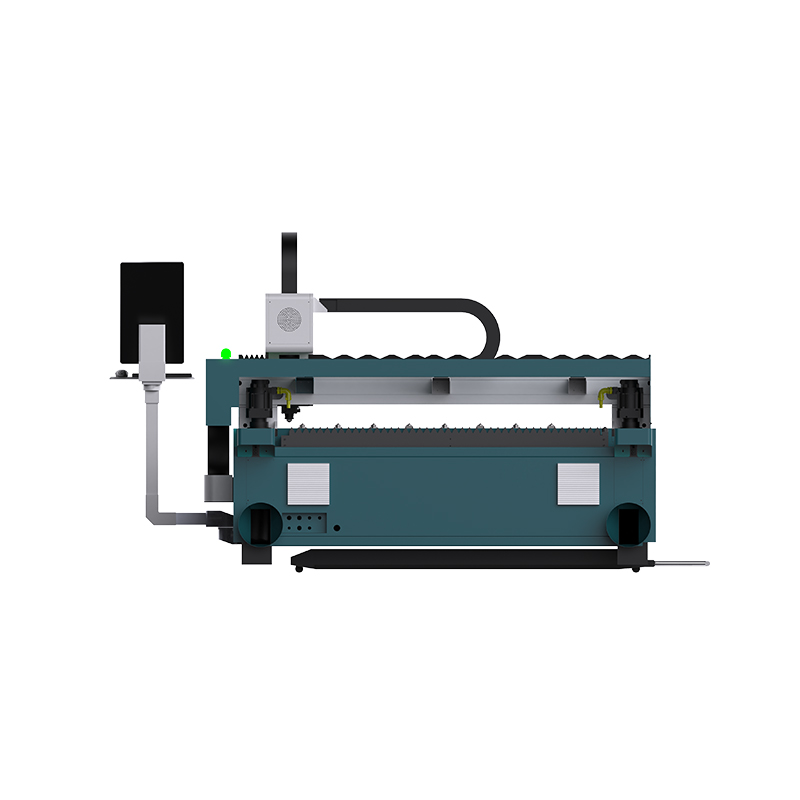

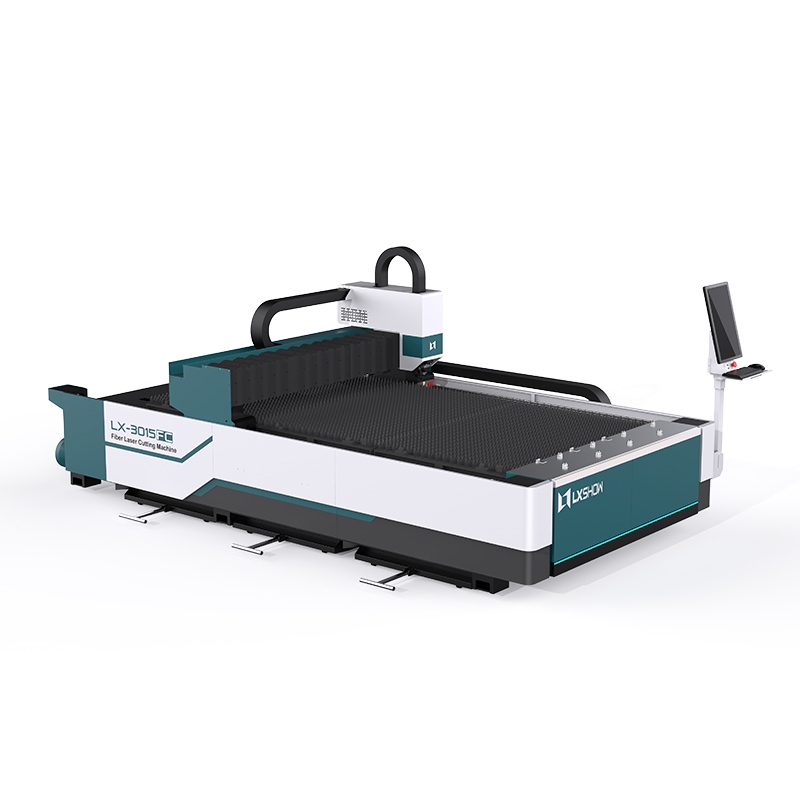

Compared with other models of laser cutting sheet metal machines, the LX3015FC affordable laser cutting machine comes with new features, including a revised machine bed, dust removal system, and ventilation system. It comes equipped with standard laser power ranging from 1KW to 12KW. We offer optional configurations for the LX3015FC to fit your needs, including zone dust removal, anti-burn modules, and up to 12KW laser power. Built with new standards, this new model delivers greater stability, reliability, and efficiency.
Standard Parameter
| Model |
LX3015FC |
| Working Area |
1500*3000mm |
| Laser Power |
1.5KW (Optional Power: 1-12kw) |
| Laser Generator |
Raycus/MAX/JPT/IPG/Nlight |
| Laser Wave Length |
1064nm |
| Working Table |
Sawtooth |
| Maximum Idle Running Speed |
120m/min |
| Maximum acceleration |
1.5G |
| Position Accuracy |
±0.02mm/m |
| Repeat Positional Accuracy |
±0.01mm |
| Cutting Thickness |
≤20mm Carbon steel; ≤10mm Stainless steel |
| Control System |
Weihong |
| Position Type |
red dot |
| Power Consumption |
≤21 KW |
| Working Voltage |
380V / 50Hz |
| Auxiliary Gas |
oxygen, nitrogen, air |
| Fiber laser cutting head |
Raytools BM110 |
| Cooling System |
S&A/Tongfei/Hanli industrial water chiller |
Laser Cutting Materials
Stainless steel
Carbon steel
Alloy steel
Aluminum
Brass
Industries and Sectors
Aerospace
Aviation
Sheet metal fabrication
Kitchenware manufacturing
Advertisement
Fitness equipment
Our Service & Customer Relations
System Configuration & Performance

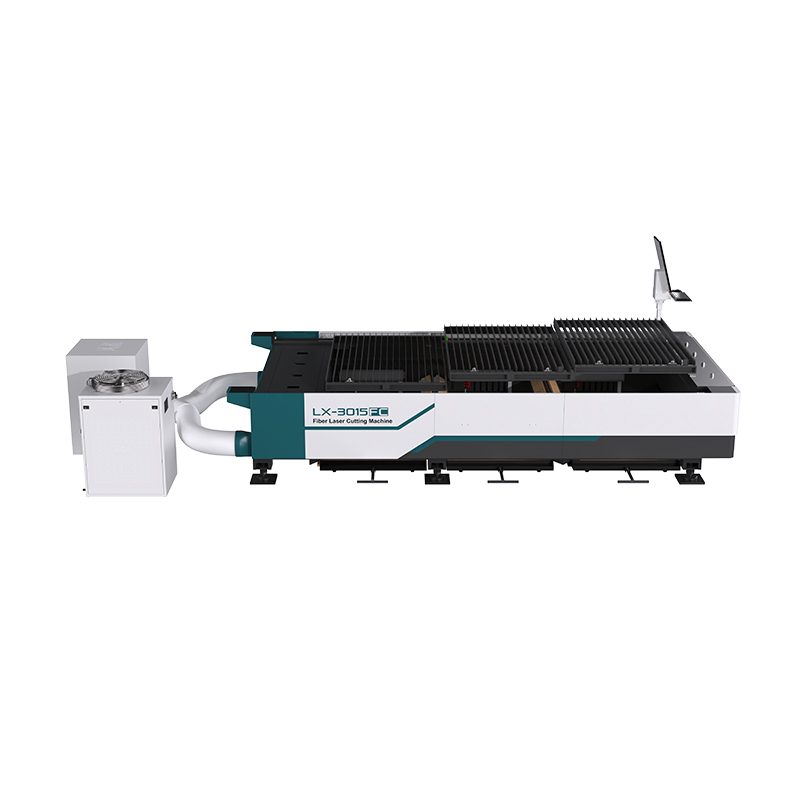

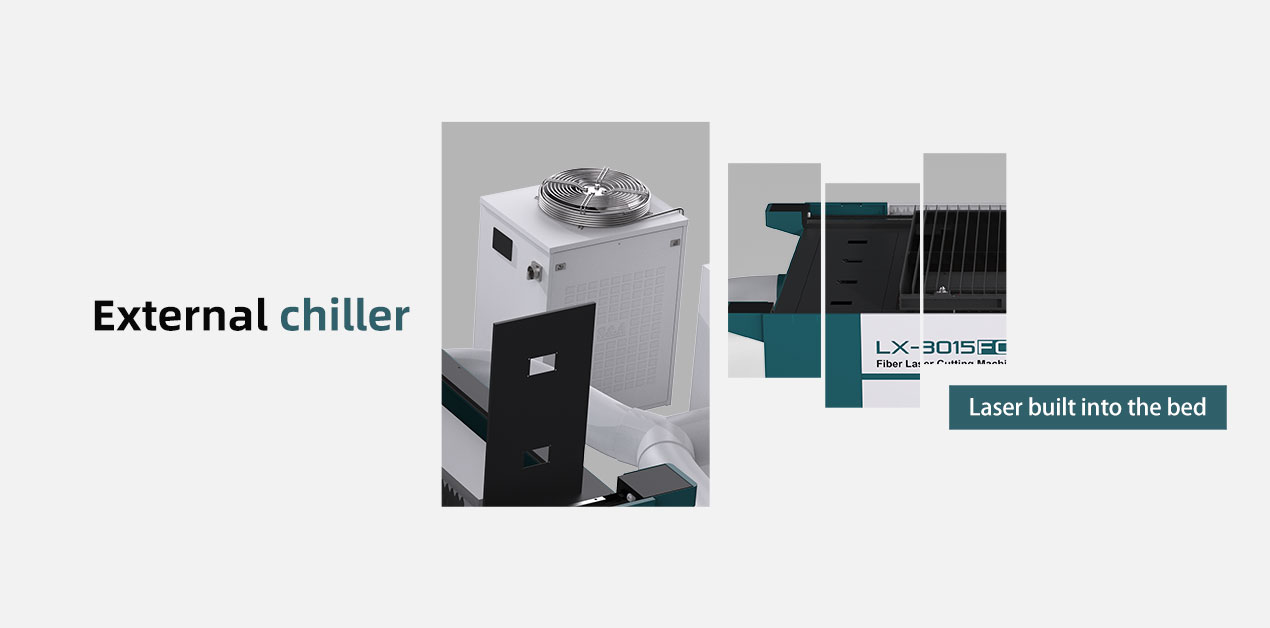

- The 1KW~3KW machine is equipped with a built-in generator and an external chiller.

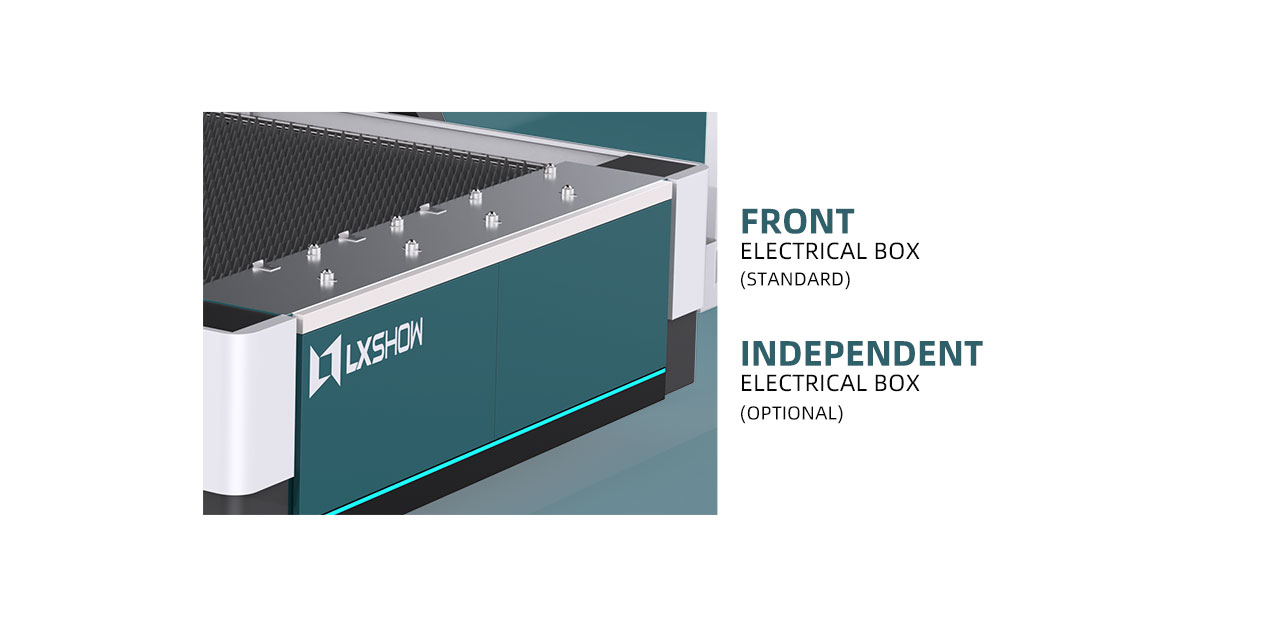

- Front-facing electrical box (standard) and independent electrical box (optional) are available.

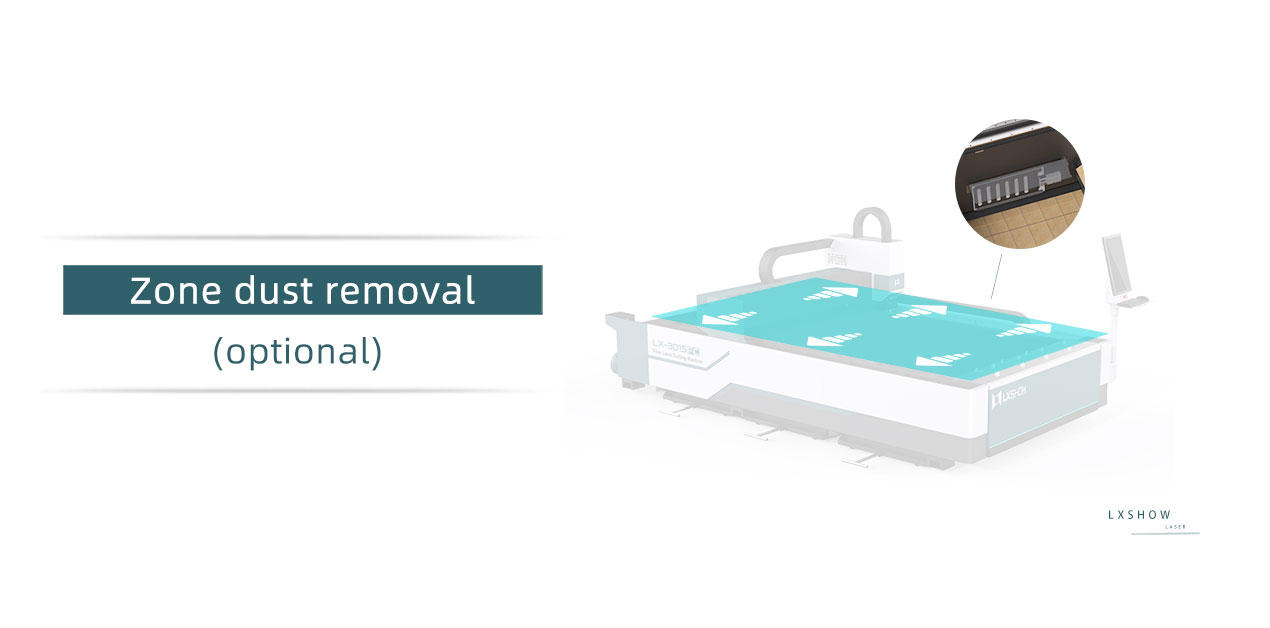

- The zone dust removal system is configured as optional for cleaner operation.

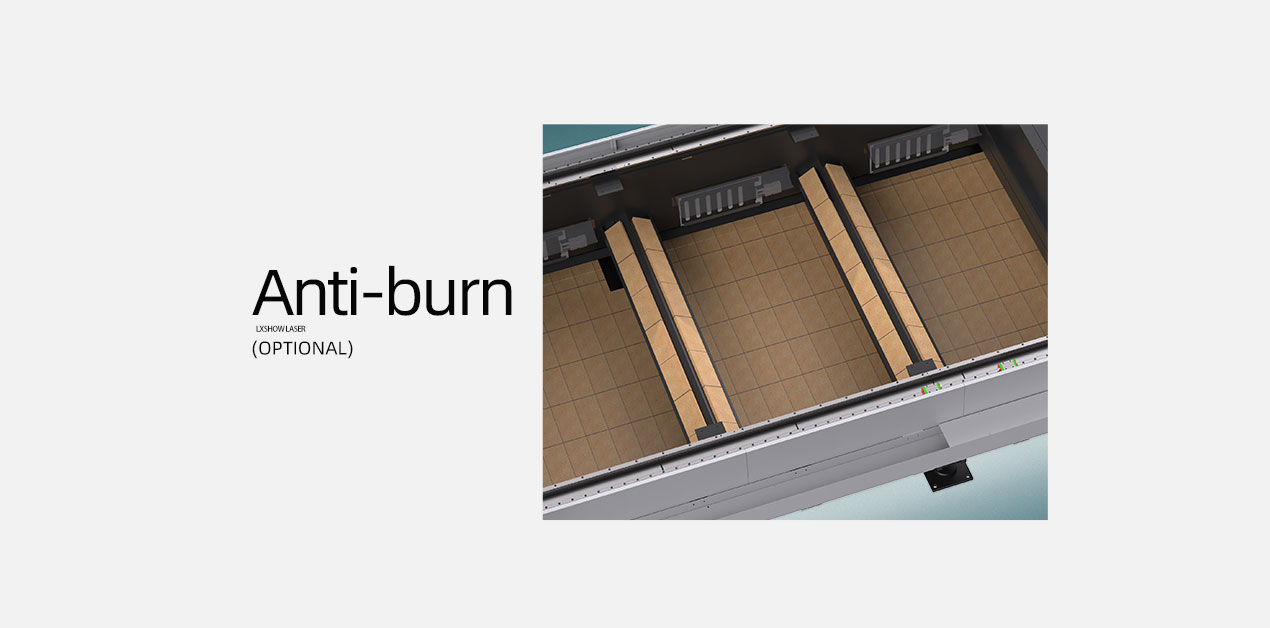

- The anti-burn modules are available as optional accessories to protect the structure.

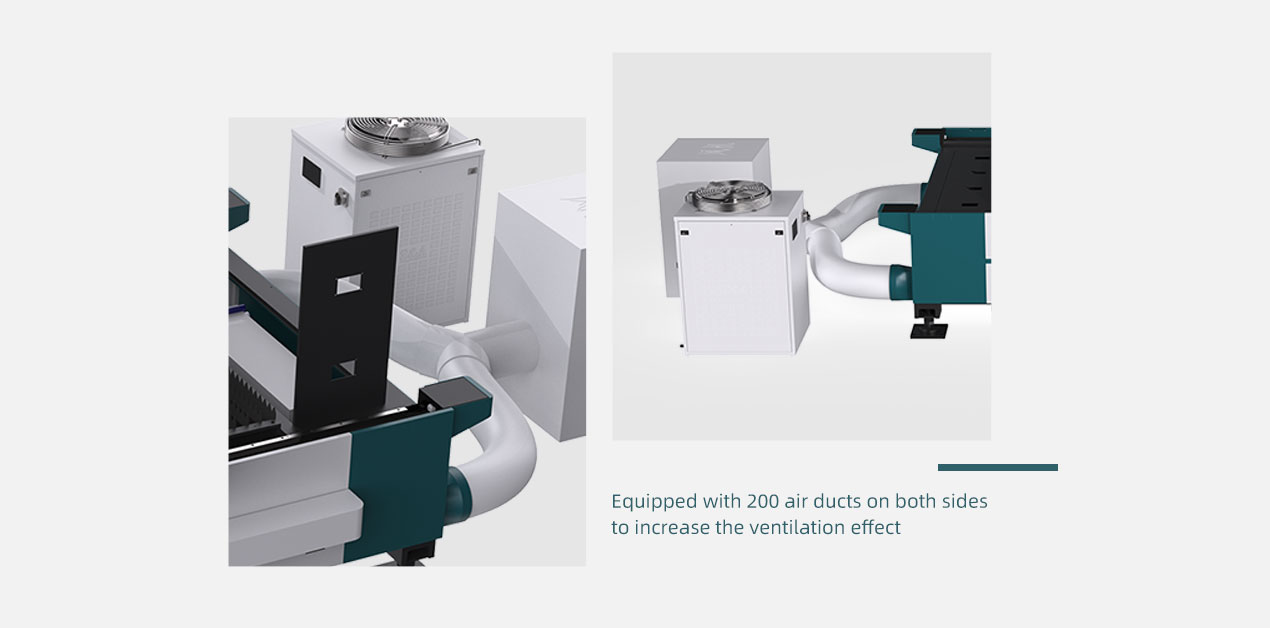

- LX3015FC is equipped with 200mm diameter air duct on both sides for better ventilation performance.
Frequently Asked Questions
Q
Do you have CE documents and other documents for customs clearance?
Yes, we have original files. At first we will show you the documents, and after shipment we will provide you with CE, Packing List, Commercial Invoice, and Sales Contract for customs clearance.
Q
What payment terms do you support?
We accept TT, Western Union, Paypal, LC, Cash, and other standard payment methods.
Q
I don't know how to use it or have issues during operation, what should I do?
We can provide support via TeamViewer, Whatsapp, Email, Phone, or Skype with video guidance until all your concerns are resolved. On-site door service is also available if required.
Q
I don't know which model is suitable for me, how can I choose?
Simply let us know: 1) Max work size to choose the most suitable model; 2) Materials and cutting thickness to determine the correct power of the laser generator; 3) Your business industry for experienced professional advice.
Q
What materials can this laser machine cut?
This fiber laser cutting machine is optimized for cutting a wide range of metals, including Stainless Steel, Carbon Steel, Alloy Steel, Aluminum, and Brass.
Q
What is the maximum thickness this machine can cut?
The LX3015FC is capable of cutting up to 20mm of Carbon Steel and up to 10mm of Stainless Steel, depending on your configured laser power generator.
