High-precision specifications engineered for optimal industrial performance.
| Machine Model | LX3015/4015/6015CT |
|---|---|
| Power of Generator | 1000/1500/2000W (optional) |
| Dimension | 4771*8145*2005mm(About) |
| Working Area | 1500*3000mm(Other size can be customized) |
| Repeated Positioning Accuracy | ±0.02mm |
| Max Running Speed | 120m/min |
| Max Acceleration | 1.5G |
| Specified Voltage And Frequency | 380V 50/60HZ |

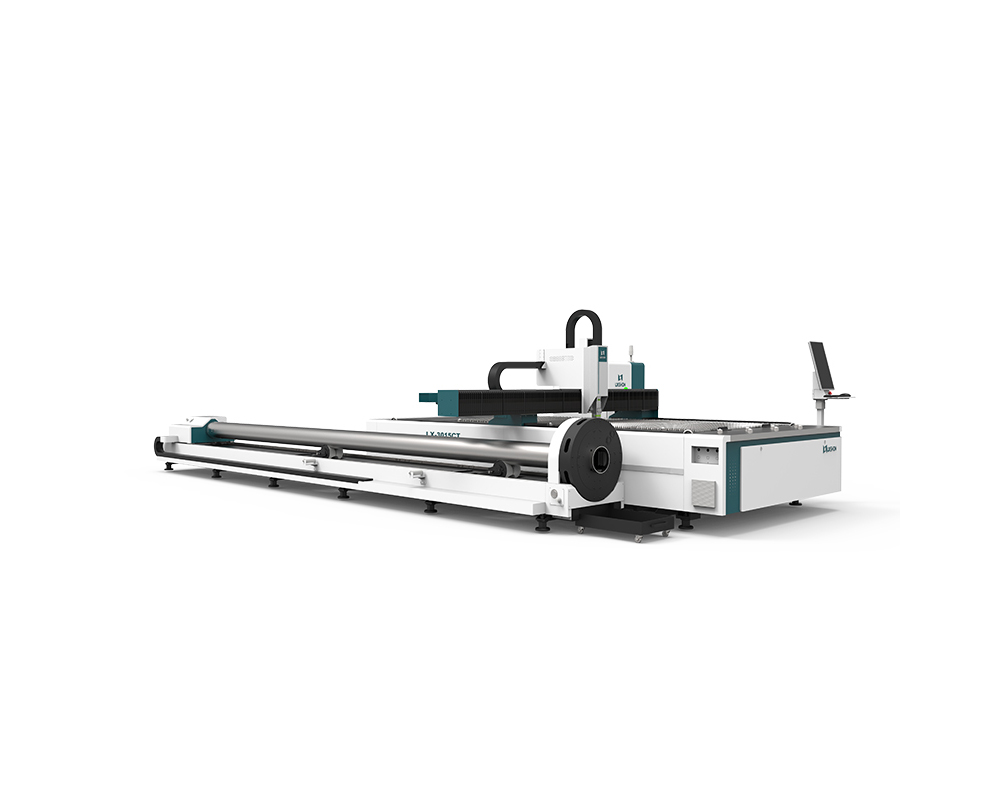

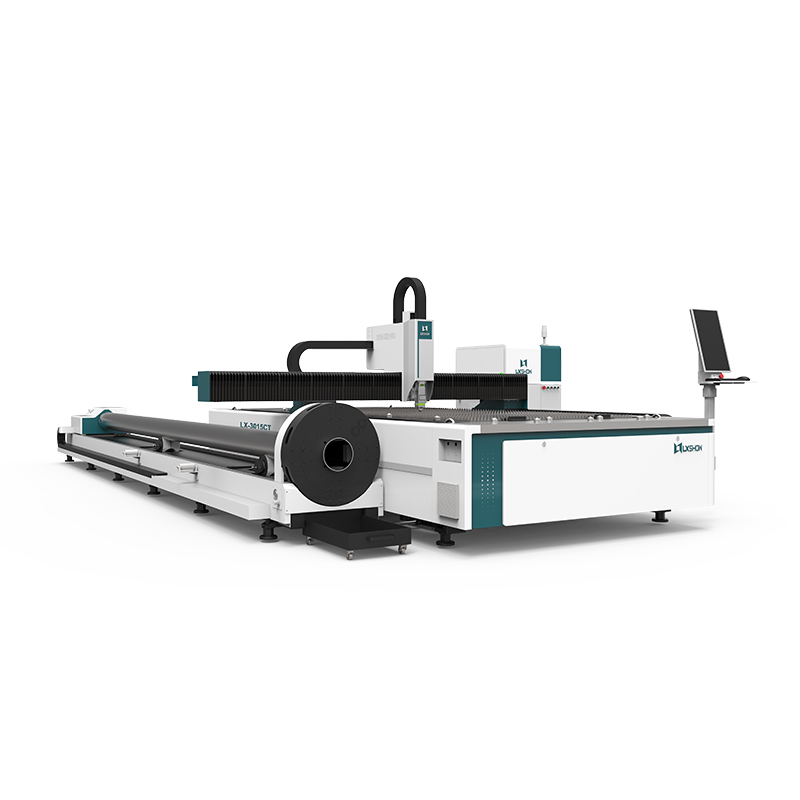

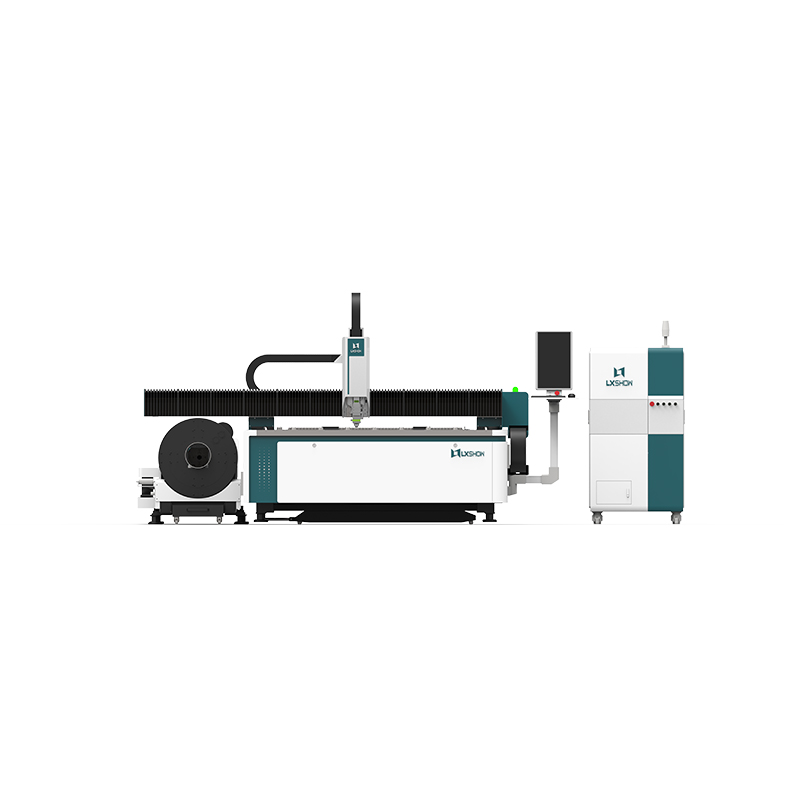

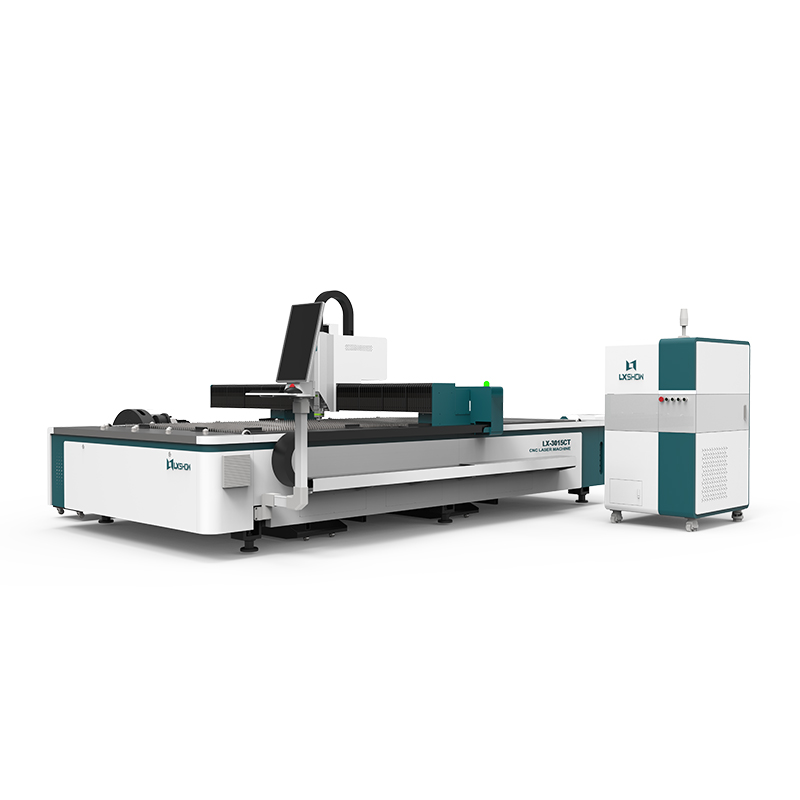

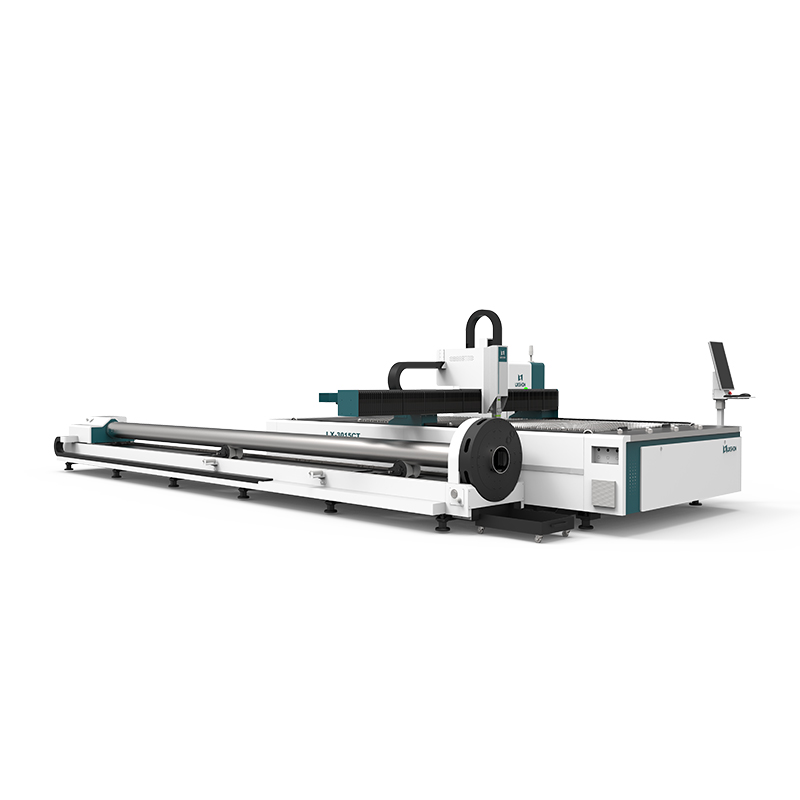

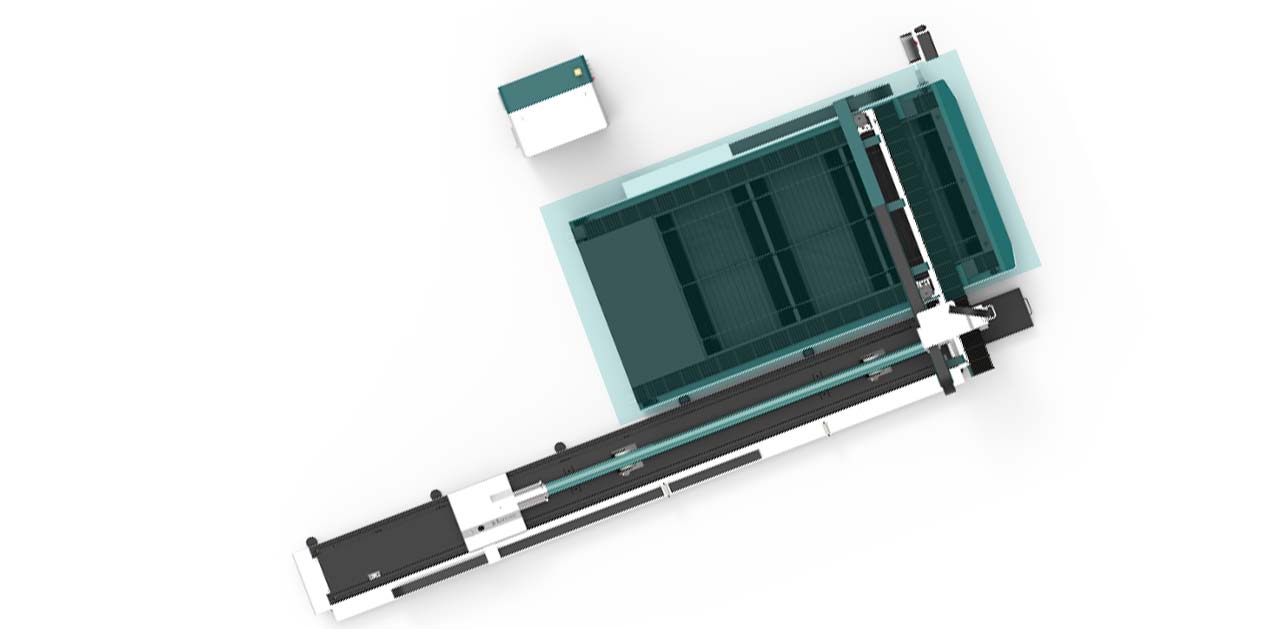

The FT series fiber laser cutting machine can not only cut metal plates, but also metal pipes. It features multiple uses in a single setup, saving more than 50% of workshop space and effectively improving operational productivity.

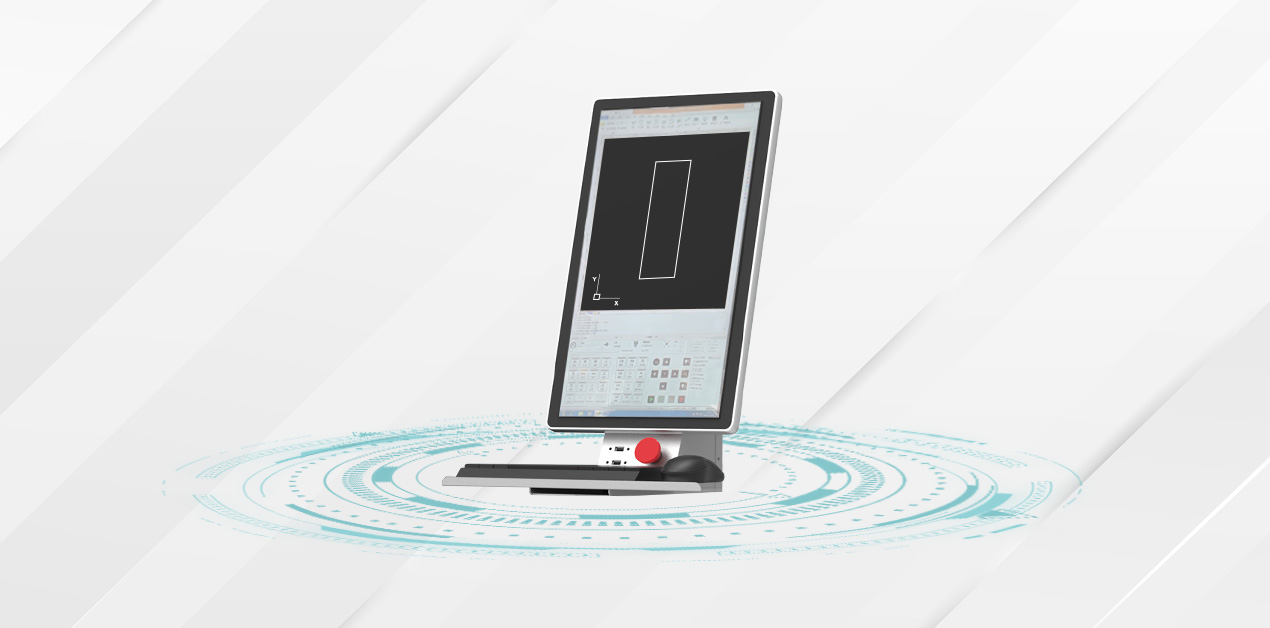

Designed for easy operation even by green hands. Features a graphical programming interface pre-matched with 20,000 process data parameters.

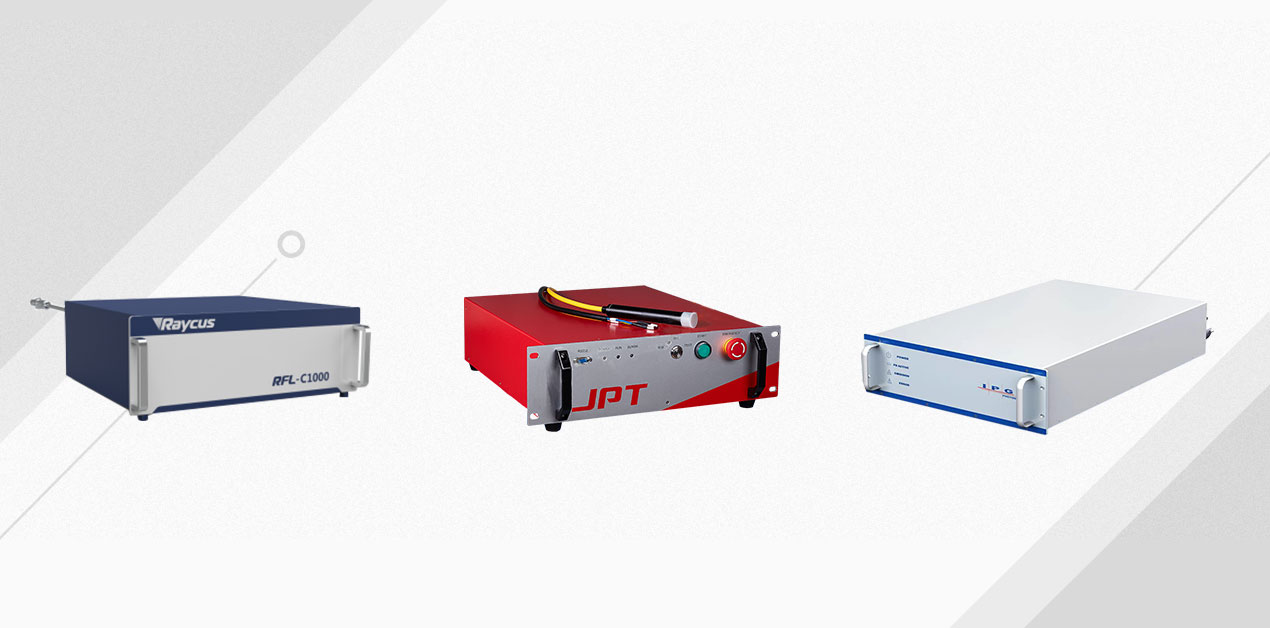

The single-module continuous fiber laser features high electro-optical conversion efficiency, excellent beam quality, high energy density, a wide modulation frequency, strong reliability, long service life, and maintenance-free operation.
The theoretical service life of the generator is 100,000 hours. Used 8 hours a day, it can last for approximately 33 years.

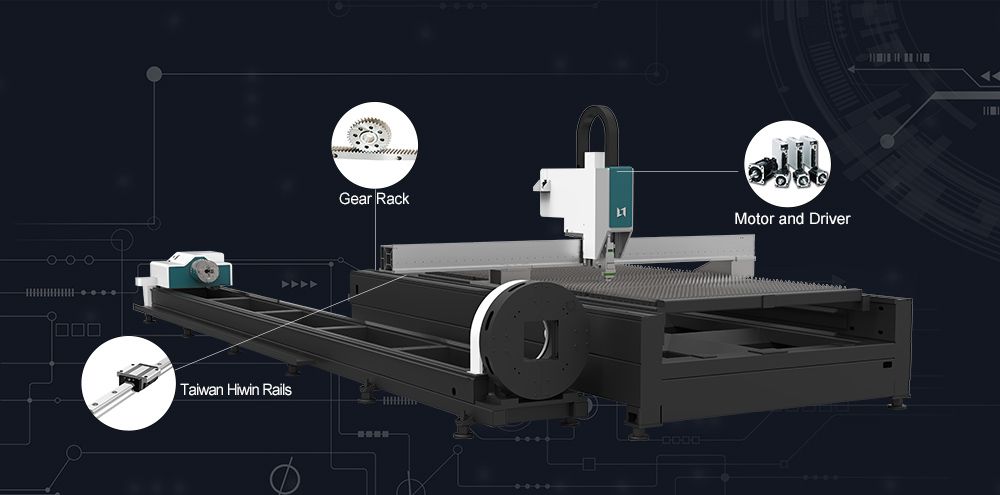

The fiber laser cutting machine is equipped with a German Atlanta rack, Japanese Yaskawa motor, and Taiwan Hiwin Rails. The positioning accuracy of the machine tool can reach 0.02mm, and the cutting acceleration is 1.5G, supporting a working life of up to more than 15 years.
Suitable for cutting metal sheets and plates, including Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring Steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, and more.
Widely used in the manufacture of Billboards, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchenware, Sheet Metal Processing, Metal Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal Crafts, Elevator Panel Cutting, Auto Parts, Glasses Frames, Electronic Parts, Nameplates, and more.

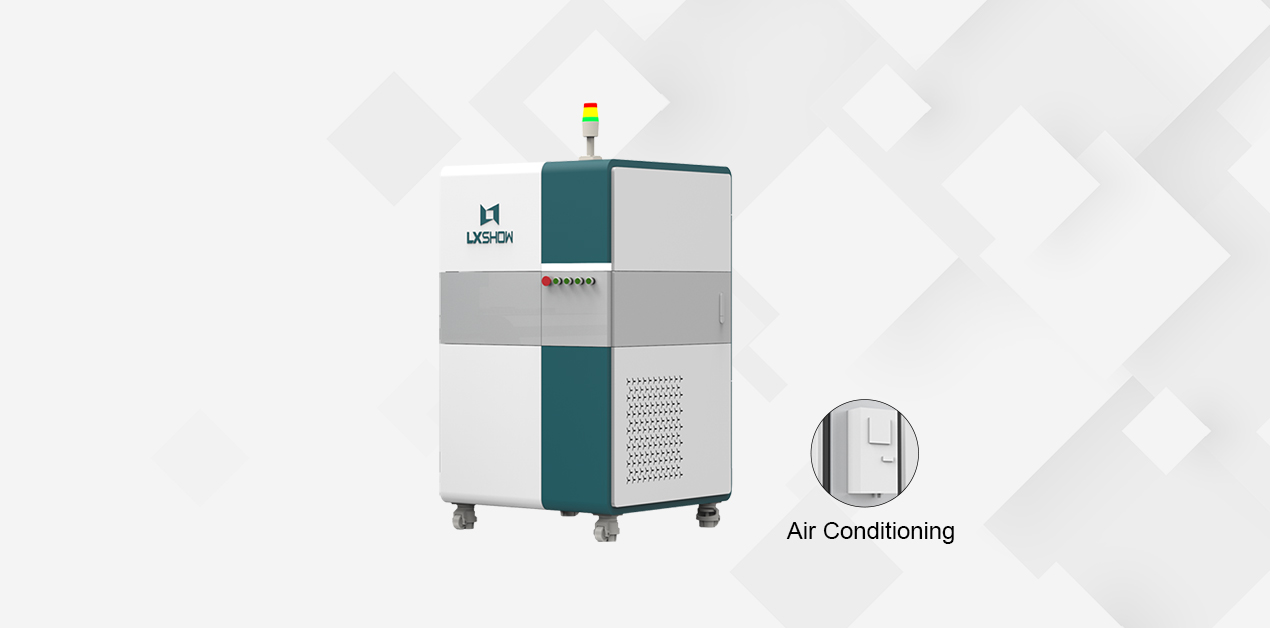

Dust-proof Design: All electrical components and the laser source are integrated into an independent control cabinet with a dust-proof design to prolong component lifespan.
Automatic Thermostat: The cabinet is equipped with an integrated air conditioner for automatic constant temperature control. This prevents high-temperature damage to delicate electrical components during summer.

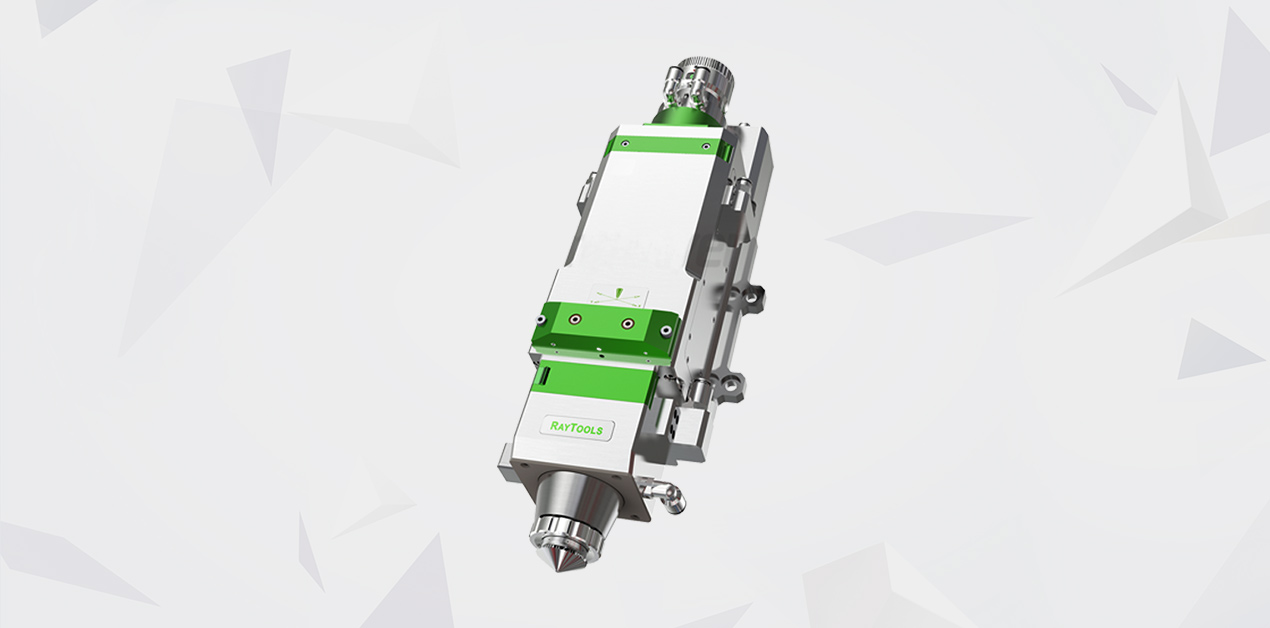

Cutting nozzle (≥500h), protective lens (≥500h), focusing lens (≥5000h), collimator lens (≥5000h), ceramic body (≥10000h). It is recommended to purchase optional consumables along with your machine order.
Pneumatic Clamp: Adopts an pneumatic clamp design on both sides, modulating the center automatically. The diagonal adjustable range is 20-220mm (320/350mm options are available).

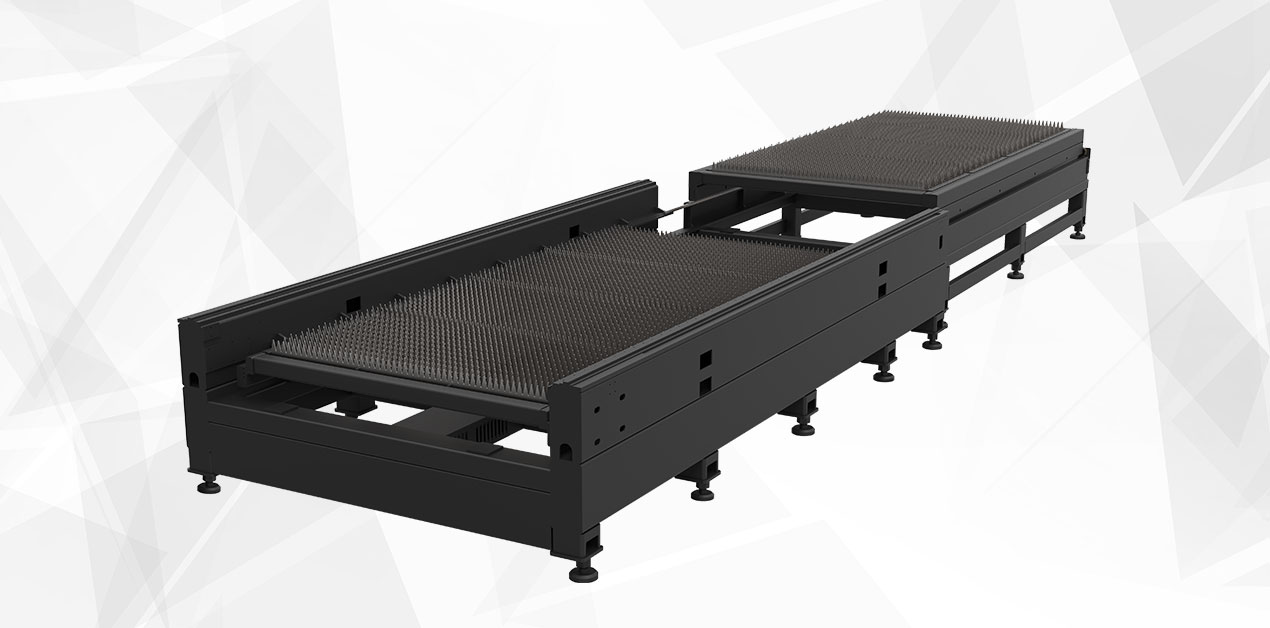

Segmented Rectangular Tube Welded Bed: The internal structure of the bed features an aircraft-grade metal honeycomb structure welded by multiple rectangular tubes. Internal stiffeners increase structural and tensile strength, stabilizing the guide rails to prevent bed deformation over long-term use.
High-Speed Cutting: 25 mm carbon steel sheet pre-punch time < 3 s @ 3000 w, significantly improving cutting throughput.

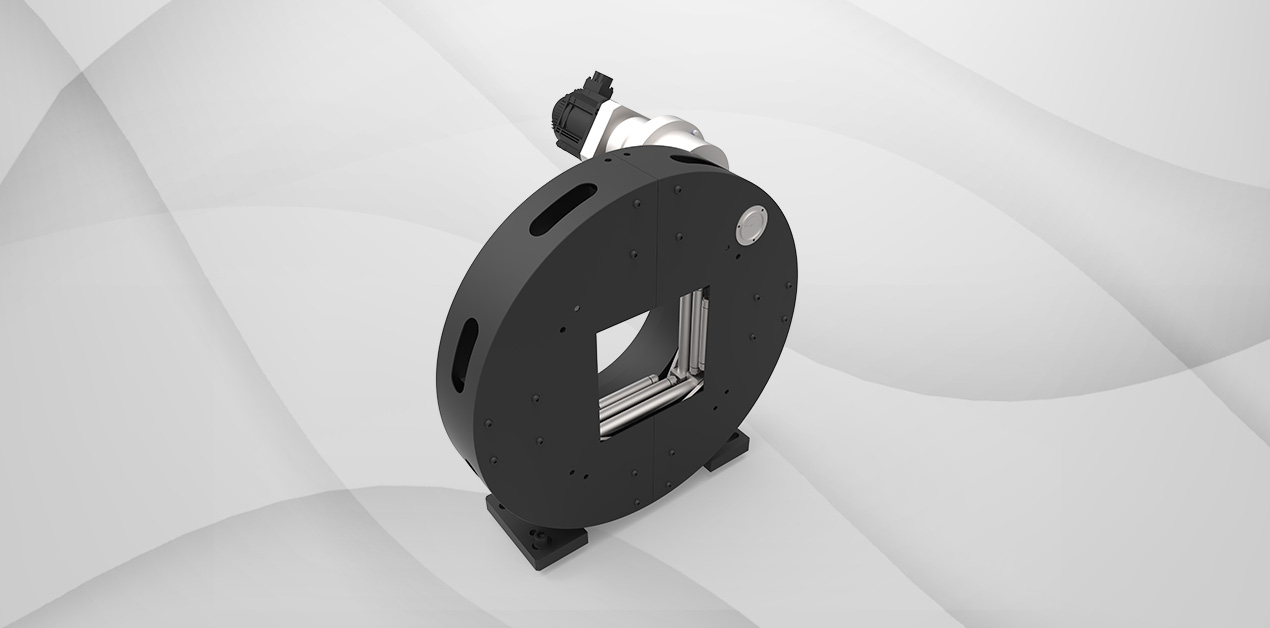

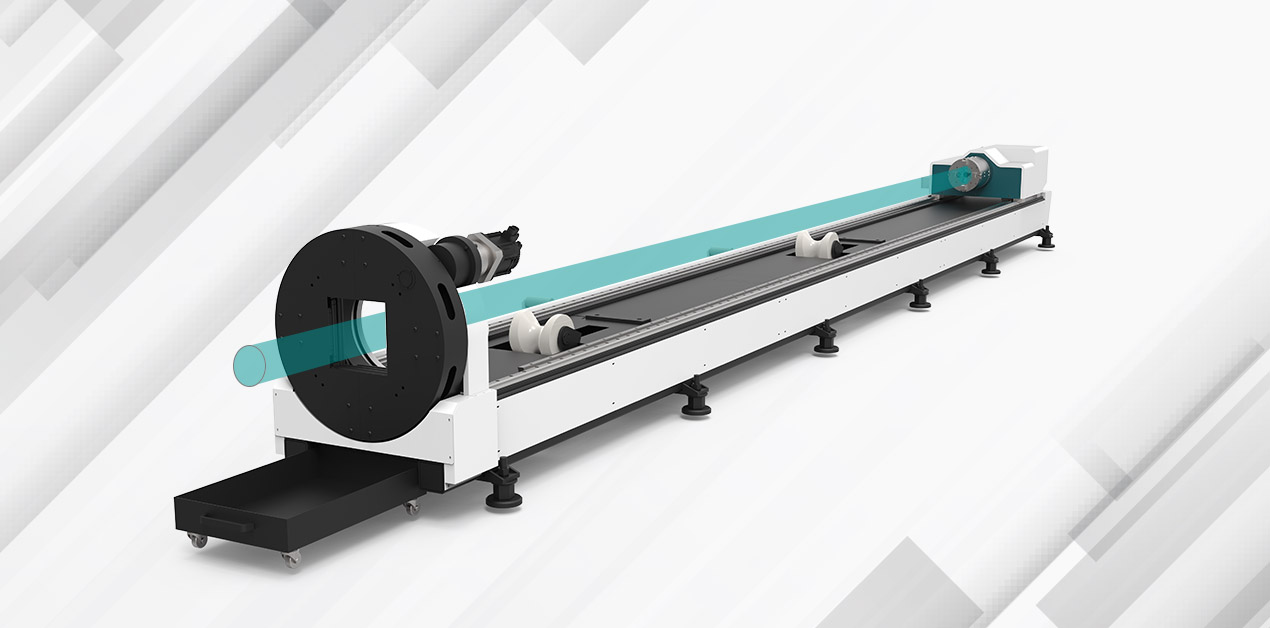

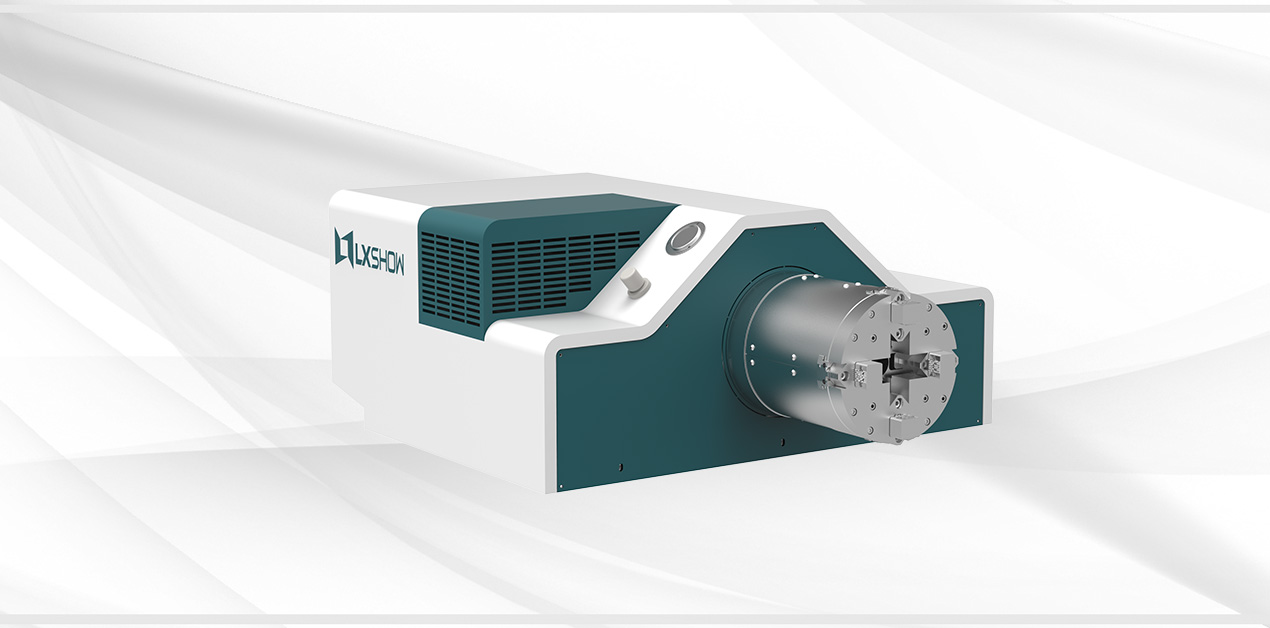

Pneumatic Chuck: 3 times faster than electric chucks due to one-key clamping and auto-centering. High and constant clamping force ensures heavy tubes are held stably. Incorporates two rows of rollers for a broad clamping range and precise cutting alignment.
The automatic pneumatic chuck is highly adjustable and stable, providing a wider clamping range and larger clamping force. Offers non-destructive pipe clamping with fast automatic centering and clamping mechanisms for consistent, stable performance.

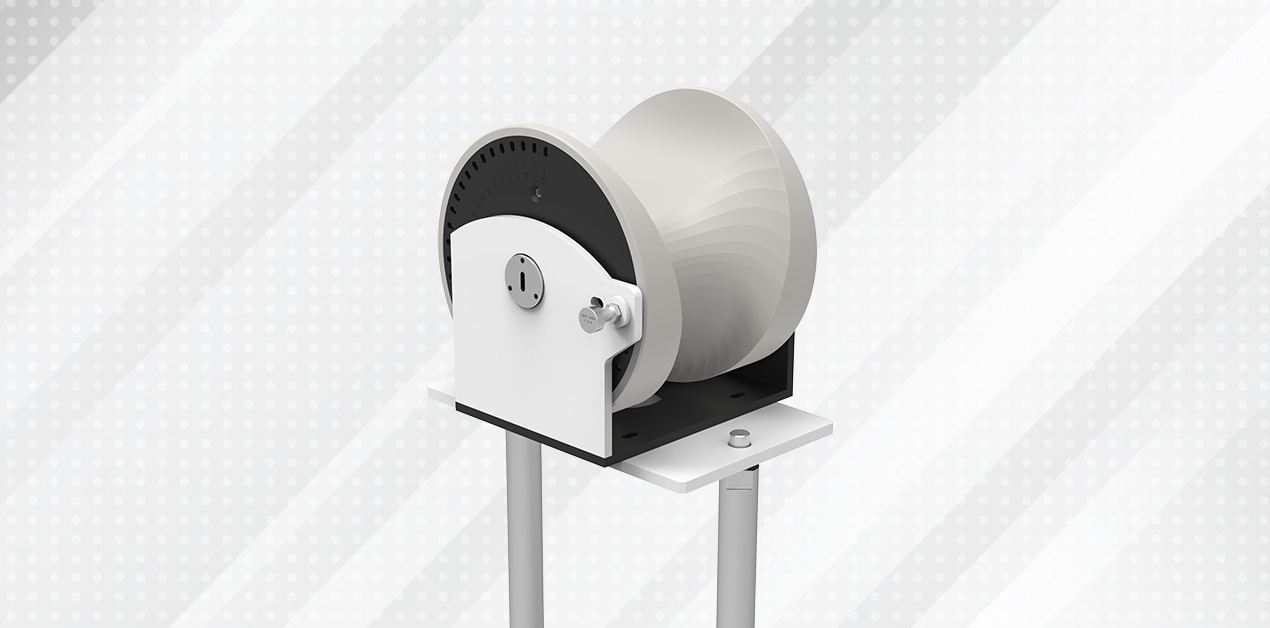

The small chuck size keeps rotational inertia low, ensuring strong dynamic performance. Employs an intelligent tube support design to resolve tube deformation issues during the cutting of long pipes.
Compatible with leading global fiber laser generator brands to fit specific budget and performance requirements.
