1 / 5
| Working Area | 1500*3000mm |
| Laser Power | 3000W(OptionalPower:1000W,1500W,2000W,3000W, 4000W,6000W) |
| Laser Generator | MAX |
| Laser Wave Length | 1064nm |
| Working Table | Sawtooth |
| Maximum Idle Running Speed | 60m/min |
| Maximum acceleration | 1.2G |
| Position Accuracy | ±0.05mm/m |
| Repeat Positional Accuracy | ±0.03mm |
| Control System | Bochu FSCUT2000E |
| Position Type | red dot |
| Power Consumption | ≤30KW |
| Working Voltage | 380V/50Hz |
| Auxiliary Gas | oxygen,nitrogen,air |
| Working life offiber module | More than 100000hours |
| Fiber laser cutting head | BociBLT310 |
| Cooling System | S&A/Tongfei/Hanli industrial water chiller |
| Work Environment | 0-45°C,Moisture 45-85% |
| Delivery time | 25-35 workdays (According to actual season) |
Automatic pneumatic chuck, adjustable and stable, clamping range is wider and clamping force is larger. Non-destructive pipe clamping, fast automatic centering and clamping pipe, performance is more stable.
The chuck size is smaller, rotation inertia is low, and dynamic performance is strong. Self-centering pneumatic chuck, gear transmission mode, higher transmission efficiency, long working life and high work reliability.
| Working Area | 1500*3000mm |
| Laser Power | 3000W (Optional Power: 1000W, 1500W, 2000W, 3000W, 4000W, 6000W) |
| Laser Generator | MAX |
| Laser Wave Length | 1064nm |
| Working Table | Sawtooth |
| Maximum Idle Running Speed | 60m/min |
| Maximum acceleration | 1.2G |
| Position Accuracy | ±0.05mm/m |
| Repeat Positional Accuracy | ±0.03mm |
| Control System | Bochu FSCUT2000E |
| Position Type | red dot |
| Power Consumption | ≤30KW |
| Working Voltage | 380V/50Hz |
| Auxiliary Gas | oxygen, nitrogen, air |
| Working life of fiber module | More than 100000 hours |
| Fiber laser cutting head | Boci BLT310 |
| Cooling System | S&A / Tongfei / Hanli industrial water chiller |
| Work Environment | 0-45°C, Moisture 45-85% |
| Delivery time | 25-35 workdays (According to actual season) |

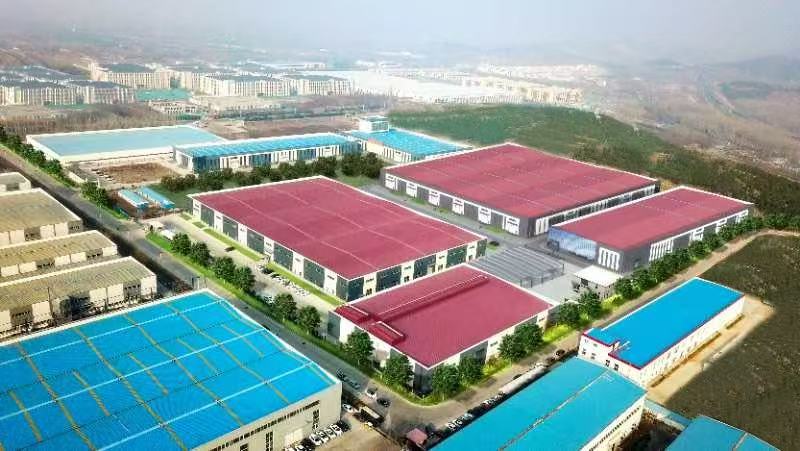

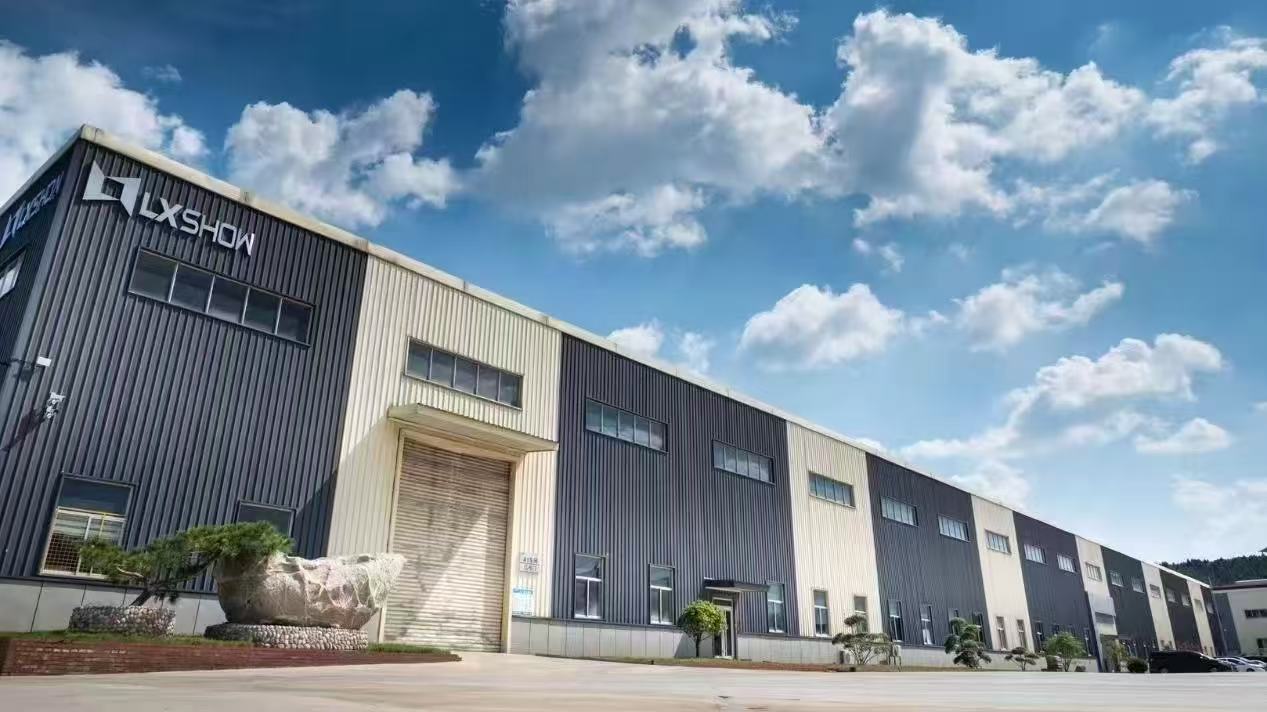

Established in July 2004, the manufacturing facility owns more than 500 square meters of researching and office space, and more than 32000 square meters factory. All machines passed the European Union CE authentication, American FDA certificate and are certified to ISO 9001. Products are sold to USA, Canada, Australia, Europe, Southeast Asia, Africa etc., spanning more than 120 countries and areas, and supply OEM service for more than 30 manufactures.
