| Machine Model | LX12025L | LX12020L | LX16030L | LX20030L | LX24030L |
|---|---|---|---|---|---|
| Working Area | 12100*2550 | 12100*2050 | 16500*3200 | 20500*3200 | 24500*3200 |
| Power of Generator | 4kw-20kw | ||||
| X/Y-axis Positioning Accuracy | 0.02mm/m | ||||
| X/Y-axis Repositioning Accuracy | 0.01mm/m | ||||
| X/Y-axis Max. linkage speed | 80m/min | ||||

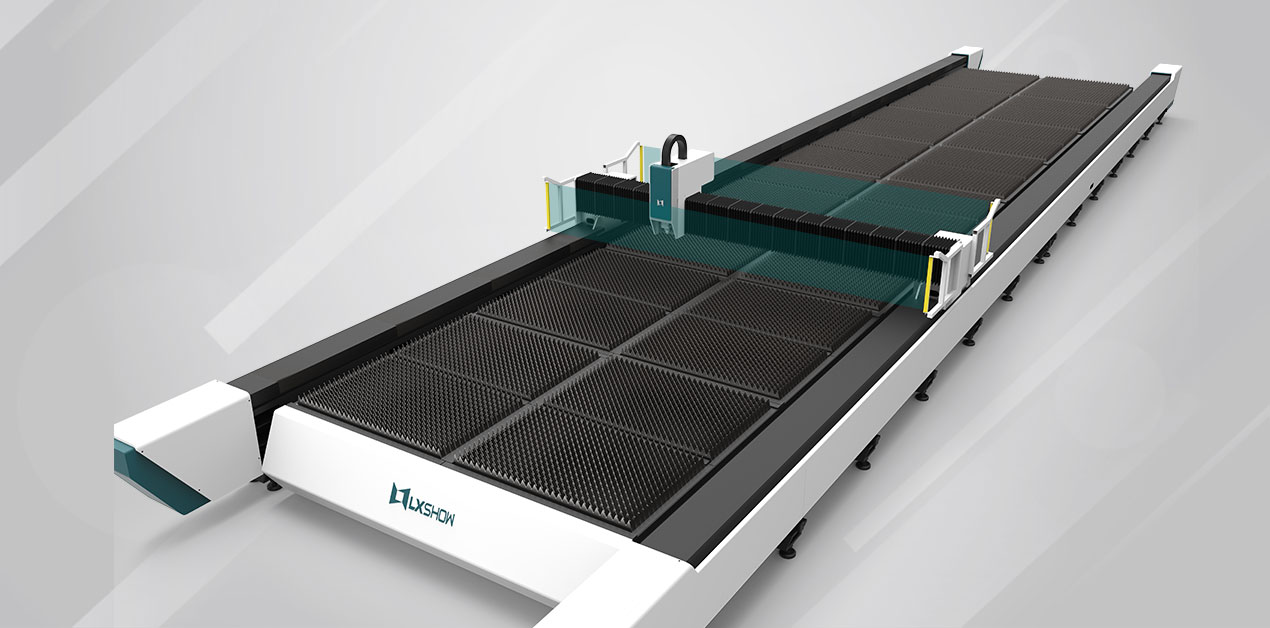

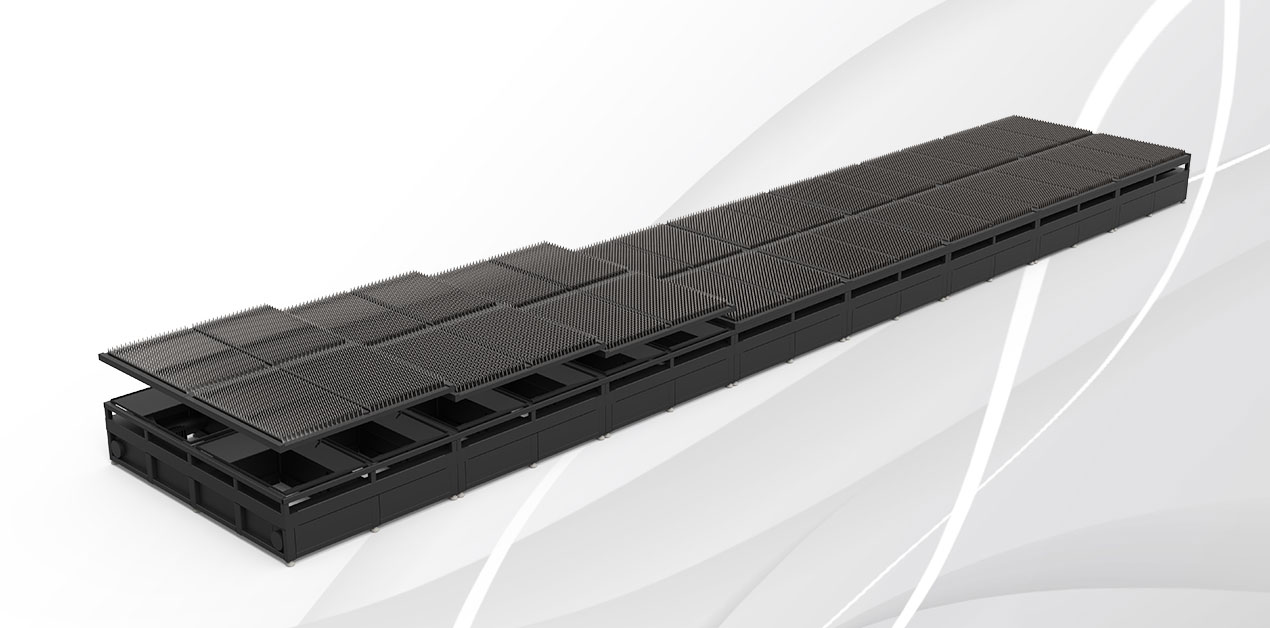

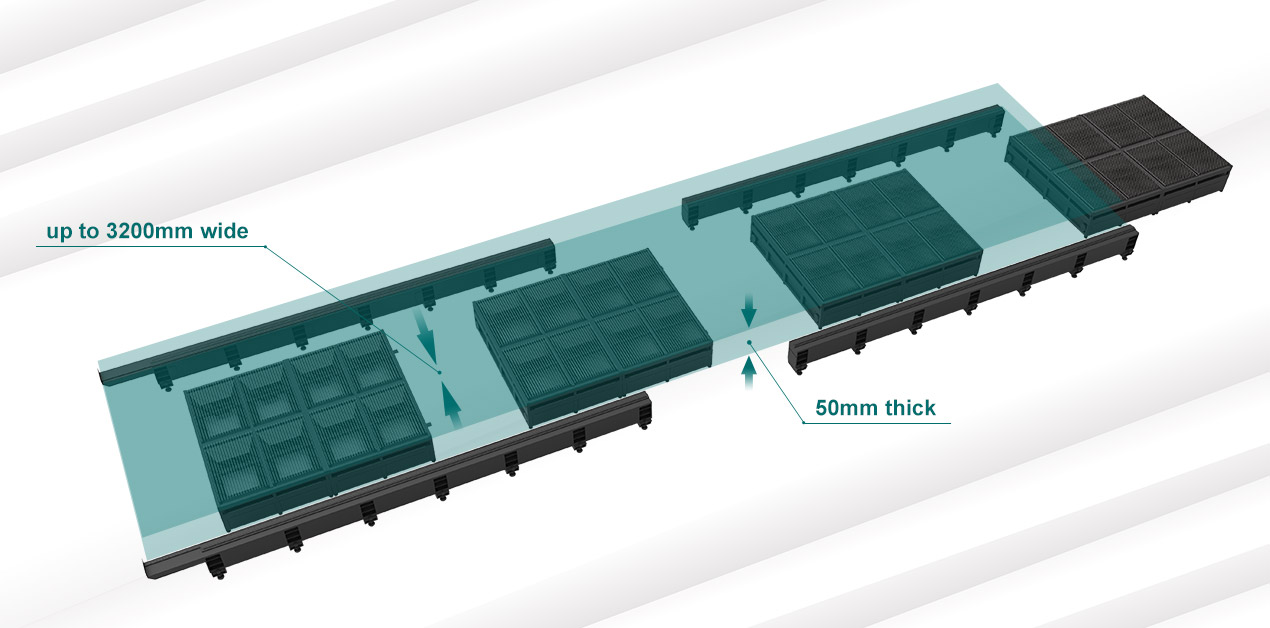

This technology provides the flexibility to deal with ultra-large-format thick plates, using a segmented splicing bed where the format can be customized on demand.
The separate design of the bed and worktable ensures the high dynamic performance and extended service life of the machine tool. It is engineered to adapt smoothly to workpieces up to 3200mm wide and 50mm thick.

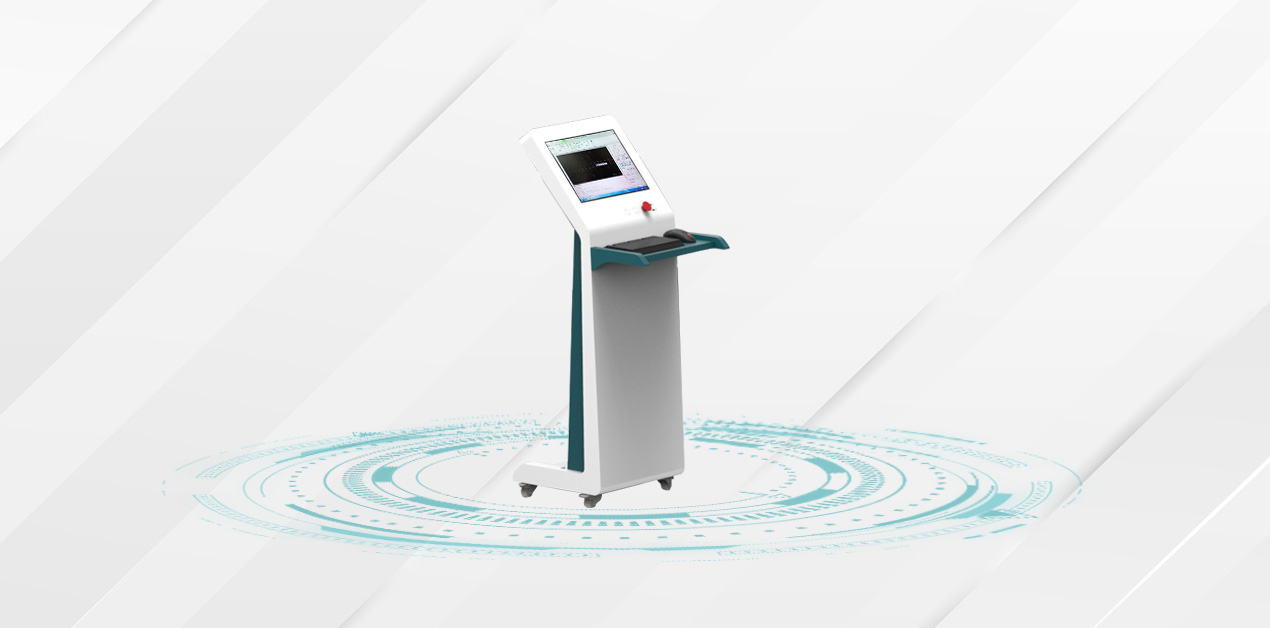

Extremely easy to operate even for beginners. Pre-configured with over 20,000 process datasets on its graphical programming interface. The system is fully compatible with multiple graphic files, including DXF, DWG, PLT, and NC code.
The integrated nesting software improves stock layout and material utilization by 20% and 9.5% respectively, with no limitations on spare part quantities.
Supported Languages: English, Spanish, Portuguese, Russian, German, French, Italian, Japanese, Korean, Dutch, Czech, Simplified Chinese, and Traditional Chinese.

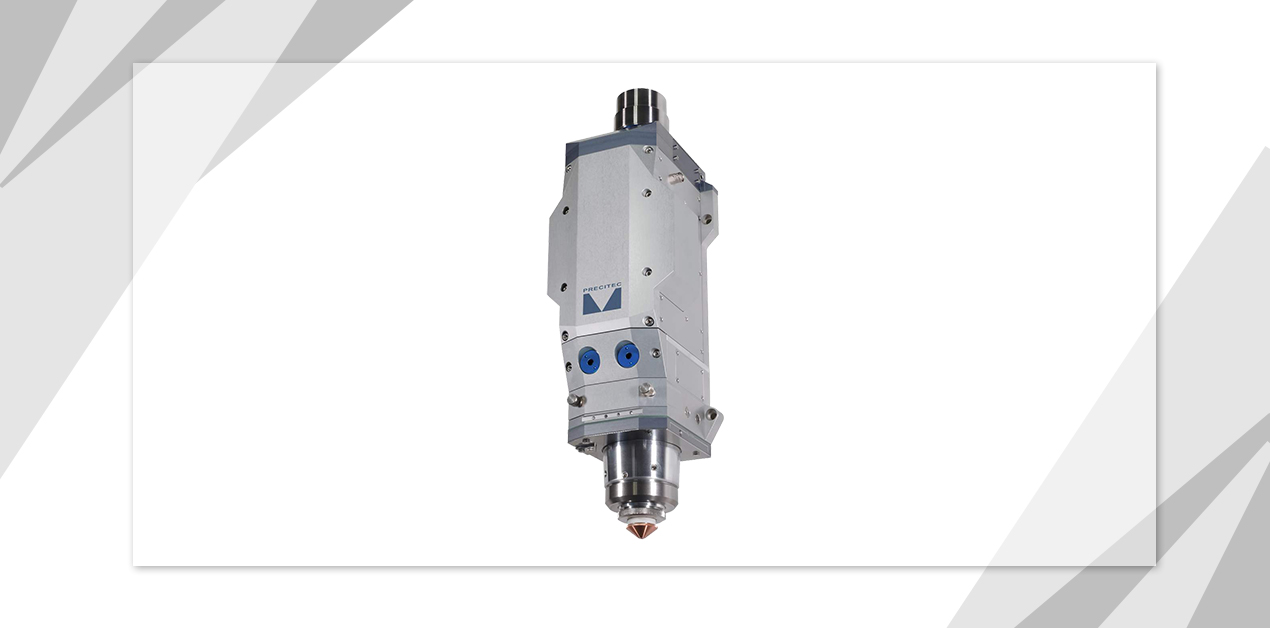

The consumable parts of the fiber laser cutting machine include: cutting nozzle (≥500h), protective lens (≥500h), focusing lens (≥5000h), collimator lens (≥5000h), and ceramic body (≥10000h). You can choose to buy additional consumable parts as an option when purchasing the machine.

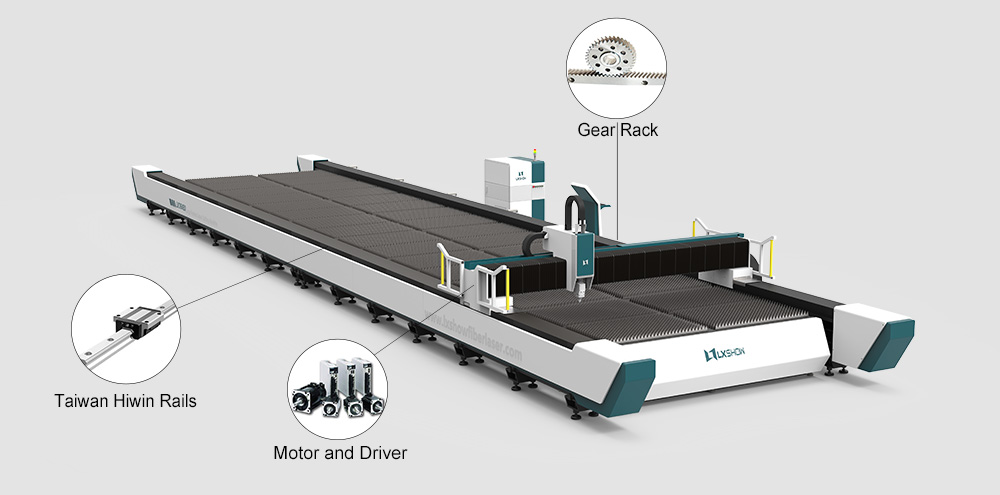

This fiber laser cutting machine is equipped with German Atlanta rack, Japanese Yaskawa motor and Taiwan Hiwin Rails. The positioning accuracy of the machine tool can reach 0.02mm, with a cutting acceleration of 1.5G and a working life of more than 15 years.

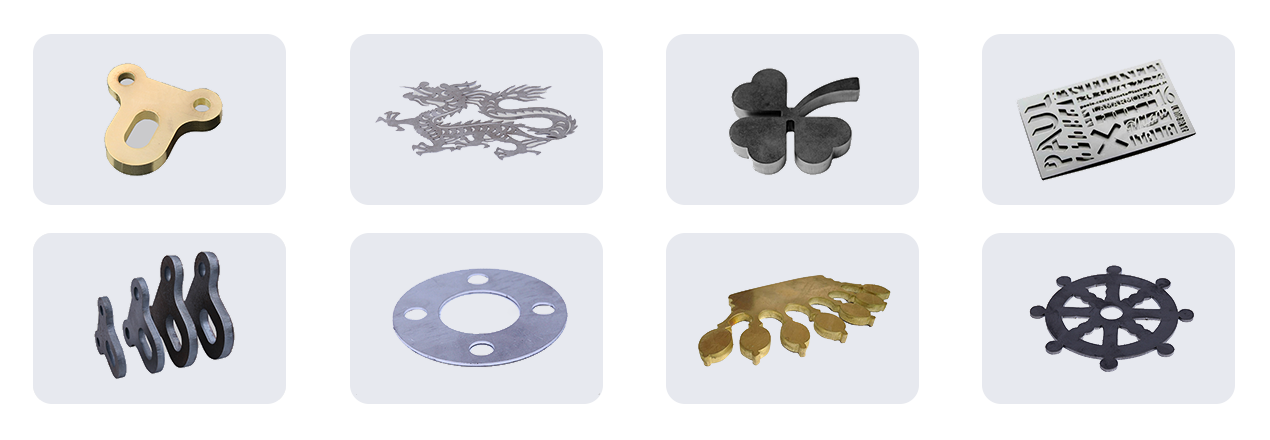

Suitable for cutting various metals including Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring Steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, and Titanium Plate.
Widely applied in the manufacturing of Billboards, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal crafts, elevator panel cutting, hardware, auto parts, Glasses Frames, Electronic Parts, and Nameplates.
The generator's using life (theoretical value) is 100,000 hours. This means that if you use it for 8 hours a day, it can be used for about 33 years.

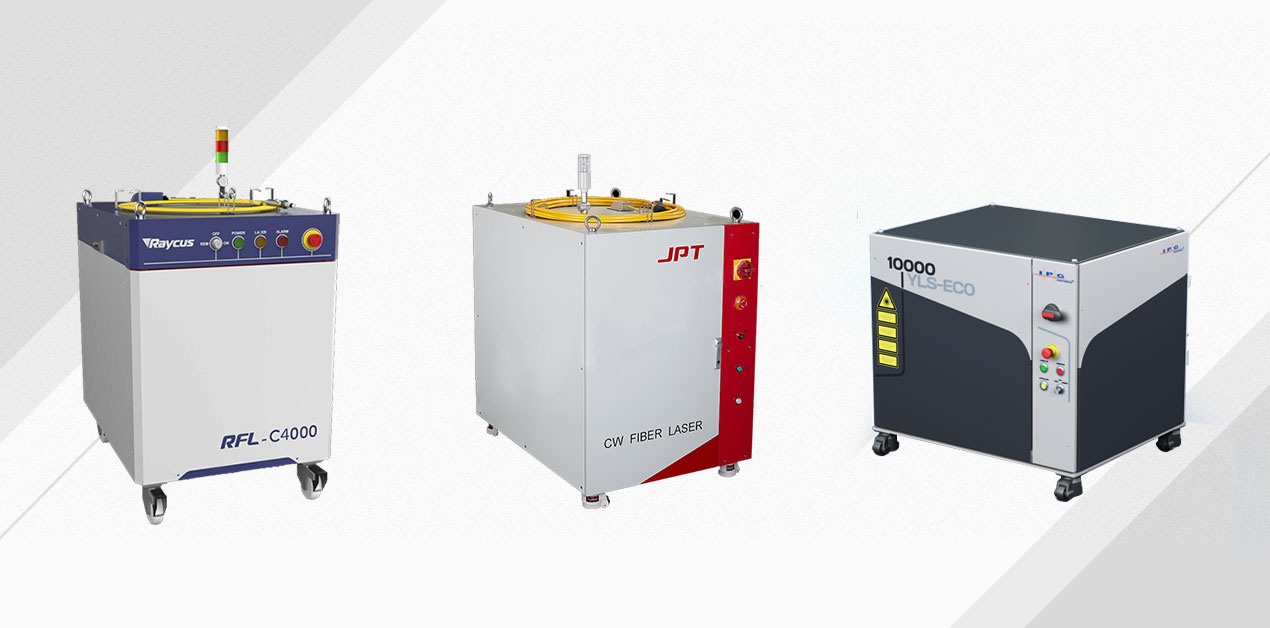

Generator Brands: JPT / Raycus / IPG / MAX / Nlight

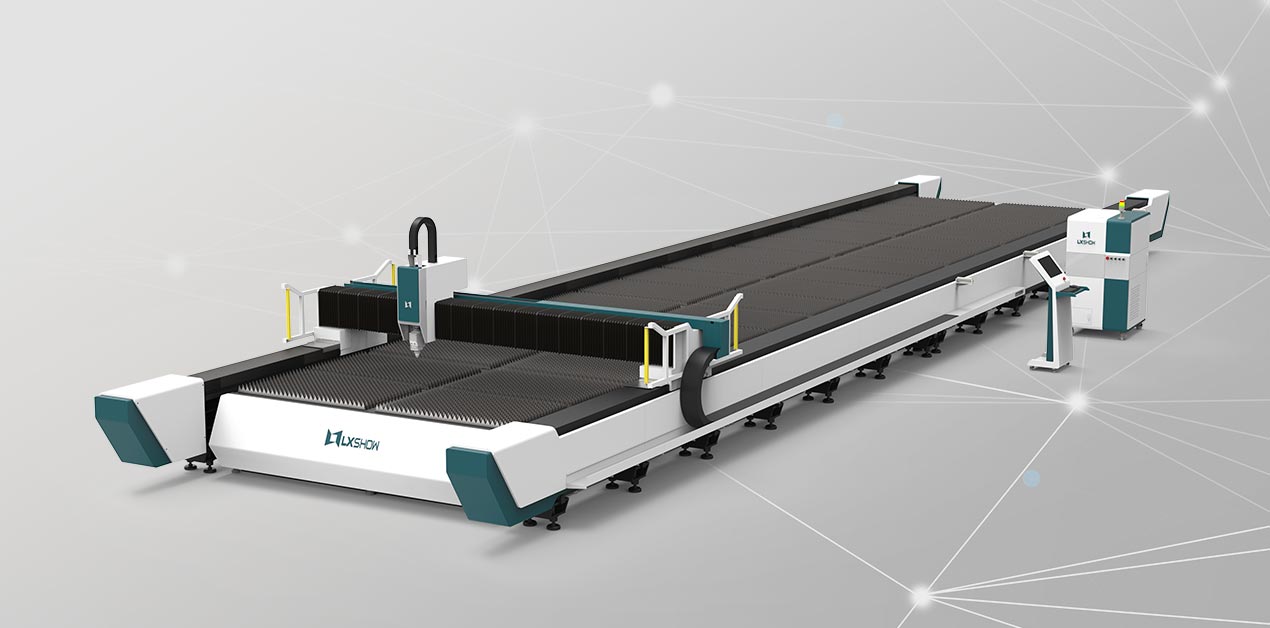

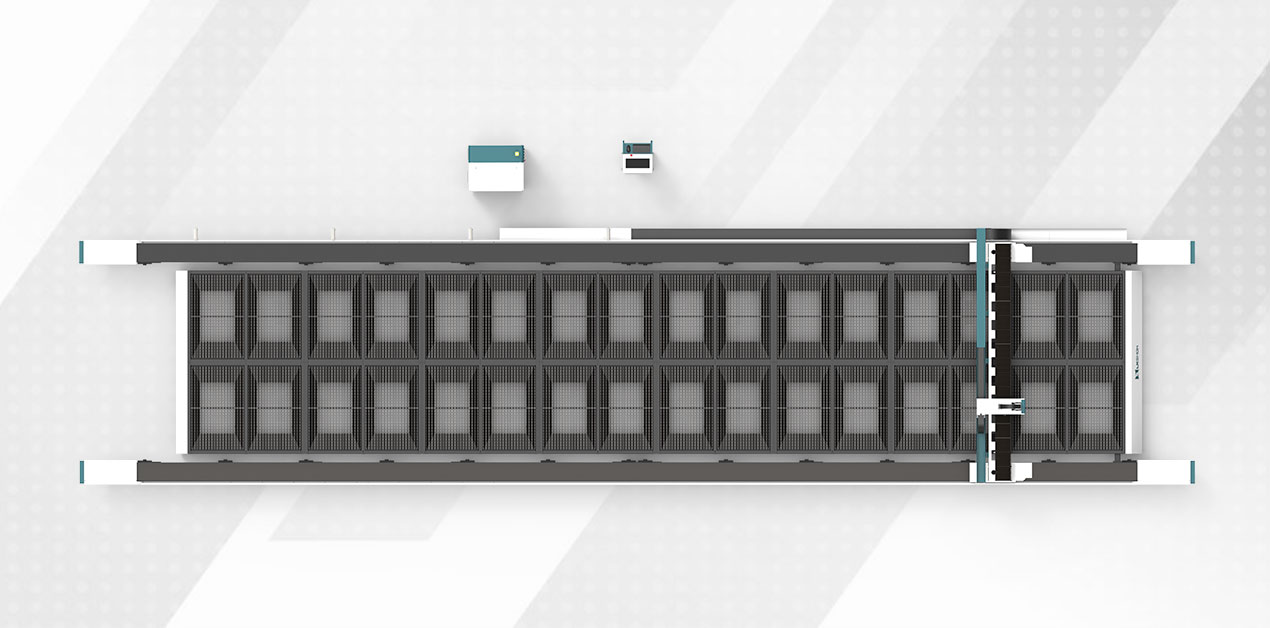

Partition dust removal: Instantly removes the smoke and dust generated by cutting, creating a clean and safe working environment.
