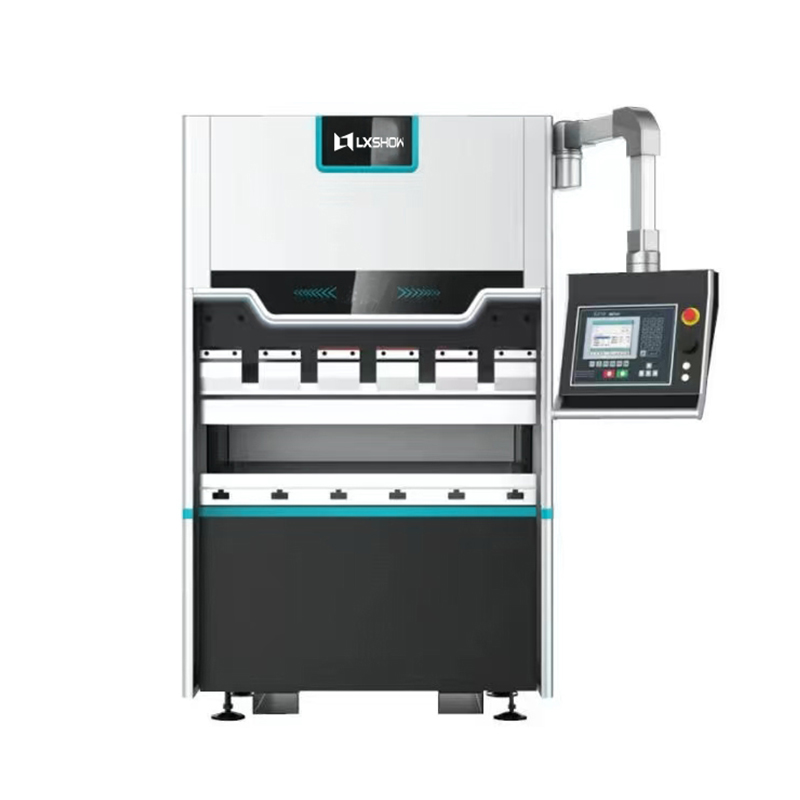

Adopt all-electric servo pump control system, energy saving and environmental protection, full closed-loop control, the same design concept as Japanese bending machines.
1) Ball screw/liner guide are high precision. 2) High durability, high precision, high reliability.
1) Upper and lower tooling can be installed with multiple short molds splicing or the whole length mold installation, with high precision, good interchangeability, easy assembly and disassembly. 2) It is completely universal and interchangeable with the molds used in the bending machine produced by AMADA company.
1) The frame is welded by the left and right side panels, lower panels, with strength and rigidity. 2) After strict heat treatment to eliminate stress annealing welding internal stress, so the machine bed has high precision and good stability. 3) The production process of the frame is all operated in-house, which can strictly control the quality.
Control the start and stop of the bending machine to achieve precise control of the bending process.
The syntec of pure electric 4+1-axis bending machine is suitable for this machine. Y1, Y2, X, R, Z1, W.
Servo motors are high quality, innovative and efficient.
1) Upper tool clamping device is fast clamp. 2) The inner side of the CNC quick fixture is equipped with wear-resistant rubber strips, which are easy to clamp when installing the bending machine mold, without loosening, and do not drop the tool, which greatly shortens the adjustment time for clamping the upper mold.
To guarantee running precision.
| Nominal force (tons) | 350 |
| Bending length (mm) | 1250 |
| Slider stroke (mm) | 200 |
| Height of opening between top and bottom (mm) | 500 |
| Column spacing (mm) | 970 |
| Back gauge X-axis travel (mm) | 400 |
| Control Axis | Y1Y2,X,R, Z1,Z2 |
| Standby power consumption (KW/H) | 0.25 |
| Main motor power (KW) | 2*7.5 KW |
| Post positioning repeat accuracy (mm) | ±0.01 |
| Top table position repeat accuracy (mm) | ±0.005 |
| Bending angle accuracy | ±0.3° |
| Speed of rise (mm/s) | 200 |
| Descent speed (mm/s) | 200 |
| Bending speed (mm/s) | 0-40 |
| Machine weight (Ton) | 2.8 |
Yes, we have CE, Provide you with a one-stop service. At first we will show you and after shipment we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.
Could you tell me your materials: cs or ss and their thickness? And the biggest bending width? Then we will confirm the machine model for you.
3 years quality guaranty, the machine with main parts (excluding the consumables) shall be changed free of charge (some parts will be maintained) when if any problem during the warranty period.
Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.
Yes, please check our machine styles. If you have any questions, you can contact us any time, 24x7, we are always here.
