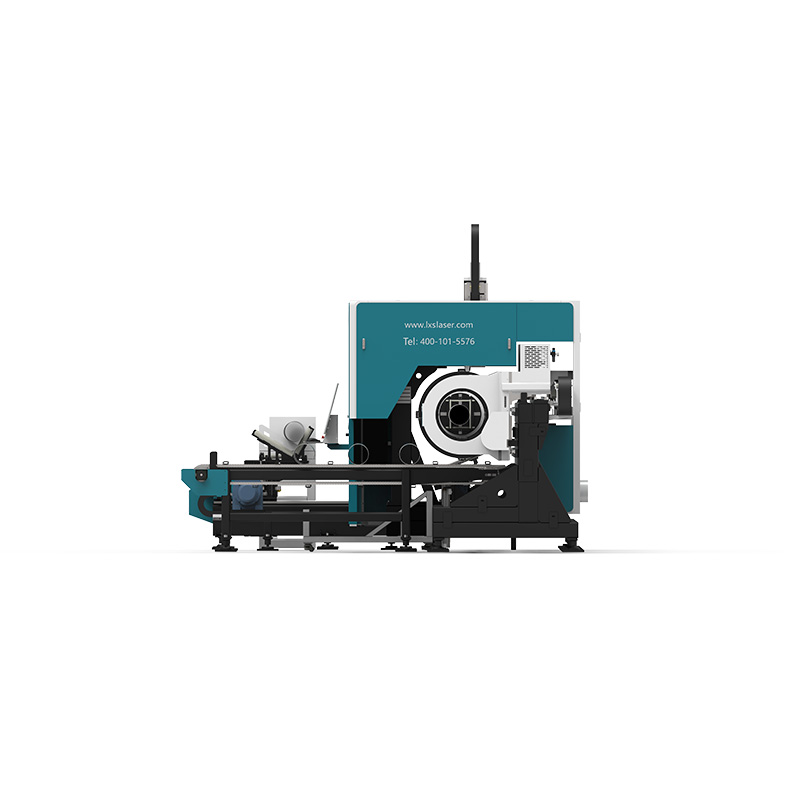

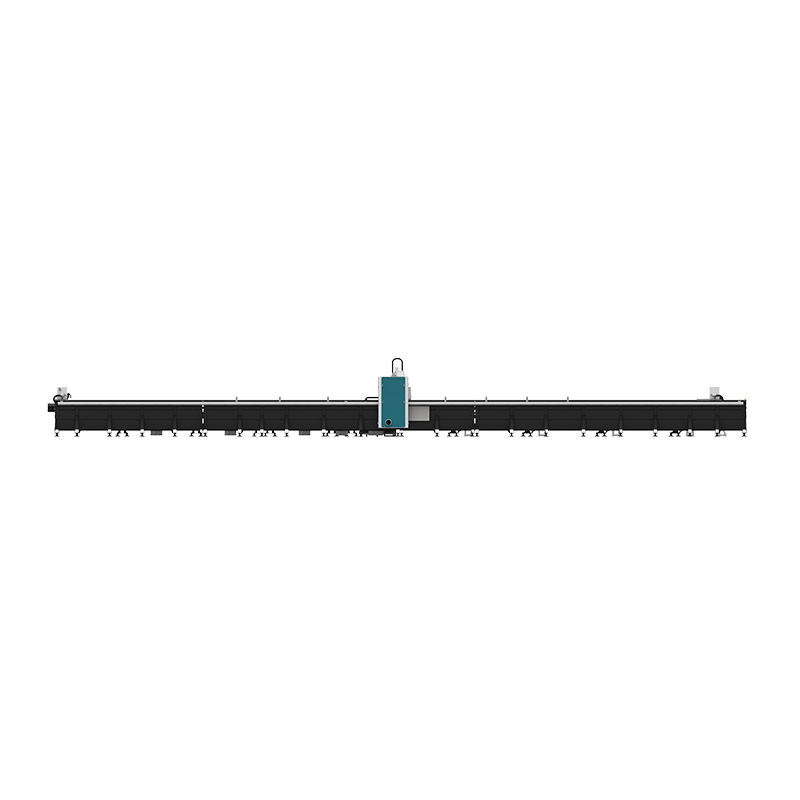

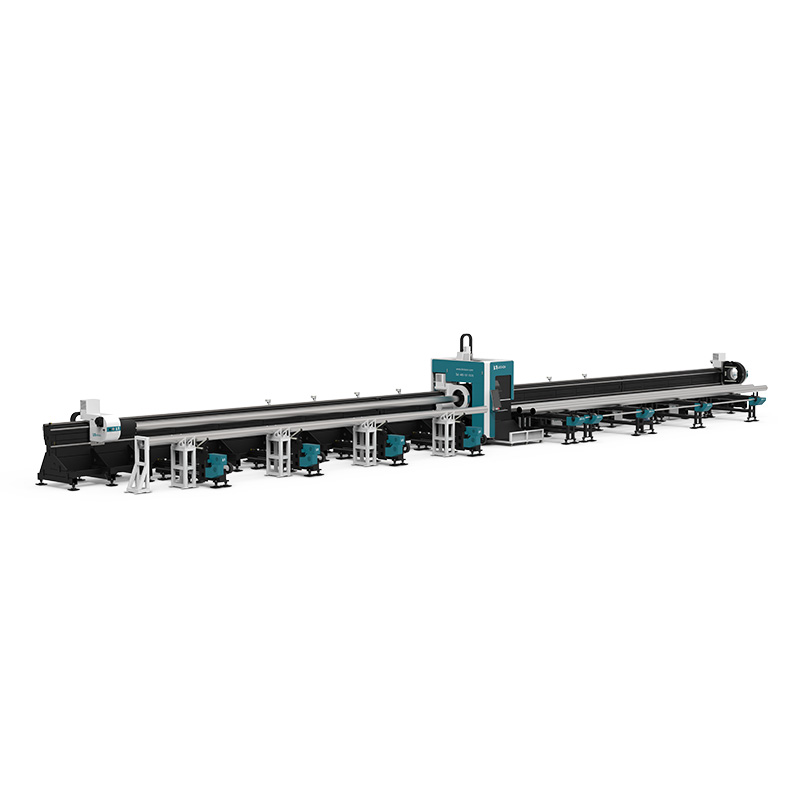

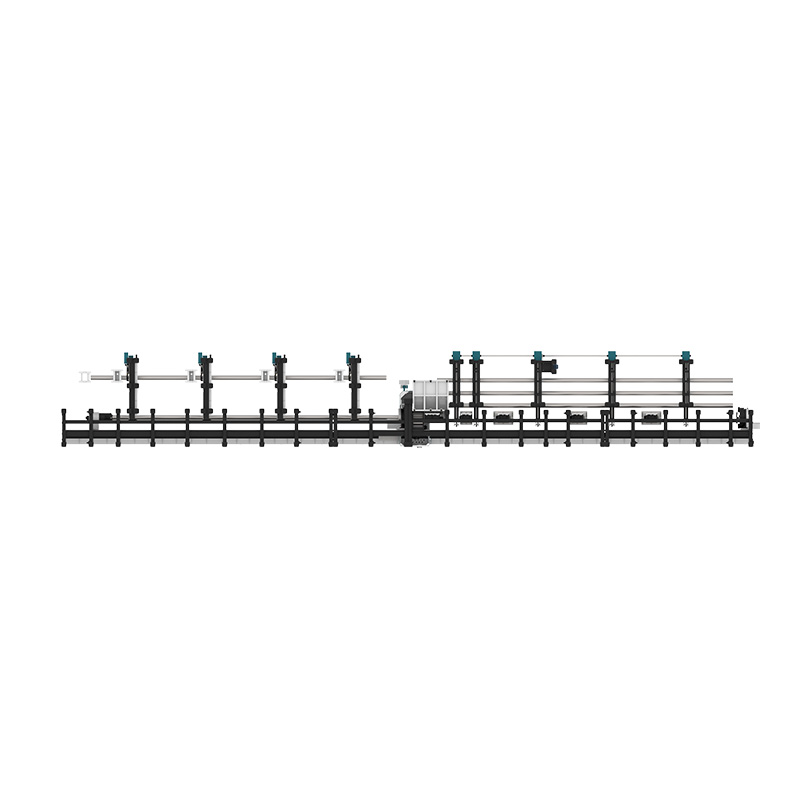

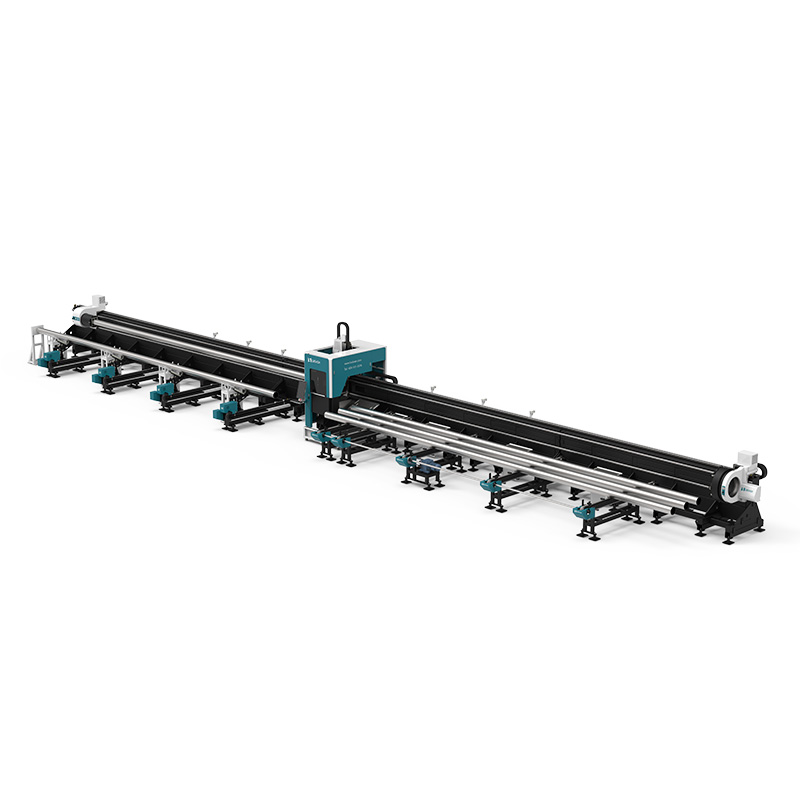

Famous TX124 2024 Fiber Laser Cutting Machine for Aluminium Metal Pipe Tube Factories, Exporters
Famous TX124 2024 Fiber Laser Cutting Machine for Aluminium Metal Pipe Tube Factories, Exporters
Famous TX124 2024 Fiber Laser Cutting Machine for Aluminium Metal Pipe Tube Factories, Exporters
Famous TX124 2024 Fiber Laser Cutting Machine for Aluminium Metal Pipe Tube Factories, Exporters
Famous TX124 2024 Fiber Laser Cutting Machine for Aluminium Metal Pipe Tube Factories, Exporters
1 / 5
Famous TX124 2024 Fiber Laser Cutting Machine for Aluminium Metal Pipe Tube Factories, Exporters
Famous TX124 2024 Fiber Laser Cutting Machine for Aluminium Metal Pipe Tube Factories, Exporters
Famous TX124 2024 Fiber Laser Cutting Machine for Aluminium Metal Pipe Tube Factories, Exporters
Famous TX124 2024 Fiber Laser Cutting Machine for Aluminium Metal Pipe Tube Factories, Exporters
Famous TX124 2024 Fiber Laser Cutting Machine for Aluminium Metal Pipe Tube Factories, Exporters

Famous TX124 2024 Fiber Laser Cutting Machine for Aluminium Metal Pipe Tube Factories, Exporters

TX124-1270-1 TX124-1270-2
The Segmented Rectangle Laser Tube Welded Bed
Good rigidity, high precision, no deformation during the life cycle;Welded aluminum collet board, formed through high precision process. Good weight and good dynamic performance1
Pneumatic Chunk Clamping Design
It adopts an pneumatic clamp design on both sides and it can modulate the center automatically.The diagonal adjustable range is 20-220mm(320/350 is opinional)
2
Professional Clamp Design
Automatic pneumatic chuck, adjustable and stable, clamping range is wider and clamping force is larger. Non - destructive pipe clamping, fast automatic centering and clamping pipe, performance is more stable. The chuck size is smaller, rotation inertia is low, and dynamic performance is strong. Self-centering pneumatic chuck, gear transmission mode, higher transmission efficiency, long working life and high work reliability
4
Fractional Automatic Support Installation
It employs intelligent tube support design, which can solve the deformationproblems in the process of long tube cutting
5

Send Inquiry

Product Description

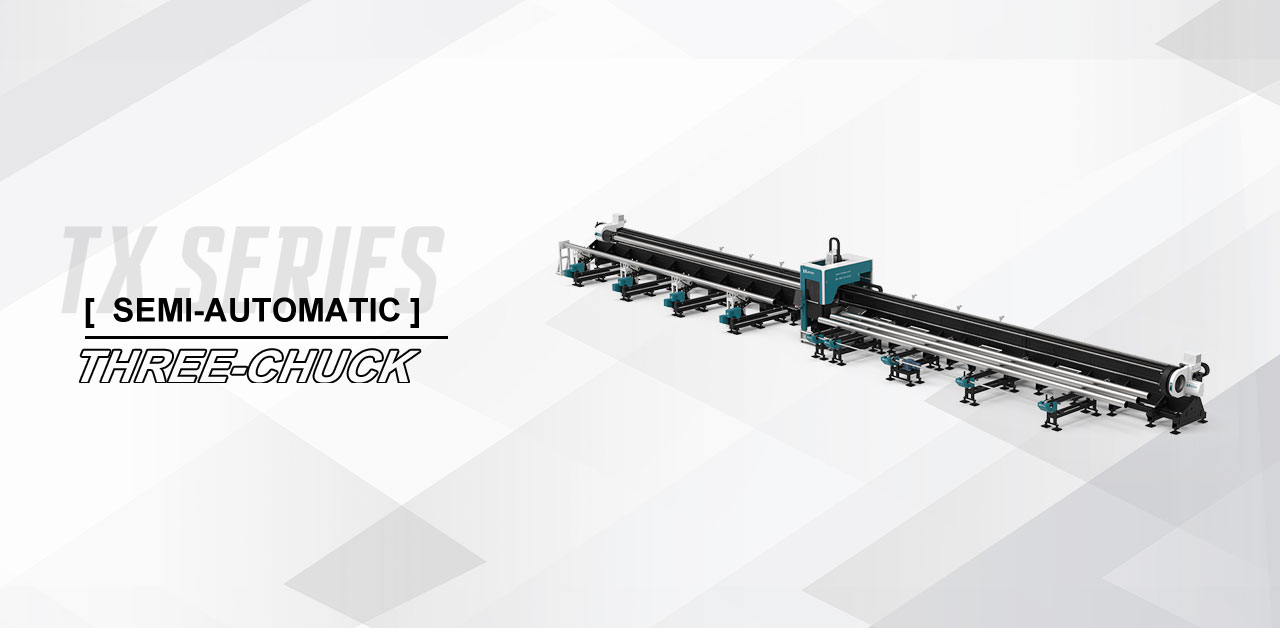

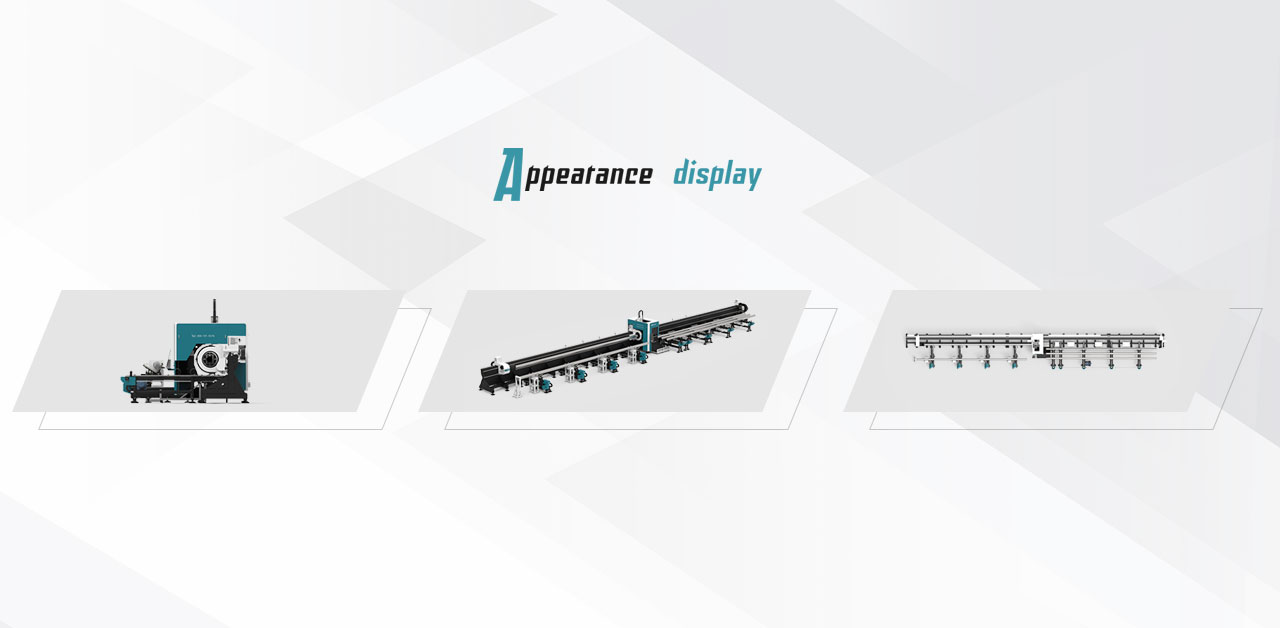

Laser Machine View 1 Laser Machine View 2
Key Features & Technical Advantages

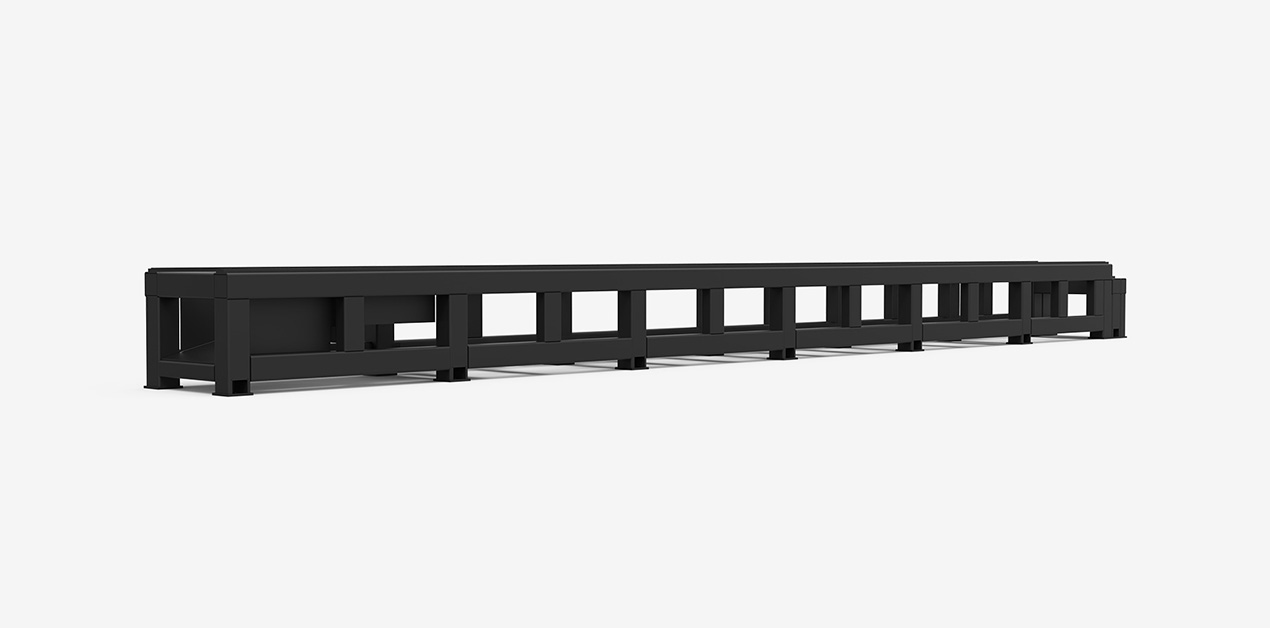

Segmented Rectangle Laser Tube Welded Bed
Good rigidity, high precision, no deformation during the life cycle; Welded aluminum collet board, formed through high precision process. Good weight and good dynamic performance.
Segmented Rectangle Laser Tube Welded Bed

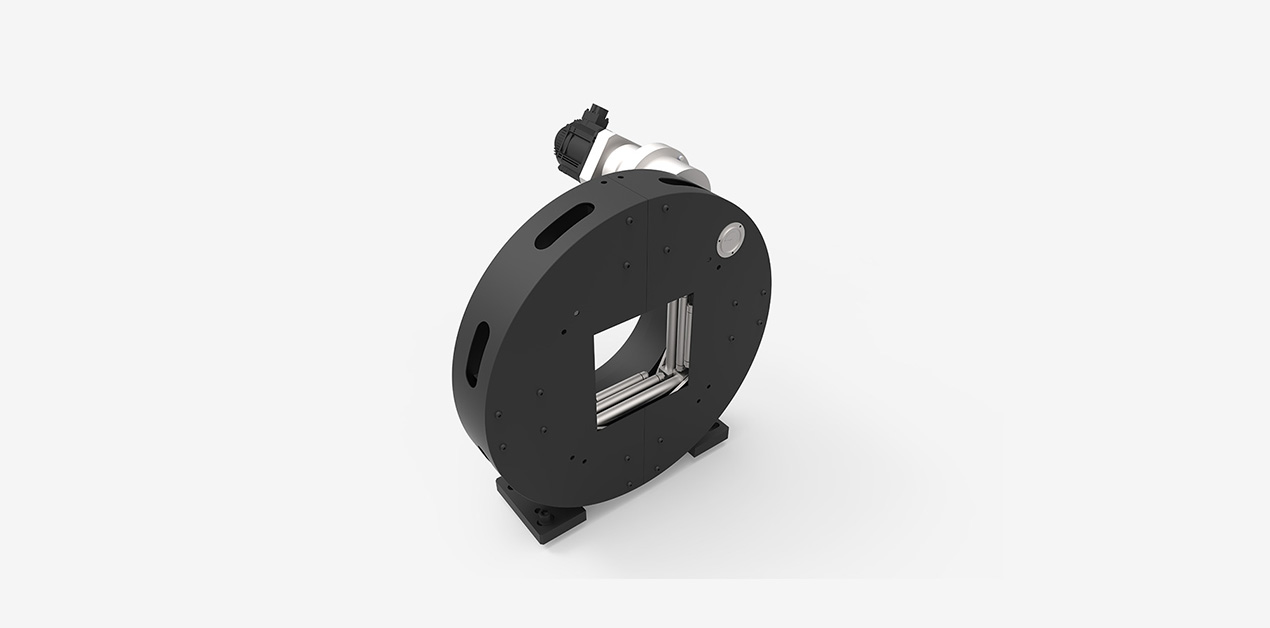

Pneumatic Chuck Clamping Design
It adopts a pneumatic clamp design on both sides and it can modulate the center automatically. The diagonal adjustable range is 20-220mm (320/350 is optional).
Pneumatic Chuck Clamping Design

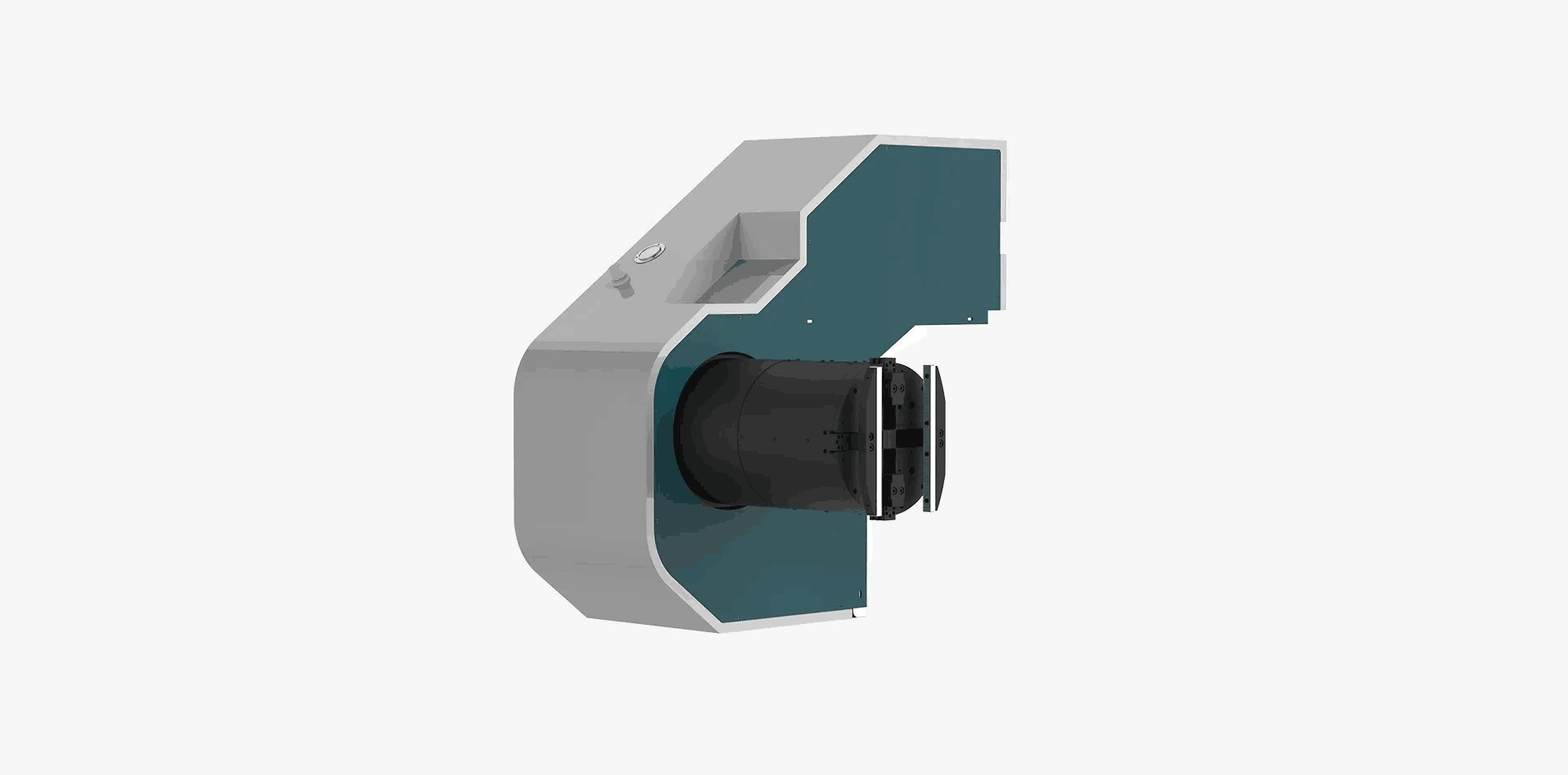

Professional Clamp Design
Automatic pneumatic chuck, adjustable and stable, clamping range is wider and clamping force is larger. Non-destructive pipe clamping, fast automatic centering and clamping pipe, performance is more stable. The chuck size is smaller, rotation inertia is low, and dynamic performance is strong. Self-centering pneumatic chuck, gear transmission mode, higher transmission efficiency, long working life and high work reliability.
Professional Clamp Design

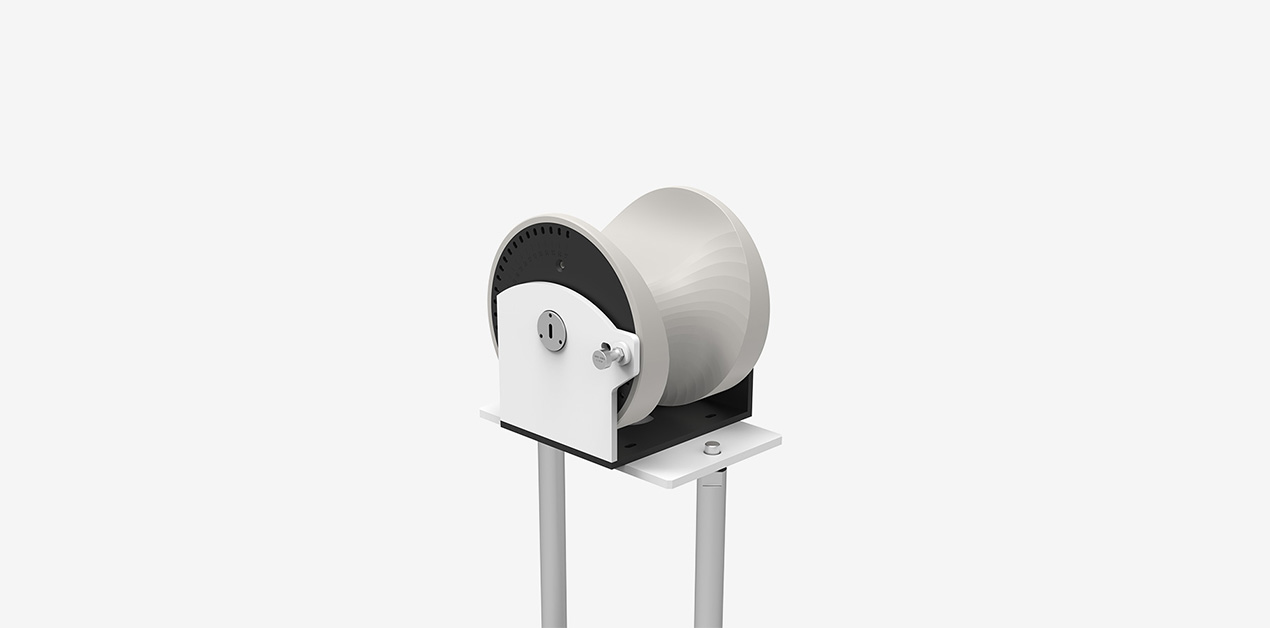

Fractional Automatic Support Installation
It employs intelligent tube support design, which can solve the deformation problems in the process of long tube cutting.
Fractional Automatic Support Installation

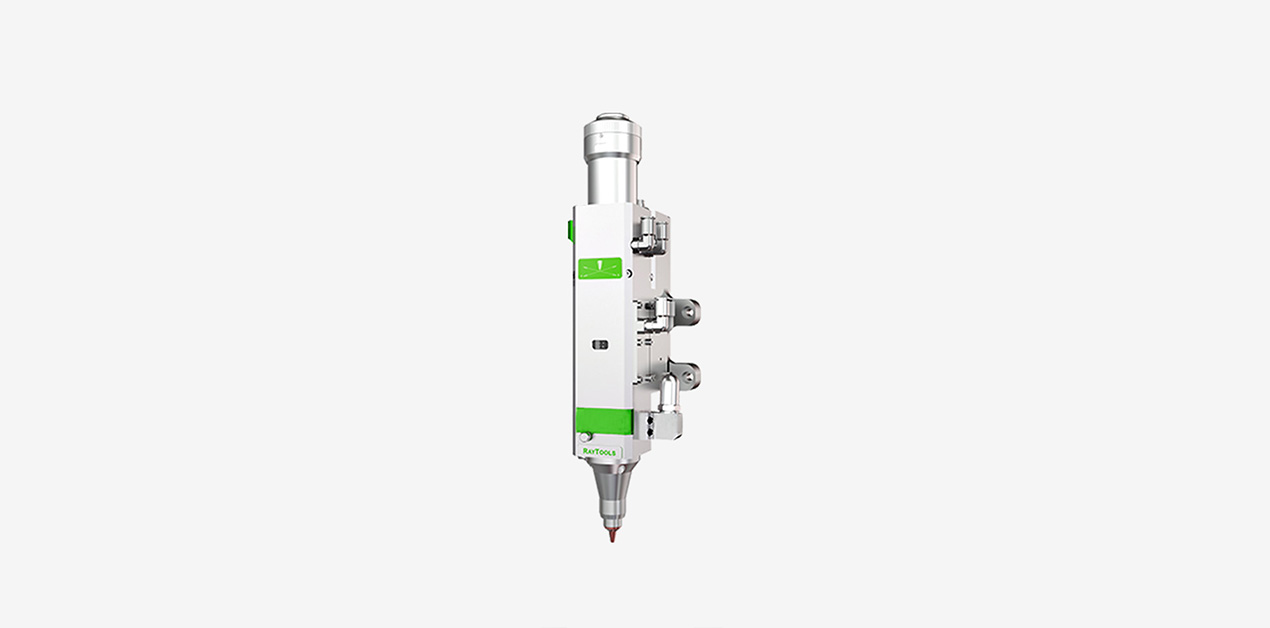

Installation Autofocus
It will automatically in cutting process adjust the focus which can realize the best cutting effect of different thickness of metal.
Installation Autofocus
Technical Specifications
Model LX124TX
Laser Power 1-20KW
Maximum Idle Running Speed 120m/min
Maximum acceleration 1.2G
Position Accuracy ±0.02mm/m
Repeat Positional Accuracy ± 0.01mm
Metal style Tube
Position Type red dot
Working Voltage 380V /50Hz
Auxiliary Gas oxygen, nitrogen, air
Working life of fiber module More than 100000 hours
Cooling System Industrial water chiller
Work Environment 0-45°C, Moisture 45-85%
Factory & Production Showcase
Cutting Samples
Pipe Samples
Factory Environment
Factory Overview
Our Service
After-sales Service
Customer Visits
Customer Visit Group Photo
Off-line Activities
Exhibition Activity Collage
Frequently Asked Questions
Q Do you have CE documents and other documents for customs clearance?
Yes, we have the original documents. Initially, we will present them to you, and after shipment, we will provide the CE certificate, Packing List, Commercial Invoice, and Sales Contract to facilitate your customs clearance process.
Q What are the available payment terms?
We accept TT, Western Union, Paypal, LC, Cash, and other standard payment methods.
Q How do I handle operation training or issues during use?
We can assist you via TeamViewer, WhatsApp, Email, Phone, or Skype with camera guidance until all setup or operation inquiries are fully resolved. On-site technical support is also available if required.
Q I am unsure which model is suitable for me. What should I do?
Please provide us with the following details:
1) Maximum working size (to select the most compatible model size).
2) Materials and cutting thickness (to determine the appropriate laser generator power).
3) Your specific business industry (so we can share tailored recommendations based on our industry experience).
Q What is the warranty period for this machine?
We offer a comprehensive warranty for the entire machine frame and core components (excluding consumables), combined with lifetime technical support to ensure your uninterrupted production.
Q What is the standard delivery and production time?
Standard production typically takes around 15-20 working days. Once the testing phase is complete and payment is verified, we arrange immediate dispatch to ensure timely delivery.
