| Machine Technical Specifications | |
|---|---|
| Machine Model | LX0640G |
| Power of Generator | 500/750/1000/1500W (optional) |
| Transmission Mode | Grinding Precision Screw Transmission |
| Working Area | 600*400mm |
| Repeated Positioning Accuracy | ±0.006mm |
| Max Running Speed | 40m/min |
| Max Acceleration | 0.5G |
| Specified Voltage And Frequency | 220V 50/60HZ |
Strong stability, high precision, 20 years without deformation.

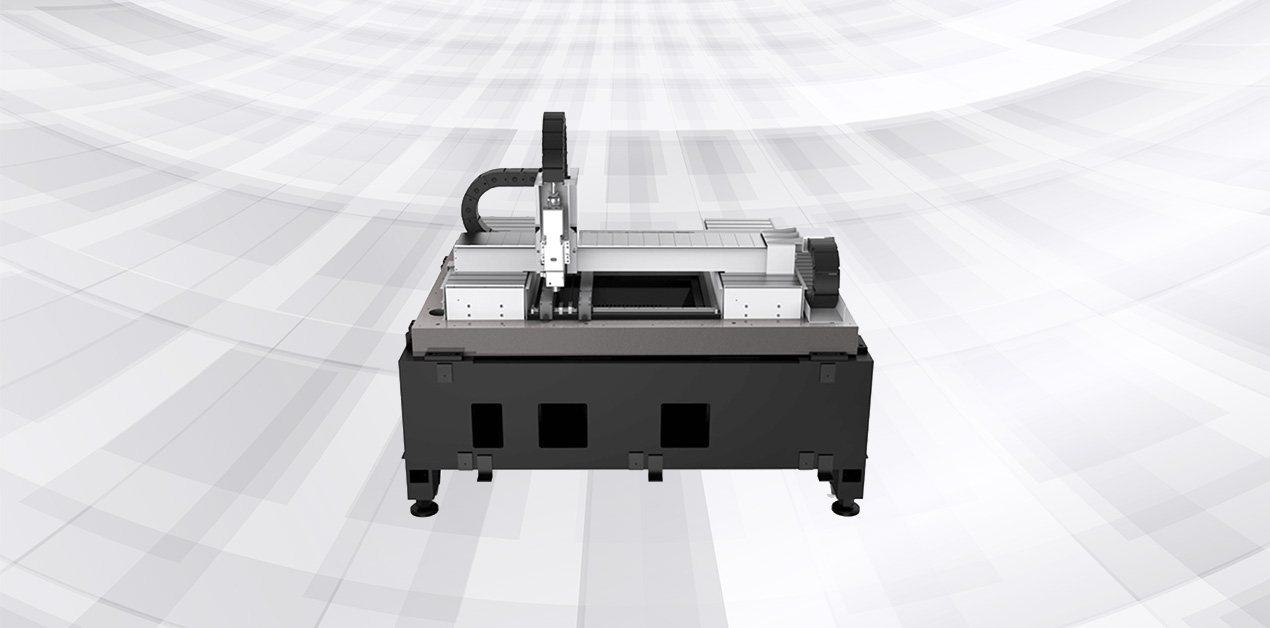

Both sides of the Y-axis are designed with double guide rails and double ball screws, which can avoid the deformation of the cutting line caused by the bending of the Y-axis screw, thereby ensuring the cutting accuracy.
The theoretical life of the laser generator is 100,000 hours, ensuring long-term operation capability.

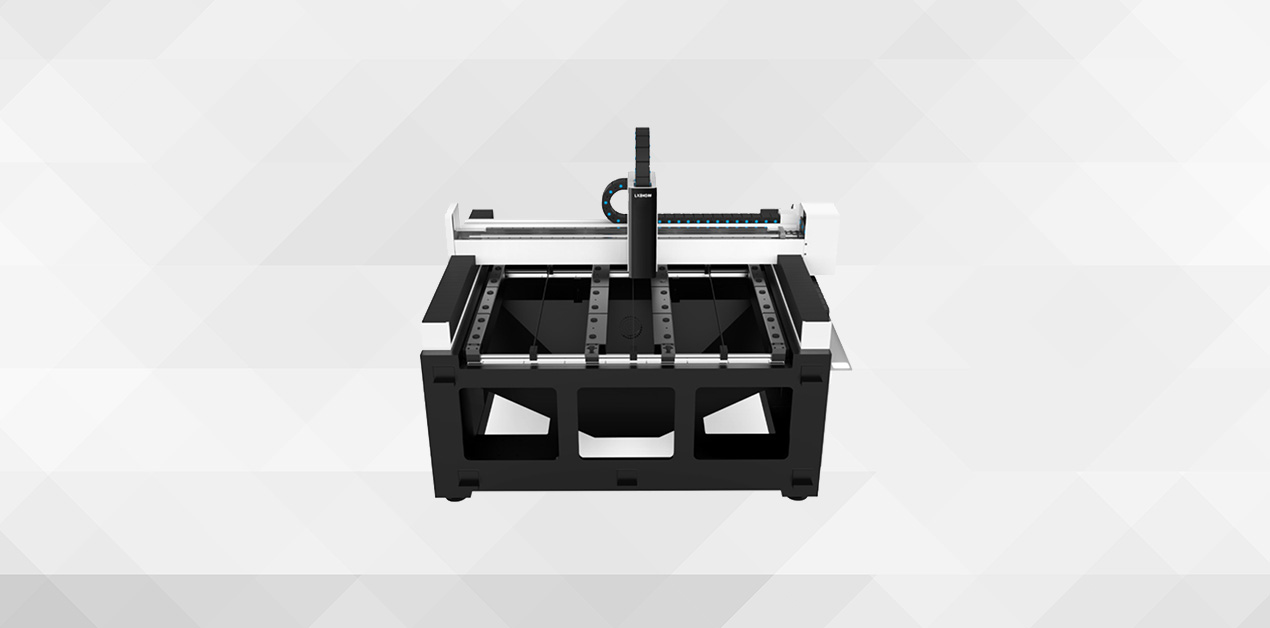

Features a fully enclosed design with durable, rust-resistant components. The aluminum elements provide excellent shock resistance, stability, and oxidation protection.

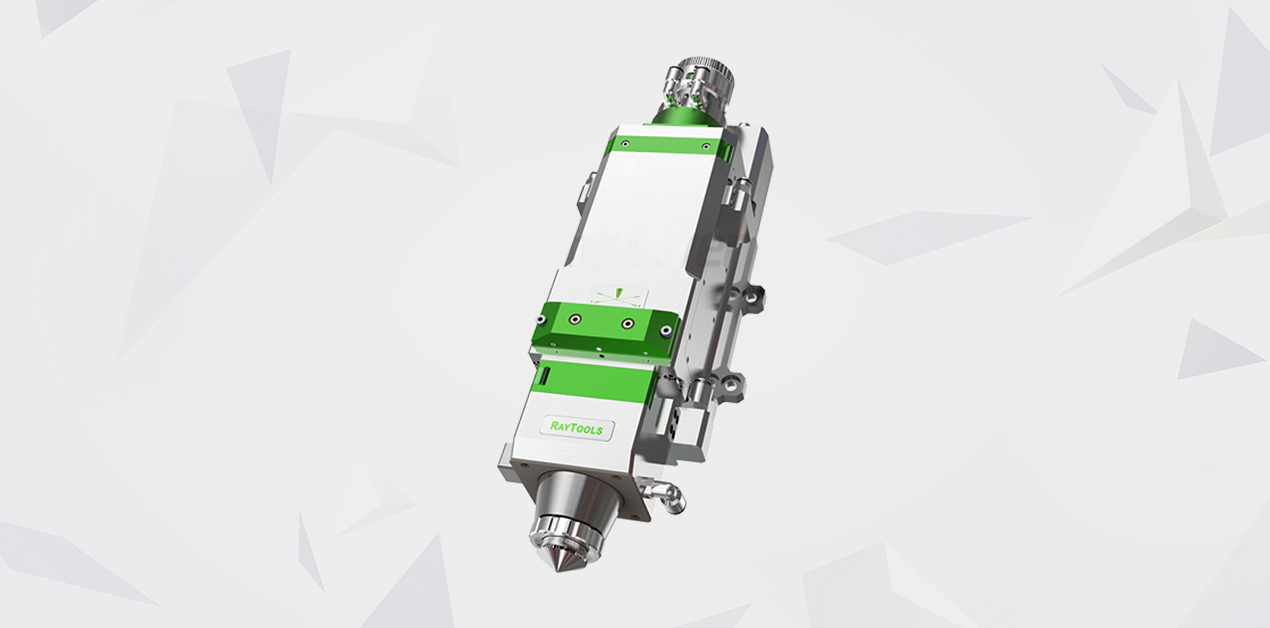

Automatic focusing allows for seamless cutting of various plate thicknesses. Autofocus lenses react ten times faster than manual focus options.

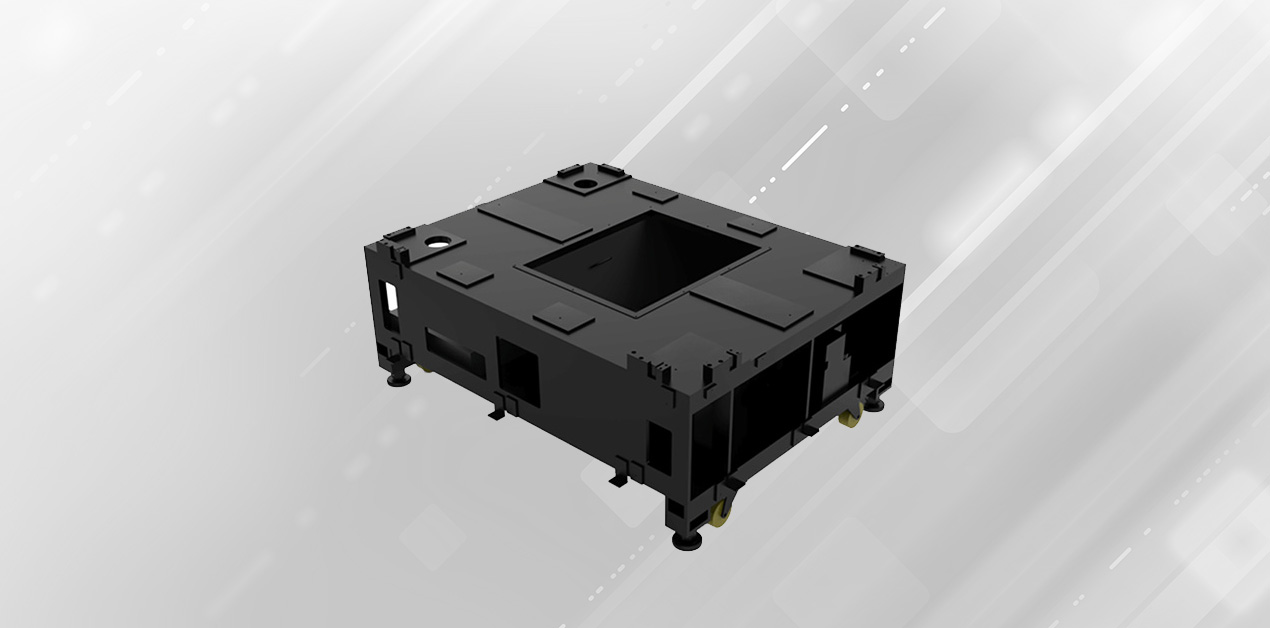

Structural Machine Bed: Adopted carbon structural steel with good toughness, ductility, welding performance and thermal processing; Stress annealing and vibration aging treatment eliminate the stress in welding and processing of machine bed, the machine bed precision is long-lasting.
European CE standard: The observation window adopts European CE Standard laser protective glass.

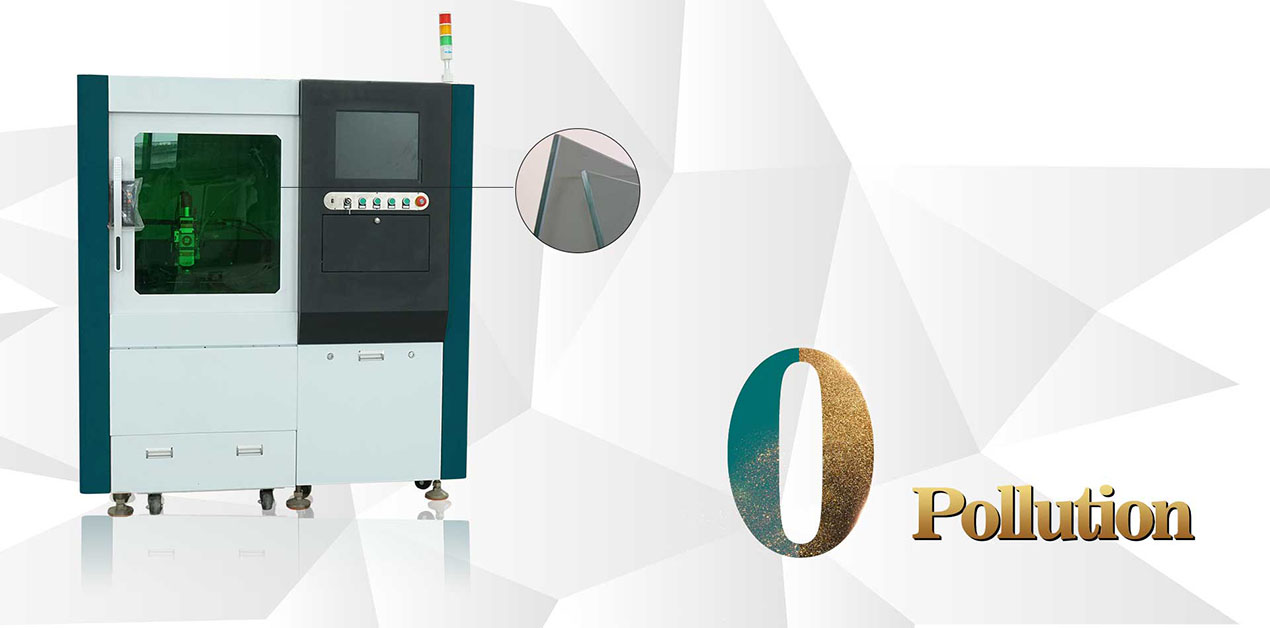

Environmentally Friendly: The smoke produced by cutting can be filtrated inside, it's non-polluting and environmentally friendly.

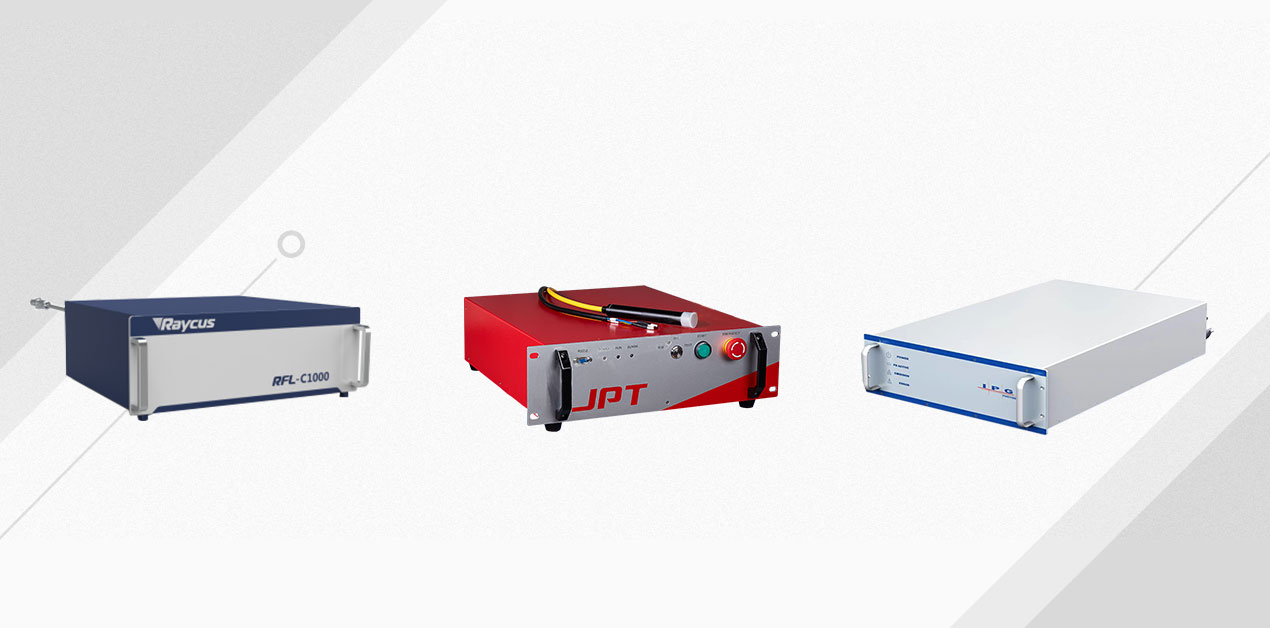

Generator Brands: Optional brands of generators: Our partners: JPT/Raycus/IPG/MAX/Nlight.
Water-Cooled Heat Sinks: Long lasting: Both the collimating mirror and the focusing mirror are equipped with water-cooled heat sinks, which can effectively reduce the temperature generated during the cutting process and improve the service life of the cutting head.

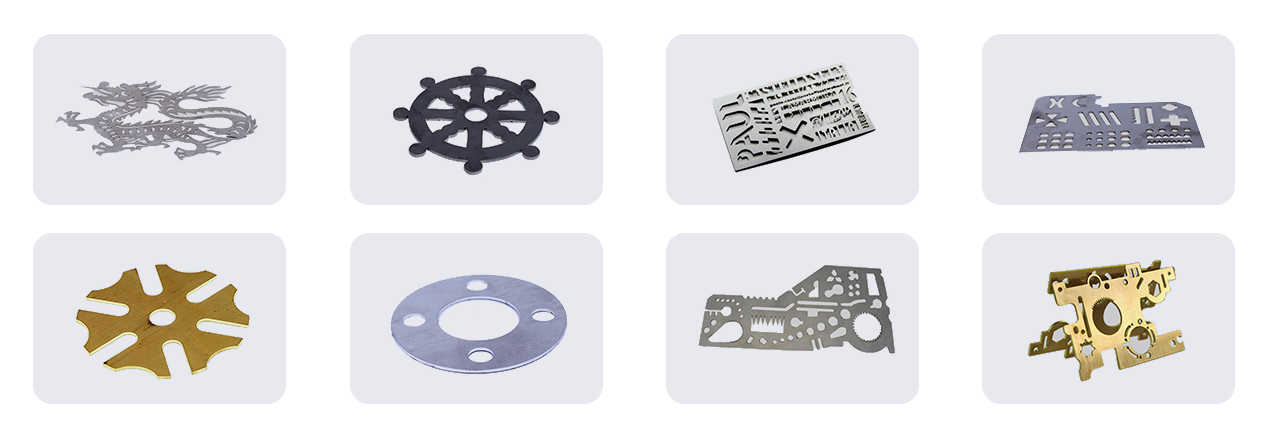

Fiber Laser Metal Cutting Machine is suitable for metal cutting like Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, etc.
Fiber Laser Cutting Machines are widely used in manufacture Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal crafts, metal art ware, elevator panel cutting, hardware, auto parts, Glasses Frame, Electronic Parts, Nameplates, etc.
