| Machine Model | LX12025L | LX12020L | LX16030L | LX20030L | LX24030L |
|---|---|---|---|---|---|
| Working Area | 12100*2550 | 12100*2050 | 16500*3200 | 20500*3200 | 24500*3200 |
| Power of Generator | 1kw-4kw | ||||
| X/Y-axis Positioning Accuracy | 0.02mm/m | ||||
| X/Y-axis Repositioning Accuracy | 0.01mm/m | ||||
| X/Y-axis Max. linkage speed | 80m/min | ||||

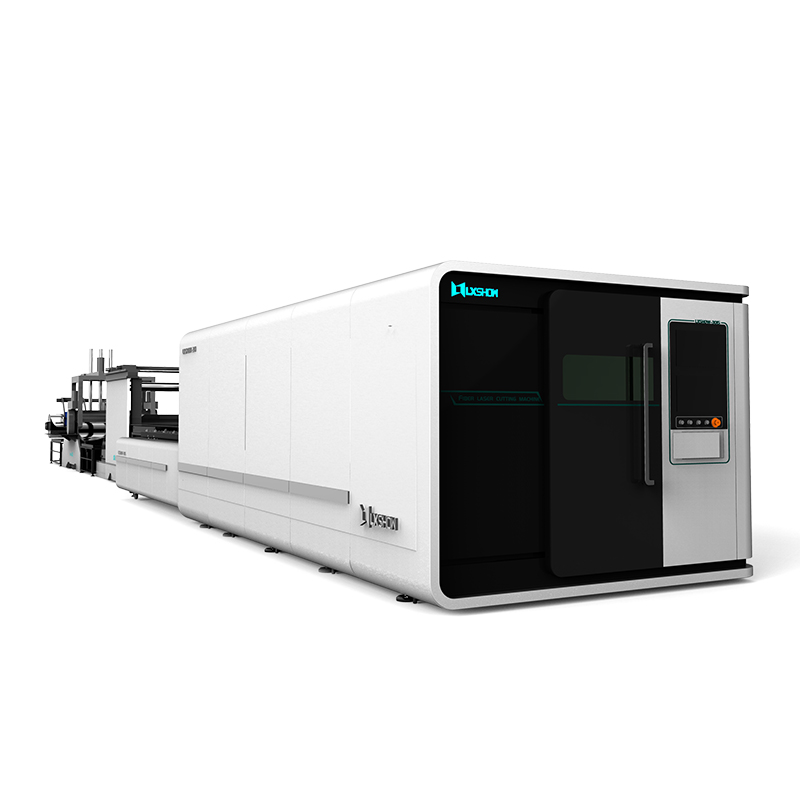

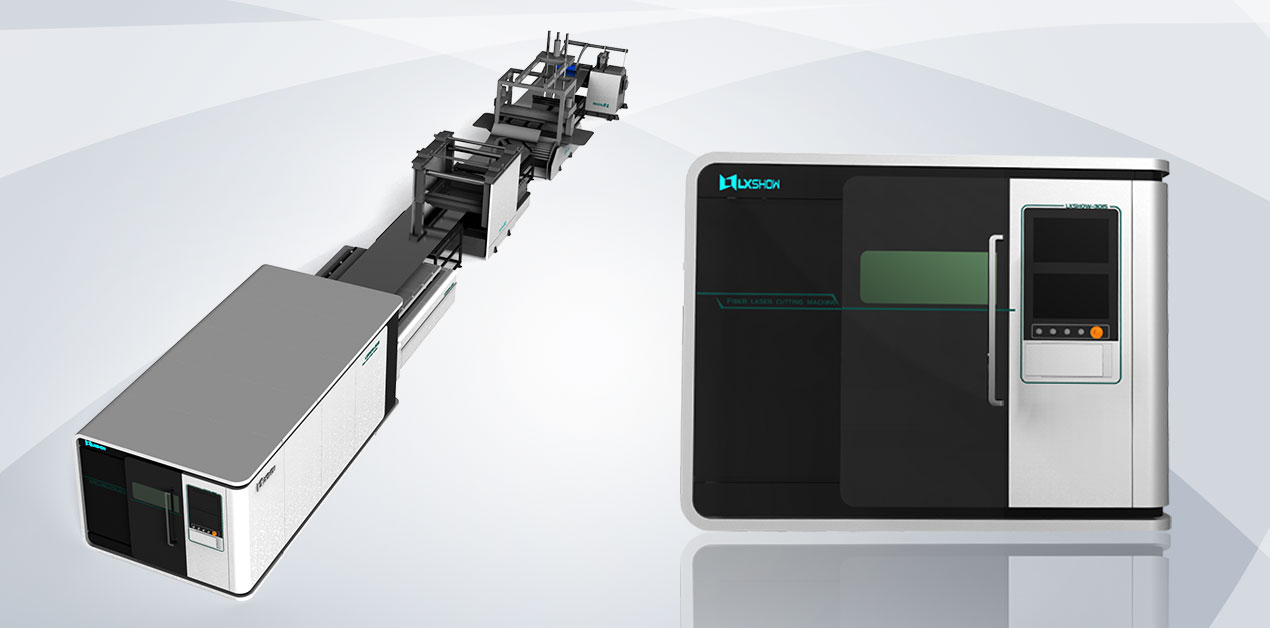

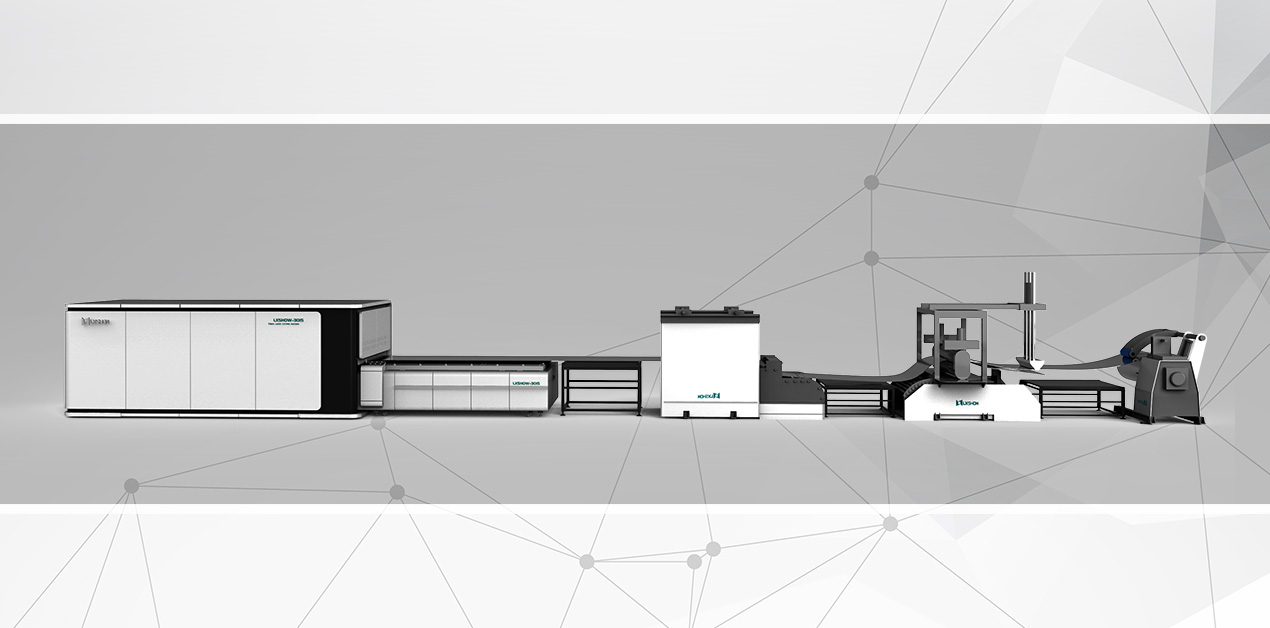

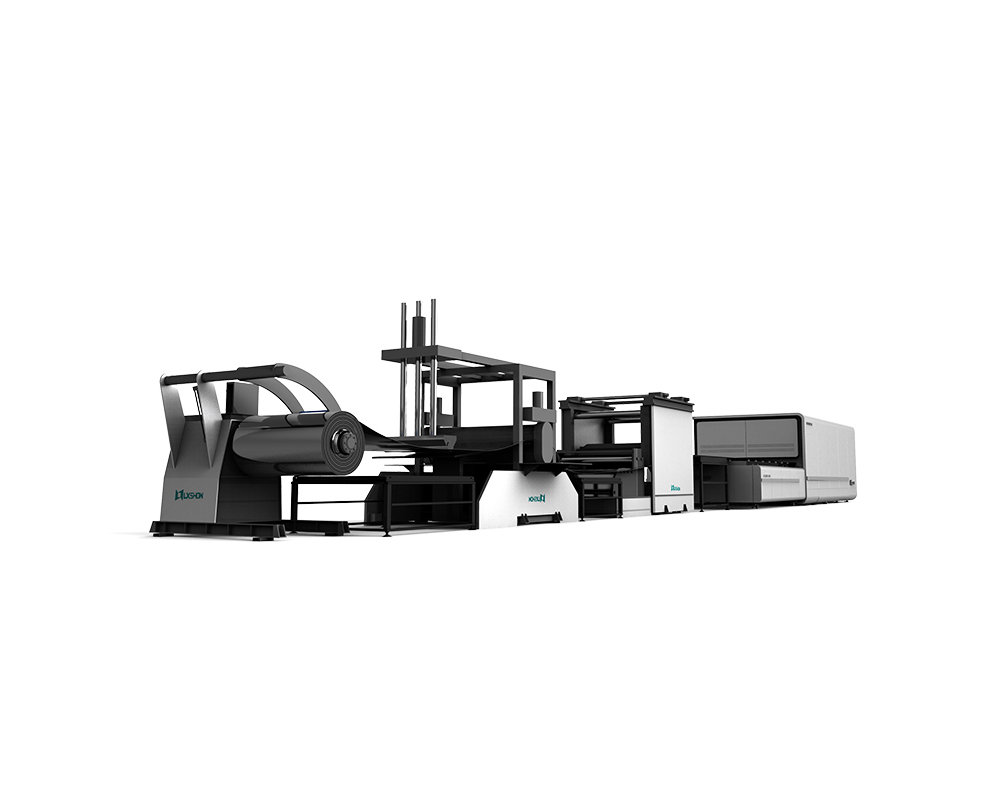

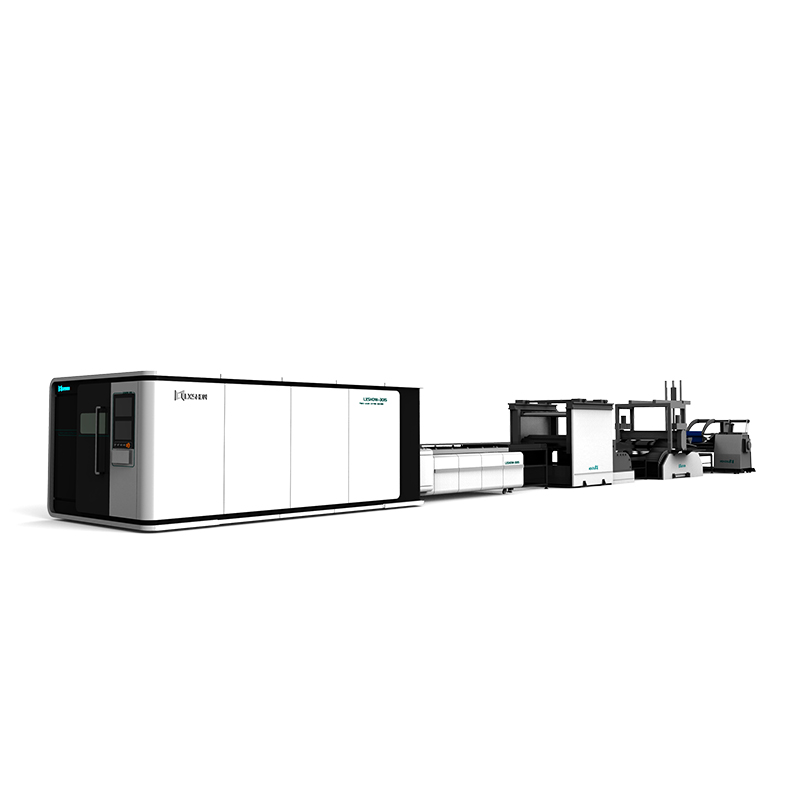

Coil cutting machine features with integration of automatic uncoiling, leveling, feeding and cutting to ensure the continuity of processing and production, improving processing efficiency. Flow line production and batch processing reduce labor intensity and save manpower. Full enclosure design with compact structure, higher safety and environmental protection during operation; flexible processing and application.
Automatic feeding of coil material, continuous cutting and batch processing improve processing efficiency and reduce labor intensity.

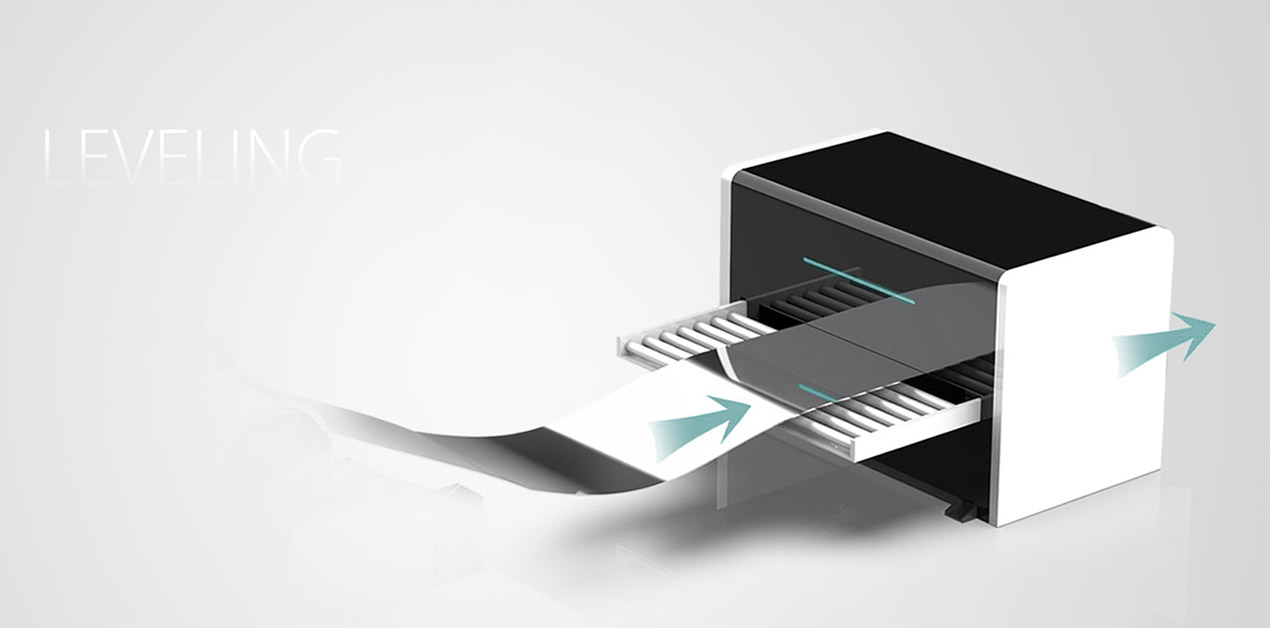

Leveling feeder leveling the material, adjustment accuracy of correction amount: ±0.01mm.

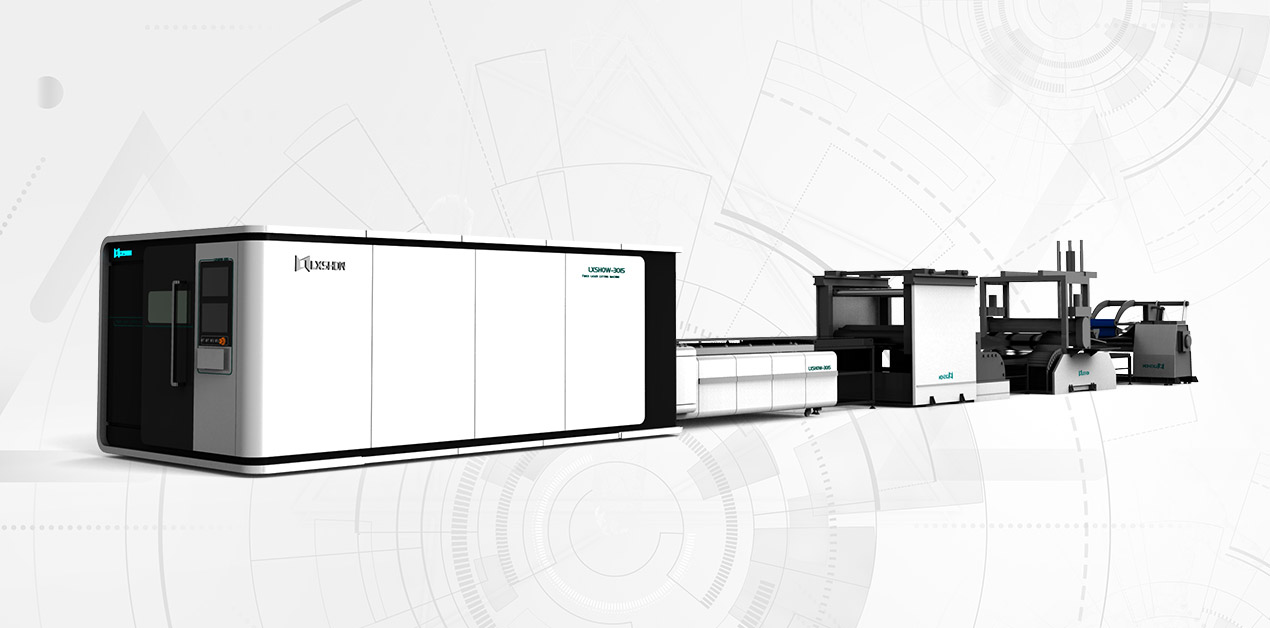

Adopt belt conveyor and adjustable width limiting device; the sheet material after processing is automatically transmitted to the unloading mechanism and then palletized by lifting mechanism according to the material width. Finished materials need no manual sorting any more, centralized sorting improves the working efficiency and saves labor cost.

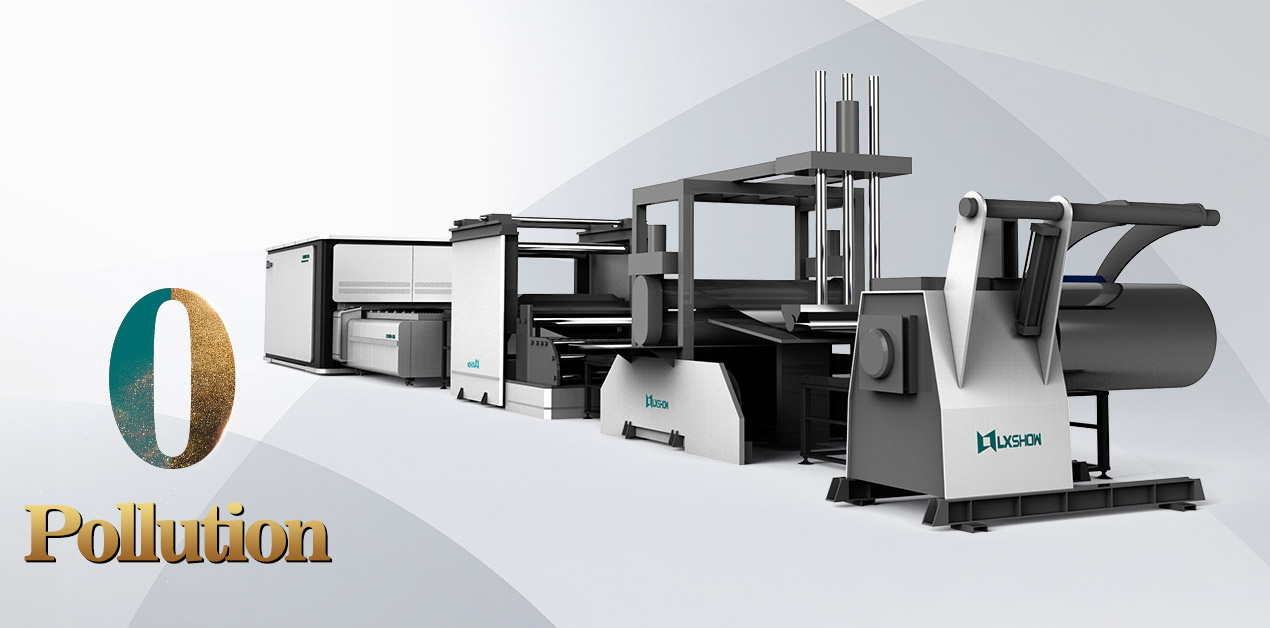

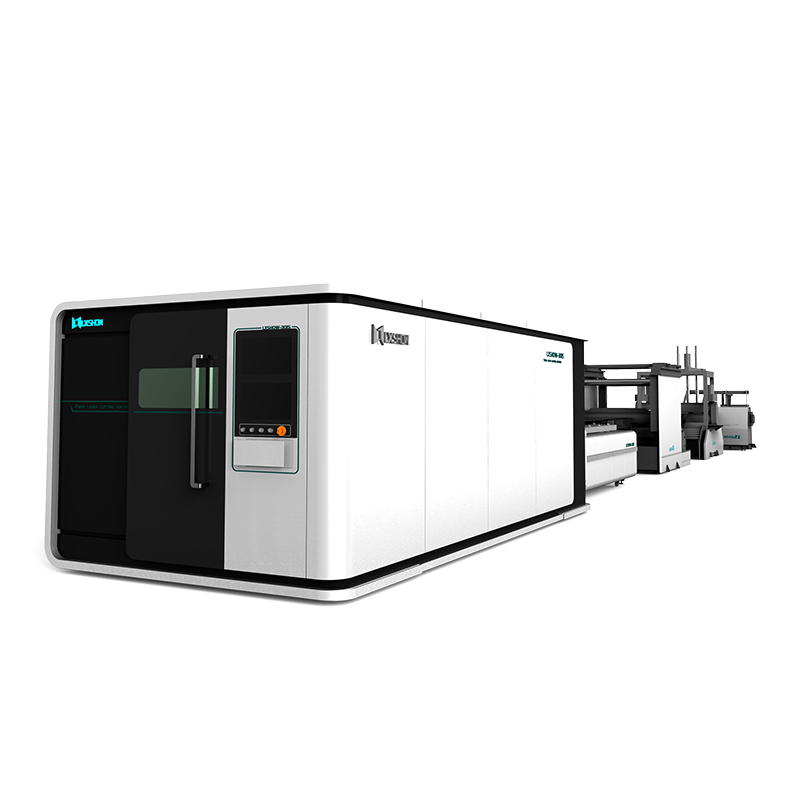

Full closed protection improves using security; laser protection glass isolates laser radiation to human beings; automatic collection system of smokes and dusts is environment friendly; intelligent monitoring system reduces accident rate, making us enjoy beauty and health in cutting process.

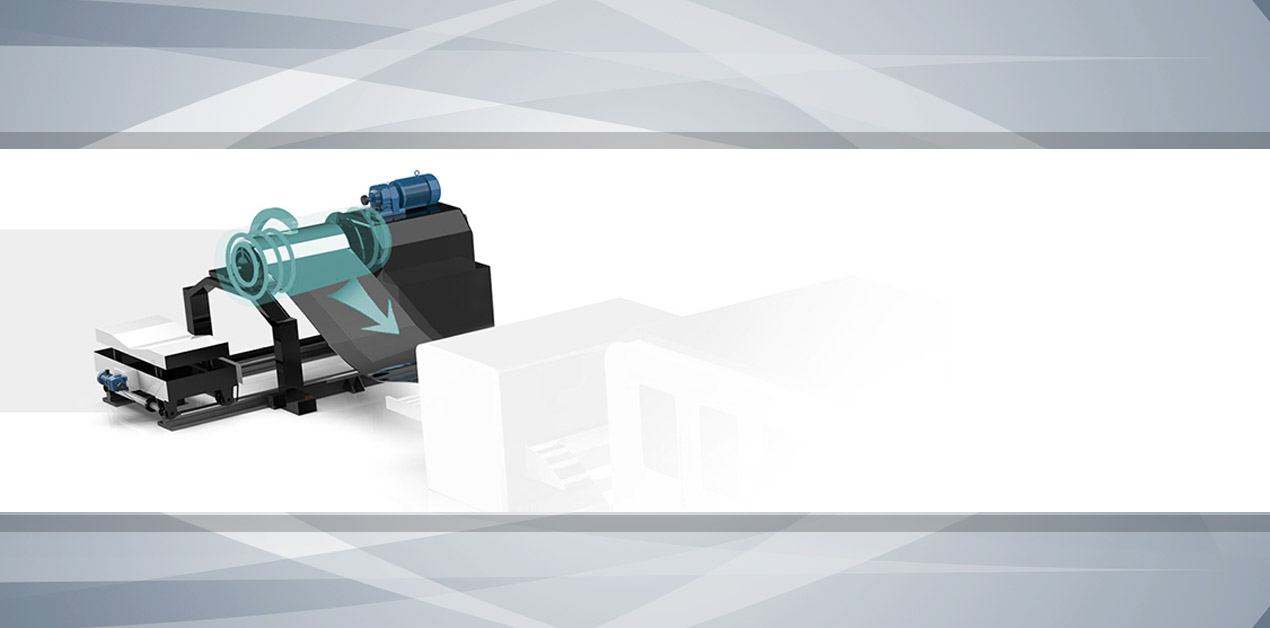

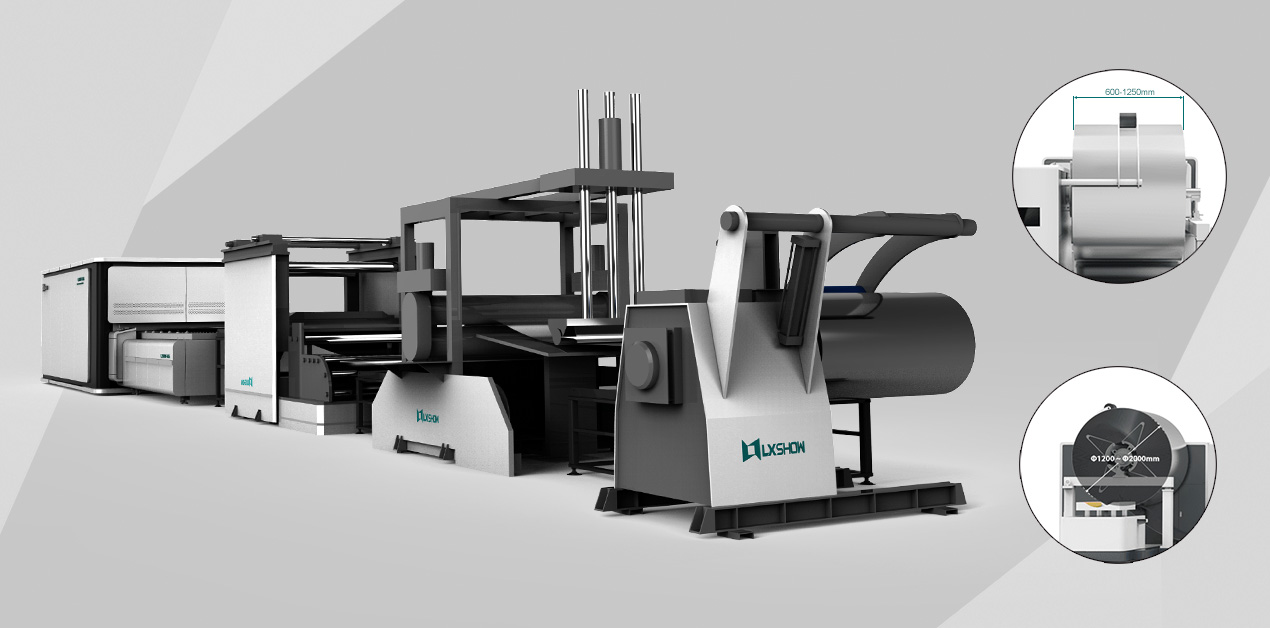

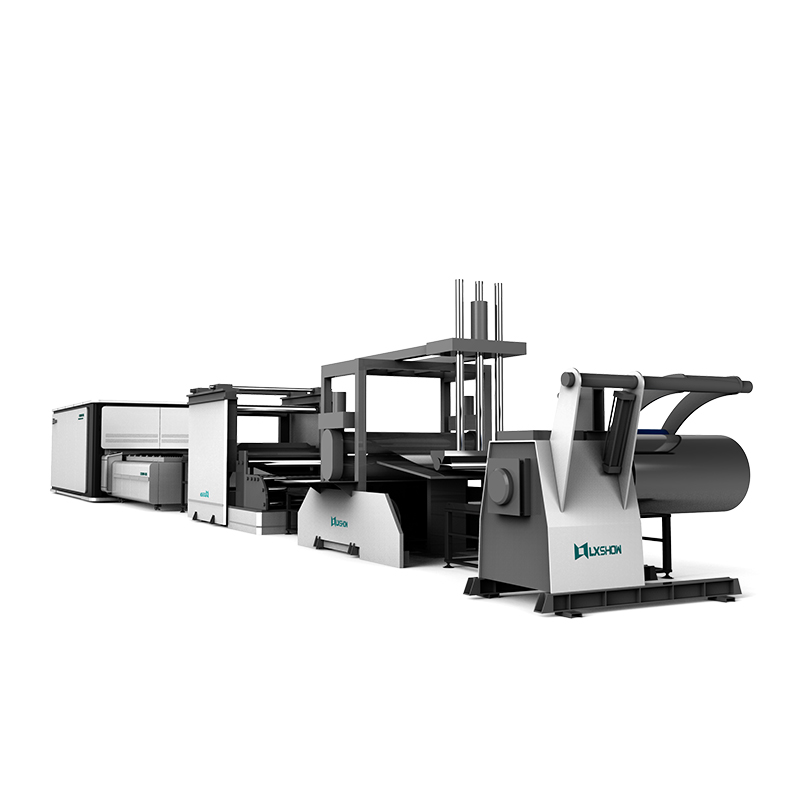

The uncoiler unwinds the roll material, and the width of the loaded coil material is 600-1250mm; the load capacity is up to 10000kg.

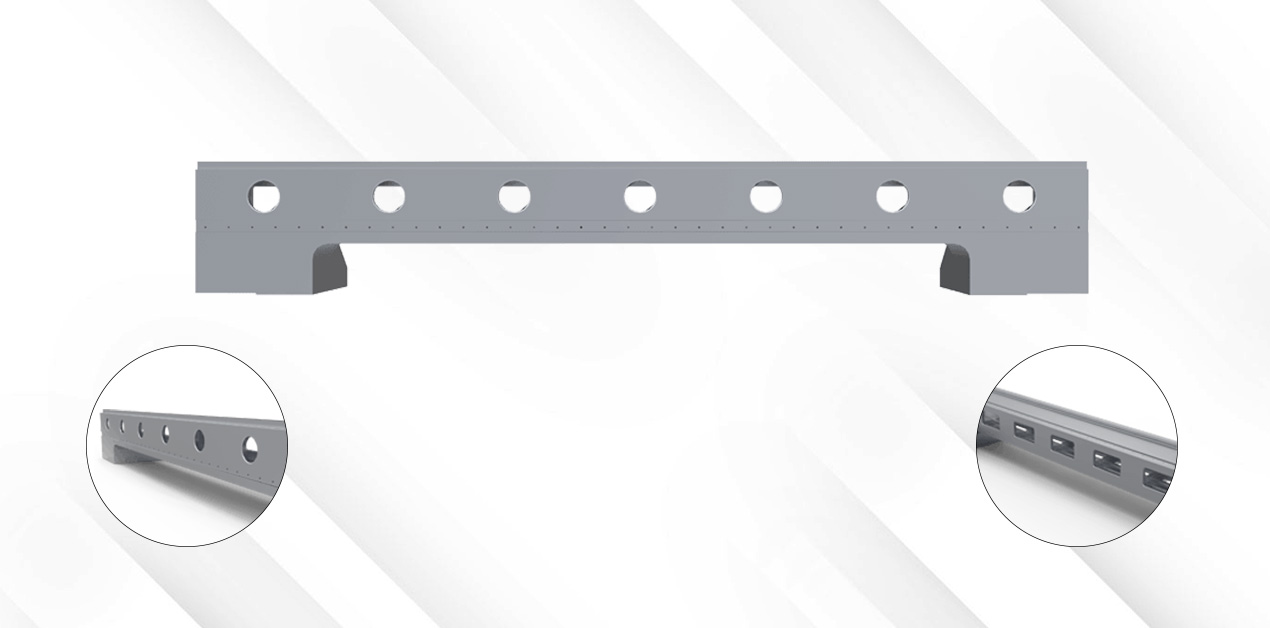

After artificial aging, solution treatment and finishing, crossbeam owns good integrity, rigidity, surface quality, toughness and ductility. Aluminum alloy’s metal characteristics of light weight and strong rigidity are helpful to high speed movement in processing, and high flexibility is beneficial to high-speed cutting of various graphics based on high accuracy. Light crossbeam can give equipment a high operation speed, improving processing efficiency to ensure processing quality.

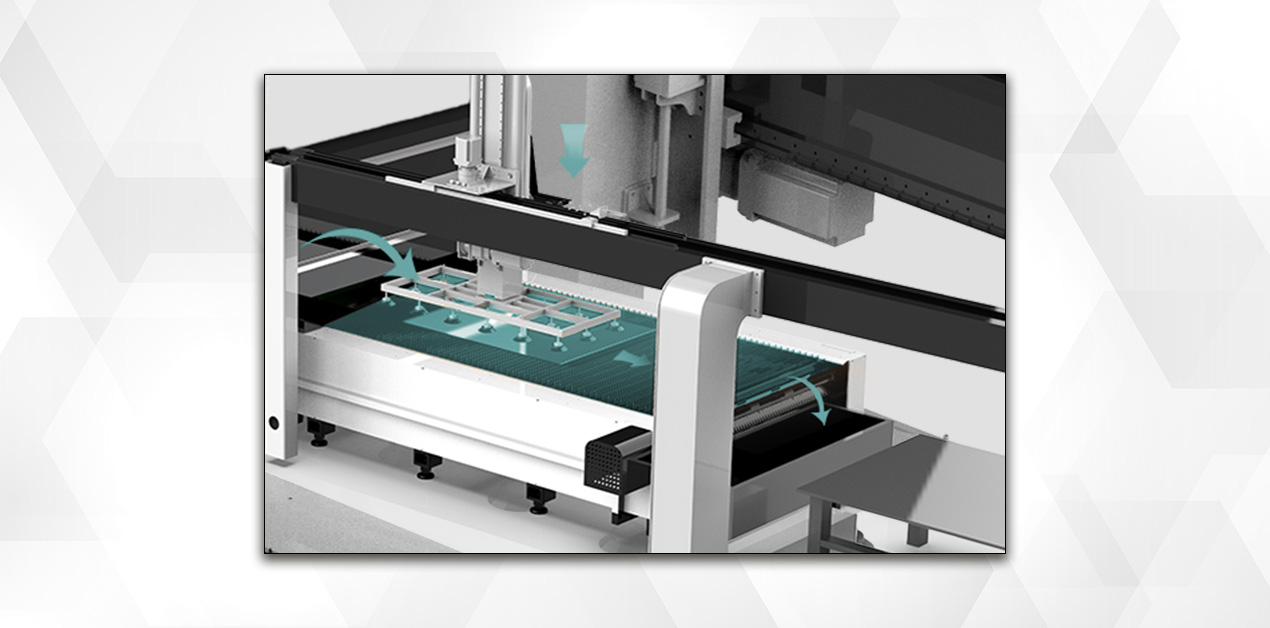

Hobbing type conveying structure, vacuum chuck automatic unloading the finish product, automatic stacking of finished products, saving labor and improving efficiency.

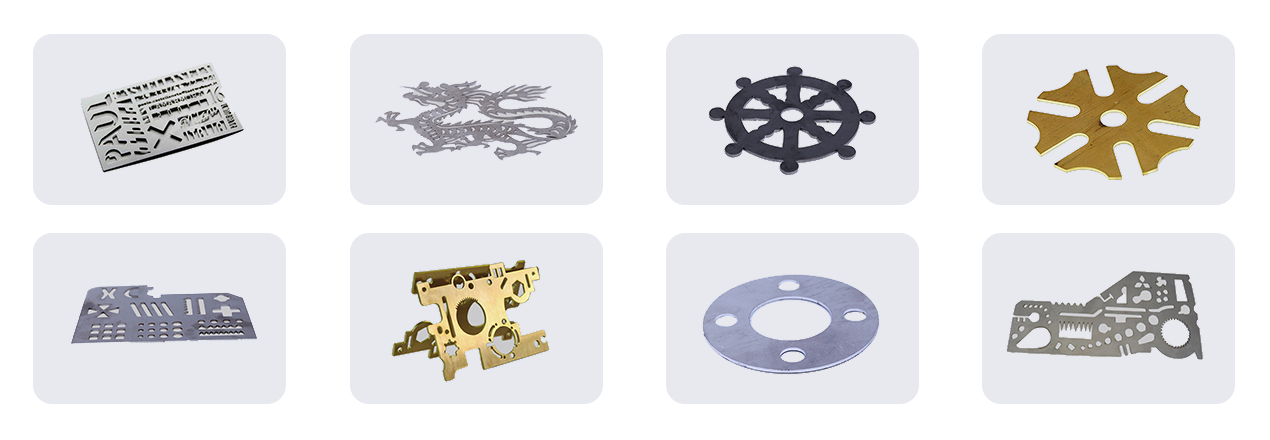

Fiber Laser Metal Cutting Machine is suitable for metal cutting like Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, etc.
Fiber Laser Cutting Machines are widely used in manufacture Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal crafts, metal art ware, elevator panel cutting, hardware, auto parts, Glasses Frame, Electronic Parts, Nameplates, etc.
