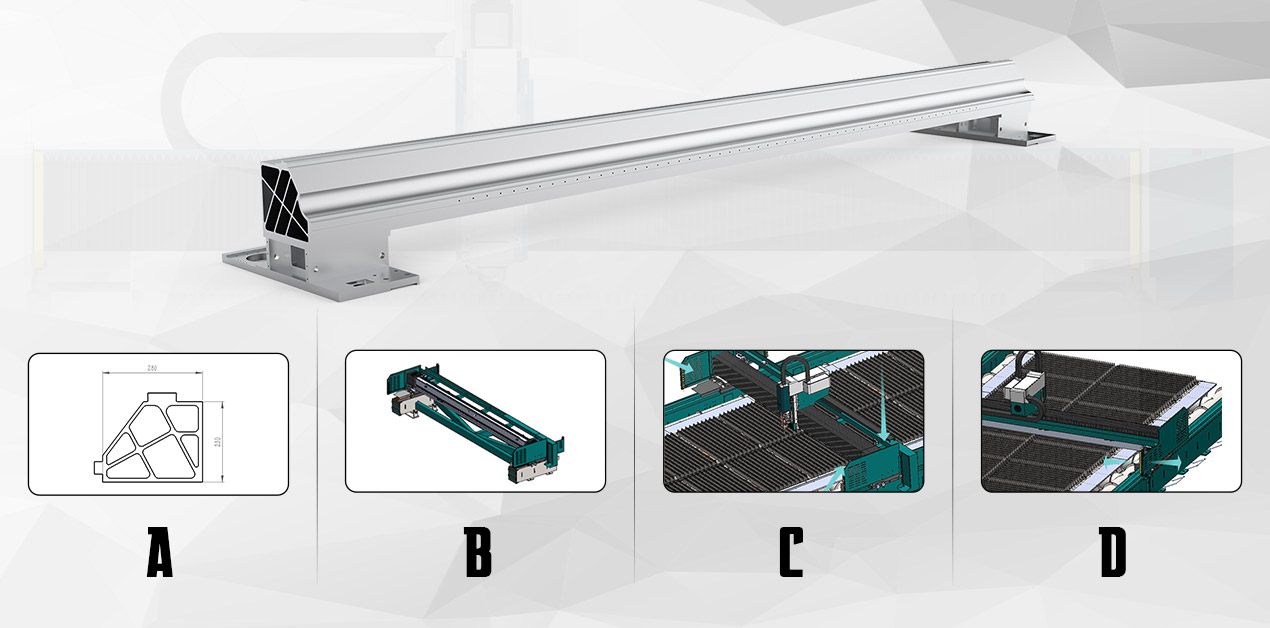

The triangular beam with super large section can maximize the rigidity of the beam while reducing the weight of the beam.
The gantry can be delivered modularly without disassembling the beam to avoid the loss of precision caused by the disassembly of the beam.
Equipped with light curtain protection to prevent the machine gantry from colliding with workers.
With the self-adaptive adjustment function on the left and right sides of the gantry, even if there is an error in the on-site assembly accuracy of the customer, the self-adaptive adjustment function can ensure the cutting accuracy to the greatest extent.

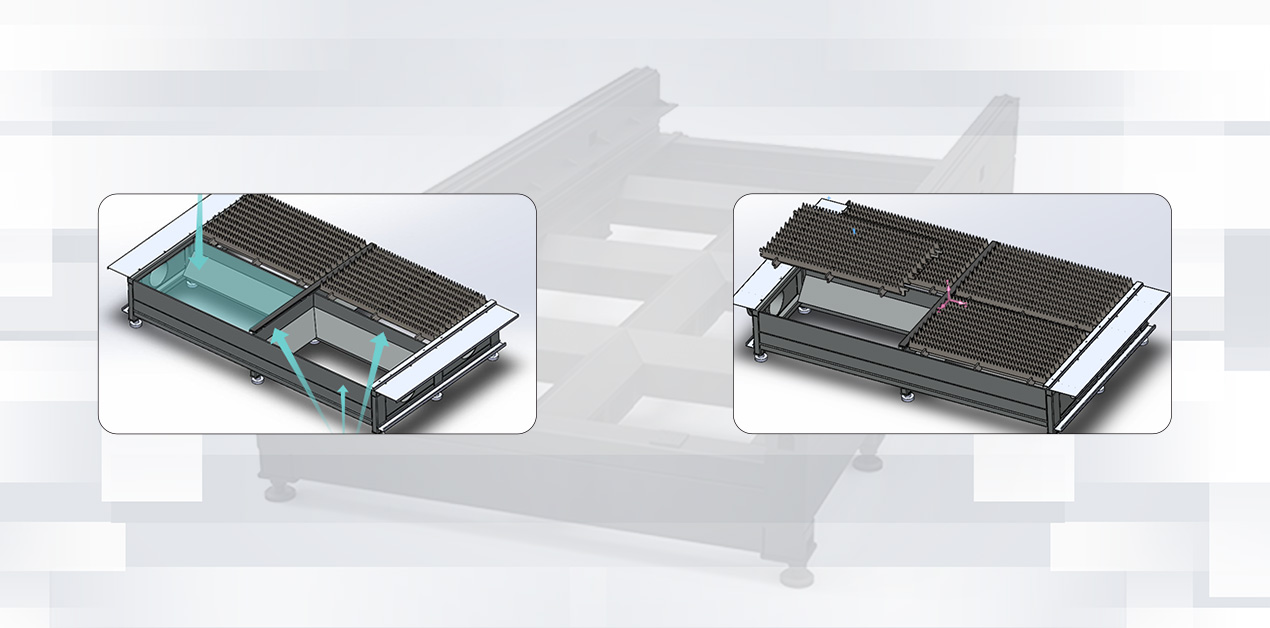

Full 360° strong adsorption for comprehensive dust capture.
Fully enclosed smoke control to isolate cutting particulates.
Automatically senses cutting head position to optimize dynamic extraction.
Adopted the integrated aviation aluminum beam reduces the weight of the beam and maximizes the rigidity of the beam.
The waste lubricating oil recovery mechanism is equipped everywhere to prevent the accumulation of lubricating waste oil and cause fire hazards.

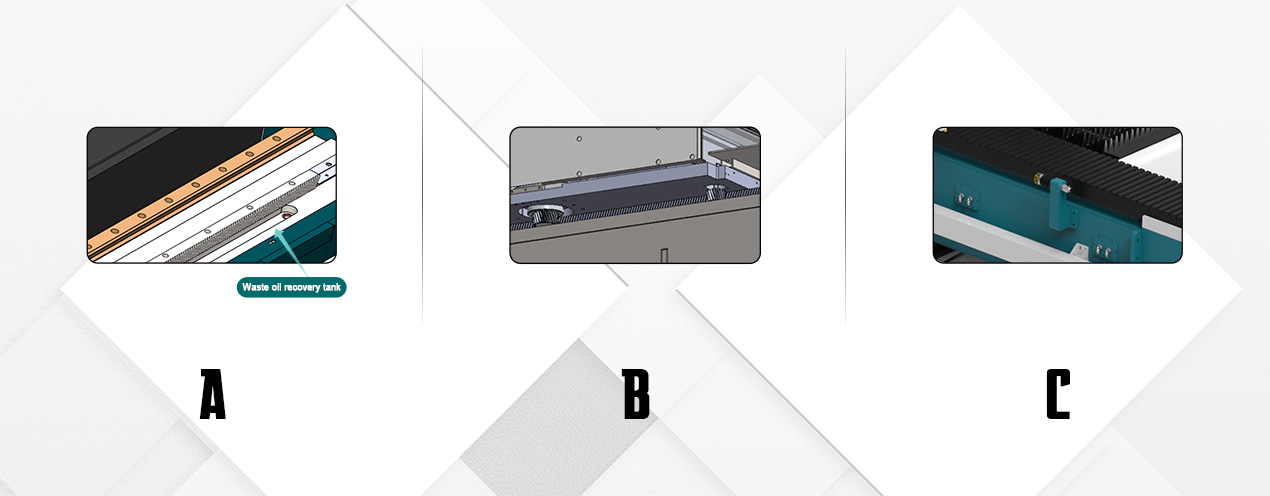

Gear lubrication: The felt wheel lubrication is standard, which can fully lubricate the gears and improve the service life of the gears.
The hard limit adopts a buffer structure to prevent the loss of precision caused by collision.

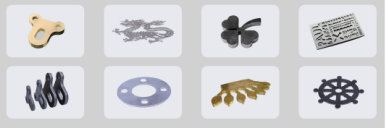

Fiber Laser Metal Cutting Machine is suitable for metal cutting like:
Fiber Laser Cutting Machines are widely used in manufacture:
| Machine Specification details | |
|---|---|
| Machine Model | 20035LD |
| Power of Generator | 1000 - 15000W |
| Working Area | 20000 * 3500mm |
| X/Y-axis Positioning Accuracy | 0.03mm/m |
| X/Y-axis Repositioning Accuracy | 0.02mm/m |
| X/Y-axis Max. Linkage Speed | 120m/min |
| Maximum Acceleration | 1.5G |
| Laser Wavelength | 1064nm |
| Cutting Thickness | ≤30mm Carbon steel; ≤25mm Stainless steel; ≤20mm Aluminum; ≤14mm Brass; |
| Specified Voltage & Frequency | 380V / 50Hz |
The fiber laser metal cutting machine is highly versatile and suitable for cutting Stainless Steel, Mild Steel, Carbon Steel, Alloy Steel, Spring Steel, Iron, Galvanized Sheets, Aluminum, Copper, Brass, Bronze, Gold, Silver, and Titanium.
Depending on configuration parameters, the maximum cutting thickness reaches up to 30mm for Carbon steel, up to 25mm for Stainless steel, up to 20mm for Aluminum, and up to 14mm for Brass.
The gantry can be delivered in a modular configuration without disassembling the beam. This helps to maintain structural integrity and avoids the potential loss of precision typically associated with on-site beam reassembly.

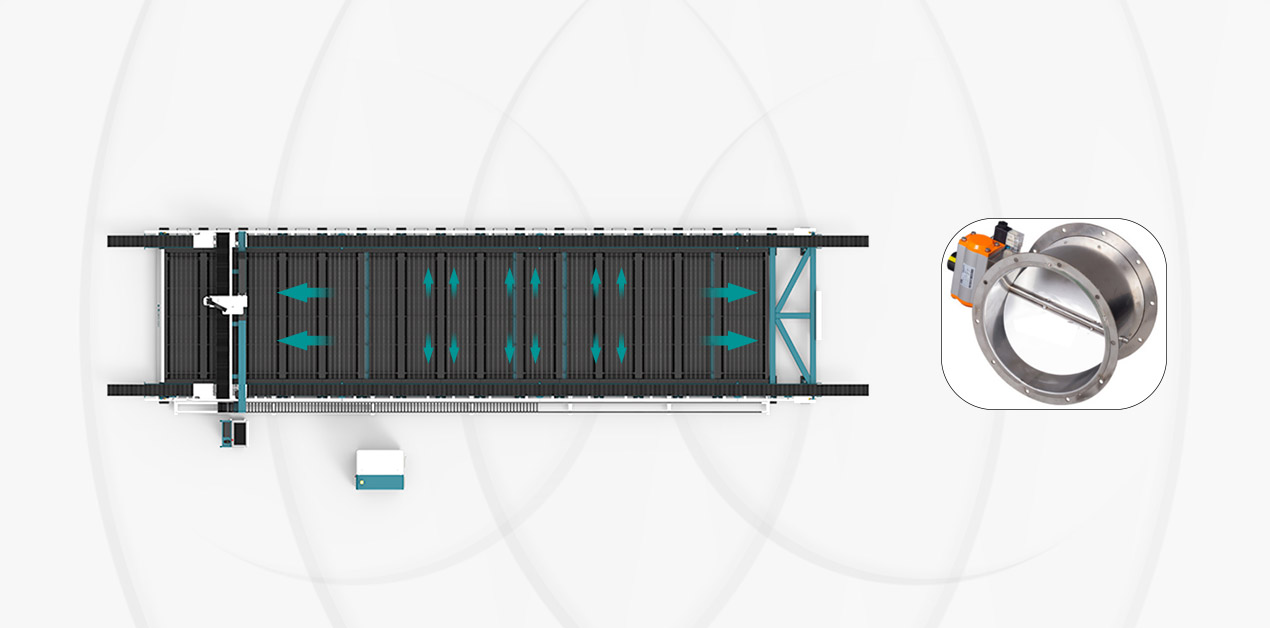

The system utilizes a 360° strong adsorption mechanism alongside a fully enclosed smoke control design. Inside the dust extraction area, a waste trolley and middle partition form a sealed enclosure, utilizing air valves to partition dust extraction and maintain dynamic efficiency.

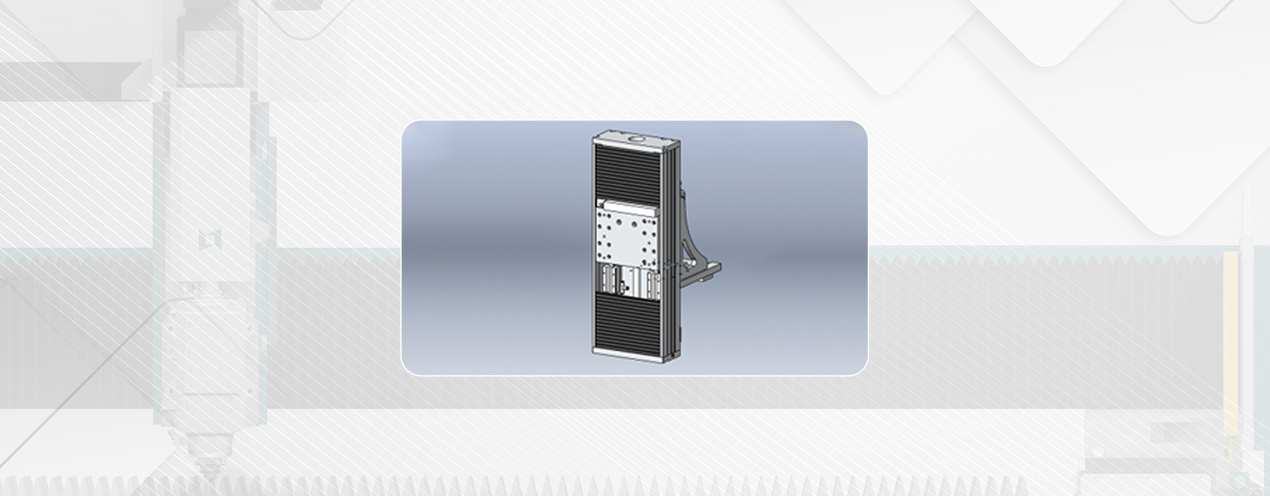

The Z-axis is configured with a fully enclosed protection design to block out cutting dust and debris from reaching the guide screw. Standard felt wheel lubrication ensures constant, even gear coverage, which significantly extends the components' operational lifespan.
