Features good rigidity, high precision, and maintains form without deformation during the entire life cycle. Welded aluminum collet board is formed through high precision process ensuring optimal weight and outstanding dynamic performance.
Utilizes a pneumatic clamp design on both sides to automatically modulate the center. The diagonal adjustable range is 20-220mm (with 320/350 optional for larger applications).
Equipped with an automatic pneumatic chuck that is highly adjustable and stable, delivering a wider clamping range and stronger clamping force. Non-destructive pipe clamping facilitates fast automatic centering, guaranteeing stable performance with low rotation inertia and gear transmission efficiency.
The system features a high-performance servo motor that starts up instantly for immediate operations. No zero-return operation is required. In the event of power outages, a key recovery system restores the cutting operation seamlessly.

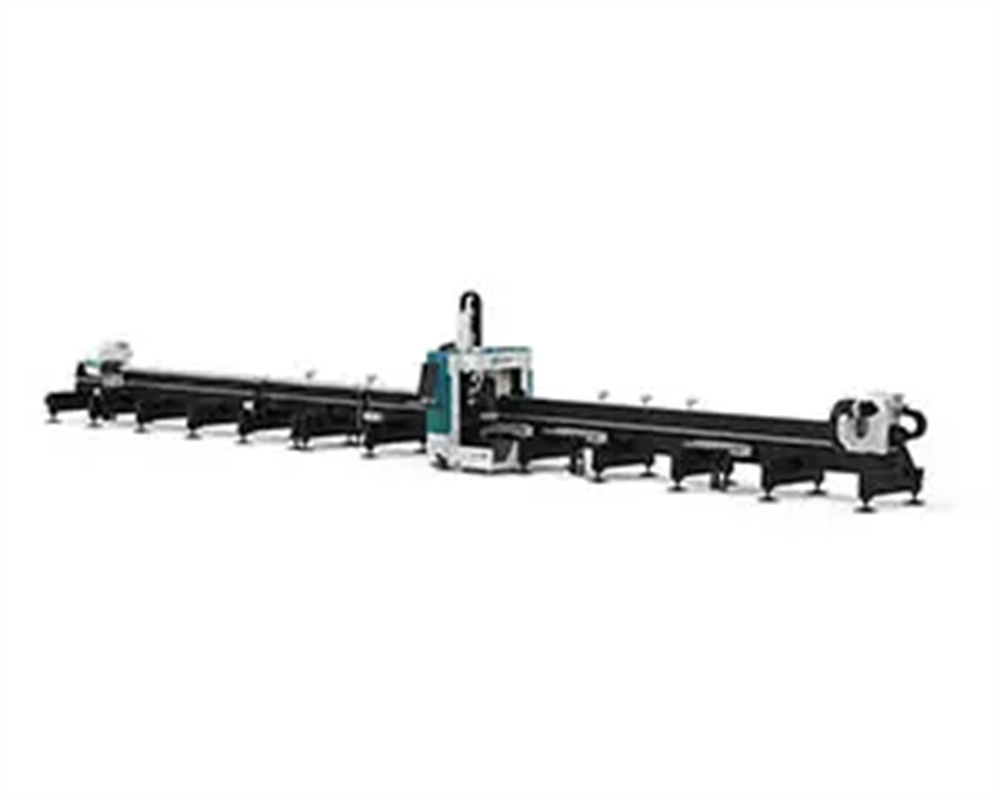

The Fiber Laser Metal Cutting Machine is engineered for processing a wide variety of metal tubes and pipes, including: Stainless Steel, Mild Steel, Carbon Steel, Alloy Steel, Spring Steel, Iron, Galvanized Steel, Aluminum, Copper, Brass, Bronze, and Titanium.
Widely applied in manufacturing structures such as: Billboards, Advertising Signs, LED Metal Letters, Kitchen Ware, Tube Metal Processing, Metal Parts, Chassis & Racks, Metal Crafts, Elevator Panels, Auto Parts, and Glasses Frames.
Detects anomalies in advance, minimizes hidden hazards, and enhances abnormal equipment detection. Features Stroke Intelligent Protection that monitors the cutting head working environment to feed back risks and trigger instant stops. Employs intelligent tube support design to resolve deformation problems during long tube processing.
| Parameter Specification | Detail Value |
|---|---|
| Model | LX92TX(6) |
| Pipe thickness | Depends on the power |
| Cutting speed | Max 0.8s/cut (Depending on material thickness) |
| "y" axis single feeding length | 1200mm |
| "z" axis adjustment range | 65mm |
| "w" axis adjustment range | 360° |
| Machine repeat positioning accuracy | ±0.05mm/1000mm |
| Machine positioning accuracy | ±0.1mm |
| Machine idle speed | 120m/min |
| Maximum acceleration | 1.0G |
| Electricity demand | 380V 50Hz (customizable) |
| Cutting accuracy | ±0.1mm |
| Machine weight | 12T |
| Power Options | 1000-20000w (Optional) |
| Max. finished part length (mm) | 1200 |
| Pipe remain length (mm) | 180 |
| Multi-functional cutting capabilities | Mitre cut, rectangular, slot, square, circular, cold mouth, special profiles |
The fiber laser metal cutting machine is suitable for cutting Stainless Steel, Mild Steel, Carbon Steel, Alloy Steel, Spring Steel, Iron, Galvanized Steel, Aluminum, Copper, Brass, Bronze, Titanium, and various other metal pipes and tubes.
It features a dual-sided design that automatically modulates the center. It supports a wide diagonal adjustment range of 20-220mm (with optional upgrades up to 320/350mm) to allow non-destructive clamping with high stability.
Because the system is equipped with high-precision servo motors, it supports key recovery of cutting operations following a power outage. There is no need to manually return components to zero.
The machine uses intelligent stroke protection to monitor the entire path of the cutting head in real time. It quickly feeds back risks and triggers an automatic stop, while a fixed limit control ensures double protection for both operators and the machine.
The multi-functional cutting capabilities support a broad range of profiles, including mitre cuts, rectangular shapes, slot cuts, square profiles, circular structures, cold mouth cutting, and other custom-designed special profiles.
