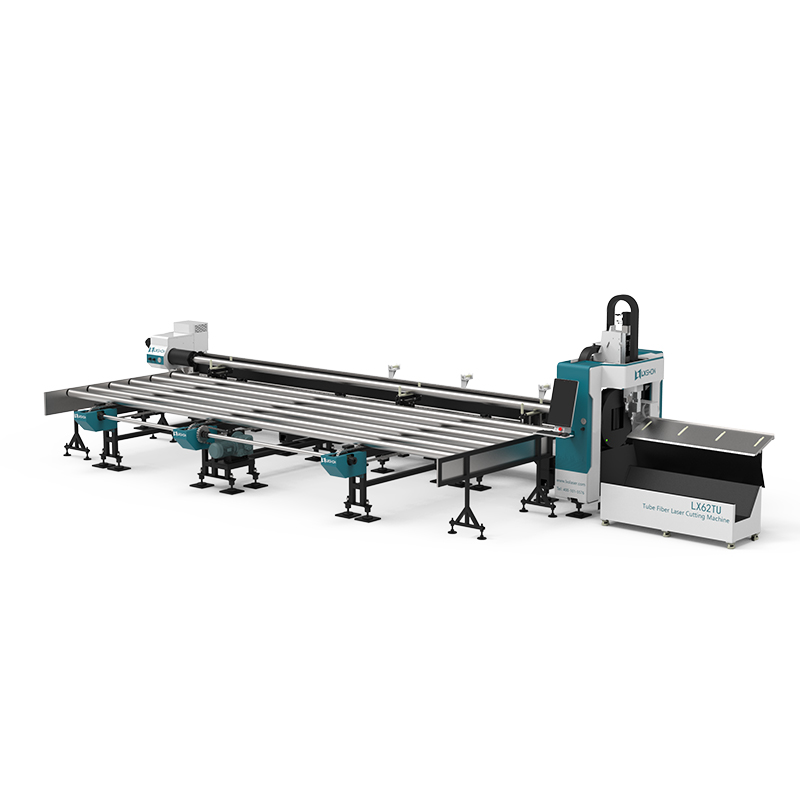

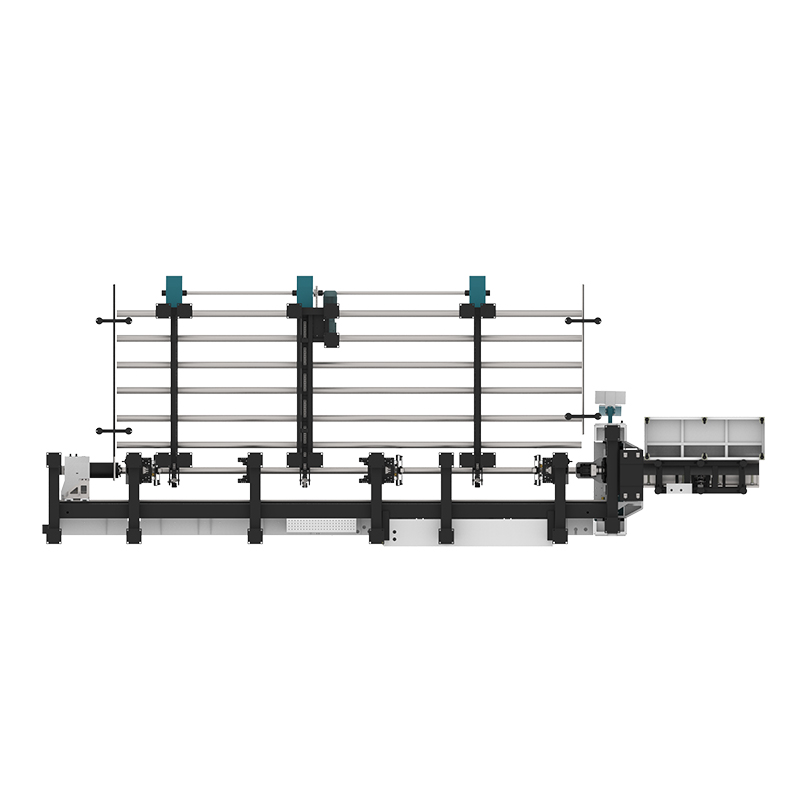

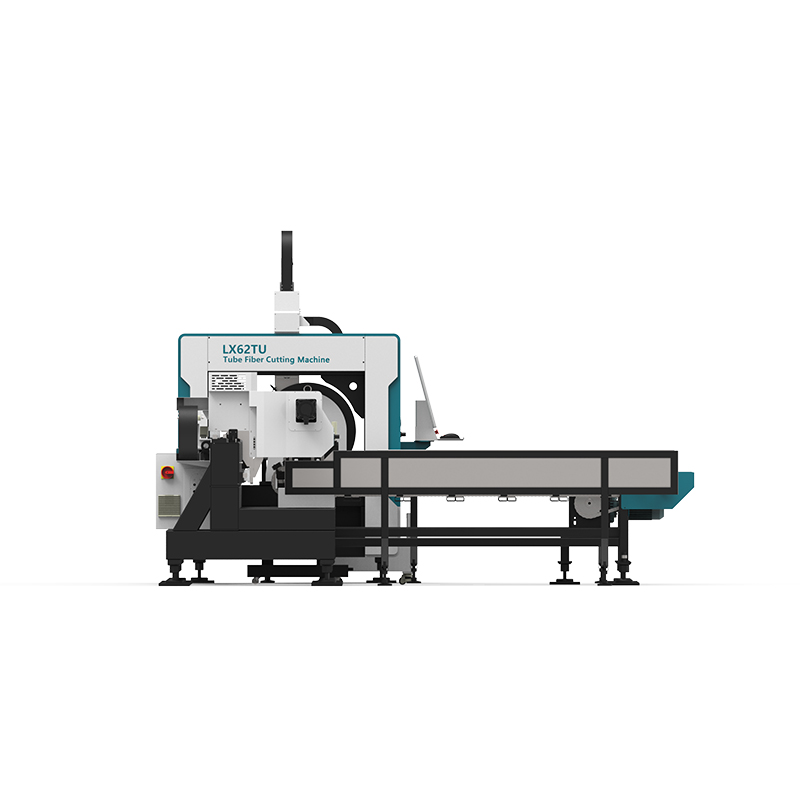

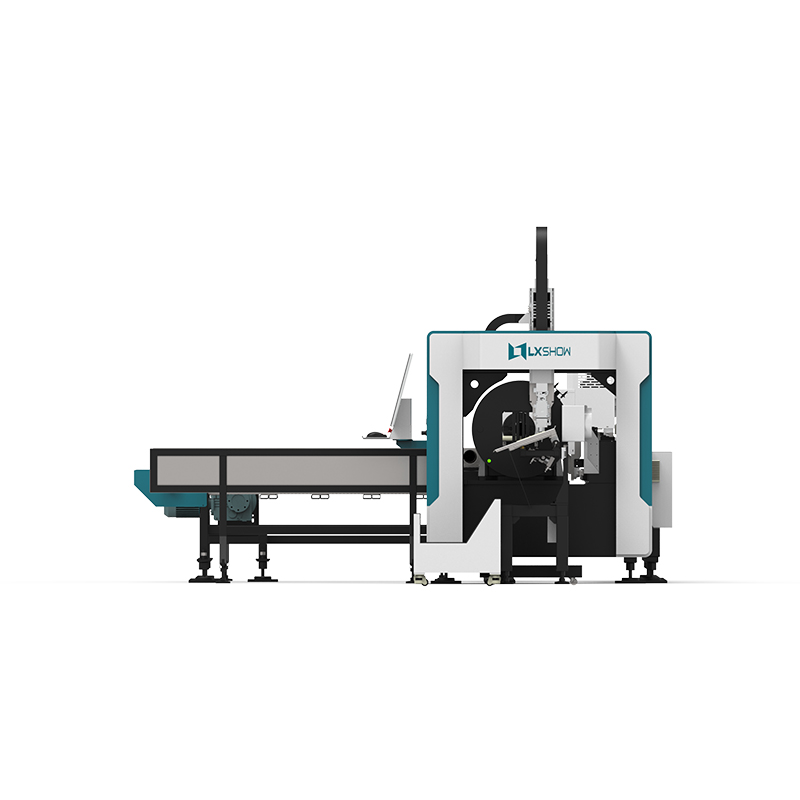

Best LXTU62 CNC Aluminum Metal Tube Laser Cutting Machine Cost Price Suppliers, Factories

  1   Parameter
Model LX62TU Fiber laser cutting machine
Working Area 20-220mm diameter, 6m length tube processing
Laser Power 3000W
Laser Generator MAX
Laser Wave Length 1064nm
Maximum Idle Running Speed 80r/min
Maximum acceleration 0.8G
Position Accuracy ±0.02mm/m
Repeat Positional Accuracy ±0.01mm/m
Cutting Thickness ≤18mm Carbon steel; ≤10mm Stainless steel
Control System Bochu FSCUT 5000B
Position Type red dot
Power Consumption ≤21 KW
Working Voltage 380V /50Hz
Auxiliary Gas oxygen,nitrogen,air
Working life of fiber module More than 100,000 hours
Fiber laser cutting head Raytools BM110
Cooling System S&A/Tongfei/Hanli industrial water chiller
Work Environment 0-45°C, Moisture 45-85%
Delivery time 20-25 work days (According to actual season)
  Main Parts Heavy duty machine frame To optimize the design of the sectional welding lathe bed Lathe bed in the middle of reinforcing bar Improves the lathe bed stability Prevent deformation of lathe bed   Pneumatic chuck Holds pipes of various shape. Compared with ordinary chucks, the work efficiency is increased by 20%-30%, there are no consumables. Can hold both square and round tube diameter within 220mm.   Follow-up bracket The support can be moved up and down with the rotation of the pipe to ensure that the support supports the pipe and prevent the pipe from swinging up and down to cause cutting deviation   Italy WKTe/PEK rails The rolling guide wear is very small,can maintain accuracy for a long time. The friction is very small,the power loss is small;the heat generated during operation is extremely small,and it can run at high speed. LXTU62 CNC Aluminum Metal Tube Laser Cutting Machine Cost Price

Product Description

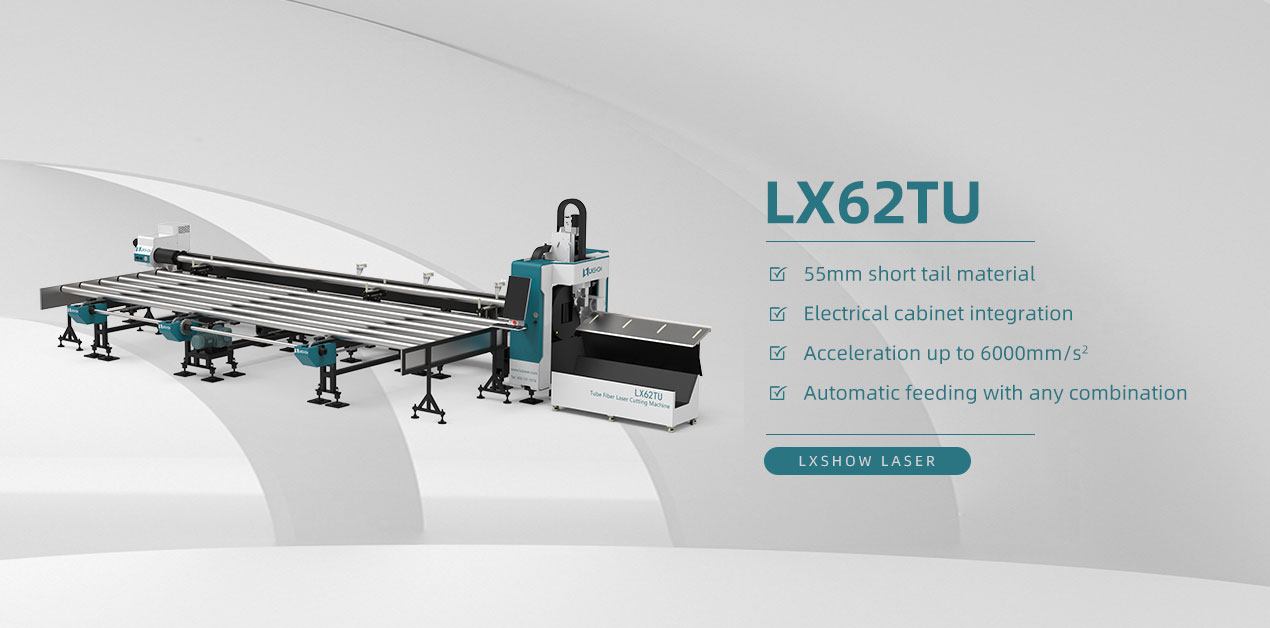

Laser cutting processing

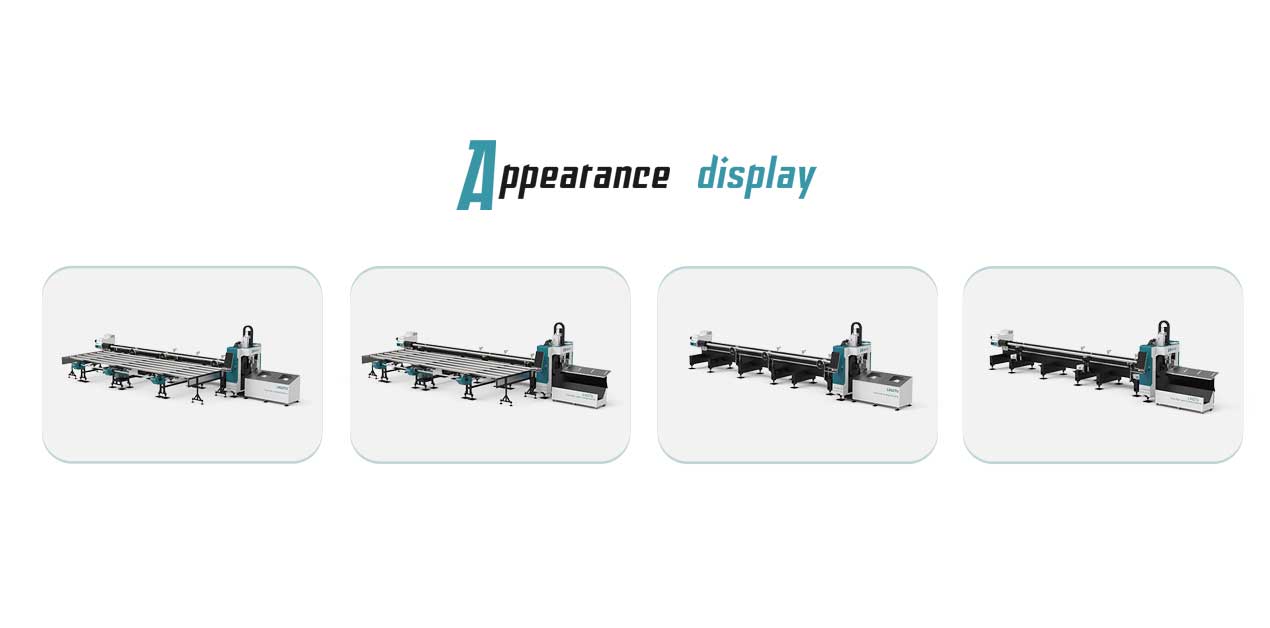

CNC Aluminum Metal Tube Laser Cutting Machine

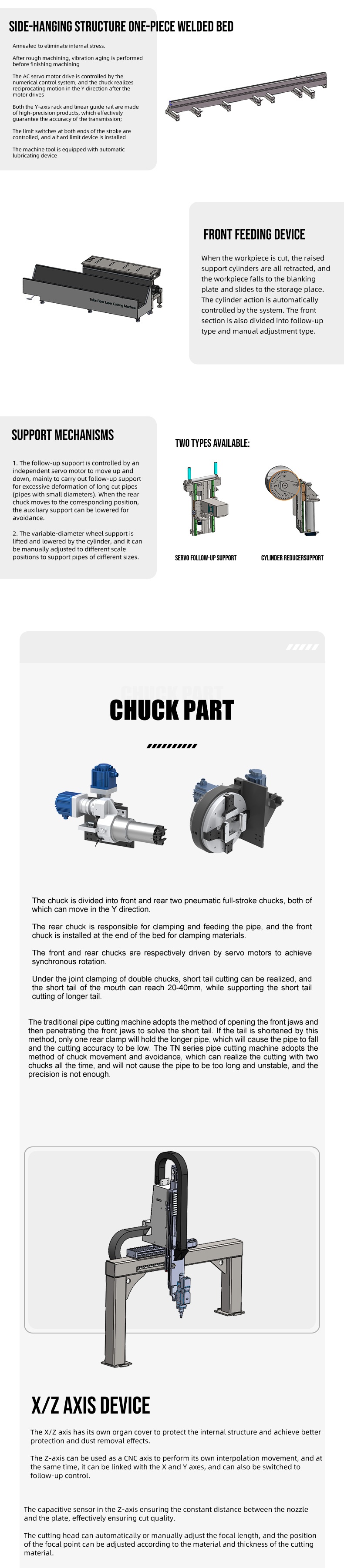

Tube laser cutting details
Technical Parameters
Parameter Item Specification Details
Model LX62TU Fiber laser cutting machine
Working Area 20-220mm diameter, 6m length tube processing
Laser Power 3000W
Laser Generator MAX
Laser Wave Length 1064nm
Maximum Idle Running Speed 80r/min
Maximum acceleration 0.8G
Position Accuracy ±0.02mm/m
Repeat Positional Accuracy ±0.01mm/m
Cutting Thickness ≤18mm Carbon steel; ≤10mm Stainless steel
Control System Bochu FSCUT 5000B
Position Type red dot
Power Consumption ≤21 KW
Working Voltage 380V /50Hz
Auxiliary Gas oxygen, nitrogen, air
Working life of fiber module More than 100,000 hours
Fiber laser cutting head Raytools BM110
Cooling System S&A/Tongfei/Hanli industrial water chiller
Work Environment 0-45°C, Moisture 45-85%
Delivery time 20-25 work days (According to actual season)

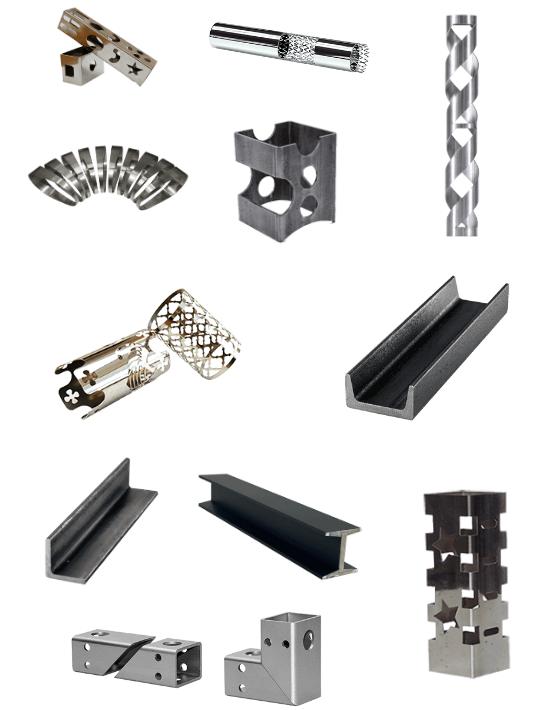

Samples
Metal tube cutting samples
Factory
Manufacturing Factory Workshop
Our Service
Technical and after-sales support service
Customer Visit
Global customers visiting cooperation
Off-line Activity
Exhibitions and off-line activities
Frequently Asked Questions
Q Do you have CE document and other documents for customs clearance?
Yes, we have original documents. At first, we will show you and after shipment we will give you CE / Packing list / Commercial Invoice / Sales contract for customs clearance.
Q What payment terms do you support?
We accept TT, West Union, Paypal, LC, Cash, and other standard payment options.
Q How do I get help if I do not know how to use the machine or face problems during operation?
We can provide remote assistance via TeamViewer, WhatsApp, Email, Phone, or Skype with camera until all of your concerns are fully addressed. We can also provide on-site door service if required.
Q I don't know which model is suitable for me. How can I choose?
Simply share the following details with us:
1) Maximum work size: to select the most appropriate model.
2) Materials and cutting thickness: to determine the required laser generator power.
3) Business industry: we can provide optimal recommendations based on our industry experience.
Q What thickness of steel and tube sizes can this machine process?
The machine is designed to cut Carbon steel up to 18mm and Stainless steel up to 10mm. It supports tube processing with diameters ranging from 20mm to 220mm and lengths up to 6m.
Q What is the typical delivery timeframe for this fiber laser cutting machine?
The standard delivery period is 20-25 working days, which may vary depending on the actual ordering season.
