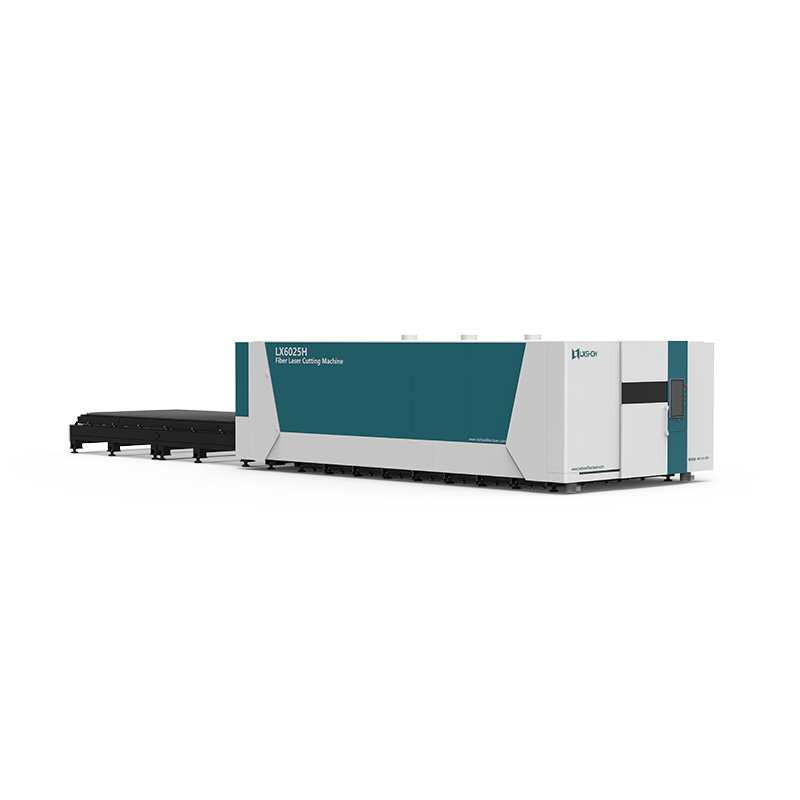

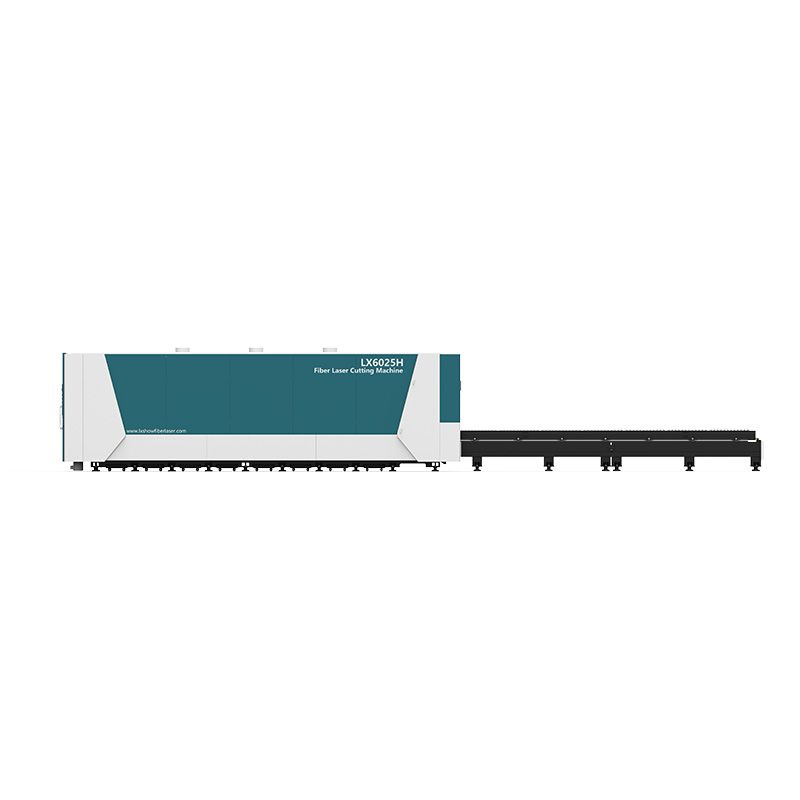

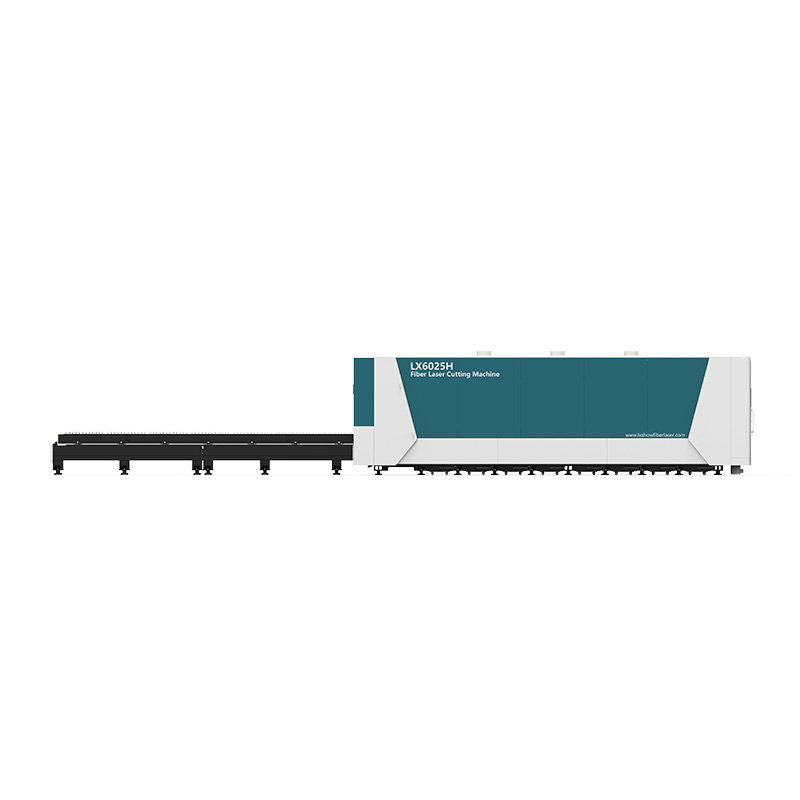

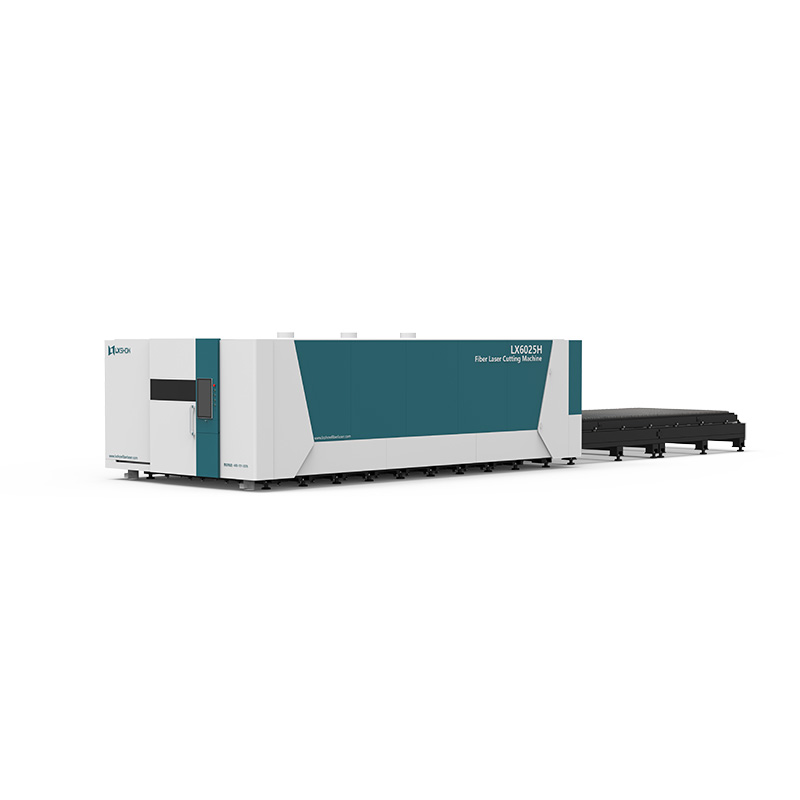

| Machine Model | LX6025H |
| Power of Generator | 1000-15000W |
| Dimension | 14414*5471*2354 |
| Working Area | 6100*2550mm (Other size can be customized) |
| Repeated Positioning Accuracy | ±0.02mm |
| Max Running Speed | 160m/min |
| Max Acceleration | 2G |
| Specified Voltage And Frequency | 380V 50/60HZ |

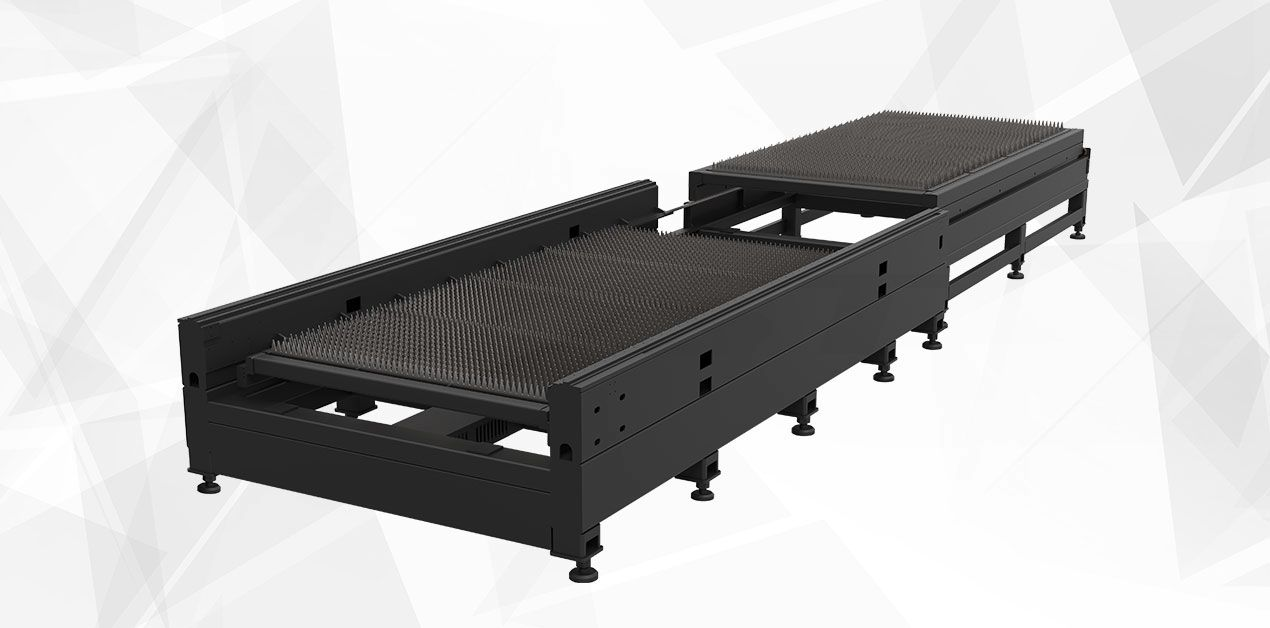

It adopts an up and down exchange platform.
The converter is responsible for controlling the exchanging motor.
The machine is able to finish the platform exchanging within 15s.

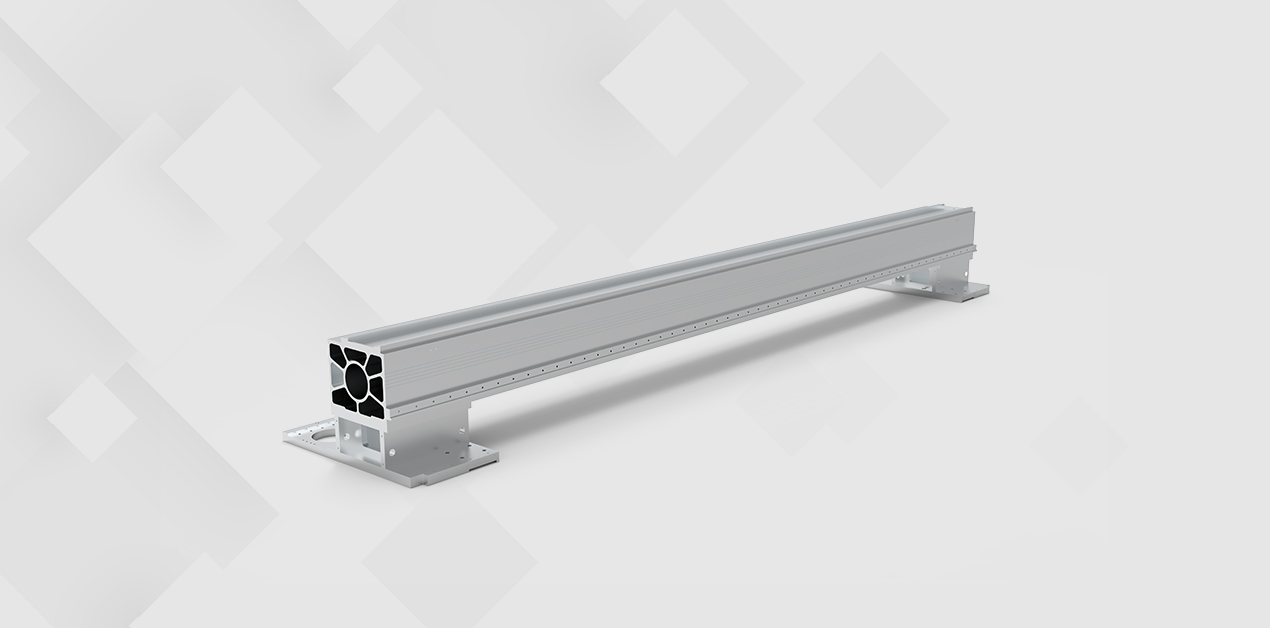

It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding. After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries.
Aviation aluminum has many advantages, such as good toughness, light weight, corrosion resistance, anti-oxidation, low density, and greatly increase the processing speed.

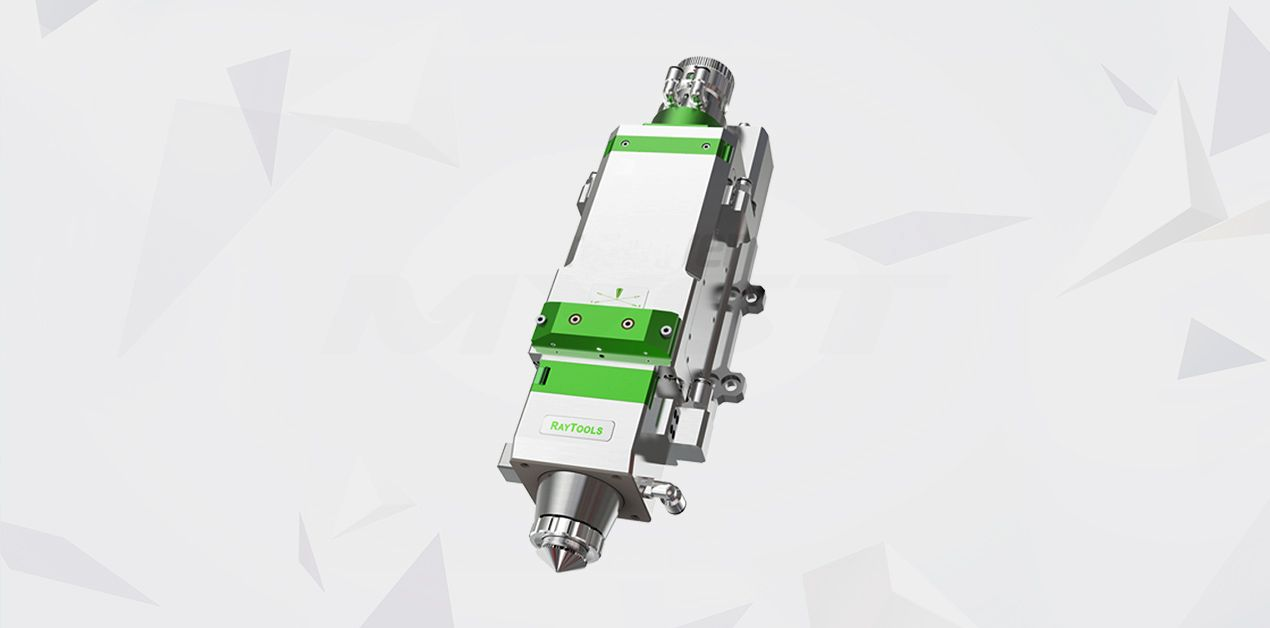

The high efficiency cooling: Collimating lens and focus lens group are cooling structure, increase cooling airflow nozzle at the same time, the effective protection of nozzle, the ceramic body, prolonged work time.
Chase the light aperture: Through the pore diameter of 35 mm, effectively reduce the stray light interference, ensuring cutting quality and service life.
Automatic focus: Automatic focus, reduce human intervention, focusing speed 10 m/min, repeat accuracy of 50 microns.
High speed cutting: 25 mm carbon steel sheet pre punch time < 3 s @ 3000 w, greatly improve cutting efficiency.
Easy to operate even by green hands. Match with 20000 process data on its graphical programming interface. Compatible with multiple graphic files, including DXF, DWG, PLT and NC code.
Improve stock layout and material utilization by 20% and 9.5% by its built-in nesting software, with no limit of quantity of spare parts.
Supported Languages: English, Spanish, Portuguese, Russian, German, French, Italian, Japanese, Korean, Dutch, Czech, Simplified Chinese, Traditional Chinese.

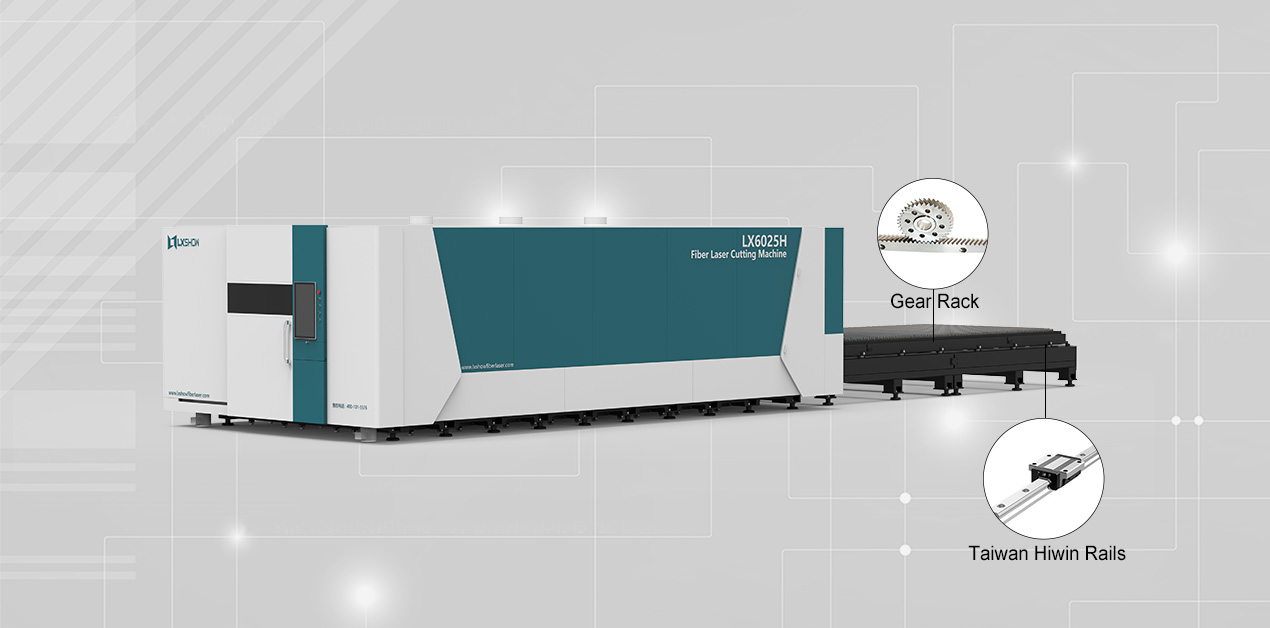

The fiber laser cutting machine is equipped with German Atlanta rack, Japanese Yaskawa motor and Taiwan Hiwin Rails. The positioning accuracy of the machine tool can be 0.02mm and the cutting acceleration is 1.5G. The working life is up to more than 15 years.

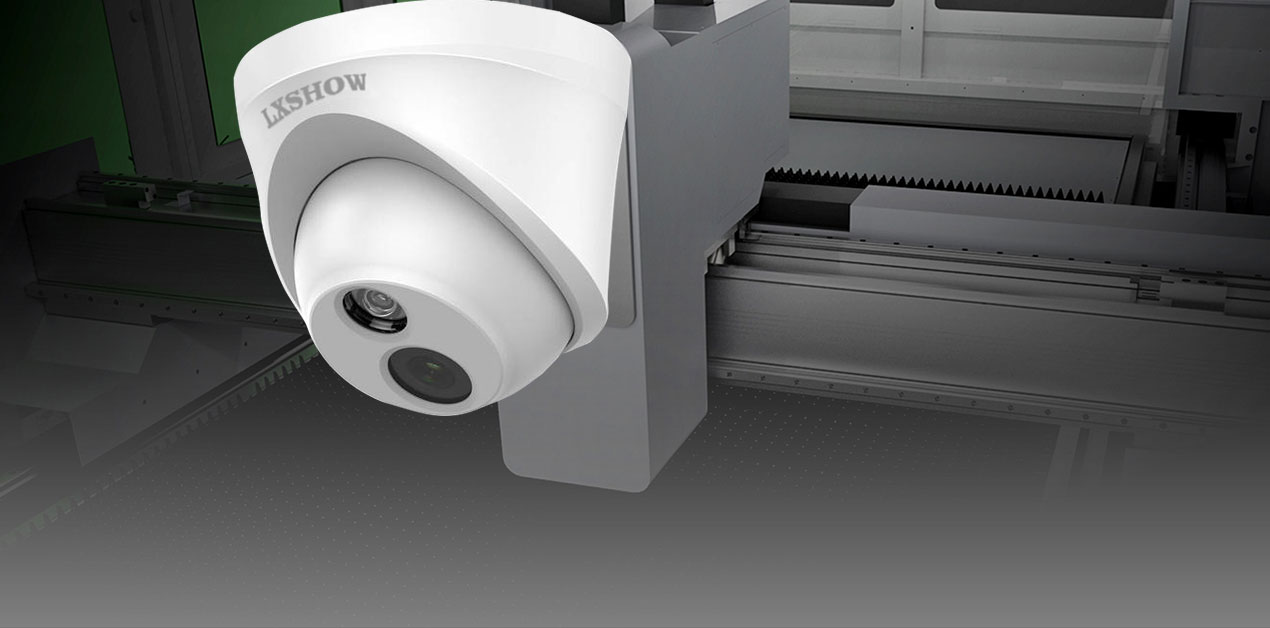

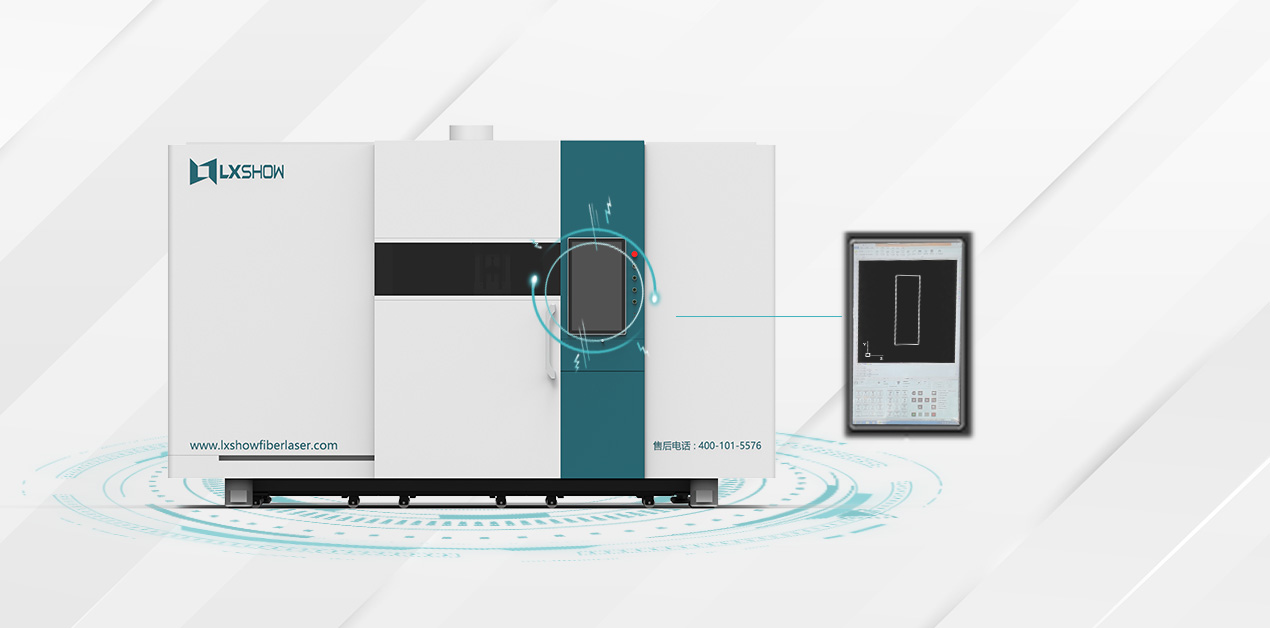

Real-time observe the machine running through the panel
