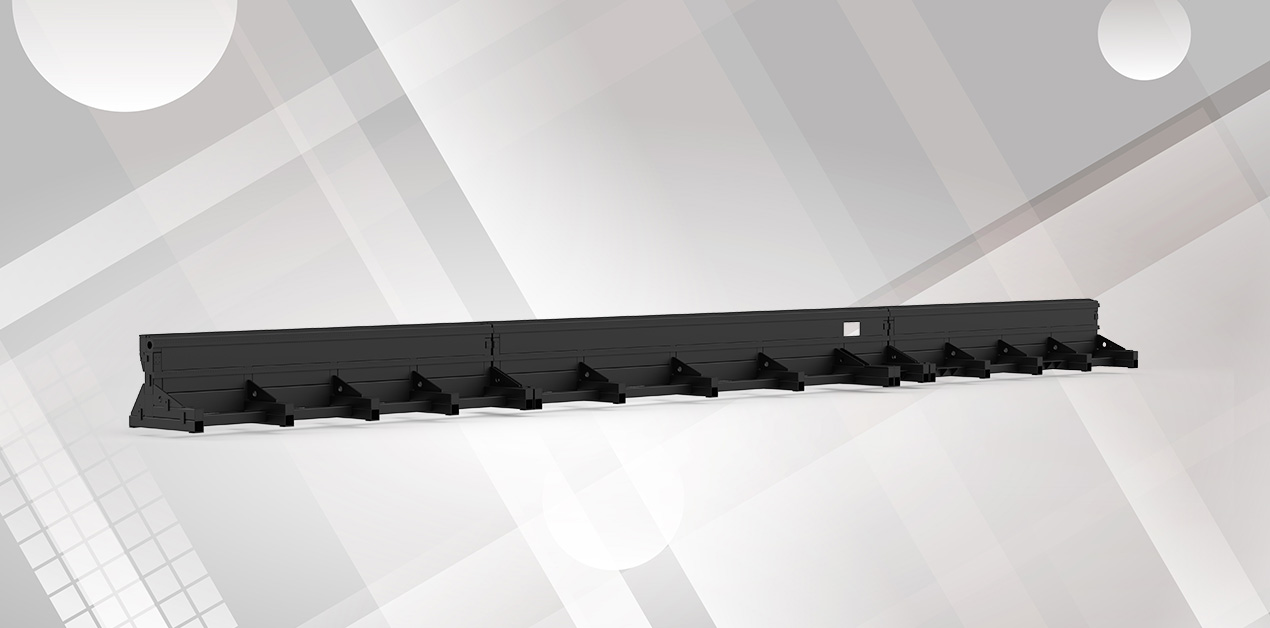

Good rigidity, high precision, no deformation during the life cycle; Welded aluminum collet board, formed through high precision process. Good weight and good dynamic performance.

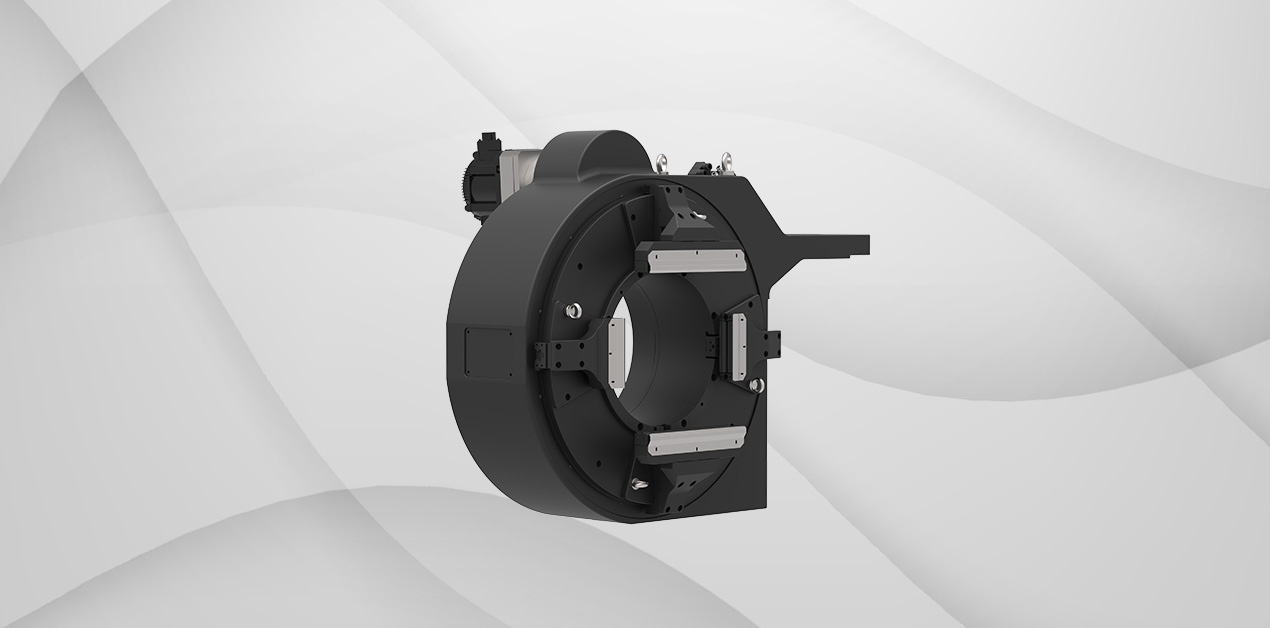

It adopts an pneumatic clamp design on both sides and it can modulate the center automatically. The diagonal adjustable range is 20-220mm (320/350 is optional).

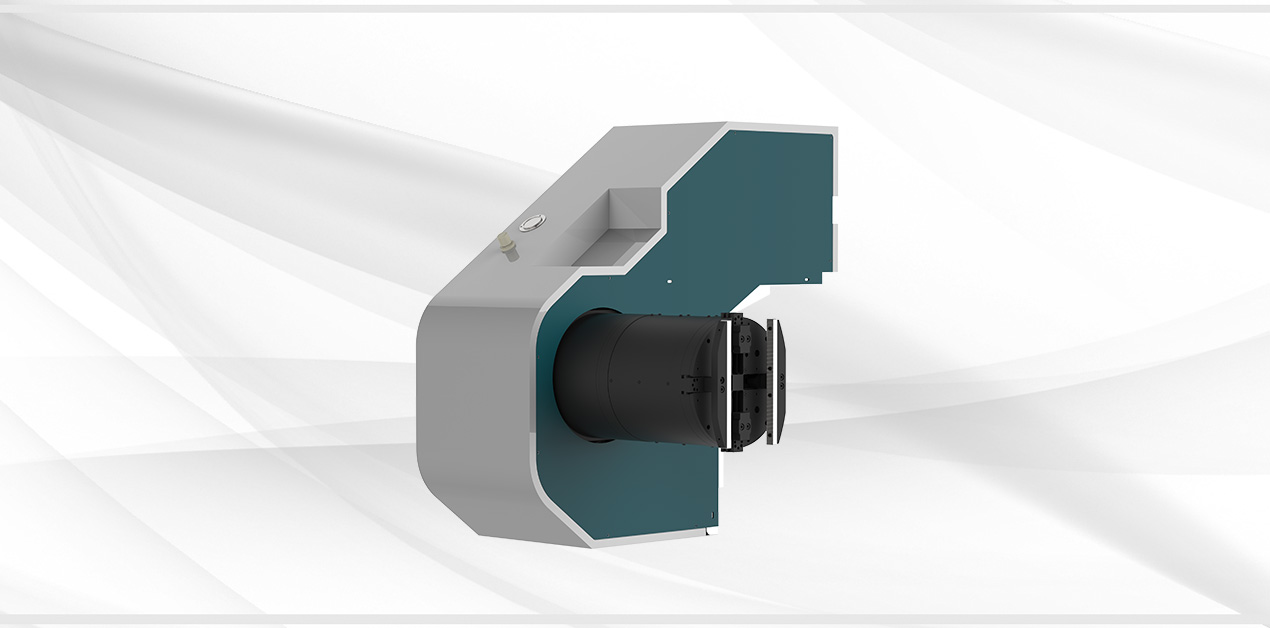

Automatic pneumatic chuck, adjustable and stable, clamping range is wider and clamping force is larger. Non-destructive pipe clamping, fast automatic centering and clamping pipe, performance is more stable. The chuck size is smaller, rotation inertia is low, and dynamic performance is strong. Self-centering pneumatic chuck, gear transmission mode, higher transmission efficiency, long working life and high work reliability.

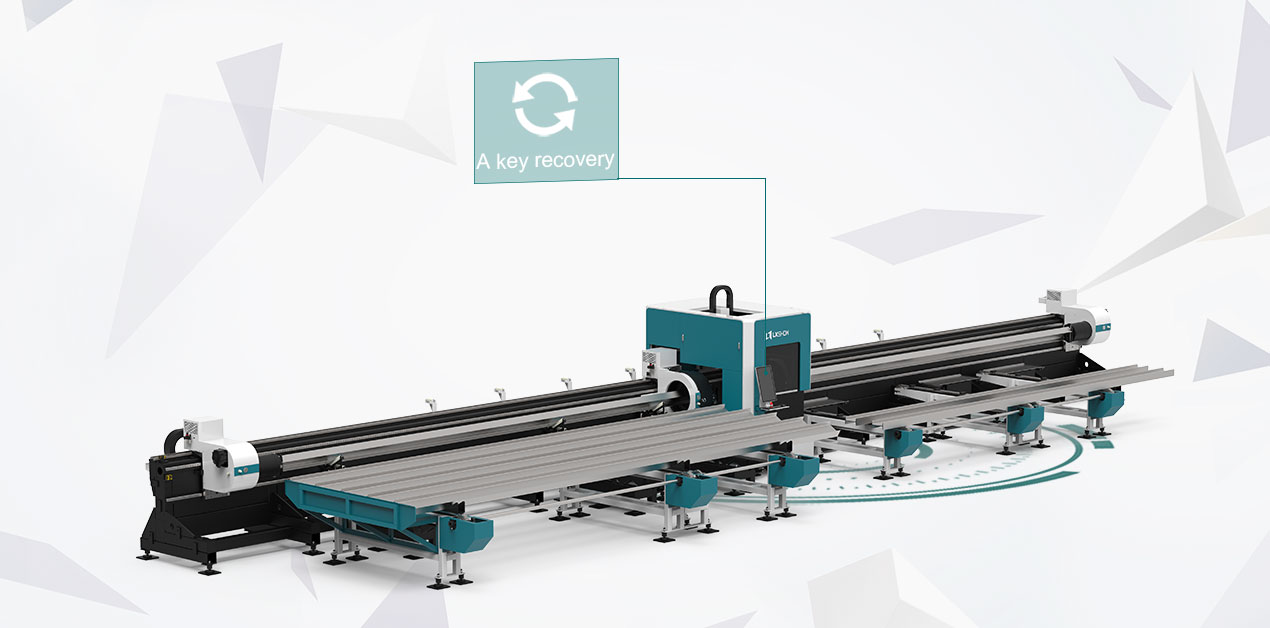

System is equipped with servo motor, boot to homework, do not need to return to zero operation, power outages, a key recovery cutting operation.
Fiber Laser Metal Cutting Machine is suitable for metal cutting like Stainless Steel Tube, Mild Steel Tube, Carbon Steel Tube, Alloy Steel Tube, Spring steel Tube, Iron Pipe, Galvanized Steel Tube, Aluminum Pipe, Copper Tube, Brass Tube, Bronze Pipe, Titanium Pipe, Metal Tube, Metal Pipe, etc.
Fiber Laser Cutting Machines are widely used in manufacture Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Tube Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal crafts, metal art ware, elevator panel cutting, hardware, auto parts, Glasses Frame, Electronic Parts, Nameplates, etc.

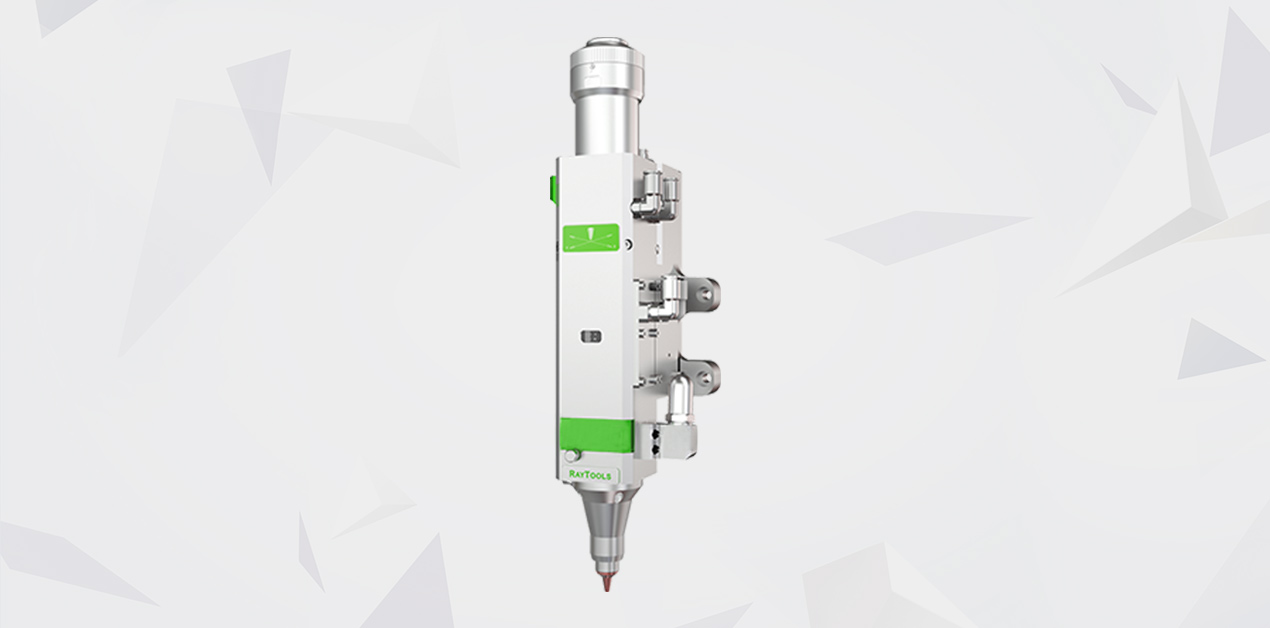

It can detect anomalies in advance, reduce hidden dangers, and double the effect of abnormal detection of equipment. Detect whole process of cutting head working, quickly feedback the risk and stop it. Double protection with fixed limit to improve equipment and personal safety and reduce risk.

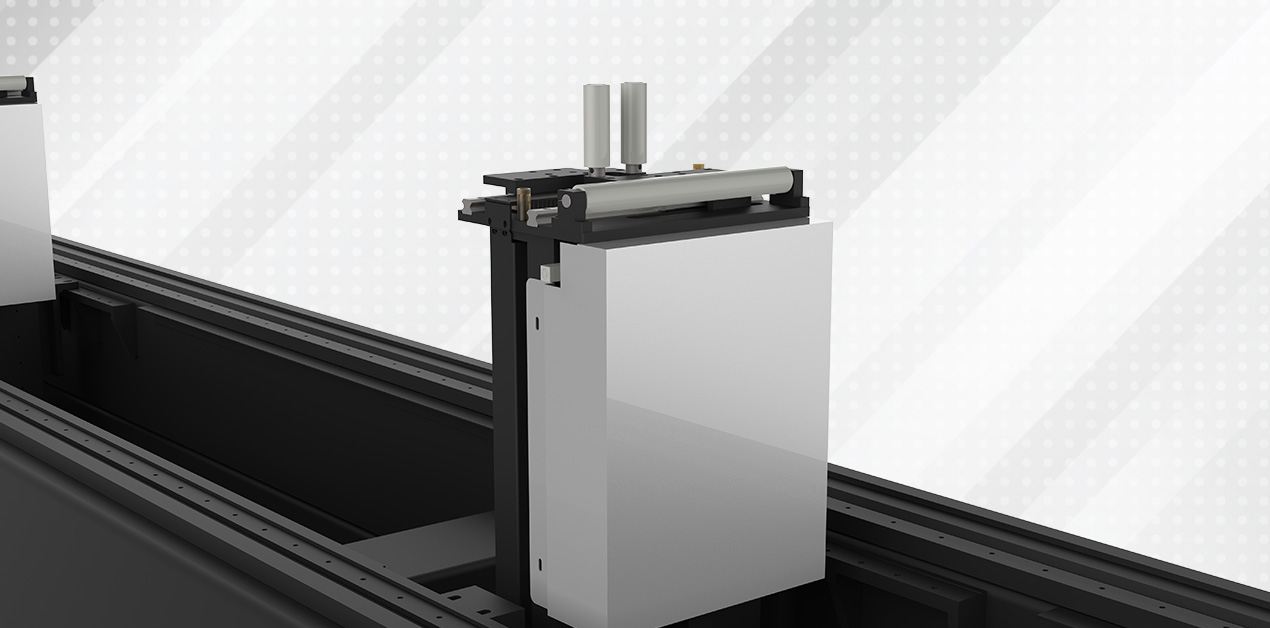

It employs intelligent tube support design, which can solve the deformation problems in the process of long tube cutting.
It can detect anomalies in advance, reduce hidden dangers, and double the effect of abnormal detection of equipment. Detect whole process of cutting head working, quickly feedback the risk and stop it. Double protection with fixed limit to improve equipment and personal safety and reduce risk.
| Parameter | Specification Details (LX122TX) |
|---|---|
| Model | LX122TX |
| Power | Raycus 1000w and so on (optional) |
| Cutting speed | Max 0.8s/cut (Depending on material thickness) |
| "y" axis single feeding length | 1200mm |
| "z" axis adjustment range | 65mm |
| "w" axis adjustment range | 360° |
| Machine repeat positioning accuracy | ±0.05mm/1000mm |
| Machine positioning accuracy | ±0.1mm |
| Machine idle speed | 120m/min |
| Maximum acceleration | 1.0G |
| Electricity demand | 380V 50Hz (customizable) |
| Cutting accuracy | ±0.1mm |
| Accuracy | ±0.1mm |
| Max . raw material length (mm) | ≤6200 |
| Max. finished part length (mm) | 1200 |
| Pipe remain length (mm) | 180 |

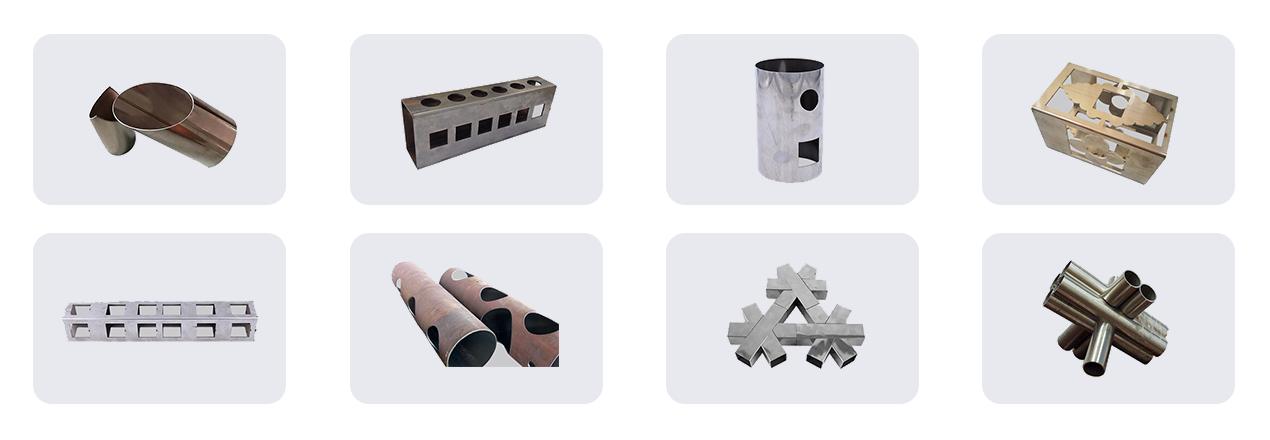

| Multi-functional cutting | Mitre cut, rectangular, slot, square, circular, cold mouth, special profiles |
This fiber laser metal cutting machine is designed for cutting various tubes and pipes including Stainless Steel, Mild Steel, Carbon Steel, Alloy Steel, Spring Steel, Iron, Galvanized Steel, Aluminum, Copper, Brass, Bronze, and Titanium.

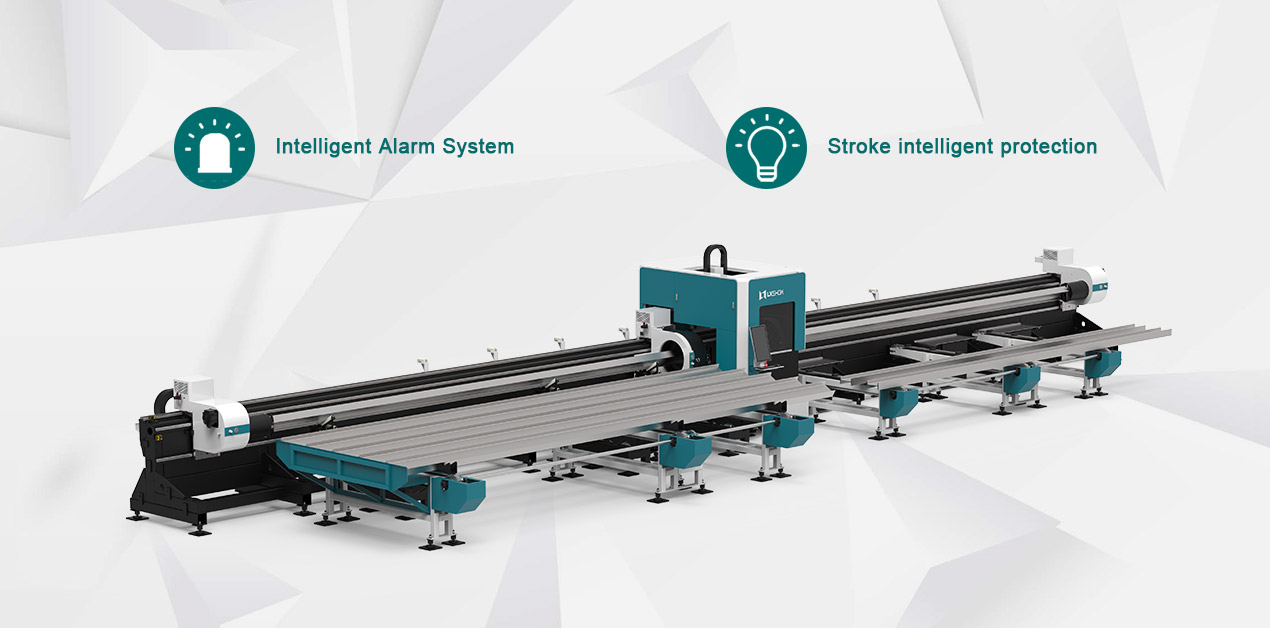

It features Stroke Intelligent Protection, which monitors the cutting head's operation, stops the machine when anomalies are detected, and uses a fixed limit double protection setup to safeguard operators and the equipment.
Yes. The system is equipped with a high-performance servo motor that bypasses the need for a return-to-zero operation upon booting. In case of unexpected power outages, it offers key-based recovery of the cutting progress.
The chuck provides automatic centering and non-destructive clamping with a wider clamping range and larger force. It has a low rotational inertia for strong dynamic performance and high transmission efficiency via a robust gear drive.
The lead time is typically 10 to 25 working days. The machine is shipped via sea or land freight, and we accept T/T, Alibaba Trade Assurance, West Union, Paypal, and L/C payment methods.
The machine employs an intelligent tube support design specifically built to support long pipes during processing, effectively preventing deformation and maintaining high cutting accuracy.
