| Machine Parameter | Specification Details |
|---|---|
| Machine Model | LX1390M |
| Power of Generator | 500/750/1000/1500/2000W (optional) |
| Transmission Mode | Grinding Precision Screw Transmission |
| Working Area | 1300*900mm |
| Repeated Positioning Accuracy | ±0.006mm |
| Max Running Speed | 40m/min |
| Max Acceleration | 0.5G |
| Specified Voltage And Frequency | 220V 50/60HZ |

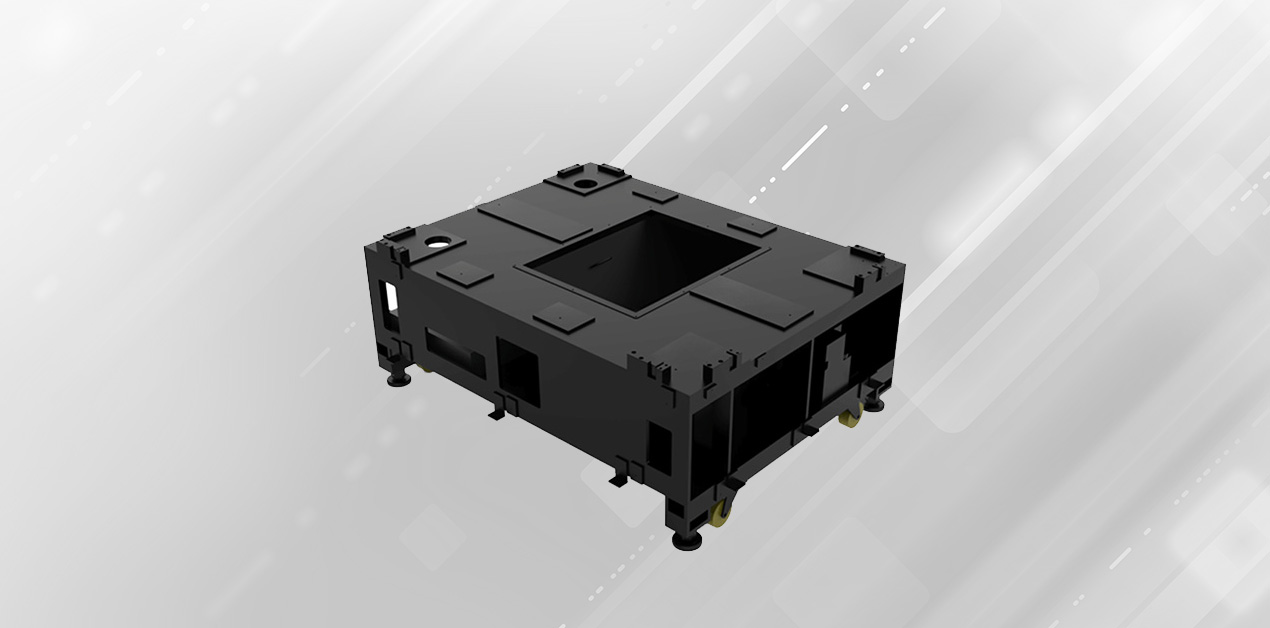

Strong stability, high precision, 20 years without deformation.

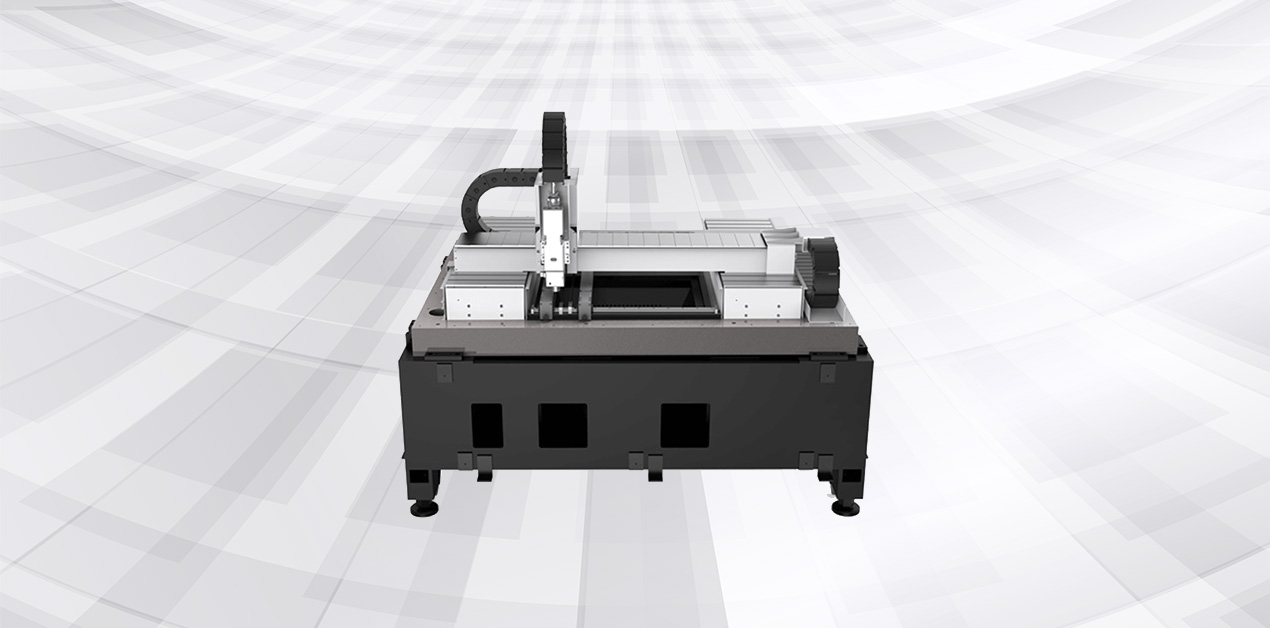

To prevent the cutting line deformation caused by the Y-axis screw bending, the Y-axis on both sides have been equipped two rails guide and double ball drive screw design to ensure the straightness and arc degree when with high-speed cutting is in operation.

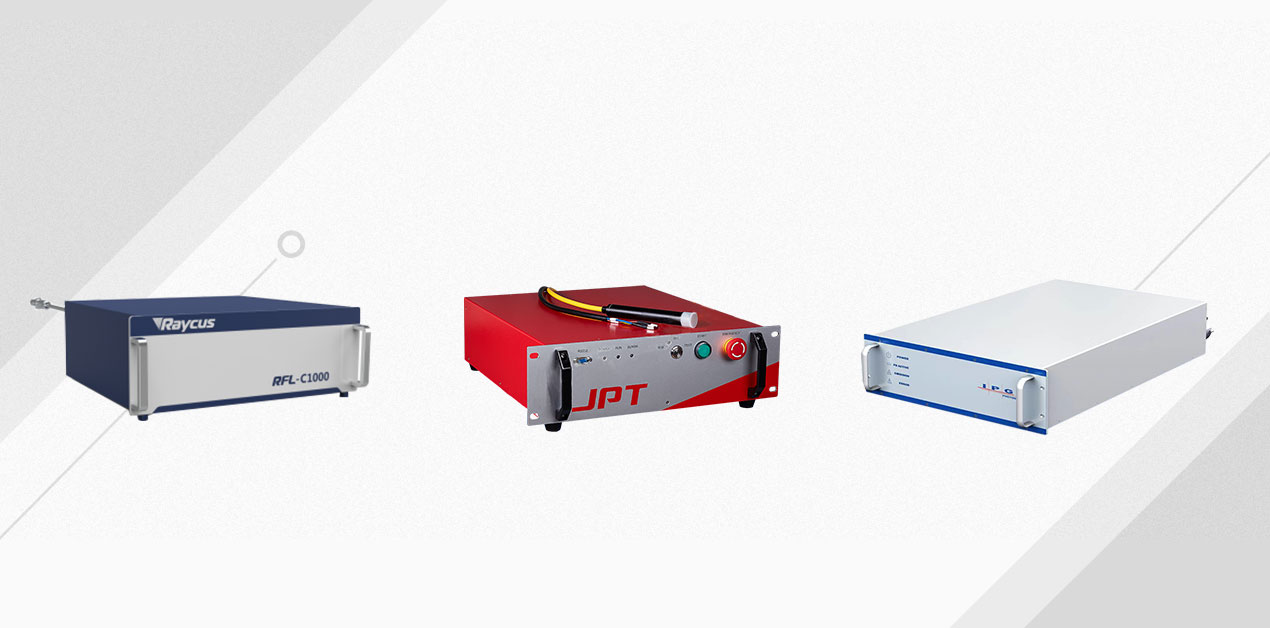

The generator's using life (theoretical value) is 10,00000 hours. This means that if you use it for 8 hours a day, it can be used for about 33 years.
After artificial aging, solution treatment and finishing, crossbeam owns good integrity, rigidity, surface quality, toughness and ductility. Aluminum alloy’s metal characteristics of light weight and strong rigidity are helpful to high speed movement in processing, and high flexibility is beneficial to high-speed cutting of various graphics based on high accuracy.

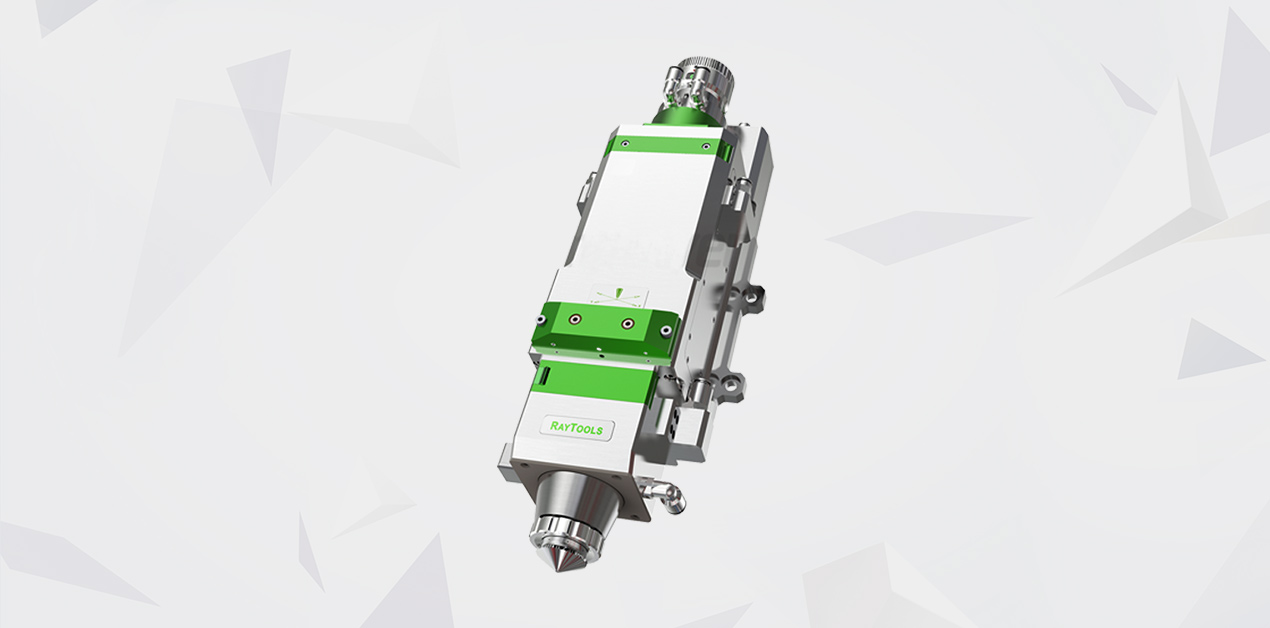

With a fully enclosed design; The high efficiency cooling: Collimating lens and focus lens group are cooling structure, increase cooling airflow nozzle at the same time, the effective protection of nozzle, the ceramic body, prolonged work time.
Fiber Laser Metal Cutting Machine is suitable for metal cutting like Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, etc.
Fiber Laser Cutting Machines are widely used in manufacture Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal crafts, metal art ware, elevator panel cutting, hardware, auto parts, Glasses Frame, Electronic Parts, Nameplates, etc.
Tips: The consumable parts of the fiber laser cutting machine include: cutting nozzle (≥500h), protective lens (≥500h), focusing lens (≥5000h), collimator lens (≥5000h), ceramic body (≥10000h). You can buy some consumable parts as an option when ordering the machine.
The machine is ideal for cutting a wide range of metals, including Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring Steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, and other metal sheets.
The theoretical service life of the laser generator is 100,000 hours. This translates to approximately 33 years of usage based on operation for 8 hours per day.

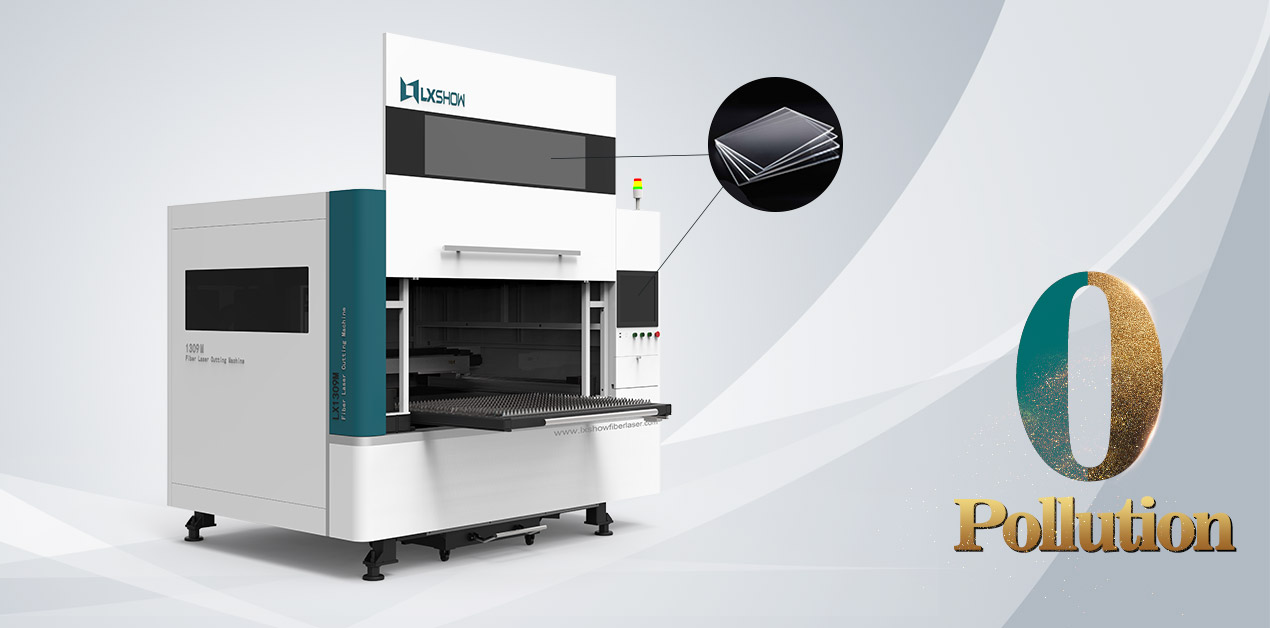

The machine features a fully enclosed structure. The observation window is built with European CE Standard laser protective glass. Additionally, the smoke produced during cutting is filtered internally, keeping the operations non-polluting and environmentally friendly.
The autofocus feature reduces manual intervention significantly, achieving a focusing speed of 10 m/min with a repeat accuracy of 50 microns. This ensures high-speed cutting efficiency, allowing a 25 mm carbon steel sheet pre-punch time of less than 3 seconds at 3000W.
The primary consumable parts and their estimated lifespans are: cutting nozzles (≥500 hours), protective lenses (≥500 hours), focusing lenses (≥5000 hours), collimator lenses (≥5000 hours), and ceramic bodies (≥10,000 hours). Customers have the option to buy these parts together with the machine.
We offer a 3-year warranty for the machine. Shipping can be arranged by sea or by land. Accepted payment terms include T/T, Alibaba Trade Assurance, West Union, Paypal, and L/C.
