| Parameter | Value |
|---|---|
| Model | LX9TQ |
| Laser Power | 1000/1500/2000/3000W |
| Length of laser wave | 1070nm±5nm |
| Type of Laser | Single mode |
| Photoelectric conversion efficiency | 30% |
| Work Mode | Continuous light |
| Power range | 5-95% |
| Power Unstability | 2% |
| Transmission fiber core | 25um-50um |
| Length of Fiber | 10m |
| Cooling way | Water cooling |
| Water chiller model | 1.OP/1.5P/2.0P |
| Cooling water temperature | 20-25℃ |
| Power | AC 220V±10% AC380±10%，50/60Hz |
| Temperature of work environment | 10~35℃ |
| Humidity of work environment | ≤95% |

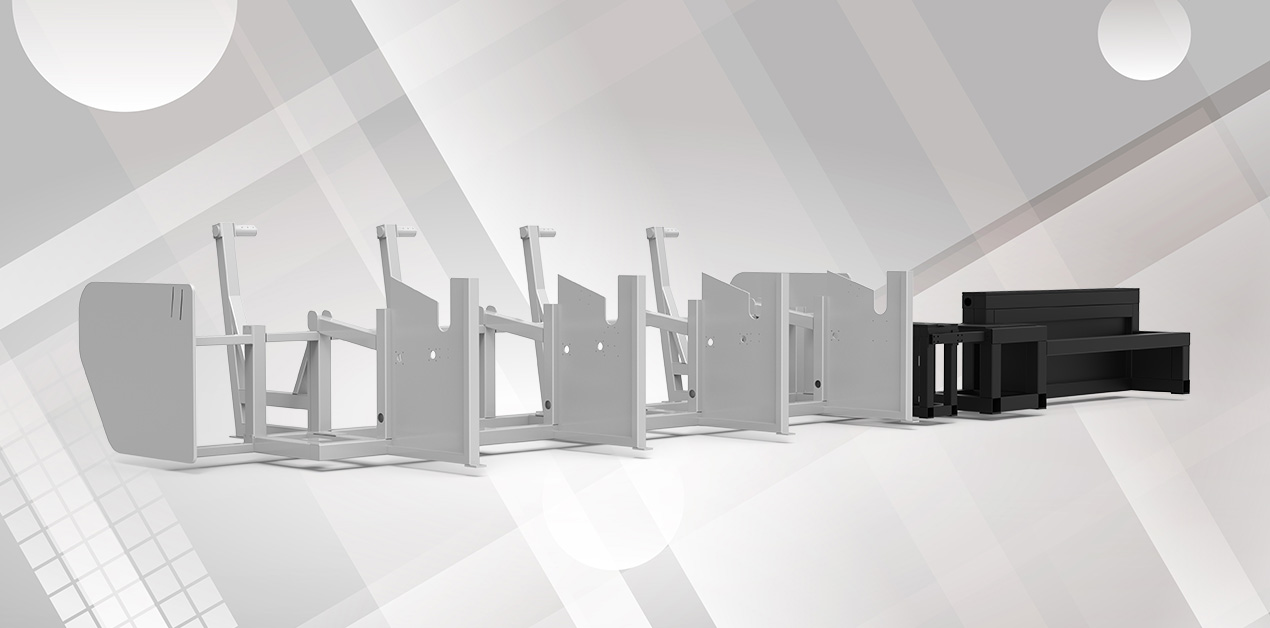

Formed through high precision process. Good rigidity, high precision, no deformation during the life cycle; Good weight and good dynamic performance.

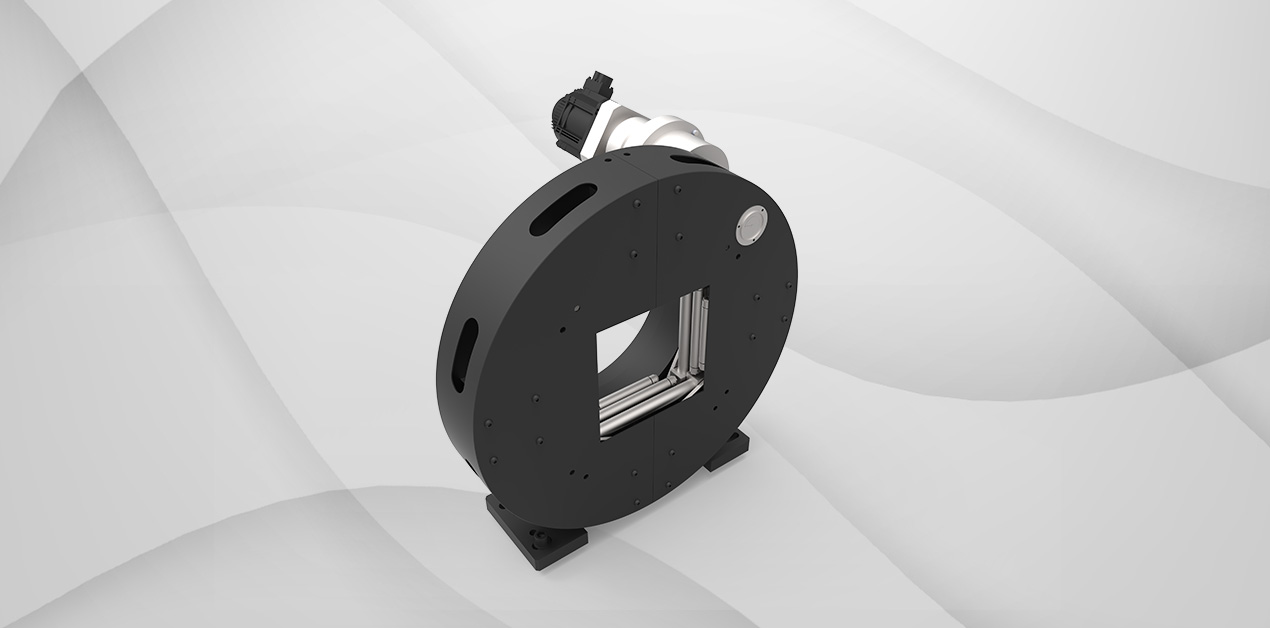

It adopts an pneumatic clamp design on both sides and it can modulate the center automatically. The diagonal adjustable range is 20-220mm (320/350 is optional).

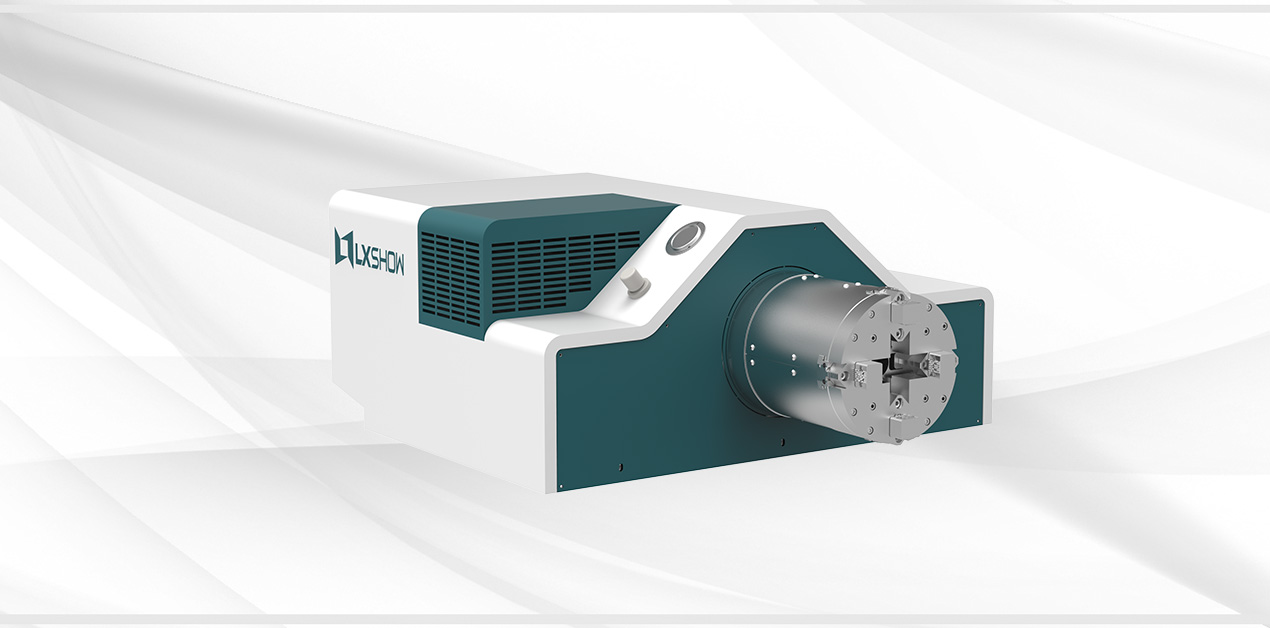

Automatic pneumatic chuck, adjustable and stable, clamping range is wider and clamping force is larger. Non - destructive pipe clamping, fast automatic centering and clamping pipe, performance is more stable. The chuck size is smaller, rotation inertia is low, and dynamic performance is strong. Self-centering pneumatic chuck, gear transmission mode, higher transmission efficiency, long working life and high work reliability.

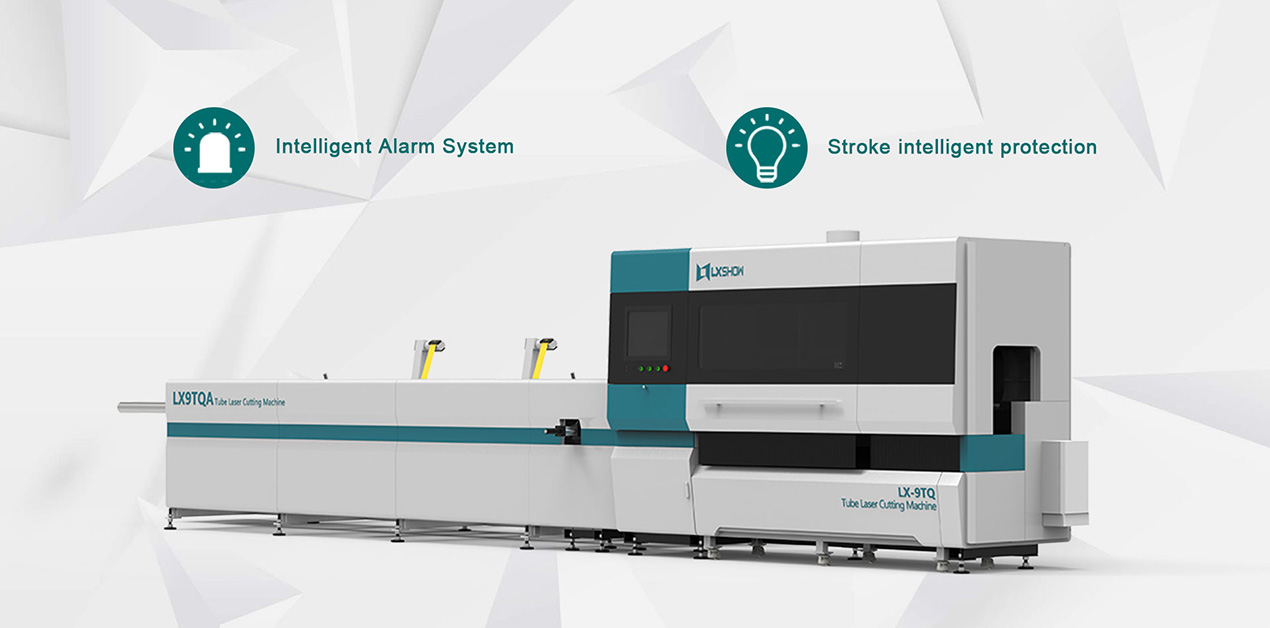

It can detect anomalies in advance, reduce hidden dangers, and double the effect of abnormal detection of equipment. Detect whole process of cutting head working, quickly feedback the risk and stop it. Double protection with fixed limit to improve equipment and personal safety and reduce risk.

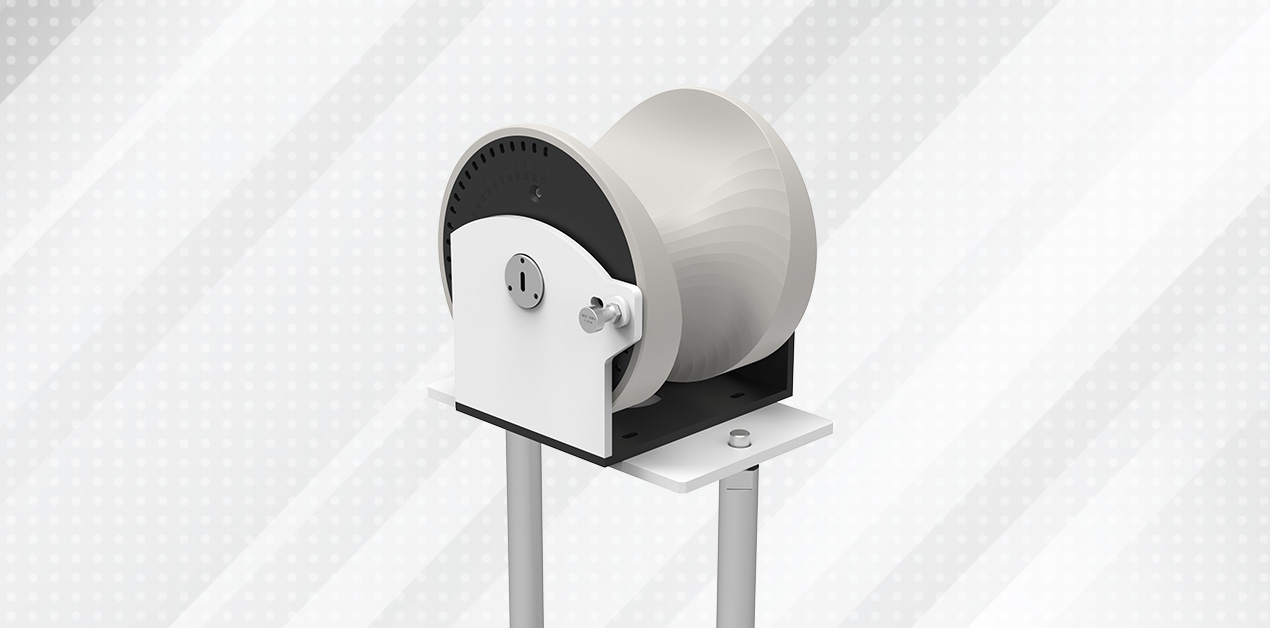

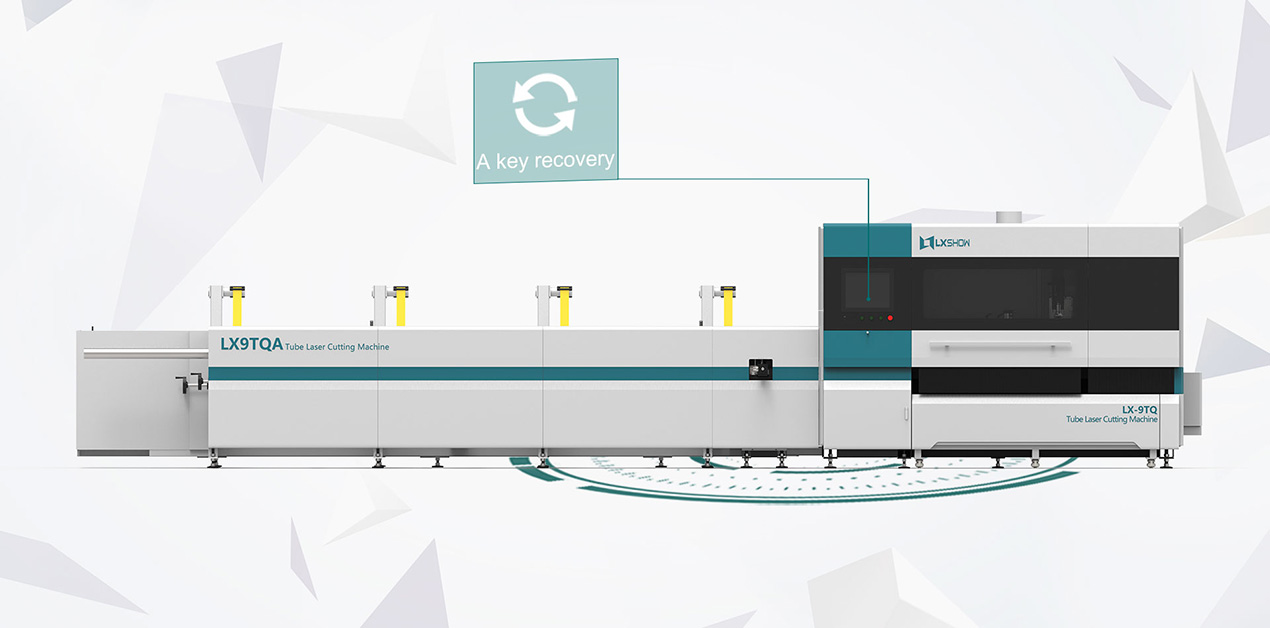

System is equipped with servo motor, boot to homework, do not need to return to zero operation, power outages, a key recovery cutting operation. It employs intelligent tube support design, which can solve the deformation problems in the process of long tube cutting.
Fiber Laser Metal Cutting Machine is suitable for metal cutting like Stainless Steel Tube, Mild Steel Tube, Carbon Steel Tube, Alloy Steel Tube, Spring steel Tube, Iron Pipe, Galvanized Steel Tube, Aluminum Pipe, Copper Tube, Brass Tube, Bronze Pipe, Titanium Pipe, Metal Tube, Metal Pipe, etc.
Fiber Laser Cutting Machines are widely used in manufacture Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Tube Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal crafts, metal art ware, elevator panel cutting, hardware, auto parts, Glasses Frame, Electronic Parts, Nameplates, etc.
