| Specification Parameter | Value / Details |
|---|---|
| Machine Model | LX3015PA |
| Power of Generator | 3000/4000/6000/8000/10000/12000W |
| Working Area | 1500*3000mm |
| Repeated Positioning Accuracy | ±0.02mm |
| Max Running Speed | 120m/min |
| Max Acceleration | 1.5G |
| Specified Voltage And Frequency | 380V 50/60HZ |
| Machine Weight | 10000KG (About) |
Collimating lens and focus lens group feature an advanced cooling structure. The simultaneous increase of cooling airflow at the nozzle provides effective protection for the nozzle and ceramic body, ensuring prolonged operation time.
Utilizing a 35 mm pore diameter, the design effectively reduces stray light interference, directly safeguarding and ensuring cutting quality and extended service life.
Reduces human intervention with an automated focus system capable of 10 m/min focusing speed and a repeat accuracy of 50 microns.
Achieves pre-punch times of less than 3 seconds on 25 mm carbon steel sheets at 3000W, significantly accelerating total processing output.
The Fiber Laser Metal Cutting Machine is optimized for processing a vast range of metals:
These advanced systems are heavily utilized in the following sectors:
The laser generator's expected lifetime (theoretical value) is 100,000 hours. Using the machine for 8 hours daily equates to roughly 33 years of service life. Supported Generator Brands include JPT, Raycus, IPG, MAX, and Nlight.

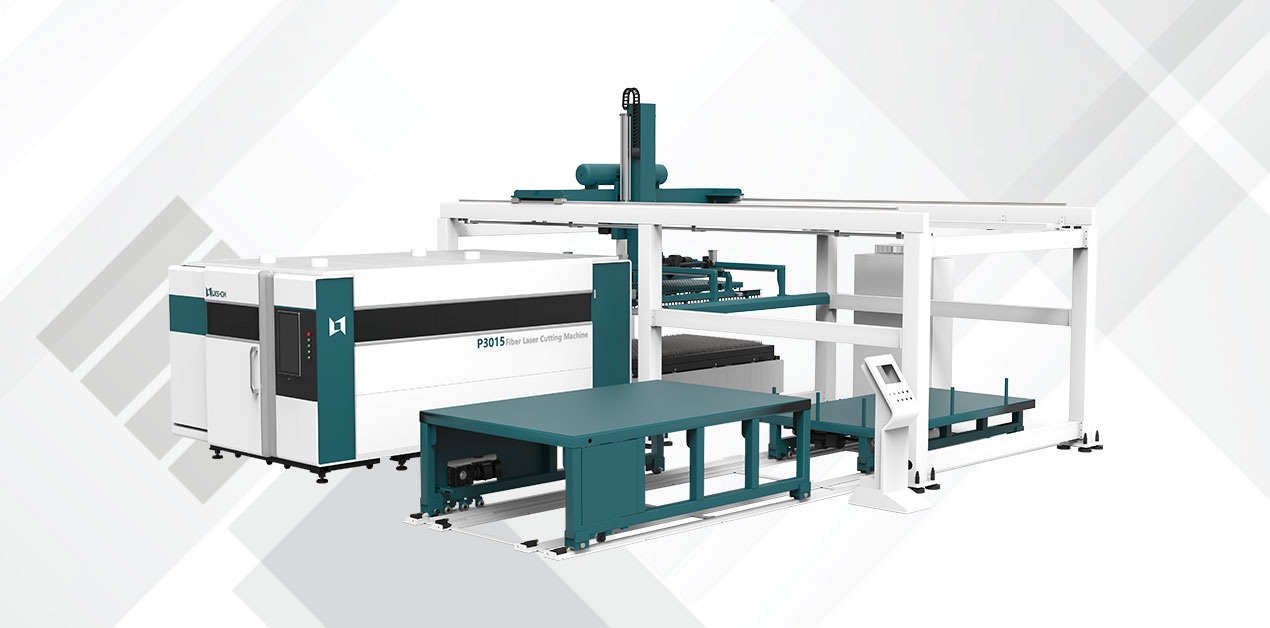

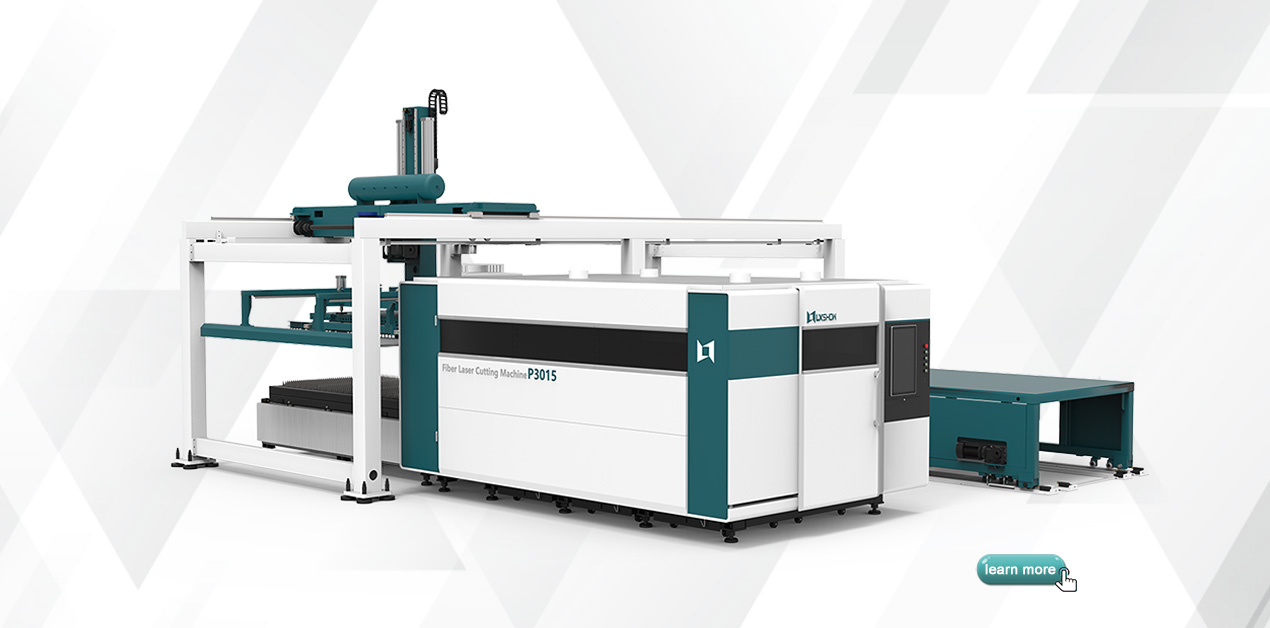

The running support utilizes a robust truss structure coupled with a manual sorting platform for finished workpieces. The unique configuration of the suction cup feeding system and comb fork feeding system greatly elevates operational speed, while the plate separation and thickness detection features maximize overall hardware safety.

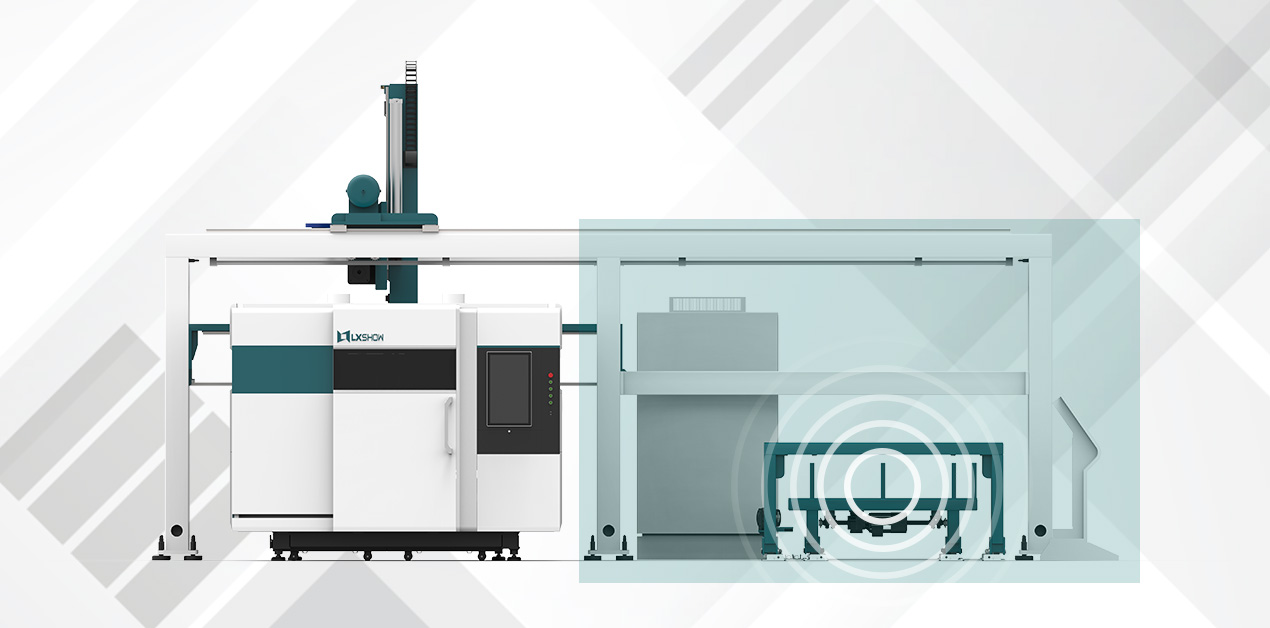

Safety Integration: Designed with guard systems that establish a safe distance. If personnel cross the safety threshold by mistake, the machine immediately ceases operation to protect the operator.
Highly intuitive operation makes the software easily accessible even for novice operators. Equipped with over 20,000 processed data records loaded into its graphical programming interface, the machine is highly compatible with numerous graphic files including DXF, DWG, PLT, and NC code.
Maximize material usage and inventory layout efficiency by up to 20% and 9.5% respectively, utilizing the system's integrated nesting software which supports an unlimited quantity of spare parts.
Supported Interface Languages: English, Spanish, Portuguese, Russian, German, French, Italian, Japanese, Korean, Dutch, Czech, Simplified Chinese, Traditional Chinese.
This fiber laser cutting machine is ideal for cutting a wide variety of metals including Stainless Steel, Mild Steel, Carbon Steel, Alloy Steel, Spring Steel, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum, Copper, Brass, Bronze, Gold, Silver, Titanium, and various other metal plates.
The laser generator has a theoretical service life of 100,000 hours. Operating the laser for 8 hours daily allows for approximately 33 years of usage. Available generator brands include JPT, Raycus, IPG, MAX, and Nlight.
The automated focus mechanism reduces human intervention, supporting a focusing speed of 10 m/min and maintaining a repeat positioning accuracy of 50 microns to ensure consistent quality.
The machine features a built-in safety boundary sensor. If an operator enters the restricted area by mistake, the machine stops immediately. It is also equipped with a plate separation and thickness detection system to avoid structural errors.
The system supports multiple file formats (DXF, DWG, PLT, and NC code) and features built-in nesting software that saves material. The interface supports multiple languages including English, Spanish, Portuguese, Russian, German, French, Italian, Japanese, Korean, Dutch, Czech, and Chinese.
