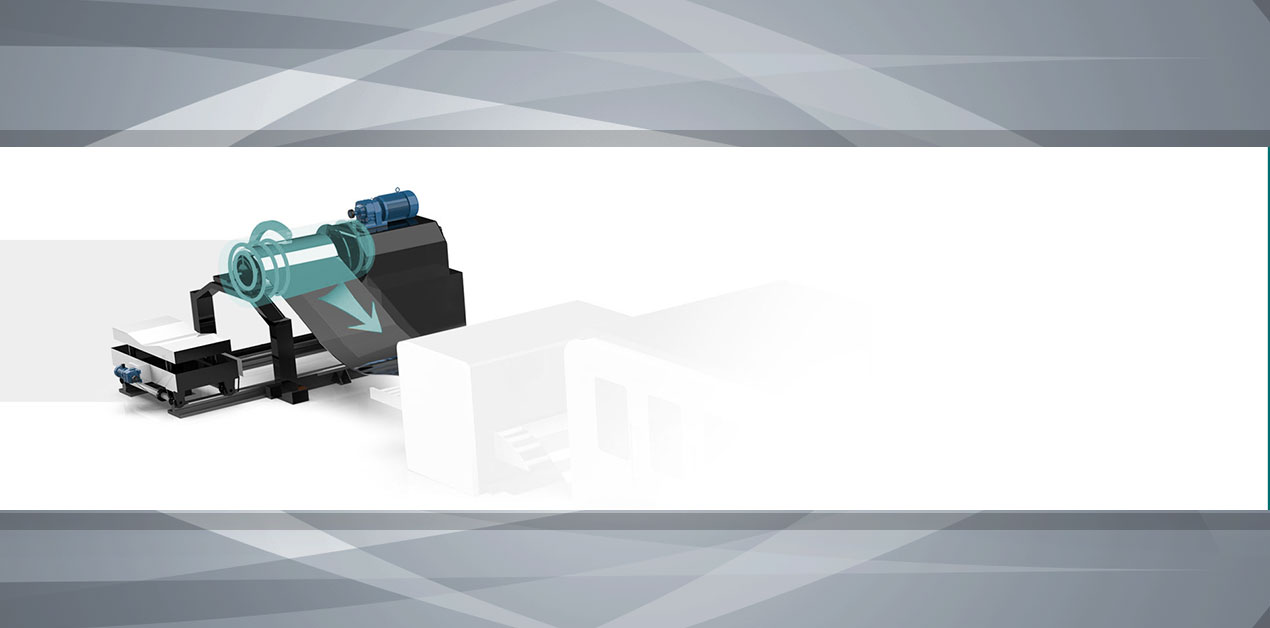

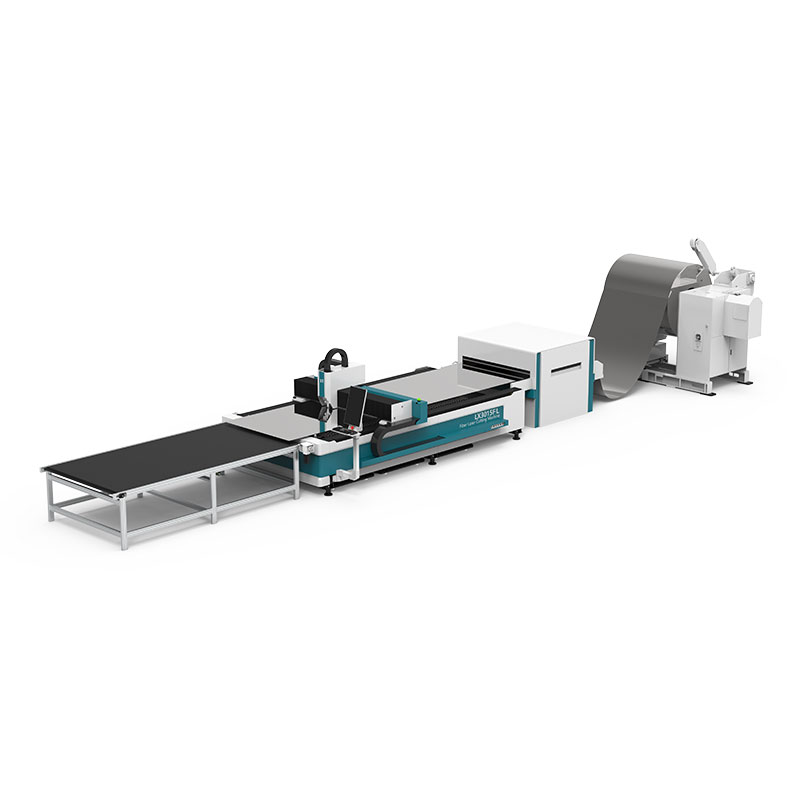

LX3015FL coil fed laser cutting machine combines a decoiling system that processes the coils from 600mm up to 1250mm in width. It can also operate 10000kg materials.

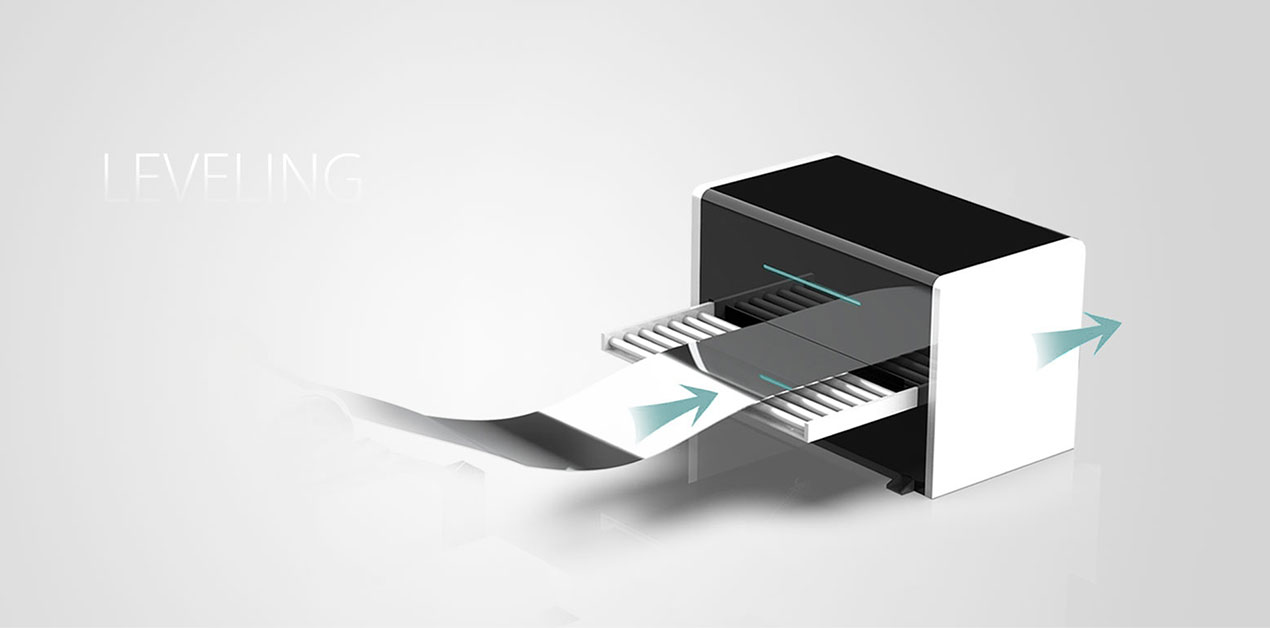

The leveling feeder straightens the material, with the adjustment accuracy of correction amount of ±0.01mm.

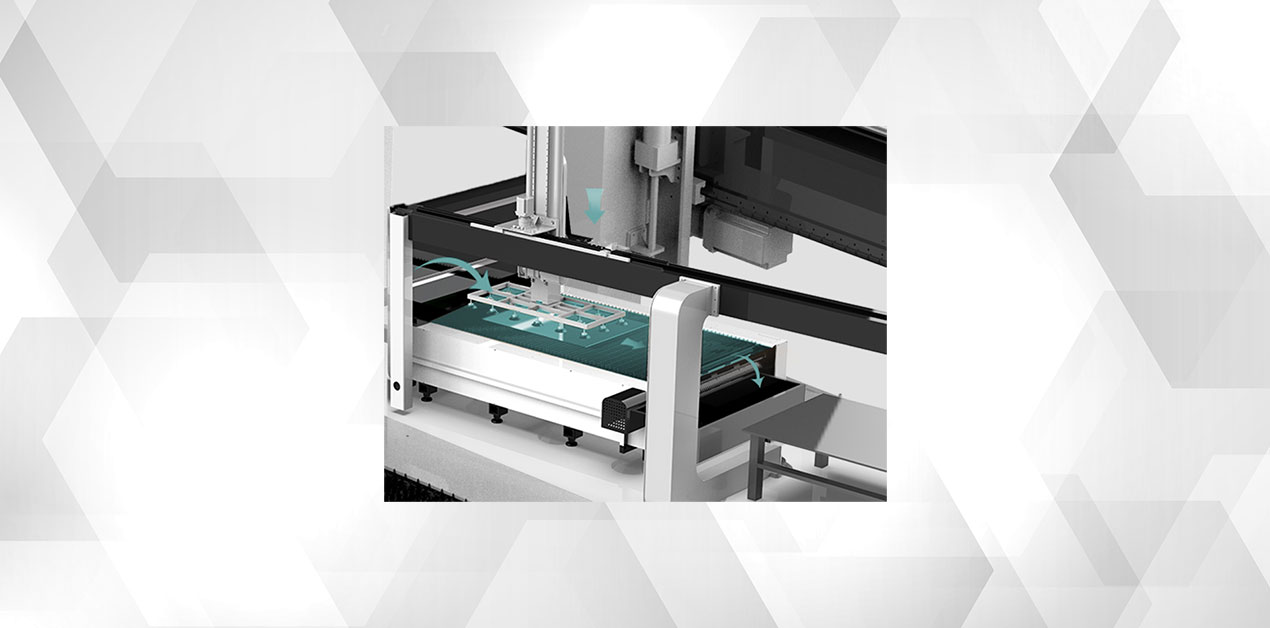

The unloading device, equipped with a vacuum chuck, allows for automatic unloading and stacking of finished products, which can ensure reduced labor and increased efficiency.
Specifications & Technical Parameters
| Parameter Type |
Technical Details |
| Power of Generator |
3000W (Optional powers: 1000W, 1500W, 2000W, 3000W, 4000W) |
| Working Area |
3050*1530mm |
| Laser Generator |
Raycus |
| Laser Wave Length |
1064nm |
| Working Table |
Sawteeth |
| Maximum Idle Running Speed |
120m/min |
| Maximum acceleration |
1.5G |
| Positioning Accuracy |
±0.02mm/m |
| Repeated Positioning Accuracy |
±0.01mm |
| Cutting Thickness |
Carbon steel: ≤22mm; Stainless steel: ≤10mm |
| Control System |
Weihong |
| Position Type |
Red dot |
| Power Consumption |
≤21KW |
| Working Voltage |
380V/50Hz |
| Auxiliary Gas |
Oxygen, nitrogen, air |
| Working life of fiber module |
More than 100000 hours |
| Cutting head |
Ospri laser head LC40SL |
| Cooling system |
S&A/Tongfei/Hanli industrial water chiller |
| Decoil and Flattener speed |
8-15m/min |
| Roller quality |
13 pieces |
| Uncoiling thickness |
0.5-1.5mm SS; 0.5-3.5mm Aluminum, galvanized |
| Material width |
0-1500mm |
| Material Diameter |
470-530mm/570-630mm |
| Rated Load |
8T |
| Work Environment |
0-45℃，Moisture 45-85% |
Lead time
15-35 working days
Payment Term
T/T; West Union; Paypal; L/C
Machine Size
(5480+8034)*4850*(2650+300)mm
Factory & Operations Gallery
Frequently Asked Questions
Q
Do you have CE document and other documents for customs clearance?
Yes, we have original documents. At first, we will show you, and after shipment, we will provide you with CE certificates, Packing List, Commercial Invoice, and Sales Contract for customs clearance.
Q
What are the supported payment terms?
We support TT, West Union, Paypal (Payple), LC, Cash, and Alibaba trade assurance.
Q
I do not know how to use the machine after receiving it, or I run into problems during usage. What should I do?
We can provide assistance through TeamViewer, Whatsapp, Email, Phone, or Skype with camera support until all of your issues are completely resolved. We can also provide on-site door service if required.
Q
How do I know which laser cutting model is suitable for me?
Please share the following details: 1) Maximum workpiece dimensions to select the right system size. 2) Materials and their thickness to determine the optimal laser generator power. 3) Your specific business application industry so we can recommend the best configuration.
Q
What is the warranty period for this machine?
This machine comes with a standard warranty of 3 years.
Q
What is the delivery time and available shipping options?
The average lead time is 15-35 working days, and we offer flexible shipping options either by sea or by land.
