| Technical Specifications | |
|---|---|
| Model | LX9TQA |
| Laser Power | 1000/1500/2000/3000W |
| Length of laser wave | 1070nm±5nm |
| Type of Laser | Single mode |
| Photoelectric conversion efficiency | 30% |
| Work Mode | Continuous light |
| Power range | 5-95% |
| Power Unstabilit | 2% |
| Transmission fiber core | 25um-50um |
| Length of Fiber | 10m |
| Cooling way | Water cooling |
| Water chiller model | 1.OP/1.5P/2.0P |
| Cooling water temperature | 20-25℃ |
| Power | AC 220V±10% AC380±10%，50/60Hz |
| Temperature of work environment | 10~35℃ |
| Humidity of work environment | ≤95% |

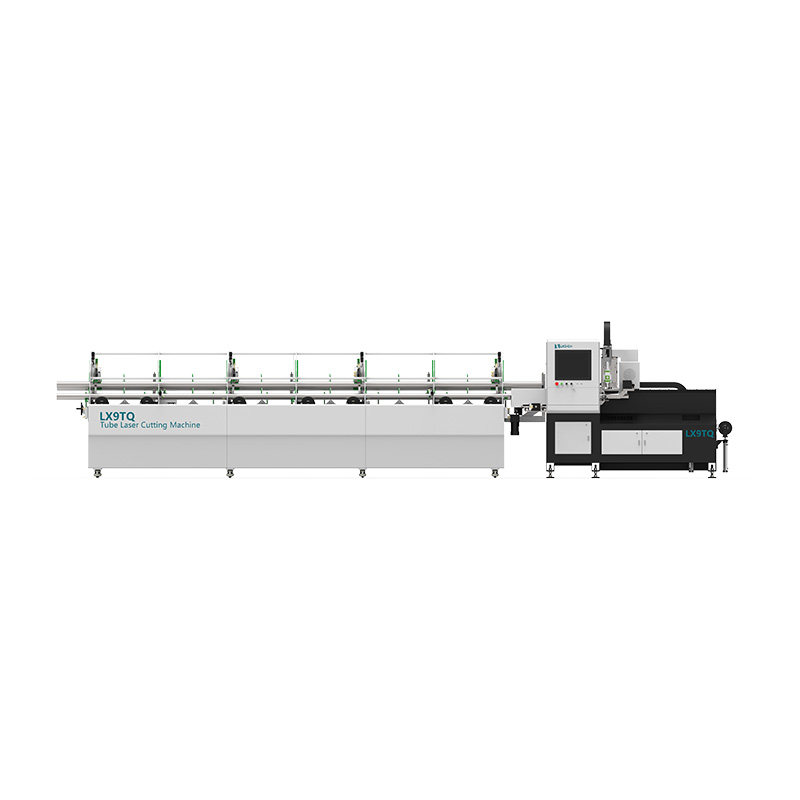

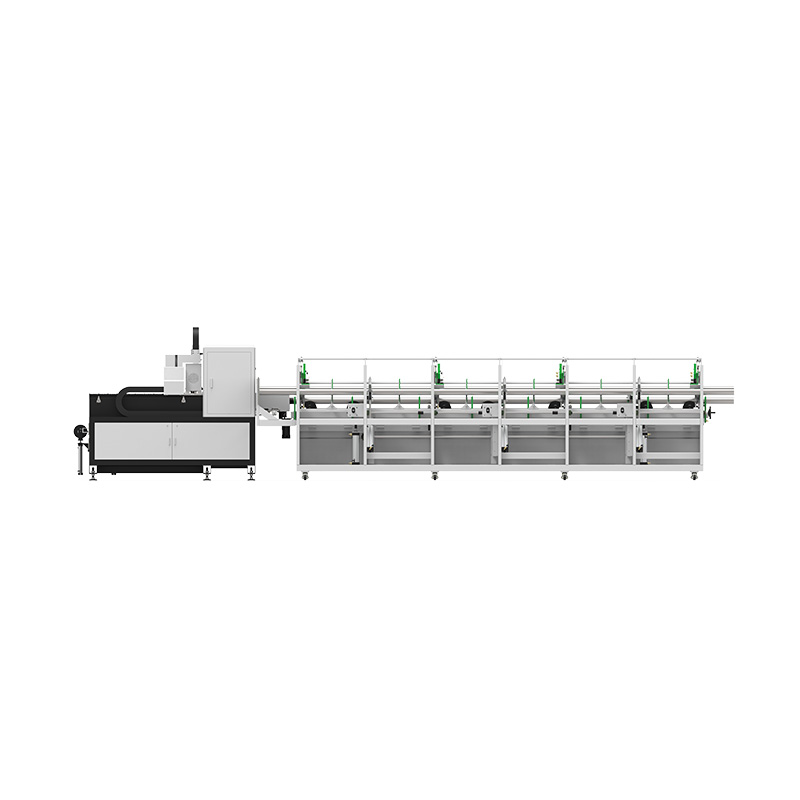

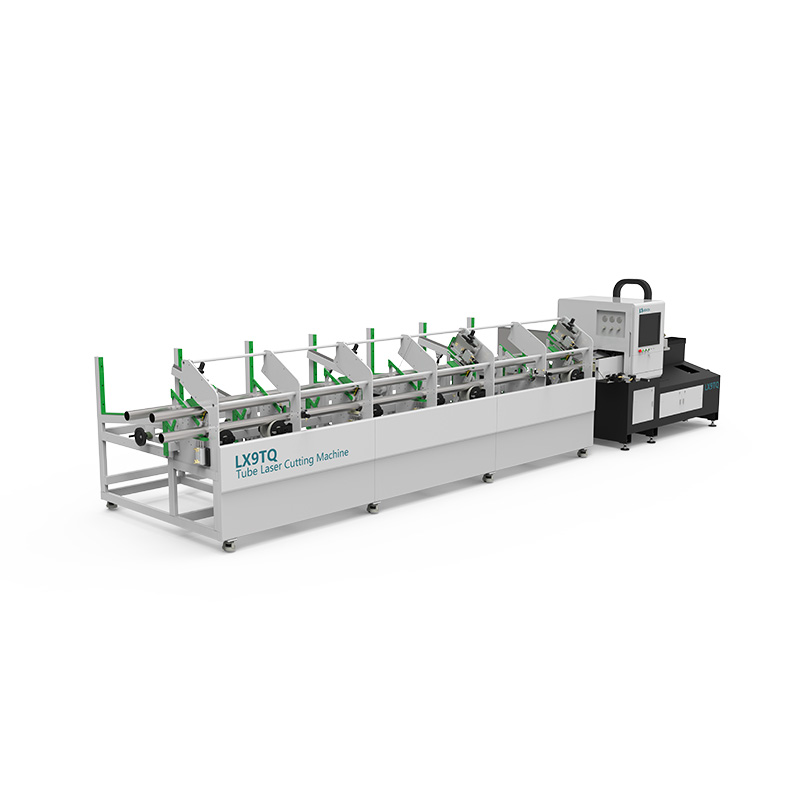

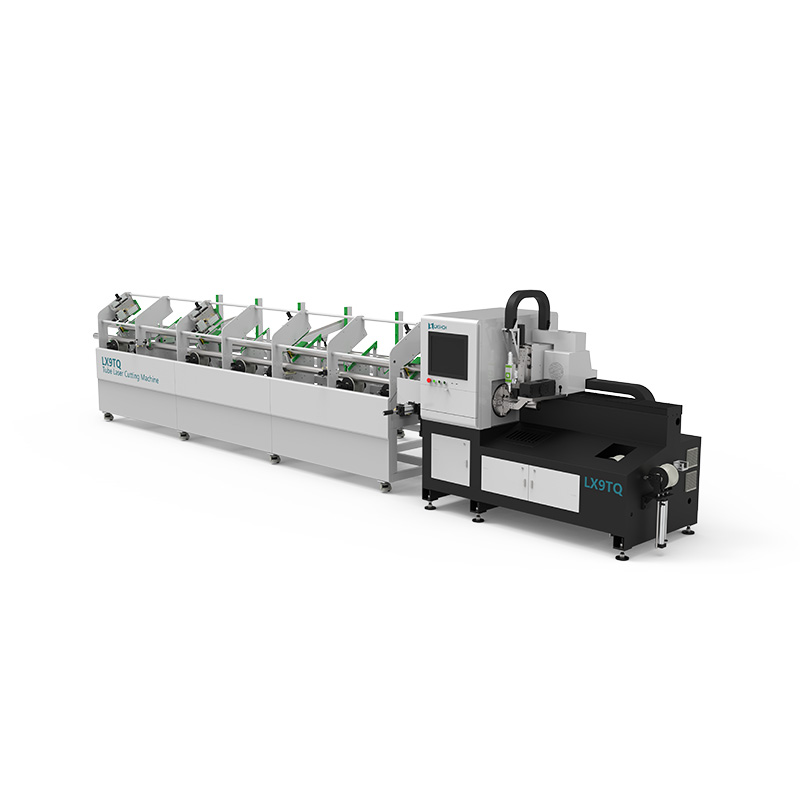

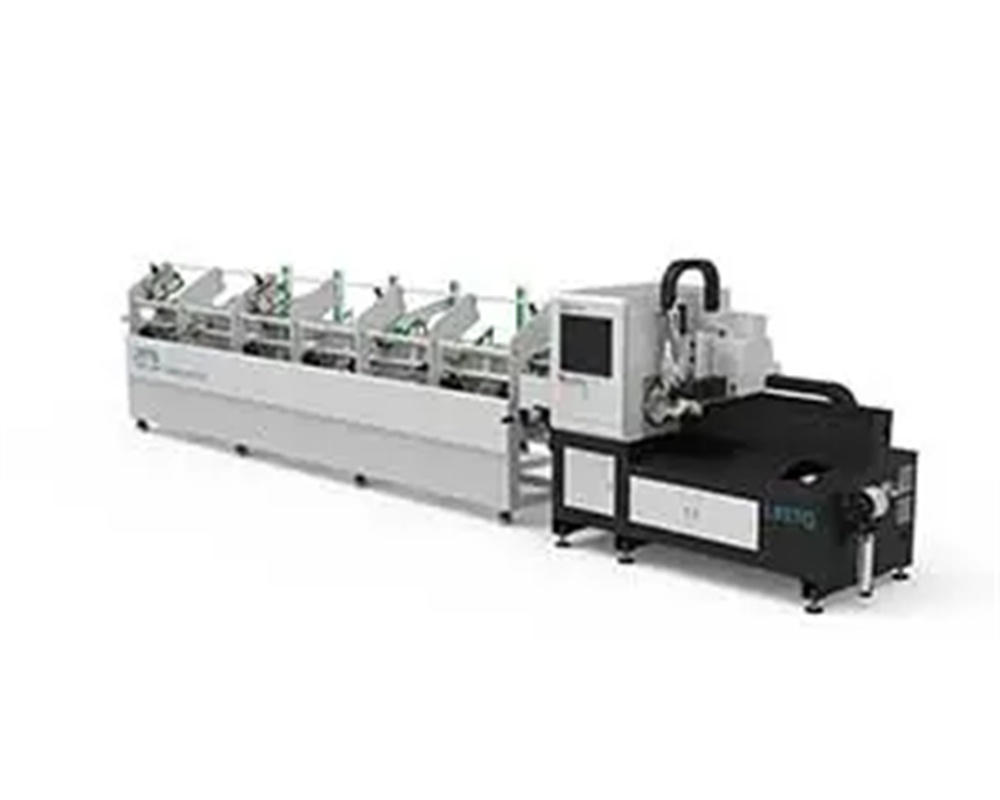

This machine can be used for various types of pipes: round pipes, square pipes, oval pipes, etc., with multi-process cutting. Cutting range for round pipes diameter is Φ10mm-Φ86mm, and square pipes diagonal is ≤82mm. The electronic control components adopt imported accessories, supporting 24-hour operation. The industry-specific operating system offers deep optimization, fast response, and minimal operation, achieving the perfect combination of speed, function, and stability. The acceleration reaches 1.6G, with efficiency 5~6 times that of ordinary pipe cutting machines.
The normal cutting tail of the equipment is about 40mm, which greatly saves material loss and reduces the post-process requirements.
Standard equipped with a height controller, making it easy to handle and adjust for deformed pipes during processing.
The head and tail materials are automatically separated from the finished parts, reducing the manual sorting process.

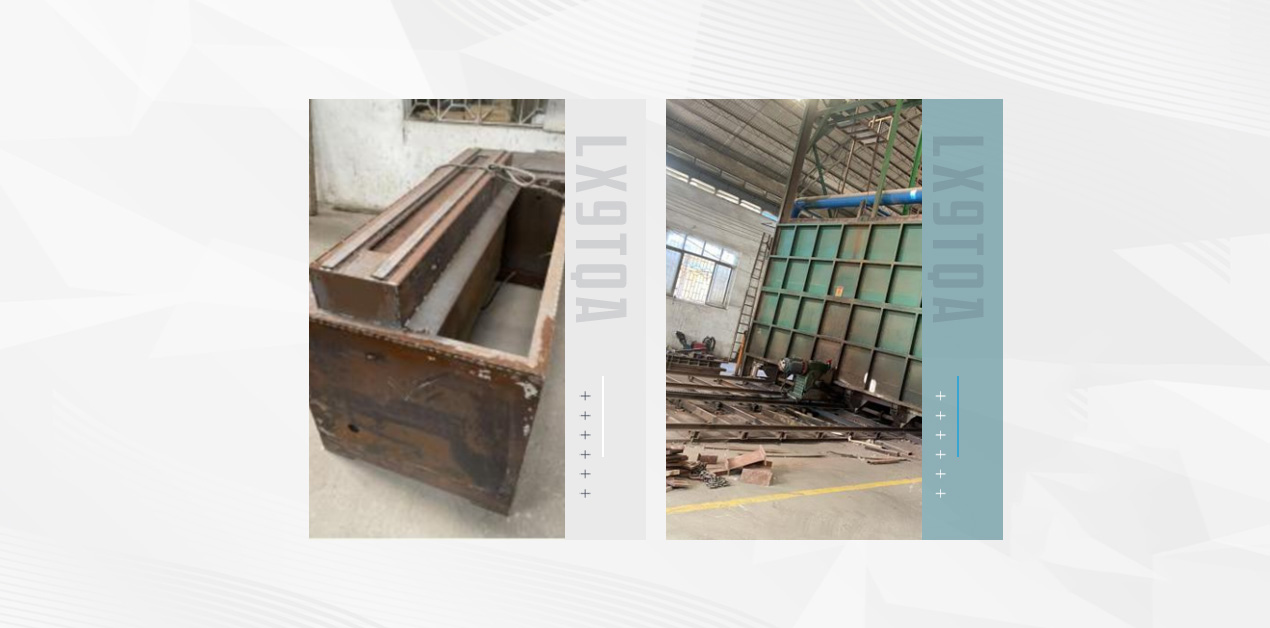

The machine bed adopts a strict welding and annealing process to ensure long-term stable operation and cutting accuracy. After each welding seam is completed, an infrared flaw detector is used to check for virtual welding or de-soldering, ensuring superior quality. A unique constant temperature bed stress relief annealing process is used: each time the temperature rises by one degree, it is kept constant to guarantee the entire bed reaches the same temperature before the next stage. After the multi-stage heating process, the bed is cooled with the furnace to eliminate residual stress, stabilizing the bed size and shape to prevent deformation over the life cycle.

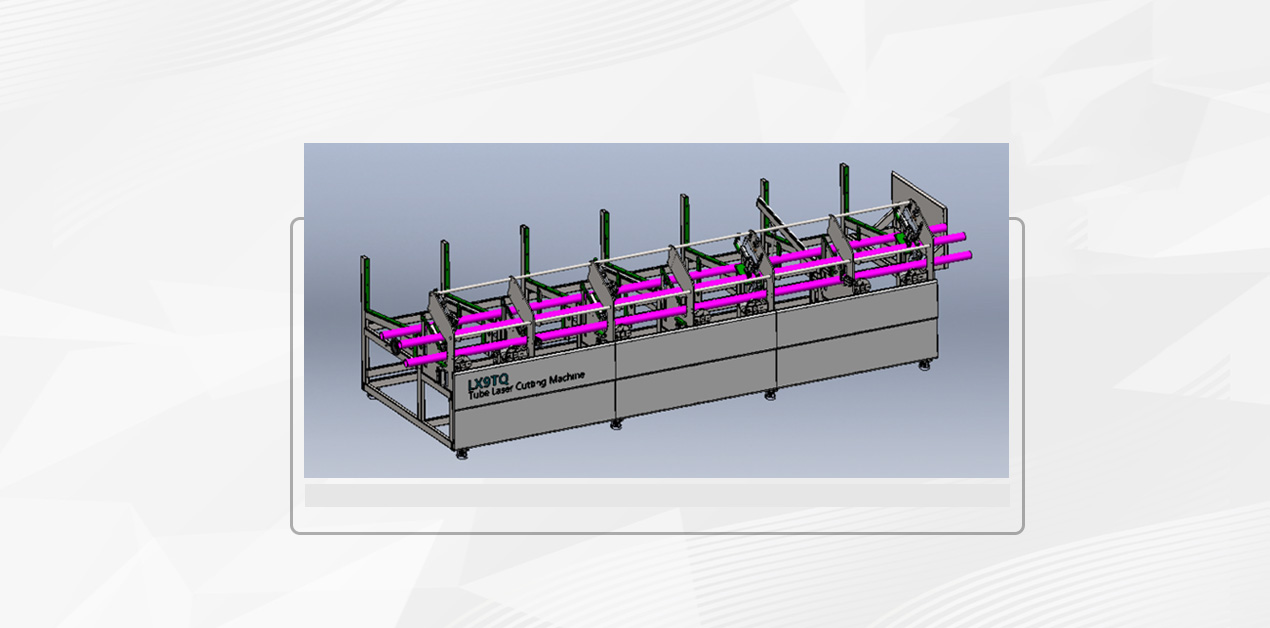

The machine realizes fully automatic feeding. Raw materials only need to be hoisted into the storage rack in batches to achieve the complete process: automatic loading → automatic feeding → automatic cutting → automatic blanking. Square, round, and elliptical pipes can all be fully loaded automatically with fast loading speed and high loading accuracy.

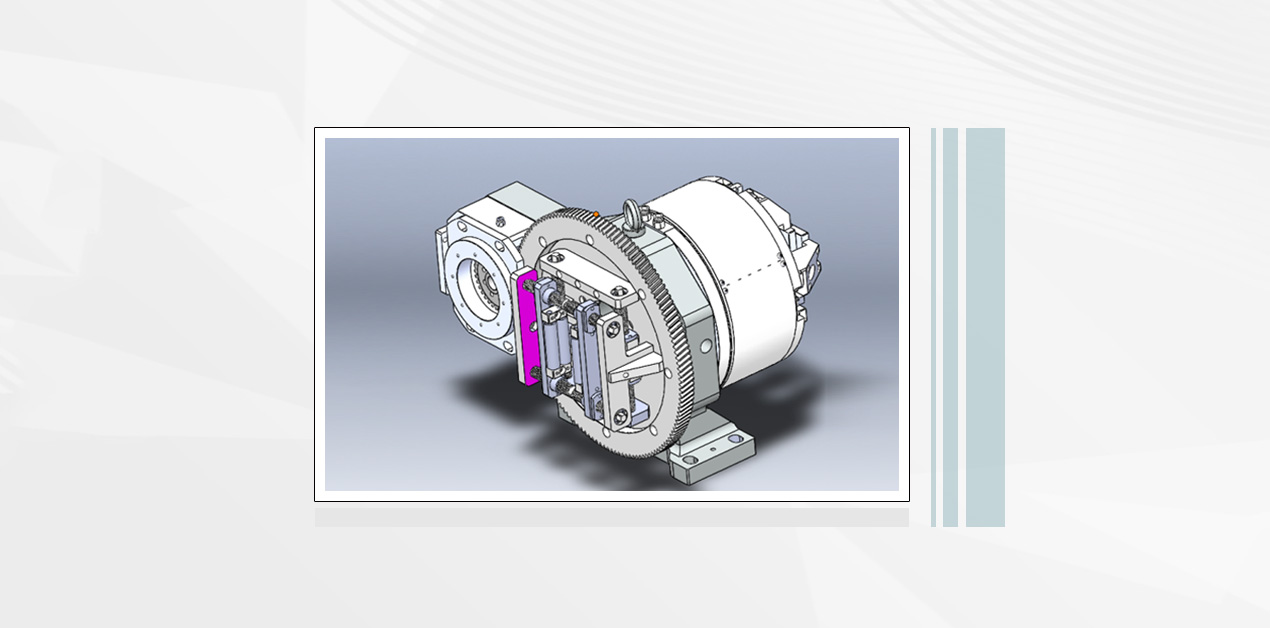

The pneumatic chuck adopts a double-sided clamping mechanism, which increases the support points of the pipe during the cutting process and improves overall cutting accuracy.

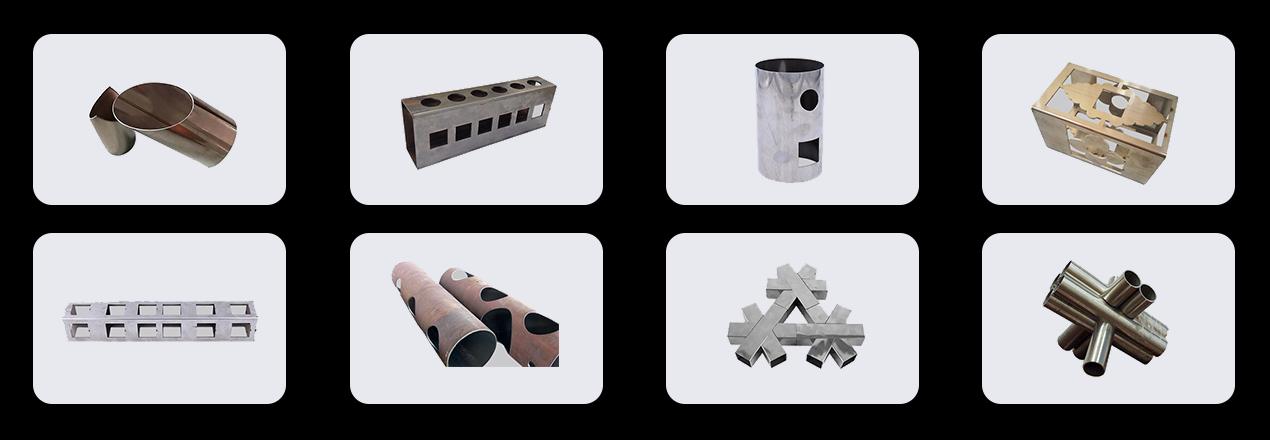

Fiber Laser Metal Cutting Machine is suitable for metal cutting like Stainless Steel Tube, Mild Steel Tube, Carbon Steel Tube, Alloy Steel Tube, Spring steel Tube, Iron Pipe, Galvanized Steel Tube, Aluminum Pipe, Copper Tube, Brass Tube, Bronze Pipe, Titanium Pipe, Metal Tube, Metal Pipe, etc.
Widely used in manufacturing Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Tube Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal crafts, metal art ware, elevator panel cutting, hardware, auto parts, Glasses Frame, Electronic Parts, Nameplates, etc.

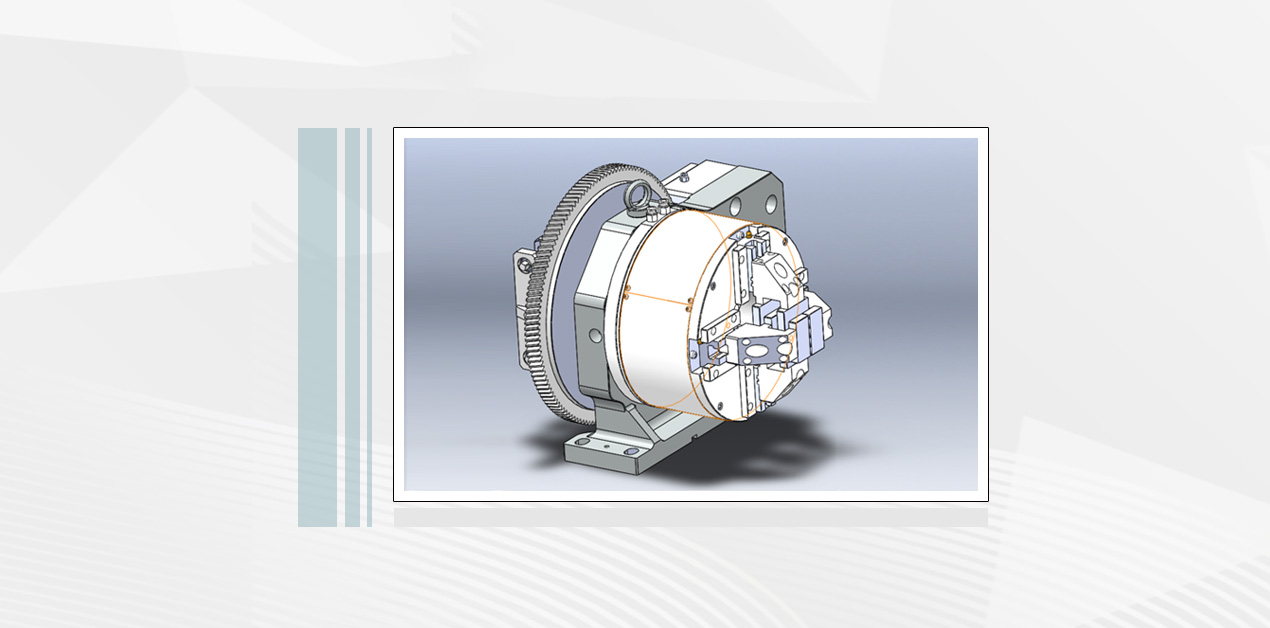

Equipped with a universal high-precision pneumatic chuck, it solves the shortcoming that this type of pipe cutting machine needs to replace the fixture frequently, and can realize the cutting and processing of pipes of different specifications without changing the fixture.

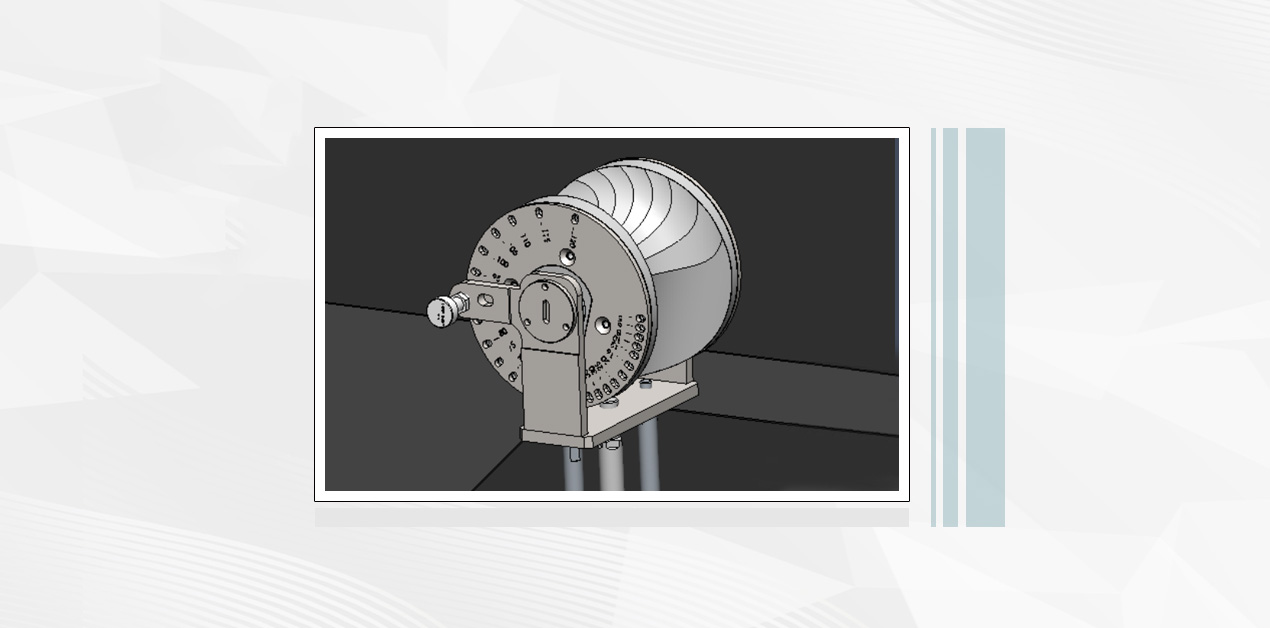

Equipped with profiling drag rollers to prevent pipe deformation and sagging.
The machine processes various pipe shapes including round, square, and oval pipes. It supports a cutting range of Φ10mm-Φ86mm for round pipe diameters and ≤82mm diagonal for square pipes.
The machine offers flexible options of 1000W, 1500W, 2000W, and 3000W single-mode laser power with a wave length of 1070nm±5nm.
The system allows batches of raw materials (square, round, or elliptical pipes) to be loaded into the storage rack, automating the complete process: automatic loading, feeding, cutting, and blanking.
The equipment has a very small blind area of tailings, with a typical cutting tail of only about 40mm, greatly saving raw material costs.
The laser pipe cutting machine comes with a 3-year warranty, and the production lead time is approximately 10 to 25 working days.
It is highly suitable for processing various metal tubes and pipes, including Stainless Steel, Mild Steel, Carbon Steel, Alloy Steel, Spring Steel, Iron, Galvanized Steel, Aluminum, Copper, Brass, Bronze, and Titanium.
