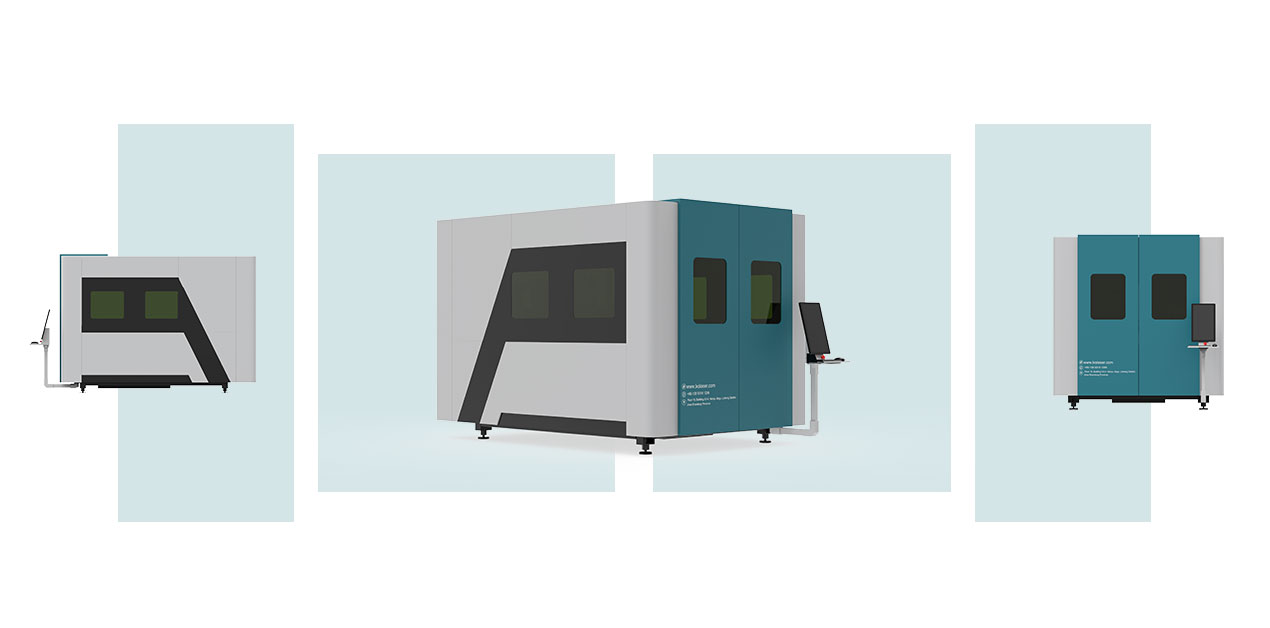

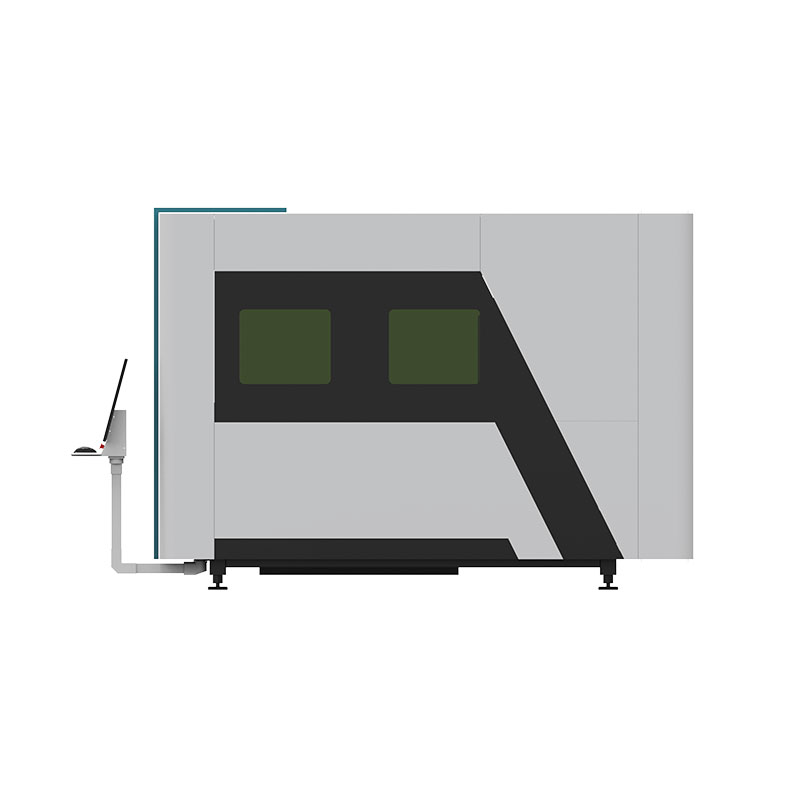

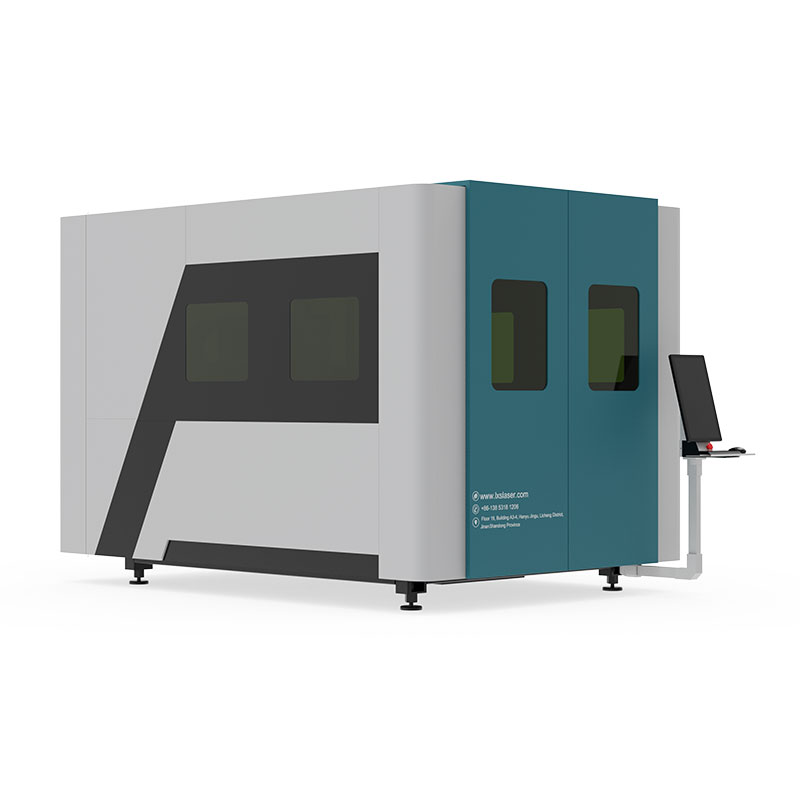

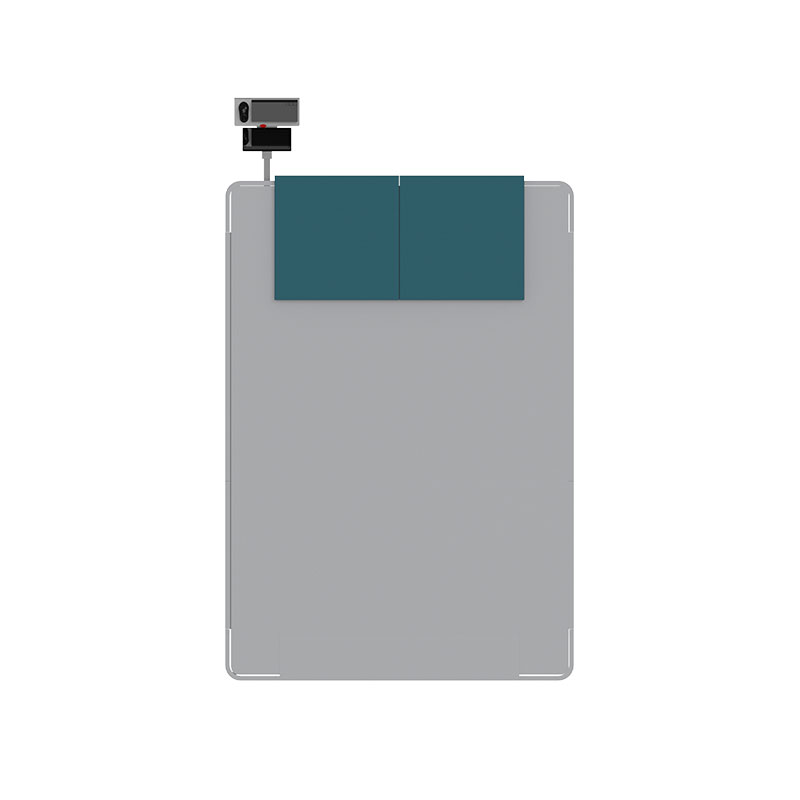

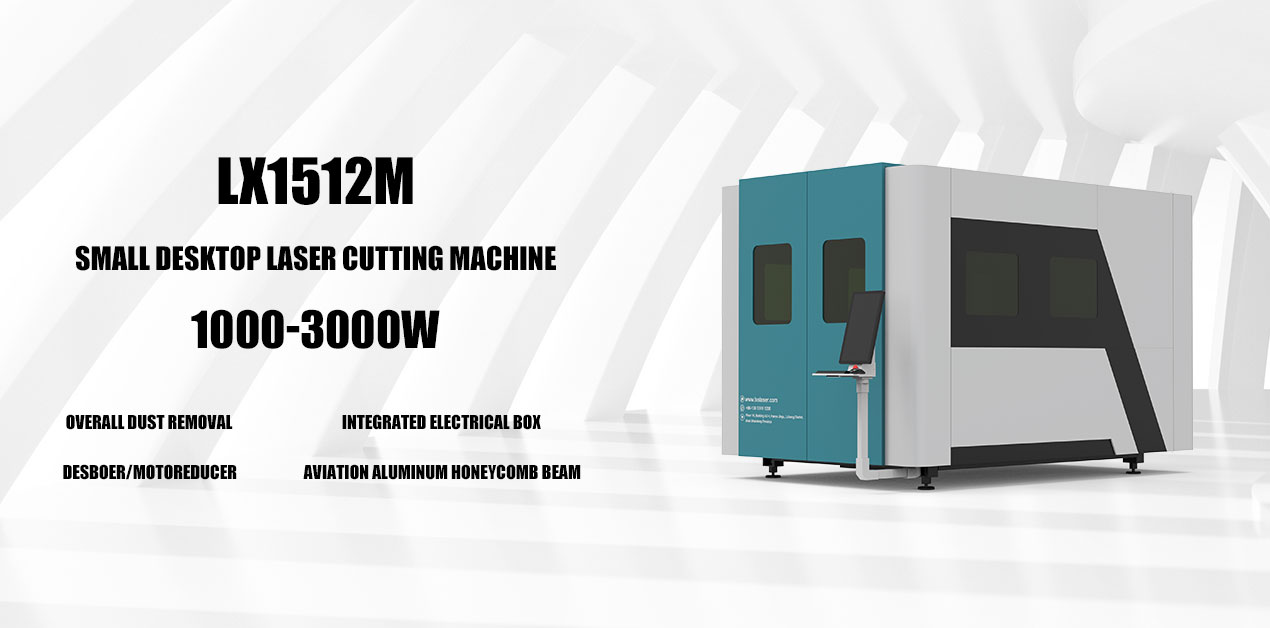

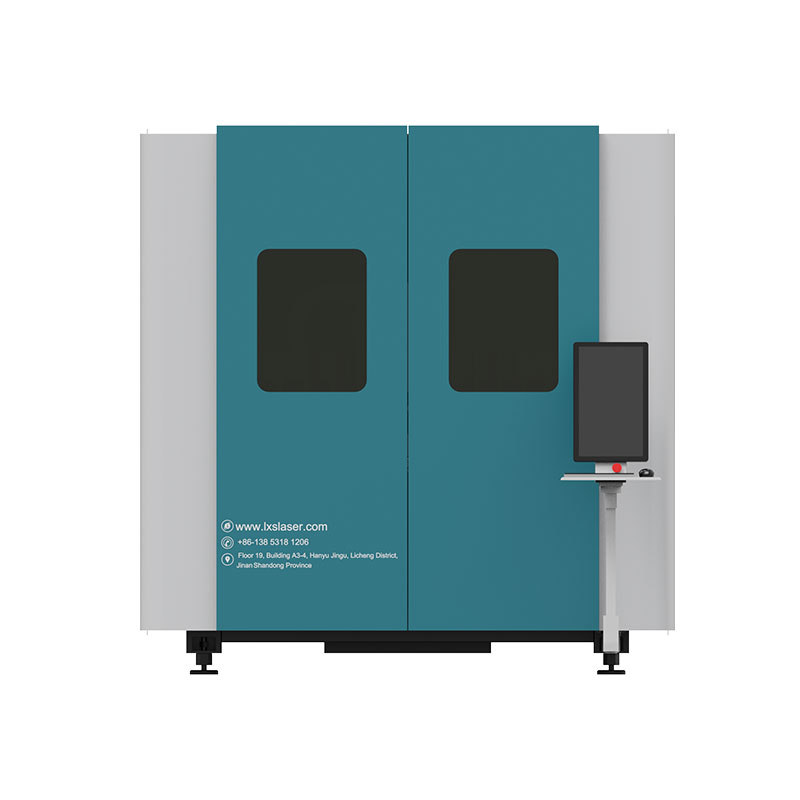

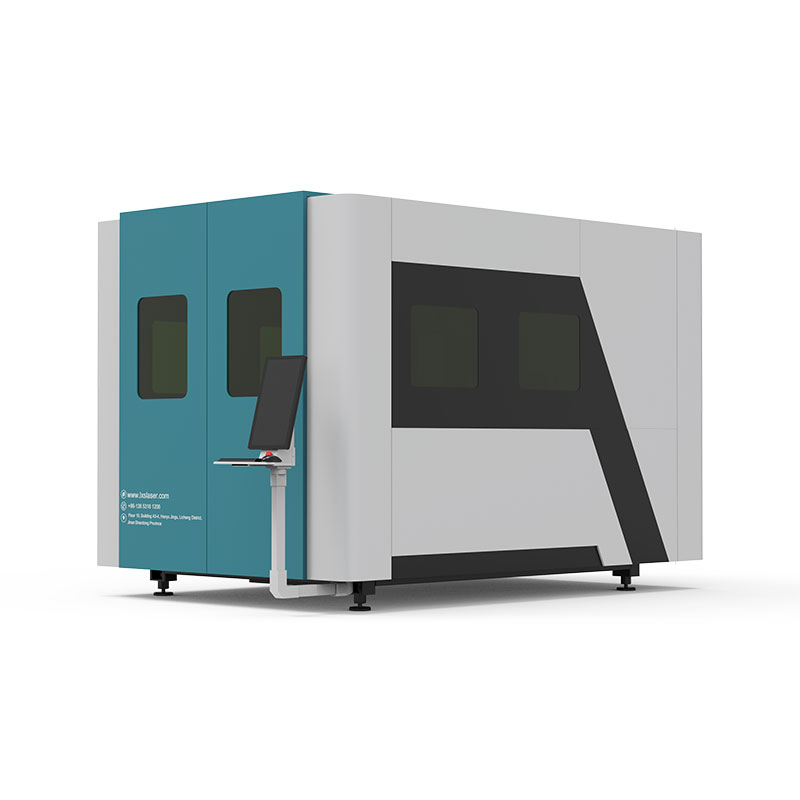

China LX1512FM Full-coverage Steel metal Laser Cutting Machines Near Me Manufacturer, Factories

1512M-1270-1 1512M-1270-2

Product Description

Raycus Laser Generator

  • Famous laser brand all over the world.
  • High electronic-optical conversion efficiency, good beam quality, wide modulation frequency, high reliability, long life, and maintenance-free.
  • The center wavelength is 1080nm±5.
Raycus Laser Source
Fiber Laser Cutting Head

Fiber Laser Cutting Machine Head

Optimized optical configuration and smooth and efficient airflow design. Featuring industry-standard cutting heads. Brand options like Au3tech, Boci, and others can be configured dynamically to match specific processing needs.

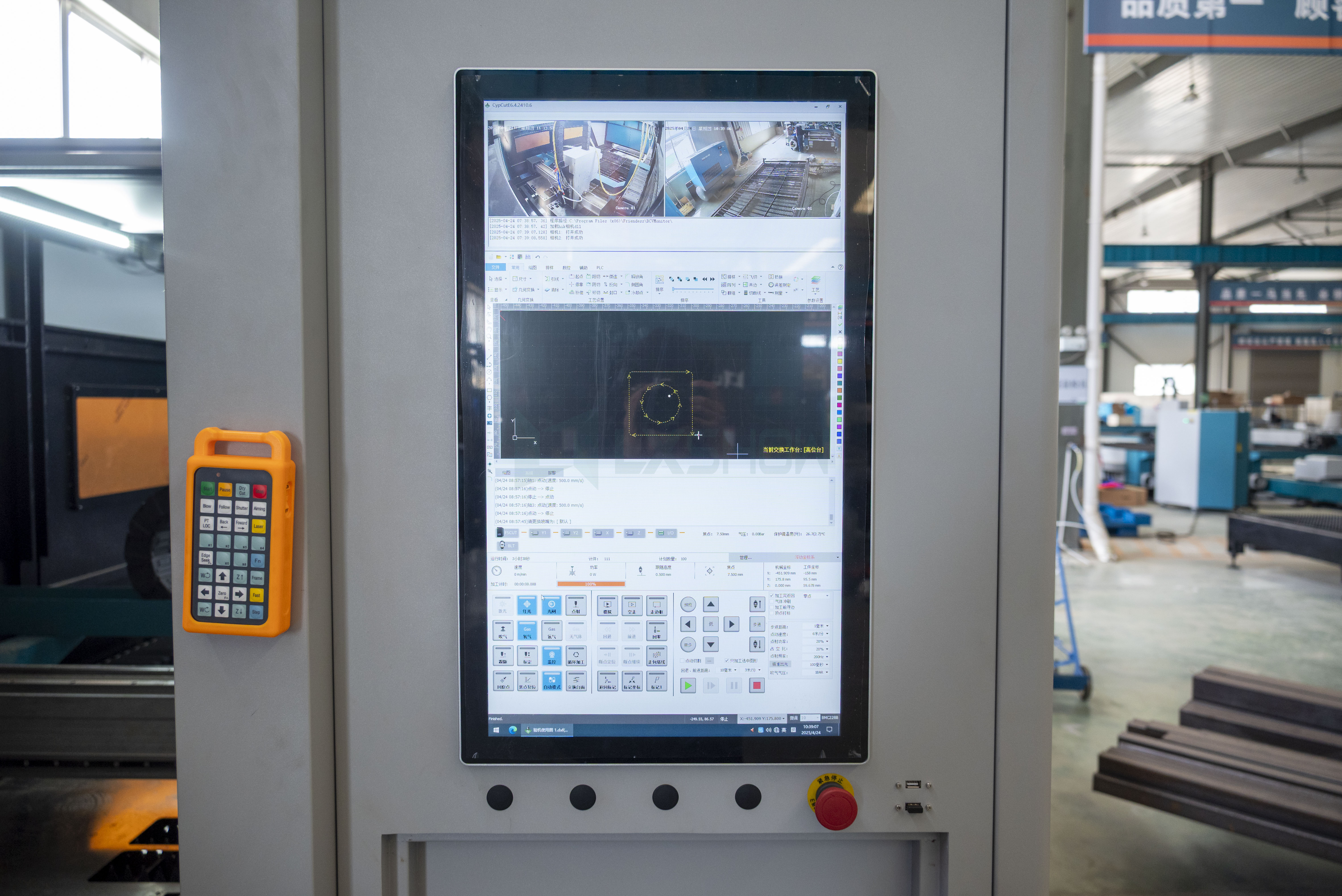

Fiber Laser Cutting Control Display

Equipped with professional fiber laser controller software installed within the protective control cabinet. Operating the laser cutting machinery via the display interface is highly intuitive, yielding straightforward, user-friendly control for operators of all experience levels.

Control System Display
Technical Specifications
Model LX1512FM
Working Area 1550*1250mm
Laser Power 1000W - 3000W
Maximum Idle Running Speed 120m/min
Position Accuracy ±0.02mm/m
Repeat Positional Accuracy ±0.01mm
Laser Wave Length 1064nm
Max Running Speed 120m/min
Max Acceleration 1.5G
Working Voltage 380V 50/60HZ
Crossbeam Aerospace aluminium honeycomb structure
Outsourced Sheet Metal Integrated circuit box protection
Contact banner
Cutting Samples
Laser Cutting Sheet Metal Samples
Packaging & Delivery
Machine Packaging details
Manufacturing Factory
Laser Machine Production Factory
Our Technical Service
After-Sales Technical Support
Global Customer Visit
Global customers visiting the factory
Off-line Exhibition & Activities
Off-line Global exhibitions
Frequently Asked Questions
Q: Do you have CE document and other documents for customs clearance?
A: Yes, we have original documentation. Initially, we will present them to you, and after shipment, we will provide you with CE, Packing List, Commercial Invoice, and Sales Contract to facilitate smooth customs clearance.
Q: What are the accepted payment terms?
A: We support a variety of payment methods including TT (Telegraphic Transfer), Western Union, PayPal, LC (Letter of Credit), Cash, and other mutually agreed options.
Q: How do I handle setup and operation issues after receiving the machine?
A: We provide online assistance through TeamViewer, WhatsApp, Email, Phone, and Skype (with video) to completely resolve any issue. On-site engineer support and door-to-door services are also available upon request.
Q: I do not know which laser cutting model is suitable for me. What should I do?
A: Simply share the following details: 1) Maximum workpiece dimensions (to select optimal bed size). 2) Material type and thickness (to select appropriate laser generator power). 3) Your application field (to provide recommendations based on similar projects).
Q: What is the warranty period for this machine?
A: We offer a comprehensive warranty for the core components, including the laser generator. Lifetime online technical support and software upgrades are included.
Q: How do you guarantee the safety of the machine during international shipping?
A: The machine is wrapped in moisture-resistant film and secured in a heavy-duty export-standard wooden case to prevent any shifting or damage during maritime transport.
