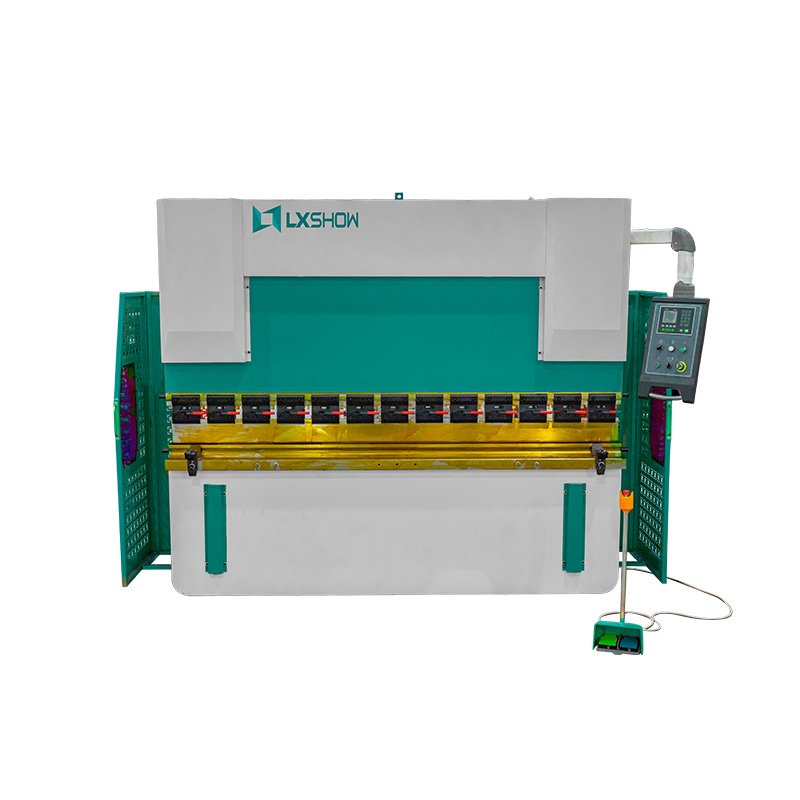

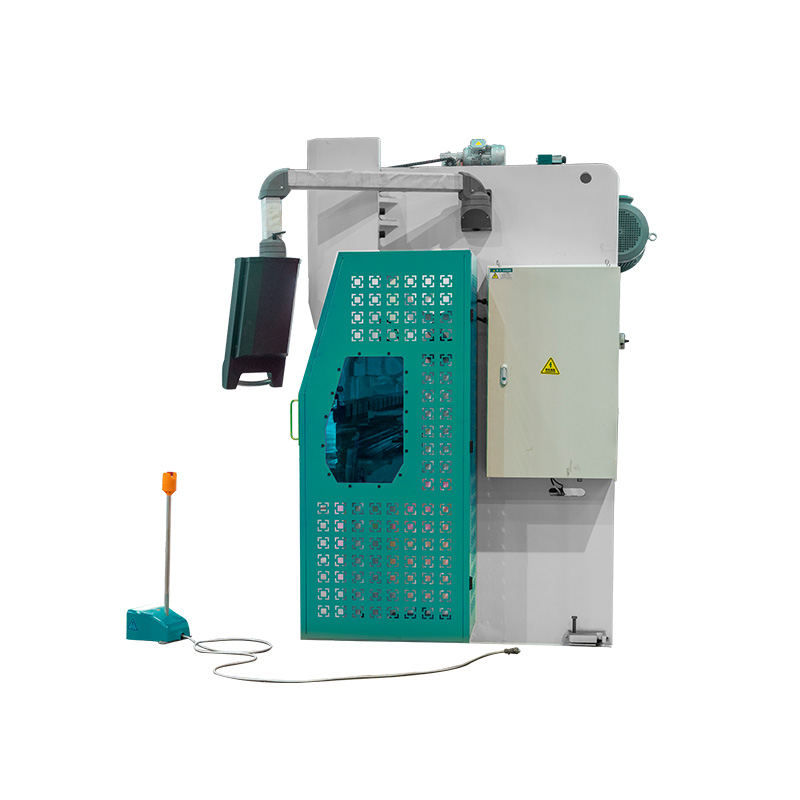

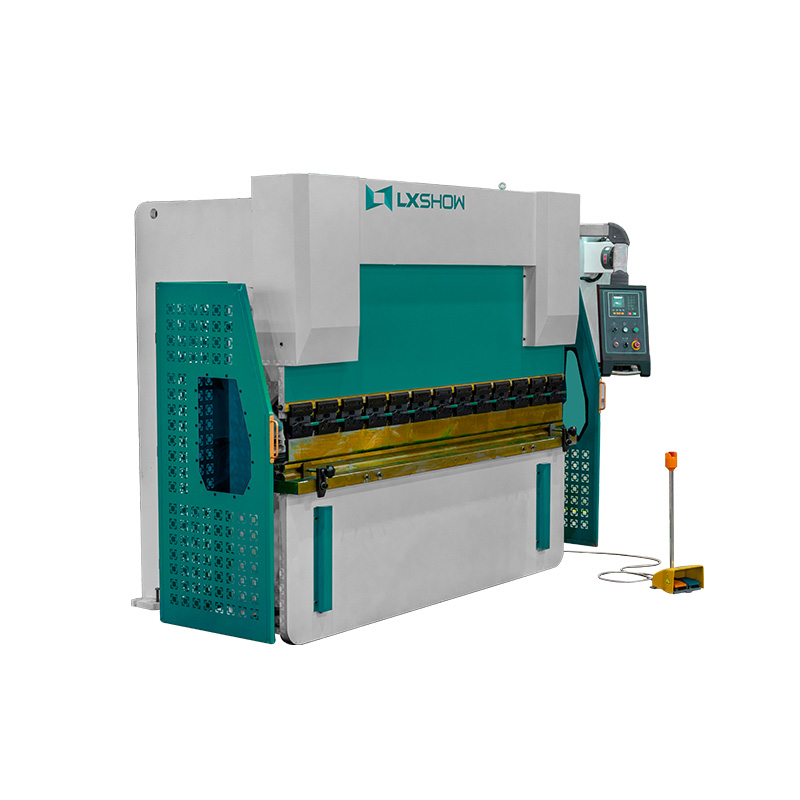

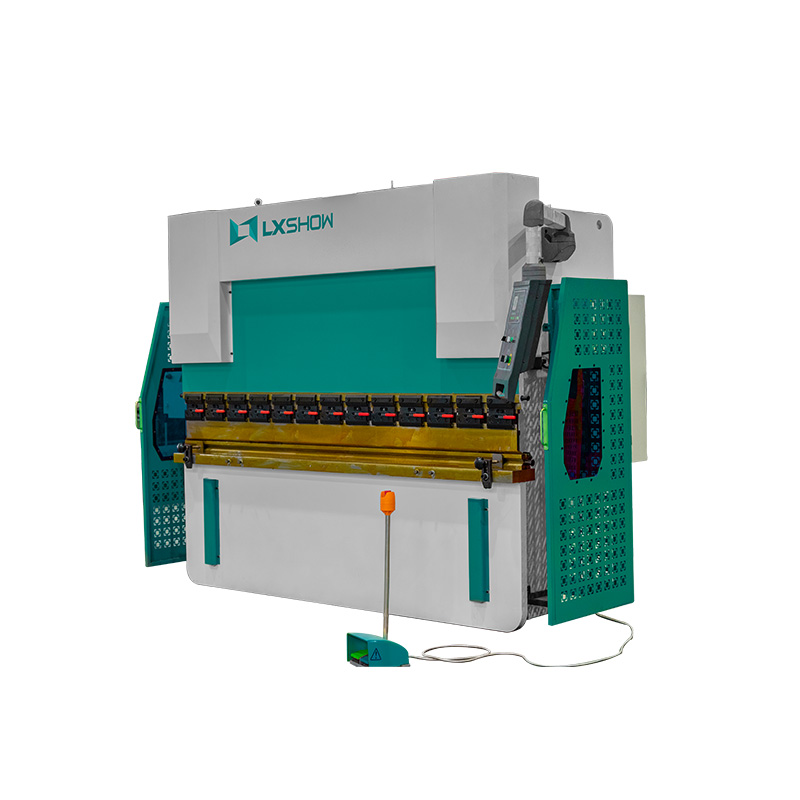

1. The sliding block adopts the torsional shaft synchronization mechanism, and the two ends of the torsional shaft are installed with high precision taper centering bearing (K type), and the left end is equipped with eccentric adjusting mechanism, making the sliding block synchronous adjustment convenient and reliable.
2. The use of upper die deflection compensation mechanism, through adjustment can make the upper die mouth on the full length of the machine to obtain a specific curve, to compensate for the mechanical loading table and slide produced by the deflection, improve the workpiece bending accuracy.
3. In the Angle adjustment, the worm gear reducer drives the formation of the movement of the mechanical block in the cylinder, and the value of the cylinder position is displayed by the travel counter.
4. The upper and lower adjusting mechanism is arranged at the fixed place of the workbench and the wall panel, which makes the adjustment convenient and reliable when the bending Angle is slightly different.
5. The column right side is equipped with remote pressure regulating valve, so that the size of the system pressure adjustment, convenient and reliable.
Main Technical Parameters
No.
Name
Parameter
Unit
1
Nominal Pressure
1000
KN
2
Length of Table
4000
mm
3
Distance between Housings
3160
mm
4
Throat Depth
330
mm
5
Ram stroke
120
mm
6
Open MAX Height
380
mm
7
Overall Dimensions
L
4100mm
mm
W
1600mm
mm
H
2600mm
mm
8
Main motor power
7.5
Kw
9
Machine weight
8
Tons
10
Voltage
220/380/420/660
V
Main Specification
Model
Weight (t)
Cylinder Diameter (mm)
Stroke (mm)
Wallboard (mm)
Slider (mm)
Bench Riser (mm)
WC67K-30T1600
1.4
95
80
18
20
20
WC67K-40T2200
2.1
110
100
25
30
25
WC67K-40T2500
2.3
110
100
25
30
25
WC67K-63T2500
3.6
140
120
30
35
35
WC67K-63T3200
4
140
120
30
35
40
WC67K-80T2500
4
160
120
35
40
40
WC67K-80T3200
5
160
120
35
40
40
WC67K-80T4000
6
160
120
35
40
45
WC67K-100T2500
5
180
140
40
50
50
WC67K-100T3200
6
180
140
40
50
50
WC67K-100T4000
7.8
180
140
40
50
60
WC67K-125T3200
7
190
140
45
50
50
WC67K-125T4000
8
190
140
45
50
60
WC67K-160T3200
8
210
190
50
60
60
WC67K-160T4000
9
210
190
50
60
60
WC67K-200T3200
11
240
190
60
70
70
WC67K-200T4000
13
240
190
60
70
70
WC67K-200T5000
15
240
190
60
70
70
WC67K-200T6000
17
240
190
70
80
80
WC67K-250T4000
14
280
250
70
70
70
WC67K-250T5000
16
280
250
70
70
70
WC67K-250T6000
19
280
250
70
70
80
WC67K-300T4000
15
300
250
70
80
90
WC67K-300T5000
17.5
300
250
70
80
90
WC67K-300T6000
25
300
250
80
90
90
WC67K-400T4000
21
350
250
80
90
90
WC67K-400T6000
31
350
250
90
100
100
WC67K-500T4000
26
380
300
WC67K-500T6000
40
380
300
Product Details
Control System: Estun E21
1 Easy to operate: This system has multi-step programming, can be changed at any time different sizes.
2 Manual function: Convenient debugging and installation, with manual mode to adjust the required size.
Front Bracket
Placed on the side of the table, fixed by screws. It can be used as support when bending wide and long plates.
Back Barrier
The rear stopper mechanism with T-type lead screw matching rod is driven by motor. Positioning stop refers to the aluminum alloy beam can easily move around and bend the workpiece at will.
Electrical Machinery
Electrical Machinery
Foot switch
Control the start and stop of the bending machine to achieve precise control of the bending process
Sample Show & Industry Gallery
Sample Show & Industry
Packaging
Factory
Our Service
Customer Visit
Off-line Activity
FAQ
Do you have CE document and other documents for customs clearance?
Yes, we have CE, Provide you with a one-stop service. At first we will show you and after shipment we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.
If we are interested in your machine, how do we choose?
Could you tell me your materials:cs or ss and their thickness? And the biggest bending width? Then i will confirm the machine model for you.
How about warranty?
3 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge(some parts will be maintained) when if any problem during the warranty period.
Do you have after sales support?
Yes, we are happy to give advice and we also have skilled technicians available across the world, We need your machines running in order to keep your business running.
Do you have any other machine style?
Yes, please check the following machine style, if you have any questions, you can contact us any time, 24x7, we always here.
