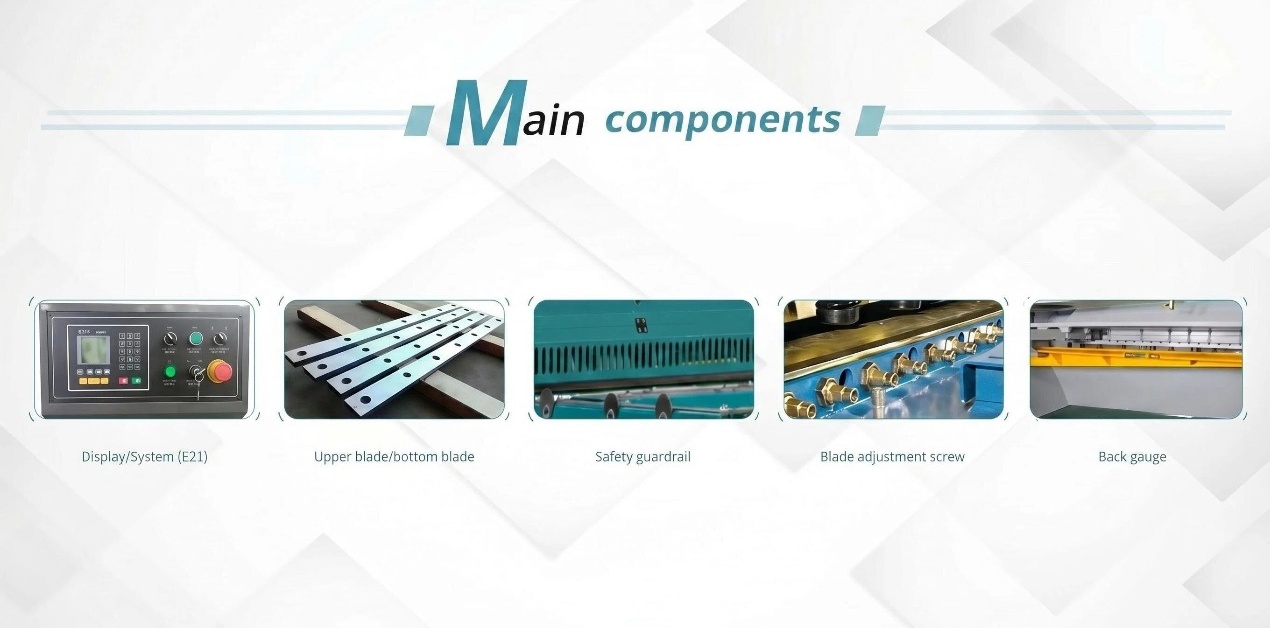

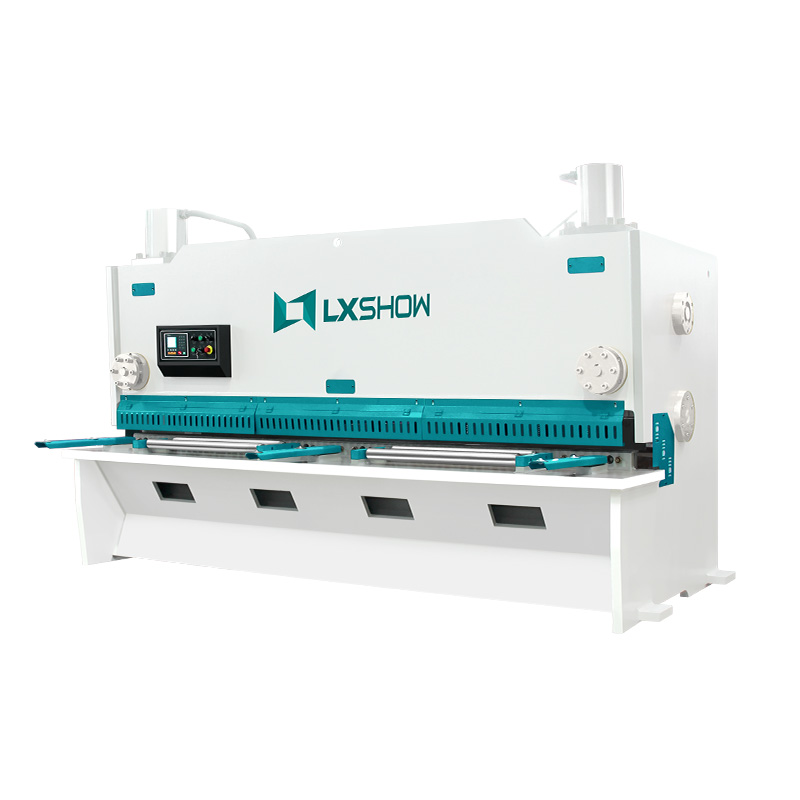

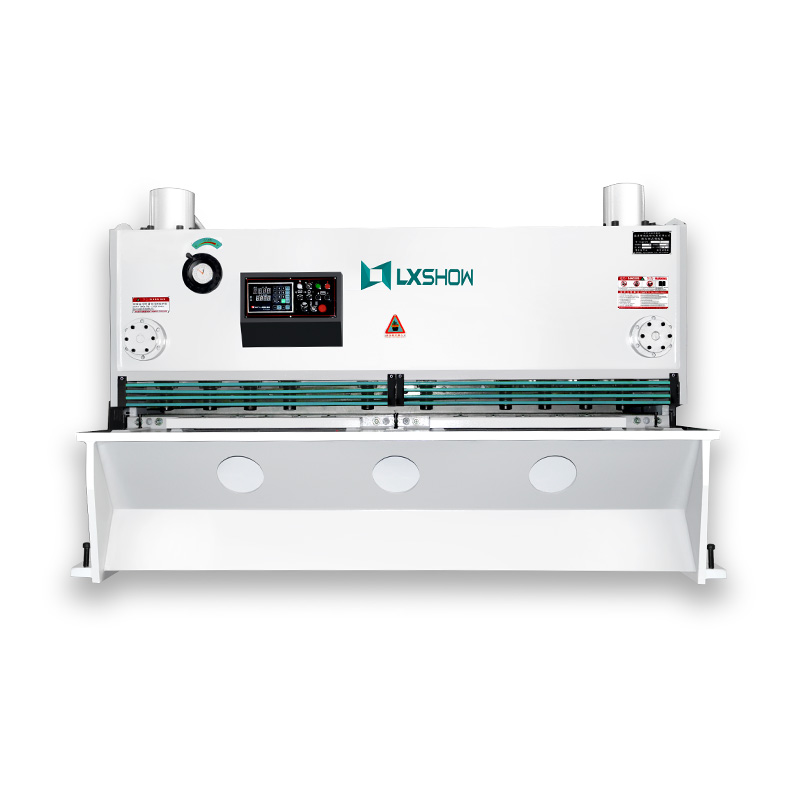

E21 Numerical Control SystemAn economical and simple numerical control system. It can not only meet the numerical control function of machine tools, but also meet the requirements of precision control. In terms of structure, it adopts the mode of directly controlling the motor. Replacement of accessories at any time.
Double Cutting Edge BladesThe upper and bottom blades can be cut with two cutting edges, and are made of high-quality materials to improve the wear resistance and service life of the blades.
Blade GuardrailThe guardrail is used to enclose the blade inside the shearing machine, providing additional safety for operators.
Blade Adjustment ScrewThe blade adjustment screw is used to adjust the blade, making the replacement blade easy to disassemble.
E21 Backgauge ControlThe backgauge is controlled by an E21 simple numerical control device, which is mainly used to support and fix the metal materials that need to be cut, and play a stable role.

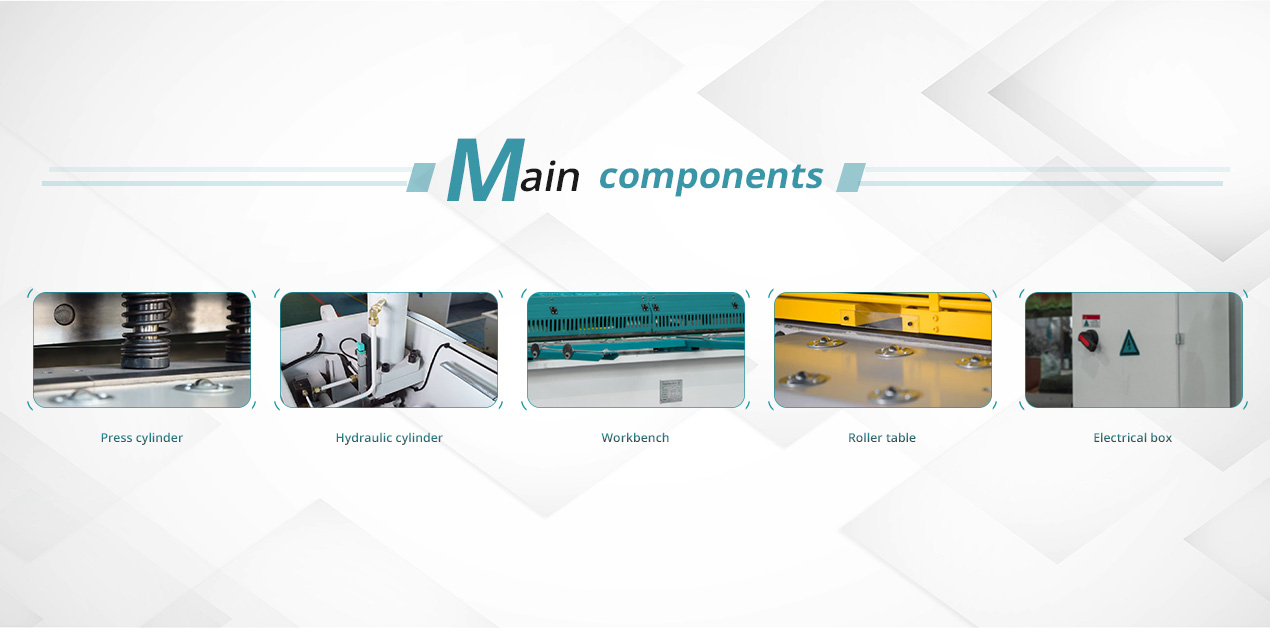

Hydraulic Pressing CylinderThe pressing cylinder is mainly used to press the sheet metal to facilitate the cutting of the sheet metal. The hydraulic pressing mechanism is adopted. After the oil is fed by several pressing oil cylinders installed on the support plate in front of the frame, the pressing head presses down after overcoming the tension of the tension spring to press the sheet.
Hydraulic Cylinder PowerThe hydraulic cylinder provides the source power for the shearing machine to cut metal, and the hydraulic shearing machine is powered by a hydraulic cylinder and a motor. The motor drives the hydraulic cylinder, which applies hydraulic oil pressure to the piston to power the piston of the upper blade.
Auxiliary Knife Seat WorkbenchThe workbench is used to place the metal sheet that needs to be cut. There is an auxiliary knife seat on the working surface, which is convenient for micro-adjustment of the blade.
Roller TableRoller table, there is also a feeding roller on the working surface, which is easy to operate.

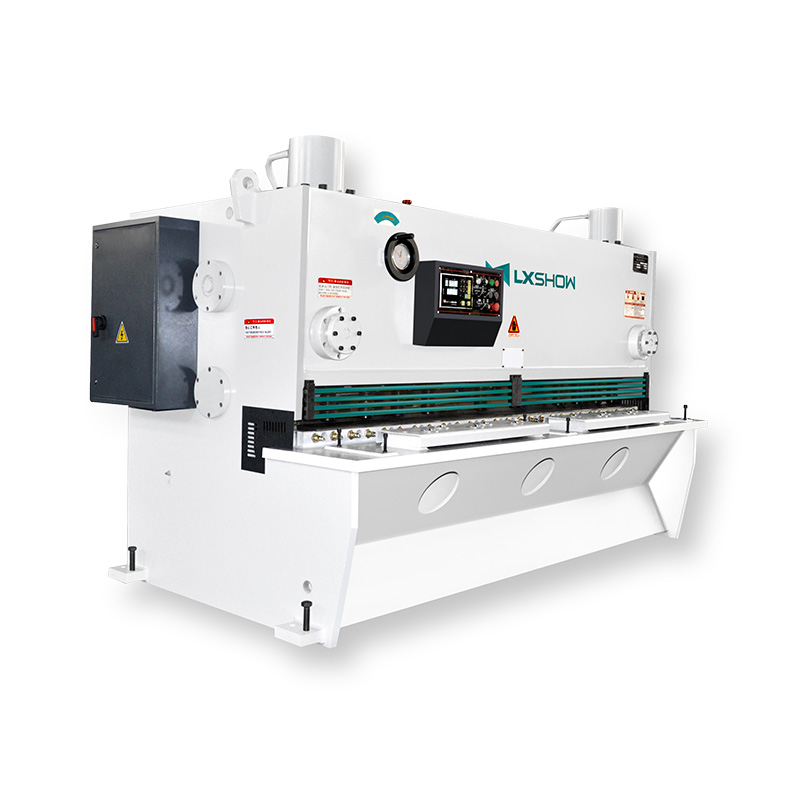

Centralized Electrical BoxThe electrical box of the shearing machine is located on the left side of the machine tool, and all operating components of the machine are concentrated in front of the machine tool except for the foot switch on the button station on the surface, the function of each operating procedure element is marked by the graphic symbol above it.

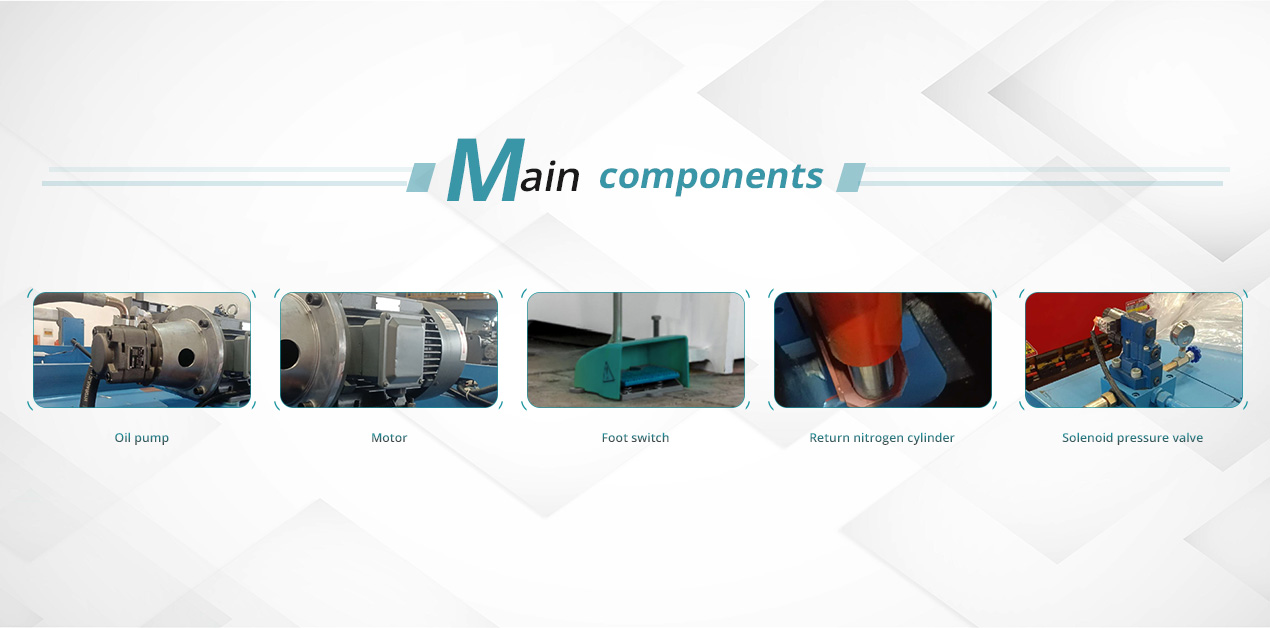

Main Motor & LubricationThrough the rotation of the main motor, the oil is pumped into the oil cylinder through the oil pump. There is a manual oil pump inside the wall panel, which is easy to operate and ensures the lubrication of key parts.

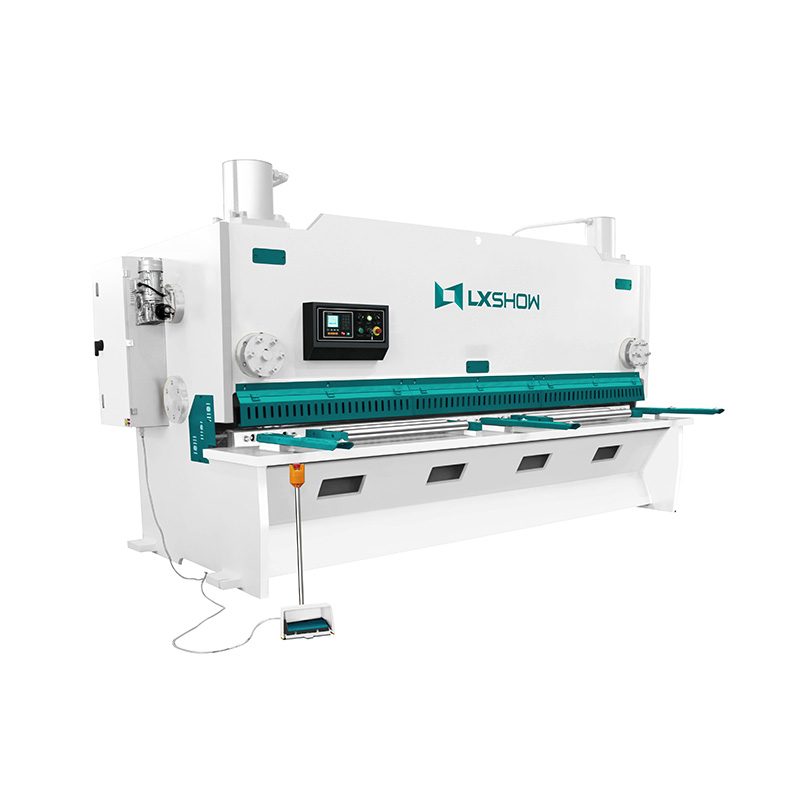

Practical Foot SwitchThe foot switch is used to control the start, stop and operation of the shearing machine, which is convenient and practical, and also provides a certain guarantee for the safe operation of the shearing machine.
Return Nitrogen CylinderThe return nitrogen cylinder is used to hold nitrogen. The operation of the shearing machine requires nitrogen to support the return of the knife holder. Nitrogen can be recycled in the machine. The gas has been added during installation, and no additional purchase is required.
Solenoid Pressure ValveThe solenoid pressure valve is used to control the flow and pressure of hydraulic oil to protect the hydraulic system, so as to achieve the purpose of energy saving.
Industry Applications
As small as the shearing and bending of non-ferrous metals, ferrous metal sheets, automobiles and ships, electrical appliances, decoration, kitchen utensils, chassis cabinets, and elevator doors, as large as the aerospace field, CNC shearing machines and bending machines are playing an increasingly important role.
Aerospace Industry
Generally, high precision is required, and a high-precision CNC shearing machine can be selected, which is accurate and efficient.
Automobile & Ship Industry
Generally, a large CNC hydraulic shearing machine is used to mainly complete the shearing work of the plate, and then perform secondary processing, such as welding, bending, etc.
Electrical & Power Industry
The shearing machine can cut the plate into different sizes, and then reprocess it through the bending machine, such as computer cases, electrical cabinets, refrigerator air-conditioning shells, etc.
Decoration Industry
The high-speed shearing machine is widely used. It is generally used with the bending machine equipment to complete metal shearing, the production of doors and windows, and the decoration of some special places.
i

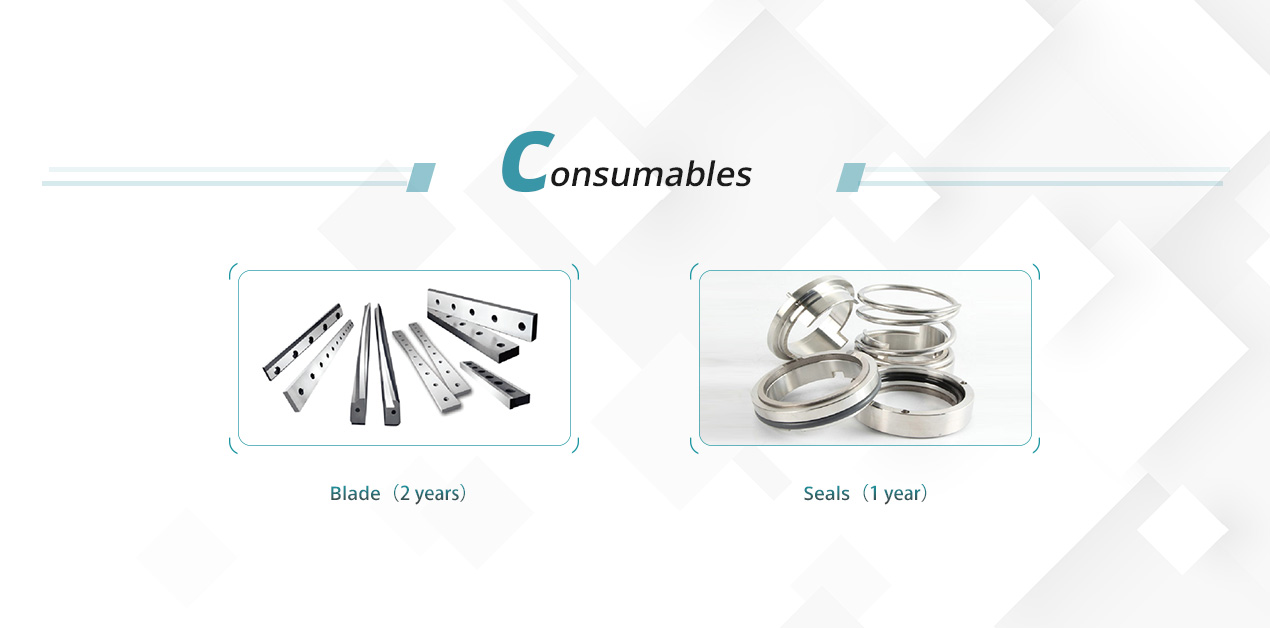

The wearing parts of the shearing machine mainly include blades and seals, with an average service life of two years.
Working Principle of Shearing Machine
The shearing machine is a machine that uses one blade to make a reciprocating linear motion relative to the other blade to cut the plate. It is similar to the cutting of scissors. The shearing machine uses the moving upper blade and the fixed lower blade to adopt a reasonable blade gap. A shearing force is applied to a metal sheet of various thicknesses, so that the sheet is broken and separated according to the required size.
Compared to Laser Cutting Machine
The shearing machine can only cut straight plates and cannot cut curved metal materials, but the shearing machine has higher working efficiency and can cut 10-15 times per minute on average. The system does not need programming and is more convenient to operate.
Key Characteristics
1
Tool head shear operation mode: Single point support, lever principle, after the fulcrum to do circular curve movement.
2
Scope of use: Ordinary small and medium-sized workpieces below 10mm, shear surface commonly required work.
Frequently Asked Questions
Q: What types of shearing machines are mainly supplied?
A: Hydraulic pendulum shearing machine and hydraulic gate shearing machine (the gate type is more competitive).
Q: Can the supported language of the shearing machine be expanded?
A: The display mainly shows the stroke of the backgauge, which are basically Arabic numerals, and there is no need to translate other languages.
Q: What is the shear thickness and width capacity of the shears?
A: Maximum shear thickness: 40mm. Common cutting width: 2.5m, 3.2m, 4m, 6m. The cutting thickness of the shearing machine has nothing to do with the blade.
Q: What are the common shear materials?
A: Carbon steel, stainless steel, copper, aluminum, galvanized sheet (refer to carbon steel), high-strength sheet (high carbon steel). Blades are selected based on the cutting material.
Q: What is the precision and speed of the shearing machine?
A: The precision is related to the backgauge, precision: 0.1; The speed is related to the valve group and the oil pump, below 10mm, 10-15 times/min.
Q: How long does it take for a novice operator to train?
