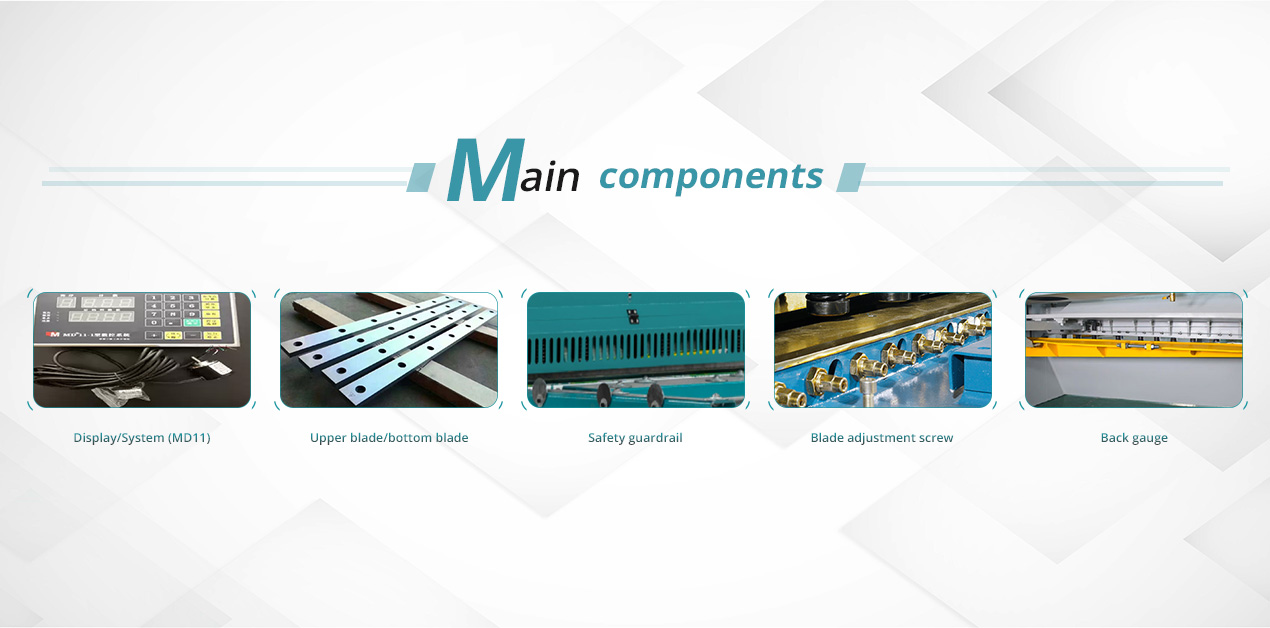

An economical and simple numerical control system. It can not only meet the numerical control function of machine tools, but also meet the requirements of precision control. In terms of structure, it adopts the mode of directly controlling the motor, allowing replacement of accessories at any time.
The upper and bottom blades can be cut with two cutting edges, and are made of high-quality materials to improve the wear resistance and service life of the blades.
The guardrail is used to enclose the blade inside the shearing machine, ensuring structural safety during operation.
Used to adjust the blade alignment. The design ensures that replacement blades are easy to disassemble and configure.
Controlled by the MD11-1 simple numerical control device, it is mainly used to support and fix the metal materials that need to be cut, playing a stable role.
Mainly used to press the sheet metal to facilitate cutting. Using a hydraulic pressing mechanism, after oil is fed by several cylinders on the support plate in front of the frame, the pressing head presses down to hold the sheet firmly.
Provides the source power for cutting. Powered by a hydraulic cylinder and motor, the motor drives the cylinder, which applies hydraulic oil pressure to the piston to power the upper blade.
Used to place the metal sheet that needs to be cut. Features an auxiliary knife seat on the working surface, convenient for micro-adjustment of the blade.
Equipped with a feeding roller on the working surface, making manual and semi-automatic operations smooth and easy to handle.
Located on the left side of the machine tool. All operating components are concentrated in front of the machine tool, except for the foot switch. Procedures are clearly marked by graphic symbols.
Through the rotation of the main motor, oil is pumped into the cylinder. A manual oil pump inside the wall panel ensures reliable lubrication of key moving parts.
Used to control the start, stop, and operations of the shearing machine. Convenient, practical, and acts as a safety guarantee during operation.
Holds nitrogen to support the quick return of the knife holder. Nitrogen is recycled within the machine and is pre-filled during installation, requiring no extra purchase.
Controls the flow and pressure of the hydraulic oil to protect the hydraulic system, achieving high-efficiency energy saving.
As small as the shearing and bending of non-ferrous metals, ferrous metal sheets, automobiles and ships, electrical appliances, decoration, kitchen utensils, chassis cabinets, and elevator doors, as large as the aerospace field, CNC shearing machines and bending machines are playing an increasingly important role.
Generally requires high precision. High-precision CNC shearing machines are selected to ensure accurate and efficient component manufacturing.
Large CNC hydraulic shearing machines are utilized to complete primary plate shearing, followed by secondary processing like welding and bending.
Used to cut plates into precise sizes for reprocessing through bending machines into computer cases, electrical cabinets, and appliance shells.
High-speed shearing machines are widely used in combination with bending equipment to complete metal shearing, door and window production, and custom installations.
Note: The wearing parts of the shearing machine mainly include blades and seals, which have an average service life of two years.
The MD11-1 is an economical and simple NC system. It directly controls the motor, meeting both general machine tool functions and precision control requirements, with easy accessory replacement.
The blades are made of high-quality, wear-resistant materials designed with two cutting edges. The average service life of the blades, along with the seals, is approximately two years.
The hydraulic pressing cylinder uses hydraulic oil fed from support plate cylinders to press the head down. This overcomes the tension spring to hold the sheet metal firmly for stable cutting.
No, the return nitrogen gas is pre-added during installation. The nitrogen supports the return of the knife holder and is fully recycled within the machine during operations.
These machines are highly used in aerospace (high precision), automobile and ship manufacturing (large scale plate shearing), electrical/power sectors (chassis and cabinets), and the decoration industry (doors, windows, and custom metalwork).
