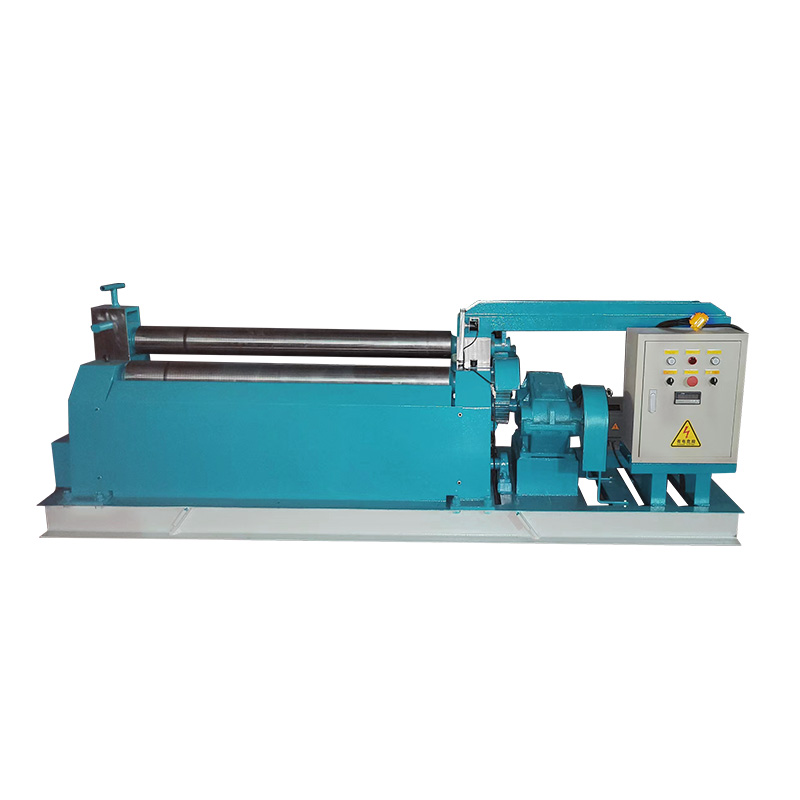

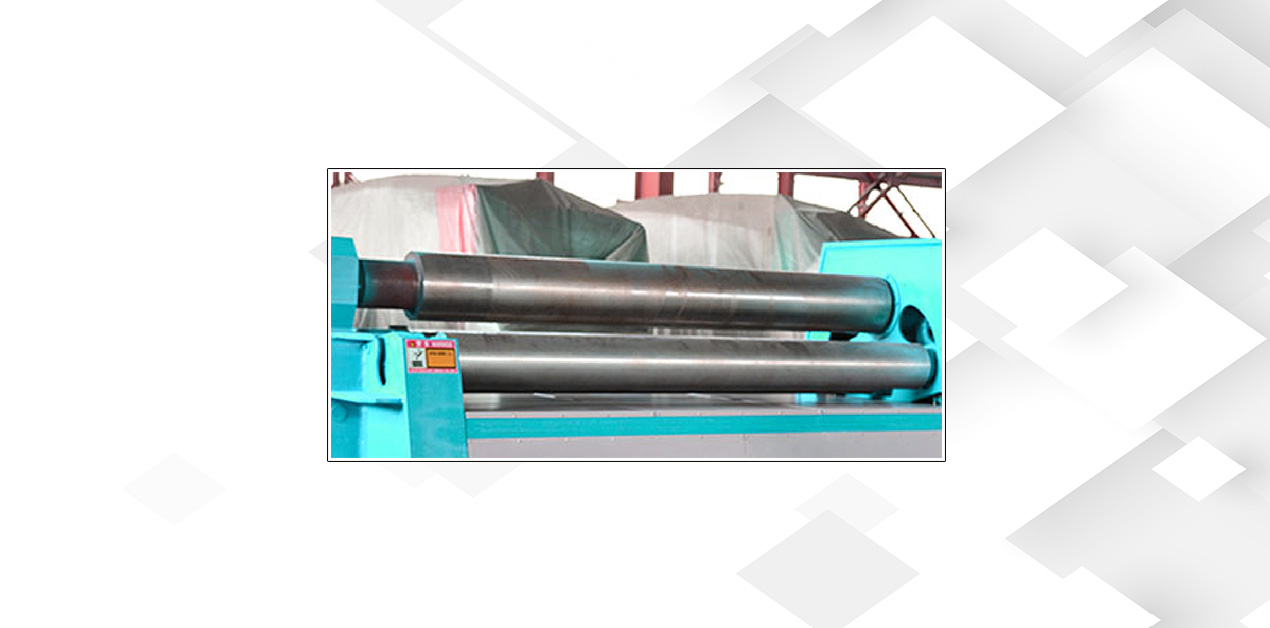

The up and down roll movement of the work roll completes the coiling action.
| Specification Parameter | Value Details |
|---|---|
| Model number | W11-12×2200 |

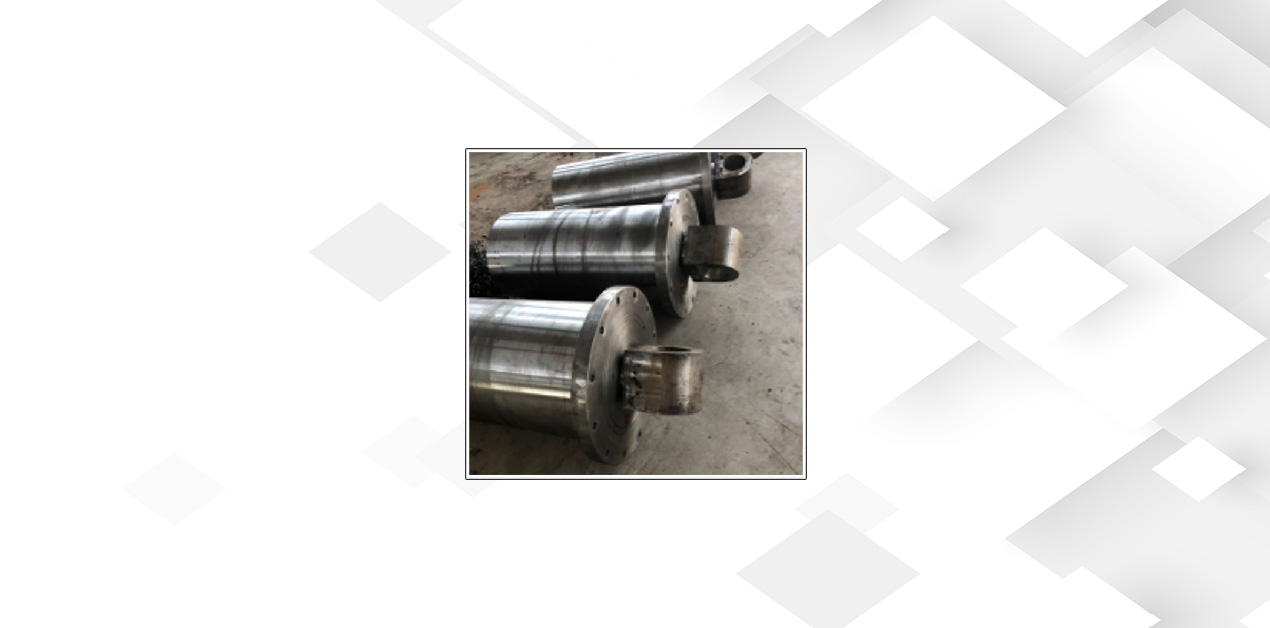

| Work roll | Hollow work roll (high temperature quenching treatment) |
| Maximum coil thickness | 12mm |
| Maximum width | 2200mm |
| Roller working length | 2230mm |
| Plate Yield Limit | δs≤245Mpa |
| Upper roll diameter | Φ245mm |
| Bottom roll diameter | Φ219mm |

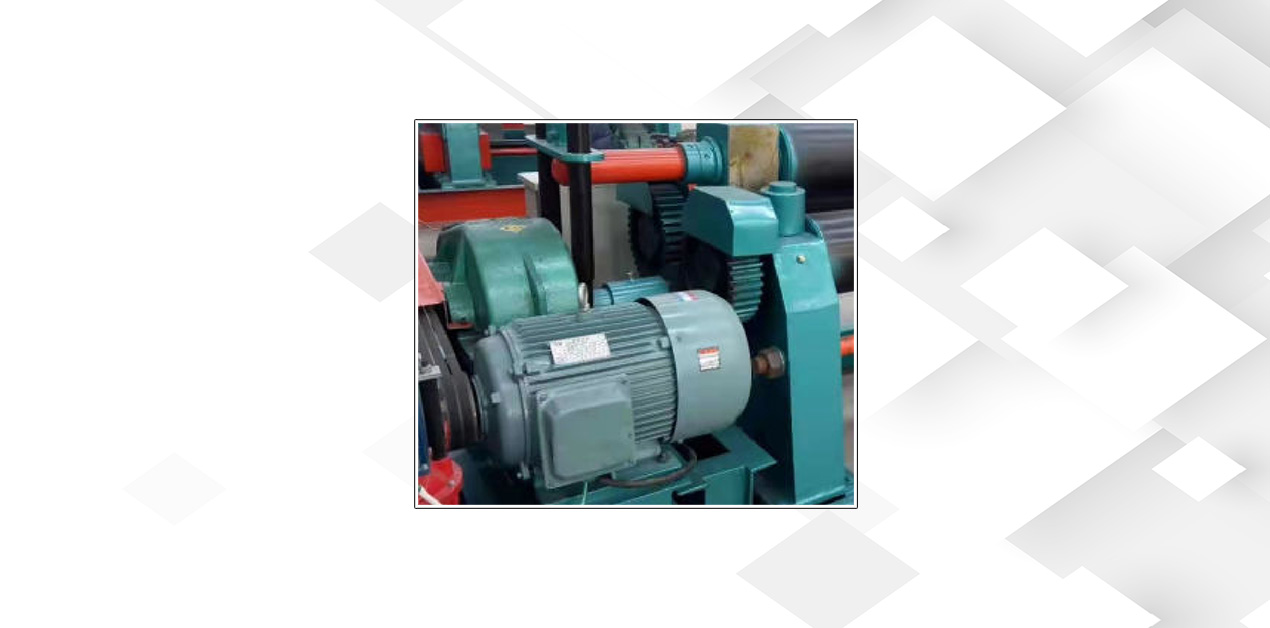

| Main motor power | 7.5kw |

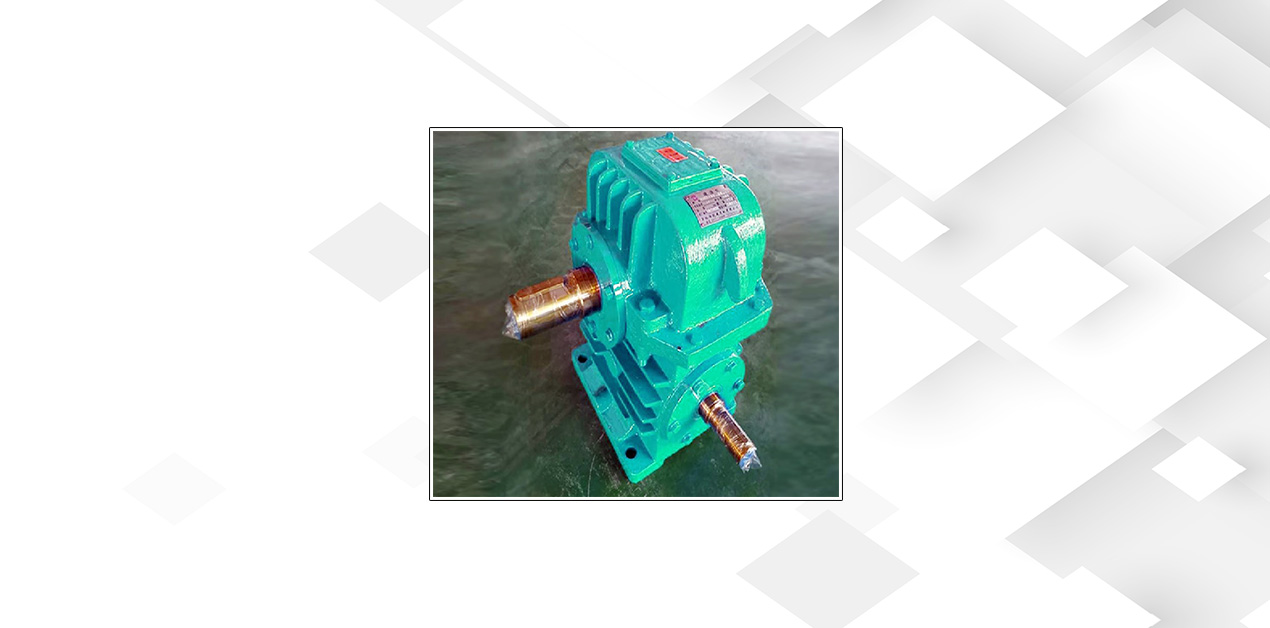

| Reducer | JZQ-350 |
| Dimensions | 2.8×1.0×1.0(m) |
Carbon steel, stainless steel, aluminum, copper, high carbon steel and other metals.
As a mature mechanical processing equipment, the plate bending machine has been widely used in steel, construction, shipbuilding, automobile manufacturing, machinery manufacturing, power equipment manufacturing, pressure vessels, energy industry, and even aerospace and other fields.
As a leading standard in the plate rolling machine manufacturing sector, technology continues to advance in the direction of intelligence, automation, and environmental protection. Using sensors, machine learning, and other technologies to achieve automatic detection and automatic adjustment improves production efficiency and product quality; through the automated control system, automated production of the entire production line is realized, reducing manual operations and lowering production costs; the plate rolling machines produced are also designed to be more environmentally friendly, reducing waste gas and waste water emissions, utilizing clean energy, and reducing the effect on the environment. Continuous innovation provides high-quality and efficient products for various industries.
