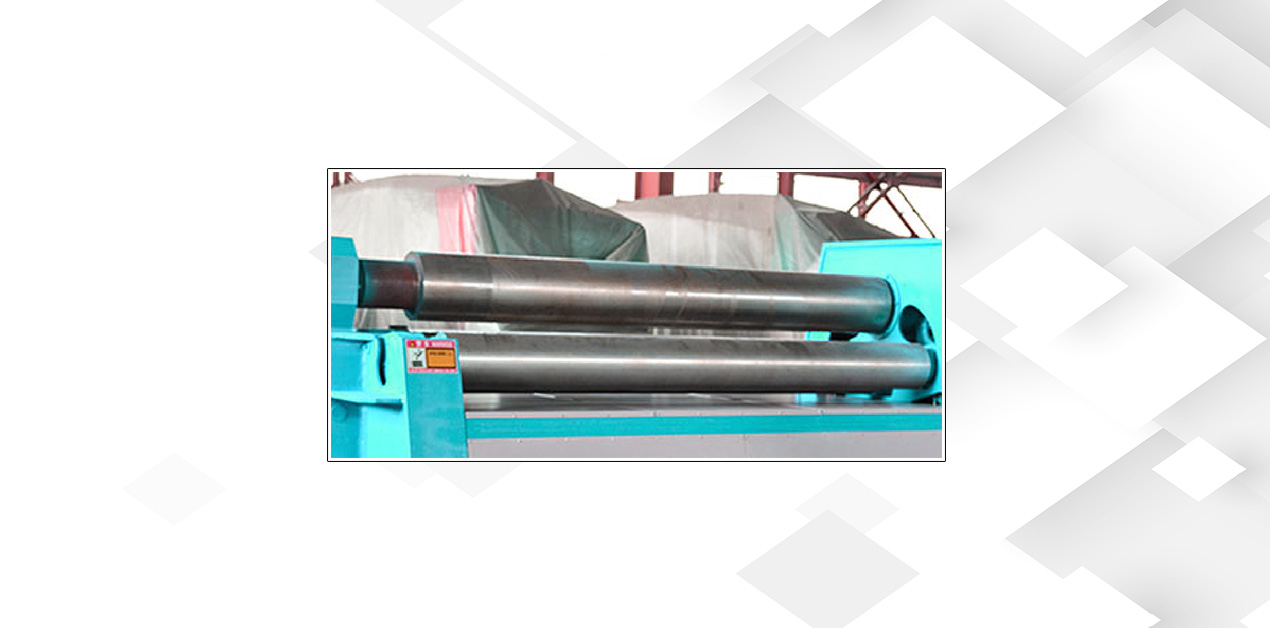

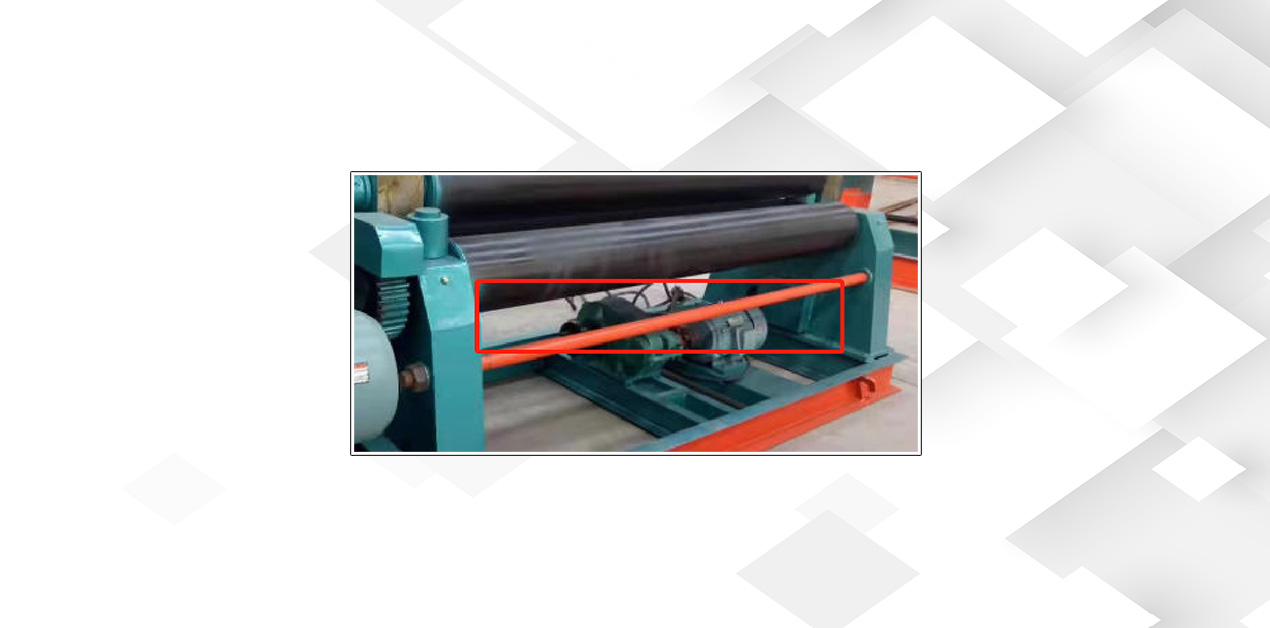

The up and down roll movement of the work roll completes the coiling action.

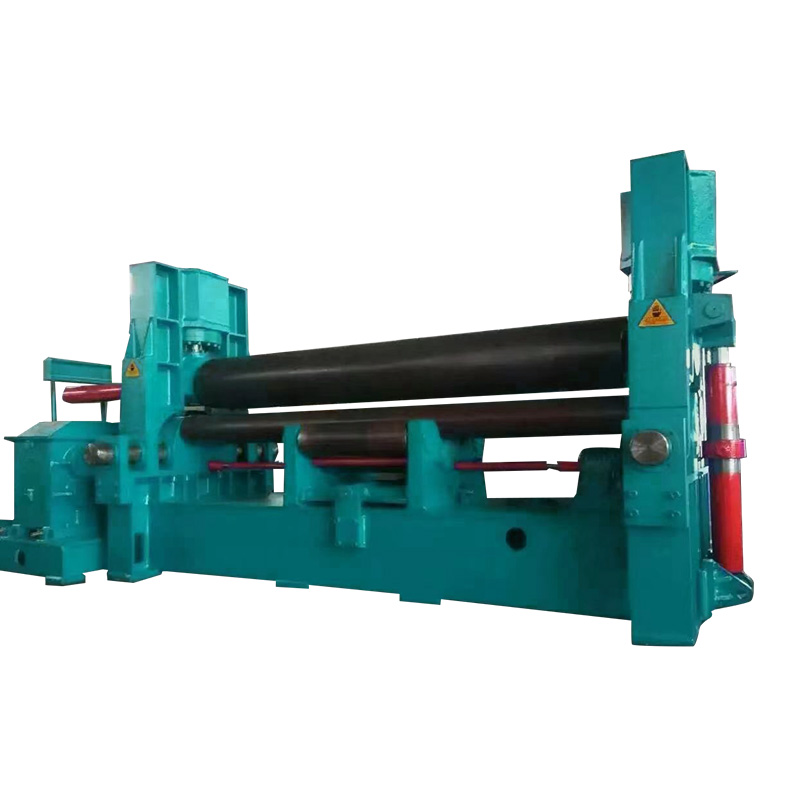

Three-roller universal cnc plate rolling machine parameters
| Parameter Name |
Specification Details |
| Model Number |
W11SNC-20×2500 |
| Pressure on upper roller |
130T |
| Maximum width |
2500mm |
| Roller working length |
2550mm |
| Plate Yield Limit |
δs≤245Mpa |
| Upper roll diameter |
φ320 mm |
| Bottom roll diameter |
Φ200mm |
| Drive speed |
4m/min |
| Symmetrical rolling |
T20×B2500×Φmin800 |
| Asymmetrical rolling |
T16×B2500×Φmin80 |
| Drive motor |
18.5kw |
| Hydraulic motor |
2.5kw |
| Horizontal movement motor power |
2.2 kw |
| Dimensions |
4.7×1.9×1.9(m) |
| Weight |
8.5T |
Three-roll sheet metal roller consumable parts

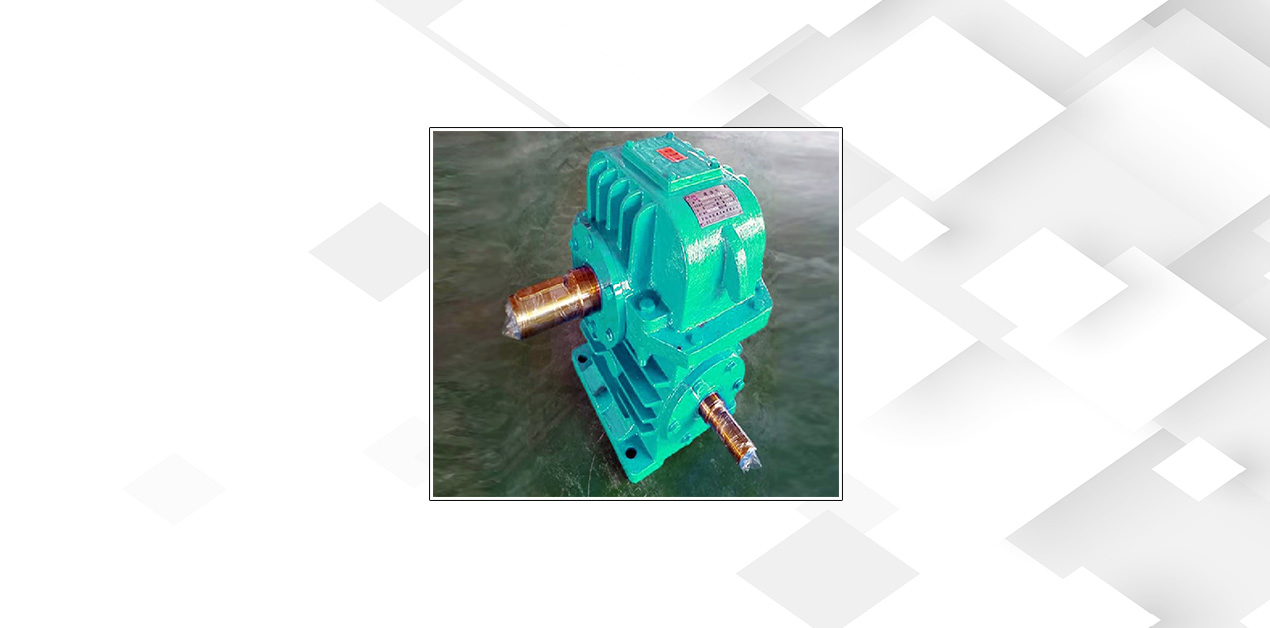

- Turbine shaft: Using life more than 3 years.

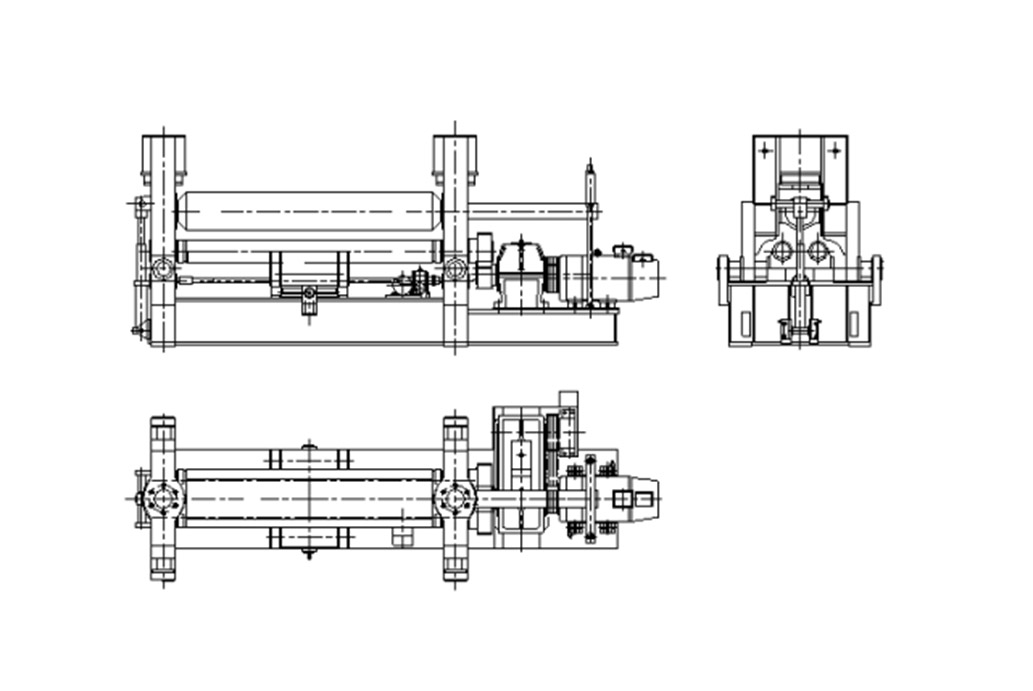

Three-roller universal cnc plate rolling machine introduction
Our plate rolling machine is a new type of cnc plate rolling machine produced based on the introduction of advanced technology at home and abroad and combined with the actual domestic situation. Because its electrical control system uses a displacement sensor and a PLC programmable controller, it can automatically detect the positions of both ends of the upper roller and monitor them in real time to ensure synchronization accuracy. Not only can products be pre-coiling and quickly rolled into shape, but it also has the characteristics of high-precision rolled products, no need for auxiliary equipment, and low investment.
The upper roller of this plate coiling machine can move vertically and horizontally. During pre-colling, the upper roller moves horizontally to make the upper roller assume an asymmetrical position relative to the lower roller. During rounding, the motor and reducer drive the two lower rollers. Since the elevation of the lower roller remains unchanged, it is convenient for feeding and operation.
Three-roller universal cnc plate rolling machine application
Applicable materials
Carbon steel, stainless steel, aluminum, copper, high carbon steel and other metals.
Application industry
As a mature mechanical processing equipment, the cnc plate rolling machine has been widely used in steel, construction, shipbuilding, automobile manufacturing, machinery manufacturing, power equipment manufacturing, pressure vessels, energy industry, and even aerospace and other fields.

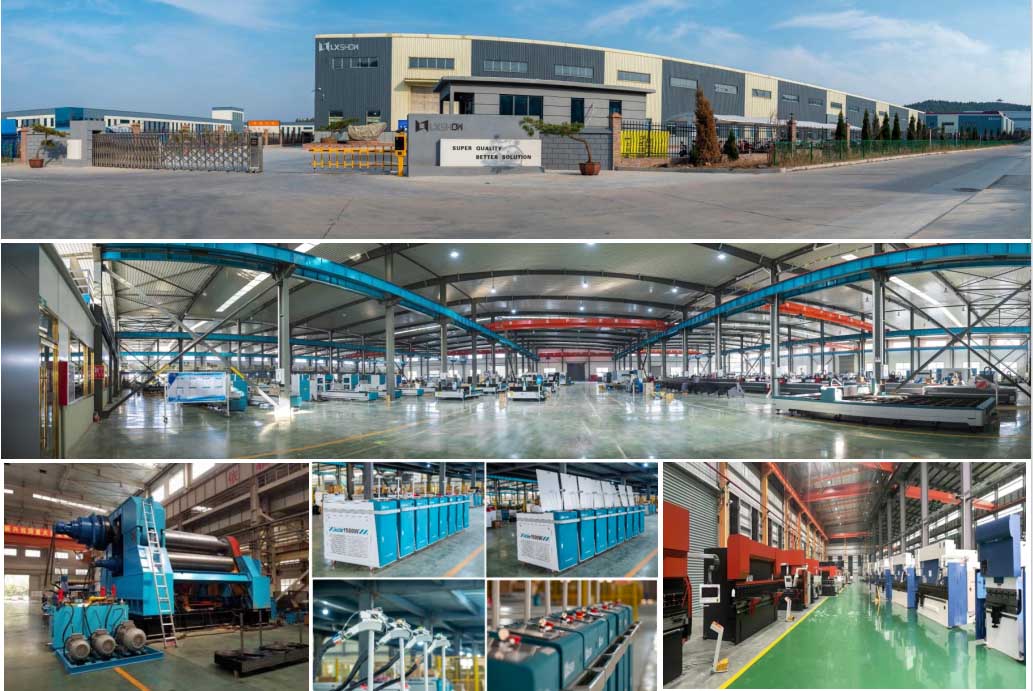

Factory Display
Customer Feedback & Performance Features

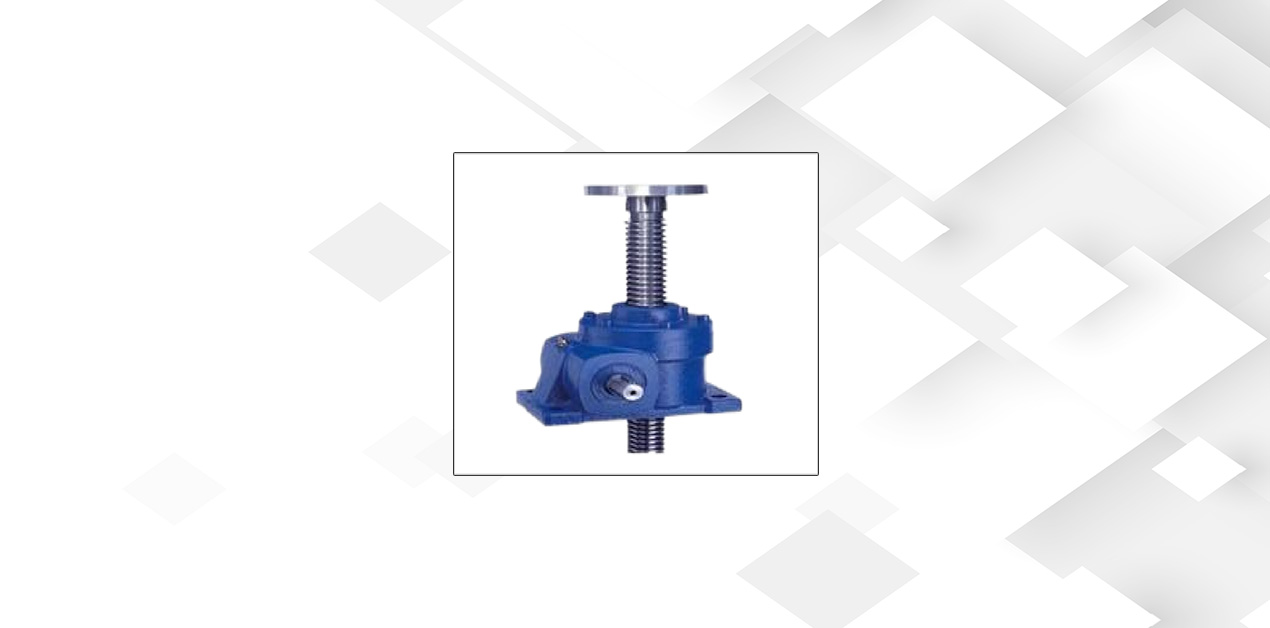

- The screw height adjustment mechanism is a mechanism that can adjust the height through a screw.
- The mechanism is composed of a screw and a nut. By rotating the screw, the nut is driven to move up and down, so as to realize the height adjustment of the working surface such as the workbench.

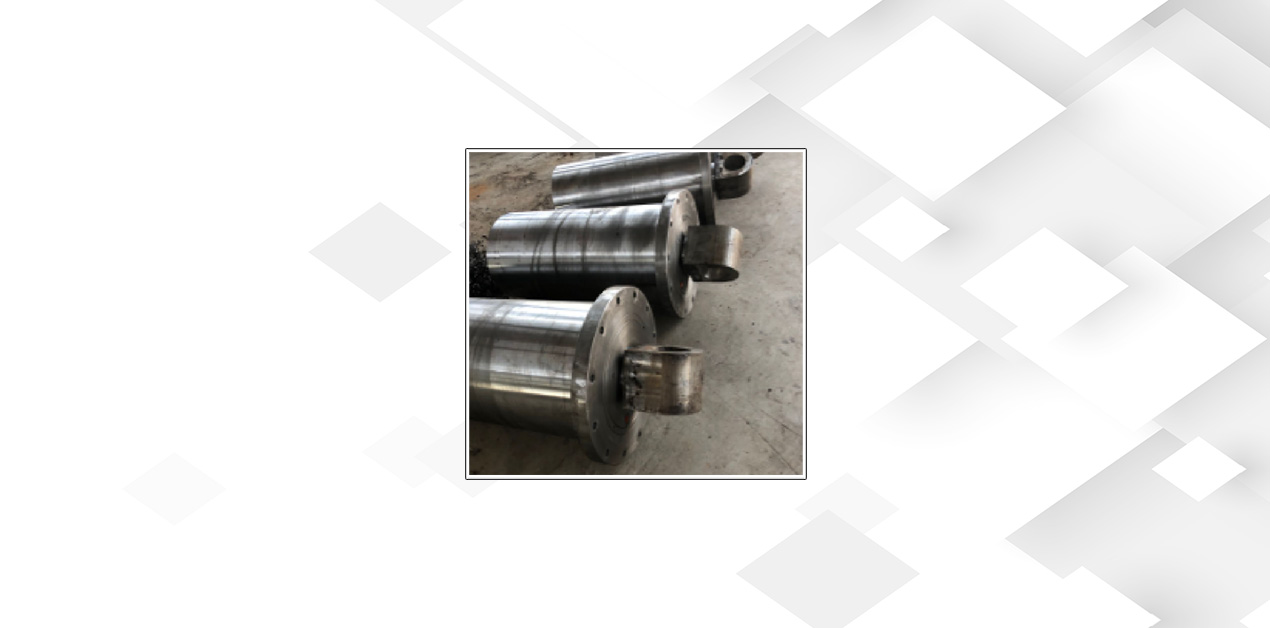

- Ensure that there is no leakage point in static or dynamic work, and achieve stable dynamic operation without shock, crawl.

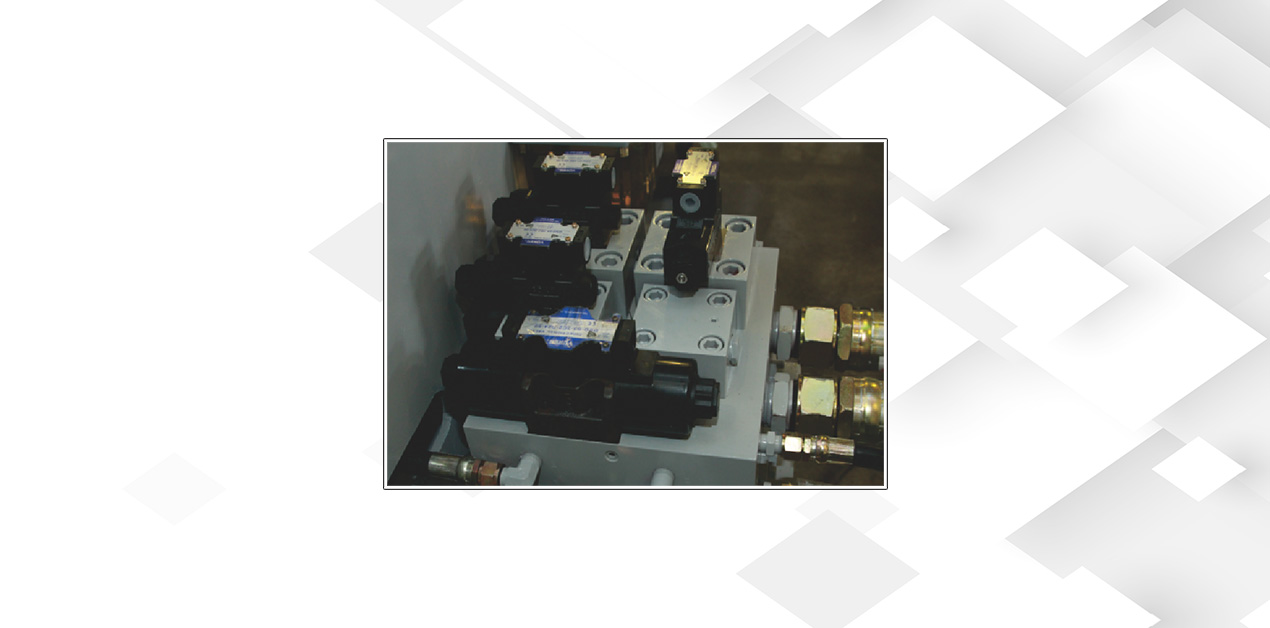

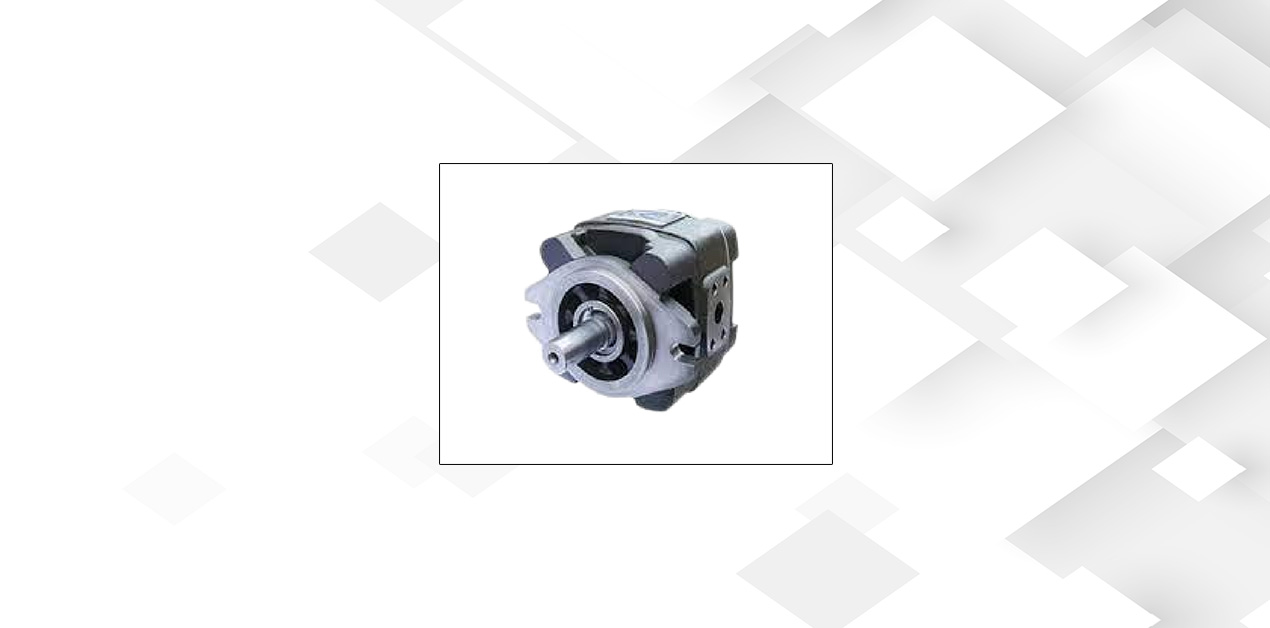

- It is required that the valve group has large flow rate, small resistance, small pressure loss and low heat generation.

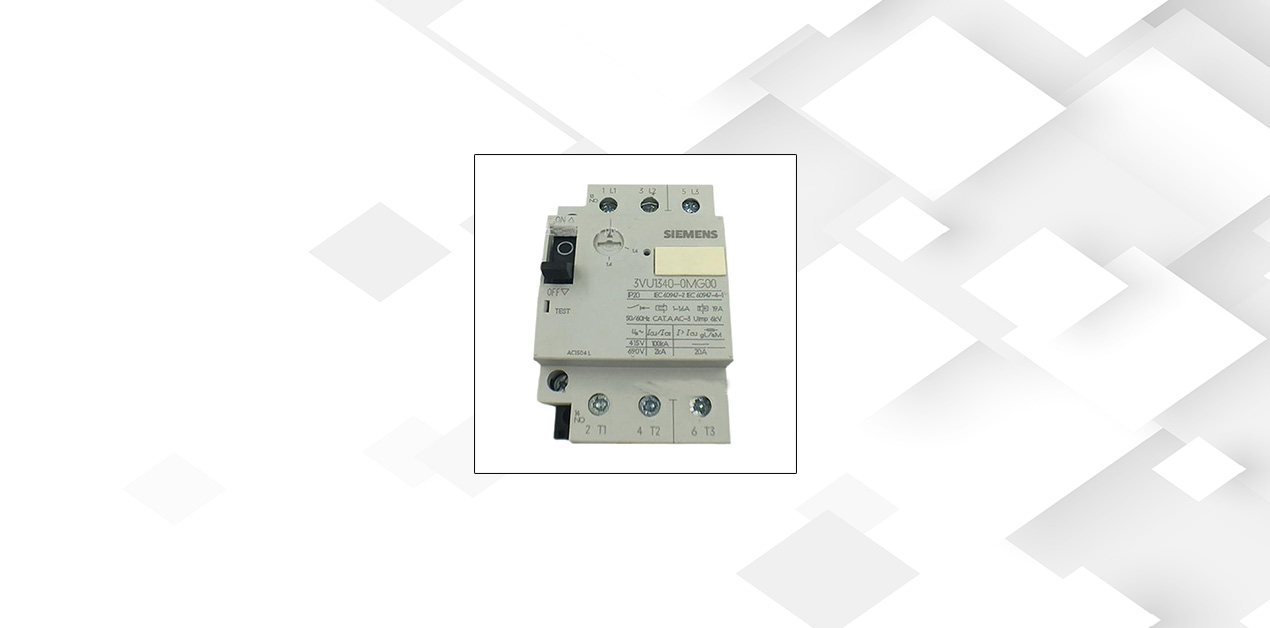

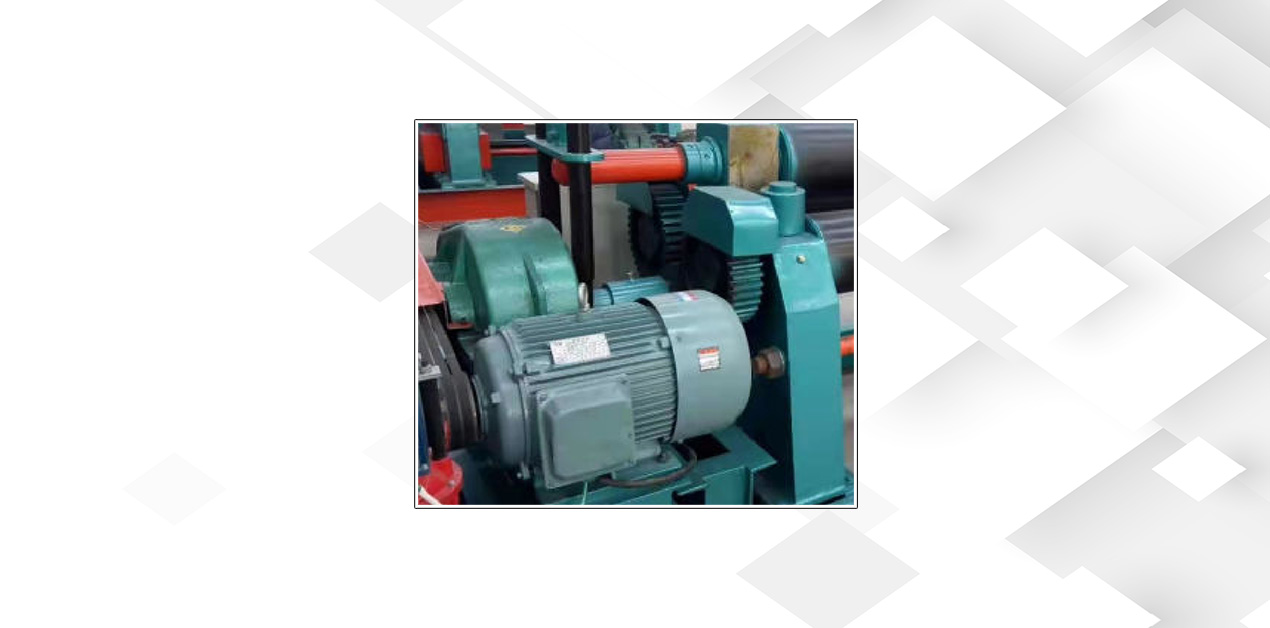

- Electrical components are famous Siemens brands, which is popular in market.
- Stable work ability.
- Lifting freely, flexible operation performance.
- Easy installation, easy adjustment, excellent performance, complete solutions.
- The lowest backlash.
- The maximum output torque.
- The highest torsion rigidity.
- High efficiency high quality low noise, lifetime lubrication.
- High precision, long life.
Frequently Asked Questions (FAQ)
How does the 3-roller universal CNC plate rolling machine ensure synchronization accuracy?
The machine features an electrical control system equipped with a displacement sensor and a PLC programmable controller. This combination automatically detects and monitors the positions of both ends of the upper roller in real time to ensure high synchronization accuracy.
What kinds of materials can be processed by this plate rolling machine?
It is highly suitable for processing various metals, including carbon steel, stainless steel, aluminum, copper, high carbon steel, and other related metallic sheets.
What are the advantages of the horizontal and vertical movement of the upper roller?
The upper roller can move horizontally to position itself asymmetrically relative to the lower rollers, which makes pre-coiling highly efficient. The vertical movement completes the rounding and coiling action precisely, without requiring auxiliary equipment.
Which industries typically use CNC plate rolling machines?
This equipment is widely utilized in sectors such as shipbuilding, construction, steel structure fabrication, automobile manufacturing, pressure vessels, power equipment manufacturing, and aerospace.
What components ensure the durability and stability of the machine?
The machine integrates premium Siemens electrical components, a robust turbine shaft with a lifespan of over 3 years, and high-efficiency valves designed for low pressure loss, low heat generation, and low backlash.
