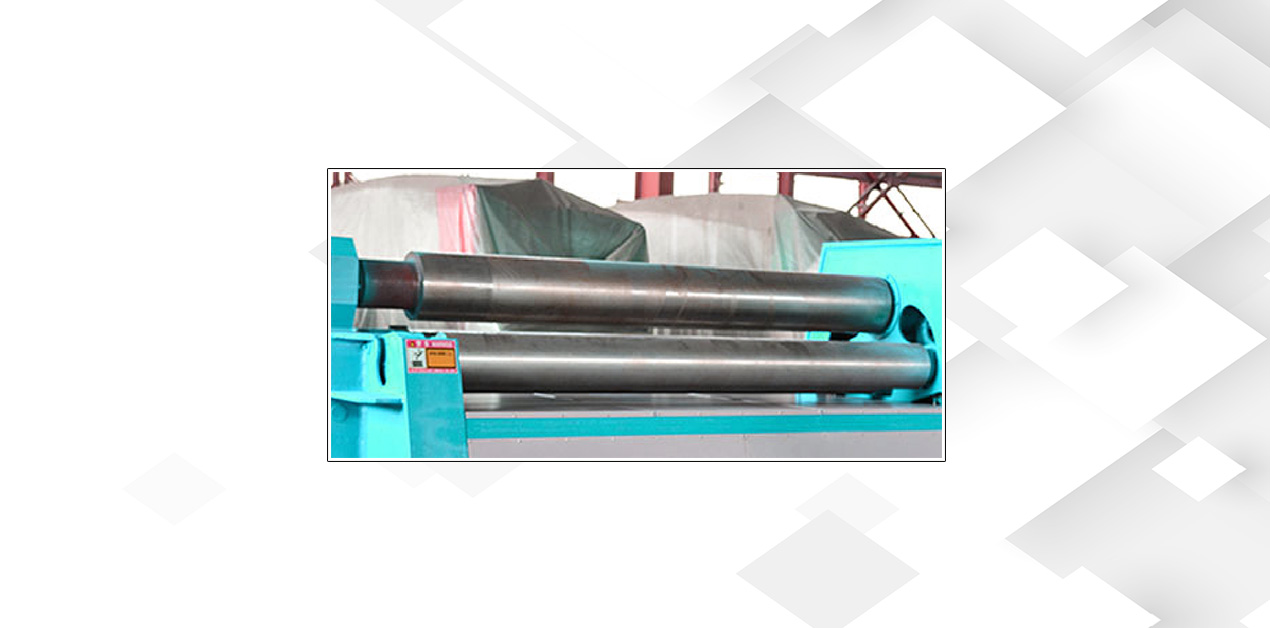

The up and down roll movement of the work roll completes the coiling action.

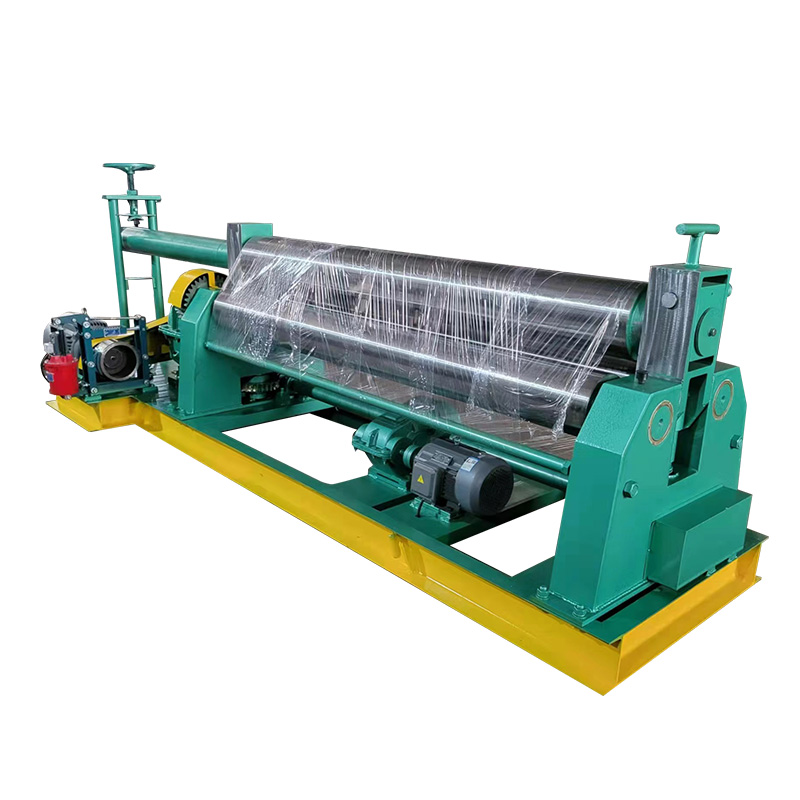

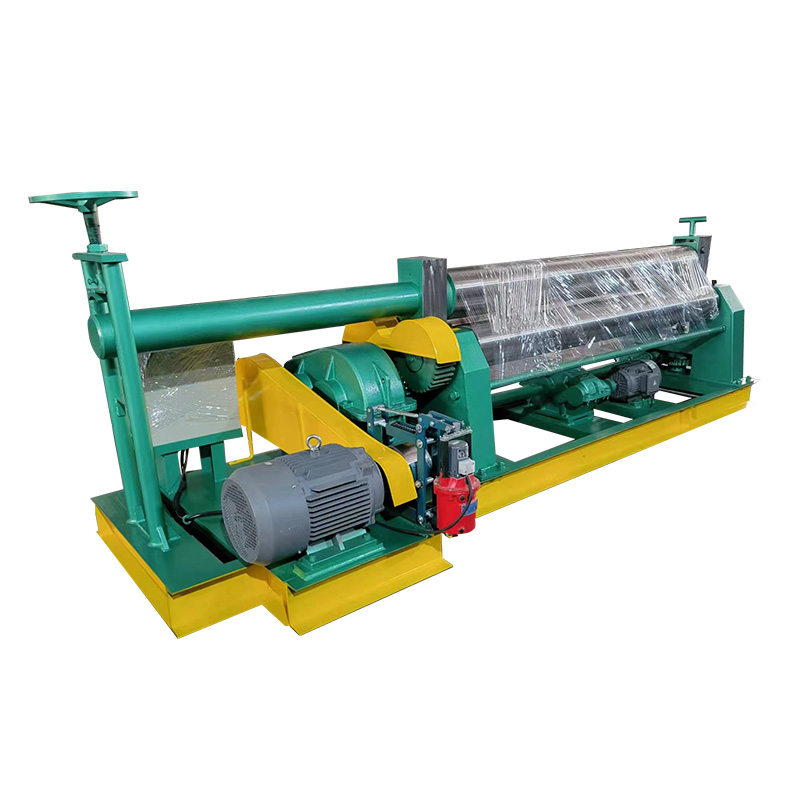

3 Roller Bending Machine Parameters
| Specifications |
W11-16×2500 |
| Structure type |
Symmetrical upward adjustment three-roll plate bending machine |
| Work roll material |
Solid round 45# steel (high frequency quenching treatment) |
| Maximum width |
2500mm |
| Roller working length |
2550mm |
| Maximum Coil Thickness |
16 mm |
| Plate Yield Limit |
245Mpa |
| Upper roll diameter |
250mm (45# steel, surface heat treatment) |
| Bottom roll diameter |
200mm (45# steel, surface heat treatment) |
| Main motor power |
15kW |
| Reducer |
JZQ400 |
| Lift motor power |
5.5kW |
| Auxiliary reducer |
JZQ250 |
| Dimensions |
4.15×1.50×1.45m |

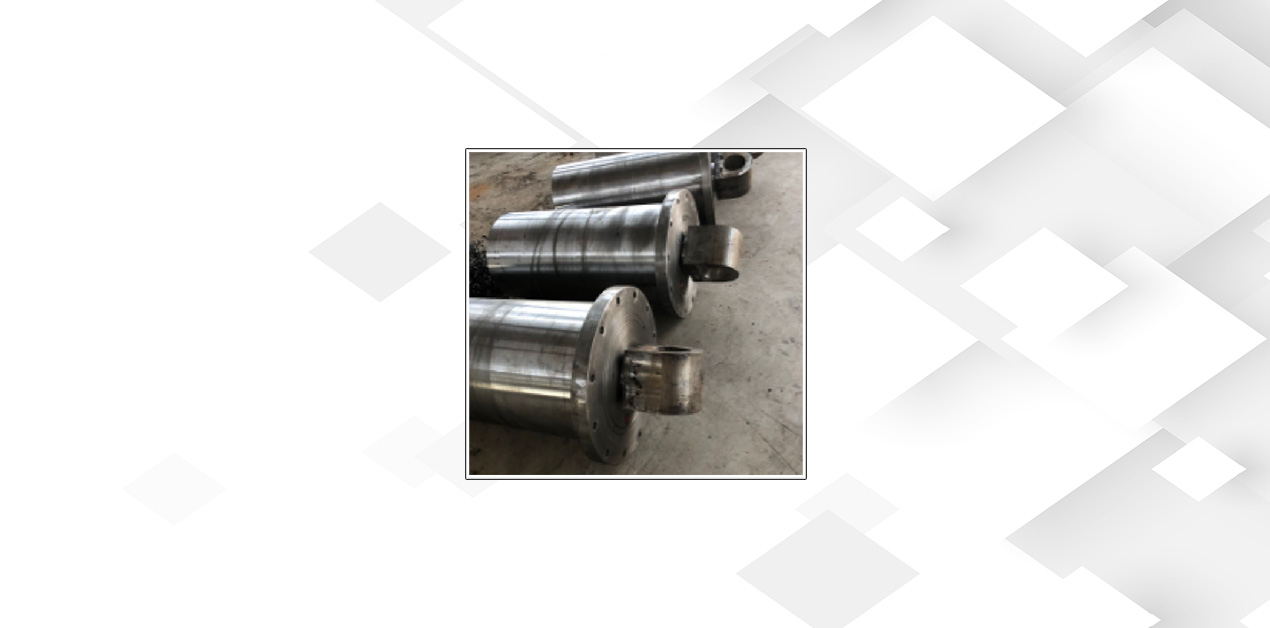

Symmetrical Three-roll Plate Rolling Machine Consumable Parts
- Turbine shaft: Using life more than 3 years
- Wear-resistant sleeve for shaft head: Using life about 3 years

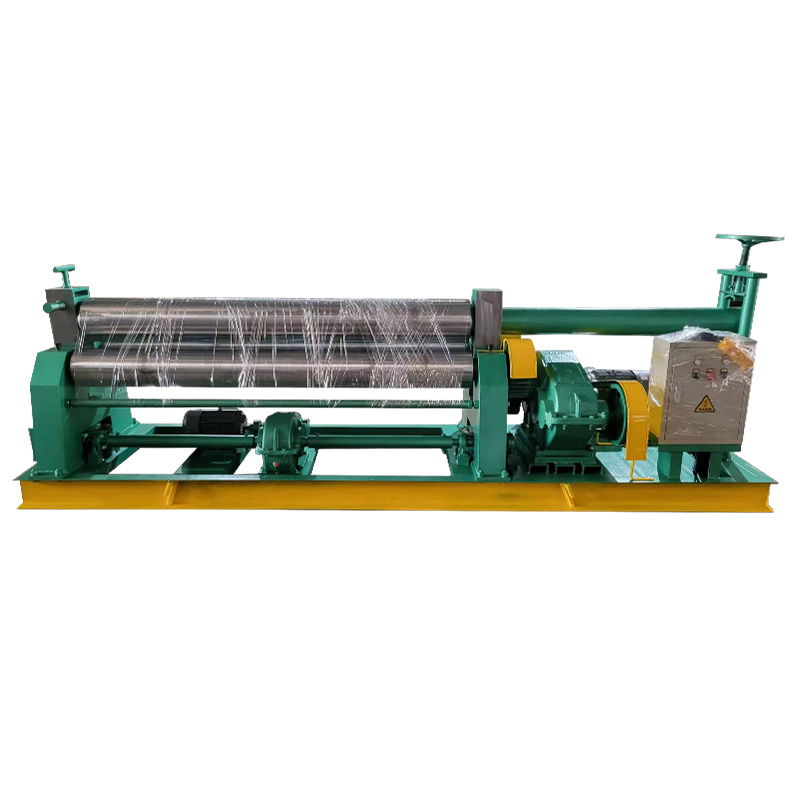

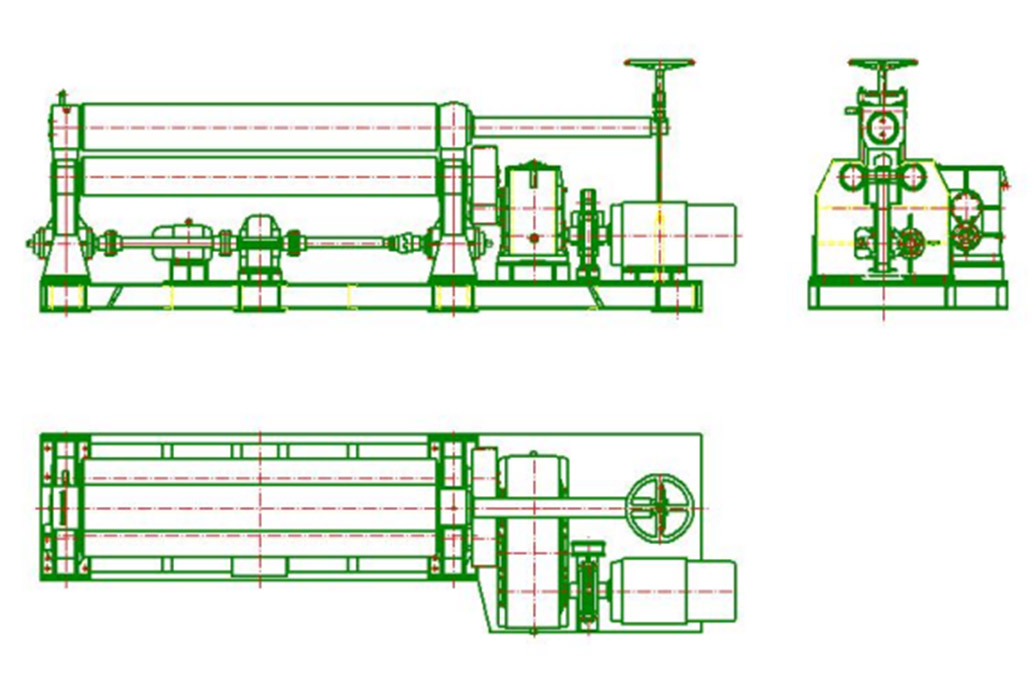

Symmetrical 3 Roller Bending Machine Diagram
Applicable Materials
Carbon steel, stainless steel, aluminum, copper, high carbon steel and other metals.
Application Industry
As a mature mechanical processing equipment, the plate rolling machine has been widely used in steel, construction, shipbuilding, automobile manufacturing, machinery manufacturing, power equipment manufacturing, pressure vessels, energy industry, and even aerospace and other fields.

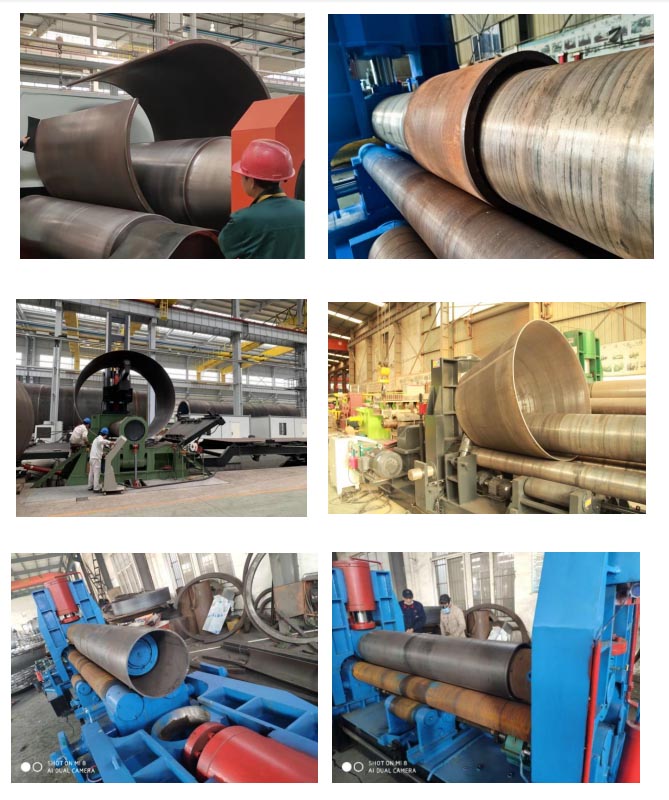

Plate Rolling Machine Sample Display

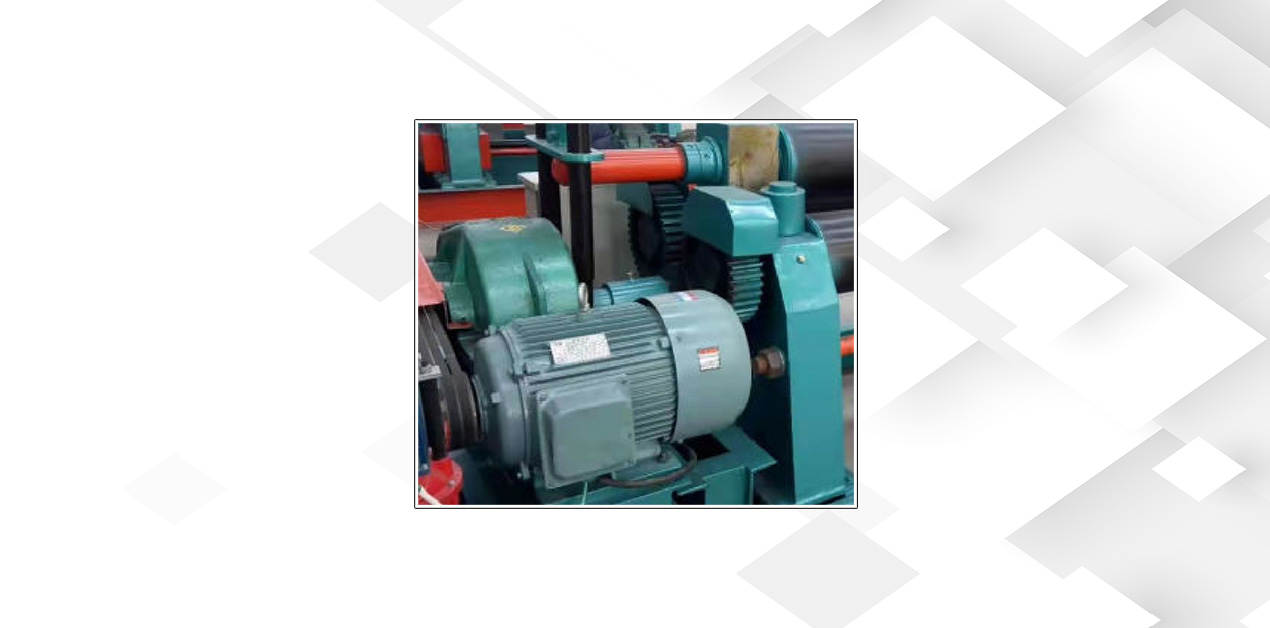

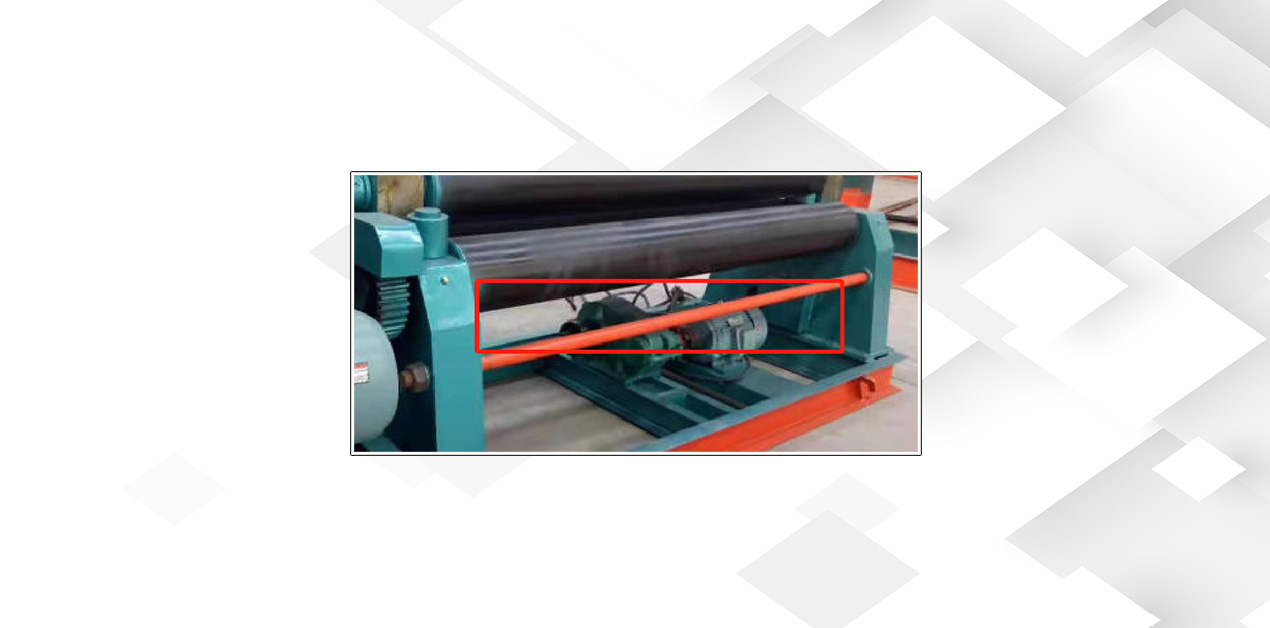

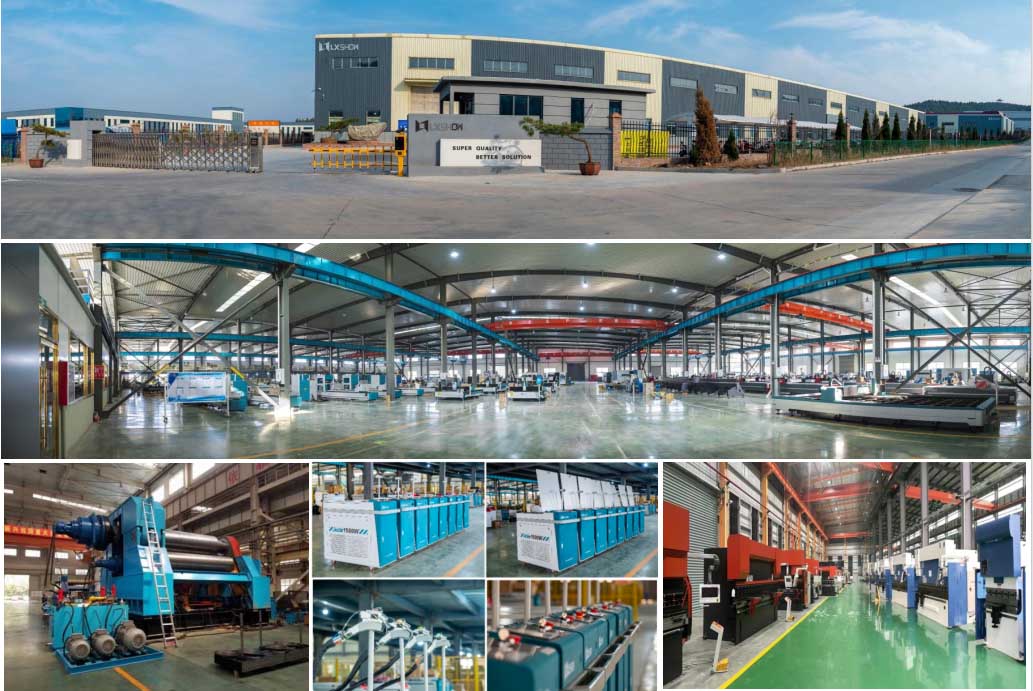

Factory Display

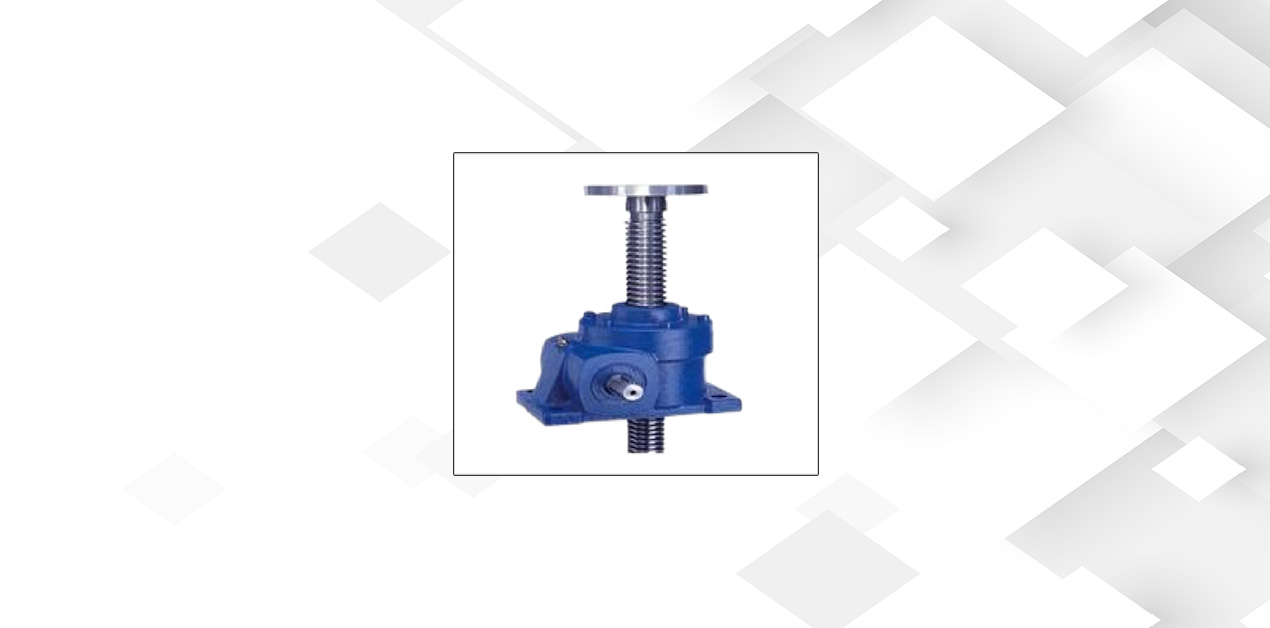

- The screw height adjustment mechanism is a mechanism that can adjust the height through a screw.
- The mechanism is composed of a screw and a nut. By rotating the screw, the nut is driven to move up and down, so as to realize the height adjustment of the working surface such as the workbench.
- Stand-alone system, easy maintenance (For hydraulic plate rolling machines).

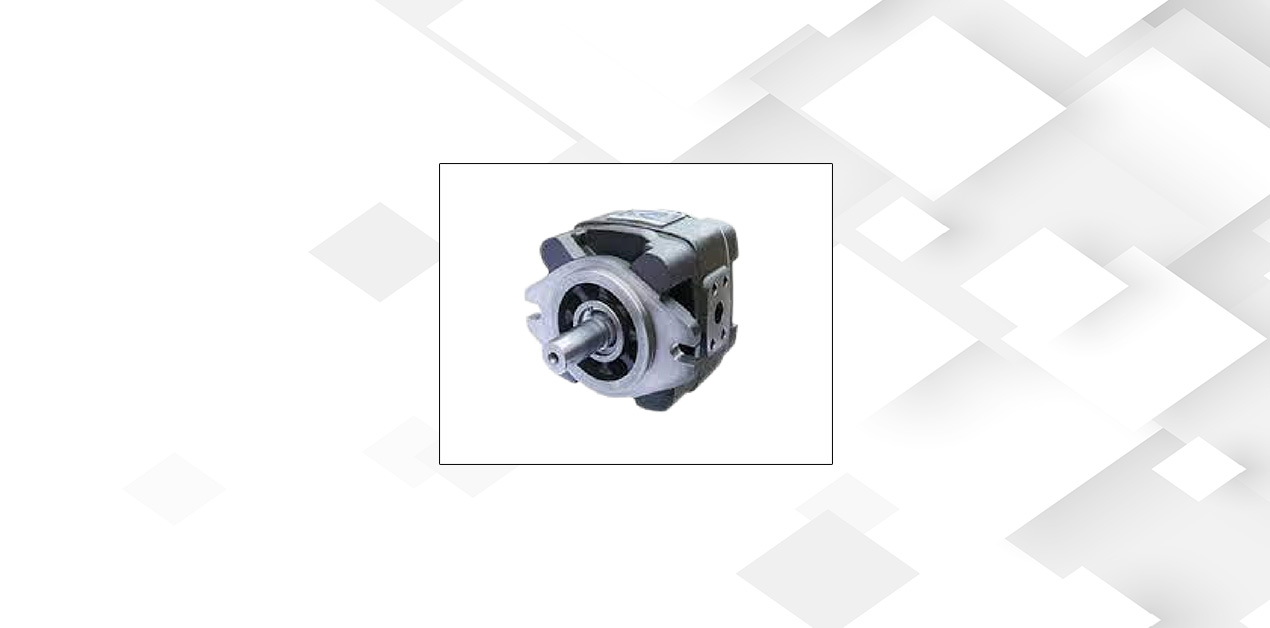

- Brand: Japan NOK.

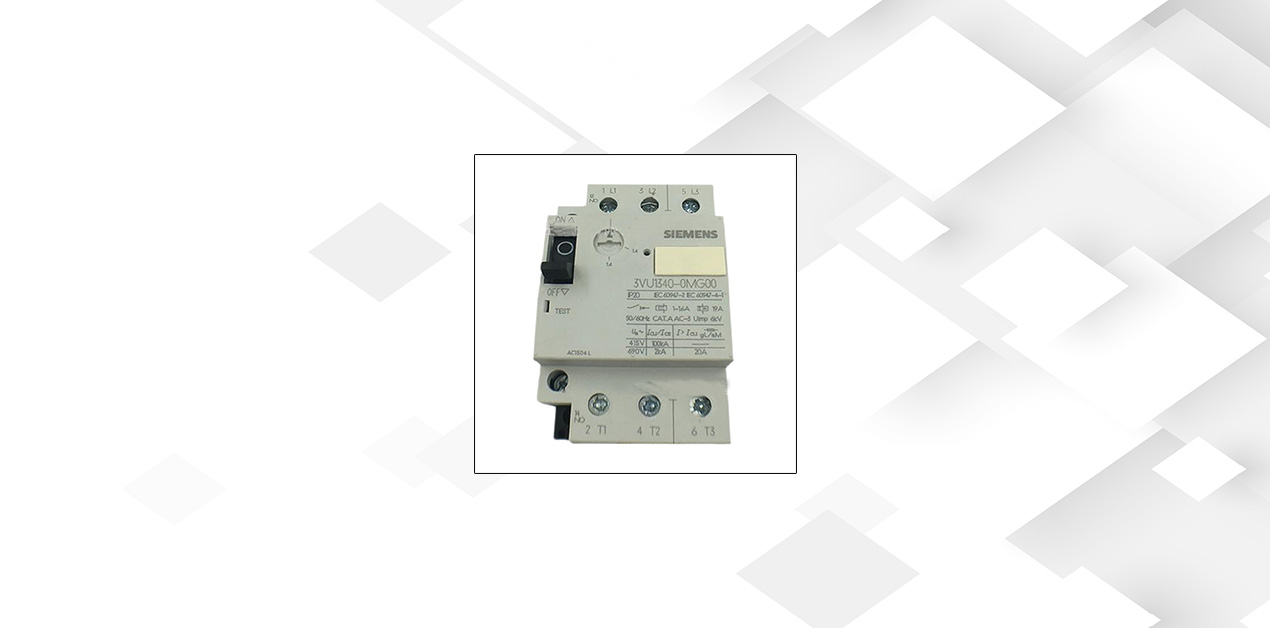

- Electrical components are famous Siemens brands, which is popular in market.
- Stable work ability.
- Lifting freely, flexible operation performance.
- Easy installation, easy adjustment, excellent performance, complete solutions.
- The lowest backlash.
- The maximum output torque.
- The highest torsion rigidity.
- High efficiency high quality low noise, life time lubrication.
- High precision, long life.
Frequently Asked Questions
What materials can be processed by this 3-roll plate bending machine?
This machine is suitable for processing carbon steel, stainless steel, aluminum, copper, high carbon steel, and various other metals.
Which industries commonly use this plate rolling machine?
It is widely utilized in steel processing, construction, shipbuilding, automobile manufacturing, machinery and power equipment manufacturing, pressure vessels, the energy industry, and aerospace.
What are the consumable parts of this machine and their lifespan?
The key consumable parts include the turbine shaft (with a usage life of more than 3 years) and the wear-resistant sleeve for the shaft head (with a usage life of approximately 3 years).
What component brands are integrated into the machine?
The system features components from reputable international brands, including Japan NOK parts and electrical components from Siemens to ensure stable operation.
How does the screw height adjustment mechanism work?
The mechanism consists of a screw and a nut. By rotating the screw, the nut moves up and down, enabling convenient height adjustment of the working surface.

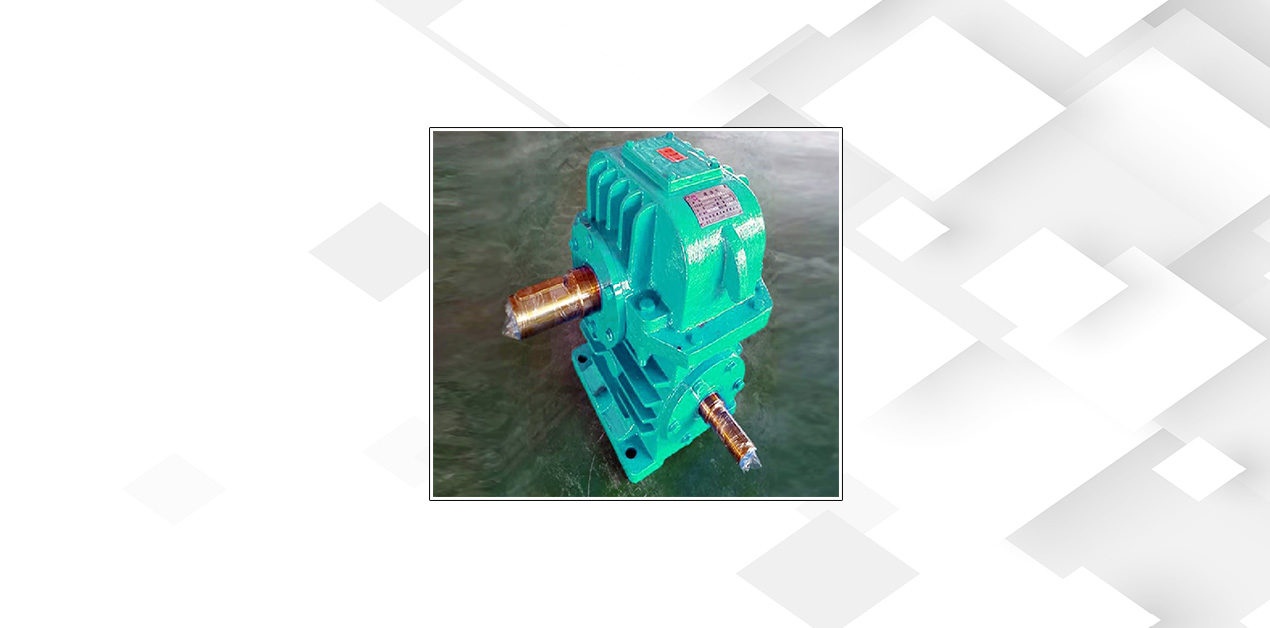

What makes the drive and gear system highly efficient?
The system is designed to provide the lowest backlash, maximum output torque, and the highest torsion rigidity, alongside low noise operation and lifetime lubrication for a long lifespan.
