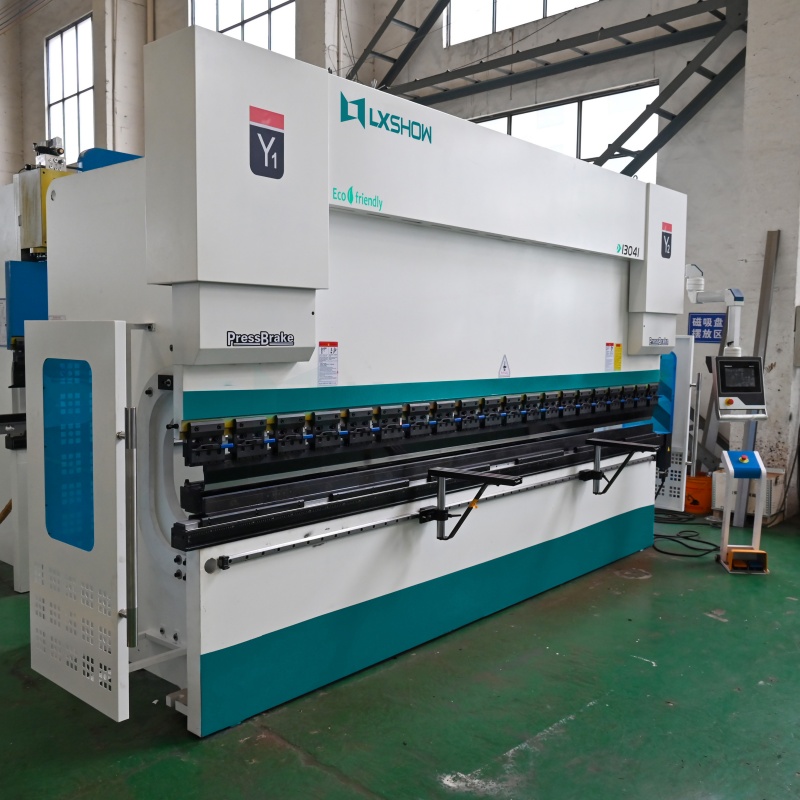

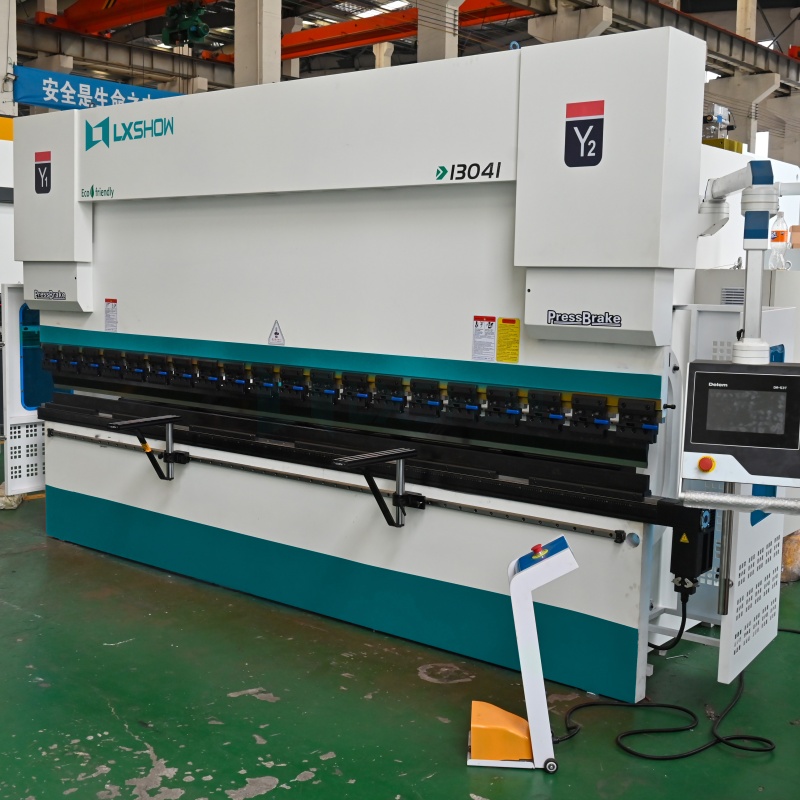

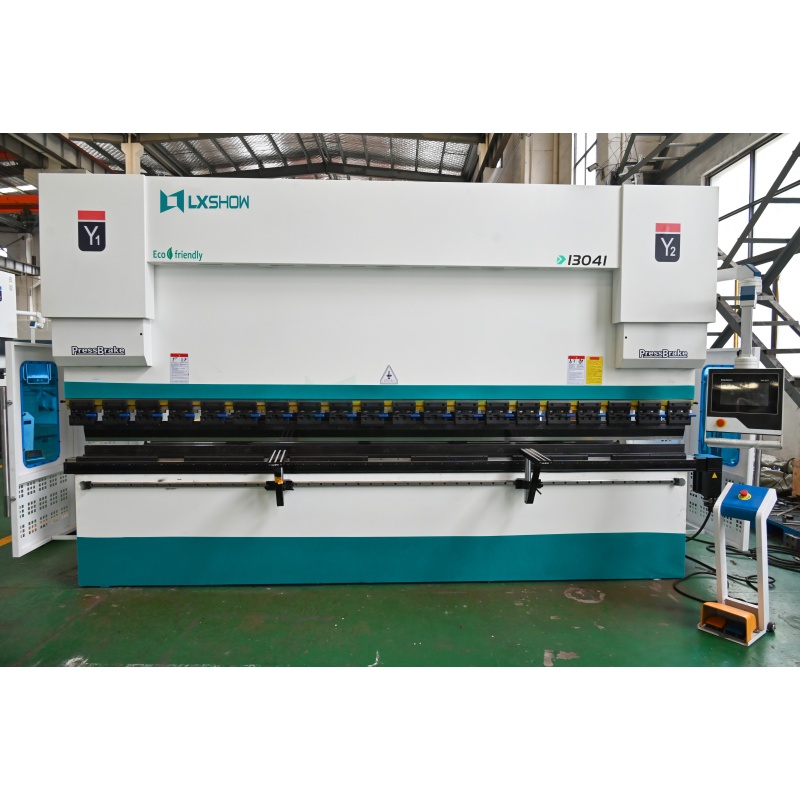

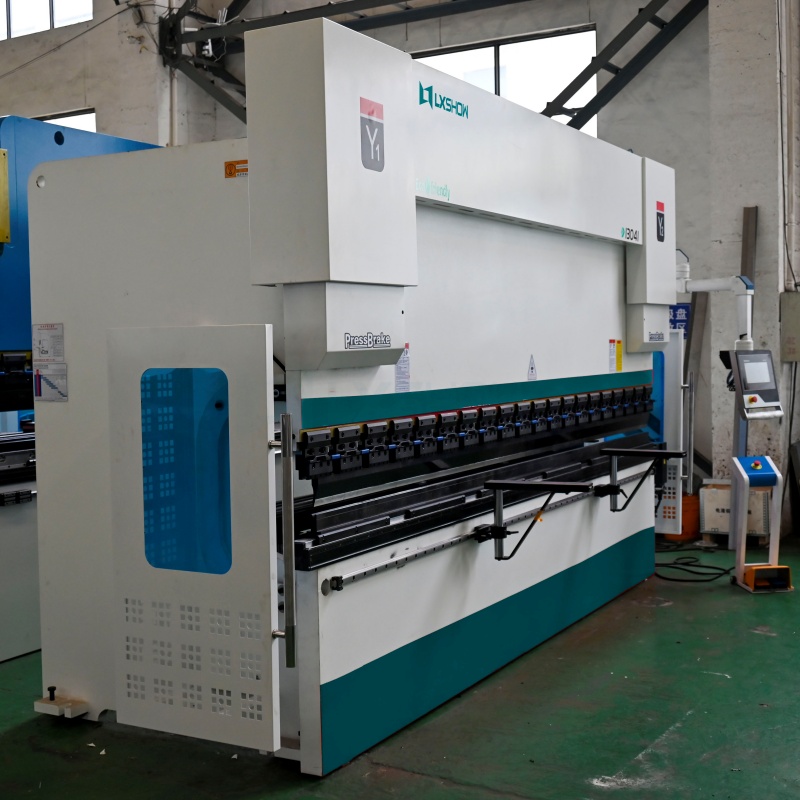

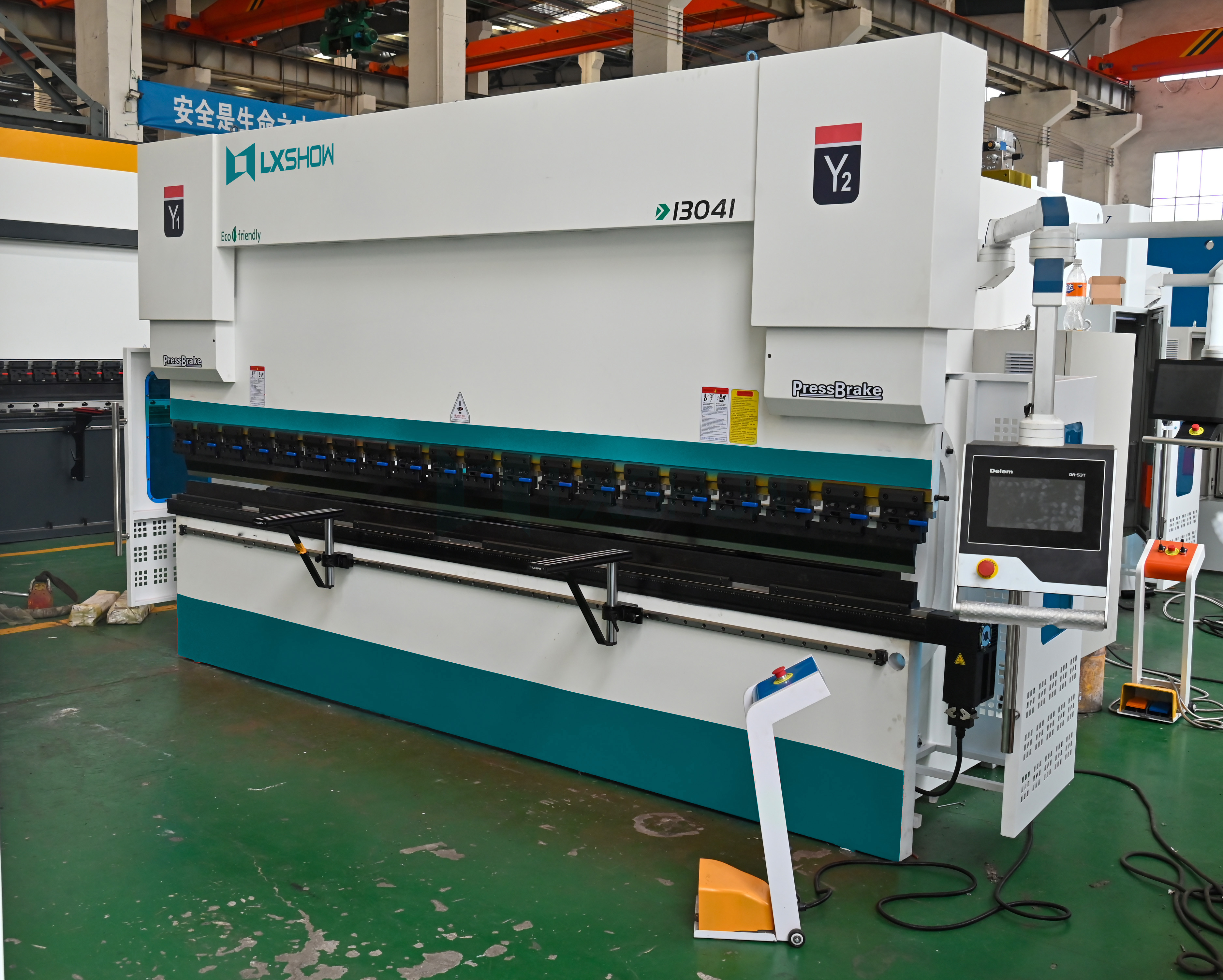

High-Quality WE67K-130T4100 Hot Sale High Efficiency Plate CNC Metal Bending Machine Manufacturers, Supplier

1 / 5

High-Quality WE67K-130T4100 Hot Sale High Efficiency Plate CNC Metal Bending Machine Manufacturers, Supplier

Send Inquiry

Product Description

Steel-welded structure and hydraulic components

Complete steel-welded structure, with sufficient strength and rigidity.
Hydraulic down-stroke structure, reliable and smooth.
Mechanical stop unit, synchronous torque, and high precision.
The backgauge adopts the backgauge mechanism of the T-type screw with smooth rod, which is driven by a motor.
Upper tool with tension compensating mechanism, in order to guarantee high precision of bending.

1 The new compact adds a state-of-the-art complete touch control solution for synchronized press brakes.
2 This panel-based control, standard capable of controlling up to 4 axes, can be integrated in cabinets as well as used in an optional pendulant arm housing.
3 Machine adjustment and test bends are reduced to a minimum with a quick and easy program-to-production work sequence.

Upper tool clamping device features a fast clamp design for efficient operations.

Aluminium alloy material platform offers an attractive appearance and decreases scratches on the workpiece.

Ball screw and linear guide configurations deliver high precision alignment.
Multi-V bottom die with different openings supports versatile bending tasks.

Convex wedge deflection compensation system

A convex wedge consists of a set of convex oblique wedges with a beveled surface. Each protruding wedge is designed by finite element analysis according to the deflection curve of the slide and worktable.
The CNC controller system calculates the required compensation amount based on the load force. This force causes deflection and deformation of the vertical plates of the slide and table. It automatically controls the relative movement of the convex wedge to effectively compensate for deflection deformation and obtain the ideal bending workpiece.

Adopt 2-V quick change clamping for bottom die to speed up setup changes.

Lasersafe PSC-OHS safety guard ensures direct communication between the CNC controller and the safety control module.
Dual beam front protection is positioned 4mm below the tip of the upper tool to protect the operator's fingers. Three regions (front, middle, and rear) of the laser can be flexibly closed to ensure complex box bending processing. The mute point is 6mm to realize efficient and safe production.

When marked, the bending support plate can realize the function of turning over and following. The following angle and speed are calculated and controlled by the CNC controller, moving left and right along the linear guide.
Adjust the height up and down by hand; front and rear can also be adjusted manually to suit different bottom die openings.
Support platform can be brush or stainless steel tube. According to the workpiece size, choose between two supports linkage movement or separate movement.

Technical Specifications

Parameter Name		Specification Detail
Machine model		WE67K-130T4100
Nominal Pressure		1300 kN
Bending length		4100 mm
Distance between columns		3200 mm
Throat Depth		320 mm
Opening Height		400 mm
Slide running condition	Moving journey/stroke	200 mm
	Fast down speed	180 mm/s
	Return speed	110 mm/s
	Working speed	10 mm/s
Slide running precision	Position accuracy	±0.03 mm
Slide running precision	Repeat Position accuracy	±0.02 mm
Main motor power	Power	11 KW
Main motor power	Rotate speed	1440 r/min
Operate system	Model	DA53T
Oil Pump	Model	USA Sunny
Bending precision	Angle	±30'
Bending precision	Straightness	±0.7 mm/m
Voltage		220/380/420/660V

Production & Quality Showcase

Samples

Packaging

Factory

Technical support and service department

Our Service

Customer Visit

Off-line Activity

Frequently Asked Questions

Do you have CE documentation and other documents for customs clearance?

Yes, we provide CE certificates and a full suite of customs clearance documentation. After shipment, we will provide you with the CE certificate, Packing List, Commercial Invoice, and Sales Contract to ensure a smooth clearance process.

If we are interested in your machine, how do we choose the right model?

Please share the specifications of your materials (such as carbon steel or stainless steel), the maximum thickness, and the maximum bending width required. Based on these details, we will recommend the most suitable machine configuration for you.

What is the warranty period for this machine?

We offer a 3-year quality guarantee. Main components (excluding consumables) will be replaced or maintained free of charge if any technical issues arise within the warranty period.

Do you provide after-sales support services?

Yes, we provide comprehensive guidance alongside skilled, globally available technical support teams to ensure your machinery operates efficiently and continuously.

Are there other configurations or machine styles available?

Yes, we offer multiple machine styles and custom setup options. Please review our design profiles or inquire directly for specific model variations.

How is the bending accuracy maintained over long-term usage?

High bending accuracy is achieved through a rigid steel-welded structure, high-precision linear guides, and a robust CNC deflection compensation system that adjusts automatically under different load forces.
