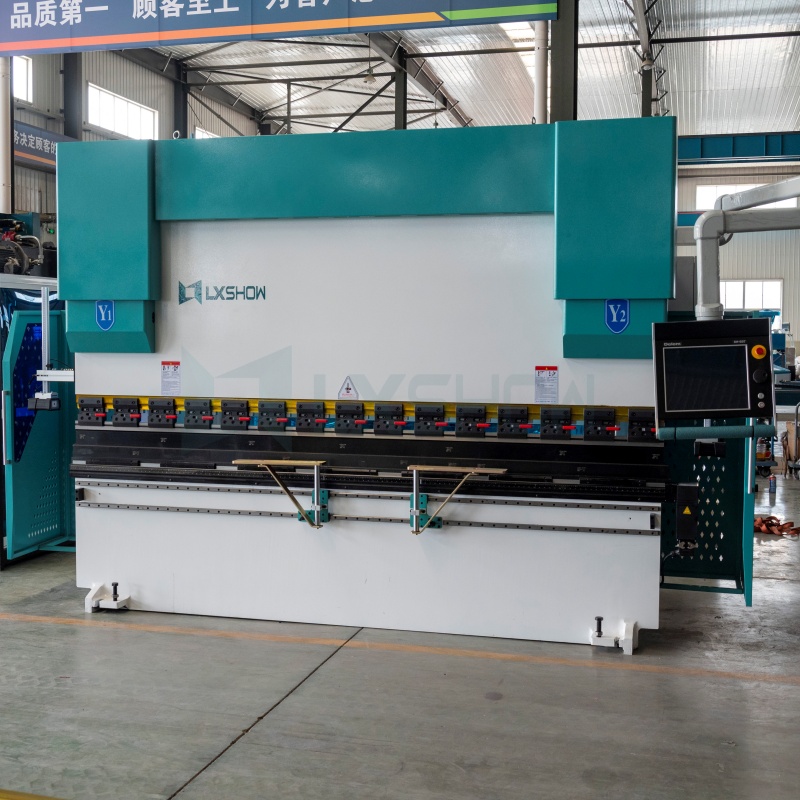

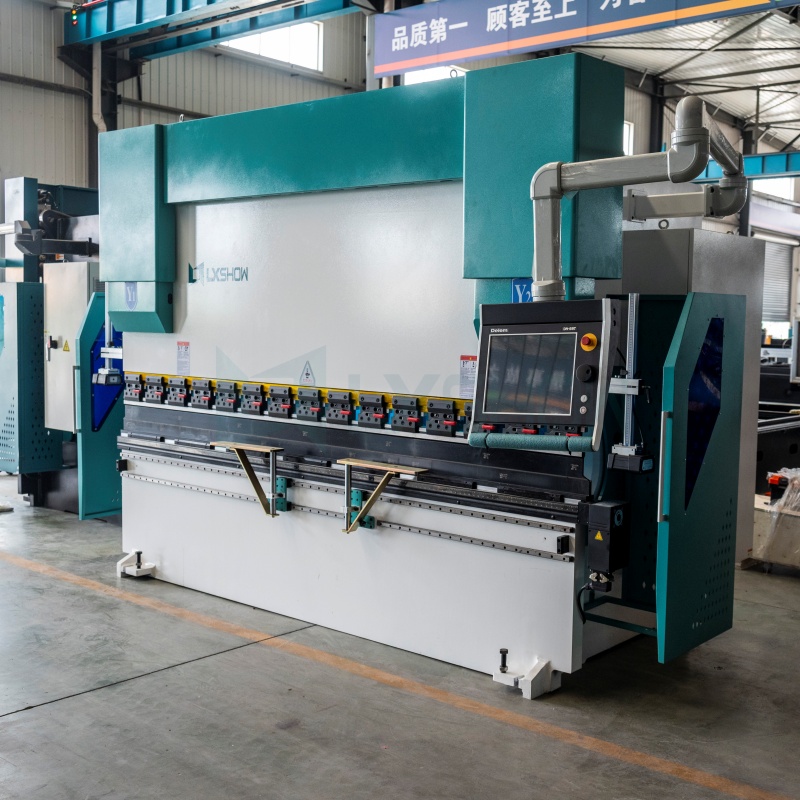

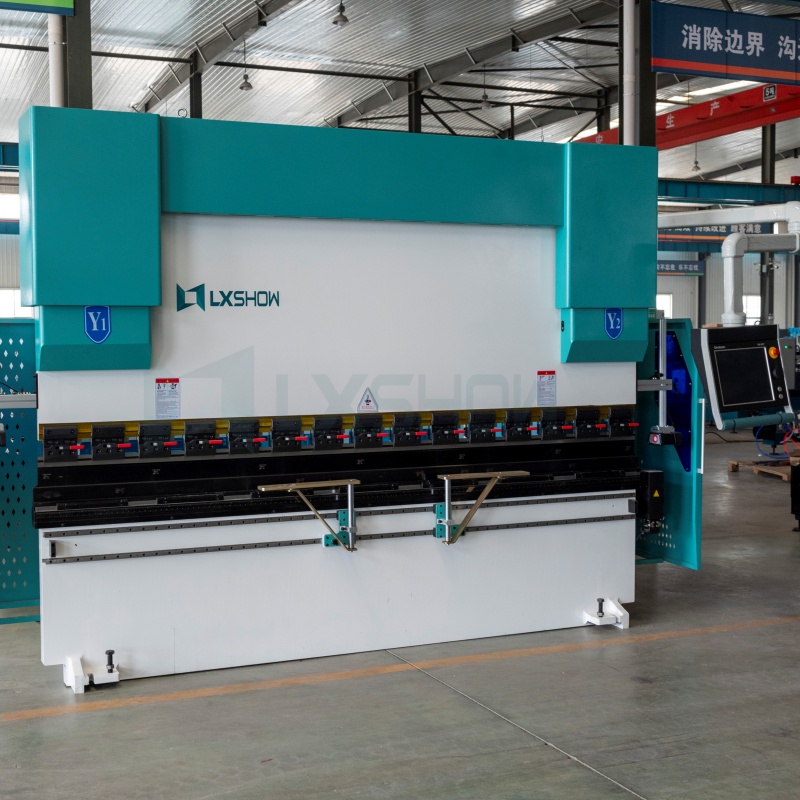

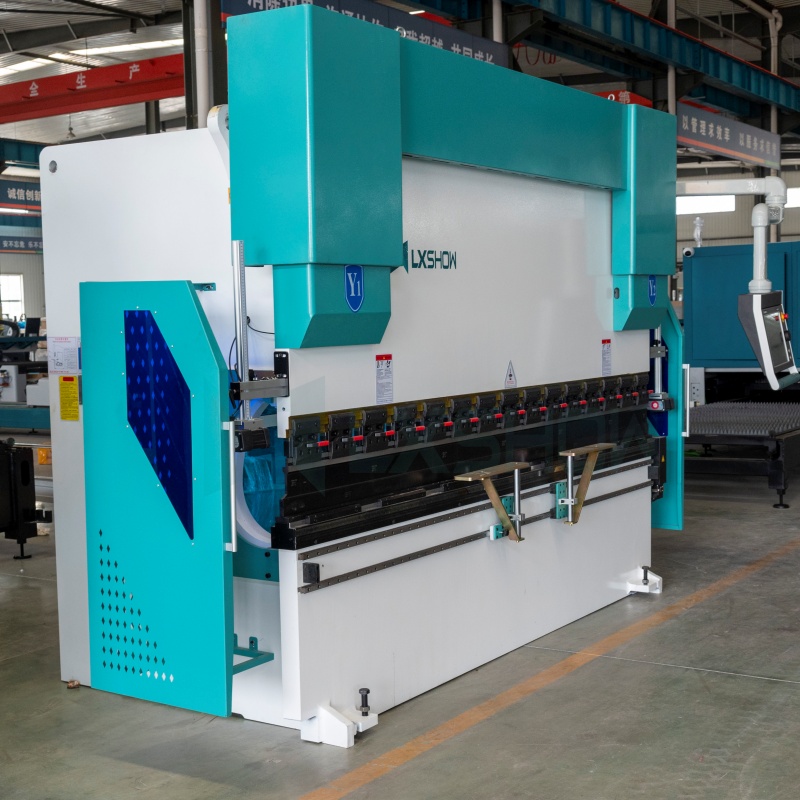

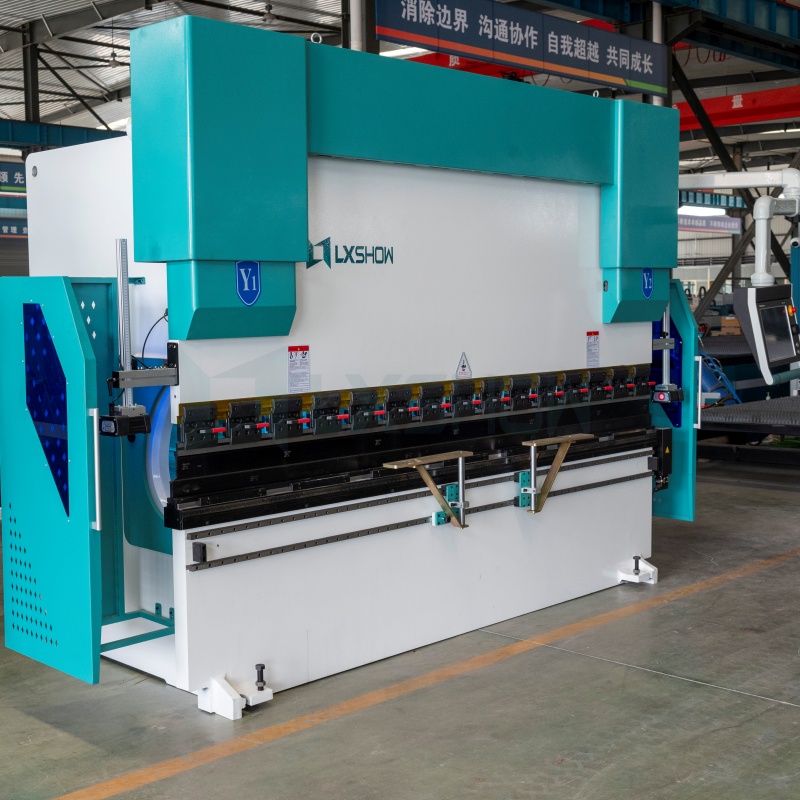

The DA-69T offers 2D as well as 3D programming that includes automatic bend sequence calculation and collision detection. Full 3D machine set-up with multiple tool stations giving true feedback on the product feasibility and handling. Highly effective control algorithms optimise the machine cycle and minimise set-up time. This makes using press brakes easier, more efficient and more versatile than ever.
Upper tool clamping device is fast clamp
Aluminium alloy material platform, attractive appearance, and decrease scratch of workpiece
Ball screw/liner guide are high precision
Multi-V bottom die with different openings
| Machine model | WE67K-125T3200 | |
| Nominal Pressure | 1250 kN | |
| Bending length | 3200 mm | |
| Distance between columns | 2460 mm | |
| Throat Depth | 320 mm | |
| MAX Pressure of system | 22Mpa | |
| Slide running condition | moving journey/stroke | 200mm |
| fast down speed | 180mm/s | |
| return speed | 110mm/s | |
| working speed | 10mm/s | |
| Slide running precision | Position accuracy | ±0.03mm |
| Repeat Position accuracy | ±0.02mm | |
| Main motor power | Power | 11 KW |
| rotate speed | 1440r/min | |
| Operate system | Model | DA69T |
| Oil Pump | Model | USA sunny |
| Bending precision | angle | ±30' |
| straightness | ±0.7mm/m | |
| Voltage | 220/380/420/660V | |
Samples
Packaging
Factory
Our Service
Customer Visit
Off-line Activity
Do you have CE document and other documents for customs clearance?
Yes, we have CE, providing you with a one-stop service. At first we will show you and after shipment we will give you CE, Packing list, Commercial Invoice, and Sales contract for customs clearance.
If we are interested in your machine, how do we choose?
Could you tell us your materials (carbon steel or stainless steel), their thickness, and the maximum bending width? Then we will confirm the most suitable machine model for you.
How about the warranty?
We offer a 3-year quality guarantee. The machine with main parts (excluding consumables) shall be changed free of charge (some parts will be maintained) if any problem occurs during the warranty period.
Do you have after-sales support?
Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running smoothly.
Do you have any other machine styles?
Yes, please check our available machine styles. If you have any questions, you can reach out for support at any time.
How does the deflection compensation system ensure bending accuracy?
The CNC controller system calculates the required compensation amount based on load force. This force causes deflection and deformation of the vertical plates of the slide and table, and automatically controls the relative movement of the convex wedge to effectively compensate for deflection deformation and obtain the ideal bending workpiece.
