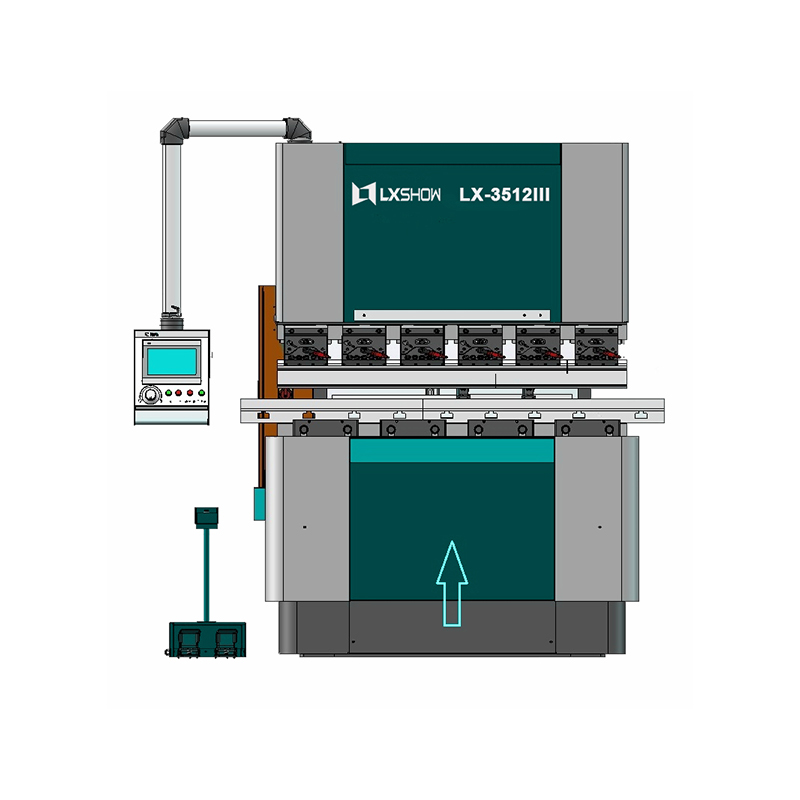

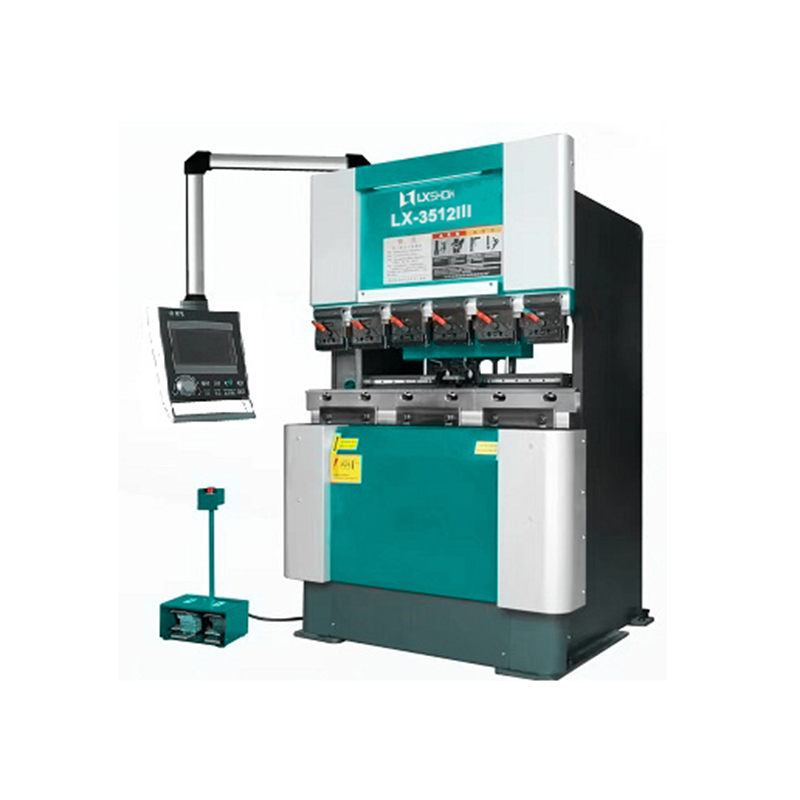

High-Quality LX-3512 Universal High Performance All-Electric Bending Machine for Sale Manufacturers, Factories

Product Description

Hydraulic Bending Machine System

Key Structural Features

  • The motor, hydraulic pump and valve group are installed under the oil tank, and the motor drives the pump body to supply pressure oil. The valve group is controlled by the electric hydraulic system to realize the rise of the workbench driven by the oil cylinder.
  • The lower table fall is a natural fall relying on its own weight, fast, stable and safe.
  • The hydraulic system design comes from the three-cylinder oil circuit design of the Japanese bending machine, and the hydraulic components of the same quality are assembled to reduce the hydraulic pipeline, so that the bending has a high degree of reliability and quality requirements.

Performance & Efficiency Advantages

⚡ 01
High bending accuracy. Angle accuracy can reach ±0.5°
⚡ 02
High bending speed, up and down fast forward can reach 58mm/s, bending speed to 12mm/s.
⚡ 03
With sufficient pressure and pressure holding capacity, to achieve the bending of various materials such as thick plate and stainless steel.
⚡ 04
The starting height of the lower table can be arbitrarily set to facilitate for quick bending.
⚡ 05
The cylinder works only when it is bent and falls back naturally when it is lowered. Energy saving than the traditional dynamic hydraulic type.
⚡ 06
When bending the working movement, the operator is easy to perceive the working state, improve safety.
Bending Machine Processing Details

Technical Specifications

Parameter Specification
Master cylinder capacity 26L
Feed speed 58 mm / s
Return speed 52 mm / s
Bending velocity 0--10 mm / s
Bending Angle accuracy ±0.5 °
Back stroke 450 mm
Back gauge forward and backward accuracy ±0.01 mm
Main motor power 3.5KW
Lower table travel 100 mm
Control axes 2

Gallery & Support

Frequently Asked Questions

❓ Do you have CE document and other documents for customs clearance?
Yes, we have CE, and we provide you with a one-stop service. At first we will show you and after shipment we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.
❓ If we are interested in your machine, how do we choose?
Could you tell us your materials (such as carbon steel or stainless steel) and their thickness? And the biggest bending width? Then we will confirm the machine model for you.
❓ How about warranty?
3 years quality guaranty. The machine with main parts (excluding the consumables) shall be changed free of charge (some parts will be maintained) if there is any problem during the warranty period.
❓ Do you have after sales support?
Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.
❓ Do you have any other machine style?
Yes, please check the gallery styles above. If you have any questions, you can reach support at any time, 24x7, we are always here.
❓ What is the bending capacity and motor power of this model?
This machine is equipped with a 26L capacity master cylinder and a 3.5KW main motor. The bending angle accuracy reaches ±0.5° with a lower table travel of 100 mm.
