| Parameter Name | Specification Details (WE67K-100T2500) | |
|---|---|---|
| Machine Model | WE67K-100T2500 | |
| Nominal Pressure | 1000 kN | |
| Bending Length | 2500 mm | |
| Distance Between Columns | 1990 mm | |
| Throat Depth | 320 mm | |
| MAX Pressure of System | 22 Mpa | |
| Slide Running Condition | Moving Journey / Stroke | 200 mm |
| Fast Down Speed | 180 mm/s | |
| Return Speed | 110 mm/s | |
| Working Speed | 10 mm/s | |
| Slide Running Precision | Position Accuracy | ±0.03 mm |
| Repeat Position Accuracy | ±0.02 mm | |
| Main Motor Power | Power | 11 KW |
| Rotate Speed | 1440 r/min | |

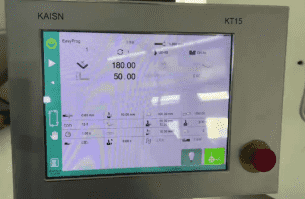

| Operate System | Model | KT15 |
| Oil Pump | Model | USA Sunny |
| Bending Precision | Angle | ±30' |
| Straightness | ±0.7 mm/m | |
| Voltage | 220 / 380 / 420 / 660 V | |
The system utilizes a convex wedge structure designed via finite element analysis, reflecting the precise deflection curve of the slide and worktable. The CNC controller calculates the real-time deflection of the vertical plates under loading force, and automatically moves the wedges to achieve compensation and ensure absolute straightness across the bending profile.
Includes a 2-V quick change clamping design dedicated to the bottom die configuration.
Lasersafe PSC-OHS Guard: Integrates direct communication between the CNC controller and the safety control module. Dual protection beams are focused 4mm below the top tool tip to prevent hand injury. Three independent laser regions (front, center, and back) can be configured selectively for box bending processing, with a speed transition mute point of 6mm.
Follower Bending Support Platform: Automatically adjusts the following angle and tracking speed calculated directly by the CNC controller. Equipped with linear guides for smooth lateral positioning. Adjust height manually to fit different bottom die openings. Available with brush or stainless steel support pipes.
