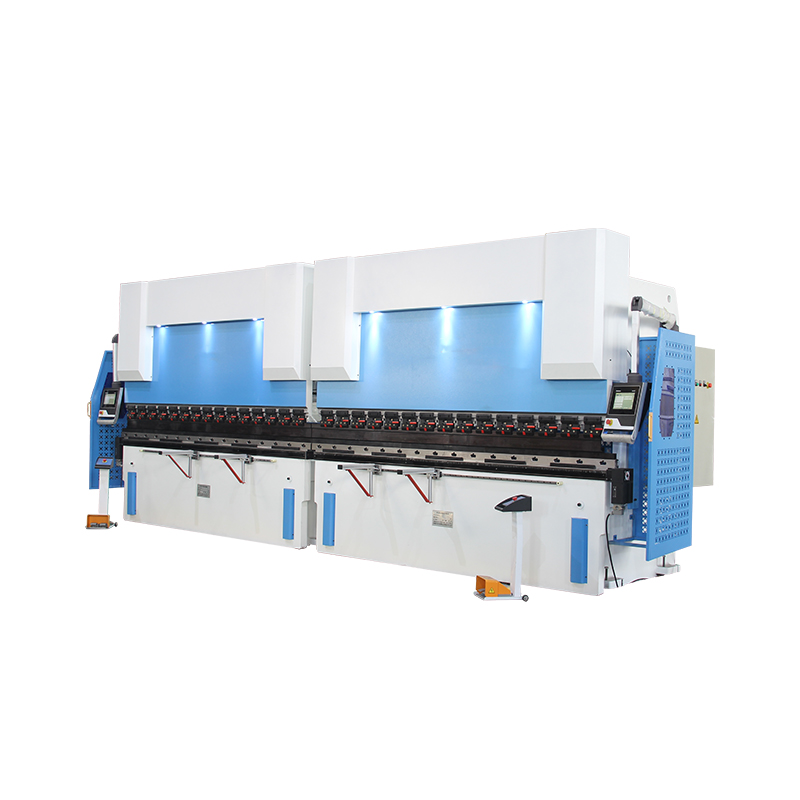

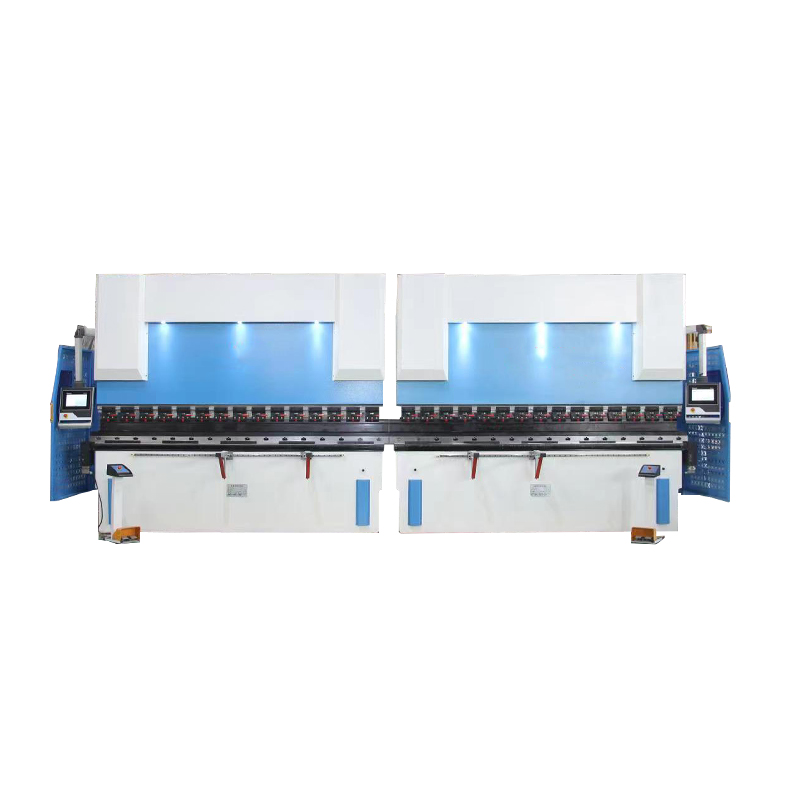

Custom WE67K-300T4000 Electric Hydraulic Bender Double Mechanical Linkage Manufacturer, Supplier

Premium Structural Design

✓ Complete steel-welded structure, with sufficient strength and rigidity.
✓ Hydraulic down-stroke structure, reliable and smooth.
✓ Mechanical stop unit, synchronous torque, and high precision.
✓ The backgauge adopts the backgauge mechanism of the T-type screw with smooth rod, which is driven by a motor.
✓ Upper tool with tension compensating mechanism, in order to guarantee high precision of bending.

Advanced Touch Control Solution

1 The new compact adds a state-of-the-art complete touch control solution for synchronized press brakes.
2 This panel-based control, standard capable of controlling up to 4 axes, can be integrated in cabinets as well as used in an optional pendulant arm housing.
3 Machine adjustment and test bends are reduced to a minimum with a quick and easy program-to-production work sequence.

Fast Clamping Device

Upper tool clamping device features a fast clamp mechanism for rapid tool changeover.

Aluminium Alloy Platform

Attractive appearance platform material, designed to significantly decrease workpiece scratching.

High-Precision Systems

Equipped with high-precision ball screw/linear guides and a Multi-V bottom die with different openings.

Deflection Compensation System

✓ A convex wedge consists of a set of convex oblique wedges with a beveled surface. Each protruding wedge is designed by finite element analysis according to the deflection curve of the slide and worktable.
✓ The CNC controller system calculates the required compensation amount based on the load force. This force causes deflection and deformation of the vertical plates of the slide and table.
✓ Automatically controls the relative movement of the convex wedge, so as to effectively compensate for the deflection deformation caused by the slider and the table riser, and obtain the ideal bending workpiece.
✓ Adopt 2-V quick change clamping for bottom die.

Advanced Safety & Plate Support

✓ Lasersafe PSC-OHS safety guard, offering direct communication between CNC controller and safety control module.
✓ Dual beam protection point is 4mm below the tip of upper tool to protect operator`s fingers. Three regions (front, middle, and rear) of laser can be flexibly closed to ensure complex box bending; mute point is 6mm to realize efficient production.
✓ The bending support plate realizes follow-up turning functions. Following angle and speed are calculated and controlled by CNC controller, moving along linear guide left and right.
✓ Adjust height up, down, front, and rear manually to suit different bottom die openings.
✓ Support platform can be brush or stainless steel tube. Two supports linkage or separate movement can be selected according to workpiece size.

Technical Parameters

Machine model		WE67K-300T4000
Nominal Pressure		13000 kN
Bending length		4000 mm
Distance between columns		2900 mm
Throat Depth		100 mm
MAX Pressure of system		22Mpa
Slide running condition	moving journey/stroke	200mm
	fast down speed	180mm/s
	return speed	110mm/s
	working speed	10mm/s
Slide running precision	Position accuracy	±0.03mm
Slide running precision	Repeat Position accuracy	±0.02mm
Main motor power	Power	11 KW
Main motor power	rotate speed	1440r/min
Operate system	Model	DA53T
Oil Pump	Model	USA sunny
Bending precision	angle	±30'
Bending precision	straightness	±0.7mm/m
Voltage		220/380/420/660V

Production & Capability Showcase

Samples

Packaging

Factory

Our Service

Customer Visit

Off-line Activity

Frequently Asked Questions

Q: Do you have CE document and other documents for customs clearance?

A: Yes, we have CE, and we provide you with a one-stop service. Initially, we will present the documents to you, and after shipment, we will provide the CE certificates, Packing List, Commercial Invoice, and Sales Contract required for customs clearance.

Q: If we are interested in your machine, how do we choose?

A: Simply inform us of your material types (carbon steel, stainless steel, etc.), their thickness, and your maximum bending width. Based on this information, we will confirm the most appropriate machine model for your requirements.

Q: How about the warranty period?

A: We offer a 3-year quality guarantee. If any problems occur during the warranty period, the machine's main parts (excluding consumables) shall be changed free of charge (some components will be maintained).

Q: Do you offer after-sales support?

A: Yes, we are glad to provide advice, and we have skilled technicians available across the world to ensure your machines continue running efficiently and keep your business running smoothly.

Q: Do you have any other machine styles?

A: Yes, we offer various configurations. Please check our detailed machine styles or review the specifications provided to find a match.

Q: What is the nominal pressure and operating system of the WE67K-300T4000 model?

A: The WE67K-300T4000 features a nominal pressure of 13000 kN, a bending length of 4000 mm, and is equipped with a DA53T operating system for high-precision control.
